SKODA FABIA 2012 2.G / 5J Owner's Manual

Specifications and engine oil capacity
The engine has been factory-filled with a high-grade oil that can be use through-
out the year - except in extreme climate zones.
Various oils can be mixed together when refilling. However, this does not apply to
vehicles with flexible service intervals.
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publica-
tion.
ŠKODA Service Partners are informed about the latest changes by
ŠKODA. We
therefore recommend that the oil change is completed by a ŠKODA Service Part-
ner.
The specifications (VW standards) stated in the following can be indicated sepa-
rately or together with other specifications on the bottle.
The oil capacities include oil filter change. Check the oil level when filling; do not
over fill. The oil level must be between the markings » page 141.
Specifications and capacity (in l) for vehicles with flexible service intervals Petrol engines SpecificationFilling level
1.2 l/44 kW VW 503 00, VW 504 00 2.8
1.2 l/51 kW VW 503 00, VW 504 00 2.8
1.4 l/63 kW VW 503 00, VW 504 00 3.2
1.4 ltr./132 kW TSI VW 504 003.6
1.2 ltr./63 kW TSI VW 504 003.6
1.2 ltr./77 kW TSI VW 504 003.6Diesel engines
SpecificationFilling level
1.2 ltr./55 kW TDI CR DPF VW 507 004.3
1.6 ltr./55 kW TDI CR DPF VW 507 004.3
1.6 ltr./66 kW TDI CR DPF VW 507 004.3
1.6 ltr./77 kW TDI CR DPF VW 507 004.3Specifications and capacity (in l) for vehicles with fixed service intervals
Petrol engines SpecificationFilling level
1.2 l/44 kW VW 501 01, VW 502 002.8
1.2 l/51 kW VW 501 01, VW 502 002.8 Petrol engines
SpecificationFilling level
1.4 l/63 kW VW 501 01, VW 502 003.2
1.6 l/77 kW VW 501 01, VW 502 003.6
1.4 ltr./132 kW TSI VW 502 003.6
1.2 ltr./63 kW TSI VW 502 003.6
1.2 ltr./77 kW TSI VW 502 003.6 If the oils specified above are not available, oils according to ACEA
A2 or ACEA A3
can be used once for refilling.
Diesel engines SpecificationFilling level
1.2 ltr./55 kW TDI CR DPF VW 507 004.3
1.6 ltr./55 kW TDI CR DPF VW 507 004.3
1.6 ltr./66 kW TDI CR DPF VW 507 004.3
1.6 ltr./77 kW TDI CR DPF VW 507 004.3 If the oils specified above are not available, oils according to ACEA
B3 or ACEA B4
can be used once for refilling. CAUTION
Only the above-mentioned oils can be used on vehicles with flexible service inter-
vals. We recommend always refilling with oil of the same specification since this
will maintain the properties of the oil. In exceptional cases, a maximum of 0.5

l of
specification VW 502 00 (only for petrol engines) or specification VW 505 01 (only
for diesel engines) engine oil can be used to refill once. Other engine oils must
not be used - risk of engine damage! Note
■ Before a long drive we recommend that you purchase and carry with you engine
oil which complies with the specification for your vehicle. ■ We recommend that you use oils from ŠKODA Original Accessories. Ð 179
Technical data

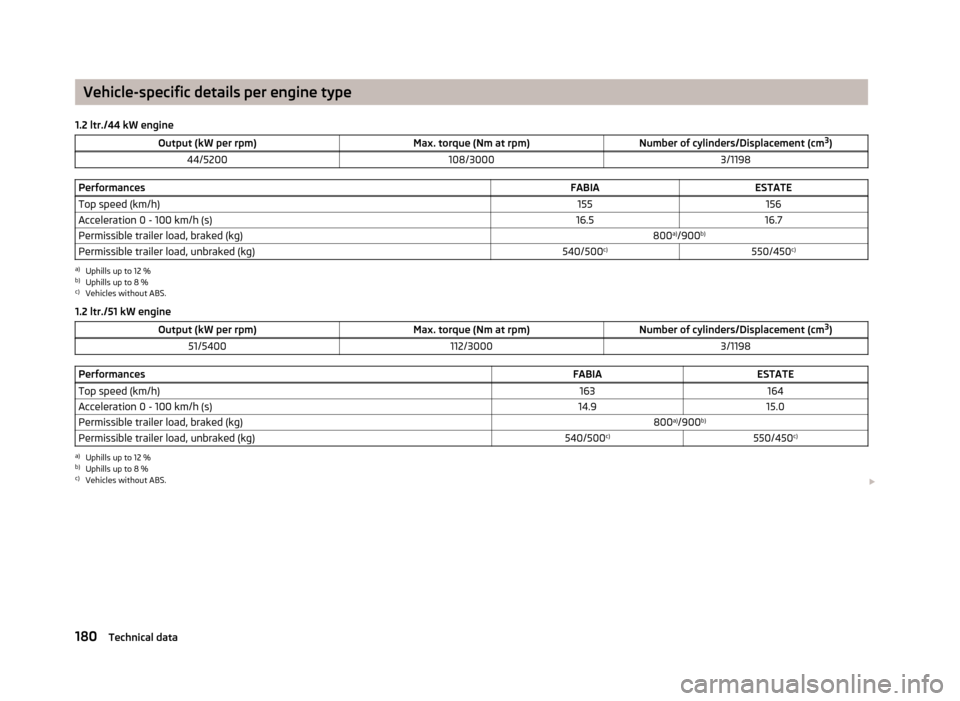

Vehicle-specific details per engine type
1.2 ltr./44 kW engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
44/5200 108/3000 3/1198Performances
FABIAESTATE
Top speed (km/h) 155156
Acceleration 0 - 100 km/h (s) 16.516.7
Permissible trailer load, braked (kg) 800a)
/900 b)
Permissible trailer load, unbraked (kg) 540/500c)
550/450c)a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS.
1.2 ltr./51
kW engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
51/5400 112/3000 3/1198Performances
FABIAESTATE
Top speed (km/h) 163164
Acceleration 0 - 100 km/h (s) 14.915.0
Permissible trailer load, braked (kg) 800a)
/900 b)
Permissible trailer load, unbraked (kg) 540/500c)
550/450c)a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS. £180
Technical data

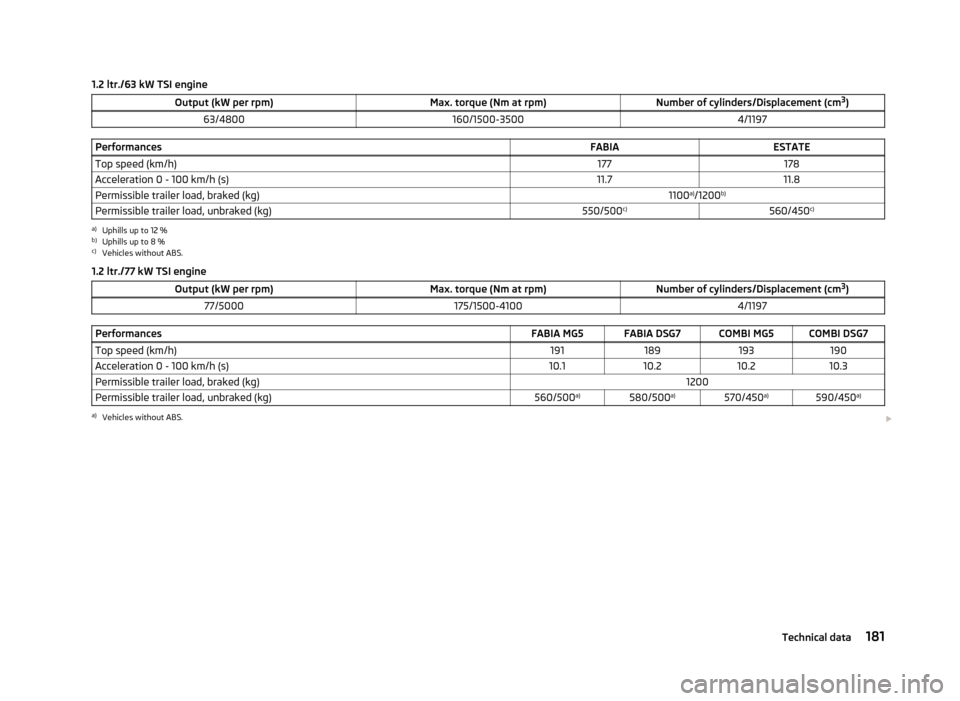

1.2 ltr./63 kW TSI engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
63/4800 160/1500-3500 4/1197Performances
FABIAESTATE
Top speed (km/h) 177178
Acceleration 0 - 100 km/h (s) 11.711.8
Permissible trailer load, braked (kg) 1100a)
/1200 b)
Permissible trailer load, unbraked (kg) 550/500c)
560/450c) a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS.
1.2 ltr./77 kW TSI engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
77/5000 175/1500-4100 4/1197Performances
FABIA MG5 FABIA DSG7 COMBI MG5 COMBI DSG7
Top speed (km/h) 191189 193190
Acceleration 0 - 100 km/h (s) 10.110.210.210.3
Permissible trailer load, braked (kg) 1200
Permissible trailer load, unbraked (kg) 560/500a)
580/500a)
570/450a)
590/450a) a)
Vehicles without ABS. £ 181
Technical data

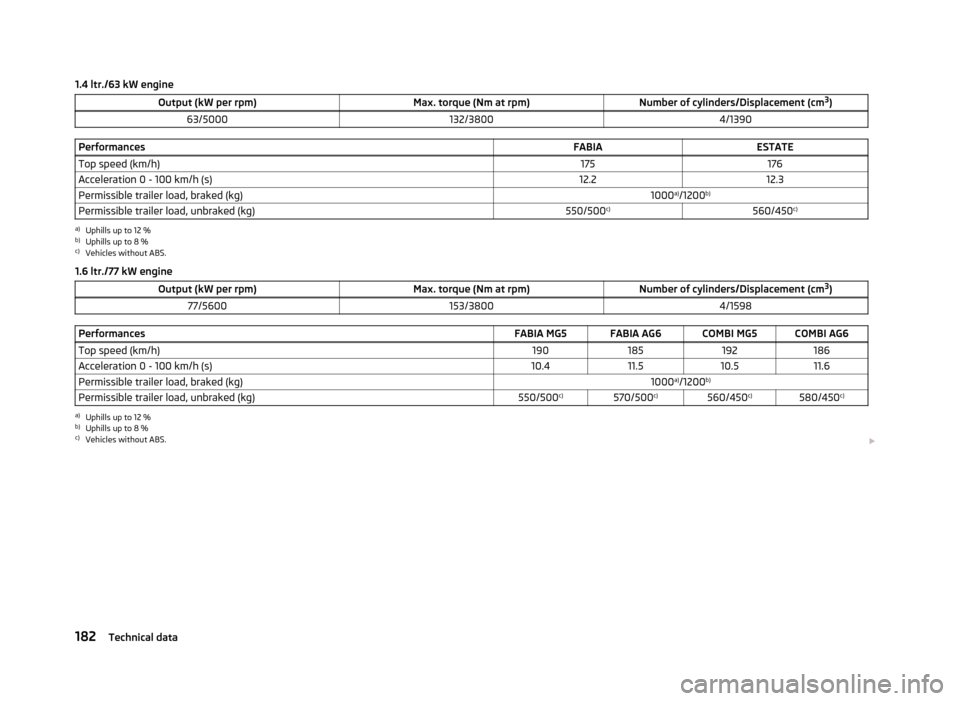

1.4 ltr./63 kW engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
63/5000 132/3800 4/1390Performances
FABIAESTATE
Top speed (km/h) 175176
Acceleration 0 - 100 km/h (s) 12.212.3
Permissible trailer load, braked (kg) 1000a)
/1200 b)
Permissible trailer load, unbraked (kg) 550/500c)
560/450c)a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS.
1.6 ltr./77 kW engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
77/5600 153/3800 4/1598Performances
FABIA MG5 FABIA AG6 COMBI MG5 COMBI AG6
Top speed (km/h) 190185192186
Acceleration 0 - 100 km/h (s) 10.411.510.5 11.6
Permissible trailer load, braked (kg) 1000a)
/1200 b)
Permissible trailer load, unbraked (kg) 550/500c)
570/500c)
560/450c)
580/450c)a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS. £182
Technical data

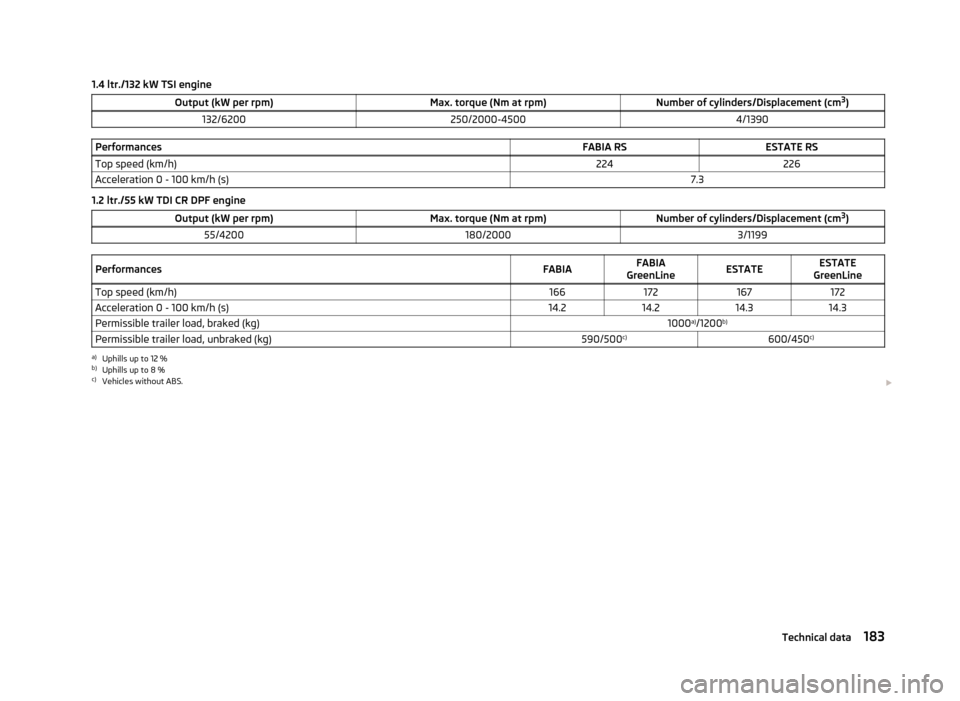

1.4 ltr./132 kW TSI engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
132/6200 250/2000-4500 4/1390Performances
FABIA RSESTATE RS
Top speed (km/h) 224226
Acceleration 0 - 100 km/h (s) 7.31.2 ltr./55 kW TDI CR DPF engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
55/4200 180/2000 3/1199Performances
FABIAFABIA
GreenLine ESTATEESTATE
GreenLine
Top speed (km/h) 166172167 172
Acceleration 0 - 100 km/h (s) 14.214.214.314.3
Permissible trailer load, braked (kg) 1000a)
/1200 b)
Permissible trailer load, unbraked (kg) 590/500c)
600/450c) a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS. £ 183
Technical data

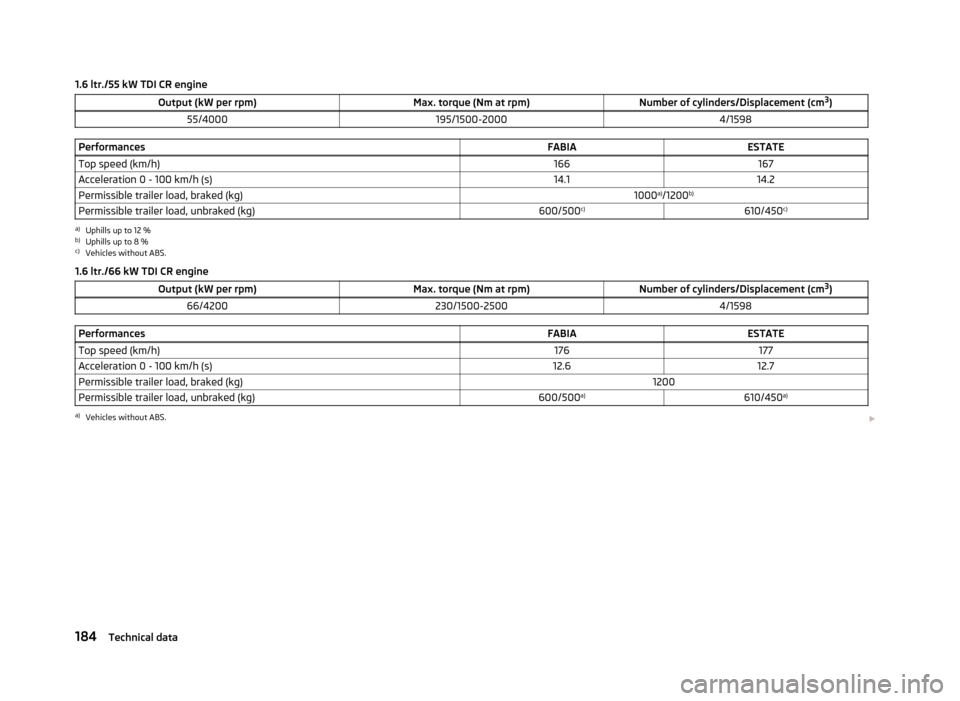

1.6 ltr./55 kW TDI CR engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
55/4000 195/1500-2000 4/1598Performances
FABIAESTATE
Top speed (km/h) 166167
Acceleration 0 - 100 km/h (s) 14.114.2
Permissible trailer load, braked (kg) 1000a)
/1200 b)
Permissible trailer load, unbraked (kg) 600/500c)
610/450c)a)
Uphills up to 12 %
b) Uphills up to 8 %
c) Vehicles without ABS.
1.6 ltr./66 kW TDI CR engine Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
66/4200 230/1500-2500 4/1598Performances
FABIAESTATE
Top speed (km/h) 176177
Acceleration 0 - 100 km/h (s) 12.612.7
Permissible trailer load, braked (kg) 1200
Permissible trailer load, unbraked (kg) 600/500a)
610/450a)a)
Vehicles without ABS. £184
Technical data

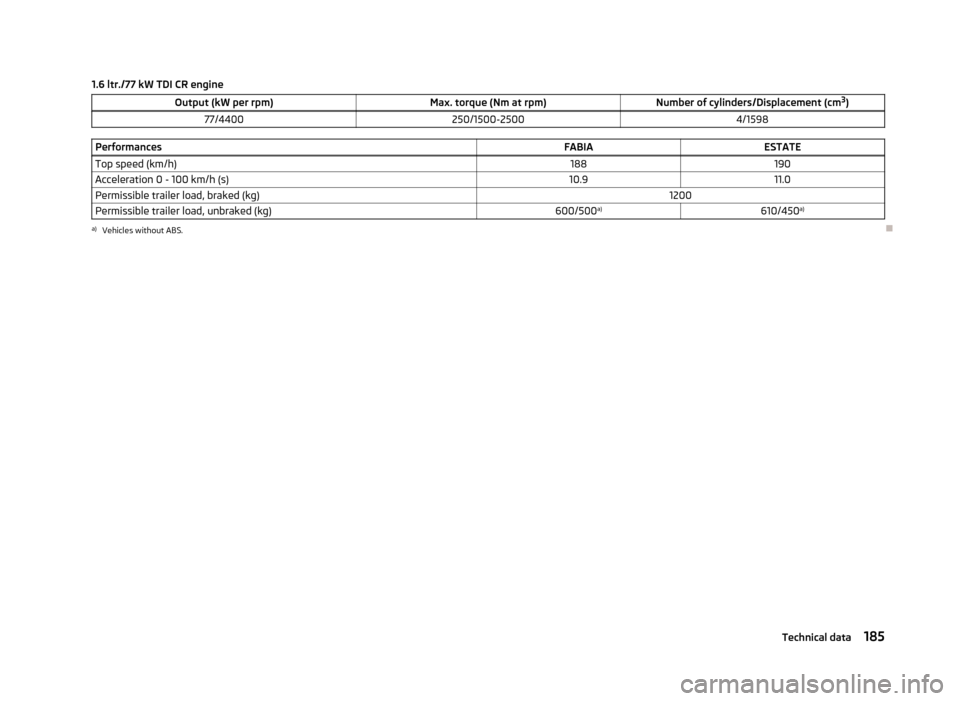

1.6 ltr./77 kW TDI CR engine
Output (kW per rpm) Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)
77/4400 250/1500-2500 4/1598Performances
FABIAESTATE
Top speed (km/h) 188190
Acceleration 0 - 100 km/h (s) 10.911.0
Permissible trailer load, braked (kg) 1200
Permissible trailer load, unbraked (kg) 600/500a)
610/450a) a)
Vehicles without ABS. Ð
185
Technical data

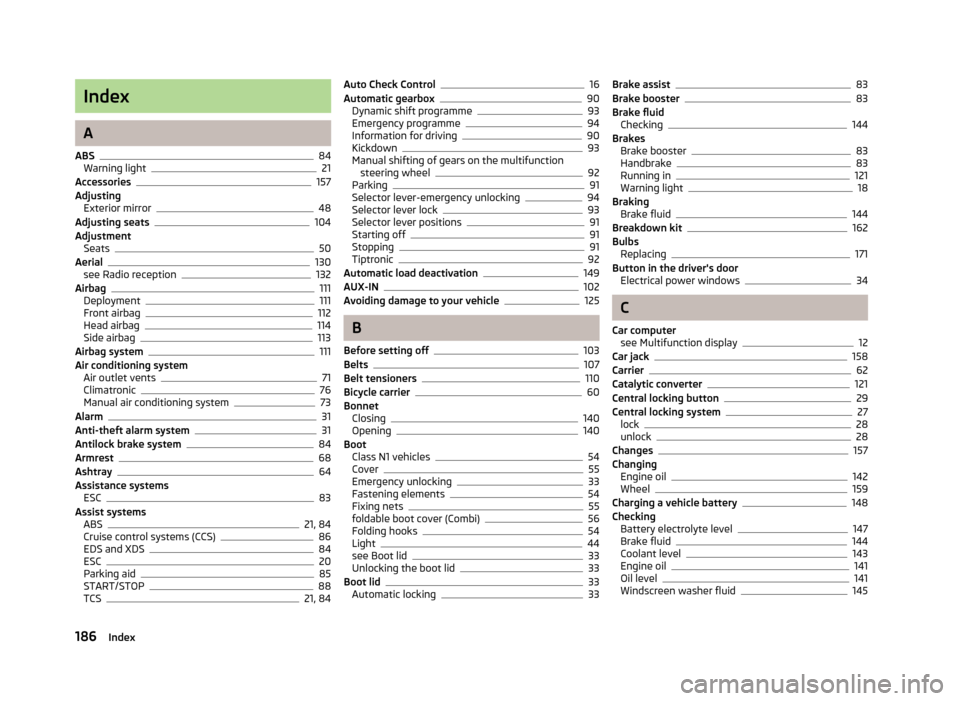

Index
A
ABS 84
Warning light 21
Accessories 157
Adjusting Exterior mirror 48
Adjusting seats 104
Adjustment Seats 50
Aerial 130
see Radio reception 132
Airbag 111
Deployment 111
Front airbag 112
Head airbag 114
Side airbag 113
Airbag system 111
Air conditioning system Air outlet vents 71
Climatronic 76
Manual air conditioning system 73
Alarm 31
Anti-theft alarm system 31
Antilock brake system 84
Armrest 68
Ashtray 64
Assistance systems ESC 83
Assist systems ABS 21, 84
Cruise control systems (CCS) 86
EDS and XDS 84
ESC 20
Parking aid 85
START/STOP 88
TCS 21, 84Auto Check Control 16
Automatic gearbox 90
Dynamic shift programme 93
Emergency programme 94
Information for driving 90
Kickdown 93
Manual shifting of gears on the multifunction steering wheel 92
Parking 91
Selector lever-emergency unlocking 94
Selector lever lock 93
Selector lever positions 91
Starting off 91
Stopping 91
Tiptronic 92
Automatic load deactivation 149
AUX-IN 102
Avoiding damage to your vehicle 125
B
Before setting off 103
Belts 107
Belt tensioners 110
Bicycle carrier 60
Bonnet Closing 140
Opening 140
Boot Class
N1 vehicles 54
Cover 55
Emergency unlocking 33
Fastening elements 54
Fixing nets 55
foldable boot cover (Combi) 56
Folding hooks 54
Light 44
see Boot lid 33
Unlocking the boot lid 33
Boot lid 33
Automatic locking 33Brake assist 83
Brake booster 83
Brake fluid Checking 144
Brakes Brake booster 83
Handbrake 83
Running in 121
Warning light 18
Braking Brake fluid 144
Breakdown kit 162
Bulbs Replacing 171
Button in the driver's door Electrical power windows 34
C
Car computer see Multifunction display 12
Car jack 158
Carrier 62
Catalytic converter 121
Central locking button 29
Central locking system 27
lock 28
unlock 28
Changes 157
Changing Engine oil 142
Wheel 159
Charging a vehicle battery 148
Checking Battery electrolyte level 147
Brake fluid 144
Coolant level 143
Engine oil 141
Oil level 141
Windscreen washer fluid 145
186 Index

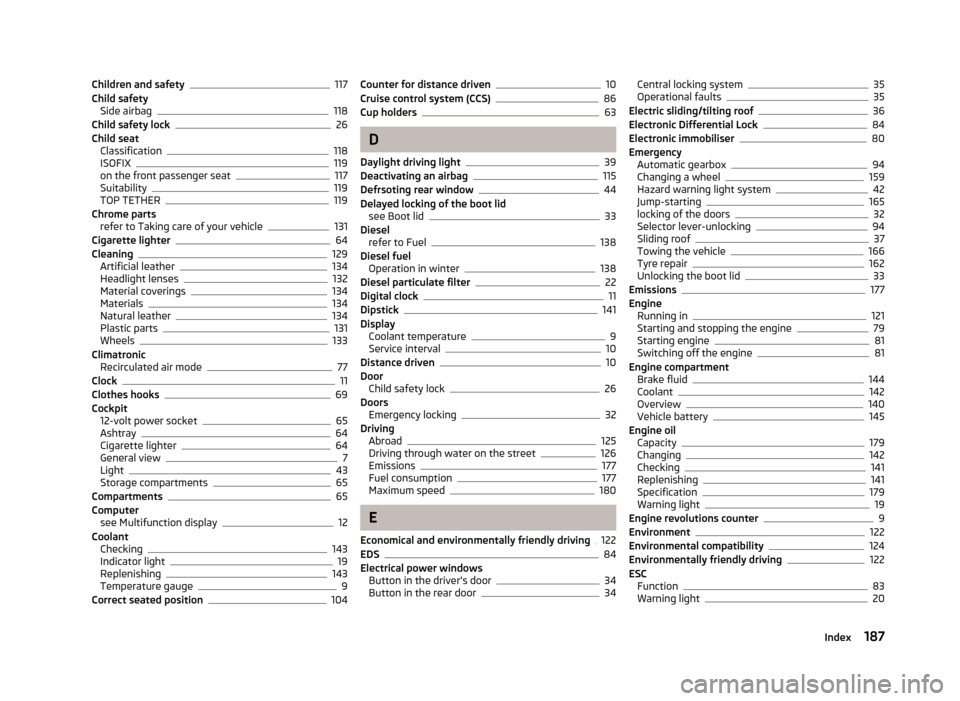

Children and safety 117
Child safety Side airbag 118
Child safety lock 26
Child seat Classification 118
ISOFIX 119
on the front passenger seat 117
Suitability 119
TOP TETHER 119
Chrome parts refer to Taking care of your vehicle 131
Cigarette lighter 64
Cleaning 129
Artificial leather 134
Headlight lenses 132
Material coverings 134
Materials 134
Natural leather 134
Plastic parts 131
Wheels 133
Climatronic Recirculated air mode 77
Clock 11
Clothes hooks 69
Cockpit 12-volt power socket 65
Ashtray 64
Cigarette lighter 64
General view 7
Light 43
Storage compartments 65
Compartments 65
Computer see Multifunction display 12
Coolant Checking 143
Indicator light 19
Replenishing 143
Temperature gauge 9
Correct seated position 104Counter for distance driven 10
Cruise control system (CCS) 86
Cup holders 63
D
Daylight driving light 39
Deactivating an airbag 115
Defrsoting rear window 44
Delayed locking of the boot lid see Boot lid 33
Diesel refer to Fuel 138
Diesel fuel Operation in winter 138
Diesel particulate filter 22
Digital clock 11
Dipstick 141
Display Coolant temperature 9
Service interval 10
Distance driven 10
Door Child safety lock 26
Doors Emergency locking 32
Driving Abroad 125
Driving through water on the street 126
Emissions 177
Fuel consumption 177
Maximum speed 180
E
Economical and environmentally friendly driving 122
EDS 84
Electrical power windows Button in the driver's door 34
Button in the rear door 34Central locking system 35
Operational faults 35
Electric sliding/tilting roof 36
Electronic Differential Lock 84
Electronic immobiliser 80
Emergency Automatic gearbox 94
Changing a wheel 159
Hazard warning light system 42
Jump-starting 165
locking of the doors 32
Selector lever-unlocking 94
Sliding roof 37
Towing the vehicle 166
Tyre repair 162
Unlocking the boot lid 33
Emissions 177
Engine Running in 121
Starting and stopping the engine 79
Starting engine 81
Switching off the engine 81
Engine compartment Brake fluid 144
Coolant 142
Overview 140
Vehicle battery 145
Engine oil Capacity 179
Changing 142
Checking 141
Replenishing 141
Specification 179
Warning light 19
Engine revolutions counter 9
Environment 122
Environmental compatibility 124
Environmentally friendly driving 122
ESC Function 83
Warning light 20
187
Index

F
Fire extinguisher 158
First-aid kit 158
Floor mats 85
Front airbag 112
Front seats 49
Fuel 136
Diesel 138
Fuel gauge 9
gauge 9
refer to Fuel 136
Refuelling 136
Unleaded petrol 137
Fuel consumption 122
Fuses Assignment 168
Replacing 168
G
Gear Recommended gear 11
General view Cockpit 7
Glow plug system - indicator light 22
GSM 95
H
Handbrake 83
Head airbag 114
Headlight cleaning system Headlight cleaning system 46
Headlights Driving abroad 125
Headlight cleaning system 46
Head restraint 51Heating 71
Defrosting windows 72
Exterior mirror 48
Rear window 44
Recirculated air mode 72
Seats 50
Heating rear window 44
Horn 7
I
Ignition 81
Ignition lock 81
Immobiliser 80
Information display see MAXI DOT 15
Instrument cluster 8
Interior monitor 31
ISOFIX 119
J
Jacking points Raise vehicle 161
Jump-starting 165
L
Lever Main beam 42
Turn signal 42
Light Cockpit 43
Daylight driving light 39
Fog lights 40
Fog lights with the function CORNER 40
Halogen projector headlights with cornering light function 39
Hazard warning light system 42
Headlight beam adjustment 41
Headlight flasher 42Low beam 38
Main beam 42
Parking light 38, 39
Rear fog light 41
Replacing bulbs 171
Tourist light 40
Turn signal 42
Lights switching on and off 38
Warning lights 17
Loads 177
Lock Central locking system 28
Locking Emergency locking 32
Remote control 30
without central locking 26
Locking and unlocking from the inside 29
Luggage compartment variable loading floor 57
M
MAXI DOT 15
Main menu 15
Settings 15
Maximum speed 180
MDI 102
Mirror Additional interior mirror 47
Exterior mirror 48
Manual dimming interior mirror 47
Vanity 44
Mobile phone 95
Connecting to the hands-free system 97
Multifunction display Functions 12
Memory 12
Operation 13
Multimedia 101
188 Index
