Towing device and trailer
Hitch
Introduction
This chapter contains information on the following subjects:
Description
119
Adjusting the ready position
120
Check the setting of the standby position
120
Assembling the bar ball - Step 1
120
Assembling the bar ball - Step 2
121
Check proper fitting
121
Removing the bar ball - Step 1
122
Removing the bar ball - Step 2
122
Vertical load with mounted accessories
123
The maximum trailer nose weight when towing a trailer is 50 kg. Other data
(e.g. shown onthe nameplate of the hitch) on provides information about the
test values of the device .
WARNING■ Check that the ball head is seated correctly and is secured in the mount-
ing recess before starting any journey.■
When the knee-joint bar is not used and properly secured in the receiving
shaft, it is damaged or incomplete, this must not be used - there is a risk of
an accident.
■
Do not modify or adapt the towing equipment in any way.
■
Keep the mounting recess of the towing equipment clean at all times.
Such dirt prevents the ball head from being attached securely.
DescriptionFig. 150
Carrier for the towing device / tow bar
Read and observe
on page 119 first.
The knee-joint bar is detachable and is located in the storage compartment for
the spare / emergency wheel.
Support for the towing device and tow bar » Fig. 150
Cover for the mounting recess
Mounting recess
Dust cap
Ball head
Operating lever
Lock cap
Release pin
Key
Locking ball
123456789119Towing device and trailer

Adjusting the ready positionFig. 151
Remove cap from the lock / insert key into the lock
Fig. 152
Lock unlock / press release bolt and lever and push
Read and observe
on page 119 first.
The tow bar must be set prior to installation to the standby position
» page 120 , Check the setting of the standby position .
›
Grip the tow bar below the protective cap.
›
Remove the cover
A
from the lock in the direction of the arrow
1
» Fig. 151 .
›
Insert the key
B
into the lock in the direction of arrow
2
, so that its green
marker points upward.
›
Turn the key
B
in the direction of arrow
3
so that the red marking points
upwards » Fig. 152.
›
Push in the release bolt
C
in the direction of arrow
4
until it stops and si-
multaneously press the operating lever
D
in the direction of arrow
5
until it
stops.
The operating lever
D
remains locked in this position.
Check the setting of the standby positionFig. 153
Ready position
Read and observe on page 119 first.
Correctly adjusted standby position » Fig. 153
The operating lever
A
is locked in the lower position.
The release bolts
B
can be moved.
The red mark on the key
C
is pointing upwards.
In the ready position, the key cannot be removed or turned into a different po-
sition.
Assembling the bar ball - Step 1
Fig. 154
Removing cap: on the rear bumper / for the receiving shaft 
120Driving

Fig. 155
Insert ball rod / trigger bolt in the extended state
Read and observe
on page 119 first.
The tow bar must be set to the standby position » page 120.
Preparing installation
›
Remove the cover cap
A
in the direction of arrow
1
» Fig. 154 using the on-
board tool clamp for pulling off the wheel trims.
›
Remove cover cap
B
in the direction of arrow
2
» .
Fitting
›
Grip the tow bar from underneath » Fig. 155 and insert into the mounting re-
cess in arrow direction
3
until you hear it click into place » .
The operating lever
C
automatically turns upwards in the direction of arrow
4
and the release pin
D
pops out (both its red and green parts are visible)
» .
If the operating lever
C
does not turn automatically, or if the release pin
D
does not pop out, remove the tow bar from the mounting recess by turning the
operating lever
C
downwards as far as it can go. Clean the contact surfaces
on the tow bar and the mounting recess.
WARNING■ Carefully remove the cap for the mounting recess B - there is a risk of
hand injury.■
Keep your hands outside the operating lever's range of motion when at-
taching the ball head – there is a risk of finger injury.
■
Never attempt to pull the operating lever upwards forcibly to turn the
key. Doing so would mean the ball head is not attached correctly.
Assembling the bar ball - Step 2Fig. 156
Secure the lock and remove key / place cap on lock
Read and observe
on page 119 first.
›
Turn the key
A
in the direction of arrow
1
so that the green marking points
upwards » Fig. 156 .
›
Remove the key in the direction of the arrow
2
.
›
Fit and press in the cap
B
on the hand-wheel lock in the direction of the ar-
row
3
.
›
Check the ball head for secure mounting » page 121, Check proper fitting .
Check proper fitting
Fig. 157
Correctly secured ball head
Read and observe on page 119 first.
Correctly secured ball rod » Fig. 157
The ball head does not come out of the mounting recess even after heavy
“shaking”.
Operating lever
A
is located as far up as possible. 
121Towing device and trailer

The release pin B is completely exposed (both its red and green parts are
visible).
The key is removed and the cap C
attached to the lock.
Removing the bar ball - Step 1
Fig. 158
Remove the cap from the lock
Fig. 159
Insert the key into the lock / unlock the lock
Read and observe
on page 119 first.
No trailer or other accessory is connected to the tow bar. We recommend put- ting the protective cover onto the ball head before removing the tow bar.
›
Remove the cover
A
from the lock in the direction of the arrow
1
» Fig. 158 .
›
Insert the key
B
into the lock in the direction of arrow
2
, so that its green
marker points upward » Fig. 159.
›
Turn the key in the direction of arrow
3
so that the red marking points up-
wards.
Removing the bar ball - Step 2Fig. 160
Release tow bar
Read and observe on page 119 first.
Removing
›
Grasp the ball head from underneath » Fig. 160 .
›
Push in the release bolt
A
in the direction of arrow
1
until it stops and si-
multaneously press the operating lever
B
in the direction of arrow
2
until it
stops.
The ball head is released in this position and falls freely into the hand. If it
does not fall freely into the hand, use your other hand to push it upwards.
Subsequent steps
›
Insert the cover
B
» Fig. 154 on page 120 in the opposite direction to arrow
2
.
›
Fix the cap
A
» Fig. 154 on page 120 aligning it with “check mark” in the low-
er bumper area.
›
Push the cap in first on the left and right and then at the top.
If the operating lever
B
is held firm and not pushed downwards as far as it
can go, it will go back up after the ball head is removed and will not latch into
the ready position. The knee-joint bar will then need to be brought into this
position before the next time it is installed » page 120, Adjusting the ready po-
sition .
The knee-joint bar must be cleaned before storing in the box with the vehicle
tool always.
WARNINGNever allow the ball head to remain unsecured in the boot. This could
cause damage to the boot upon sudden braking, and could put the safety
of the occupants at risk! 122Driving

CAUTION■Place the tow bar in the standby position, with the key upwards, and store in
the box - otherwise there is a risk of damage to the key!■
Do not use excessive force when handling the operating lever (e.g. do not
step on it).
Vertical load with mounted accessories
Fig. 161
Representation of the maximum
length of the mounted accesso-
ries and the permissible total
weight of the accessory depend-
ing on the load centre of gravity
Read and observe on page 119 first.
When using the accessories (e.g. bicycle carrier), the maximum length and the
permissible total weight including load must be considered.
The maximum length of the mounted accessories (from the ball of the towing
device) is 70 cm » Fig. 161 .
The total permitted weight of the accessories including load changes with in-
creasing distance of the load centre of gravity from the ball head of the towing
device.
Distance of the load centre of gravity from the ball headPermissible total weight of the ac-cessories, including load0 cm50 kg30 cm50 kg60 cm25 kg70 cm0 kg
CAUTION
Never exceed the permissible total weight of the accessories incl. load and
maximum length of the accessories - risk of damage to the towing device.NoteWe recommend that you use the accessories from ŠKODA Original Accessories.
Using hitch
Trailer (accessory) connect and disconnect
Fig. 162
Housing of the 13 pin socket,
safety eyelet
Connect and disconnect
›
Install the ball bar and the remove the protective cap
3
» Fig. 150 on page 119
lose weight.
›
Place the trailer (the accessory) onto the tow ball.
›
Plug the trailer cable into 13-pin socket
A
» Fig. 162 . (If the trailer / accesso-
ries have a 7-pin connector, use a corresponding reduction piece from the
ŠKODA Original Accessories).
›
Suspend the breakaway cable of the trailer at the safety eyelet
B
(the
breakaway cable must sag in all trailer settings in view of the vehicle).
Uncoupling takes place in reverse order.
Exterior mirrors
You should have additional exterior mirrors fitted if you are not able to see the
traffic behind the trailer using the standard rear-view mirrors.
Headlights
The front of the vehicle may lift up when a trailer (accessory) is being towed
and the headlights may dazzle other road users. Set the range of the head-
lights » page 53 , Operating the lights .
Power supply of the trailer / accessory power system
In the electrical connection between the vehicle and trailer (accessory), the
trailer (accessories) is supplied with power from the vehicle (with ignition
switched on and off). 
123Towing device and trailer

With the engine switched off, the vehicle battery is discharged by the connec-
ted consumers.
At low charge state of the vehicle battery, the power supply to the trailer (ac-
cessories) is interrupted.WARNING■ An improperly connected electrical installation of the trailer (accessories)
may result in an accident or serious injury from electrical shock.■
Do not make any adjustments to the electrical installation of the vehicle
and the trailer (accessories) - risk of an accident or serious injury from elec-
trical shock.
■
After the electrical connection between the vehicle and trailer (accessory)
the trailer / accessory lights should be checked for function.
■
Never use the securing eye to tow - The is a risk of accident!
CAUTION
■ An improperly connected electrical installation of the trailer (accessories) can
lead to the inoperability of the vehicle electronics.■
The total power consumption of all the connected loads to the trailer power
supply must not exceed 350 watts, otherwise there is a risk of damage to the
electrical system of the vehicle.
Loading a trailer
Correct the tyre inflation pressure on the vehicle for “full load” » page 146.
Distribution of the cargo
Distribute the cargo in the trailer in such a way that heavy items are located as
close to the trailer axle as possible. Secure the load from slipping.
The distribution of the weight is very poor if your vehicle is unladen and the
trailer is laden. Nevertheless, maintain a particularly low speed if you cannot
avoid driving with this combination.WARNINGAn unsecured load can adversely affect stability and driving safety signifi-
cantly - there is a risk of accident!
Trailer
The permissible trailer load must not be exceeded under any circumstances.Permissible trailer load - FabiaEngineGearboxPermissible trailer weight, braked (kg)Permissible trailer weight, unbraked (kg)Gradients of up to 12%Gradients of up to 8% a)1.0 l/44 kW MPIMG80010005201.0 l./55 kW MPIMG80010005201.2 ltr./66 kW TSIMG100011005501.2 ltr./81 kW TSIMG11001100560DSG110011005701.6 l./66 kW MPIMG110012005401.6 l./81 kW MPIAG110012005601.4 l/55 kW TDI CRMG10001100570
124Driving

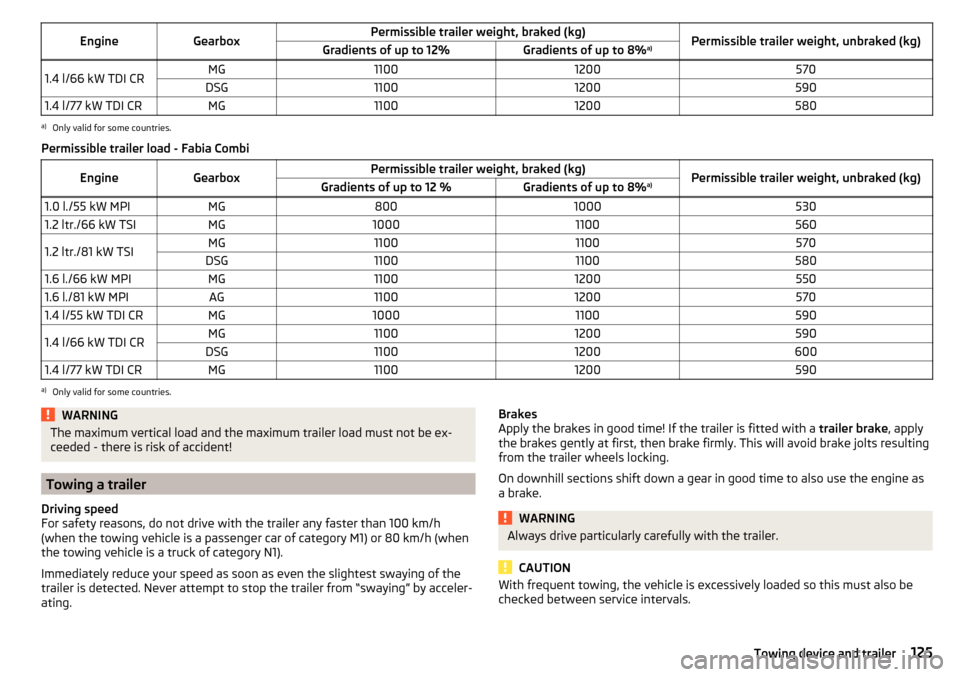

EngineGearboxPermissible trailer weight, braked (kg)Permissible trailer weight, unbraked (kg)Gradients of up to 12%Gradients of up to 8%a)1.4 l/66 kW TDI CRMG11001200570DSG110012005901.4 l/77 kW TDI CRMG11001200580a)
Only valid for some countries.
Permissible trailer load - Fabia Combi
EngineGearboxPermissible trailer weight, braked (kg)Permissible trailer weight, unbraked (kg)Gradients of up to 12 %Gradients of up to 8% a)1.0 l./55 kW MPIMG80010005301.2 ltr./66 kW TSIMG100011005601.2 ltr./81 kW TSIMG11001100570DSG110011005801.6 l./66 kW MPIMG110012005501.6 l./81 kW MPIAG110012005701.4 l/55 kW TDI CRMG100011005901.4 l/66 kW TDI CRMG11001200590DSG110012006001.4 l/77 kW TDI CRMG11001200590a)
Only valid for some countries.
WARNINGThe maximum vertical load and the maximum trailer load must not be ex-
ceeded - there is risk of accident!
Towing a trailer
Driving speed
For safety reasons, do not drive with the trailer any faster than 100 km/h
(when the towing vehicle is a passenger car of category M1) or 80 km/h (when
the towing vehicle is a truck of category N1).
Immediately reduce your speed as soon as even the slightest swaying of the
trailer is detected. Never attempt to stop the trailer from “swaying” by acceler-
ating.
Brakes
Apply the brakes in good time! If the trailer is fitted with a trailer brake, apply
the brakes gently at first, then brake firmly. This will avoid brake jolts resulting
from the trailer wheels locking.
On downhill sections shift down a gear in good time to also use the engine as
a brake.WARNINGAlways drive particularly carefully with the trailer.
CAUTION
With frequent towing, the vehicle is excessively loaded so this must also be
checked between service intervals.125Towing device and trailer

Anti-theft alarm system
The alarm is triggered if, with a vehicle with activated anti-theft alarm (herein-
after only warning system), the electrical connection to the trailer (accessory)
is interrupted.
Always switch off the anti-theft alarm system before a trailer (accessory) is
coupled or uncoupled » page 49.
Conditions for including a trailer (accessory) in the anti-theft alarm system. The vehicle is factory-fitted with an anti-theft alarm system and a towing
device.
The trailer (accessory) is electrically connected to the towing vehicle by
means of the trailer socket.
The electrical system of the vehicle and trailer (accessory) is functional.
The vehicle is locked and the anti-theft alarm system is activated.
The trailer (accessory) is not equipped with LED taillights.126Driving

General Maintenance
Care and maintenance
Service work, adjustments and technical alterations
Introduction
This chapter contains information on the following subjects:
Vehicle operating under different weather conditions
127
Statutory checks
127
ŠKODA service partner
127
ŠKODA Original parts
128
ŠKODA Original accessories
128
Spoiler
128
Component protection
128
Airbags
128
Acceptance and recycling of used vehicles
129
The instructions and guidelines from ŠKODA AUTO a.s. must be observed when
using accessories or carrying out any modifications, repairs or technical altera-
tions to your vehicle.
Compliance with these guidelines and instructions is in the interest of the
roadworthiness and technical condition of your vehicle.
WARNING■ Adjustments, repairs and technical changes to the vehicle should only be
carried out by a specialist. Work carried out incorrectly (including work on
the electronic components and their software) can result in malfunctions -
there is a risk of accident and, potentially, increased wear on parts!■
We recommend that you use only ŠKODA Original Accessories and ŠKODA
Original Parts which have been expressly approved for use on your vehicle.
Reliability, safety and suitability for your vehicle are guaranteed with these.
■
Do not use any products which have not been approved by ŠKODA AUTO,
even though these may be products with a type approval or which have
been approved by a nationally recognised testing laboratory.
Vehicle operating under different weather conditions
Read and observe
on page 127 first.
If you would like you operate your vehicle in countries other than its intended
weather conditions, you should contact a ŠKODA Partner. He or she will advise
you if certain precautions need to be taken to ensure the full functioning of
the vehicle or to prevent damage (e.g. coolant, changing the battery or similar).
Statutory checks
Read and observe
on page 127 first.
Many countries have legislation requiring the operational reliability, safety and,
where applicable, roadworthiness and/or exhaust gas properties of a vehicle
to be tested at regular intervals. These tests can be carried out by workshops
or testing stations that have been legally authorised for this purpose.
The ŠKODA Service partners can prepare your vehicle for the official inspec-
tions, so as to ensure that it passes.
Even if you want to take your vehicle to an officially approved test centre for
prior checking in preparation for a legally required test, we recommend that
you consult your ŠKODA Service Partner beforehand.
ŠKODA service partner
Read and observe
on page 127 first.
All ŠKODA service partners work according to the instructions and guidelines
from ŠKODA AUTO a.s. All service and repair work is therefore carried out on
time and to the appropriate quality. Adhering to these instructions and guide-
lines helps ensure road safety and helps keep your vehicle in a good technical
condition.
We therefore advise you to have all modifications, repairs and technical altera-
tions to your vehicle carried out by a ŠKODA Service Partner.
127Care and maintenance

ŠKODA Original partsRead and observe
on page 127 first.
We recommend the use of ŠKODA Genuine Parts for your vehicle, as these
parts are approved by ŠKODA AUTO. These parts comply wholly with ŠKODA
AUTO regulations and are identical to the parts used in series production.
ŠKODA AUTO is able to warrant the safety, suitability, and long life of these
products.
ŠKODA service partners are liable for any defects in ŠKODA original parts for a
period of 2 years after sale in accordance with materials defect liability under
the law unless otherwise agreed in the purchase agreement.
ŠKODA Original accessories
Read and observe
on page 127 first.
You should note the following if you wish to fit accessories to your vehicle:
We recommend that you use ŠKODA Genuine Accessories in your vehicle.
ŠKODA AUTO has selected these accessories to ensure that they are reliable,
safe and suitable for your particular vehicle. Although we constantly monitor
the market, we are not able to assess or vouch the suitability of other products
for your vehicle, despite the fact that some products may have operational ap-
proval or may have been approved by a nationally recognised testing laborato-
ry.
ŠKODA Service Partners are liable for any defects in ŠKODA Genuine Parts for a
period of 2 years after installation or delivery in accordance with materials de-
fect liability legislation, unless otherwise agreed in the purchase contract or in
any other agreements.
Spoiler
Read and observe
on page 127 first.
WARNINGIf your vehicle is equipped with a Genuine Accessories spoiler on the front
bumper in combination with the spoiler on the boot lid, the following in-
structions must be observed - otherwise there is a risk of accidents and se-
rious injuries!■
The vehicle can only be equipped with a spoiler on the front bumper in
combination with the corresponding spoiler on the boot lid.
■
A Genuine Accessories spoiler cannot be fitted to the front bumper either
on its own (without a spoiler on the boot lid) or in combination with an un-
suitable spoiler on the boot lid.
■
We recommend that you consult the ŠKODA Service Partner for any re-
pairs to or replacement, addition or removal of spoilers.
■
Unprofessional work carried out on the spoilers of your vehicle may result
in some functions/vehicle systems malfunctioning.
Component protection
Read and observe
on page 127 first.
Some electronic vehicle components (such as the instrument cluster) are fac-
tory-equipped with component protection. This ensures the functional limita-
tion of these components in a non-legitimate installation in another vehicle
(e.g. after a theft) or operation outside the vehicle.
Airbags
Read and observe
on page 127 first.
WARNING■Adjustments, repairs and modifications which have been carried out un-
professionally can cause damage, operational faults, and can also seriously
impair the effectiveness of airbag system – there is the risk of an accident
and fatal injury.■
A change to the vehicle's wheel suspension, including the use of non-ap-
proved wheels and tire combinations, can impair the functioning of the air-
bag system - risk of accident and fatal injury! 
128General Maintenance
