SKODA KAMIQ 2019 Owner´s Manual

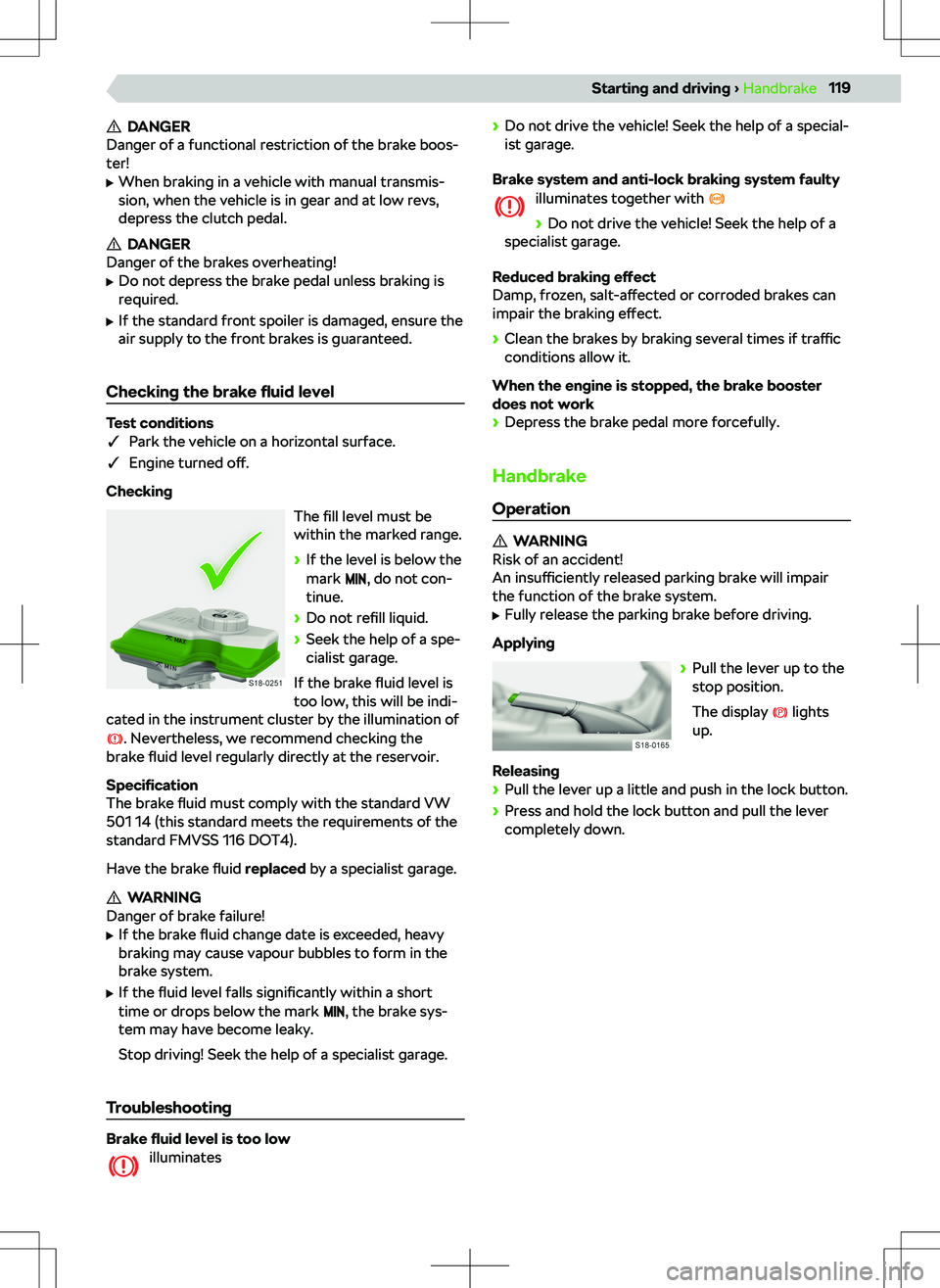

DANGER
Danger of a functional restriction of the brake boos-
ter!

Driver assist systems

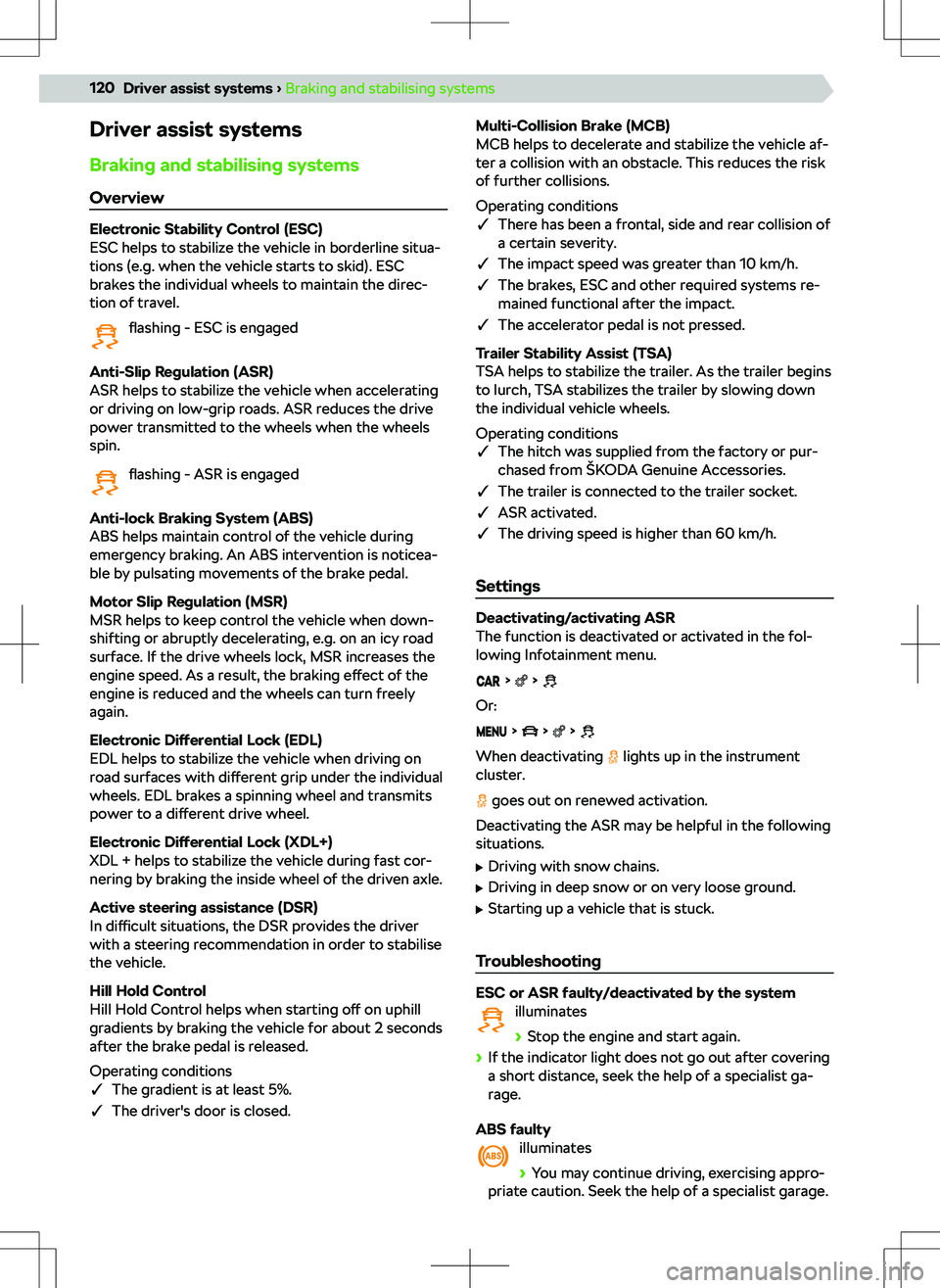

Braking and stabilising systems Overview
Electronic Stability Control (ESC)
ESC helps to stabilize the vehicle in borderline situa-
tions (e.g. when the vehicle starts to skid). ESC
brakes the individual wheels to maintain the direc-
tion of travel.
flashing - ESC is engaged
Anti-Slip Regulation (ASR)
ASR helps to stabilize the vehicle when accelerating
or driving on low-grip roads. ASR reduces the drive
power transmitted to the wheels when the wheels
spin.
flashing - ASR is engaged
Anti-lock Braking System (ABS)
ABS helps maintain control of the vehicle during
emergency braking. An ABS intervention is noticea-
ble by pulsating movements of the brake pedal.
Motor Slip Regulation (MSR)
MSR helps to keep control the vehicle when down-
shifting or abruptly decelerating, e.g. on an icy road
surface. If the drive wheels lock, MSR increases the
engine speed. As a result, the braking e

Brake system and anti-lock braking system faultyilluminates together with

Operating conditions
qFront Assist activated.
q Driving speed between 5-60 km/h.

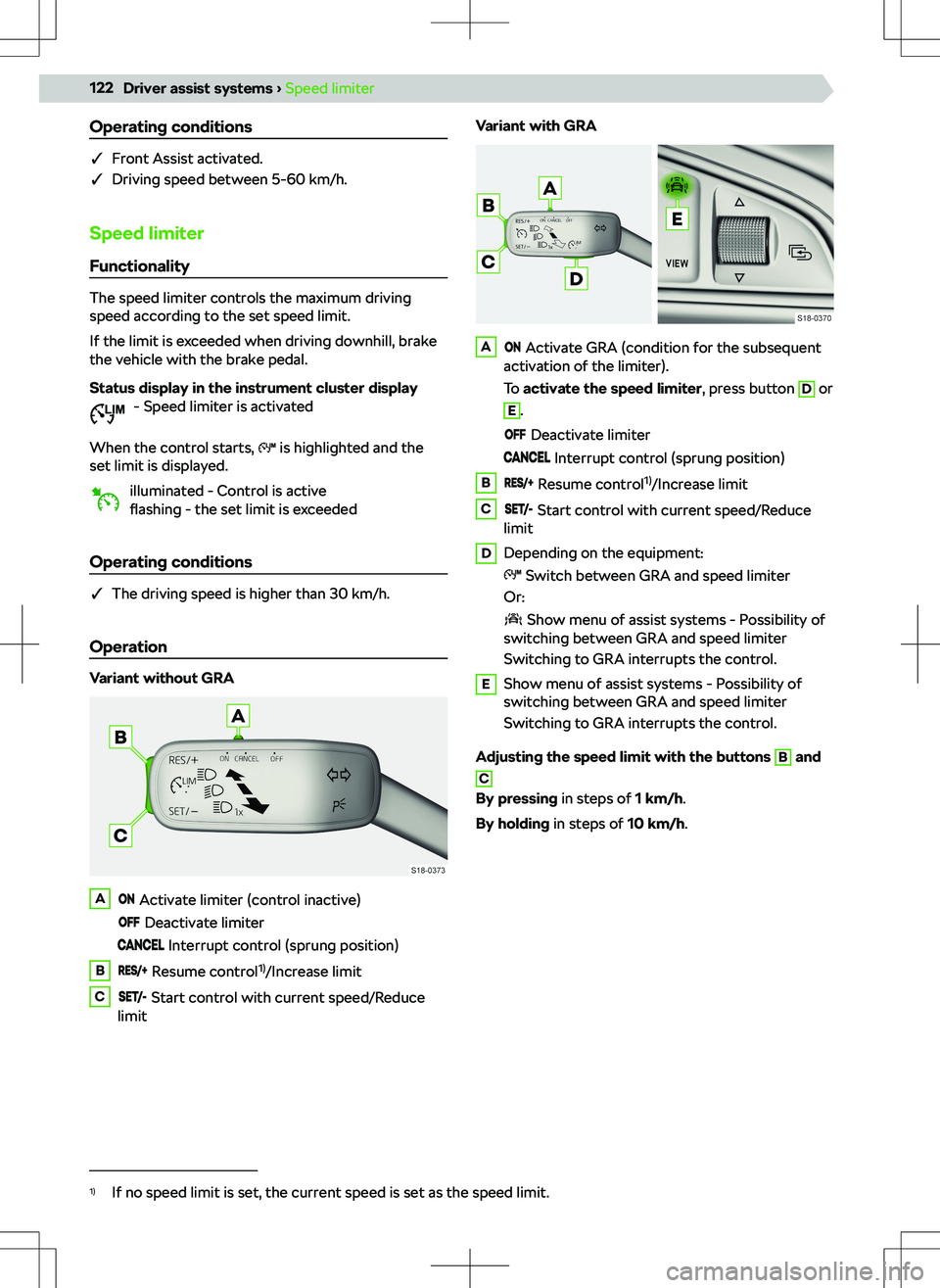

Speed limiter Functionality
The speed limiter controls the maximum driving
speed according to the set speed limit.
If the limit is exceeded when driving downhill, brake
the vehicle with the brake pedal.
Status display in the instrument cluster display - Speed limiter is activated
When the control starts,
is highlighted and the
set limit is displayed.
illuminated - Control is active
flashing - the set limit is exceeded
Operating conditions
q The driving speed is higher than 30 km/h.
Operation
Variant without GRA
A Activate limiter (control inactive)
Deactivate limiter
Interrupt control (sprung position)
B Resume control 1)
/Increase limitC Start control with current speed/Reduce
limitVariant with GRAA Activate GRA (condition for the subsequent
activation of the limiter).
To activate the speed limiter , press button D
or
E
.
Deactivate limiter
Interrupt control (sprung position)
B Resume control1)
/Increase limitC Start control with current speed/Reduce
limitDDepending on the equipment:
Switch between GRA and speed limiter
Or:
Show menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
EShow menu of assist systems - Possibility of
switching between GRA and speed limiter
Switching to GRA interrupts the control.
Adjusting the speed limit with the buttons
B
and
C
By pressing in steps of 1 km/h.
By holding in steps of 10 km/h.
1)
If no speed limit is set, the current speed is set as the speed limit.
122Driver assist systems

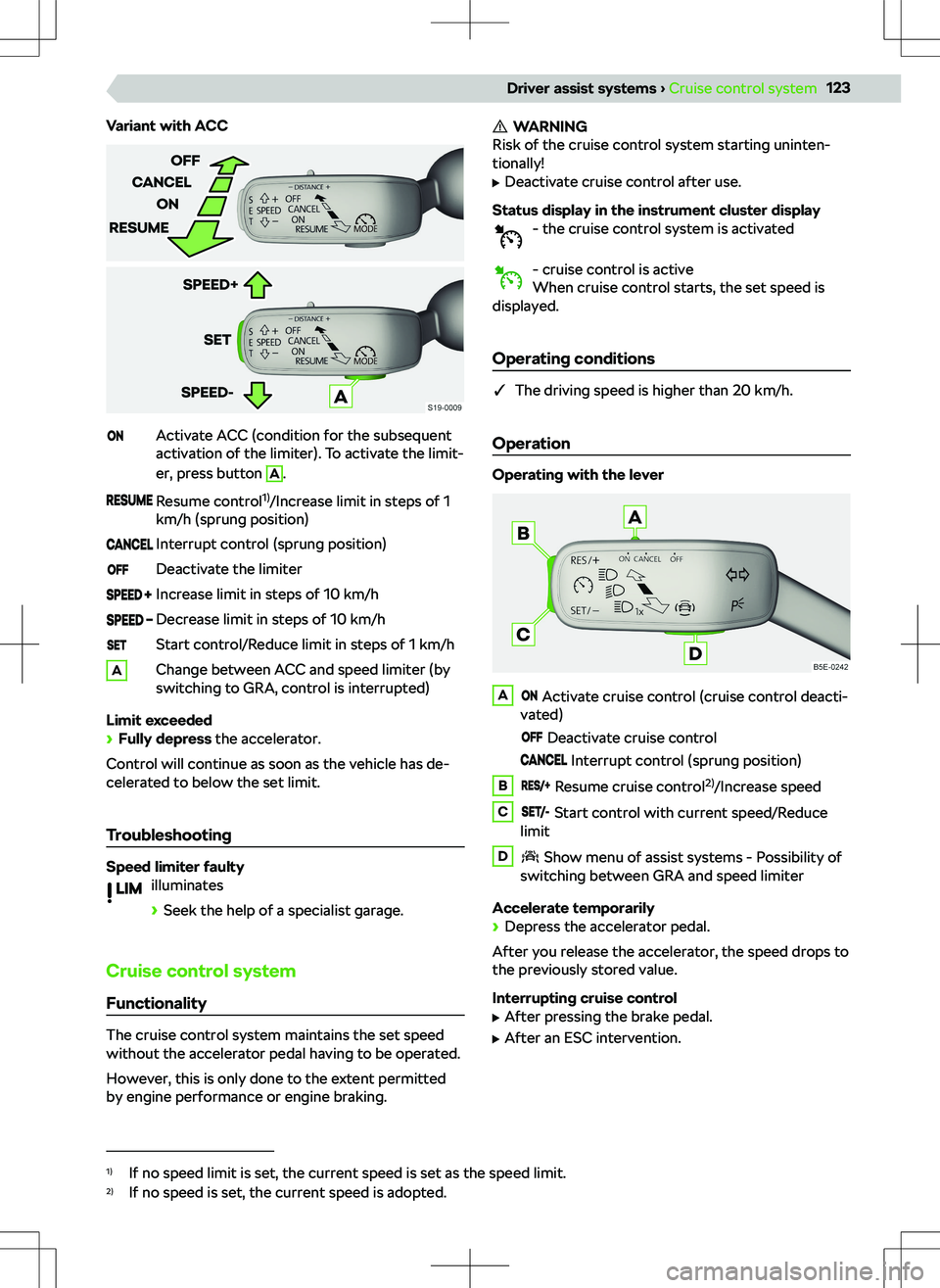

Variant with ACCActivate ACC (condition for the subsequent
activation of the limiter). To activate the limit-
er, press button A
.
Resume control 1)
/Increase limit in steps of 1
km/h (sprung position)Interrupt control (sprung position)Deactivate the limiterIncrease limit in steps of 10 km/hDecrease limit in steps of 10 km/hStart control/Reduce limit in steps of 1 km/hAChange between ACC and speed limiter (by
switching to GRA, control is interrupted)
Limit exceeded

Troubleshooting

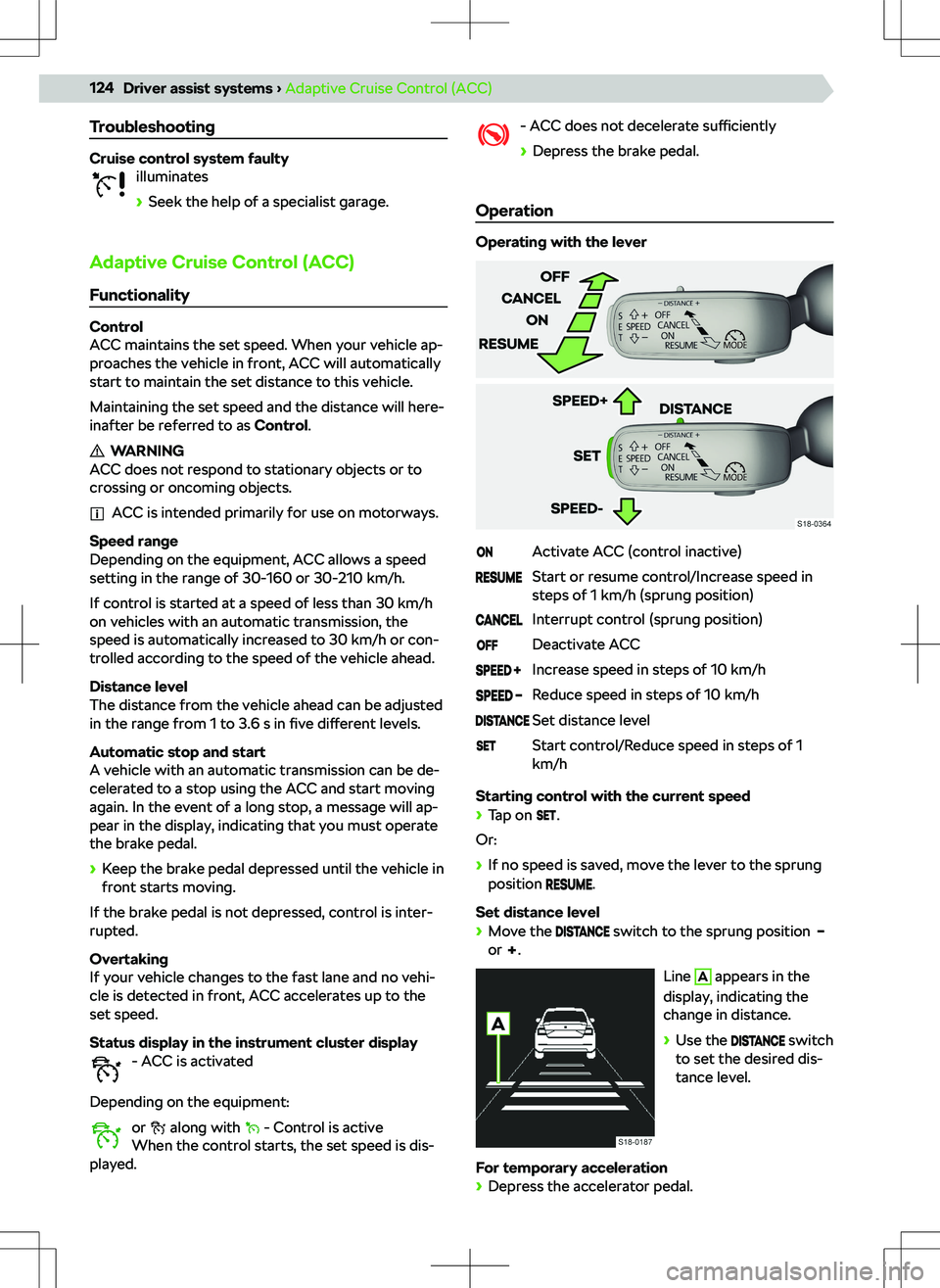

Cruise control system faultyilluminates

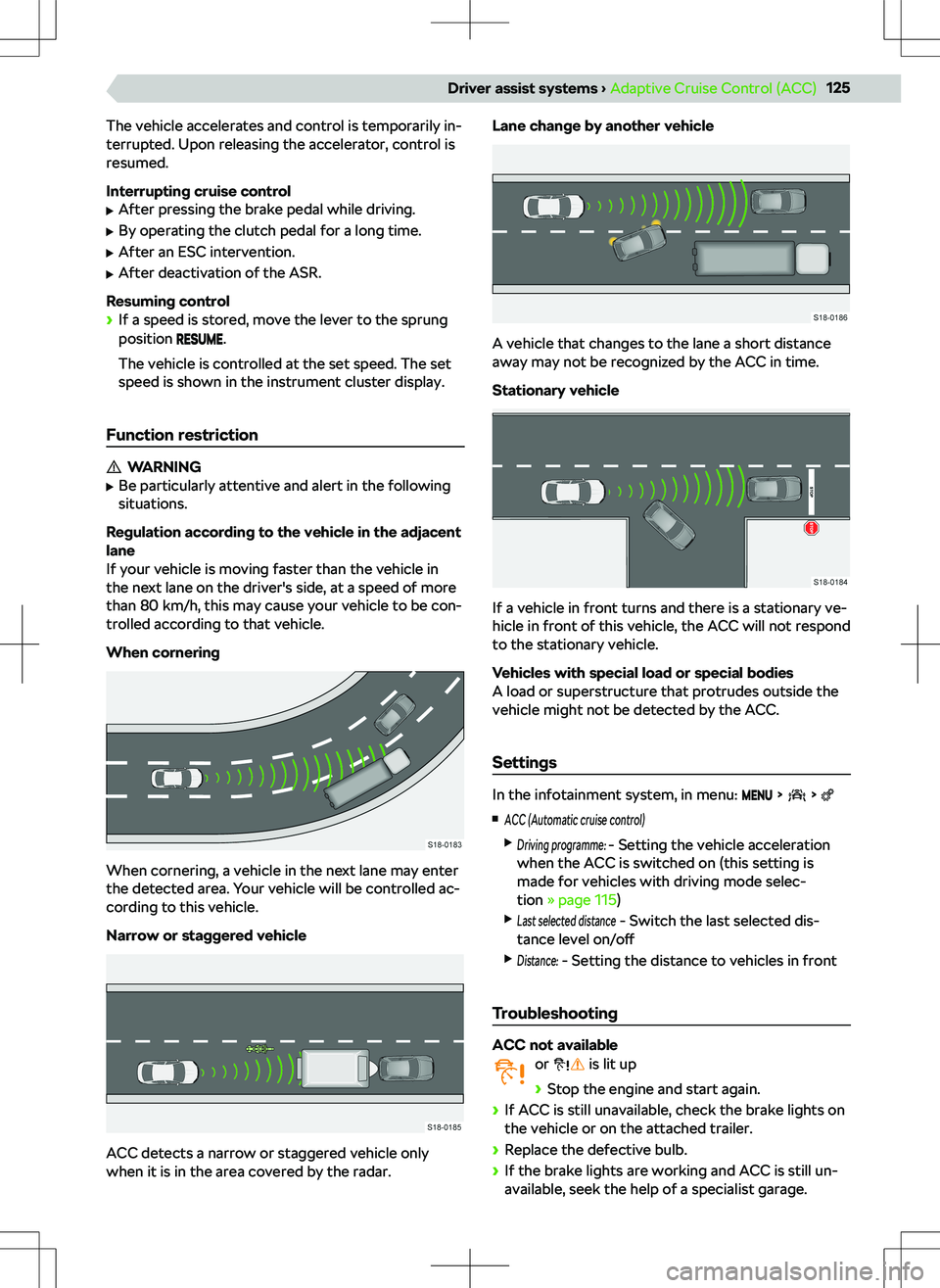

The vehicle accelerates and control is temporarily in-
terrupted. Upon releasing the accelerator, control is
resumed.
Interrupting cruise control

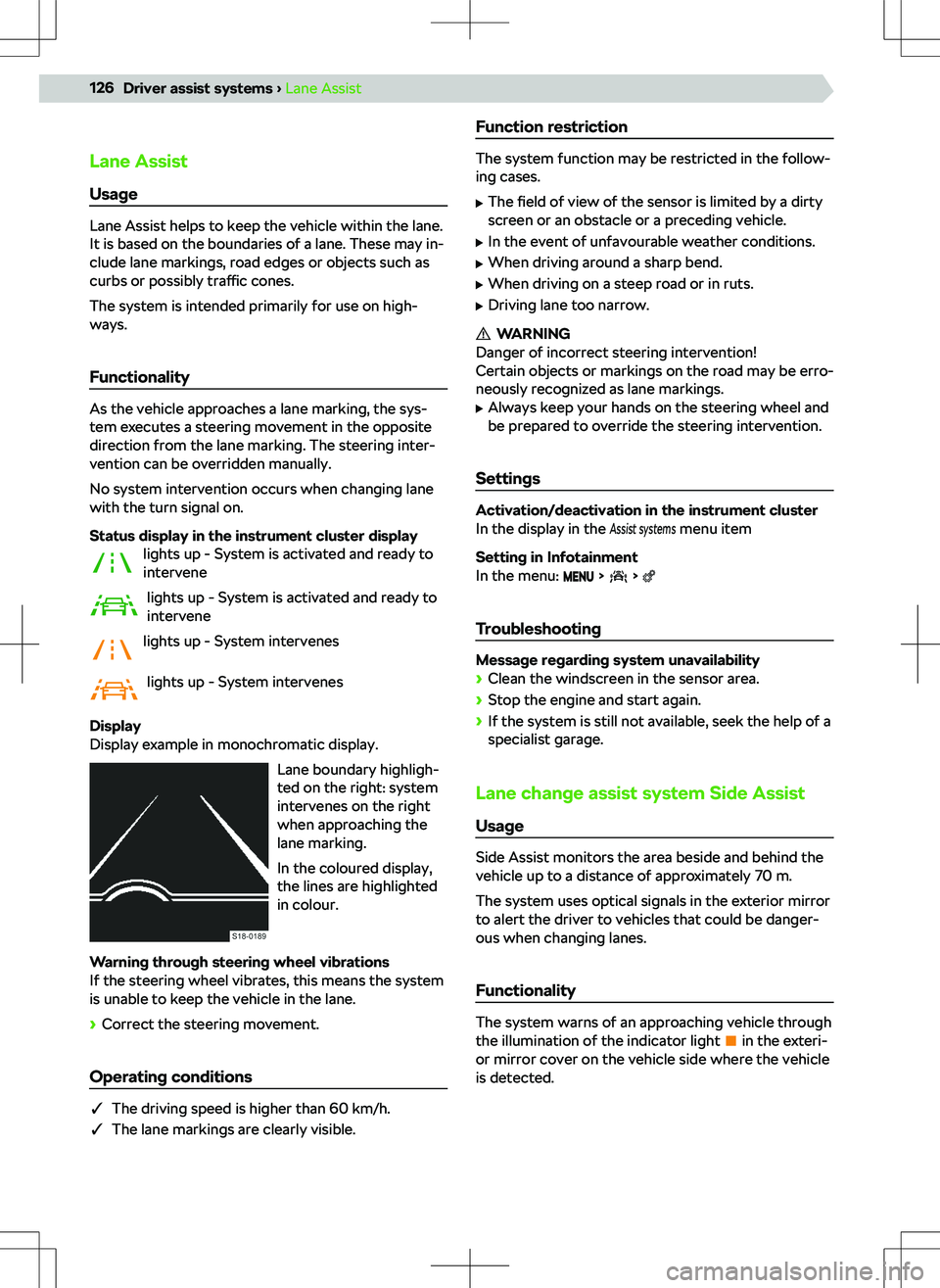

Lane AssistUsage
Lane Assist helps to keep the vehicle within the lane.
It is based on the boundaries of a lane. These may in-
clude lane markings, road edges or objects such as
curbs or possibly traffic cones.
The system is intended primarily for use on high- ways.
Functionality
As the vehicle approaches a lane marking, the sys-
tem executes a steering movement in the opposite
direction from the lane marking. The steering inter-
vention can be overridden manually.
No system intervention occurs when changing lane
with the turn signal on.
Status display in the instrument cluster display lights up - System is activated and ready to
intervene
lights up - System is activated and ready to
intervene
lights up - System intervenes
lights up - System intervenes
Display
Display example in monochromatic display.
Lane boundary highligh-
ted on the right: system
intervenes on the right when approaching thelane marking.
In the coloured display,
the lines are highlighted
in colour.
Warning through steering wheel vibrations
If the steering wheel vibrates, this means the system
is unable to keep the vehicle in the lane.

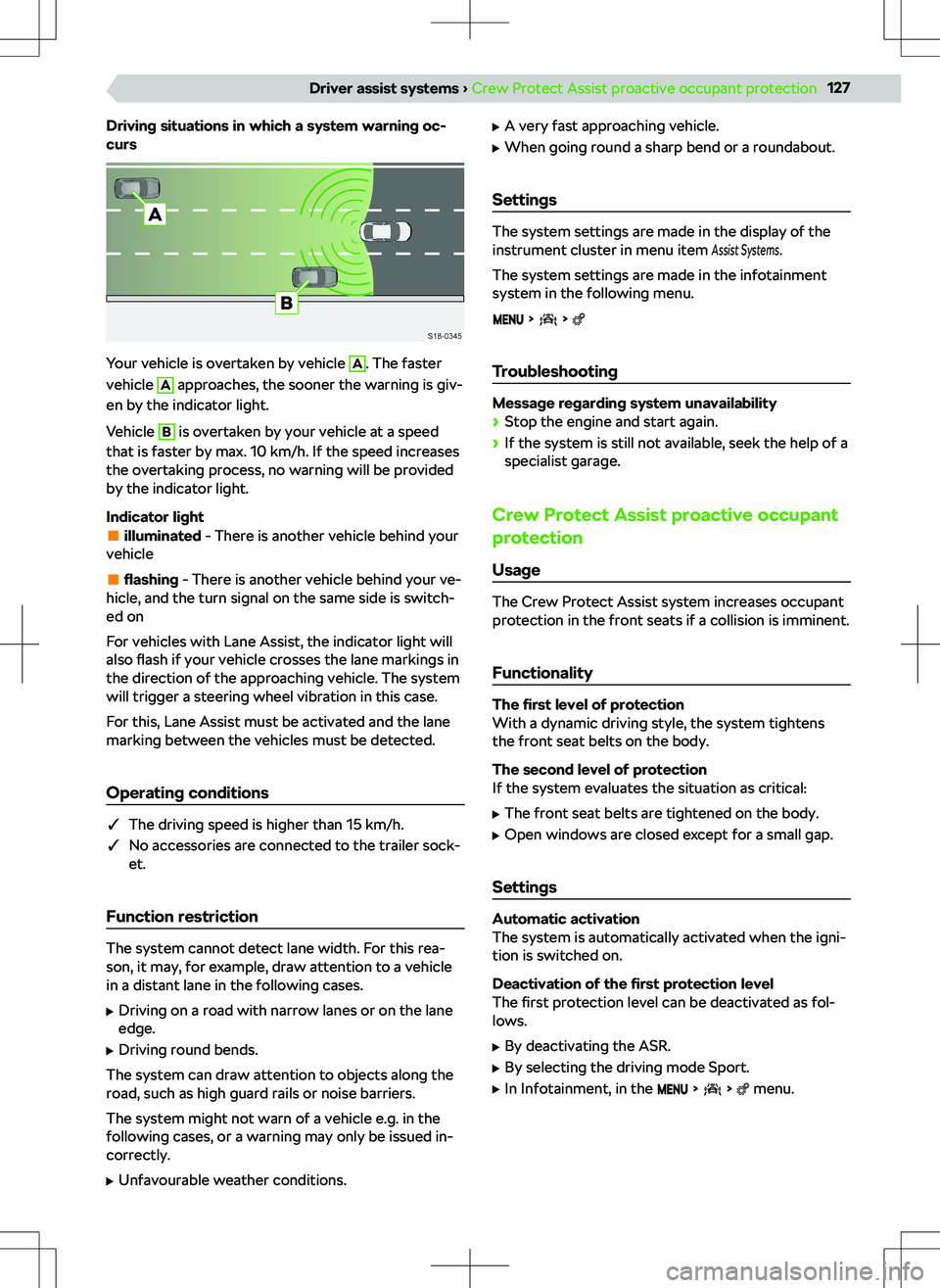

Driving situations in which a system warning oc-
curs
Your vehicle is overtaken by vehicle
A
. The faster
vehicle
A
approaches, the sooner the warning is giv-
en by the indicator light.
Vehicle
B
is overtaken by your vehicle at a speed
that is faster by max. 10 km/h. If the speed increases
the overtaking process, no warning will be provided
by the indicator light.
Indicator light
illuminated - There is another vehicle behind your
vehicle
flashing - There is another vehicle behind your ve-
hicle, and the turn signal on the same side is switch-
ed on
For vehicles with Lane Assist, the indicator light will
also flash if your vehicle crosses the lane markings in
the direction of the approaching vehicle. The system
will trigger a steering wheel vibration in this case.
For this, Lane Assist must be activated and the lane
marking between the vehicles must be detected.
Operating conditions
q The driving speed is higher than 15 km/h.
q No accessories are connected to the trailer sock-
et.
Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

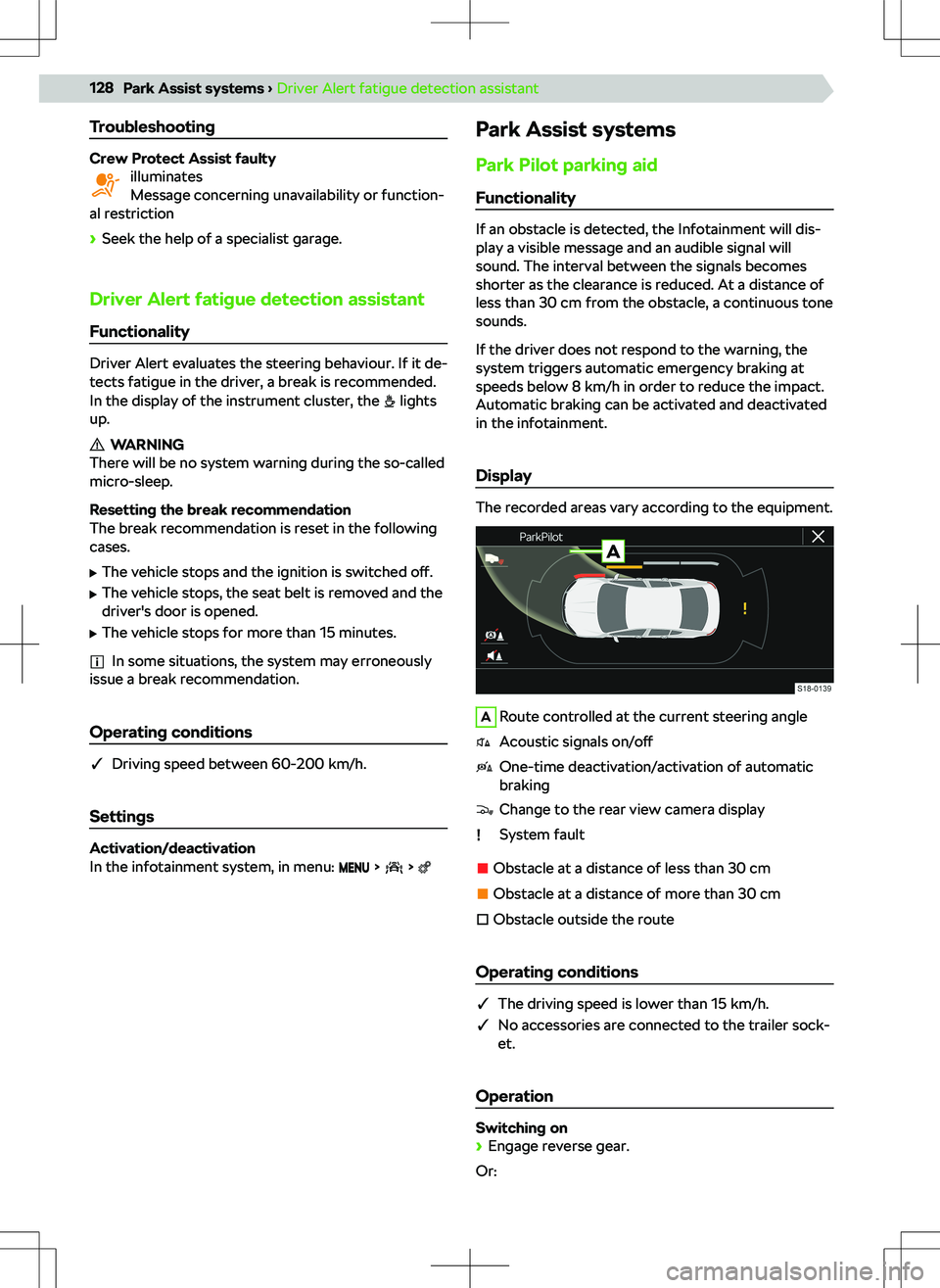

Troubleshooting
Crew Protect Assist faultyilluminates
Message concerning unavailability or function-
al restriction
