SKODA KAROQ 2020 Owner´s Manual

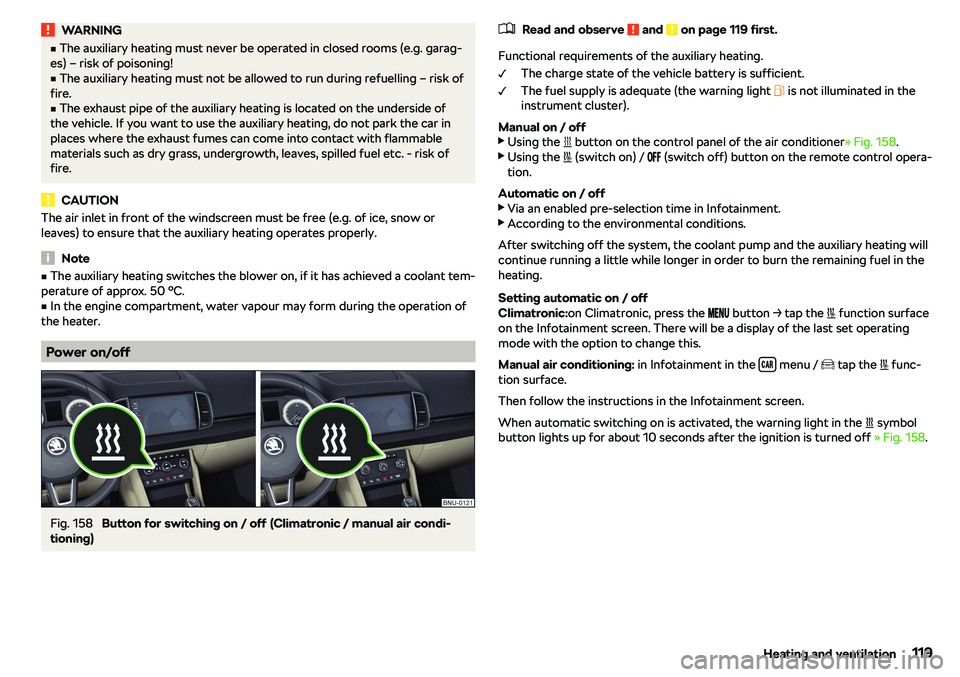

WARNING
vThe auxiliary heating must never be operated in closed rooms (e.g. garag-
es)

Operation in InfotainmentFig. 159
Aux. heating: main menu/set preset time

Display warning light AMeaningQuickly flashes green for 2 seconds.The auxiliary heating is blocked, e.g.
because the tank is nearly empty or
there is a fault in the auxiliary heating.Flashes red for 2 seconds.The switch off signal was not re-
ceived.Lights up orange for 2 seconds, then
green or red.The battery is weak, however the
switching on or off signal was re-
ceived.Lights up orange for 2 seconds, then
flashes green or red.The battery is weak, however the
switching on or off signal was not re-
ceived.Flashes orange for 5 seconds.The battery is discharged, however
the switching on or off signal was not
received.
Replace the battery

Infotainment
Introductory information
Important information
Introduction to the subject
WARNING
vOnly use Infotainment in such a way that you have control of the vehicle
in every traffic situation (e.g. Do not write text messages while driving, do
not couple or connect the telephone, do not work with the contact list, do
not enter any destinations, do not connect WLAN or SmartLink etc.)- Oth-
erwise there is a risk of an accident!
v
Always route the connection cable of the external device in such a way
that it does not restrict you when driving.
WARNING
v Adjust the volume to ensure that acoustic signals from outside the vehi-
cle, e.g. sirens from emergency vehicles, can be heard at all times.
v
High volumes can cause hearing damage!
CAUTION
In some countries, some Infotainment features can no longer be selected
when the vehicle is running faster than a certain speed. This is not a malfunc-
tion, but complies with the national legal regulations.
Mobile devices and applications
Fig. 161
QR code with reference to web
pages for checking the compati-
bility of devices
The availability of some of the functions described in this Owner

Switches Infotainment on/off
- Overview of Infotainment menu

Description

Infotainment operation
Infotainment operation
Screen areas
Fig. 167
Screen areas
Description of the display

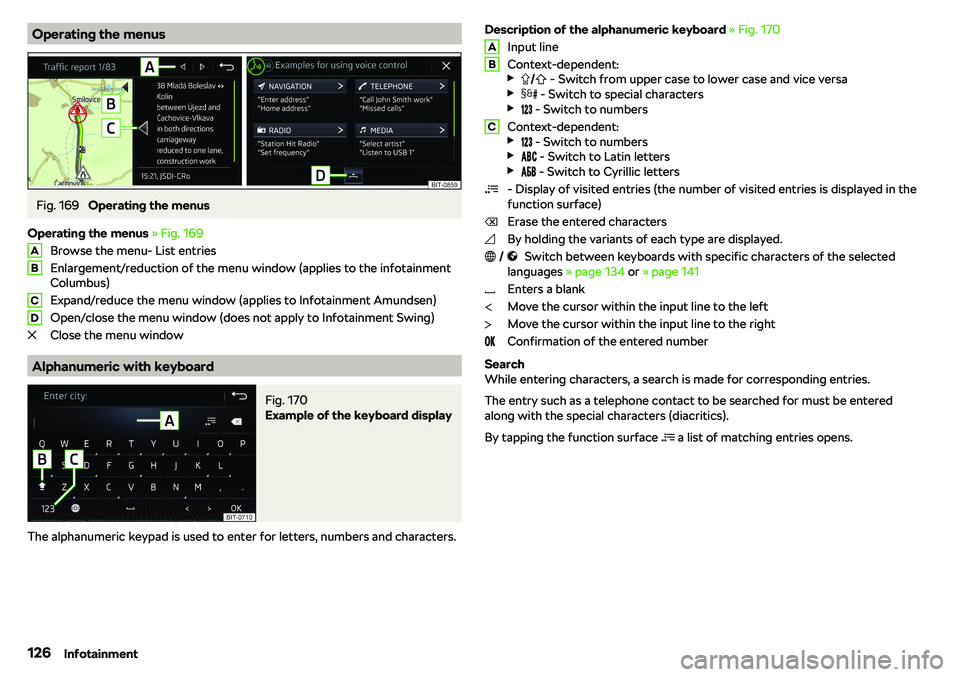

Operating the menusFig. 169
Operating the menus
Operating the menus

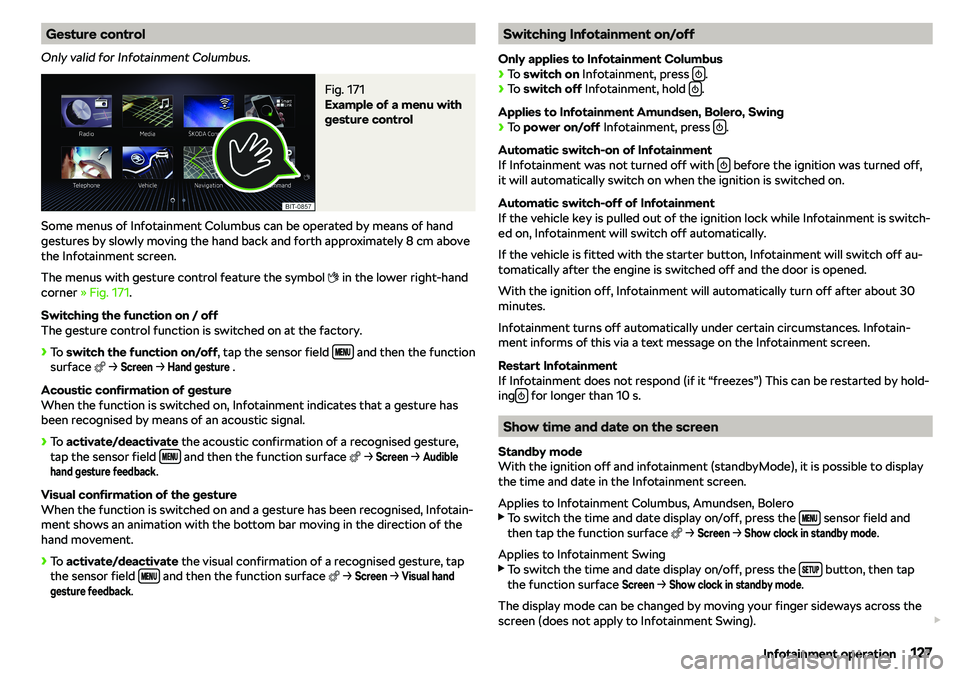

Gesture control
Only valid for Infotainment Columbus.Fig. 171
Example of a menu with
gesture control
Some menus of Infotainment Columbus can be operated by means of hand gestures by slowly moving the hand back and forth approximately 8 cm above
the Infotainment screen.
The menus with gesture control feature the symbol

"Screen off" mode
With the ignition on and functions Switch off screen (in 10 seconds)
and
Display clockwhen screen is off
