SKODA KAROQ 2020 Owner´s Manual

Brake fluidFig. 306
Brake fluid reservoir
Check the brake fluid under the following conditions.The vehicle is on a horizontal surface.
The engine is turned off.
Check brake fluid level - the brake fluid level must be between the markings
“MIN” and “MAX”

WARNING (Continued)
vKeep the vehicle battery away from people who are not completely inde-
pendent, especially children.
v
Do not tilt the battery otherwise battery electrolyte may flow out of the
battery vent openings.
WARNINGWhen working on the car battery, there is the risk of explosion, fire, injury
or irritation! The following guidelines must be observed.
v
Avoid smoking, the use of open flames or light and any activities that
could cause sparks.

v
A discharged vehicle battery can freeze slightly. Never charge up a fro-
zen or thawed vehicle battery. Replace a frozen vehicle battery.

v
Never use a damaged vehicle battery

Wheels
Wheels and tyres
Advice on tyre/wheel usage
New tyres , during the first 500 km, new tyres do not offer optimum grip and
appropriate care should therefore be taken when driving.
Always fit tyres with a greater profile depth on the front wheels.
Wheels and bolts are matched to each other in terms of design. We recom-
mend that you use wheel rims and wheel bolts from

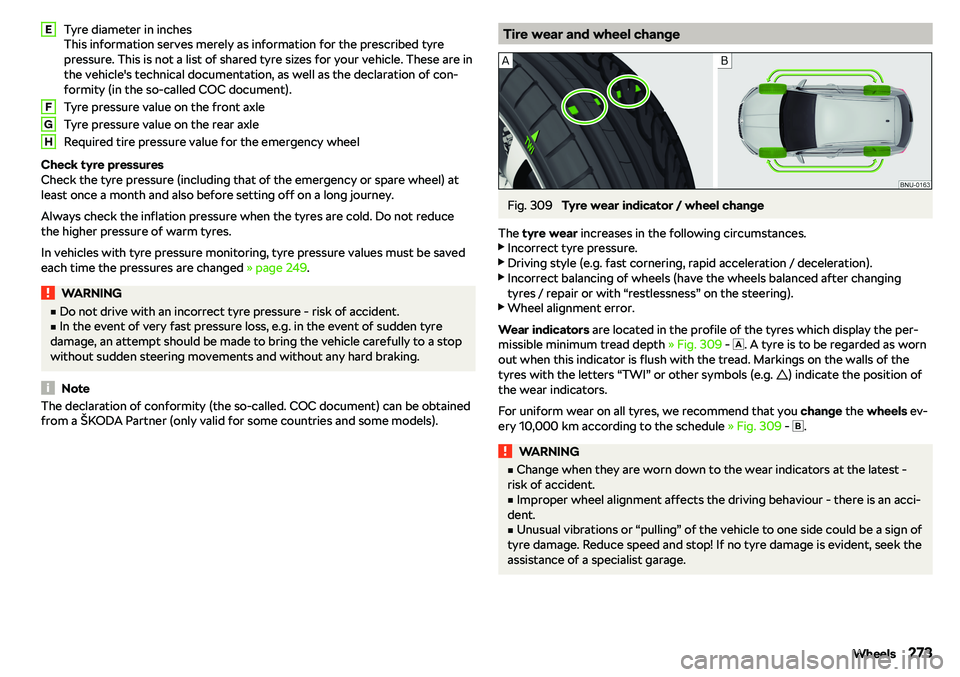

Tyre diameter in inches
This information serves merely as information for the prescribed tyre
pressure. This is not a list of shared tyre sizes for your vehicle. These are in
the vehicle

Spare wheel
A full spare wheel corresponds to the wheel mounted on the vehicle in terms
of the wheel dimensions, the tire dimension and the tire type.
A temporary spare wheel is provided with a warning label on the rim. Only use
this temporary spare wheel to reach the nearest specialist garage since it is
not intended for permanent use.
Instructions for using a temporary spare wheel

For the best possible handling, use all-season or “winter” tyres on all fourwheels with a minimum tread depth of 4 mm.
If using “winter” tyres, fit the summer tyres on again in good time as they pro- vide better handling properties, a shorter braking distance, less tyre noise, and
reduced tyre wear on roads which are free of snow and ice as well as at tem-
peratures above 7

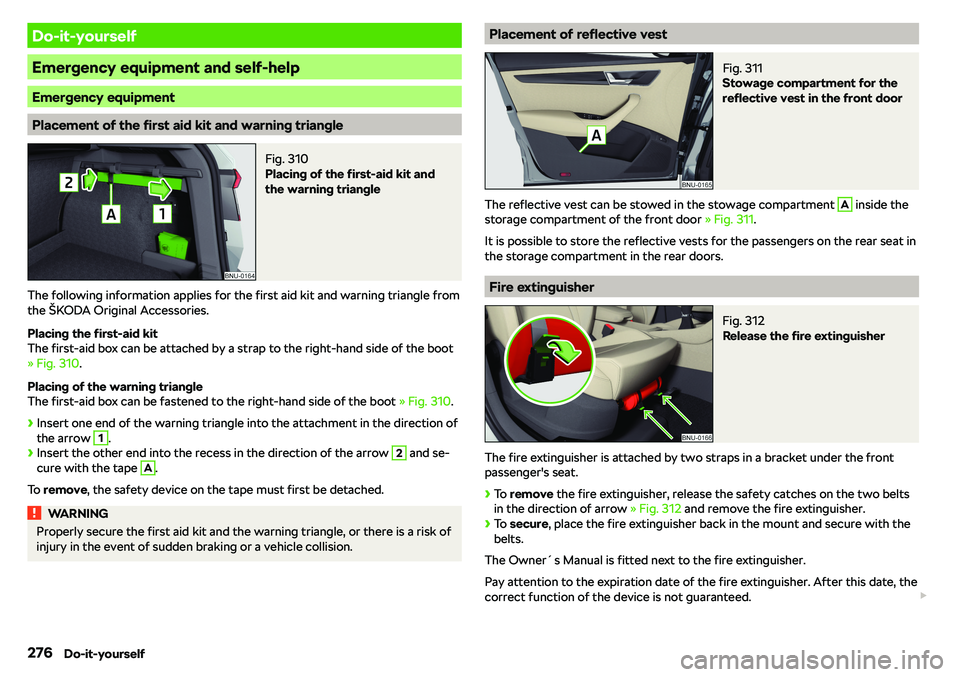

Do-it-yourself
Emergency equipment and self-help
Emergency equipment
Placement of the first aid kit and warning triangle
Fig. 310
Placing of the first-aid kit and
the warning triangle
The following information applies for the first aid kit and warning triangle from
the

WARNINGAlways properly secure the fire extinguisher, there is a risk of injury in the
event of sudden braking or a vehicle collision.
Vehicle tool kit
Fig. 313
Vehicle tool kit
The box with the tool is located in the emergency or spare wheel area. The ve-
hicle tool kit may be stored in a bag in the luggage compartment.
Depending on the vehicle configuration, it may not contain all the compo-
nents listed in the on-board tool kit.
Adapter for anti-theft wheel bolts
Towing eye
Clamps for removing the wheel trims
Jack with sign
Crank for the jack
Wheel wrench
Extraction pliers for the wheel bolt caps
Breakdown kit
12345678WARNING
v The factory-supplied lifting jack is only intended for your model of vehi-
cle. Under no circumstances attempt to lift other vehicles or loads with this
