SKODA KODIAQ 2016 1.G Owner's Manual

In the case of failure of an LED lamp or an LED, visit a specialist garage.WARNING■Always read and observe the warnings before completing any work in the
engine compartment » page 278.■
Accidents can be caused if the road in front of the vehicle is not suffi-
ciently illuminated and the vehicle cannot or can only be seen with difficul-
ty by other road users.
■
H7 and H8 bulbs are pressurised and may burst when changing the bulb -
risk of injury! We therefore recommended wearing gloves and safety
glasses when changing a bulb.
CAUTION
■ Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
napkin, or similar.■
The cap of the filament bulb must always be seated correctly in the head-
light, otherwise this may allow water and debris to enter the headlight - risk of
damage to the headlights.
Note
■ This Owner's Manual only describes the replacement of bulbs where it is pos-
sible to replace the bulbs on your own without any complications arising. Other
bulbs must be replaced by a specialist garage.■
We recommend that a box of replacement bulbs always be carried in the ve-
hicle.
Bulb arrangement in the headlights
Fig. 373
Left headlight
Read and observe and on page 309 first.
The vehicle is equipped with headlights with halogen bulbs or LED light sour-
ces.
Bulb arrangement » Fig. 373
Low beams with halogen bulb / LED light sources
Flashing
Main beam and side lights
Fog lights
Change bulb for low beam (halogen headlight)
Fig. 374
Changing the bulb for the low beam
Read and observe
and on page 309 first.
›
Remove the protective cap
A
» Fig. 373 on page 309 .
›
Turn the holder with the bulb in the direction of arrow
1
» Fig. 374 .
›
Remove the holder with the bulb in the direction of arrow
2
.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit the protective cap
A
» Fig. 373 on page 309 .
ABCD309Fuses and light bulbs

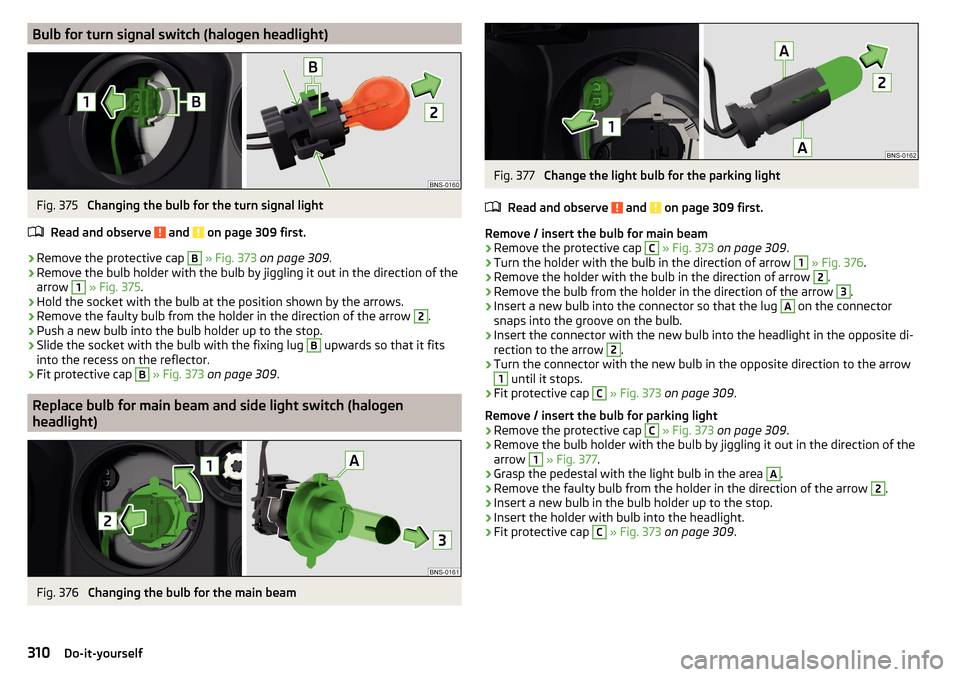

Bulb for turn signal switch (halogen headlight)Fig. 375
Changing the bulb for the turn signal light
Read and observe
and on page 309 first.
›
Remove the protective cap
B
» Fig. 373 on page 309 .
›
Remove the bulb holder with the bulb by jiggling it out in the direction of the
arrow
1
» Fig. 375 .
›
Hold the socket with the bulb at the position shown by the arrows.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Push a new bulb into the bulb holder up to the stop.
›
Slide the socket with the bulb with the fixing lug
B
upwards so that it fits
into the recess on the reflector.
›
Fit protective cap
B
» Fig. 373 on page 309 .
Replace bulb for main beam and side light switch (halogen
headlight)
Fig. 376
Changing the bulb for the main beam
Fig. 377
Change the light bulb for the parking light
Read and observe
and on page 309 first.
Remove / insert the bulb for main beam
›
Remove the protective cap
C
» Fig. 373 on page 309 .
›
Turn the holder with the bulb in the direction of arrow
1
» Fig. 376 .
›
Remove the holder with the bulb in the direction of arrow
2
.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
C
» Fig. 373 on page 309 .
Remove / insert the bulb for parking light
›
Remove the protective cap
C
» Fig. 373 on page 309 .
›
Remove the bulb holder with the bulb by jiggling it out in the direction of the
arrow
1
» Fig. 377 .
›
Grasp the pedestal with the light bulb in the area
A
.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Insert a new bulb in the bulb holder up to the stop.
›
Insert the holder with bulb into the headlight.
›
Fit protective cap
C
» Fig. 373 on page 309 .
310Do-it-yourself

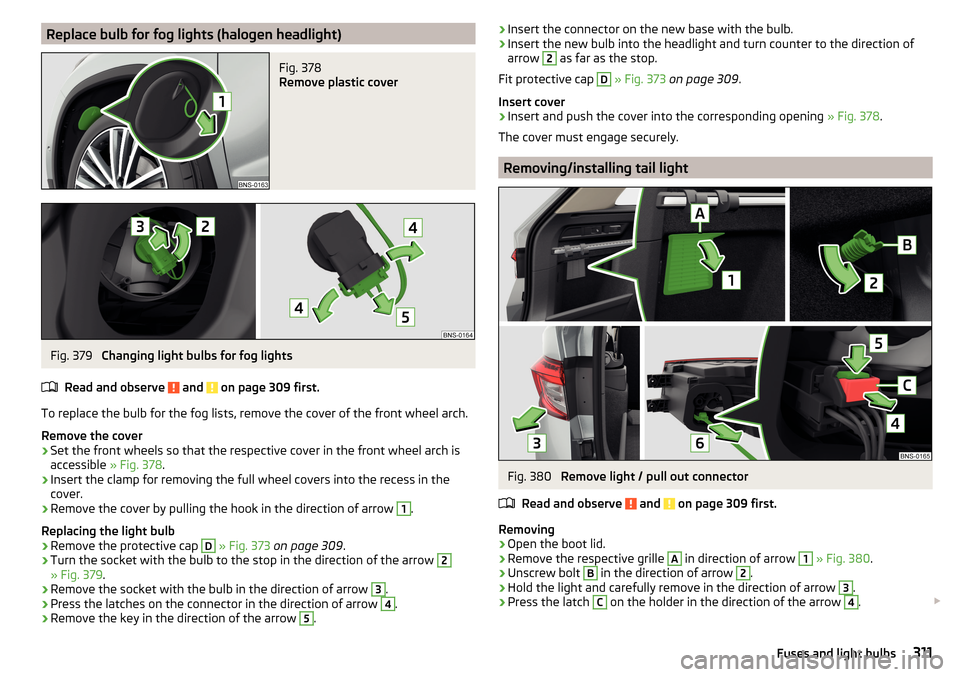

Replace bulb for fog lights (halogen headlight)Fig. 378
Remove plastic cover
Fig. 379
Changing light bulbs for fog lights
Read and observe
and on page 309 first.
To replace the bulb for the fog lists, remove the cover of the front wheel arch.
Remove the cover
›
Set the front wheels so that the respective cover in the front wheel arch is
accessible » Fig. 378.
›
Insert the clamp for removing the full wheel covers into the recess in the
cover.
›
Remove the cover by pulling the hook in the direction of arrow
1
.
Replacing the light bulb
›
Remove the protective cap
D
» Fig. 373 on page 309 .
›
Turn the socket with the bulb to the stop in the direction of the arrow
2
» Fig. 379.
›
Remove the socket with the bulb in the direction of arrow
3
.
›
Press the latches on the connector in the direction of arrow
4
.
›
Remove the key in the direction of the arrow
5
.
›Insert the connector on the new base with the bulb.›Insert the new bulb into the headlight and turn counter to the direction of
arrow 2
as far as the stop.
Fit protective cap
D
» Fig. 373 on page 309 .
Insert cover
›
Insert and push the cover into the corresponding opening » Fig. 378.
The cover must engage securely.
Removing/installing tail light
Fig. 380
Remove light / pull out connector
Read and observe
and on page 309 first.
Removing
›
Open the boot lid.
›
Remove the respective grille
A
in direction of arrow
1
» Fig. 380 .
›
Unscrew bolt
B
in the direction of arrow
2
.
›
Hold the light and carefully remove in the direction of arrow
3
.
›
Press the latch
C
on the holder in the direction of the arrow
4
. 
311Fuses and light bulbs

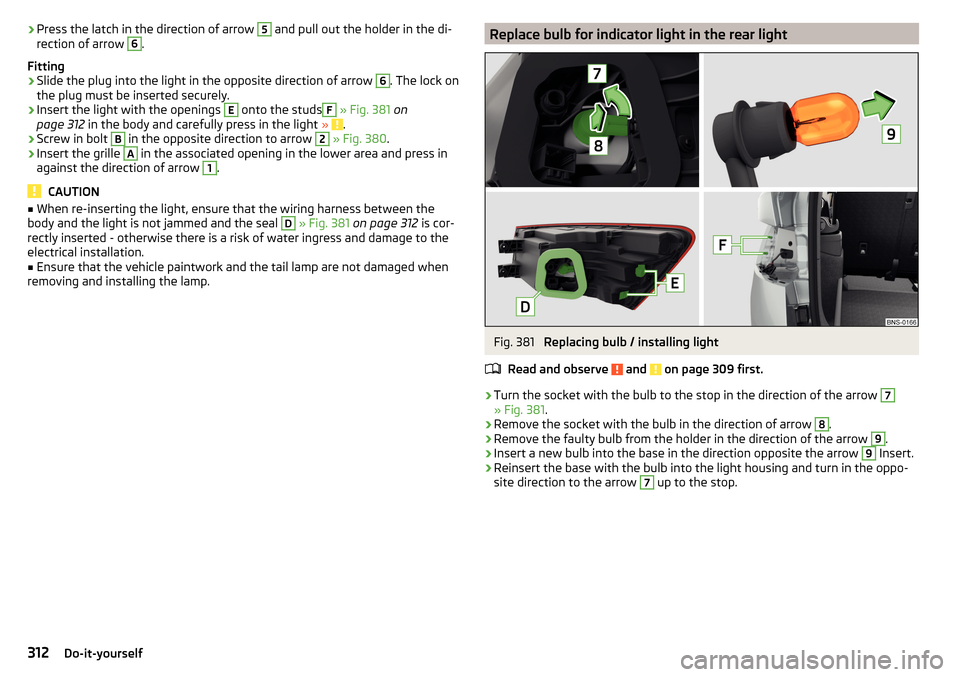

›Press the latch in the direction of arrow 5 and pull out the holder in the di-
rection of arrow 6.
Fitting›
Slide the plug into the light in the opposite direction of arrow
6
. The lock on
the plug must be inserted securely.
›
Insert the light with the openings
E
onto the studs
F
» Fig. 381 on
page 312 in the body and carefully press in the light » .
›
Screw in bolt
B
in the opposite direction to arrow
2
» Fig. 380 .
›
Insert the grille
A
in the associated opening in the lower area and press in
against the direction of arrow
1
.
CAUTION
■ When re-inserting the light, ensure that the wiring harness between the
body and the light is not jammed and the seal D » Fig. 381 on page 312 is cor-
rectly inserted - otherwise there is a risk of water ingress and damage to the
electrical installation.■
Ensure that the vehicle paintwork and the tail lamp are not damaged when
removing and installing the lamp.
Replace bulb for indicator light in the rear lightFig. 381
Replacing bulb / installing light
Read and observe
and on page 309 first.
›
Turn the socket with the bulb to the stop in the direction of the arrow
7
» Fig. 381 .
›
Remove the socket with the bulb in the direction of arrow
8
.
›
Remove the faulty bulb from the holder in the direction of the arrow
9
.
›
Insert a new bulb into the base in the direction opposite the arrow
9
Insert.
›
Reinsert the base with the bulb into the light housing and turn in the oppo-
site direction to the arrow
7
up to the stop.
312Do-it-yourself

Technical data
Technical data
Basic vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle data
313
Operating weight
314
Payload
314
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
315
Dimensions
316
Overhang angle
317
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc- ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with the rules and con-
ditions specified in statutory or technical regulations for determining opera-
tional and technical data for motor vehicles.
The values listed are for the basic model without any optional equipment.
Vehicle dataFig. 382
Vehicle data sticker
Fig. 383
Rating plate
Vehicle data sticker
The vehicle data carrier » Fig. 382 is bonded into the Owner's Manual under
the floor covering in the luggage compartment (with vehicles with spare or
emergency wheel, the vehicle data carrier is located below the respective
wheel).
The vehicle data sticker contains the following data. Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Approved tyre diameter in inches 1)

123451)
Only valid for some countries.
313Technical data

The approved tyres and rim sizes for your vehicle are listed in the vehicle's
technical documentation (the so called COC document) and this also states the
declaration of conformity.
Type plate
The type plate » Fig. 383 is located at the bottom of the B-pillar on the right-
hand driver's side.
The type plate contains the following data. Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
In Infotainment, the VIN number can also be displayed in the menu 

→

→
Service
.
Engine number
The engine number (three-digit identifier and serial number) is stamped on the
engine block.
Supplementary Information (applies to Russia)
The full type approval number of the means of transport is indicated in the
registration documents, field 17.
Maximum permissible towed weight
The listed maximum allowable trailer weight is only valid for altitudes up to
1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing
power. Therefore, for every additional 1000 m in height (or part), the maximum
permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-
cle and the loaded trailer.
123456WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight
This value is only a guide value and corresponds to the lowest possible operat-
ing weight without any equipment added that would also increase the weight
(e.g. air conditioning, emergency or spare wheel etc.). The operating weight al-
so includes the weight of the driver (75 kg), the weight of the operating fluids,
the tool kit, and a fuel tank filled to 90 % capacity.
Operating weight
EngineTransmission
Operating weight (kg)Five-seat versionSeven-seat ver- sion1.4 ltr./92 kW TSIMG152715701.4 l/110 kW TSI ACTMG 4x416151653DSG155115941.4 ltr./110 kW TSIDSG 4x4162516622.0 ltr./132 kW TSIDSG 4x4 (EU6)17071744
2.0 ltr./110 kW TDI CR
MG 4x417141751DSG16771714DSG 4x4 (EU6)175217892.0 ltr./140 kW TDI
CRDSG 4x417611798
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
▶ The weight of the passengers.
▶ The weight of all items of luggage and other loads. 
314Technical data

▶The weight of the roof load including the roof rack system.
▶ The weight of the equipment that is excluded from the operating weight.
▶ Trailer bearing load for trailer towing » table on page 261 .
Measurement of fuel consumption and CO
2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation.
The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note
■ The fuel consumption and emission levels given on the ŠKODA websites or in
the commercial and technical vehicle documentation have been established in
accordance with rules and under conditions that are set out by legal or techni-
cal rules for the determination of operational and technical data of motor vehi-
cles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption valueslisted on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
315Technical data

DimensionsFig. 384
Vehicle dimensions
Vehicle dimensions for operating weight without driver (in mm)
» Fig. 384SpecificationFive-seat versionSeven-seat versionAHeight1655BFront track1586CWidth1882DRear track1576EWidth including exterior mirrors2087FClearance187188GWheelbase2791HLength4697316Technical data

Overhang angleFig. 385
Overhang angle
Angle » Fig. 385
Approach angle
Departure angle
The values shown indicate the maximum incline of an embankment, up which
the vehicle can drive at a slow speed without collision of the bumper or under-
body. The values listed represent the maximum axle load at the front and rear.
Overhang angle (°)
Overhang angle, frontOverhang angle, rearFive-seat ver- sionSeven-seat ver- sionFive-seat versionSeven-seat version19.119.215.615.3AB317Technical data

Vehicle-specific details per engine type
Introduction
This chapter contains information on the following subjects:
1.4 l/92 kW TSI engine318
1.4 l/110 kW TSI ACT engine
318
1.4 l/110 kW TSI engine
3192.0 ltr./132 kW TSI engine3192.0 l/110 kW TDI CR engine319
2.0 l/140 kW TDI CR engine
320The values given have been determined in accordance with the rules and conditions specified in statutory or technical regulations for determining operational
and technical data for motor vehicles.The emissions standard is detailed in the technical vehicle documentation as well as in the certificate of conformity (COC document), which can be obtained from a ŠKODA partner a)
.a)
Only valid for some countries and some models.
1.4 l/92 kW TSI engine
Output (kW at 1/min)92/5000-6000Maximum torque (Nm at 1/min)200/1400-4000Number of cylinders/displacement (cm 3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmissionMGMGTop speeds (km/h)190189Acceleration 0-100 km/h (s)10.6610.87
1.4 l/110 kW TSI ACT engine
Output (kW at 1/min)110/5000-6000Maximum torque (Nm at 1/min)250/1500-3500Number of cylinders/displacement (cm 3
)4/1395Vehicle versionFive-seat versionSeven-seat versionTransmissionMG 4x4DSGMG 4x4DSGTop speeds (km/h)197198196197Acceleration 0-100 km/h (s)9.809.389.909.55318Technical data
