service SKODA KODIAQ 2020 Owner´s Manual

73Control centre73Radio76Media79Mobile device management80Telephone82SmartLink84Infotainment Bolero84Infotainment overview85System86Screen87Infotainment keyboard88Voice control89Control centre89Radio93Media97Images98Mobile device management99Telephone102Wi-Fi104SmartLink106Infotainment Amundsen106Infotainment overview106System107Screen108Infotainment keyboard109Voice control110Control centre111Radio114Media118Images119Mobile device management120Telephone123Wi-Fi125SmartLink127Navigation131Infotainment Columbus131Infotainment overview131System132Screen133Keypad134Voice control135Control centre136Radio139Media143Images144Mobile device management145Telephone148Wi-Fi150SmartLink152Navigation156Online Services156

Explanations
Terms used- A workshop that carries out
specialist service tasks for

https://www.skoda-auto.com/other/personal-
data

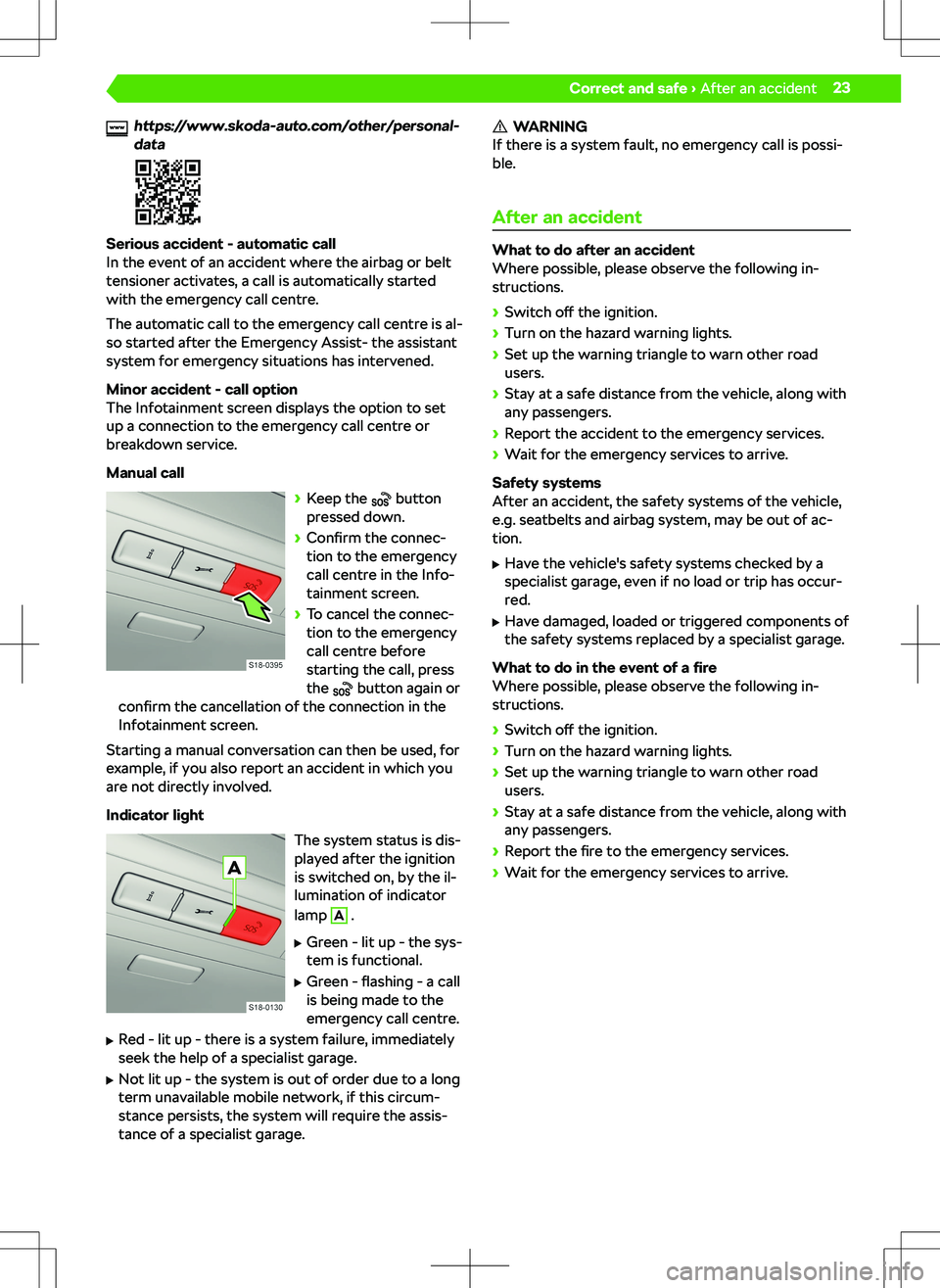

Serious accident - automatic call
In the event of an accident where the airbag or belt
tensioner activates, a call is automatically started
with the emergency call centre.
The automatic call to the emergency call centre is al-
so started after the Emergency Assist- the assistant
system for emergency situations has intervened.
Minor accident - call option
The Infotainment screen displays the option to set
up a connection to the emergency call centre or
breakdown service.
Manual call

VIN display
The display of VIN takes place in the infotainment
under the following menu item.
Menu item for the Service
Or:
Menu item for the Service
Engine number
The engine number is embossed on the engine block.
Maximum permissible weights
The maximum permissible weights are listed on the
nameplate.
The type plate is located at the bottom of the middle
body pillar of the vehicle.
AMaximum permissible gross weightBMaximum permissible towed weight (towing ve-
hicle and trailer)CMaximum permissible front axle loadDMaximum permissible rear axle load
Maximum permissible towed weight
The specified value is valid for altitudes up to 1000
m above sea level.
The engine output falls as the height increases, as
does the ability to climb.
Therefore, for every additional 1,000 m in height (or
part), the maximum permissible towed weight must
be reduced by 10 %.
The towed weight is made up of the actual weights
of the loaded towing vehicle and the loaded trailer.
Payloads
It is possible to calculate the approximate maximum
payload from the di

Index
A
ABS
177
ACC181
Automatic stop and start181
Distance adjustment181
Interruption of cruise control182
Accident data recorder242
Activation of online services157
Adaptive Cruise Control181
Adaptive suspension172
AdBlue Check
199
Functionality199
Indicator light199
Refilling199
Safety19
standard199
tank capacity200
Air conditioning see manual air conditioning
58
Air conditioning, see Climatronic
59
Airbag47
Fault48
Installation locations47
Release47
Safety20
Switch o

Infotainment Swing71
Infotainment Swing71
Instrument cluster Analogue
64
Instrument cluster display64
Instrument cluster display64
Interior
lighting
55
Interior lighting55, 56
Ambient lighting56
service55
Interior mirror41
ISOFIX46
Retaining eyes46
Use of child seats45
J Jump start cables
204
Jump-starting204
K Key
24
Memory function of the key25
Take out the key bit24
Key switch for airbag deactivation48
Key switch for the front passenger airbag Key switch faulty
49
Keyboard Infotainment Columbus
133
Keyless locking (KESSY)27
Keypad Infotainment Amundsen
108
Infotainment Columbus87
Infotainment Swing72
Kick-down169
L
Lane Assist
183
Lane change assistant see Side Assist
184
Lane Keeping Assist see Lane Assist
183
Lap timer Infotainment
69
Instrument cluster69
Launch control170
LEAVING HOME52
attitude52
Functional conditions52
Lever buttons
65
High beam assistant52
Main beam50
Turn signal50
Windshield wipers and washers56
Liability for defects see warranty
244
Light49
automatic switching on and o
