Driving and the Environment225
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

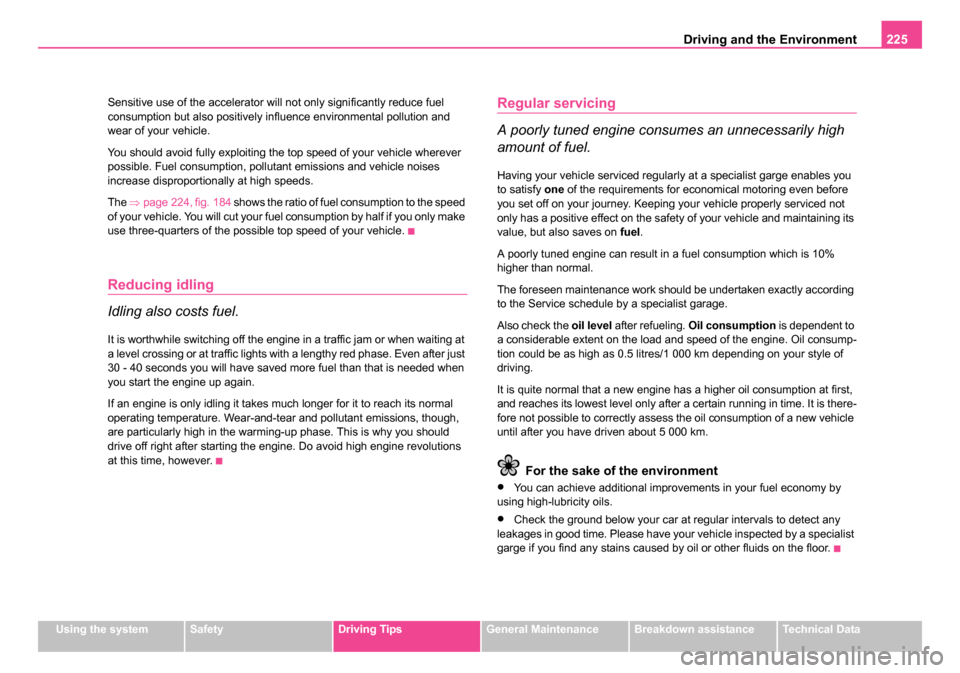

Sensitive use of the accelerator will not only significantly reduce fuel
consumption but also positively influence environmental pollution and
wear of your vehicle.
You should avoid fully exploiting the top speed of your vehicle wherever
possible. Fuel consumption, pollutant emissions and vehicle noises
increase disproportionally at high speeds.
The
⇒page 224, fig. 184 shows the ratio of fuel consumption to the speed
of your vehicle. You will cut your fuel consumption by half if you only make
use three-quarters of the possible top speed of your vehicle.
Reducing idling
Idling also costs fuel.
It is worthwhile switching off the engine in a traffic jam or when waiting at
a level crossing or at traffic lights with a lengthy red phase. Even after just
30 - 40 seconds you will have saved more fuel than that is needed when
you start the engine up again.
If an engine is only idling it takes much longer for it to reach its normal
operating temperature. Wear-and-tear and pollutant emissions, though,
are particularly high in the warming-up phase. This is why you should
drive off right after starting the engine. Do avoid high engine revolutions
at this time, however.
Regular servicing
A poorly tuned engine consumes an unnecessarily high
amount of fuel.
Having your vehicle serviced regularly at a specialist garge enables you
to satisfy one of the requirements for economical motoring even before
you set off on your journey. Keeping your vehicle properly serviced not
only has a positive effect on the safety of your vehicle and maintaining its
value, but also saves on fuel.
A poorly tuned engine can result in a fuel consumption which is 10%
higher than normal.
The foreseen maintenance work should be undertaken exactly according
to the Service schedule by a specialist garage.
Also check the oil level after refueling. Oil consumption is dependent to
a considerable extent on the load and speed of the engine. Oil consump-
tion could be as high as 0.5 litres/1 000 km depending on your style of
driving.
It is quite normal that a new engine has a higher oil consumption at first,
and reaches its lowest level only after a certain running in time. It is there-
fore not possible to correctly assess the oil consumption of a new vehicle
until after you have driven about 5 000 km.
For the sake of the environment
•You can achieve additional improvements in your fuel economy by
using high-lubricity oils.
•Check the ground below your car at regular intervals to detect any
leakages in good time. Please have your vehicle inspected by a specialist
garge if you find any stains caused by oil or other fluids on the floor.
s24s.book Page 225 Thursday, November 24, 2005 12:27 PM

Towing a trailer231
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

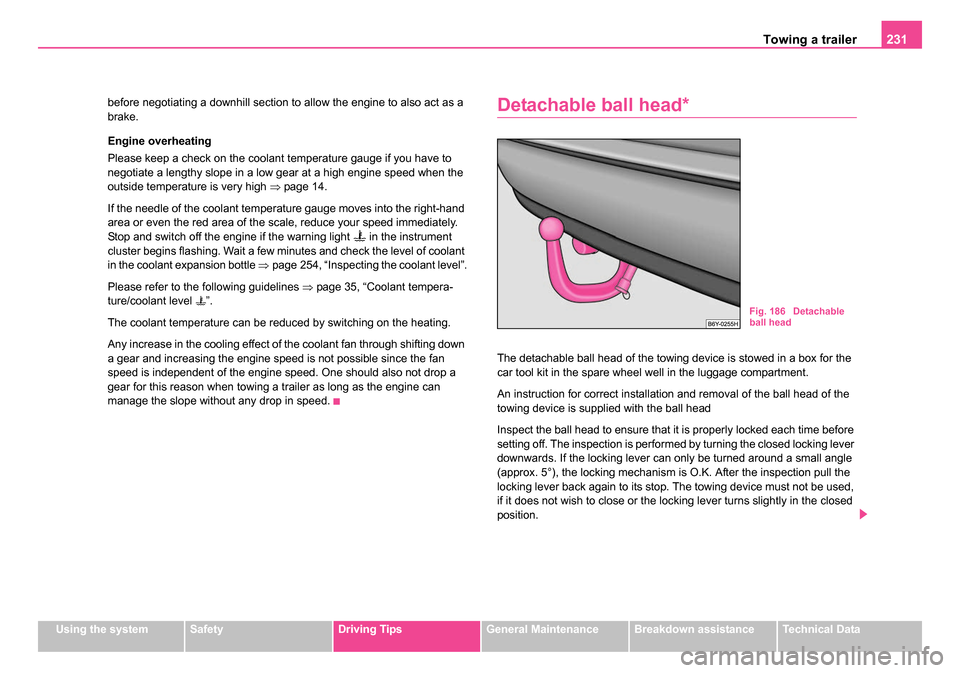

before negotiating a downhill section to allow the engine to also act as a
brake.
Engine overheating
Please keep a check on the coolant temperature gauge if you have to
negotiate a lengthy slope in a low gear at a high engine speed when the
outside temperature is very high
⇒page 14.
If the needle of the coolant temperature gauge moves into the right-hand
area or even the red area of the scale, reduce your speed immediately.
Stop and switch off the engine if the warning light
 in the instrument
cluster begins flashing. Wait a few minutes and check the level of coolant
in the coolant expansion bottle ⇒page 254, “Inspecting the coolant level”.
Please refer to the following guidelines ⇒page 35, “Coolant tempera-
ture/coolant level ”.
The coolant temperature can be reduced by switching on the heating.
Any increase in the cooling effect of the coolant fan through shifting down
a gear and increasing the engine speed is not possible since the fan
speed is independent of the engine speed. One should also not drop a
gear for this reason when towing a trailer as long as the engine can
manage the slope without any drop in speed.
Detachable ball head*
The detachable ball head of the towing device is stowed in a box for the
car tool kit in the spare wheel well in the luggage compartment.
An instruction for correct installation and removal of the ball head of the
towing device is supplied with the ball head
Inspect the ball head to ensure that it is properly locked each time before
setting off. The inspection is performed by turning the closed locking lever
downwards. If the locking lever can only be turned around a small angle
(approx. 5°), the locking mechanism is O.K. After the inspection pull the
locking lever back again to its stop. The towing device must not be used,
if it does not wish to close or the locking lever turns slightly in the closed
position.
Fig. 186 Detachable
ball head
s24s.book Page 231 Thursday, November 24, 2005 12:27 PM

Inspecting and Replenishing
248

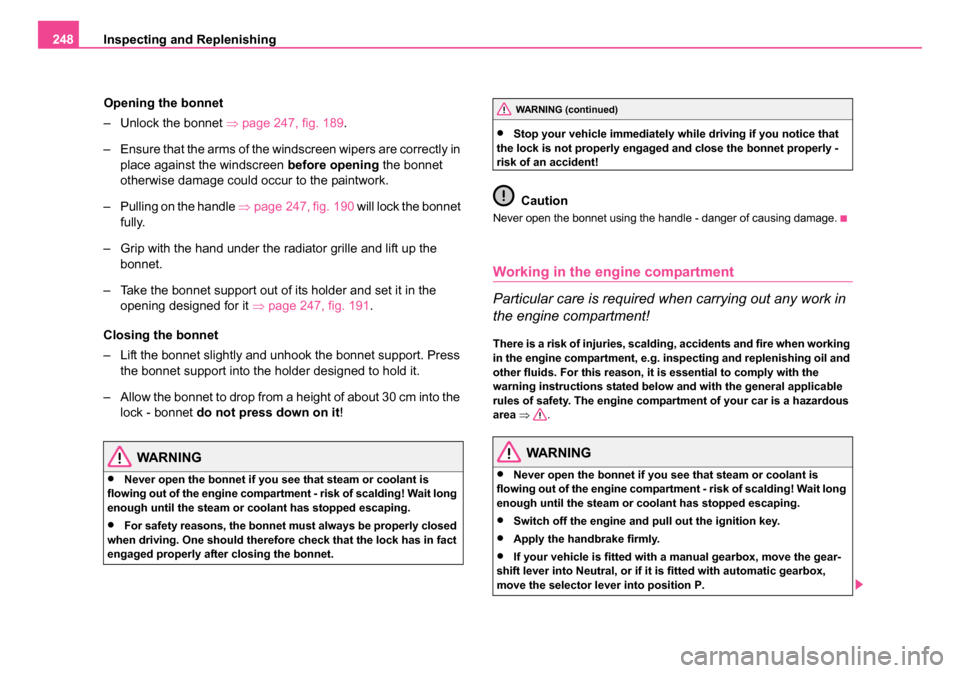

Opening the bonnet
– Unlock the bonnet ⇒page 247, fig. 189 .
– Ensure that the arms of the windscreen wipers are correctly in place against the windscreen before opening the bonnet
otherwise damage could occur to the paintwork.
– Pulling on the handle ⇒page 247, fig. 190 will lock the bonnet
fully.
– Grip with the hand under the radiator grille and lift up the bonnet.
– Take the bonnet support out of its holder and set it in the opening designed for it ⇒page 247, fig. 191.
Closing the bonnet
– Lift the bonnet slightly and unhook the bonnet support. Press the bonnet support into the holder designed to hold it.
– Allow the bonnet to drop from a height of about 30 cm into the lock - bonnet do not press down on it !
WARNING
•Never open the bonnet if you see that steam or coolant is
flowing out of the engine compartment - risk of scalding! Wait long
enough until the steam or coolant has stopped escaping.
•For safety reasons, the bonnet must always be properly closed
when driving. One should therefore check that the lock has in fact
engaged properly after closing the bonnet.
•Stop your vehicle immediately whil e driving if you notice that
the lock is not properly engaged and close the bonnet properly -
risk of an accident!
Caution
Never open the bonnet using the handle - danger of causing damage.
Working in the engine compartment
Particular care is required when carrying out any work in
the engine compartment!
There is a risk of injuries, scalding, accidents and fire when working
in the engine compartment, e.g. inspecting and replenishing oil and
other fluids. For this reason, it is essential to comply with the
warning instructions stated below and with the general applicable
rules of safety. The engine compartment of your car is a hazardous
area ⇒ .
WARNING
•Never open the bonnet if you see that steam or coolant is
flowing out of the engine compartment - risk of scalding! Wait long
enough until the steam or coolant has stopped escaping.
•Switch off the engine and pull out the ignition key.
•Apply the handbrake firmly.
•If your vehicle is fitted with a manual gearbox, move the gear-
shift lever into Neutral, or if it is fitted with automatic gearbox,
move the selector lever into position P.
WARNING (continued)
s24s.book Page 248 Thursday, November 24, 2005 12:27 PM

Inspecting and Replenishing
252

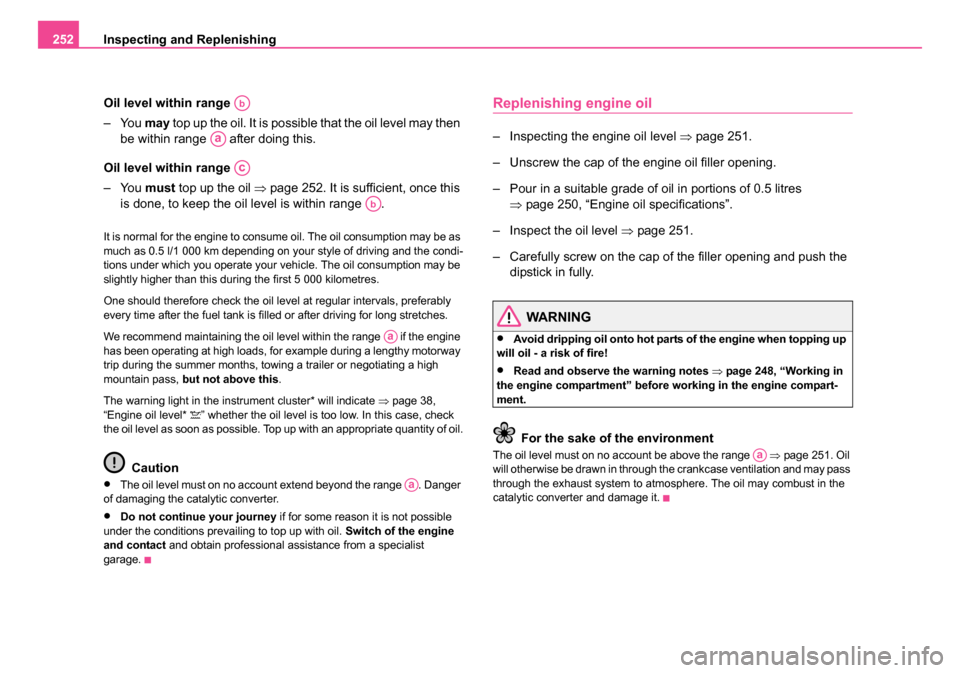

Oil level within range
– You may top up the oil. It is possible that the oil level may then
be within range after doing this.
Oil level within range
– You must top up the oil ⇒page 252. It is sufficient, once this
is done, to keep the oil level is within range .
It is normal for the engine to consume oil. The oil consumption may be as
much as 0.5 l/1 000 km depending on your style of driving and the condi-
tions under which you operate your vehicle. The oil consumption may be
slightly higher than this during the first 5 000 kilometres.
One should therefore check the oil level at regular intervals, preferably
every time after the fuel tank is filled or after driving for long stretches.
We recommend maintaining the oil level within the range if the engine
has been operating at high loads, for example during a lengthy motorway
trip during the summer months, towing a trailer or negotiating a high
mountain pass, but not above this .
The warning light in the instrument cluster* will indicate ⇒page 38,
“Engine oil level* ” whether the oil level is too low. In this case, check
the oil level as soon as possible. Top up with an appropriate quantity of oil.
Caution
•The oil level must on no account extend beyond the range . Danger
of damaging the catalytic converter.
•Do not continue your journey if for some reason it is not possible
under the conditions prevailing to top up with oil. Switch of the engine
and contact and obtain professional assistance from a specialist
garage.
Replenishing engine oil
– Inspecting the engine oil level ⇒page 251.
– Unscrew the cap of the engine oil filler opening.
– Pour in a suitable grade of oil in portions of 0.5 litres ⇒page 250, “Engine oil specifications”.
– Inspect the oil level ⇒page 251.
– Carefully screw on the cap of the filler opening and push the dipstick in fully.
WARNING
•Avoid dripping oil onto hot parts of the engine when topping up
will oil - a risk of fire!
•Read and observe the warning notes ⇒ page 248, “Working in
the engine compartment” before working in the engine compart-
ment.
For the sake of the environment
The oil level must on no account be above the range ⇒page 251. Oil
will otherwise be drawn in through the crankcase ventilation and may pass
through the exhaust system to atmosphere. The oil may combust in the
catalytic converter and damage it.
Ab
Aa
Ac
Ab
Aa
Aa
Aa
s24s.book Page 252 Thursday, November 24, 2005 12:27 PM

Inspecting and Replenishing
254

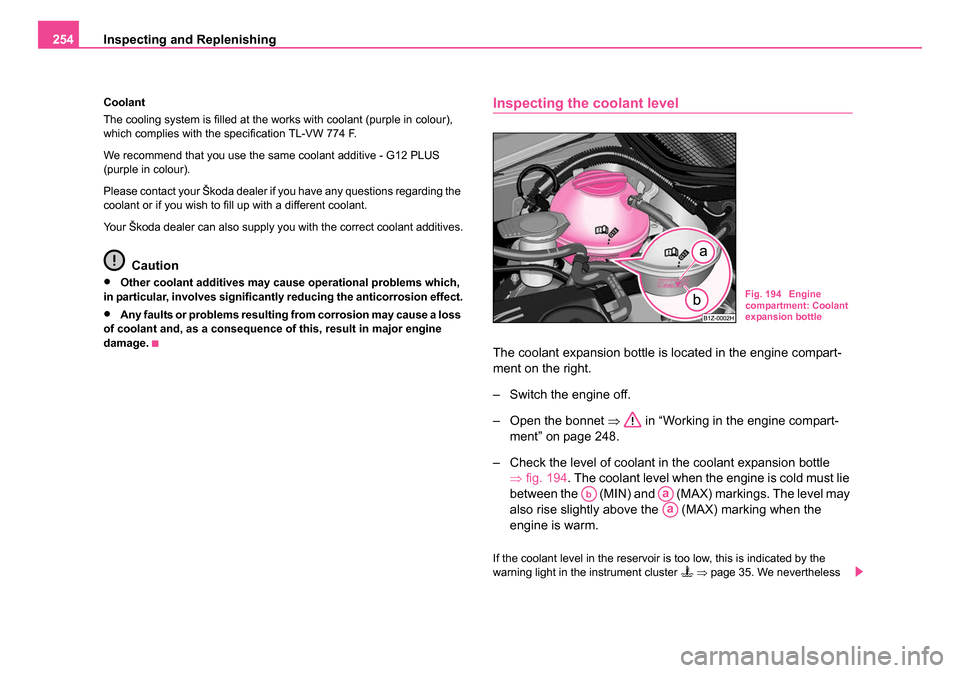

Coolant
The cooling system is filled at the works with coolant (purple in colour),
which complies with the specification TL-VW 774 F.
We recommend that you use the same coolant additive - G12 PLUS
(purple in colour).
Please contact your Škoda dealer if you have any questions regarding the
coolant or if you wish to fill up with a different coolant.
Your Škoda dealer can also supply you with the correct coolant additives.
Caution
•Other coolant additives may cause operational problems which,
in particular, involves significantly reducing the anticorrosion effect.
•Any faults or problems resulting from corrosion may cause a loss
of coolant and, as a consequence of this, result in major engine
damage.
Inspecting the coolant level
The coolant expansion bottle is located in the engine compart-
ment on the right.
– Switch the engine off.
– Open the bonnet ⇒ in “Working in the engine compart-
ment” on page 248.
– Check the level of coolant in the coolant expansion bottle ⇒fig. 194 . The coolant level when the engine is cold must lie
between the (MIN) and (MAX) markings. The level may
also rise slightly above the (MAX) marking when the
engine is warm.
If the coolant level in the reservoir is too low, this is indicated by the
warning light in the instrument cluster  ⇒ page 35. We nevertheless
Fig. 194 Engine
compartment: Coolant
expansion bottle
AbAa
Aa
s24s.book Page 254 Thursday, November 24, 2005 12:27 PM

Breakdown assistance281
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

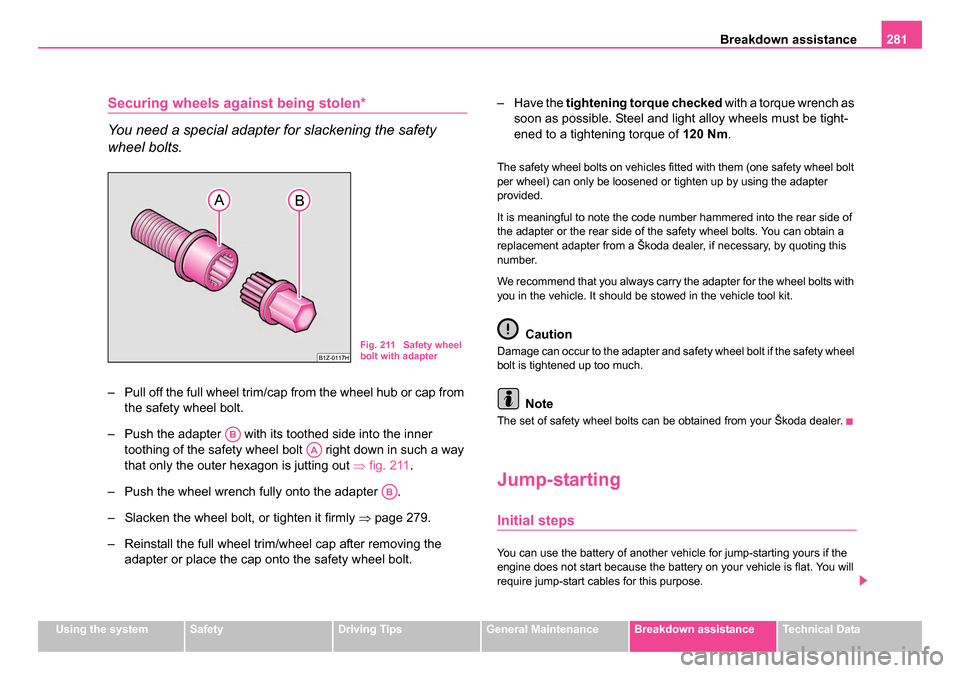

Securing wheels against being stolen*
You need a special adapter for slackening the safety
wheel bolts.
– Pull off the full wheel trim/cap from the wheel hub or cap from
the safety wheel bolt.
– Push the adapter with its toothed side into the inner toothing of the safety wheel bolt right down in such a way
that only the outer hexagon is jutting out ⇒fig. 211.
– Push the wheel wrench fully onto the adapter .
– Slacken the wheel bolt, or tighten it firmly ⇒page 279.
– Reinstall the full wheel trim/wheel cap after removing the adapter or place the cap onto the safety wheel bolt. – Have the
tightening torque checked with a torque wrench as
soon as possible. Steel and light alloy wheels must be tight-
ened to a tightening torque of 120 Nm.
The safety wheel bolts on vehicles fitted with them (one safety wheel bolt
per wheel) can only be loosened or tighten up by using the adapter
provided.
It is meaningful to note the code number hammered into the rear side of
the adapter or the rear side of the safety wheel bolts. You can obtain a
replacement adapter from a Škoda dealer, if necessary, by quoting this
number.
We recommend that you always carry the adapter for the wheel bolts with
you in the vehicle. It should be stowed in the vehicle tool kit.
Caution
Damage can occur to the adapter and safety wheel bolt if the safety wheel
bolt is tightened up too much.
Note
The set of safety wheel bolts can be obtained from your Škoda dealer.
Jump-starting
Initial steps
You can use the battery of another vehicle for jump-starting yours if the
engine does not start because the battery on your vehicle is flat. You will
require jump-start cables for this purpose.
Fig. 211 Safety wheel
bolt with adapter
AB
AA
AB
s24s.book Page 281 Thursday, November 24, 2005 12:27 PM

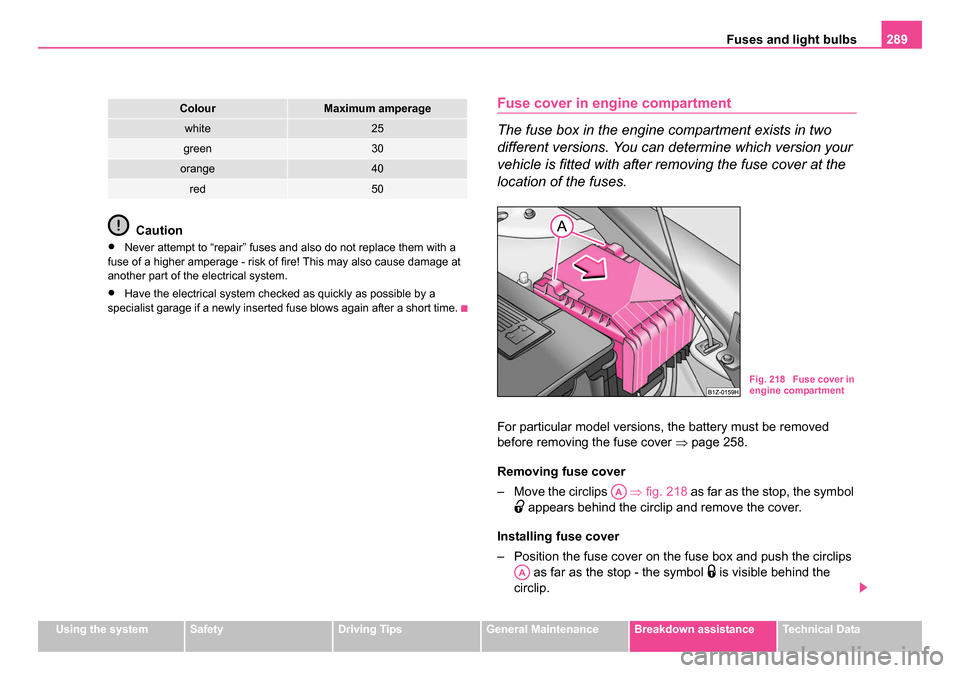

Fuses and light bulbs289
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Caution
•Never attempt to “repair” fuses and also do not replace them with a
fuse of a higher amperage - risk of fire! This may also cause damage at
another part of the electrical system.
•Have the electrical system checked as quickly as possible by a
specialist garage if a newly inserted fuse blows again after a short time.
Fuse cover in engine compartment
The fuse box in the engine compartment exists in two
different versions. You can determine which version your
vehicle is fitted with after removing the fuse cover at the
location of the fuses.
For particular model versions, the battery must be removed
before removing the fuse cover ⇒page 258.
Removing fuse cover
– Move the circlips ⇒fig. 218 as far as the stop, the symbol
 appears behind the circlip and remove the cover.
Installing fuse cover
– Position the fuse cover on the fuse box and push the circlips as far as the stop - the symbol
 is visible behind the
circlip.
white25
green30
orange40
red50
ColourMaximum amperage
Fig. 218 Fuse cover in
engine compartment
AA
AA
s24s.book Page 289 Thursday, November 24, 2005 12:27 PM

Index305
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Warning light . . . . . . . . . . . . . . . . . . . . . . 38
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 270
Adjusting seats . . . . . . . . . . . . . . . . . . . 83, 179 electrically . . . . . . . . . . . . . . . . . . . . . . . . 84
Adjusting the steering wheel . . . . . . . . . . . . 138
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 deactivate . . . . . . . . . . . . . . . . . . . . . . . . 199
Deployment . . . . . . . . . . . . . . . . . . . . . . 191
Front airbags . . . . . . . . . . . . . . . . . . . . . 192
Head airbags . . . . . . . . . . . . . . . . . . . . . 197
Side airbags . . . . . . . . . . . . . . . . . . . . . . 195
Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 190 Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
An overview Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Antilock Brake System . . . . . . . . . . . . . . . . 218
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . 38
Anti-theft alarm system . . . . . . . . . . . . . . . . . 54
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Auto Check Control . . . . . . . . . . . . . . . . . . . . 26 Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . 18
Automatic driving lamp control . . . . . . . . . . . . 64
Automatic gearbox . . . . . . . . . . . . . . . . . . . . 149
Emergency programme . . . . . . . . . 154, 161
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . 152
Selector lever-emergency unlocking . . . 154
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 153
Automatic gearbox DSG . . . . . . . . . . . . . . . 156 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . 159
Selector lever-emergency unlocking . . . 162
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . 160
Automatic seat adjustment . . . . . . . . . . . . . . 85
Automatic vehicle wash systems . . . . . . . . . 234
Avoiding damage to your vehicle . . . . . . . . . 228
B
Before setting off . . . . . . . . . . . . . . . . . . . . . 178
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 188
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Biofuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . . . . 173
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . 143
Warning light . . . . . . . . . . . . . . . . . . . . . . 40 Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . 218
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . 36
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . 33
Buttons for central locking . . . . . . . . . . . . . . . 48
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . 56
C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . 274, 280
Catalytic converter . . . . . . . . . . . . . . . . . . . . 222
Central locking system . . . . . . . . . . . . . . . . . . 46locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . 47
Changing a wheel . . . . . . . . . . . . . . . . . . . . 276
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 294
Changing the engine oil . . . . . . . . . . . . . . . . 253
Changing wheels around . . . . . . . . . . . . . . . 265
Charging the battery . . . . . . . . . . . . . . . . . . 260 Warning light . . . . . . . . . . . . . . . . . . . . . . . 40
Chassis number . . . . . . . . . . . . . . . . . . . . . . 303
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . 202 Side airbags . . . . . . . . . . . . . . . . . . . . . . 205
s24s.book Page 305 Thursday, November 24, 2005 12:27 PM

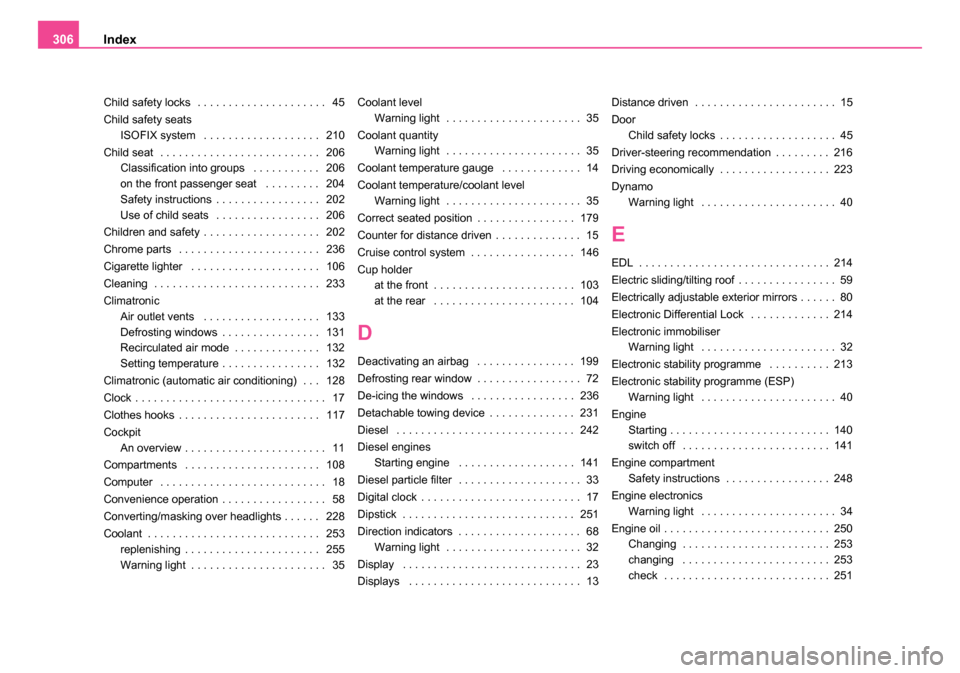

Index
306
Child safety locks . . . . . . . . . . . . . . . . . . . . . 45
Child safety seats
ISOFIX system . . . . . . . . . . . . . . . . . . . 210
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . 206 Classification into groups . . . . . . . . . . . 206
on the front passenger seat . . . . . . . . . 204
Safety instructions . . . . . . . . . . . . . . . . . 202
Use of child seats . . . . . . . . . . . . . . . . . 206
Children and safety . . . . . . . . . . . . . . . . . . . 202
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . 236
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 106
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Climatronic Air outlet vents . . . . . . . . . . . . . . . . . . . 133
Defrosting windows . . . . . . . . . . . . . . . . 131
Recirculated air mode . . . . . . . . . . . . . . 132
Setting temperature . . . . . . . . . . . . . . . . 132
Climatronic (automatic air conditioning) . . . 128
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . 117
Cockpit An overview . . . . . . . . . . . . . . . . . . . . . . . 11
Compartments . . . . . . . . . . . . . . . . . . . . . . 108
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Convenience operation . . . . . . . . . . . . . . . . . 58
Converting/masking over headlights . . . . . . 228
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253 replenishing . . . . . . . . . . . . . . . . . . . . . . 255
Warning light . . . . . . . . . . . . . . . . . . . . . . 35 Coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Coolant temperature gauge . . . . . . . . . . . . . 14
Coolant temperature/coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . 35
Correct seated position . . . . . . . . . . . . . . . . 179
Counter for distance driven . . . . . . . . . . . . . . 15
Cruise control system . . . . . . . . . . . . . . . . . 146
Cup holder at the front . . . . . . . . . . . . . . . . . . . . . . . 103
at the rear . . . . . . . . . . . . . . . . . . . . . . . 104
D
Deactivating an airbag . . . . . . . . . . . . . . . . 199
Defrosting rear window . . . . . . . . . . . . . . . . . 72
De-icing the windows . . . . . . . . . . . . . . . . . 236
Detachable towing device . . . . . . . . . . . . . . 231
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Diesel enginesStarting engine . . . . . . . . . . . . . . . . . . . 141
Diesel particle filter . . . . . . . . . . . . . . . . . . . . 33
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Direction indicators . . . . . . . . . . . . . . . . . . . . 68 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Distance driven . . . . . . . . . . . . . . . . . . . . . . . 15
Door
Child safety locks . . . . . . . . . . . . . . . . . . . 45
Driver-steering recommendation . . . . . . . . . 216
Driving economically . . . . . . . . . . . . . . . . . . 223
Dynamo Warning light . . . . . . . . . . . . . . . . . . . . . . 40
E
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Electric sliding/tilting roof . . . . . . . . . . . . . . . . 59
Electrically adjustable exterior mirrors . . . . . . 80
Electronic Differential Lock . . . . . . . . . . . . . 214
Electronic immobiliserWarning light . . . . . . . . . . . . . . . . . . . . . . 32
Electronic stability programme . . . . . . . . . . 213
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . 40
Engine Starting . . . . . . . . . . . . . . . . . . . . . . . . . . 140
switch off . . . . . . . . . . . . . . . . . . . . . . . . 141
Engine compartment Safety instructions . . . . . . . . . . . . . . . . . 248
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . 34
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Changing . . . . . . . . . . . . . . . . . . . . . . . . 253
changing . . . . . . . . . . . . . . . . . . . . . . . . 253
check . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s24s.book Page 306 Thursday, November 24, 2005 12:27 PM
