Lights and Visibility65
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
The automatic driving lamp control only operates as a support. The
driver is not released from his responsibility to inspect the light
and if necessary to switch on the light depending on the light
conditions. The light sensor cannot detect for example rain or
snow. Always switch on the low beam
 under these conditions
as well as when driving in the dark!
Note
•Do not affix any stickers in front of the light sensor, so that you do not
impair its function or put it out of operation.
•The same principles as for using the automatic driving lamp control
also apply to the light which is switched on manually ⇒page 63.
Fog lights* 
Switching on the fog lights

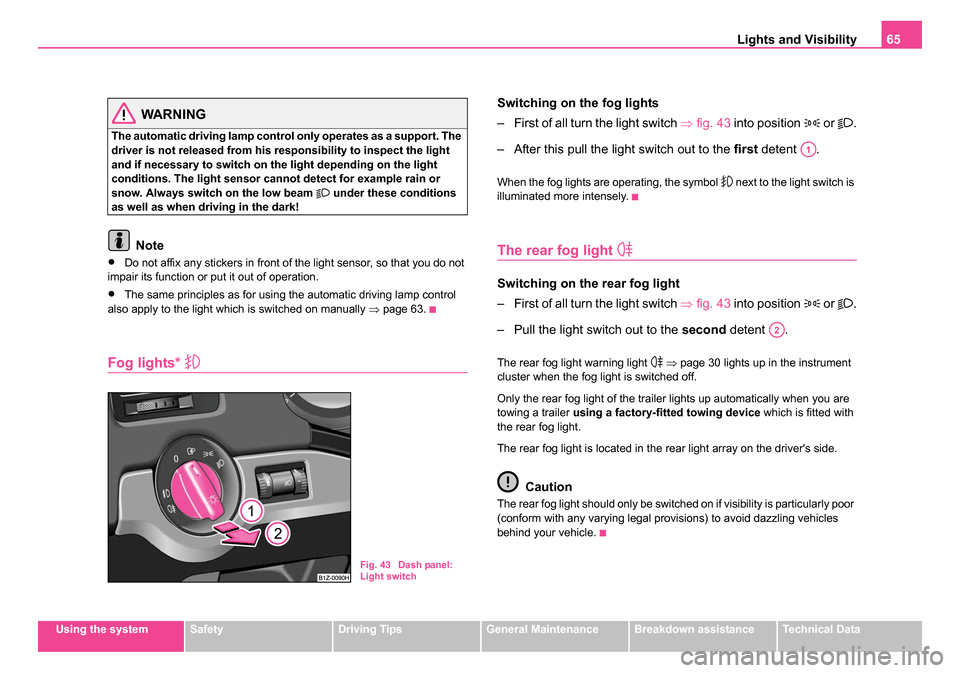

– First of all turn the light switch ⇒fig. 43 into position
 or .
– After this pull the light switch out to the first detent .
When the fog lights are operating, the symbol  next to the light switch is
illuminated more intensely.
The rear fog light 
Switching on the rear fog light
– First of all turn the light switch ⇒fig. 43 into position
 or .
– Pull the light switch out to the second detent .
The rear fog light warning light  ⇒ page 30 lights up in the instrument
cluster when the fog light is switched off.
Only the rear fog light of the trailer lights up automatically when you are
towing a trailer using a factory-fitted towing device which is fitted with
the rear fog light.
The rear fog light is located in the rear light array on the driver's side.
Caution
The rear fog light should only be switched on if visibility is particularly poor
(conform with any varying legal provisions) to avoid dazzling vehicles
behind your vehicle.
Fig. 43 Dash panel:
Light switch
A1
A2
s24s.book Page 65 Thursday, November 24, 2005 12:27 PM

Lights and Visibility67
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Instrument lighting* 
You can adjust the brightness of the instrument lighting.
Instrument lighting
– Switch on the light.
– Turn the control dial ⇒fig. 44 to the desired intensity of the
instrument lighting
5).
Headlight range adjustment 
Once the low beam is switched on you can then adapt the
range of the headlights to the load of the vehicle.
– Turn the control dial ⇒fig. 45 until you have adjusted the low
beam so that oncoming traffic is not dazzled.
Settings
The positions correspond approximately to the following vehicle loads:
Front seats occupied, luggage compartment empty.
All seats occupied, luggage compartment empty.
All seats occupied, luggage compartment laden.
Driver seat occupied, luggage compartment laden.
Caution
Set the headlight beam adjustment in such a way as to avoid dazzling
oncoming traffic.5)On the information display* ⇒page 23 the intensity of the lighting is automatically
set. The setting using the control dial ⇒fig. 44 is only possible when driving in the
dark.
Fig. 44 Dash panel:
Instrument lighting
Fig. 45 Dash panel:
Lights and Visibility
A-
A1
A2
A3
s24s.book Page 67 Thursday, November 24, 2005 12:27 PM

Lights and Visibility69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The turn signal and main beam lever perform the following func-
tions:
Right
 and left  turn signal light
– Push the lever upwards or downwards ⇒page 68, fig. 47 .
– If you only wish to flash three times* (the so-called conven- ience turn signal), push the lever briefly up to the upper or
lower pressure point and release it.
– Turn signal for changing lanes, in order to only flash briefly - move the lever up or down to the pressure point and hold it in
this position.
Main beam

– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial position in order to switch the main beam off again.
Headlight flasher

– Pull on the lever of the steering wheel (sprung position) - the main beam and warning light in the instrument cluster come
on.
Parking light

– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switched on.
Information concerning the function of the lights.
•The turn signal system only operates when the ignition is switched
on. The corresponding indicator light  or  in the instrument cluster also
flashes.
•The turn signal is automatically cancelled after negotiating a curve.
•The indicator light flashes at twice its normal rate if a bulb of the turn
signal light fails.
•The side light and rear light on the appropriate side of the vehicle are
switched on when the parking light is selected. The parking light function
only operates if the ignition is switched off.
•An acoustic warning signal will sound when the driver's door is opened
if the lever is not in the middle position after removing the ignition key. The
acoustic warning signal will stop just as soon as the driver's door is closed.
Caution
Use main beam or the headlight flasher only if this does not risk dazzling
other road users.
Note
•Use only in accordance with the legal requirements the described
lighting and signal systems.
s24s.book Page 69 Thursday, November 24, 2005 12:27 PM

Lights and Visibility71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Rear interior lighting*

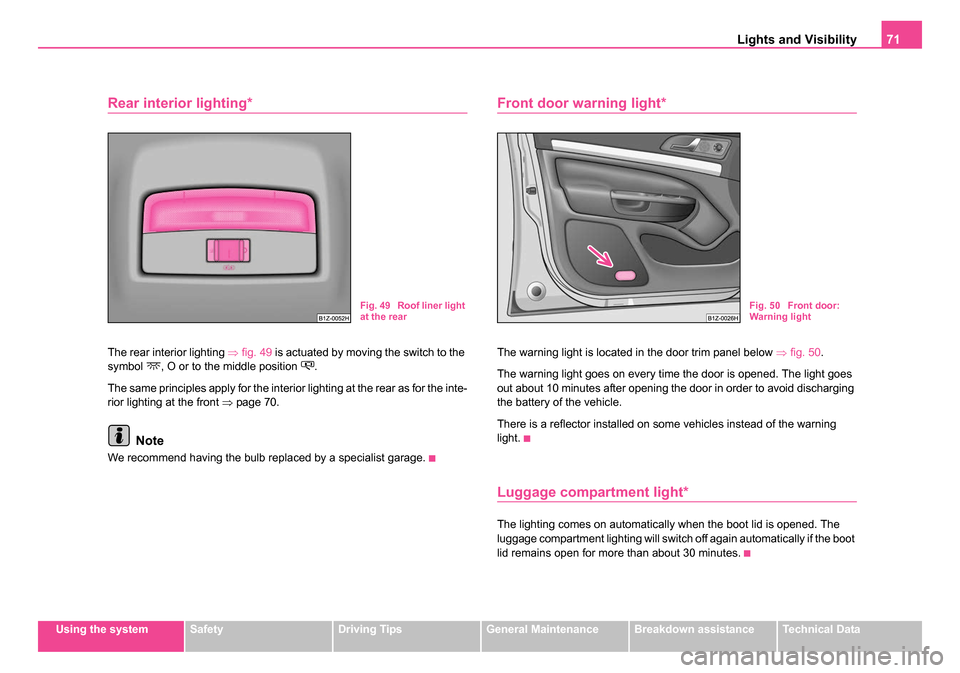

The rear interior lighting ⇒fig. 49 is actuated by moving the switch to the
symbol , O or to the middle position .
The same principles apply for the interior lighting at the rear as for the inte-
rior lighting at the front ⇒ page 70.
Note
We recommend having the bulb replaced by a specialist garage.
Front door warning light*
The warning light is located in the door trim panel below ⇒fig. 50 .
The warning light goes on every time the door is opened. The light goes
out about 10 minutes after opening the door in order to avoid discharging
the battery of the vehicle.
There is a reflector installed on some vehicles instead of the warning
light.
Luggage compartment light*
The lighting comes on automatically when the boot lid is opened. The
luggage compartment lighting will switch off again automatically if the boot
lid remains open for more than about 30 minutes.
Fig. 49 Roof liner light
at the rearFig. 50 Front door:
Warning light
s24s.book Page 71 Thursday, November 24, 2005 12:27 PM

Lights and Visibility73
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•The position and the shape of the switch can differ depending on
equipment installed in the vehicle.
•If the on-board voltage drops, the rear window heater is switched off
automatically, in order to provide sufficient electrical energy for the engine
control.
Sun visors

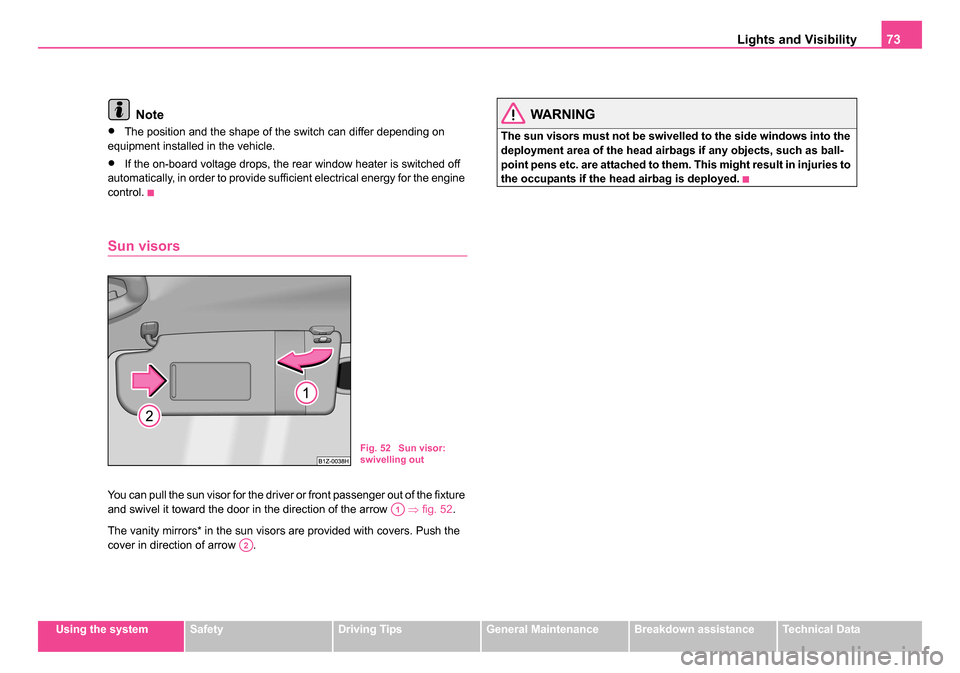

You can pull the sun visor for the driver or front passenger out of the fixture
and swivel it toward the door in the direction of the arrow ⇒fig. 52 .
The vanity mirrors* in the sun visors are provided with covers. Push the
cover in direction of arrow .
WARNING
The sun visors must not be swivelled to the side windows into the
deployment area of the head airbags if any objects, such as ball-
point pens etc. are attached to them. This might result in injuries to
the occupants if the head airbag is deployed.
Fig. 52 Sun visor:
swivelling out
A1
A2
s24s.book Page 73 Thursday, November 24, 2005 12:27 PM

Lights and Visibility75
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Windshield wiper and wash system
Windscreen wipers
You can operate the windscreen wipers and automatic
wipe/wash using the windscreen wiper lever.
The windscreen wiper lever ⇒fig. 55 has the following positions:
Finger-operated wiping
– If you wish to wipe the windscreen only briefly, push the lever
into the sprung position . If you hold the lever in the lower
position for more than 1 second, the wiper wipes faster.
Intermittent wipe
– Position the lever up into position . – Set with the switch the desired break between the indi-
vidual wiper strokes
Slow wipe
– Position the lever up into position .
Fast wipe
– Position the lever up into position .
Automatic wipe/w ash for windscreen
– Pull the lever towards the steering wheel into sprung position , the wash system sprays immediately, the windscreen
wiper starts wiping a little later. The wash system and the
windscreen wiper operate simultaneously at a speed of more
than 120 km/h.
– Release the lever. The windscreen wash system stops and the wiper continues for another 3 - 4 wiper strokes (depending
on the period of spraying of the windscreen). At a speed of
more than 120 km/h, the wiper wipes once again 5 seconds
after the last wiper stroke in order to wipe the last drops from
the windscreen.
Rain sensor*
– Move the lever into position .
– You can set the sensitivity of the sensor individually with switch .
Wiping the rear window pane*
– Push the lever away from the steering wheel into position - the widescreen wiper will operate every 6 seconds.
Fig. 55 Windscreen
wiper lever
A4
A1
AA
A2
A3
A5
A1
AA
A6
s24s.book Page 75 Thursday, November 24, 2005 12:27 PM

Lights and Visibility77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•If the slower or the faster wiper setting is switched on ⇒page 75,
fig. 55 and the vehicle speed decreases to below 4 km/h, the next lower
wiper step is switched on automatically. At a speed increase of more than
8 km/h the previous wiper setting is established again.
•If there is an obstacle on the windscreen, the wiper will try to push
away the obstacle. If the obstacle continues to block the wiper, the wiper
stops after 5 cycles, in order to avoid a damage to the wiper. Remove the
obstacle and and switch on the wiper again.
Headlight cleaning system*
The headlights are being cleaned after the windscreen has been sprayed
for the fifth time, the low beam or main beam are switched on and the
windscreen wiper lever was held in the position ⇒page 75, fig. 55 for
about 1 second.
The headlight washer nozzles are moved forward out of the bumper by the
water pressure for cleaning the headlights.
You should remove stubborn dirt (such as insect residues) from the head-
light lenses at regular intervals, for example when refuelling. Please refer
to the following guidelines ⇒page 237, “The headlight lenses”.
You should remove any snow from the fixtures of the washer nozzles and
clear ice in winter with a de-icing spray in order to ensure proper operation
of the cleaning system.
Replacing wiper blades for the windscreen wipers
One cannot fold out the wiper arms in the rest position from the
windscreen. Before replacing the wiper arms you must put them
into the service position.
Service position for changing wiper blades
– Close the bonnet.
– Switch the ignition on and then again off.
– Then press the windscreen wiper lever in the position ⇒page 75, fig. 55 within 20 seconds - the wiper arms move
into the service position.
Taking off the wiper blade
– Fold windscreen wiper arm away from the windscreen and position the wiper blade at right angles to the wiper arm ⇒.
A2A3
A5
Fig. 56 Wiper blades
for the windscreen
A4
s24s.book Page 77 Thursday, November 24, 2005 12:27 PM

Lights and Visibility79
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Attaching a wiper blade
– Position the wiper blade onto the wiper arm and lock the
locking button .
– Check whether the wiper blade is correctly attached.
The same remarks apply here as for ⇒page 77, “Replacing wiper blades
for the windscreen wipers”.
Rear-view mirror
Manual dimming interior rear-view mirror
Basic position
– Pull the lever on the bottom edge of the mirror forward.
Dimming mirror
– Pull the lever on the bottom edge of the mirror back.
Automatic dimming interior mirror*

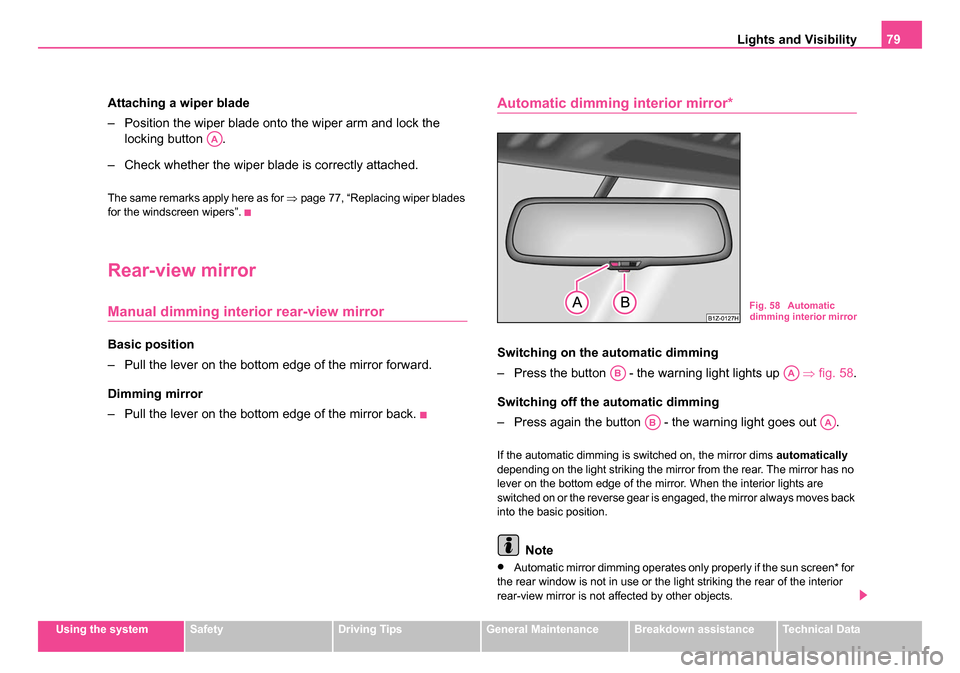

Switching on the automatic dimming
– Press the button - the warning light lights up ⇒fig. 58.
Switching off the automatic dimming
– Press again the button - the warning light goes out .
If the automatic dimming is switched on, the mirror dims automatically
depending on the light striking the mirror from the rear. The mirror has no
lever on the bottom edge of the mirror. When the interior lights are
switched on or the reverse gear is engaged, the mirror always moves back
into the basic position.
Note
•Automatic mirror dimming operates only properly if the sun screen* for
the rear window is not in use or the light striking the rear of the interior
rear-view mirror is not affected by other objects.
AA
Fig. 58 Automatic
dimming interior mirror
ABAA
ABAA
s24s.book Page 79 Thursday, November 24, 2005 12:27 PM

Lights and Visibility81
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•Do not touch the surface of the exterior mirrors if the exterior mirror
heater is switched on.
•You can set the exterior mirrors by hand, if the power setting function
fails at any time, by pressing on the edge of the mirror surface.
•Contact your specialist garage if a fault exists with the power setting of
the exterior mirrors.
Automatic dimming exterior mirror*
The exterior mirrors are dimmed together with the automatic dimming inte-
rior mirror. If the automatic dimming is switched on, the mirror dims auto-
matically depending on the light striking the mirror from the rear.
When the interior lights are switched on or the reverse gear is engaged,
the mirror always moves back into the basic position (not dimmed).
Note
•Automatic mirror dimming operates only properly if the sun screen* for
the rear window is not in use or the light striking the rear of the interior
rear-view mirror is not affected by other objects.
•Do not affix any stickers in front of the light sensor, so that you do not
impair the automatic dimming function or put it out of operation.
•If you switch off the automatic dimming interior rear-view mirror, also
the exterior mirror dimming is switched off.
s24s.book Page 81 Thursday, November 24, 2005 12:27 PM

Seats and Stowage83
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Adjusting the front seats
Adjusting a seat in a forward/back direction
– Pull the lever ⇒page 83, fig. 60 up and push the seat into
the desired position.
– Release the lever and push the seat further until the lock is heard to engage.
Adjusting height of seat*
– Lift the seat if required by pulling or pumping lever upwards.
– Lower the seat if required by pushing or pumping lever downwards. Adjusting angl
e of backrest
– Relieve any pressure on the backrest (do not lean on it) and turn the handwheel ⇒page 83, fig. 60 to adjust the desired
angle of the backrest.
Adjusting lumbar support*
– Turn the handwheel until you have set the most comfort- able curvature of the seat upholstery in the area of your spine.
The driver's seat should be adjusted in such a way that the pedals can be
pressed to the floor with slightly bent legs.
The backrest on the driver's seat should be adjusted in such a way that
the upper point of the steering wheel can be easily reached with slightly
bent arms.
WARNING
•Only adjust the driver seat when the vehicle is stationary - risk
of injury!
•Take care when adjusting the sea t! Adjusting the seat without
care can lead to bruises or injuries.
•The backrests must not be angled too far back when driving
otherwise this will affect proper operation of the seat belts and of
the airbag system - risk of injury!
Fig. 60 Controls at
seat
A1
A1
A2
A2
A3
A4
s24s.book Page 83 Thursday, November 24, 2005 12:27 PM
