Seats and Stowage105
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

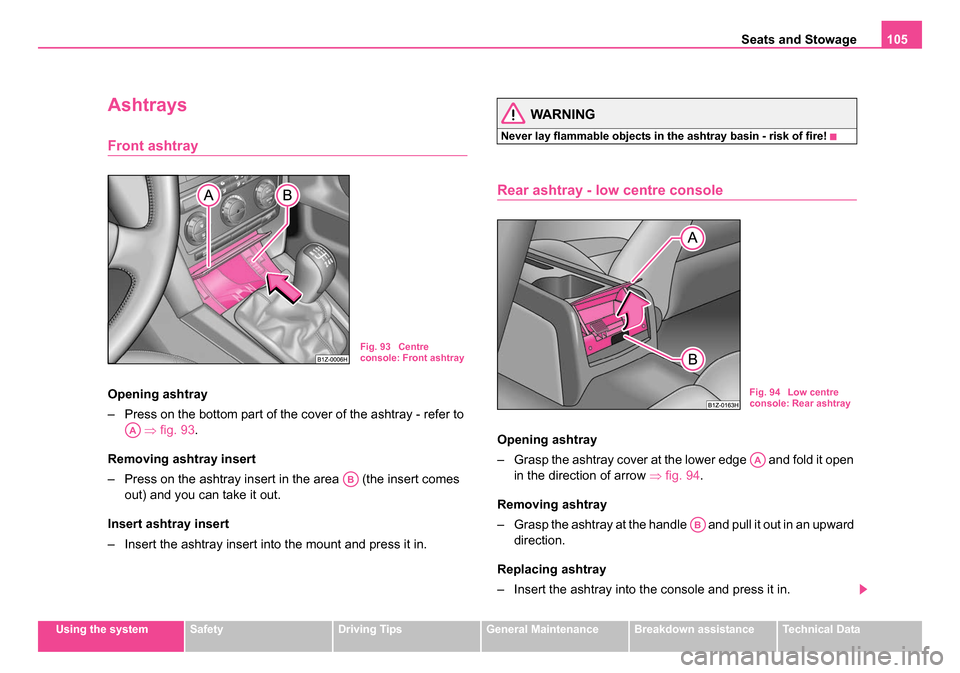

Ashtrays
Front ashtray
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 93.
Removing ashtray insert
– Press on the ashtray insert in the area (the insert comes out) and you can take it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - low centre console
Opening ashtray
– Grasp the ashtray cover at the lower edge and fold it open in the direction of arrow ⇒fig. 94.
Removing ashtray
– Grasp the ashtray at the handle and pull it out in an upward direction.
Replacing ashtray
– Insert the ashtray into the console and press it in.
Fig. 93 Centre
console: Front ashtray
AA
AB
Fig. 94 Low centre
console: Rear ashtray
AA
AB
s24s.book Page 105 Thursday, November 24, 2005 12:27 PM

Seats and Stowage107
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒page 106, fig. 96 .
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the cigarette lighter.
The 12 volt power socket can also be used to supply power to electrical
accessories with a power uptake up to 180 watts.
WARNING
•Take care when using the cigarette lighter! Not paying proper
attention or incorrect use the cigarette lighter in an uncontrolled
manner may result in burns.
•The cigarette lighter and the power socket also operates when
the ignition is switched off or the ignition key withdrawn. You
should therefore never leave children unattended in the vehicle.
Caution
Always use matching plugs to avoid damaging the power sockets.
Note
•Connecting electrical components when the engine is not
running will drain the battery of the vehicle - risk of battery draining!
•Further information ⇒page 270, “Accessories, changes and replace-
ment of parts”.
Power socket in the luggag e compartment (estate car)
– Open the cover of the power socket ⇒fig. 97.
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the connection of approved elec-
trical accessories with a power uptake up to 180 watts. The vehicle battery
will be discharged in the process if the engine is stationary.
The same principles apply here as for ⇒page 106.
Fig. 97 Luggage
compartment: Power
socket
s24s.book Page 107 Thursday, November 24, 2005 12:27 PM

Seats and Stowage109
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

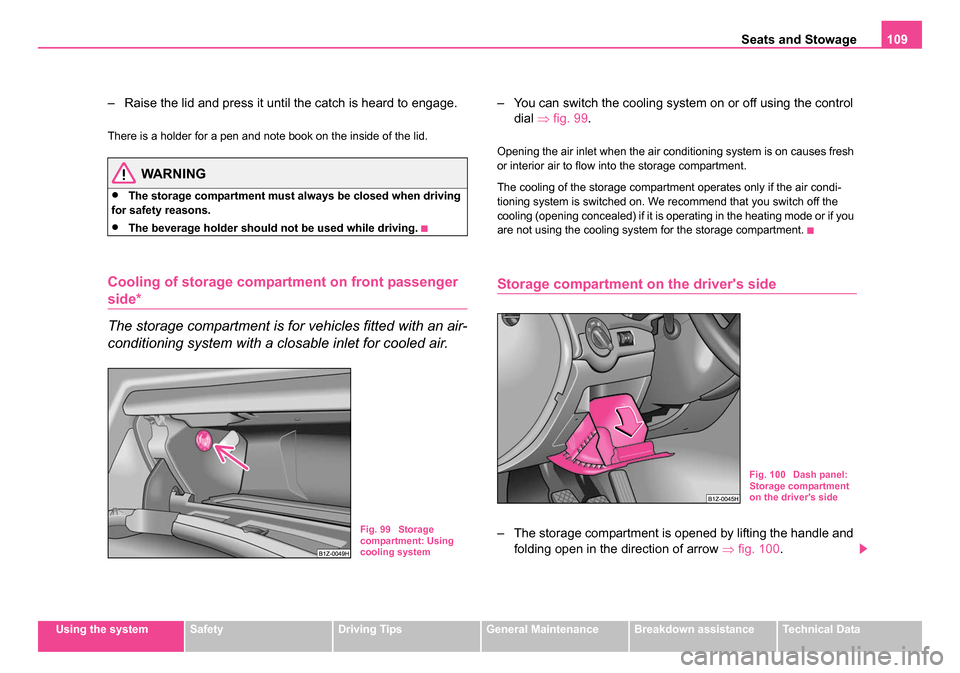

– Raise the lid and press it until the catch is heard to engage.
There is a holder for a pen and note book on the inside of the lid.
WARNING
•The storage compartment must always be closed when driving
for safety reasons.
•The beverage holder should not be used while driving.
Cooling of storage compar tment on front passenger
side*
The storage compartment is for vehicles fitted with an air-
conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control
dial ⇒fig. 99.
Opening the air inlet when the air conditioning system is on causes fresh
or interior air to flow into the storage compartment.
The cooling of the storage compartment operates only if the air condi-
tioning system is switched on. We recommend that you switch off the
cooling (opening concealed) if it is operating in the heating mode or if you
are not using the cooling system for the storage compartment.
Storage compartment on the driver's side
– The storage compartment is opened by lifting the handle and
folding open in the direction of arrow ⇒fig. 100 .Fig. 99 Storage
compartment: Using
cooling system
Fig. 100 Dash panel:
Storage compartment
on the driver's side
s24s.book Page 109 Thursday, November 24, 2005 12:27 PM

Seats and Stowage111
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

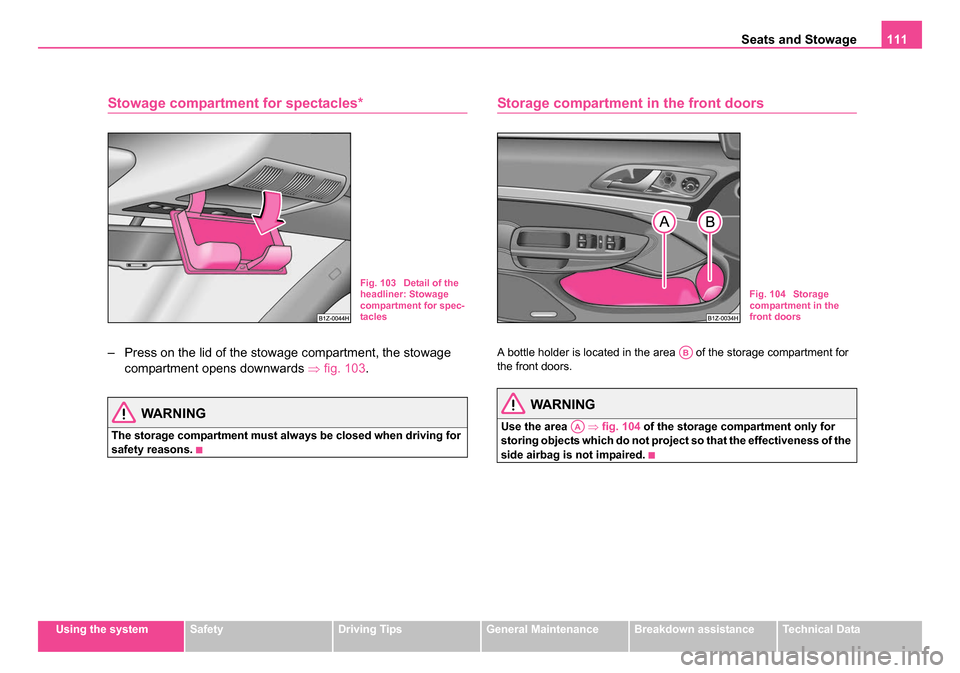

Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage
compartment opens downwards ⇒ fig. 103.
WARNING
The storage compartment must always be closed when driving for
safety reasons.
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for
the front doors.
WARNING
Use the area ⇒fig. 104 of the storage compartment only for
storing objects which do not project so that the effectiveness of the
side airbag is not impaired.
Fig. 103 Detail of the
headliner: Stowage
compartment for spec-
taclesFig. 104 Storage
compartment in the
front doors
AB
AA
s24s.book Page 111 Thursday, November 24, 2005 12:27 PM

Seats and Stowage113
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

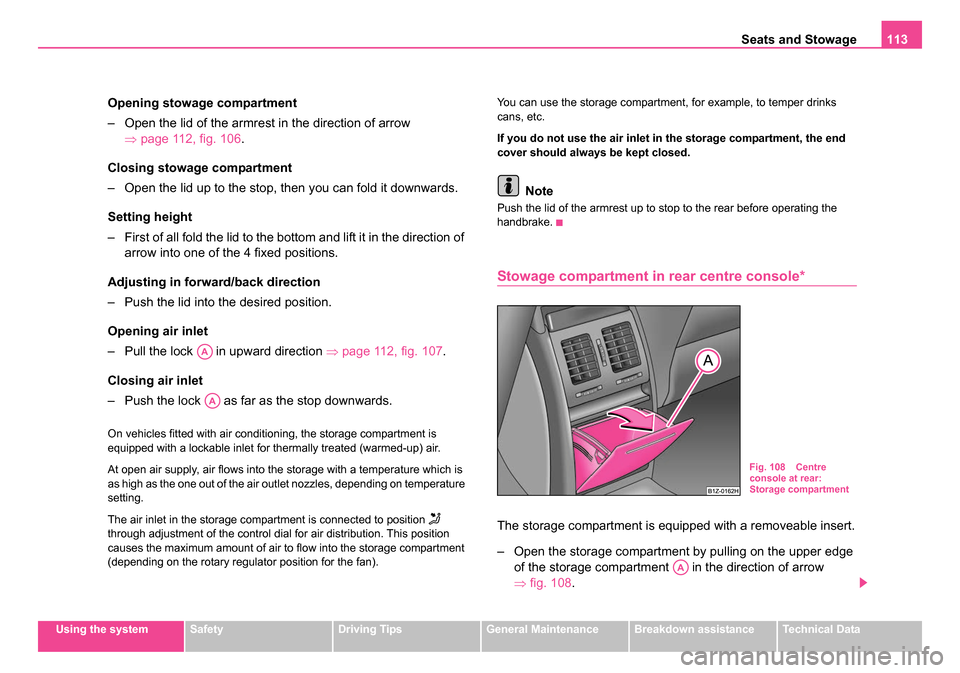

Opening stowage compartment
– Open the lid of the armrest in the direction of arrow
⇒page 112, fig. 106 .
Closing stowage compartment
– Open the lid up to the stop, then you can fold it downwards.
Setting height
– First of all fold the lid to the bottom and lift it in the direction of arrow into one of the 4 fixed positions.
Adjusting in forward/back direction
– Push the lid into the desired position.
Opening air inlet
– Pull the lock in upward direction ⇒page 112, fig. 107 .
Closing air inlet
– Push the lock as far as the stop downwards.
On vehicles fitted with air conditioning, the storage compartment is
equipped with a lockable inlet for thermally treated (warmed-up) air.
At open air supply, air flows into the storage with a temperature which is
as high as the one out of the air outlet nozzles, depending on temperature
setting.
The air inlet in the storage compartment is connected to position

through adjustment of the control dial for air distribution. This position
causes the maximum amount of air to flow into the storage compartment
(depending on the rotary regulator position for the fan). You can use the storage compartment, for example, to temper drinks
cans, etc.
If you do not use the air inlet in the storage compartment, the end
cover should always be kept closed.
Note
Push the lid of the armrest up to stop to the rear before operating the
handbrake.
Stowage compartment in
rear centre console*
The storage compartment is equipped with a removeable insert.
– Open the storage compartment by pulling on the upper edge
of the storage compartment in the direction of arrow
⇒fig. 108.
AA
AA
Fig. 108 Centre
console at rear:
Storage compartment
AA
s24s.book Page 113 Thursday, November 24, 2005 12:27 PM

Seats and Stowage115
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

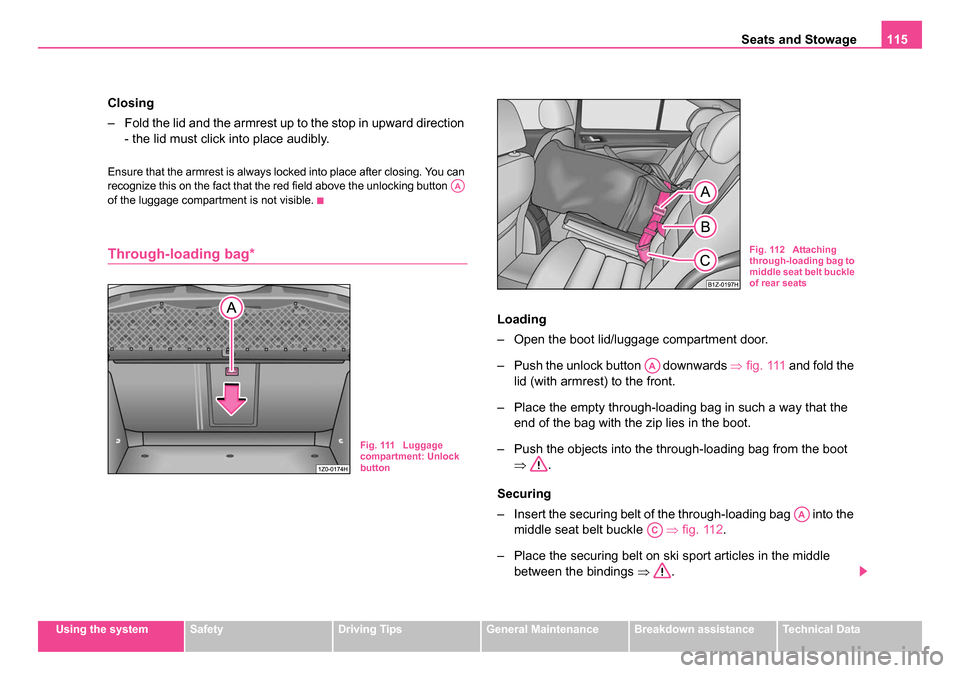

Closing
– Fold the lid and the armrest up to the stop in upward direction
- the lid must click into place audibly.
Ensure that the armrest is always locked into place after closing. You can
recognize this on the fact that the red field above the unlocking button
of the luggage compartment is not visible.
Through-loading bag*
Loading
– Open the boot lid/luggage compartment door.
– Push the unlock button downwards ⇒fig. 111 and fold the
lid (with armrest) to the front.
– Place the empty through-loading bag in such a way that the end of the bag with the zip lies in the boot.
– Push the objects into the through-loading bag from the boot ⇒ .
Securing
– Insert the securing belt of the through-loading bag into the middle seat belt buckle ⇒fig. 112 .
– Place the securing belt on ski sport articles in the middle between the bindings ⇒.
AA
Fig. 111 Luggage
compartment: Unlock
button
Fig. 112 Attaching
through-loading bag to
middle seat belt buckle
of rear seats
AA
AA
AC
s24s.book Page 115 Thursday, November 24, 2005 12:27 PM

Seats and Stowage117
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

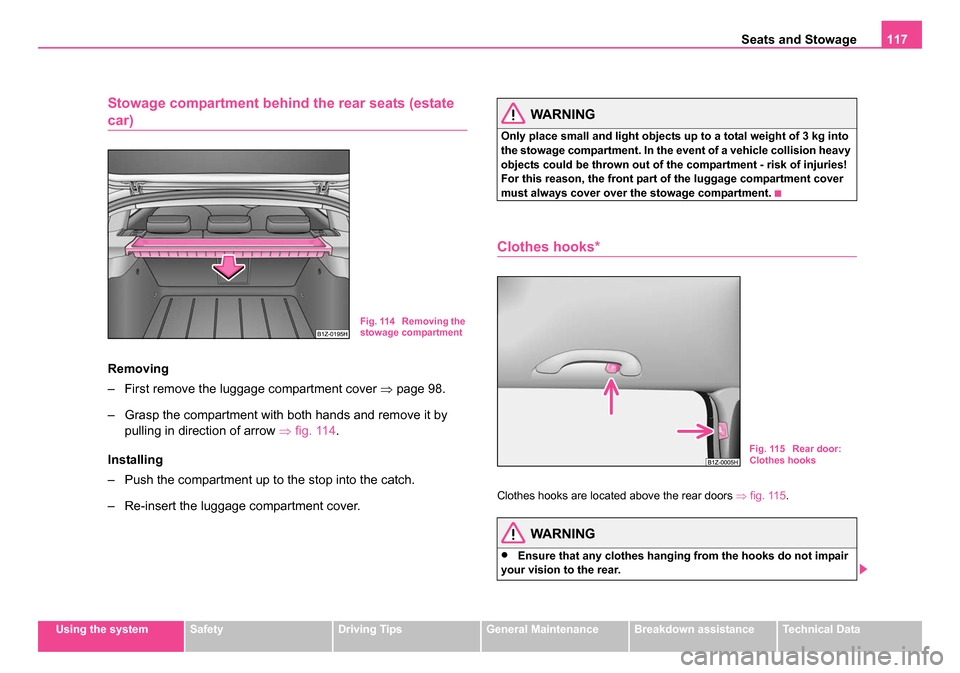

Stowage compartment behind the rear seats (estate
car)
Removing
– First remove the luggage compartment cover ⇒page 98.
– Grasp the compartment with both hands and remove it by pulling in direction of arrow ⇒fig. 114 .
Installing
– Push the compartment up to the stop into the catch.
– Re-insert the luggage compartment cover.
WARNING
Only place small and light objects up to a total weight of 3 kg into
the stowage compartment. In the event of a vehicle collision heavy
objects could be thrown out of th e compartment - risk of injuries!
For this reason, the front part of the luggage compartment cover
must always cover over the stowage compartment.
Clothes hooks*
Clothes hooks are located above the rear doors ⇒fig. 115 .
WARNING
•Ensure that any clothes hanging from the hooks do not impair
your vision to the rear.
Fig. 114 Removing the
stowage compartment
Fig. 115 Rear door:
Clothes hooks
s24s.book Page 117 Thursday, November 24, 2005 12:27 PM

Heating and air conditioning system 119
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

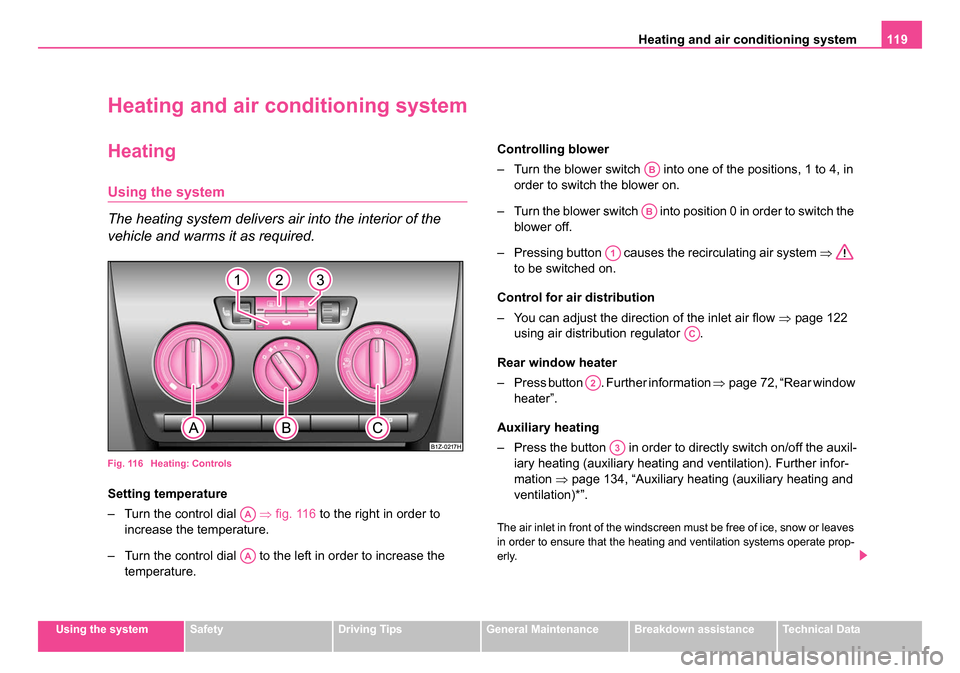

Heating and air conditioning system
Heating
Using the system
The heating system delivers air into the interior of the
vehicle and warms it as required.
Fig. 116 Heating: Controls
Setting temperature
– Turn the control dial ⇒fig. 116 to the right in order to
increase the temperature.
– Turn the control dial to the left in order to increase the temperature. Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in
order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off.
– Pressing button causes the recirculating air system ⇒
to be switched on.
Control for air distribution
– You can adjust the direction of the inlet air flow ⇒page 122
using air distribution regulator .
Rear window heater
– Press button . Further information ⇒ page 72, “Rear window
heater”.
Auxiliary heating
– Press the button in order to directly switch on/off the auxil- iary heating (auxiliary heating and ventilation). Further infor-
mation ⇒page 134, “Auxiliary heating (auxiliary heating and
ventilation)*”.
The air inlet in front of the windscreen must be free of ice, snow or leaves
in order to ensure that the heating and ventilation systems operate prop-
erly.AA
AA
AB
AB
A1
AC
A2
A3
s24s.book Page 119 Thursday, November 24, 2005 12:27 PM

Heating and air conditioning system 121
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

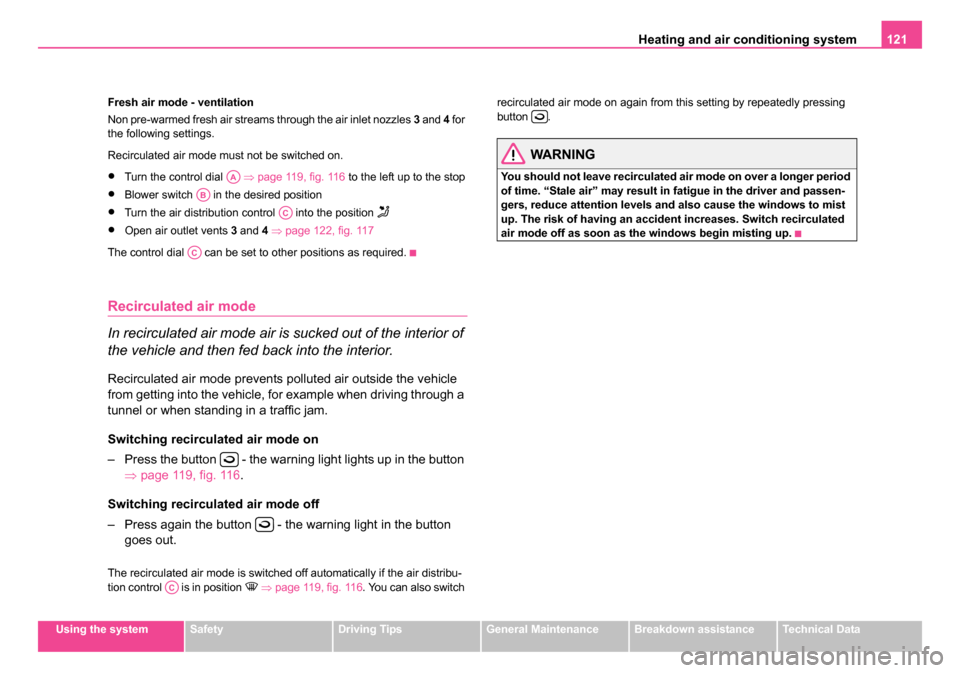

Fresh air mode - ventilation
Non pre-warmed fresh air streams through the air inlet nozzles
3 and 4 for
the following settings.
Recirculated air mode must not be switched on.
•Turn the control dial ⇒p a g e 11 9 , f i g . 11 6 to the left up to the stop
•Blower switch in the desired position
•Turn the air distribution control into the position 
•Open air outlet vents 3 and 4 ⇒ page 122, fig. 117
The control dial can be set to other positions as required.
Recirculated air mode
In recirculated air mode air is sucked out of the interior of
the vehicle and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle
from getting into the vehicle, for example when driving through a
tunnel or when standing in a traffic jam.
Switching recirculated air mode on
– Press the button - the warning light lights up in the button ⇒page 119, fig. 116 .
Switching recirculated air mode off
– Press again the button - the warning light in the button goes out.
The recirculated air mode is switched off automatically if the air distribu-
tion control is in position  ⇒ page 119, fig. 116 . You can also switch recirculated air mode on again from this setting by repeatedly pressing
button .
WARNING
You should not leave recirculated air mode on over a longer period
of time. “Stale air” may result in
fatigue in the driver and passen-
gers, reduce attention levels and also cause the windows to mist
up. The risk of having an accident increases. Switch recirculated
air mode off as soon as the windows begin misting up.AA
AB
AC
AC


AC

s24s.book Page 121 Thursday, November 24, 2005 12:27 PM

Heating and air conditioning system 123
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Climatic* (semi-automatic air
conditioning system)
Description
The Climatic is a combined cooling and heating system. It
makes it possible to optimally control the air temperature
at any season of the year.
Description of the Climatic
It is important for your safety and for your driving comfort that the Climatic
is operating properly.
The cooling only operates if button ⇒page 124, fig. 119 is
pressed, and the following conditions are met:
•engine running,
•outside temperature above +2 °C and
•blower switch switched on (positions 1 to 4).
If the cooling system is switched on, the temperature and air humidity
drops in the vehicle. The wellbeing of the occupants of the car is
enhanced as a result of this particularly at high outside temperatures and
a high air humidity. The system prevents the windows misting up during
the cold season of the year.
The heating effect is dependent upon the coolant temperature, thus full
heat output only occurs when the engine has reached its operating
temperature.
It is possible to briefly activate recirculated air mode in order to enhance
the cooling effect ⇒.
Air at a temperature of about 5°C may flow out of the vents under certain
circumstances when the cooling system is operating. Lengthy and uneven distribution of the air flow out of the vents (in particular at the leg area) and
large differences in temperature, for example when getting out of the
vehicle, can result in chills in sensitive persons.
The air inlet in front of the windscreen must be free of ice, snow or leaves
in order to ensure that the heating and cooling systems operate properly.
After switching on the cooling
Condensation from the evaporator of the
air conditioning may drip down and form a puddle below the vehicle. This
is quite normal and not an indication of a leak!
WARNING
•For your own safety and that of other road users, ensure that all
the windows are free of ice, snow and misting. Please familiarize
yourself about how to correctly operate the heating and ventilation
systems, how to demist and defrost the windows, as well as with
the cooling mode.
•You should not leave recirculated air mode on over a longer
period of time. “Stale air” may result in fatigue in the driver and
passengers, reduce attention levels and also cause the windows to
mist up. The risk of having an accident increases. Switch recircu-
lated air mode off as soon as the windows begin misting up.
Note
•We recommend that you do not smoke in the vehicle when the recir-
culating air mode is operating since the smoke which is drawn at the evap-
orator from the interior of the vehicle forms deposits in the evaporator of
the air conditioning system. This produces a permanent odour when the
air conditioning system is operating which can only be eliminated through
considerable effort and expense (replacement of compressor).
ACA1
s24s.book Page 123 Thursday, November 24, 2005 12:27 PM
