SKODA OCTAVIA 2006 Owner´s Manual

Rear ashtray
Fig. 65
Rear ashtray - low centre console/high centre console
Opening the ashtray on the low centre console
› Grasp the ashtray cover at the lower edge A
» Fig. 65 and fold it open in the
direction of arrow.
Remove the ashtray from the low centre console
› Grasp the ashtray at the handle B
» Fig. 65 and remove from above.
Removing the ashtray from the low centre console
› Place the ashtray insert into the console and press it in.
Opening the ashtray on the high centre console
› Press on the top part of the ashtray cover in area C
» Fig. 65.
Removing the ashtray from the high centre console
› Lightly push the ashtray cover downwards as far as the stop.
› Grasp the ash tray insert at the cover D
» Fig. 65and remove.
Inserting the ashtray into the high centre console
› Place the ashtray insert in the mount and press it in. WARNING
Never place flammable objects in the ashtray - risk of fire! Ð Cigarette lighter, 12-volt power socket
Cigarette lighter
Fig. 66
Centre console: Cigarette lighter
Using the system › Press in the button of the cigarette lighter
» Fig. 66.
› Wait until the button pops forward.
› Remove the cigarette lighter immediately and use.
› Place the cigarette lighter back into the socket. WARNING
■ Take care when using the cigarette lighter! Improper use of the cigarette
lighter can cause burns. ■ The cigarette lighter also operates when the ignition is switched off or the
ignition key withdrawn. Therefore never leave children unattended in the ve-
hicle. Note
■ The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 70 , 12-volt power socket.
■ Further information » page 177, Accessories, changes and replacement of
parts. Ð
69
Seats and Stowage

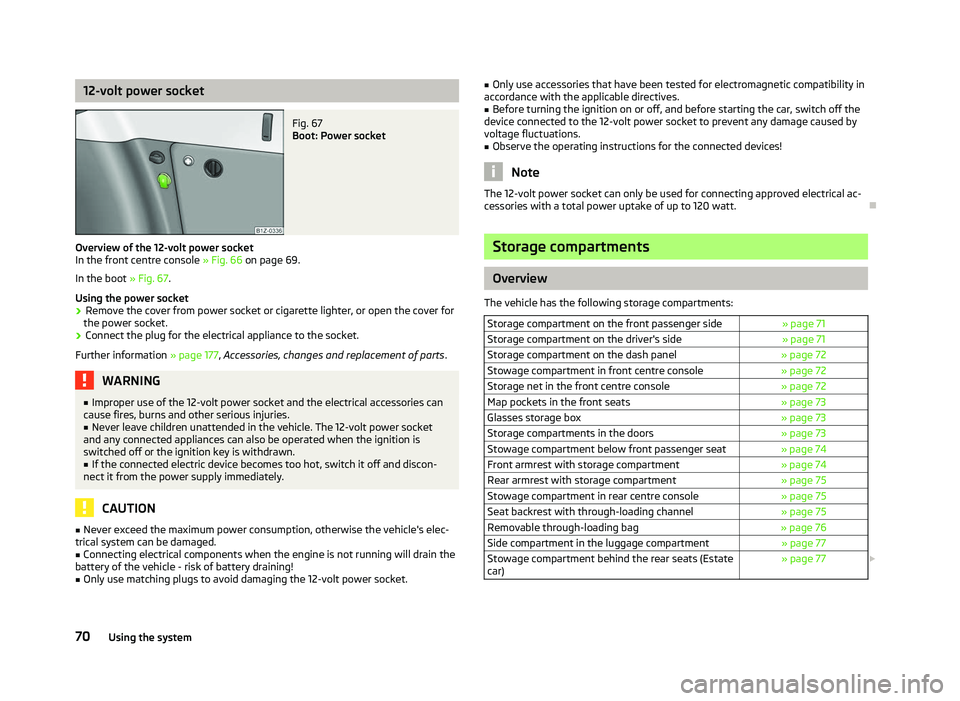

12-volt power socket
Fig. 67
Boot: Power socket
Overview of the 12-volt power socket
In the front centre console » Fig. 66 on page 69
.
In the boot » Fig. 67.
Using the power socket
› Remove the cover from power socket or cigarette lighter, or open the cover for
the power socket.
› Connect the plug for the electrical appliance to the socket.
Further information » page 177, Accessories, changes and replacement of parts .WARNING
■ Improper use of the 12-volt power socket and the electrical accessories can
cause fires, burns and other serious injuries. ■ Never leave children unattended in the vehicle. The 12-volt power socket
and any connected appliances can also be operated when the ignition is
switched off or the ignition key is withdrawn. ■ If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately. CAUTION
■ Never exceed the maximum power consumption, otherwise the vehicle's elec-
trical system can be damaged.
■ Connecting electrical components when the engine is not running will drain the
battery of the vehicle - risk of battery draining!
■ Only use matching plugs to avoid damaging the 12-volt power socket. ■
Only use accessories that have been tested for electromagnetic compatibility in
accordance with the applicable directives.
■ Before turning the ignition on or off, and before starting the car, switch off the
device connected to the 12-volt power socket to prevent any damage caused by
voltage fluctuations.
■ Observe the operating instructions for the connected devices! Note
The 12-volt power socket can only be used for connecting approved electrical ac-
cessories with a total power uptake of up to 120
watt.Ð Storage compartments
Overview
The vehicle has the following storage compartments: Storage compartment on the front passenger side » page 71
Storage compartment on the driver's side » page 71
Storage compartment on the dash panel » page 72
Stowage compartment in front centre console » page 72
Storage net in the front centre console » page 72
Map pockets in the front seats » page 73
Glasses storage box » page 73
Storage compartments in the doors » page 73
Stowage compartment below front passenger seat » page 74
Front armrest with storage compartment » page 74
Rear armrest with storage compartment » page 75
Stowage compartment in rear centre console » page 75
Seat backrest with through-loading channel » page 75
Removable through-loading bag » page 76
Side compartment in the luggage compartment » page 77
Stowage compartment behind the rear seats (Estate
car) » page 77
£70
Using the system

WARNING
■ Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating or cornering) and may distract you
from concentrating on the traffic - risk of accident!
■ When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes, operate the clutch or accelerator - risk of

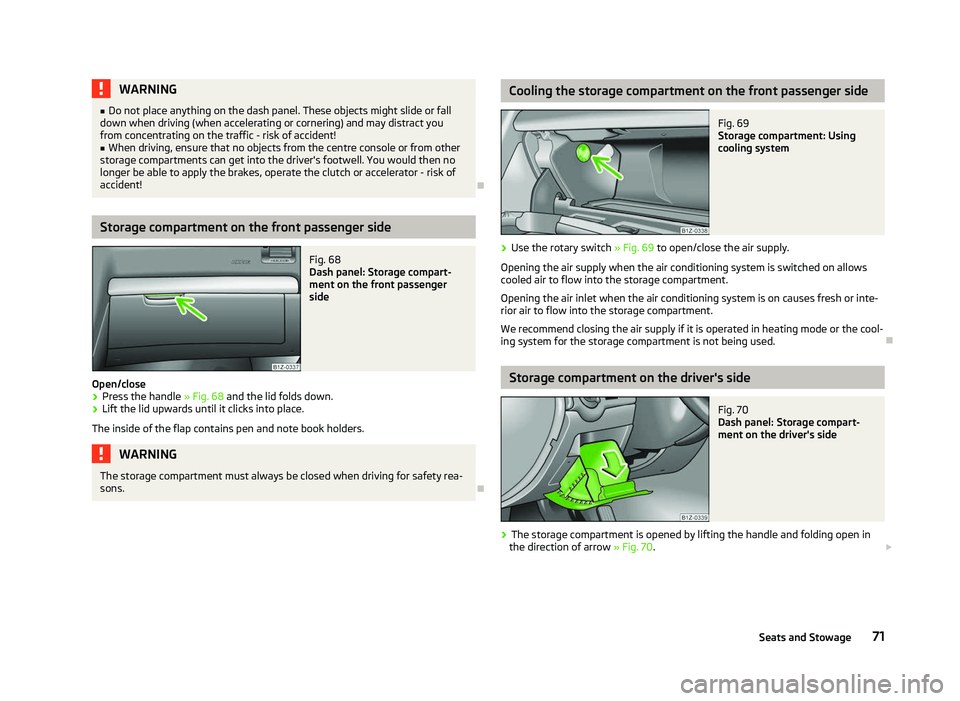

accident! ÐStorage compartment on the front passenger side
Fig. 68
Dash panel: Storage compart-
ment on the front passenger
side
Open/close
› Press the handle
» Fig. 68 and the lid folds down.
› Lift the lid upwards until it clicks into place.
The inside of the flap contains pen and note book holders. WARNING
The storage compartment must always be closed when driving for safety rea-
sons. Ð Cooling the storage compartment on the front passenger side
Fig. 69
Storage compartment: Using
cooling system
› Use the rotary switch
» Fig. 69 to open/close the air supply.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or inte-
rior air to flow into the storage compartment.
We recommend closing the air supply if it is operated in heating mode or the cool-
ing system for the storage compartment is not being used. Ð Storage compartment on the driver's side
Fig. 70
Dash panel: Storage compart-
ment on the driver's side
› The storage compartment is opened by lifting the handle and folding open in
the direction of arrow » Fig. 70. £
71
Seats and Stowage

WARNING
The storage compartment must always be closed when driving for safety rea-
sons. ÐStorage compartment on the dash panel
Fig. 71
Dash panel: Stowage compart-
ment
› Press in the middle of the storage compartment
» Fig. 71 - the lid folds open.
Certain models do not have a storage compartment lid. WARNING
■ The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
■ The storage compartment must always be closed when driving for safety
reasons.
■ Do not put any highly inflammable objects or objects which are sensitive to
heat (e.g. lighters, sprays, spectacles, carbonated drinks) in the storage com-
partment. Ð Stowage compartment in front centre console
Fig. 72
Front centre console: Stowage
compartment
› Press on the bottom part of the storage compartment in the area A
» Fig. 72
,
and the lid folds open. WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! Ð Storage net in the front centre console
Fig. 73
Front centre console: Storage
net WARNING
Only store soft objects with a total weight of 0.5 kg in the storage net. Heavy
objects are not secured sufficiently - risk of injury! £
72 Using the system

CAUTION
No objects with sharp edges should be stored in the storage net, as they can
damage the storage net. ÐMap pockets in the front seats
Fig. 74
Front seat rests: Map pockets
Map pockets are located on the rear of the seat backrests » Fig. 74.
The map pockets are intended for storage of maps, magazines, etc. WARNING
Never put heavy items in the map pockets - risk of injury! CAUTION
Do not put any large items such as bottles or sharp objects into the map pockets,
as the pockets and the seat covers could be damaged. Ð Glasses storage box
Fig. 75
Detail of the headliner: Glasses
storage box
› Press on the cover of the glasses storage box, the compartment folds
down » Fig. 75. WARNING
The compartment must only be opened when removing or inserting the spec-
tacles and otherwise must be kept closed. CAUTION
Do not put any heat-sensitive objects in the glasses storage box - they may be
damaged. Ð Storage compartments in the doors
Fig. 76
Storage compartment: in the front door/in the rear door £
73
Seats and Stowage

A bottle holder is located in the area B
» Fig. 76 of the storage compartment for
the front doors. WARNING
Use the area A
» Fig. 76 of the storage compartment only for storing objects
which do not project so that the effectiveness of the side airbag is not im-
paired. ÐStowage compartment below front passenger seat
Fig. 77
Front passenger seat: Stowage
compartment
› To open the lid, pull the handle
» Fig. 77.
› When closing the lid, hold the handle until the compartment is closed. WARNING
The storage compartment must always be closed when driving for safety rea-
sons. CAUTION
The storage compartment is designed for storing small objects of up to 1.5 kg. in
weight. Ð Front armrest with storage compartment
Fig. 78
Armrest: Storage compartment/cooling of storage compartment
The armrest is adjustable for height and length.
Opening the storage compartment
› Open the lid of the armrest in the direction of the arrow 1
» Fig. 78.
Closing storage compartment
› Open the lid to the stop, only then can it be folded downwards.
Setting height
› First of all fold the cover downwards and then lift it in the direction of the ar-
row 1
into one of the 4 fixed positions.
Adjusting in the forward/back direction
› Push the cover into the desired position.
Opening air inlet
› Pull the cover A
upwards.
Closing air inlet
› Carefully push the cover A
downwards as far as the stop.
On vehicles fitted with air conditioning, the storage compartment is equipped
with a lockable inlet for thermally treated (warmed-up) air.
When the air vent is opened, the air flows into the stowage compartment with a
temperature corresponding to the control dial settings on the A/C unit, depending
on the outer climate conditions. £
74 Using the system

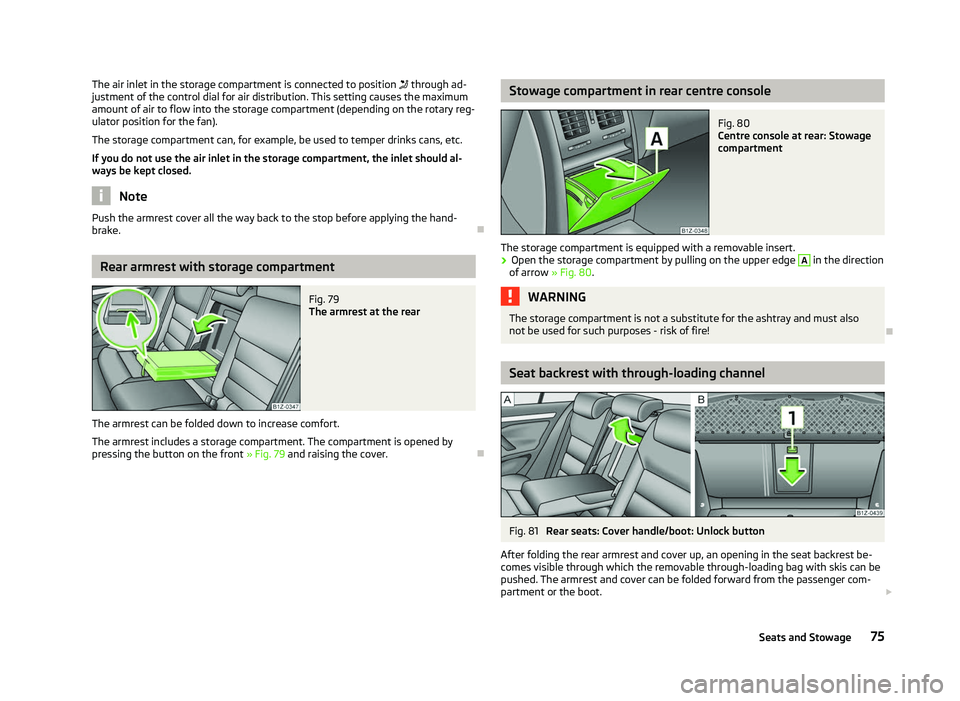

The air inlet in the storage compartment is connected to position
 through ad-
justment of the control dial for air distribution. This setting causes the maximum
amount of air to flow into the storage compartment (depending on the rotary reg-
ulator position for the fan).
The storage compartment can, for example, be used to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the inlet should al-
ways be kept closed. Note
Push the armrest cover all the way back to the stop before applying the hand-
brake. ÐRear armrest with storage compartment
Fig. 79
The armrest at the rear
The armrest can be folded down to increase comfort.
The armrest includes a storage compartment. The compartment is opened by
pressing the button on the front » Fig. 79 and raising the cover. Ð Stowage compartment in rear centre console
Fig. 80
Centre console at rear: Stowage
compartment
The storage compartment is equipped with a removable insert. › Open the storage compartment by pulling on the upper edge A
in the direction
of arrow » Fig. 80 . WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! Ð Seat backrest with through-loading channel
Fig. 81
Rear seats: Cover handle/boot: Unlock button
After folding the rear armrest and cover up, an opening in the seat backrest be-
comes visible through which the removable through-loading bag with skis can be
pushed. The armrest and cover can be folded forward from the passenger com-
partment or the boot. £
75
Seats and Stowage

Opening from the passenger compartment
›
You can fold down the armrest at the loop
» page 60.
› Pull the handle upwards to the stop
» Fig. 81 -  and fold the cover down.
Opening from the boot
› Push the unlock button 1
» Fig. 81
-  down and fold the cover (including the
armrest) forwards.
Closing
› Fold the cover and armrest upwards to the stop - the lid must click into place.
Ensure that the armrest is always locked into place after closing. This is apparent
as the red field above the unlocking button 1
» Fig. 81
-  is not visible from the
luggage compartment. WARNING
The through-loading channel is only intended for transporting skis that are
placed in a properly secured, removable through-loading bag » page 76.ÐRemovable through-loading bag
Fig. 82
Securing the through-loading
bag
Loading › Open the boot lid.
› Fold the rear armrest and the cover in the seat backrest downwards
» page 75,
Seat backrest with through-loading channel .
› Place the empty, removable through-loading bag in such a way that the end of
the bag with the zip is in the boot.
› Push the skis into the removable through-loading bag from the boot
» .
› Close the through-loading bag. Securing
›
Tighten the strap A
on the free end around the skis in front of the bind-
ings » Fig. 82 .
› Fold the seat backrest a little forward.
› Guide the securing strap B
through the opening in the seat backrest around
the upper part of the seat backrest.
› Then push the seat backrest back into the upright position until the unlocking
button clicks into place - check by pulling on the seat backrest.
› Insert the securing strap B
into the lock C
until it clicks into place.
On vehicles fitted with a luggage net partition, guide the securing strap B
around the housing when the net partition is rolled up. After fixing the net parti-
tion in place, it is not longer possible to unroll the net partition.
WARNING
■ After placing skis into the through-loading bag, you must secure the bag
with the securing strap B
» Fig. 82.
■ The strap A
must hold the skis tight.
■ Make sure that the strap A
holds the skis in front of the binding (also refer
to imprint on the removable through-loading bag).
■ The total weight of the skis which are transported must not exceed 17 kg. Note
■ The through-loading bag is foreseen for four pairs of skis.
■ Place the skis and sticks in the removable through-loading bag with the tips
facing to the rear.
■ If there are several pairs of skis in the removable through-loading bag, ensure
that the bindings are positioned at the same height.
■ The removable through-loading bag must never be folded together or stowed
when moist. Ð
76 Using the system

Side compartment in the luggage compartment
Fig. 83
Boot: Side compartment
› The compartment is opened by turning the locks in the direction of the ar-
row » Fig. 83.
The CD changer is housed in this compartment. ÐStowage compartment behind the rear seats (Estate car)
Fig. 84
Removing the stowage compart-
ment
Removing
› First of all, remove the foldable luggage compartment cover
» page 64.
› Grab the housing with both hands and remove by pulling in the direction of the
arrow » Fig. 84 .
Install
› Move the housing into the locking mechanism as far as it will go.
› Restore the foldable luggage compartment cover. WARNING
Only place small and light objects up to a total weight of 3 kg into the storage
compartment. In the event of a vehicle collision heavy objects could be
thrown out of the compartment - risk of injuries! For this reason, the front
part of the luggage compartment cover must always cover over the storage
compartment. Ð Clothes hooks
The clothes hooks are located on the middle pillar and on the handle of the head-
liner above each of the rear doors. WARNING
■ Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.
■ Only use the hooks for hanging light items of clothing and ensure that there
are no heavy or sharp-edged objects in the pockets.
■ Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of head airbags. CAUTION
The maximum permissible load of the hooks is 2 kg. Ð Parking ticket holder
Fig. 85
Windscreen: Parking ticket hold-
er £
77
Seats and Stowage

The note holder is designed e.g. for attaching car park tickets.
WARNING
The attached note has to always be removed before starting off in order not
to restrict the driver's vision. Ð78
Using the system
