SKODA OCTAVIA 2007 1.G / (1U) Audience Car Radio Manual

19
Output power
Tuner
Display
User interface 4 x 20 W at 14.4 V; 25°C; 10% THD,
4 x 35 W peak power
Digital audio processor with equalization set
according to car type
LOUDNESS function
FM, AM (MW, LW) bands
18 FM presets, of which 6 for Autostore
function
18 AM presets, of which 6 for Autostore
function
Automatic/manual tuning
Variable bandwidth
Automatic storage
Automatic switching MONO/STEREO
SCAN function
Positive FSTN
Graphic display, 200 x 47 pixels
Green backlight
Volume knob, push to turn on/off
Independent volume setting and balance for
phone
Green backlight of buttons
Access to user settingsRDS
Built- in CD changer Station name (PS) display
Optional automatic tuning to alternative
frequency (AF)
Optional preference of local stations
Regional traffic messages
Traffic messages in the EON network
Search by program type (PTY)
Receipt of PTY31 (alarm)
Traffic program (TP)
Station names are stored to presets
Independent volume setting for traffic
messages
Update of preset in the EON network
Recording of traffic messages
Capacity: 6 CD- DA, CD- R, CD- RW,
Multisession, MP3 discs
Playback of copy- protected discs
Track repeat
Random playback within a disc
Tracks SCAN
ESP memory, 3 s minimum
Skip to next/previous track
FF/REW seek within a track (not for MP3) Car integration
Comfort coding
Diagnostics
Optional control from multi- function
steering wheel (if the car is fitted with one)
Optional use of external display
Automatic volume change according to
driving speed
Auxiliary audio inputs
Phone interface for automatic mute,
loudspeaker output
External amplifier
Parking aid” unit connection
Display of instructions provided by the
CLIMATRONIC unit

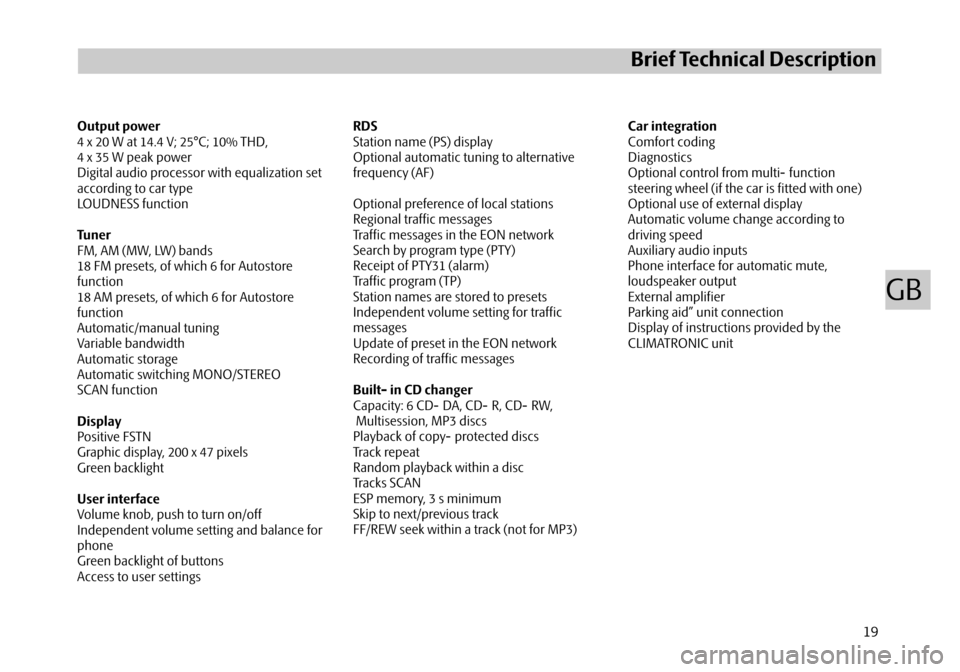

Brief Technical Description
GB

20

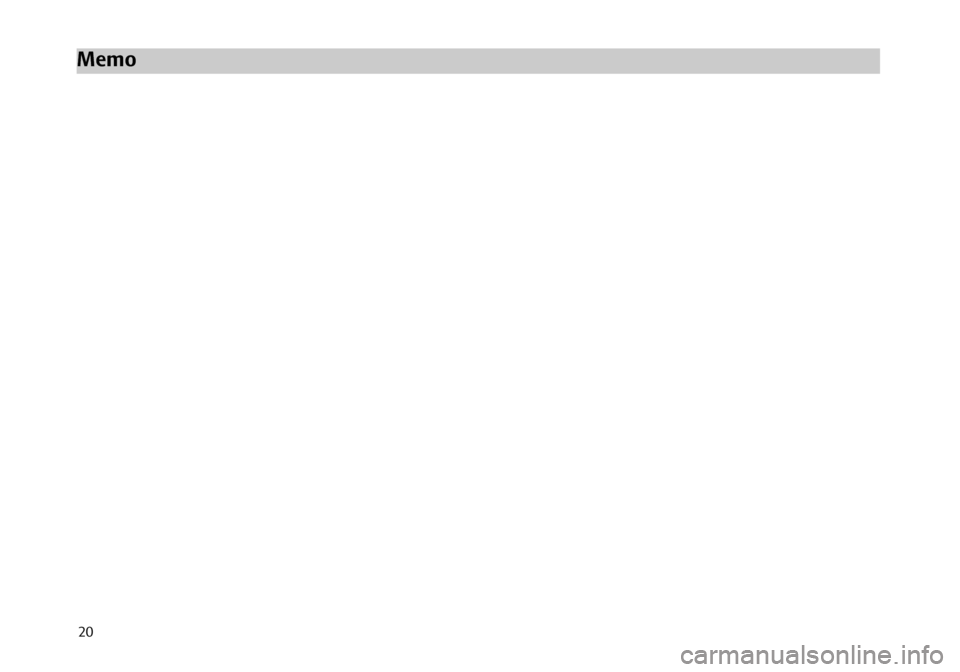

Memo

b

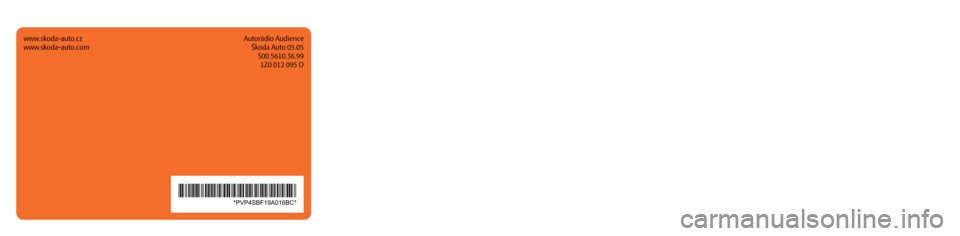

AUTORÁDIO AUDIENCE
AUTORADIO AUDIENCE
CAR RADIO AUDIENCE
SIMPLY CLEVER
www.skoda-auto.cz
www.skoda-auto.comAutorádio Audience
Škoda Auto 05.05S00.5610.36.991Z0 012 095 D
PVP4SBF19A016BC
*PVP4SBF19A016BC*
ŠkodaOctavia
A5_Audience-obal kopie1.indd 1
A5_Audience-obal kopie1.indd 1 4.5.2005 10:59:28
4.5.2005 10:59:28
