SKODA OCTAVIA 2007 1.G / (1U) Owner's Manual
Manufacturer: SKODA, Model Year: 2007, Model line: OCTAVIA, Model: SKODA OCTAVIA 2007 1.G / (1U)Pages: 288, PDF Size: 15.19 MB
Page 271 of 288

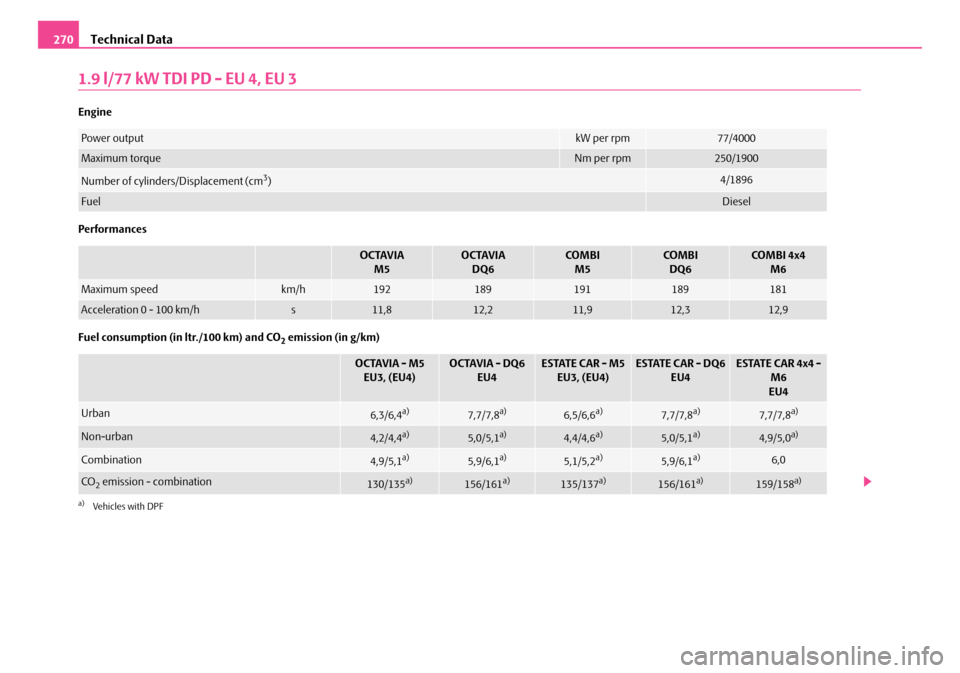

Technical Data
270
1.9 l/77 kW TDI PD - EU 4, EU 3
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm77/4000
Maximum torqueNm per rpm250/1900
Number of cylinders/Displacement (cm3)4/1896
FuelDiesel
OCTAVIA
M5OCTAVIADQ6COMBIM5COMBIDQ6COMBI 4x4 M6
Maximum speedkm/h192189191189181
Acceleration 0 - 100 km/hs11,812,211,912,312,9
OCTAVIA - M5EU3, (EU4)OCTAVIA - DQ6 EU4ESTATE CAR - M5EU3, (EU4)ESTATE CAR - DQ6 EU4ESTATE CAR 4x4 - M6
EU4
Urban6,3/6,4a)
a)Vehicles with DPF
7,7/7,8a)6,5/6,6a)7,7/7,8a)7,7/7,8a)
Non-urban4,2/4,4a)5,0/5,1a)4,4/4,6a)5,0/5,1a)4,9/5,0a)
Combination4,9/5,1a)5,9/6,1a)5,1/5,2a)5,9/6,1a)6,0
CO2 emission - combination130/135a)156/161a)135/137a)156/161a)159/158a)
NKO A5 20 MR08.book Page 270 Wednesday, April 11, 2007 2:54 PM
Page 272 of 288
Technical Data271
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/760a)
a)OCTAVIA ESTATE CAR 4x4
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oilb)
b)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 213, “Check engine oil level”.
4,5
Cooling system of the vehicle7,7
OCTAVIA
M5OCTAVIADQ6COMBIM5COMBIDQ6CO M B I 4 x 4 M6
Permissible gross weight19702010198520252120
Unloaden weight ready for work13101350132513651460
Loading capacity660660660660660
Loading capacity when using the TLC585585585585585
Permissible front axle load10501100105011001100
Permissible rear axle load11001100115011501230
Permissible trailer loads, trailer braked1400a)
1600b)
a)Uphills up to 12%b)Uphills up to 8%
1400a)
1600b)1400a)
1600b)1400a)
1600b)1600a)
1700b)
Permissible trailer loads, trailer unbraked650650650650650
NKO A5 20 MR08.book Page 271 Wednesday, April 11, 2007 2:54 PM
Page 273 of 288

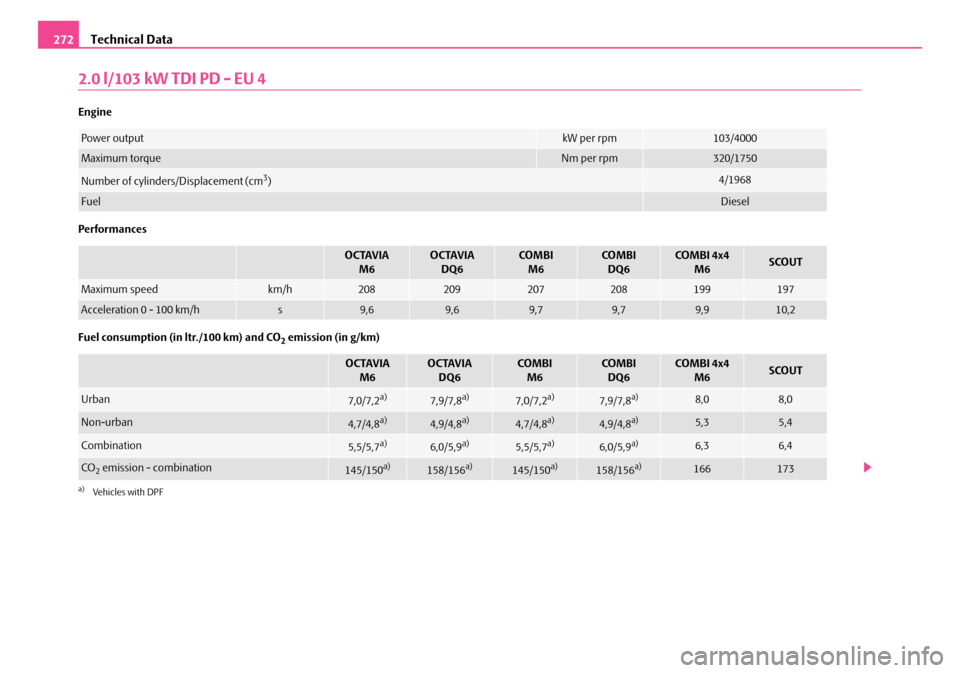

Technical Data
272
2.0 l/103 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm103/4000
Maximum torqueNm per rpm320/1750
Number of cylinders/Displacement (cm3)4/1968
FuelDiesel
OCTAVIA
M6OCTAVIADQ6CO M B I M6COMBIDQ6COMBI 4x4 M6SCOUT
Maximum speedkm/h208209207208199197
Acceleration 0 - 100 km/hs9,69,69,79,79,910,2
OCTAVIAM6OCTAVIADQ6CO M B I M6COMBIDQ6COMBI 4x4 M6SCOUT
Urban7,0/7,2a)
a)Vehicles with DPF
7,9/7,8a)7,0/7,2a)7,9/7,8a)8,08,0
Non-urban4,7/4,8a)4,9/4,8a)4,7/4,8a)4,9/4,8a)5,35,4
Combination5,5/5,7a)6,0/5,9a)5,5/5,7a)6,0/5,9a)6,36,4
CO2 emission - combination145/150a)158/156a)145/150a)158/156a)166173
NKO A5 20 MR08.book Page 272 Wednesday, April 11, 2007 2:54 PM
Page 274 of 288
Technical Data273
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/760a)
a)OCTAVIA ESTATE CAR 4x4
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oilb)
b)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 213, “Check engine oil level”.
4,5
Cooling system of the vehicle7,7
OCTAVIA
M6OCTAVIADQ6COMBIM6COMBIDQ6COMBI 4x4 M6SCOUT
Permissible gross weight199520302010204521302190
Unloaden weight ready for work133513701350138514701530
Loading capacity660660660660660660
Loading capacity when using the TLC585585585585585585
Permissible front axle load110011001100110011001100
Permissible rear axle load110011001150115012301230
Permissible trailer loads, trailer braked1400a)
1600b)
a)Uphills up to 12%b)Uphills up to 8%
1400a)
1600b)1400a)
1600b)1400a)
1600b)1600a)
1700b)1600a)
1700b)
Permissible trailer loads, trailer unbraked650650650650650650
NKO A5 20 MR08.book Page 273 Wednesday, April 11, 2007 2:54 PM
Page 275 of 288

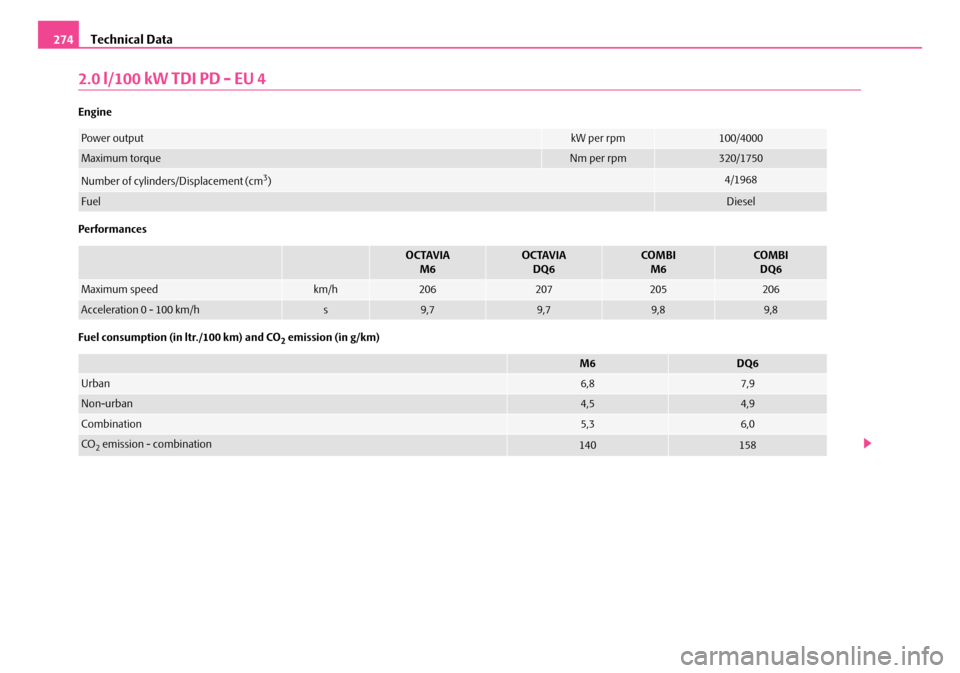

Technical Data
274
2.0 l/100 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm100/4000
Maximum torqueNm per rpm320/1750
Number of cylinders/Displacement (cm3)4/1968
FuelDiesel
OCTAVIA
M6OCTAVIADQ6COM B I M6CO M B IDQ6
Maximum speedkm/h206207205206
Acceleration 0 - 100 km/hs9,79,79,89,8
M6DQ6
Urban6,87,9
Non-urban4,54,9
Combination5,36,0
CO2 emission - combination140158
NKO A5 20 MR08.book Page 274 Wednesday, April 11, 2007 2:54 PM
Page 276 of 288
Technical Data275
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 213, “Check engine oil level”.
4,5
Cooling system of the vehicle7,7
OCTAVIA
M6OCTAVIADQ6COMBIM6COMBIDQ6
Permissible gross weight1995203020102045
Unloaden weight ready for work1335137013501385
Loading capacity660660660660
Loading capacity when using the TLC585585585585
Permissible front axle load1100110011001100
Permissible rear axle load1100110011501150
Permissible trailer loads, trailer braked1400a)
1600b)
a)Uphills up to 12%b)Uphills up to 8%
1400a)
1600b)1400a)
1600b)1400a)
1600b)
Permissible trailer loads, trailer unbraked650650650650
NKO A5 20 MR08.book Page 275 Wednesday, April 11, 2007 2:54 PM
Page 277 of 288
Technical Data
276
2.0 l/125 kW TDI PD DPF - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm125/4200
Maximum torqueNm per rpm350/1800
Number of cylinders/Displacement (cm3)4/1968
FuelDiesel
OCTAVIA
M6CO M B I M6
Maximum speedkm/h225224
Acceleration 0 - 100 km/hs8,58,6
OCTAVIA M6COM B I M6
Urban7,77,9
Non-urban4,64,8
Combination5,75,9
CO2 emission - combination151156
NKO A5 20 MR08.book Page 276 Wednesday, April 11, 2007 2:54 PM
Page 278 of 288
Technical Data277
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 213, “Check engine oil level”.
4,5
Cooling system of the vehicle7,7
OCTAVIA
M6CO M B I M6
Permissible gross weight19701985
Unloaden weight ready for work14301445
Loading capacity540540
Loading capacity when using the TLC465465
Permissible front axle load11001100
Permissible rear axle load11001100
Permissible trailer loads, trailer braked1400
1600a)
a)Uphills up to 8%
1400
1600a)
Permissible trailer loads, trailer unbraked650650
NKO A5 20 MR08.book Page 277 Wednesday, April 11, 2007 2:54 PM
Page 279 of 288

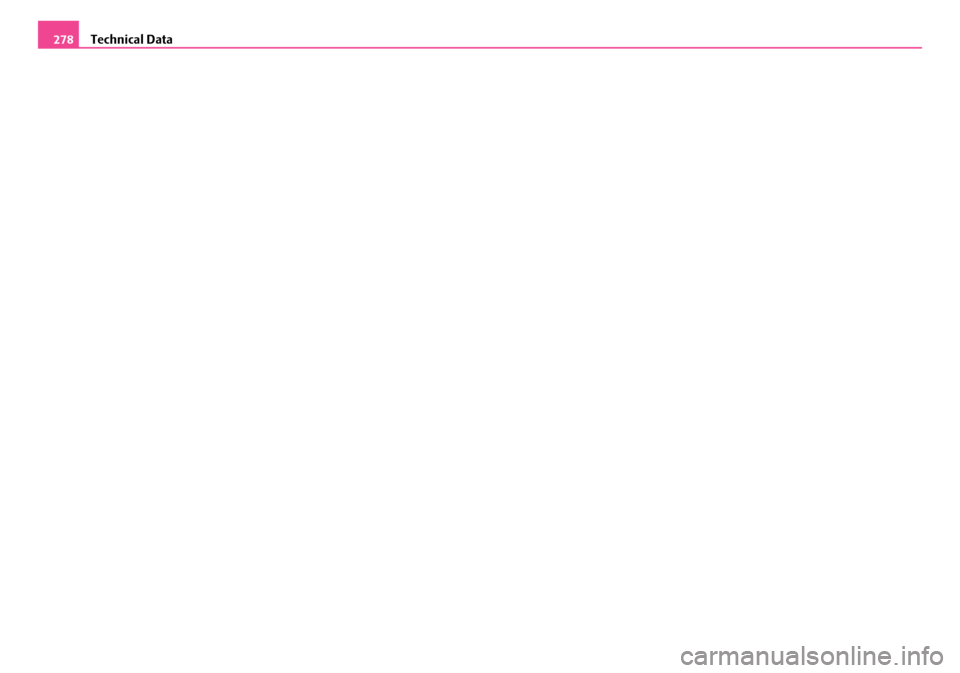

Technical Data
278
NKO A5 20 MR08.book Page 278 Wednesday, April 11, 2007 2:54 PM
Page 280 of 288
Index279
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 67, 155 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 116
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 103 Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 105
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 106
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 185
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 43
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic driving lamp control . . . . . . . . . . . . . . . . 52
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Emergency programme . . . . . . . . . . . . . . 130, 136
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Selector lever-emergency unlocking . . . . . . . 130
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . 132 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Selector lever-emergency unlocking . . . . . . . 137
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 69
Automatic vehicle wash systems . . . . . . . . . . . . . . 200
Automatic wiper/washer system . . . . . . . . . . . . . . . 61
Avoiding damage to your vehicle . . . . . . . . . . . . . 195
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 218 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Inspecting the electrolyte level . . . . . . . . . . . . 220
Operation in winter . . . . . . . . . . . . . . . . . . . . . . 220
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 Belt
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Buttons for the central locking system . . . . . . . . . . 39
Buttons on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 45C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232, 237
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 190
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
