Inspecting and replenishing233
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Hydrogen is released when you char ge a battery and a highly explosive
gas mixture is produced. An explosion can be caused through sparkling over
during unclamping or loosening of the cable plug while the ignition is on.
•Bridging of the poles will create a short circuit (e.g. through metal
objects, cables). Possible consequences of a short circuit: Melting of lead
struts, explosion and burning of the battery, jets of acid spurting out.
•It is prohibited to work with a naked flame and light, to smoke or to carry
out any activities which produce sparks. Avoid creating sparks when
working with cables and electrical device s. Strong sparking represents a risk
of injury.
•Before carrying out any work on the electrical system, switch off the
engine, the ignition as well as all electrical components and disconnect the
negative cable (-) on the battery. If you wish to replace a bulb it is sufficient
to switch off the appropriate light.
•Never charge a frozen or thawed battery - risk of explosion and caustic
burns! Replace a frozen battery.
•Never use a battery which is damaged - risk of explosion! Immediately
replace a damaged battery.
Caution
•You must only disconnect the battery if the ignition is switched off, otherwise
the electrical system (electronic compon ents) of the vehicle may be damaged.
When disconnecting the battery from the electrical system of the vehicle, first
disconnect the negative terminal (-) of the battery. Then disconnect the positive
terminal (+).
•When reconnecting the battery, first conne ct the positive terminal (+) and only
then the negative terminal (-) of the ba ttery. You must on no account connect the
cables wrongly - risk of a cable fire.
•Ensure that battery acid does not come into contact with the vehicle body
otherwise damage could occur to the paintwork.
•Do not place the battery in direct dayl ight in order to protect the battery
housing from the effects of ultra-violet light.
For the sake of the environment
A removed battery is a special type of waste which is harmful to the environment -
contact your specialist garage regarding disposing of the battery.
Note
Please also refer to the guidelines ⇒page 235, also after connecting the battery.
Battery with a charge level indicator, the so-called magic eye
There is a so-called magic eye ⇒fig. 216 located on the top of the battery. The
“magic eye” changes its colour in line with the charge state of and electrolyte level
in the battery.
Air bubbles can influence the colour of th e “magic eye”. For this reason carefully
knock on the “magic eye” before carrying out the check.
•Green colour - the battery is adequately charged.
•Dark colour - the battery has to be charged
•Colourless or yellow colour - have th e battery checked by a Škoda dealer.
Batteries, which are more than 5 years old, must be replaced. We recommend you
have the electrolyte level inspected and adju sted to the correct level or the battery
replaced if necessary by a Škoda Service Partner.
WARNING (continued)
Fig. 216 Battery with a
charge level indicator
20A5Facelift.book Page 233 Saturday, September 6, 2008 2:13 PM

Inspecting and replenishing235
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
A discharged battery may already
freeze at temperatures just below 0°C ⇒. We
recommend that you no longer use a ba ttery which has thawed out because the
casing of the battery may be cracked through the formation of ice and this would
allow battery electrolyte to flow out.
The vent plugs of the battery should not be opened for charging.
WARNING
Never charge a frozen or thawed battery - risk of explosion and caustic
burns. Replace a frozen battery.
Disconnecting and reconnecting the battery
On disconnecting and reconnecting the batte ry the following functions are initially
deactivated or are no longer able to operate fault-free.
We recommend having the ve hicle checked by a Škoda Service Partner to ensure
full functionality of all electrical systems.
Replacing the battery
You should only replace a battery with a new battery of the same capacity, voltage
(12 V), amperage and of the same size. Škoda Service Partners have a range of suit-
able batteries available.
We recommend that you only have an old ba ttery disposed of by your Škoda dealer
since it does require special disposal.
For the sake of the environment
Batteries contain pois onous substances such as sulphur ic acid and lead. They must
be disposed of in accordance with loca l environmental protection regulations and
on no account as domestic waste.
Windshield washer system
The windshield washer reservoir contains the cleaning fluid for the windscreen or
rear window and for the headlamp cleaning system*. The reservoir is located at the
front right of the engine compartment ⇒fig. 217 .
The filling level of the container is 3 litres, 5.5 li tres on vehicles which also have a
headlight washing system.
Clear water is not sufficient to intensivel y clean the windscreen and headlights. We
therefore recommend using clean washing water together with the screen cleaner
from Škoda genuine accessorie s (in winter additionally with antifreeze) which is
capable of removing stubborn dirt. Follow the instructions for use on the packaging
when using screen cleaning products.
You should always add antifreeze to the cleaning water in winter even if your
vehicle is fitted with heated windscreen washer nozzles*.
It is also possible in exceptional cases to use methylated spirits when no screen
cleaner with antifreeze is available. The concentration of methylated spirits must
OperationOperating measure
Electrical power window (operational faults)⇒ page 55
Enter radio code numbersee Radio Operating Instructions
Set hours⇒page 21
Data in the multi-functional indicator* are
deleted⇒page 21
Fig. 217 Engine compart-
ment: Windshield washer
fluid reservoir
20A5Facelift.book Page 235 Saturday, September 6, 2008 2:13 PM

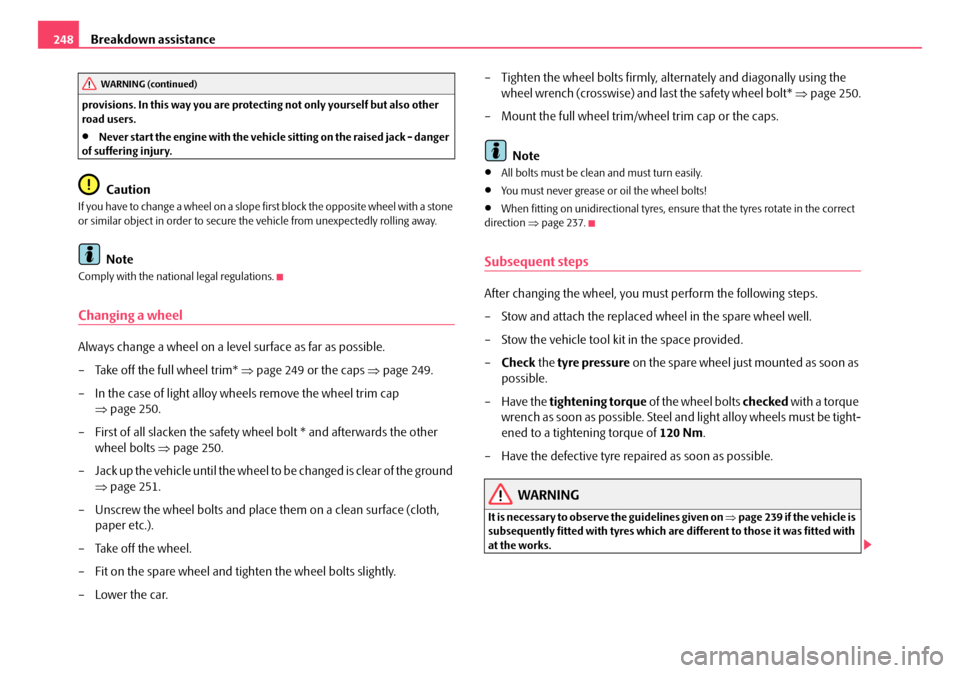

Breakdown assistance
248
provisions. In this way you are protecting not only yourself but also other
road users.
•Never start the engine with the vehicle sitting on the raised jack - danger
of suffering injury.
Caution
If you have to change a wheel on a slope first block the opposite wheel with a stone
or similar object in order to secure th e vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.
Changing a wheel
Always change a wheel on a level surface as far as possible.
– Take off the full wheel trim* ⇒page 249 or the caps ⇒page 249.
– In the case of light alloy wheels remove the wheel trim cap ⇒page 250.
– First of all slacken the safety wh eel bolt * and afterwards the other
wheel bolts ⇒page 250.
– Jack up the vehicle until the wheel to be changed is clear of the ground
⇒ page 251.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
– Take off the wheel.
– Fit on the spare wheel and tighten the wheel bolts slightly.
–Lower the car. – Tighten the wheel bolts firmly, al
ternately and diagonally using the
wheel wrench (crosswise) and last the safety wheel bolt* ⇒page 250.
– Mount the full wheel trim/w heel trim cap or the caps.
Note
•All bolts must be clean and must turn easily.
•You must never grease or oil the wheel bolts!
•When fitting on unidirectional tyres, ensure that the tyres rotate in the correct
direction ⇒page 237.
Subsequent steps
After changing the wheel, you must perform the following steps.
– Stow and attach the replaced wheel in the spare wheel well.
– Stow the vehicle tool kit in the space provided.
– Check the tyre pressure on the spare wheel just mounted as soon as
possible.
– Have the tightening torque of the wheel bolts checked with a torque
wrench as soon as possible. Steel and light alloy wheels must be tight-
ened to a tightening torque of 120 Nm.
– Have the defective tyre repaired as soon as possible.
WARNING
It is necessary to observe the guidelines given on ⇒page 239 if the vehicle is
subsequently fitted with tyres which are different to those it was fitted with
at the works.
WARNING (continued)
20A5Facelift.book Page 248 Saturday, September 6, 2008 2:13 PM

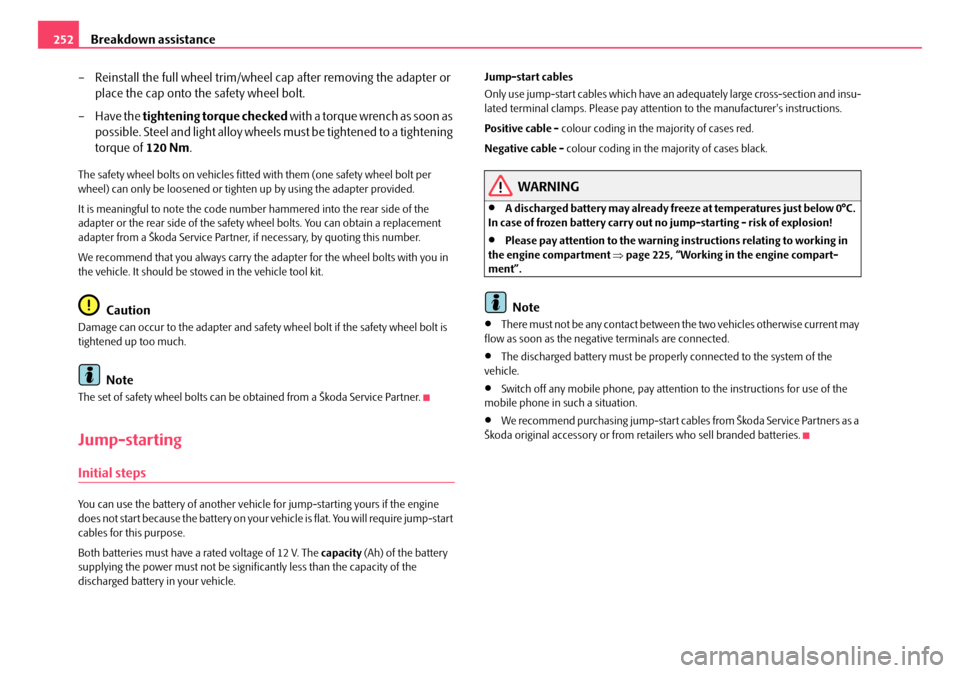

Breakdown assistance
252
– Reinstall the full wheel trim/wheel cap after removing the adapter or place the cap onto the safety wheel bolt.
– Have the tightening torque checked w i t h a t o rq u e w re n c h a s s o o n a s
possible. Steel and light alloy wheels must be tightened to a tightening
torque of 120 Nm.
The safety wheel bolts on vehicles fitted with them (one safety wheel bolt per
wheel) can only be loosened or tigh ten up by using the adapter provided.
It is meaningful to note the code numbe r hammered into the rear side of the
adapter or the rear side of the safety wheel bolts. You can obtain a replacement
adapter from a Škoda Service Partner, if necessary, by quoting this number.
We recommend that you always carry the adapter for the wheel bolts with you in
the vehicle. It should be st owed in the vehicle tool kit.
Caution
Damage can occur to the adapter and safety wheel bolt if the safety wheel bolt is
tightened up too much.
Note
The set of safety wheel bolts can be obtained from a Škoda Service Partner.
Jump-starting
Initial steps
You can use the battery of another vehicl e for jump-starting yours if the engine
does not start because the battery on your vehicle is flat. You will require jump-start
cables for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity (Ah) of the battery
supplying the power must not be significa ntly less than the capacity of the
discharged battery in your vehicle. Jump-start cables
Only use jump-start cables which have an
adequately large cross-section and insu-
lated terminal clamps. Please pay attent ion to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red.
Negative cable - colour coding in the majority of cases black.
WARNING
•A discharged battery may already freeze at temperatures just below 0°C.
In case of frozen battery carry out no jump-starting - risk of explosion!
•Please pay attention to the warning instructions relating to working in
the engine compartment ⇒page 225, “Working in the engine compart-
ment”.
Note
•There must not be any contact between the two vehicles otherwise current may
flow as soon as the negative terminals are connected.
•The discharged battery must be properly connected to the system of the
vehicle.
•Switch off any mobile phone, pay attent ion to the instructions for use of the
mobile phone in such a situation.
•We recommend purchasing jump-start cabl es from Škoda Service Partners as a
Škoda original accessory or from retailers who sell branded batteries.
20A5Facelift.book Page 252 Saturday, September 6, 2008 2:13 PM

Fuses and light bulbs257
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Fuses and light bulbs
Electric fuses
Replacing fuses
Defect fuses must be replaced.
Individual electrical circuits are protected by fuses. The fuses are located
on the left side of the dash panel behind the safety cover and under the
cover in the engine compartment on the left.
– Switch the ignition off and also the electrical component affected.
– Use a screwdriver to take off the fuse cover on the side of the dash panel ⇒fig. 235 or the fuse cover in the engine compartment
⇒ page 258.
– Find out which fuse belongs to the relevant component ⇒page 261,
“Fuse assignment in the dash panel”, ⇒page 258, “Fuse assignment
in engine compartment - version 1” or ⇒page 260, “Fuse assignment
in engine compartment - version 2”.
– Take the plastic clip out of its fixture in the fuse cover, insert it onto the respective fuse and pull out this fuse. – Defect fuses can be detected by their melted metal strips. Replace the
defect fuse by a new fuse of the same ampere number.
– Fit on the fuse cover again.
We recommend that you carry the box of replacement fuses with you which was
delivered in your vehicle. You can obtain replacement fuses 22) from a Škoda
Service Partner.
Colour coding of fuses
Caution
•Never attempt to “repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
•Have the electrical system checked as quickly as possible by a specialist garage
if a newly inserted fuse blows again after a short time.
Fig. 235 Fuse cover: left side
of the dash panel
22)Replacement fuses are, on the other hand, part of the basic equipping of the vehicle in some
countries.
ColourMaximum amperage
light brown5
brown7,5
red10
blue15
yellow20
white25
green30
orange40
red50
20A5Facelift.book Page 257 Saturday, September 6, 2008 2:13 PM

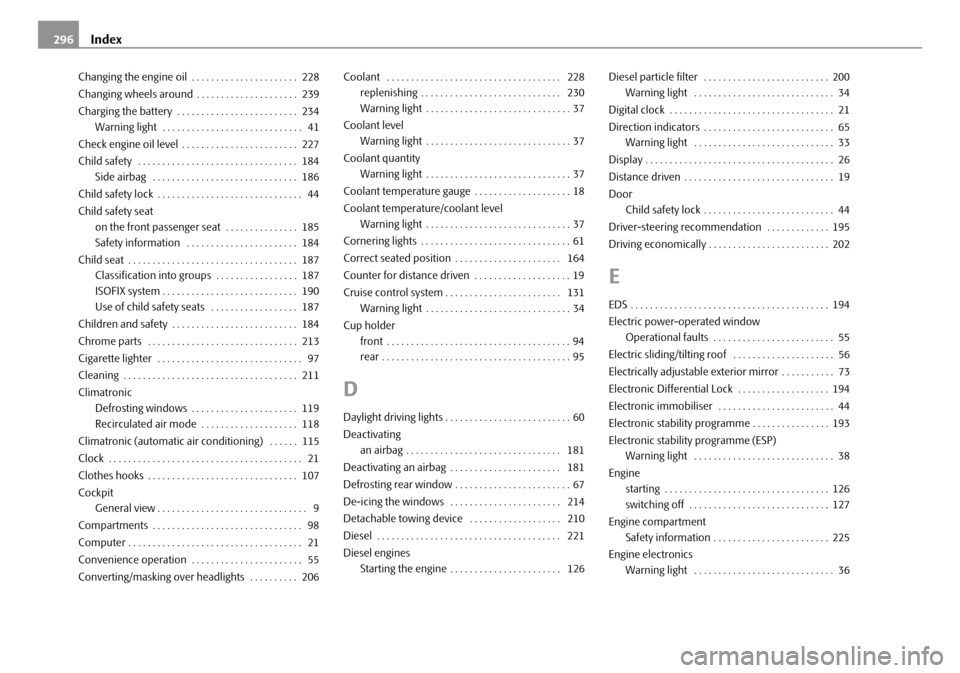

Index
296
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 228
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 239
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 234
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 227
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . 185
Safety information . . . . . . . . . . . . . . . . . . . . . . . 184
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Classification into groups . . . . . . . . . . . . . . . . . 187
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Use of child safety seats . . . . . . . . . . . . . . . . . . 187
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 119
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 118
Climatronic (automatic air conditioning) . . . . . . 115
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . 55
Converting/masking over headlights . . . . . . . . . . 206 Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Coolant level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Coolant quantity Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . 18
Coolant temperatur e/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 164
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 19
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 131 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
D
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 181
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . . 67
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . 214
Detachable towing device . . . . . . . . . . . . . . . . . . . 210
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 126 Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Driver-steering recommendation . . . . . . . . . . . . . 195
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . . 202
E
EDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Electric power-operated window Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 55
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 56
Electrically adjustable exterior mirror . . . . . . . . . . . 73
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 194
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 44
Electronic stability programme . . . . . . . . . . . . . . . . 193
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . . 225
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
20A5Facelift.book Page 296 Saturday, September 6, 2008 2:13 PM

Index297
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 18
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Environmental compatibility . . . . . . . . . . . . . 202, 206
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . . 73
F
First-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Fog lights with the function Corner . . . . . . . . . . . . . 63
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
G
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Gearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143, 152
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Hazard warning light system . . . . . . . . . . . . . . . . . . . 64 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 71
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Headlights
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Headlight cleaning system . . . . . . . . . . . . . . . . . 71
Heated windscreen washer nozzles . . . . . . . . . . . . 69
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Auxiliary heating (auxiliary heating) . . . . . . . . 119
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 110
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 111
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
I
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . 67
Interior lighting front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
20A5Facelift.book Page 297 Saturday, September 6, 2008 2:13 PM
