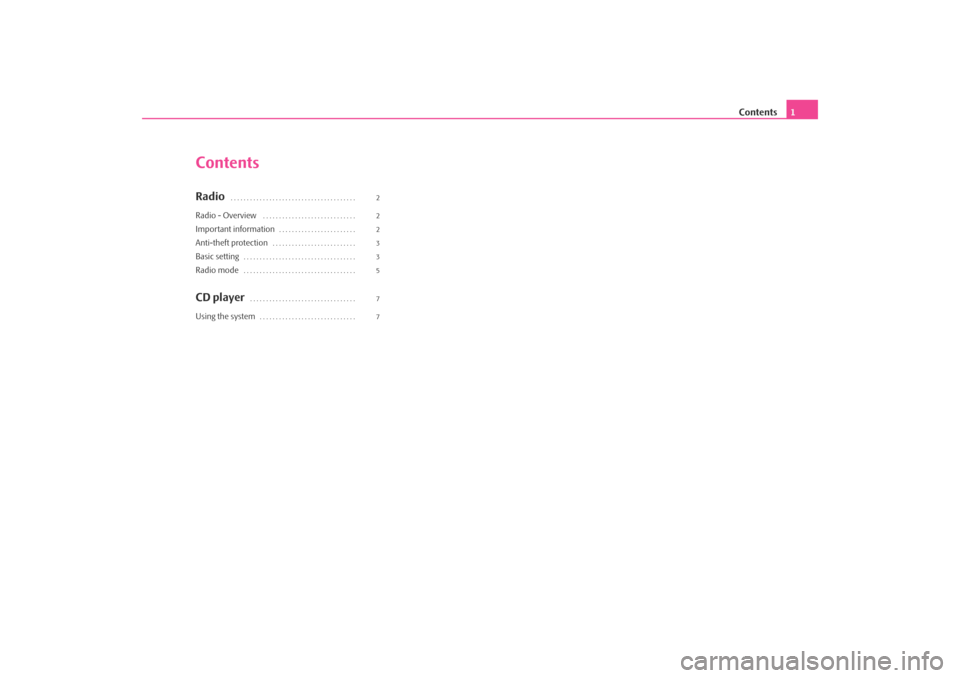

Contents1
ContentsRadio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio - Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important information
. . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft protection
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic setting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio mode
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD player
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2
2
3
3
5
7
7
s220.book Page 1 Tuesday, August 5, 2008 6:46 AM

Radio

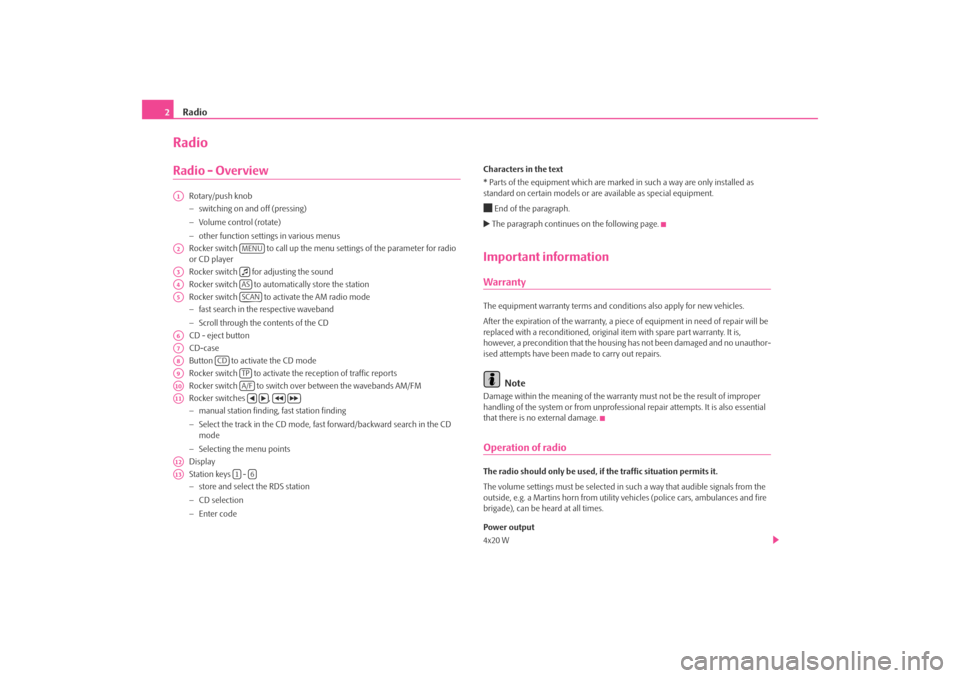

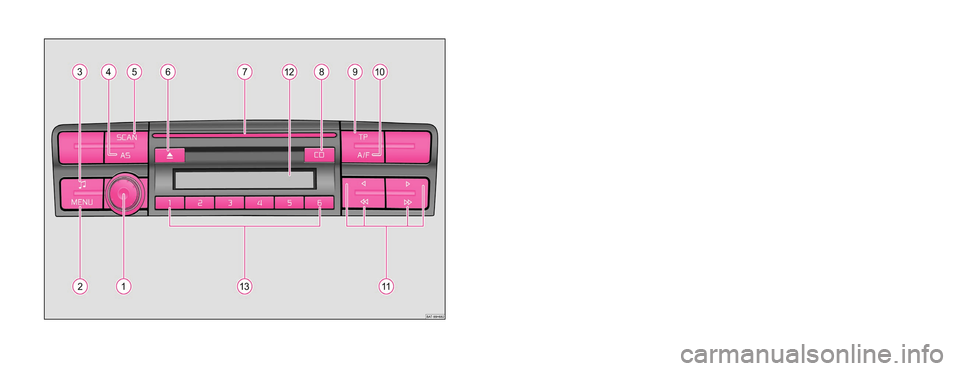

2RadioRadio - Overview
Rotary/push knob
− switching on and off (pressing)
− Volume control (rotate)
− other function settin gs in various menus
Rocker switch to call up the menu settings of the parameter for radio
or CD player
Rocker switch for adjusting the sound
Rocker switch to automatically store the station
Rocker switch to activate the AM radio mode
− fast search in the respective waveband
− Scroll through the contents of the CD
CD - eject button
CD-case
Button to activate the CD mode
Rocker switch to activate the reception of traffic reports
Rocker switch to switch ov er between the wavebands AM/FM
Rocker switches ,
− manual station finding, fast station finding
− Select the track in the CD mode, fast forward/backward search in the CD
mode
− Selecting the menu points
Display
Station keys -
− store and select the RDS station
− CD selection
− Enter code Characters in the text
*
Parts of the equipment which are marked in such a way are only installed as
standard on certain models or are available as special equipment.
 End of the paragraph. The paragraph continues on the following page.Important informationWarrantyThe equipment warranty terms and conditions also apply for new vehicles.
After the expiration of the warranty, a piec e of equipment in need of repair will be
replaced with a reconditioned, original item with spare part warranty. It is,
however, a precondition that the housin g has not been damaged and no unauthor-
ised attempts have been made to carry out repairs.
Note
Damage within the meaning of the warranty must not be the result of improper
handling of the system or from unprofession al repair attempts. It is also essential
that there is no external damage.Operation of radioThe radio should only be used, if the traffic situation permits it.
The volume settings must be selected in such a way that audible signals from the
outside, e.g. a Martins horn from utility vehicles (police cars, ambulances and fire
brigade), can be heard at all times.
Power output
4x20 W
A1A2
MENU
A3

A4
AS
A5
SCAN
A6A7A8
CD
A9
TP
A10
A/F
A11




A12A13
1
6
s220.book Page 2 Tuesday, August 5, 2008 6:46 AM

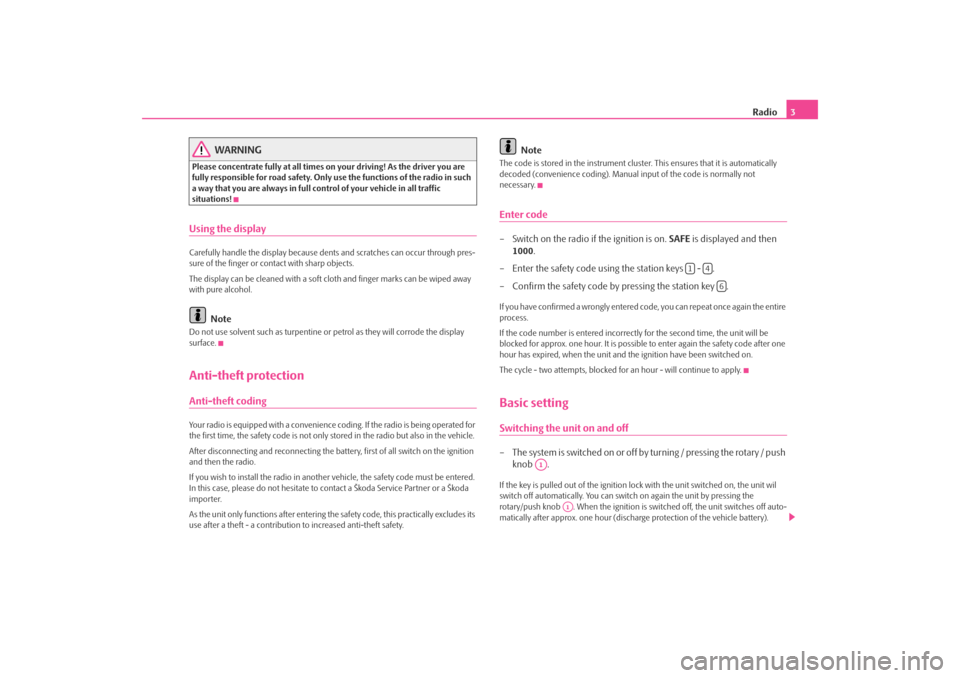

Radio3
WARNING
Please concentrate fully at all times on your driving! As the driver you are
fully responsible for road safety. Only use the functions of the radio in such
a way that you are always in full co ntrol of your vehicle in all traffic
situations!Using the displayCarefully handle the display because dent s and scratches can occur through pres-
sure of the finger or contact with sharp objects.
The display can be cleaned with a soft cl oth and finger marks can be wiped away
with pure alcohol.
Note
Do not use solvent such as turpentine or petrol as they will corrode the display
surface.Anti-theft protectionAnti-theft codingYour radio is equipped with a convenience co ding. If the radio is being operated for
the first time, the safety code is not only stored in the radio but also in the vehicle.
After disconnecting and reconnecting the batte ry, first of all switch on the ignition
and then the radio.
If you wish to install the radio in another vehicle, the safety code must be entered.
In this case, please do not hesitate to contact a Škoda Service Partner or a Škoda
importer.
As the unit only functions after entering the safety code, this practically excludes its
use after a theft - a contribution to increased anti-theft safety.
Note
The code is stored in the instrument cluste r. This ensures that it is automatically
decoded (convenience coding). Manual input of the code is normally not
necessary.Enter code– Switch on the radio if the ignition is on. SAFE is displayed and then
1000.
– Enter the safety code using the station keys - .
– Confirm the safety code by pressing the station key .If you have confirmed a wrongly entered co de, you can repeat once again the entire
process.
If the code number is entered incorrectl y for the second time, the unit will be
blocked for approx. one hour. It is possible to enter again the safety code after one
hour has expired, when the unit and th e ignition have been switched on.
The cycle - two attempts, blocked for an hour - will continue to apply.Basic settingSwitching the unit on and off– The system is switched on or off by turning / pressing the rotary / push knob .If the key is pulled out of the ignition lo ck with the unit switched on, the unit wil
switch off automatically. You can switch on again the unit by pressing the
rotary/push knob . When the ignition is switched off, the unit switches off auto-
matically after approx. one hour (dischar ge protection of the vehicle battery).
1
4
6
A1
A1
s220.book Page 3 Tuesday, August 5, 2008 6:46 AM

Radio

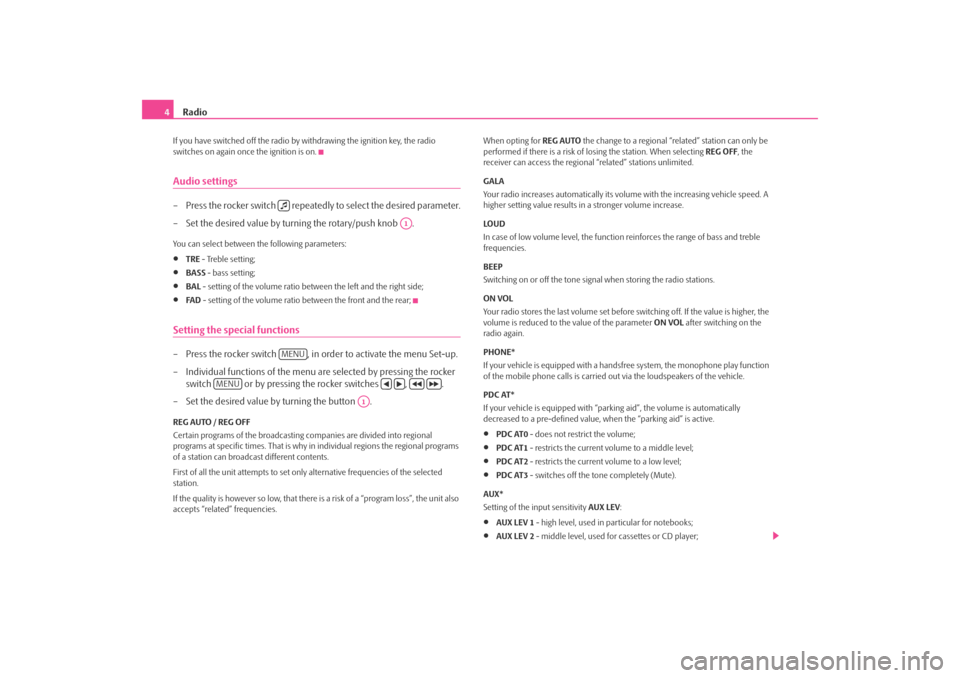

4If you have switched off the radio by withdrawing the ignition key, the radio
switches on again once the ignition is on.Audio settings– Press the rocker switch repeatedly to select the desired parameter.
– Set the desired value by turning the rotary/push knob .You can select between the following parameters:•
TRE - Treble setting;
•
BASS - bass setting;
•
BAL - setting of the volume ratio between the left and the right side;
•
FA D - setting of the volume ratio between the front and the rear;
Setting the special functions– Press the rocker switch , in order to activate the menu Set-up.
– Individual functions of the menu are selected by pressing the rocker
switch or by pressing the rocker switches , .
– Set the desired value by turning the button .REG AUTO / REG OFF
Certain programs of the broadcasting companies are divided into regional
programs at specific times. That is why in individual regions the regional programs
of a station can broadcast different contents.
First of all the unit attempts to set only alternative frequencies of the selected
station.
If the quality is however so low, that there is a risk of a “program loss”, the unit also
accepts “related” frequencies. When opting for
REG AUTO the change to a regional “related” station can only be
performed if there is a risk of losing the station. When selecting REG OFF, the
receiver can access the regional “related” stations unlimited.
GALA
Your radio increases automatically its volume with the increasing vehicle speed. A
higher setting value results in a stronger volume increase.
LO U D
In case of low volume level, the function reinforces the range of bass and treble
frequencies.
BEEP
Switching on or off the tone signal when storing the radio stations.
ON VOL
Your radio stores the last volume set before switching off. If the value is higher, the
volume is reduced to the value of the parameter ON VOL after switching on the
radio again.
PHONE*
If your vehicle is equipped with a handsfree system, th e monophone play function
of the mobile phone calls is carried ou t via the loudspeakers of the vehicle.
PDC AT*
If your vehicle is equippe d with “parking aid”, the volume is automatically
decreased to a pre-defined value, when the “parking aid” is active.
•
PDC AT0 - does not restrict the volume;
•
PDC AT1 - restricts the current volume to a middle level;
•
PDC AT2 - restricts the current volume to a low level;
•
PDC AT3 - switches off the tone completely (Mute).
AUX*
Setting of the input sensitivity AUX LEV :
•
AUX LEV 1 - high level, used in particular for notebooks;
•
AUX LEV 2 - middle level, used for cassettes or CD player;

A1
MENU
MENU




A1
s220.book Page 4 Tuesday, August 5, 2008 6:46 AM

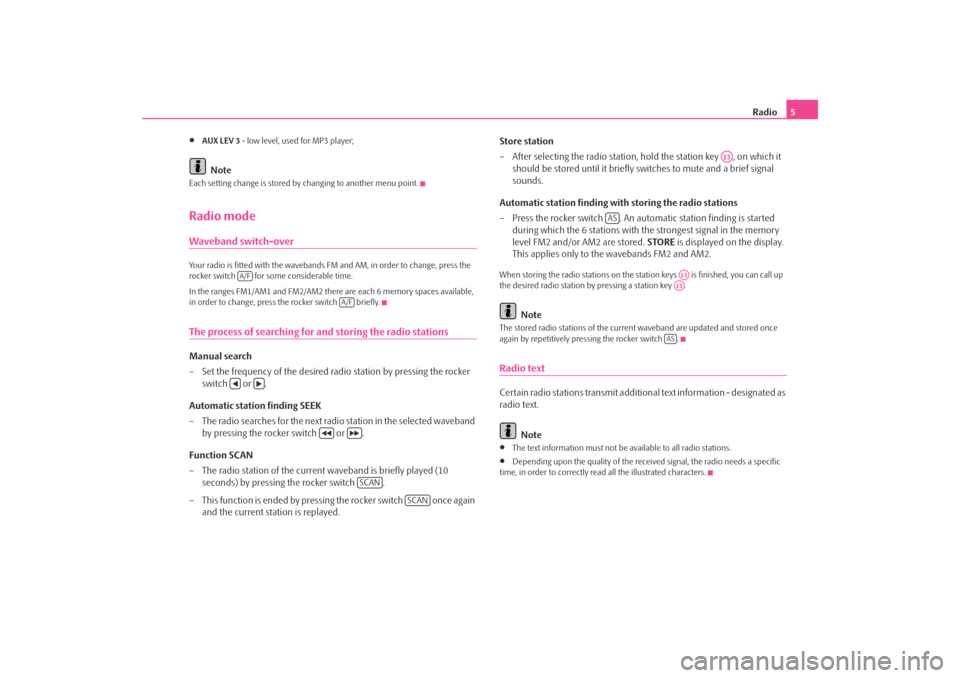

Radio5
•
AUX LEV 3 - low level, used for MP3 player;Note
Each setting change is stored by changing to another menu point.Radio modeWaveband switch-overYour radio is fitted with the wavebands FM and AM, in order to change, press the
rocker switch for some considerable time.
In the ranges FM1/AM1 and FM2/AM2 there are each 6 memory spaces available,
in order to change, press the rocker switch briefly.The process of searching for and storing the radio stationsManual search
– Set the frequency of the desired radio station by pressing the rocker switch or .
Automatic station finding SEEK
– The radio searches for the next radio station in the selected waveband by pressing the rocker switch or .
Function SCAN
– The radio station of the current waveband is briefly played (10 seconds) by pressing the rocker switch .
– This function is ended by pressing the rocker switch once again
and the current station is replayed. Store station
– After selecting the radio station, hold the station key , on which it
should be stored until it briefly switches to mute and a brief signal
sounds.
Automatic station finding with storing the radio stations
– Press the rocker switch . An au tomatic station finding is started
during which the 6 stations with the strongest signal in the memory
level FM2 and/or AM2 are stored. STORE is displayed on the display.
This applies only to the wavebands FM2 and AM2.
When storing the radio stations on the station keys is finished, you can call up
the desired radio station by pressing a station key .
Note
The stored radio stations of the curren t waveband are updated and stored once
again by repetitively pres sing the rocker switch .Radio textCertain radio stations tran smit additional text information - designated as
radio text.
Note•
The text information must not be available to all radio stations.
•
Depending upon the quality of the received signal, the radio needs a specific
time, in order to correctly read all the illustrated characters.
A/F
A/F



SCAN
SCAN
A13
AS
A13A13AS
s220.book Page 5 Tuesday, August 5, 2008 6:46 AM

Radio

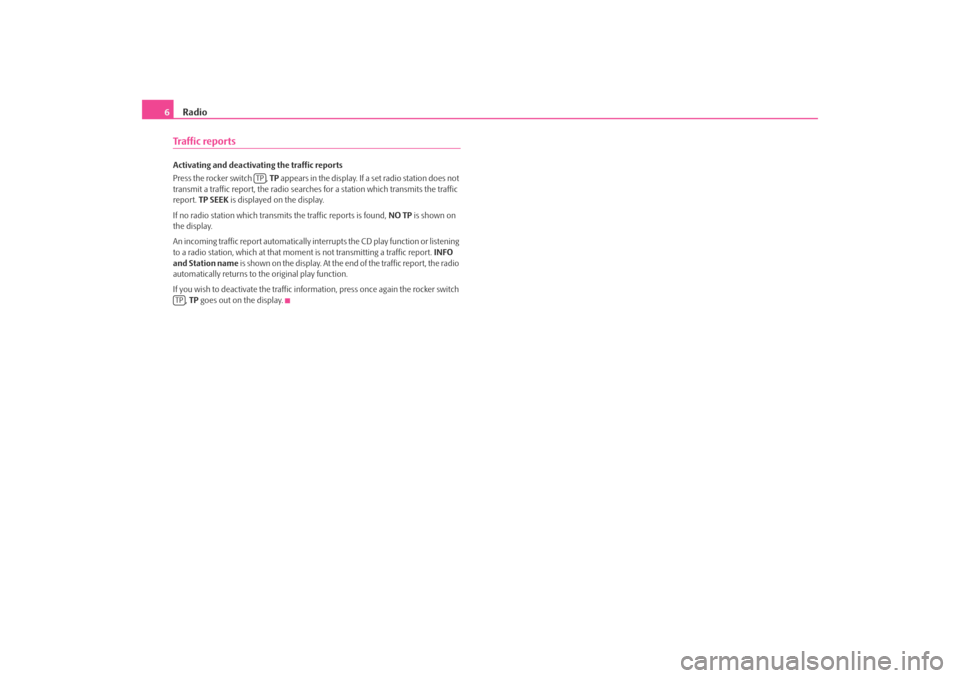

6Tra f f i c re p o r t sActivating and deactivating the traffic reports
Press the rocker switch , TP appears in the display. If a set radio station does not
transmit a traffic report, the radio searches for a station which transmits the traffic
report. TP SEEK is displayed on the display.
If no radio station which transmits the traffic reports is found, NO TP is shown on
the display.
An incoming traffic report au tomatically interrupts the CD play function or listening
to a radio station, which at that moment is not transmitting a traffic report. INFO
and Station name is shown on the display. At the end of the traffic report, the radio
automatically returns to the original play function.
If you wish to deactivate the traffic inform ation, press once again the rocker switch
, TP goes out on the display.
TP
TPs220.book Page 6 Tuesday, August 5, 2008 6:46 AM

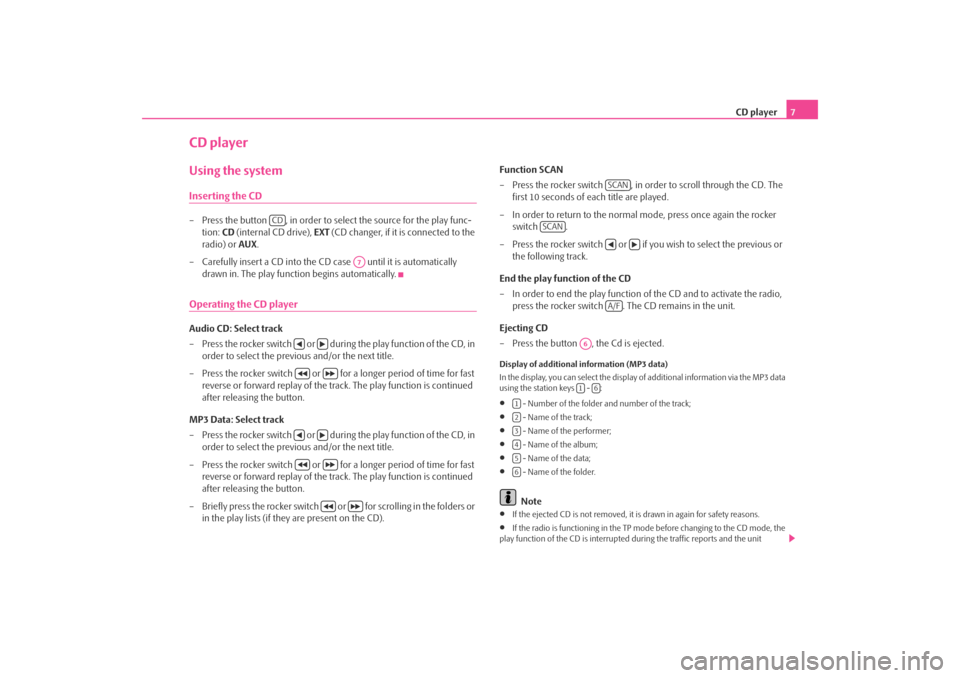

CD player7
CD playerUsing the systemInserting the CD– Press the button , in order to select the source for the play func-
tion: CD (internal CD drive), EXT (CD changer, if it is connected to the
radio) or AUX .
– Carefully insert a CD into the CD case until it is automatically drawn in. The play function begins automatically.Operating the CD playerAudio CD: Select track
– Press the rocker switch or during the play function of the CD, in order to select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast reverse or forward replay of the track. The play function is continued
after releasing the button.
MP3 Data: Select track
– Press the rocker switch or during the play function of the CD, in order to select the previous and/or the next title.
– Press the rocker switch or for a longer period of time for fast reverse or forward replay of the track. The play function is continued
after releasing the button.
– Briefly press the rocker switch or for scrolling in the folders or in the play lists (if they are present on the CD). Function SCAN
– Press the rocker switch , in order to scroll through the CD. The
first 10 seconds of each title are played.
– In order to return to the normal mode, press once again the rocker switch .
– Press the rocker switch or if you wish to select the previous or the following track.
End the play function of the CD
– In order to end the play function of the CD and to activate the radio,
press the rocker switch . The CD remains in the unit.
Ejecting CD
– Press the button , the Cd is ejected.
Display of additional information (MP3 data)
In the display, you can select the display of additional information via the MP3 data
using the station keys - :•
- Number of the folder and number of the track;
•
- Name of the track;
•
- Name of the performer;
•
- Name of the album;
•
- Name of the data;
•
- Name of the folder.Note
•
If the ejected CD is not removed, it is drawn in again for safety reasons.
•
If the radio is functioning in the TP mode before changing to the CD mode, the
play function of the CD is interrupted during the traffic reports and the unit
CD
A7









SCAN
SCAN


A/F
A61
6
123456
s220.book Page 7 Tuesday, August 5, 2008 6:46 AM

CD player
8switches over to the radio mode. After the traffic reports have ended, the unit
switches back once again to the CD mode.Replay the tracks in random order– Press the rocker switch , in order to activate the menu Set-up.
– Select a function of the MIX menu with the help of the station keys.
– Set the desired value by turning the button .MIX
Play function of titles in random order.•
MIX OFF - the function of the menu is switched off;
•
MIX CD - Plays the tracks on a CD in random order;
•
MIX FLD - Play function of titles in random order in a certain (folder);
•
MIX PLS - Play function of the playlist (folde r of selected tracks from individual
folders, which is stored on the CD). Is on ly displayed when a playlist is created for
the replayed CD.
General information for MP3 operationRequirements for the MP3 data and data carrier •
650 MB and 700 MB CD-ROM, CD-R, CD-RW.
•
The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
•
Data names must be no longer than 64 characters.
•
The list structure is restricted to a depth of 8 list levels.
•
The name of the artist, the album and the title of the reproduced MP3 data can
be shown as ID3 tag, providing this information is available. The list and data name
will be displayed if there is no ID3 tag.
•
Play lists are not supported. Bit rate (data flow per time unit)
•
The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3
data with variable bit rates.
•
The indicated playing time data with variable bit rates is not reliable.
Playing sequence of MP3 data and folders
MENU
A1

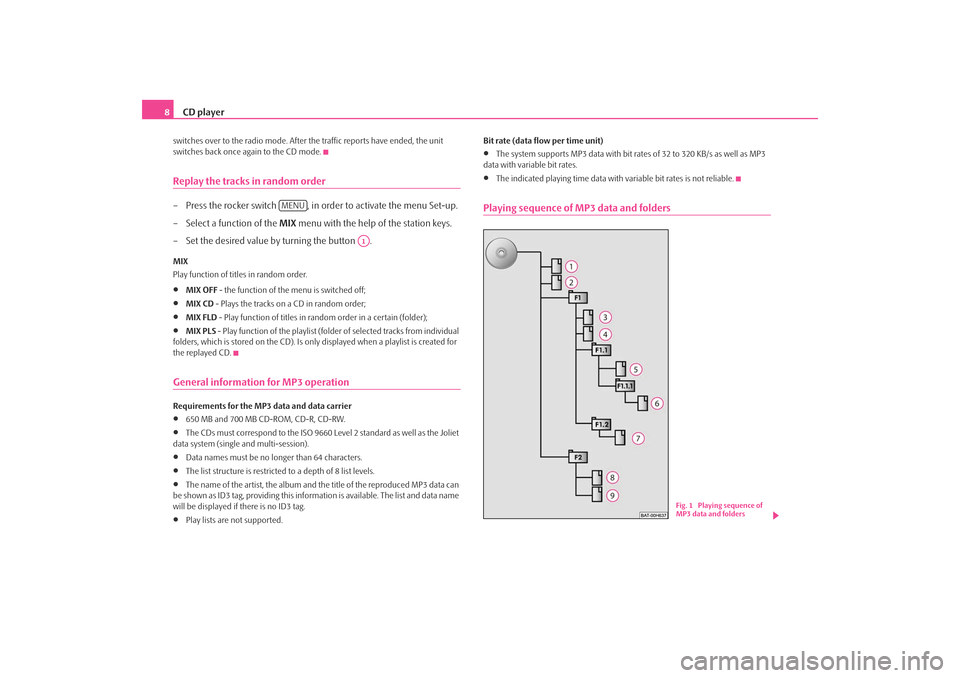

Fig. 1 Playing sequence of
MP3 data and folders
s220.book Page 8 Tuesday, August 5, 2008 6:46 AM
