technical data SKODA OCTAVIA 2009 2.G / (1Z) Owner's Manual

Technical Data
275
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution
Only the above-mentioned oils
may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since this will maintain the properties of the oi
l. In exceptional cases, you must top up
only once engine oil complying with Sp
ecification VW 502 00 (only for petrol
engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use other engine oi
ls - risk of engine damage!
Note
•
Before a long drive we recommend that you purchase and carry with you
engine oil which complies with the specif
ication for your vehicle. Consequently,
you will always have the correct engine oil for refilling.•
We recommend using a preservative fr
om the Škoda original accessories
offered by your Škoda dealer.•
For further information - see Service shedule.
se0.1.book Page 275 Frida
y, April 10, 2009 3:19 PM

Technical Data
276
1.4 ltr./59 kW - EU4Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
OCTAVIA M5
CO M B IM5
Maximum speed
km/h
173
172
Acceleration 0 - 100 km/h
s
14,2
14,3
OCTAVIAM5
COMBIM5
Urban
9,6
9,6
Non-urban
5,6
5,6
Combination
7,0
7,0
CO2 emission - combination
167
167
se0.1.book Page 276 Frida
y, April 10, 2009 3:19 PM

Technical Data
277
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
55/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 227.
3,2
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
7,1
OCTAVIA M5
COMBIM5
Permissible gross weight
1870
1885
Unloaden weight ready for work
1270
1285
Loading capacity
600
600
Loading capacity when using the TLC
525
525
Permissible front axle load
1000
1000
Permissible rear axle load
1100
1150
Permissible trailer loads, trailer braked
900
a)
1100
b)
a)Uphills up to 12 %b)Uphills up to 8%
900
a)
1100
b)
Permissible trailer loads, trailer unbraked
600
600
se0.1.book Page 277 Frida
y, April 10, 2009 3:19 PM

Technical Data
278

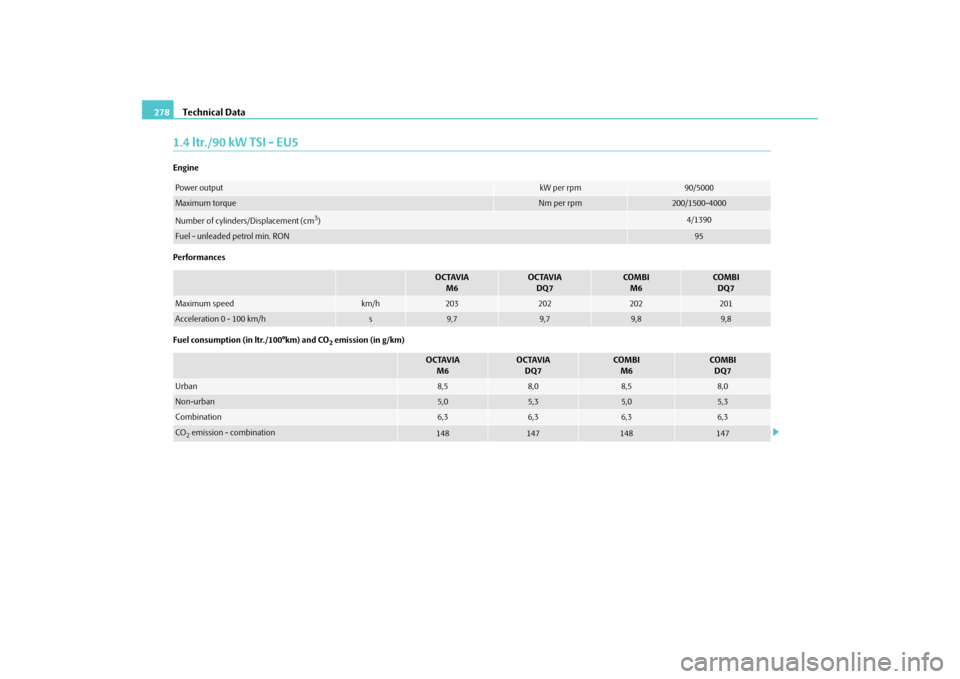

1.4 ltr./90 kW TSI - EU5Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
90/5000
Maximum torque
Nm per rpm
200/1500-4000
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
OCTAVIA M6
OCTAVIADQ7
CO M B I M6
COMBIDQ7
Maximum speed
km/h
203
202
202
201
Acceleration 0 - 100 km/h
s
9,7
9,7
9,8
9,8
OCTAVIAM6
OCTAVIADQ7
COM B I M6
COMBIDQ7
Urban
8,5
8,0
8,5
8,0
Non-urban
5,0
5,3
5,0
5,3
Combination
6,3
6,3
6,3
6,3
CO2 emission - combination
148
147
148
147
se0.1.book Page 278 Frida
y, April 10, 2009 3:19 PM

Technical Data
279
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
55/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 227.
3,6
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
7,7
OCTAVIA M6
OCTAVIADQ7
COM B I M6
COMBIDQ7
Permissible gross weight
1925
1945
1940
1960
Unloaden weight ready for work
1325
1345
1340
1360
Loading capacity
600
600
600
600
Loading capacity when using the TLC
525
525
525
525
Permissible front axle load
1000
1000
1000
1000
Permissible rear axle load
1100
1100
1150
1150
Permissible trailer loads, trailer braked
1200
a)
1400
b)
a)Uphills up to 12 %b)Uphills up to 8%
1200
a)
1400
b)
1200
a)
1400
b)
1200
a)
1400
b)
Permissible trailer loads, trailer unbraked
600
600
600
600
se0.1.book Page 279 Frida
y, April 10, 2009 3:19 PM

Technical Data
280
1.6 ltr./75 kW - EU4, EU2Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
75/5600
Maximum torque
Nm per rpm
148/3800
Number of cylinders/Displacement (cm
3)
4/1595
Fuel - unleaded petrol min. RON
95
OCTAVIA M5
OCTAVIAAG6
COMBIM5
COMBIAG6
Maximum speed
km/h
190
184
188
184
Acceleration 0 - 100 km/h
s
12,3
14,1
12,4
14,2
OCTAVIAM5
OCTAVIAAG6
COMBIM5
COMBIAG6
Urban
10,0
11,2
10,0
11,2
Non-urban
5,8
6,1
5,8
6,1
Combination
7,4
7,9
7,4
7,9
CO2 emission - combination
176
188
176
188
se0.1.book Page 280 Frida
y, April 10, 2009 3:19 PM

Technical Data
281
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
55/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 227.
4,5
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
7,4
OCTAVIA M5
OCTAVIAAG6
COMBIM5
COMBIAG6
Permissible gross weight
1895
1930
1910
1945
Unloaden weight ready for work
1295
1330
1310
1345
Loading capacity
600
600
600
600
Loading capacity when using the TLC
525
525
525
525
Permissible front axle load
1000
1000
1000
1000
Permissible rear axle load
1100
1100
1150
1150
Permissible trailer loads, trailer braked
1200
a)
1400
b)
a)Uphills up to 12 %b)Uphills up to 8%
1200
a)
1400
b)
1200
a)
1400
b)
1200
a)
1400
b)
Permissible trailer loads, trailer unbraked
600
600
600
600
se0.1.book Page 281 Frida
y, April 10, 2009 3:19 PM

Technical Data
282
1.8 ltr./118 kW TSI - EU5, EU2 DDK (1.8 ltr./112 kW TSI - EU5)Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
118/4500-6200 (112/4300-6200)
a)
a)1.8 ltr./112 kW TSIMaximum torque
Nm per rpm
250/1500-4500 (250/1500-4200)
a)
Number of cylinders/Displacement (cm
3)
4/1798
Fuel - unleaded petrol min. RON
95
OCTAVIA M6
OCTAVIADQ7
COM B I M6
COMBIDQ7
COMBI 4x4
M6
SCOUTM6
Maximum speed
km/h
223 (219)
a)
a)1.8 ltr./112 kW TSI
223 (219)
a)
222 (218)
a)
222 (218)
a)
218 (214)
a)
211 (208)
a)
Acceleration 0 - 100 km/h
s
7,8 (8,1)
a)
7,8 (8,1)
a)
7,9 (8,2)
a)
7,9 (8,2)
a)
8,1 (8,4)
a)
8,4 (8,7)
a)
OCTAVIA M6
OCTAVIADQ7
COM B I M6
COMBIDQ7
COMBI 4x4
M6
SCOUTM6
Urban
9,6
9,1
9,6
9,1
10,3
10,2
Non-urban
5,6
5,4
5,6
5,4
6,2
6,4
Combination
7,0
6,6
7,0
6,6
7,7
7,8
CO2 emission - combination
163
155
163
155
180
182
se0.1.book Page 282 Frida
y, April 10, 2009 3:19 PM

Technical Data
283
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
55/9
60a)
a)Octavia Combi 4x4, Octavia Scout.Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
b)
b)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 227.
4,6
Cooling system of the vehicle
c)
c)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
8,6
OCTAVIA M6
OCTAVIADQ7
CO M B I M6
COMBIDQ7
COMBI 4x4
M6
SCOUTM6
Permissible gross weight
1965
1985
1980
2000
2085
2145
Unloaden weight ready for work
1365
1385
1380
1400
1485
1545
Loading capacity
600
600
600
600
600
600
Loading capacity when using the TLC
525
525
525
525
525
525
Permissible front axle load
1050
1050
1050
1050
1100
1100
Permissible rear axle load
1100
1100
1150
1150
1230
1230
Permissible trailer loads, trailer braked
1300
a)
1500
b)
a)Uphills up to 12 %b)Uphills up to 8%
1300
a)
1500
b)
1300
a)
1500
b)
1300
a)
1500
b)
1500
a)
1600
b)
1500
a)
1600
b)
Permissible trailer loads, trailer unbraked
650
650
650
650
650
650
se0.1.book Page 283 Frida
y, April 10, 2009 3:19 PM

Technical Data
284
2.0 ltr./147 kW TSI - EU5Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
147/5100-6000
Maximum torque
Nm per rpm
280/1700-5000
Number of cylinders/Displacement (cm
3)
4/1984
Fuel - unleaded petrol min. RON
95
OCTAVIA RS
M6
OCTAVIA RS
DQ6
CO M B I R S
M6
CO M B I R SDQ6
Maximum speed
km/h
242
240
239
237
Acceleration 0 - 100 km/h
s
7,2
7,2
7,3
7,3
OCTAVIA RS
M6
OCTAVIA RS
DQ6
CO M B I R S
M6
CO M B I R SDQ6
Urban
10,2
10,4
10,2
10,4
Non-urban
5,9
6,2
5,9
6,2
Combination
7,5
7,7
7,5
7,7
CO2 emission - combination
175
180
175
180
se0.1.book Page 284 Frida
y, April 10, 2009 3:19 PM
