Instruments and warning lights
20Note
All information in the memory 1 and 2 is erased if the battery of the vehicle is
disconnected.Operating with the buttons on the windshield wiper lever and on the multifunction steering wheel*Fig. 19 Multi-functional indicator: Controls on the windshield wiper lever / controls on the

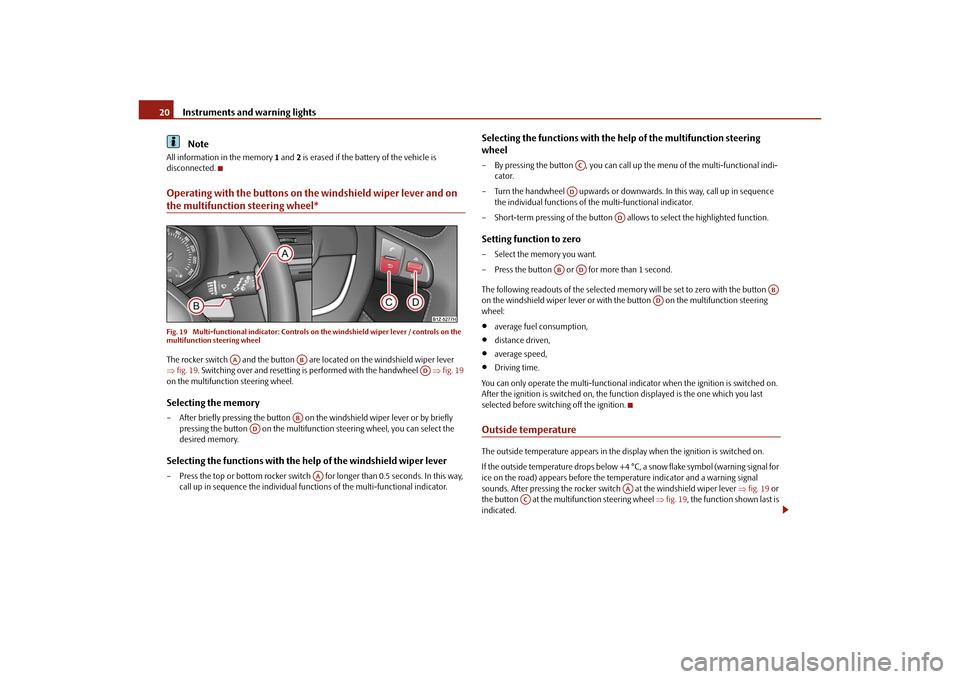

multifunction steering wheelThe rocker switch and the button are located on the windshield wiper lever
 fig. 19 . Switching over and resetting is performed with the handwheel fig. 19
on the multifunction steering wheel.Selecting the memory– After briefly pressing the button on the windshield wiper lever or by briefly
pressing the button on the multifunction steering wheel, you can select the
desired memory.Selecting the functions with the he lp of the windshield wiper lever– Press the top or bottom rocker switch for longer than 0.5 seconds. In this way,
call up in sequence the individual func tions of the multi-functional indicator.
Selecting the functions with the help of the multifunction steering
wheel– By pressing the button , you can call up the menu of the multi-functional indi-
cator.
– Turn the handwheel upwards or downward s. In this way, call up in sequence
the individual functions of th e multi-functional indicator.
– Short-term pressing of the button allows to select the highlighted function.Setting function to zero– Select the memory you want.
– Press the button or for more than 1 second.
The following readouts of the selected memo ry will be set to zero with the button
on the windshield wiper lever or with the button on the multifunction steering
wheel:
average fuel consumption,

distance driven,

average speed,

Driving time.
You can only operate the multi-functional in dicator when the ignition is switched on.
After the ignition is switched on, the function displayed is the one which you last
selected before switch ing off the ignition.
Outside temperatureThe outside temperature appears in the display when the ignition is switched on.
If the outside temperature drops below +4 °C, a snow flake symbol (warning signal for
ice on the road) appears before the temperature indicator and a warning signal
sounds. After pressing th e rocker switch at the windshield wiper lever fig. 19 or
the button at the multifunction steering wheel fig. 19 , the function shown last is
indicated.
AA
AB
AD
AB
AD
AA
AC
AD
AD
AB
AD
AB
AD
AA
AC
s43s.1.book Page 20 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights21
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
Do not only rely upon the information given on the outside temperature display
that there is no ice on the road. Please note that black ice may also be present
on the road surface even at temperatures around +4°C - warning, drive with
care!Driving timeThe driving time which has elapsed since the memory was last erased, appears in the
display. If you wish to measure the driving ti me as of a particular time, you must set the
memory to zero at this moment in time by pressing the button on the windshield
wiper lever page 20, fig. 19 or the handwheel on the multifunction steering
wheel* page 20, fig. 19 for longer than 1 second.
The maximum time indicated in both memories is 19 hours and 59 minutes and on
vehicles which are fitted with information display*, it is 99 hours and 59 minutes. The
indicator is set back to null if this period is exceeded.Current consumptionThe current fuel consumption level is shown in the display in litres/100 km. This infor-
mation can help you to adapt your style of driving to the fuel consumption you wish to
achieve.
The display appears in litres/hour if the vehicle is stationary or driving at a low speed.
The indicated value will be updated every 0.5 seconds while you are driving.Average fuel consumptionThe average fuel consumption since the memory was last erased is shown in the
display in litres/100 km page 19. This information can he lp you to adapt your style
of driving to the fuel consumption you wish to achieve.
If you wish to determine the average fuel consumption over a cert ain period of time
you must set the memory to zero at the start of the measurement using the button
on the windshield wiper lever page 20, fig. 19 or with the handwheel on the multifunction st
eering wheel* page 20, fig. 19 . A zero appears in the display for the
first 100 m you drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving.
Note
The amount of fuel consumed will not be indicated.RangeThe estimated range in kilometres is shown on the display. It indicates the distance you
can still drive with your vehicle based on th e present level of fuel in the tank for the
same style of driving.
The readout is shown in steps of 10 km. Afte r lighting up of the indicator light for the
fuel reserve the display is shown in steps of 5 km.
The fuel consumption for the last 50 km is ta ken as a basis for calculating the range. If
you drive in a more economical manner from this moment on, the range will be
increased accordingly.
If the memory is set to zero (after discon necting the battery), the fuel consumption of
10 ltr./100 km is calculated for the range; afterwards the value is adapted accordingly
to the style of driving.Distance drivenThe distance driven since the memory was last erased appears in the display
 page 19. If you wish to measure the distance driven of a particular time, you must
set the memory to zero at this moment in time by pressing the button on the wind-
shield wiper lever page 20, fig. 19 or the handwheel on the multifunction
steering wheel*  page 20, fig. 19.
The maximum distance indicated in both memories is 1 999 km or on vehicles with
information display*, it is 9 999 km. The indicator is set back to null if this period is
exceeded.
AB
AD
AB
AD
AB
AD
s43s.1.book Page 21 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights
22
Average speedThe average speed since the memory was last erased is shown in the display in
km/hour page 19. If you wish to determine the average vehicle speed over a certain
period of time you must set the memory to zero at the start of the measurement using
the button on the windshield wiper lever page 20, fig. 19 or with the handwheel
on the multifunction steering wheel* page 20, fig. 19 .
A zero appears in the display for the first 100 m you drive after erasing the memory.
The indicated value will be updated every 5 seconds while you are driving.Current speed*The current speed which is identical to the display of the speedometer, is indicated on
the display  page 15, fig. 15.oil temperature*If the oil temperature is lower than 50°C or if a fault in the system for checking the oil
temperature is present, three lines are displayed instead of the oil temperature.Warning against excessive speeds*Warning against excessive speeds
This function enables you to set a speed limit, e.g. if you drive in town. A text in the
display is intended to draw your attention to the fact that you have exceeded the set
speed limit.
Select the menu point Speed warning --- km/h. .

Drive e.°g at a speed of 50 km/h.

Press the button on the windshield wiper lever page 20, fig. 19 or the hand-
wheel on the multifunction steering wheel* page 20, fig. 19 . Speed warning
50 km/h is displayed in the information display*.
The desired speed can also be set in steps of 5°km/h by pressing the button on the
windshield wiper lever page 20, fig. 19 or by turning the handwheel on the
multifunction steering wheel* page 20, fig. 19 . The set speed is confirmed by pressing the button on
the windshield wiper lever page 20, fig. 19 or the hand-
wheel on the multifunction steering wheel* page 20, fig. 19 .
If you now exceed th e set speed limit, Speed 50 km/h exceeded will be shown on the
display. This message is indicated for as long as the speed is reduced below the set
limit or switch off the message by pressing the button on the windshield wiper lever
 page 20, fig. 19 or the handwheel on the multifunction stee ring wheel*
 page 20, fig. 19 .
An audible signal sounds as an additional warning signal.
The set speed limit remains stored even after switching off the ignition.
Information display*IntroductionThe information display provides you with information in a convenient way
concerning the current operating state of your vehicle . The information system also
provides you with data (depending on the equipment installed in the vehicle) relating
to the radio, mobile phone, multi-functional indicator, navigation system, the unit
connected to the MDI input and the automatic gearbox.
Certain functions and operatin g conditions are always being checked on the vehicle
when the ignition is switched on and also while driving.
Functional faults, if required repair work and other information are indicated by red
symbols page 24 and yellow symbols page 24.
Lighting up of certain symbols is comb ined with an acoustic warning signal.
Information and text s giving warnings are also shown in the display page 27.
The display of text is possible in the following languages: Czech, English, German, French, Italian, Spanish, Portuguese, Russian and Chinese.
You can select the desired language in the setting menu.
The following information can be shown in the display (depending on the equipment
installed on the vehicle):

AB
AD
A2
AB
AD
AA
AD
AB
AD
AB
AD
s43s.1.book Page 22 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights23
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Main menuFig. 20 Information display: Controls on the windshield wiper lever / controls on the multi-
function steering wheelOperating with the buttons on the windshield wiper lever– You can activate the MAIN MENU by pressing the rocker switch fig. 20 for
more than 1 second.
– You can select individual menu points by means of the rocker switch . When the pushbutton is briefly pressed, the info rmation you have selected is displayed.Operating with the buttons on the multifunction steering wheel– You can activate the MAIN MENU by pressing the rocker switch fig. 20 for
more than 1 second.
– You can select the individual menus by pressing the handwheel . After briefly
pressing the handwheel , th e desired menu is indicated.
– After briefly pressing the button you can achieve a higher level, by pressing the button for longer than 1 second, you can call up the MAIN MENU. You can select the following information (d
epending on the equipment installed on
the vehicle):

MFD (Onboard computer) page 19

Audio *

Navigation *

Phone*  page 125

Aux. Heating (auxiliary heating) *  page 104

Assistants *  page 53

Vehicle status  page 24

Setup  page 25
The menu point Audio is only then displayed when the factory-fitted Radio* is
switched on.
The menu point Navigation is only then displayed when the factory-fitted Navigation
system* is switched on.
The menu point Aux. Heating is only then displayed, if the vehicle is factory-fitted with
the auxiliary heating*.
The menu point Assistants is only then displayed, if the vehicle is fitted with cornering
lights*.Note

If warning messages are shown in the information display, these messages can be
confirmed with the button on the windshie ld wiper lever or with the button on
the multifunction steering wheel in order to call up the main menu.

If you do not activate the information display at that moment, the menu shifts to
one level higher every 10 seconds.

The operation of the factory-fitted radio* or the navigation system* is described in
separate operating instructions to be found in the on-board literature.
Main menu
page 23
Door, luggage compartment door and bonnet ajar warn-
ing
page 24
Service Interval Display
page 17
Selector lever position for an automatic gearbox
page 116AAAA
AB
ACAD
AD
AC
AC
AB
AD
s43s.1.book Page 23 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights
24
Door, luggage compartment door and bonnet ajar warningThe door, luggage compartment and bonnet ajar warning lights up if at least one door,
the luggage compartment or bonnet are not closed. The symbol indicates which door
is still open or whether the luggage compartment door or bonnet is not closed.
The symbol goes out as soon as the doors, luggage compartment door and bonnet are
completely closed.
A warning signal sounds if the car is driven at a speed of more than 6km/hour and if
the engine or the luggage compartment door is open.Auto Check Control*Car stateThe Auto Check Control carries out a chec k of certain functions and vehicle compo-
nents. The check is performed constantly when the ignition is switched on, both when
the vehicle is stationary, as well as when driving.
Some operational faults, urgent repairs, service work or other information appear in
the display of the instrument cluster. The di splays are shown with a red or yellow light
symbol depending on the priority of the message.
The red symbols indicate danger (priority 1) while the yellow symbols indicate a
warning (priortity 2). Information for the driver may also appear in addition to the
symbols page 27.
Shown in the menu Vehicle status, if there is at least one error message. After selecting
this menu the first of the error messages is displayed. Several error messages are
shown on the display under the message e.g. 1/3. This indicates that the first of a total
of three error messages is displayed. Investigate the displayed faults as soon as
possible.
As long as the operational faults are not rectified, the symbols are always indicated
again. After the first display, the symbol s are indicated without information for the
driver.
If a fault occurs, a warning signal will also sound in addition to the symbol and text in
the display:

Priority 1 - three warning signals

Priority 2 - one warning signal
Red symbols
A red symbol signals danger.– Stop the vehicle.
– Switch the engine off.
– Investigate the function indicated.
– Obtain professional assistance.
Meaning of the red symbols:
Three successive warning signals will sound if a red symbol appears.Yellow symbolsCheck the relevant function as soon as possible.
The meaning of the yellow symbols:
Engine oil pressure too low
page 30

Overheated clutches of the automatic gearbox
DSG*
page 36
s43s.1.book Page 24 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights25
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
In certain countries, if a yellow symbol appears
one warning signal will sound as well.
If several operational faults of priority 2 exist, the symbols appear one after the other
and are each illuminated for about 5 seconds.
SetupYou can change certain setti ngs by means of the information display. The current
setting is shown on the information display in the respective menu at the top below the
line.
You can select the following information (d epending on the equipment installed on
the vehicle):
Language

MFD Data

Convenience

Lights & Vision

Time

Winter tyres

Units

Assistants

Alt. speed dis.

Service Interval

Factory Setting

Back
After selecting the menu point Back you will reach one level higher in the menu.
Language
Here you can set in which language the warning and information texts should be
displayed.
Displays of the MFA
Here you can switch off or on certain displays of the multi-functional indicator.
Comfort*
You can set the following f unctions (depending on the equipment installed on the
vehicle):

Check engine oil level,
engine oil sensor faulty
 page 35

Brake pad worn
page 34

Problem with engine oil pressure
It is also important to have the vehi-
cle inspected without delay by a spe- cialist garage. The information about the maximum permissible engine
speed is displayed together with this symbol.
Rain closing
On vehicles with rain sensor you can switch on or off the
function for automatic closing of the windows and the
sliding/tilting roof in case of ra in and locked vehicle. If it is
not raining and the function is set, the windows including
the sliding/tilting roof are closed automatically after
approx. 12 hours.
Door open
Here you can switch on or off the functions for opening a
single door and automatic closing.
ATA c onfirm
Here you can set if a signal tone should sound additionally
when activating or deactivating the anti-theft alarm system
.
Window op.
Here you can set the convenience mode only for the driver
window or for all the windows.
s43s.1.book Page 25 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights
26
Lights and Visibility
Here you can set how long the light should stay on for the function Coming/Leaving
Home. Furthermore you can here switch on or off the functions daylight driving lights
and convenience turn signal.
After selecting the menu point Fa ct or y se t ting the factory setting of the lighting is
established again.
Time
Here you can set the time, the time format (12 or 24 hour indicator) and the time
change summer/winter time.
Winter tyres
Here you can set at which speed a warning si gnal should sound. This function is used
for e.g winter tyres with the permissibl e maximum speed less than the maximum
speed of the vehicle.
When exceeding the speed, the following is displayed on the information display*:
Winter tyres max. speed ... km/h
Measures
Here you can set the units for temperature, consumption and distance driven. Assistant
Here you can adjust the tones of the
acoustic signals of the parking aid*.
Second speed
Here you can switch on the display of the second speed in mph or in km/h
3).
Service
Here you can have the kilometers still to be driven and the days until the following
service interval shown and the Service Interval Display reset.
Factory Setting
After selecting the menu point Factory Setting the factory setting of the information
display is established again.
Mirror down
Here you can switch on or off the function for mirror low-
ering on the front passenger side when engaging the
reverse gear
a).
Mirror adjust.
Here you can switch on or off the function for left and right
exterior mirror adjustment simultaneously.
Fa cto r y se tt ing
After selecting this menu the convenience setting is reset
to factory setting. The following is displayed in the infor-
mation display:
Convenience factory settings restored
a)This function is only available on vehicles with an electrically adjustable driver seat.
3)Valid for countries where the values are indicated in British measuring units.
s43s.1.book Page 26 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights27
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Warning lightsOverview
The warning lights indicate certain functions or faults.
Fig. 21 Instrument cluster with warning lights

Turn signal lights (to the left) page 28

Turn signal lights (to the right) page 28

Fog lights* page 29

Main beam light page 29

Low beam light page 29

Rear fog light page 29

Cruise control system* page 29

Failure of the light bulbs page 29

Diesel particle filter* (diesel engine) page 29

Airbag system page 30

Control system for exhaust page 30


Electromechanical power steering page 30

Engine oil pressure page 30

EPC fault light (petrol engine) page 31
s43s.1.book Page 27 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights
28
WARNING

If you do not pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body inju-
ries or major vehicle damage.

The engine compartment of your car is a hazardous area. There is a risk of
injuries, scalding, accidents and fire wh en working in the engine compartment,
e.g. inspecting and replenishing oil and other fluids. It is also essential to
observe all warnings page 197, “Working in the engine compartment”.Note

The arrangement of the indicator lights depends on the model version. The
symbols shown in the following functional description are to be found as indicator
lights in the instrument cluster.

Operational faults are shown in the instrument cluster as red symbols (priority 1 -
danger) or yellow symbol s (priority 2 - warning).
Turn signal system

Either the left
 or right
 indicator light flashes depending on the position of the turn
signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails.
Switching off the hazard warning light system is switched on will cause all of the turn
signal lights as well as both indicator lights to flash.
Further information about the turn signal system page 57.

Glow plug system (diesel engine) page 31

Coolant temperature/coolant level page 31

Traction control system (TCS) page 32

Electronic stability programme (ESP)* page 32

Switch off traction control system (TCS) page 32

Selector lever lock* page 33

Tyre pres su re* page 33

Antilock brake system (ABS) page 33

Bonnet page 33

Seat belt warning light page 34

Brake pad wear* page 34

Boot lid page 34

Open door page 34

Fluid level in windshield washer system* page 34

Brake system page 34

Dynamo page 35

Engine oil level page 35

Fuel reserve page 35
s43s.1.book Page 28 Thursday, May 13, 2010 1:21 PM

Instruments and warning lights29
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fog lights*

The warning light
 comes on when the fog lights are operating page 54.
Main beam

The indicator light
 comes on when the main beam is selected or also when the
headlight flasher is operated.
Further information about the main beam page 57.
Low beam

The warning light
 comes on when low beam is selected page 51.
Rear fog light

The warning light
 comes on when the rear fog lights are operating page 55.
Cruise control system*

The warning light
 lights up, when operating the speed regulating system.
Bulb failure

The warning light
 comes on if a bulb is faulty:

up to 2 seconds after the ignition is switched on,

when switching on the defective light bulb.
The following text e.g will be displayed in the information display*: Check front right dipped beam!
The rear side lights and the licence plate li ghting require several light bulbs. The indi-
cator light
 only lights up if all light bulbs of the licence plate lighting or the parking
light (in one rear light unit) are defective. Check regularly the function of the light
bulbs.
Diesel particle filter*

(diesel engine)
If the warning light

comes on, this means that soot has accumulated in the diesel
particle filter because of the frequent short distances.
In order to clean the diesel particle filter, the vehicle should be driven at an even speed
of at least 60 km/h at engine speeds of 1 800 - 2 500 rpm for at least 15 minutes or until
the warning light goes out with the 4th or 5th gear engaged (automatic gearbox: posi-
tion S) when the traffic situation permits it. This increases the exhaust temperature and
the soot deposited in the diesel particle filter is burnt.
Always pay attention to the valid speed limits .
The warning light

goes out after the successful cleaning of the diesel particle filter.
If the filter is not properly cleaned, the warning light

does not go out and the
warning light
 begins to flash. In the information display* appears Diesel-particle:
Owner's manual . Afterwards the engine control unit shifts the engine into the emer-
gency mode, which only has a reduced power output. After switching the ignition off
and on again the warning light
 comes on.
Have the vehicle inspected without delay by your specialist garage.
WARNING

If you do not pay attention to the warning light coming on and the corre-
sponding descriptions and warning notes, this may result in injuries or major
vehicle damage.

Always adjust your speed to suit weather, road, region and traffic condi-
tions. The route indicated by the warnin g light must not tempt you to disregard
the national regulations for road traffic.Caution
As long as the warning light

li ghts up, one must take into account an incre as ed f uel
consumption and in certain circumstan ces a power reduction of the engine.
Note
Further information about diesel particle filter page 173.
