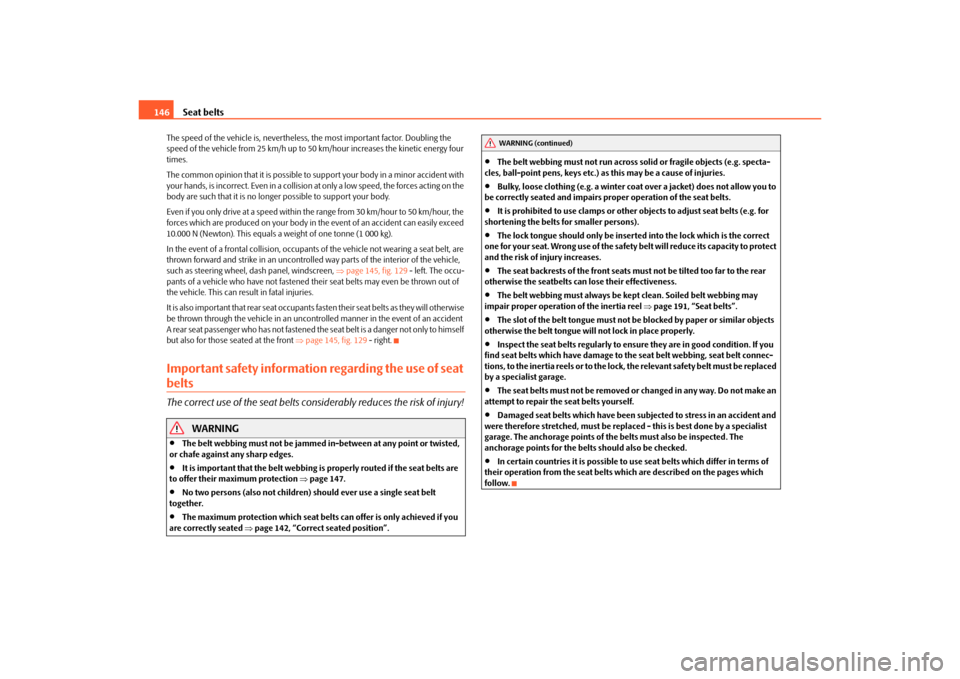

Page 147 of 275
Seat belts
146
The speed of the vehicle is, nevertheless, the most important factor. Doubling the
speed of the vehicle from 25 km/h up to 50 km/hour increases the kinetic energy four
times.
The common opinion that it is possible to su pport your body in a minor accident with
your hands, is incorrect. Even in a collision at only a low speed, the forces acting on the
body are such that it is no longer possible to support your body.
Even if you only drive at a speed within the range from 30 km/hour to 50 km/hour, the
forces which are produced on your body in the event of an accident can easily exceed
10.000 N (Newton). This equals a weight of one tonne (1 000 kg).
In the event of a frontal collision, occupants of the vehicle not wearing a seat belt, are
thrown forward and strike in an uncontrolled way parts of the interior of the vehicle,
such as steering wheel, dash panel, windscreen, page 145, fig. 129 - left. The occu-
pants of a vehicle who have not fastened their seat belts may even be thrown out of
the vehicle. This can result in fatal injuries.
It is also important that rear seat occupants fasten their seat belts as they will otherwise
be thrown through the vehicle in an uncontr olled manner in the event of an accident
A rear seat passenger who has not fastened the s eat bel t i s a dang er not o nl y to hims elf
but also for those seated at the front page 145, fig. 129 - right.Important safety information regarding the use of seat beltsThe correct use of the seat belts cons iderably reduces the risk of injury!
WARNING
The belt webbing must not be jammed in-between at any point or twisted,
or chafe against any sharp edges.
It is important that the belt webbing is properly routed if the seat belts are
to offer their maximum protection page 147.
No two persons (also not children) should ever use a single seat belt
together.
The maximum protection which seat belts can offer is only achieved if you
are correctly seated page 142, “Correct seated position”.
The belt webbing must not run across solid or fragile objects (e.g. specta-
cles, ball-point pens, keys etc.) as this may be a cause of injuries.
Bulky, loose clothing (e.g. a winter coat over a jacket) does not allow you to
be correctly seated and impairs proper operation of the seat belts.
It is prohibited to use clamps or other objects to adjust seat belts (e.g. for
shortening the belts for smaller persons).
The lock tongue should only be inserted into the lock which is the correct
one for your seat. Wrong use of the safety belt will reduce its capacity to protect
and the risk of injury increases.
The seat backrests of the front seats must not be tilted too far to the rear
otherwise the seatbelts can lose their effectiveness.
The belt webbing must always be ke pt clean. Soiled belt webbing may
impair proper operation of the inertia reel page 191, “Seat belts”.
The slot of the belt tongue must not be blocked by paper or similar objects
otherwise the belt tongue will not lock in place properly.
Inspect the seat belts regula rly to ensure they are in good condition. If you
find seat belts which have damage to the seat belt webbing, seat belt connec-
tions, to the inertia reels or to the lock, the relevant safety belt must be replaced
by a specialist garage.
The seat belts must not be removed or changed in any way. Do not make an
attempt to repair the seat belts yourself.
Damaged seat belts which have been subjected to stress in an accident and
were therefore stretched, must be replaced - this is best done by a specialist
garage. The anchorage points of the belts must also be inspected. The
anchorage points for the belts should also be checked.
In certain countries it is possible to use seat belts which differ in terms of
their operation from the seat belts which are described on the pages which
follow.WARNING (continued)
s43s.1.book Page 146 Thursday, May 13, 2010 1:21 PM
Page 220 of 275
Breakdown assistance219
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution
Use the pressure of your hand, do not knock on the full wheel trim! Heavy knocks
mainly on the points where the full wheel tr im has not been inserted into the wheel,
can result in damage to the guide and ce ntering elements of the full wheel trim.
Check for yourself that the safety wheel bolt is located in the hole in the area of the
valve before fitting the full wheel trim onto a steel wheel which is attached with a safety
wheel bolt page 220.
Wheel bolts with caps*Pulling off– Push the plastic clip sufficiently far onto the cap until the inner catches of the clip
are positioned at the collar of the cap and detach the cap.Installing– Push the caps fully onto the wheel bolts.
The caps are located in the well of the luggage compartment.
Wheel trim caps*Pulling off– Carefully remove the wheel trim cap using the wire clamp fig. 177 .Slackening and tightening wheel bolts
Slacken the wheel bolts before jacking up the vehicle.Slackening wheel bolts– Push the wheel wrench* fully onto the wheel bolt
19).
– Grasp the end of the wrench* and turn the bolt about one turn to the left
fig. 178 .
Fig. 176 Removing the cap.
19)Use the appropriate adapter for slackening and tightening the safety wheel bolts page 220.
Fig. 177 Pulling off wheel trim cap on
light alloy wheelsFig. 178 Changing a wheel: Slackening
wheel bolts
s43s.1.book Page 219 Thursday, May 13, 2010 1:21 PM
Page 221 of 275
Breakdown assistance
220
Tightening wheel bolts
– Push the wheel wrench* fully onto the wheel bolt
19).
– Grasp the end of the wrench* and turn the bolt to the right until it is tight.
WARNING
Slacken the wheel bolts only a little (about one turn) as long as the vehicle has
not yet been lifted with the lifting jack* - risk of accident!
Note
Apply pressure carefully with your foot to the end of the wrench* if it proves difficult
to slacken the bolts. Hold tight on the vehicl e when doing this and ensure that you have
a steady position.Raise vehicle
You have to raise the vehicle with the lifting jack* in order to be able to
take off the wheel.Position the lifting jack* by selecting the ja cking point which is closest to the wheel to
be removed fig. 179 . The jacking point is located directly below the engraving in the
lower sill. The engraving is only visible after opening the door.
– Position the lifting jack* below the jacking point and move it up until its claw is
positioned directly below the vertical web of the lower sill. – Align the lifting jack* so that its claw
grasps the web of the lower sill and the
base plate is resting flat on the floor.
– Turn the lifting jack* up further until the wheel is just clear of the ground.
Ground which is soft and slippery below the lifting jack* can cause the vehicle to slip
off the lifting jack*. It is therefore always necessary to place the lifting jack* on a solid
surface or use a wide and stable base. Use a non-slip base (e.g. a rubber foot mat) if
the surface is smooth, such as cobbled stones, a tiled floor, etc.
WARNING
Always raise the vehicle with the doors closed - risk of injury!
Take suitable measures to prevent the ba se of the lifting jack from slipping
off - risk of injury!
Not positioning the lifting jack* at the specified points can result in damage
to the vehicle. The jack can al so slip off if it does not have sufficient grip - risk of
injury!
It is important to support the vehicle with suitable supporting blocks if you
wish to work under the lifted vehicle - risk of injury!
Securing wheels against being stolen*
You need a special adapter for sl ackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the safety wheel
bolt.
Fig. 179 Changing a wheel: Jacking
points for positioning lifting jack
AA
AB
Fig. 180 Safety wheel bolt with adapter
s43s.1.book Page 220 Thursday, May 13, 2010 1:21 PM
Page 266 of 275
Index265
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . 65
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Fixing net Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fog lights with the function CORNER . . . . . . . . . . . 55
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
GGearbox mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125, 132HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Hazard warning light system . . . . . . . . . . . . . . . . . . . 56 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Headlamp range adjustment . . . . . . . . . . . . . . . . . . . 56
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 63
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Headlight cleaning system . . . . . . . . . . . . . . . . . . 63
Heated windscreen washer nozzles . . . . . . . . . . . . . 61
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Auxiliary heating (auxiliary heating) . . . . . . . . 104
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 96
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 97
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Interior light Luggage compartment . . . . . . . . . . . . . . . . . . . . . 59
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 221, 222KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216, 220
