washer fluid SKODA OCTAVIA 2011 2.G / (1Z) Owner's Manual

Head airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Transporting children safely . . . . . . . . . . . . . . . . . . . . . . 147
What you should know about transporting children! . 147
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Attaching a child seat using the “ISOFIX” system . . . . 152
Attaching child seat using the “Top Tether” system . . 153
Driving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Intelligent Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Electronic stability programme (ESP) . . . . . . . . . . . . . . . . 154
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Electromechanical power steering . . . . . . . . . . . . . . . . . . 159
Tyre pressure monitoring system . . . . . . . . . . . . . . . . . . . 159
Diesel particle filter (diesel engine) . . . . . . . . . . . . . . . . . 160
Driving and the Environment . . . . . . . . . . . . . . . . . . . . . 161
The first 1 500 kilometres and afterwards . . . . . . . . . . . 161
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Environmental compatibility . . . . . . . . . . . . . . . . . . . . . . . . 165
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Avoiding damage to your vehicle . . . . . . . . . . . . . . . . . . . 166
Driving through bodies of water on roads . . . . . . . . . . . 166
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Technical requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Driving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169 General Maintenance
. . . . . . . . . . . . . . . . . . . . . 170
Taking care of your vehicle and cleaning the
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Care of the exterior of vehicle . . . . . . . . . . . . . . . . . . . . . . 170
Care of the interior of vehicle . . . . . . . . . . . . . . . . . . . . . . . 174
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Biofuel Ethanol E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Inspecting and Replenishing . . . . . . . . . . . . . . . . . . . . . . 180

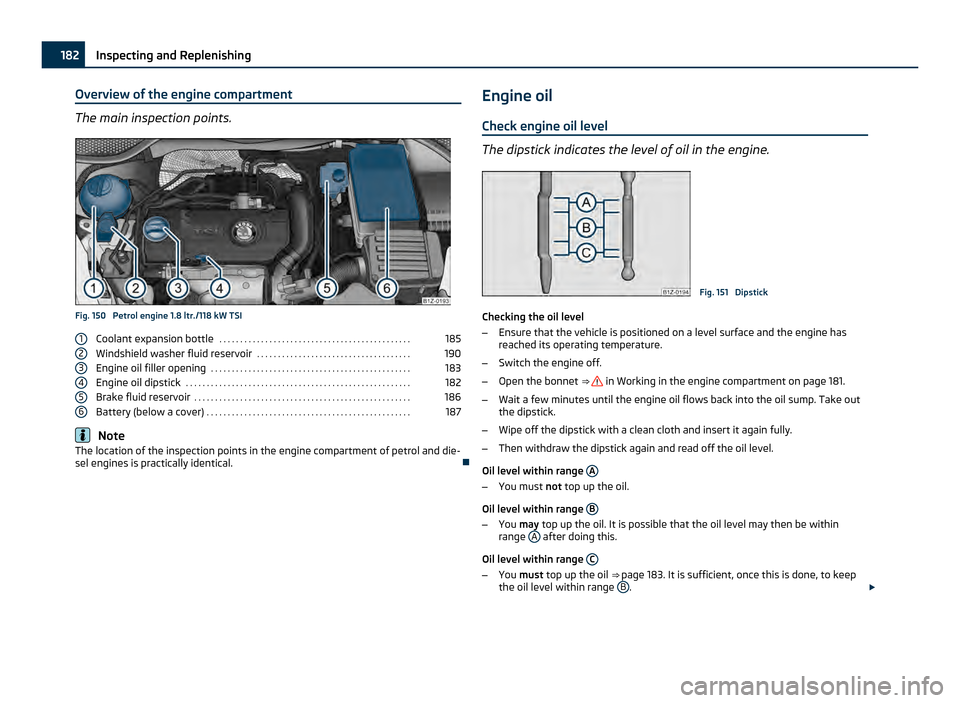

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

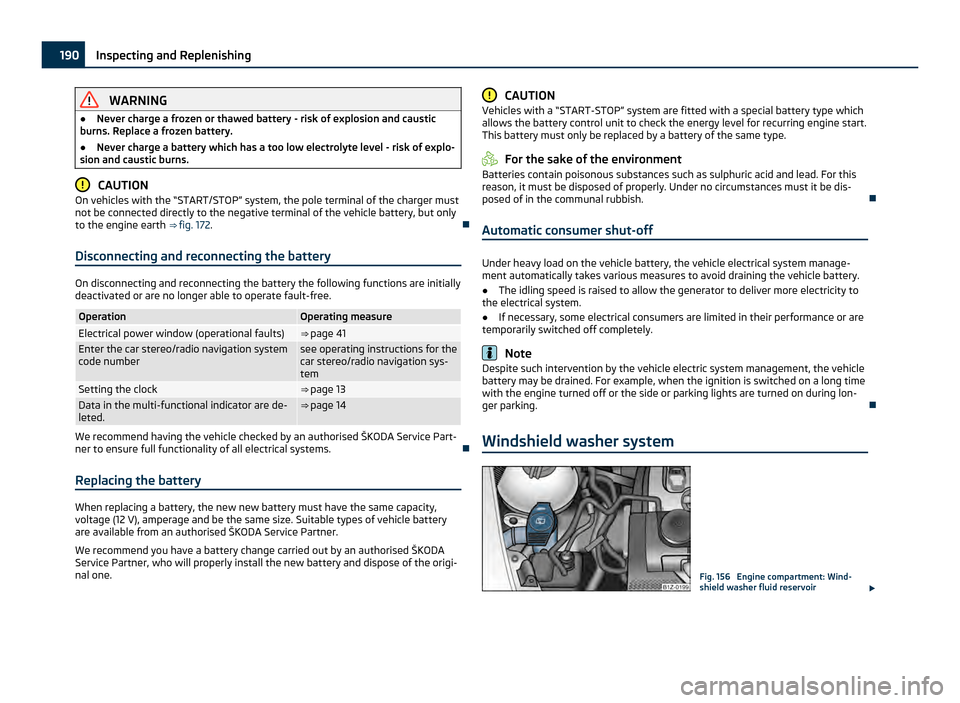

Windshield washer system . . . . . . . . . . . . . . . . . . . . . . . . . 190
Wheels and Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Accessories, changes and replacement of parts . 197
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Breakdown assistance . . . . . . . . . . . . . . . . . . . 198
Breakdown assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
First-aid box and Warning triangle (Octavia) . . . . . . . . . 198
First-aid box and warning triangle (Estate car) . . . . . . . 198
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Fuses and light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 Technical data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Fuel consumption according to the ECE standards and
EU guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine oil specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Engine 1.2 l/77 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 226
Engine 1.4 l/59 kW - EU4, EU5 . . . . . . . . . . . . . . . . . . . . . . 227
Engine 1.4 l/90 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 228
Engine 1.6 l/75 kW - EU2, EU4, EU5 . . . . . . . . . . . . . . . . . . 229
Engine 1.8 l/112 kW TSI - EU5, EU2 DDK . . . . . . . . . . . . . . 230
Engine 1.8 l/118 kW TSI - EU5, EU2 DDK . . . . . . . . . . . . . . 231
Engine 2.0 l/147 kW TSI - EU5, EU2 DDK . . . . . . . . . . . . . 232
Engine 1.6 l/77 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . . 233
Engine 1.9 l/77 kW TDI PD - EU4 . . . . . . . . . . . . . . . . . . . . 234
Engine 2.0 l/81 kW TDI CR - EU4, EU5 . . . . . . . . . . . . . . . 235
Engine 2.0 l/103 kW TDI CR - EU4, EU5 . . . . . . . . . . . . . . 236
Engine 2.0 l/125 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . 237
Multi-purpose vehicles (AF) . . . . . . . . . . . . . . . . . . . . . . . . 238
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2394
Table of Contents


Low beam
⇒ page 23
 Rear fog light
⇒ page 23
 Speed regulating system
⇒ page 23
 Failure of the light bulbs
⇒ page 23
 Diesel particle filter (diesel engine)
⇒ page 23
 Airbag system
⇒ page 24
 Control system for exhaust
⇒ page 24
  Electromechanical power steering
⇒ page 24
 Engine oil pressure
⇒ page 25
 EPC fault light (petrol engine)
⇒ page 25
 Glow plug system (diesel engine)
⇒ page 25
 Coolant temperature/coolant level
⇒ page 25
 Traction control system (TCS)
⇒ page 26
 Electronic stability programme (ESP)
⇒ page 26
 Switch off traction control system (TCS)
⇒ page 26
 Selector lever lock
⇒ page 27
 Tyre pressure
⇒ page 27
 Antilock brake system (ABS)
⇒ page 27 
Bonnet
⇒ page 27
 Seat belt warning light
⇒ page 28
 Boot lid
⇒ page 28
 Open door
⇒ page 28
 Fluid level in windshield washer system
⇒ page 28
 Brake system
⇒ page 28
 Handbrake
⇒ page 29
 Generator
⇒ page 29
 Engine oil level
⇒ page 29
 Fuel reserve
⇒ page 29 WARNING
● If you do not pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body inju-
ries or major vehicle damage.
● The engine compartment of your car is a hazardous area. There is a risk of
injuries, scalding, accidents and fire when working in the engine compart-
ment, e.g. inspecting and replenishing oil and other fluids. It is also essential
to observe all warnings ⇒
 page 181, Working in the engine compartment. Note
● The arrangement of the indicator lights depends on the model version. The
symbols shown in the following functional description are to be found as indicator
lights in the instrument cluster.
● Operational faults are shown in the instrument cluster as red symbols (priority
1 - danger) or yellow symbols (priority 2 - warning). 22
Instruments and warning lights

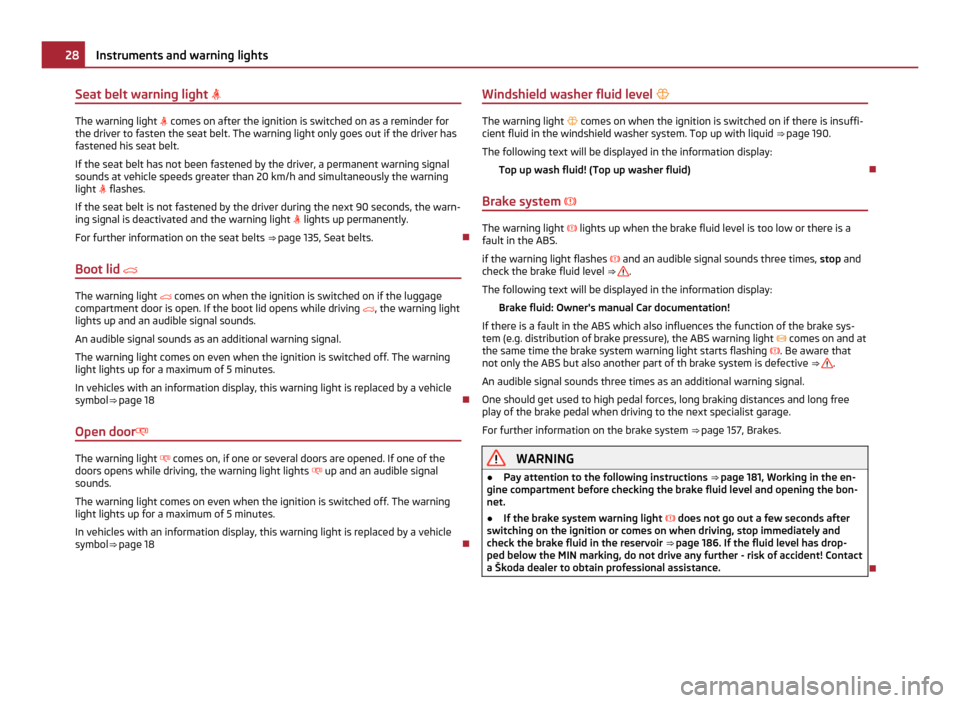

Seat belt warning light
The warning light
 comes on after the ignition is switched on as a reminder for
the driver to fasten the seat belt. The warning light only goes out if the driver has
fastened his seat belt.
If the seat belt has not been fastened by the driver, a permanent warning signal
sounds at vehicle speeds greater than 20 km/h and simultaneously the warning
light  flashes.
If the seat belt is not fastened by the driver during the next 90 seconds, the warn-
ing signal is deactivated and the warning light  lights up permanently.
For further information on the seat belts ⇒ page 135, Seat belts. 
Boot lid The warning light
 comes on when the ignition is switched on if the luggage
compartment door is open. If the boot lid opens while driving , the warning light
lights up and an audible signal sounds.
An audible signal sounds as an additional warning signal.
The warning light comes on even when the ignition is switched off. The warning
light lights up for a maximum of 5 minutes.
In vehicles with an information display, this warning light is replaced by a vehicle
symbol ⇒
 page 18 
Open door The warning light
 comes on, if one or several doors are opened. If one of the
doors opens while driving, the warning light lights  up and an audible signal
sounds.
The warning light comes on even when the ignition is switched off. The warning
light lights up for a maximum of 5 minutes.
In vehicles with an information display, this warning light is replaced by a vehicle
symbol ⇒ page 18 Windshield washer fluid level
 The warning light
 comes on when the ignition is switched on if there is insuffi-
cient fluid in the windshield washer system. Top up with liquid ⇒ page 190

.
The following text will be displayed in the information display: Top up wash fluid! (Top up washer fluid) 
Brake system  The warning light
 lights up when the brake fluid level is too low or there is a
fault in the ABS.
if the warning light flashes  and an audible signal sounds three times, stop and
check the brake fluid level ⇒  .
The following text will be displayed in the information display: Brake fluid: Owner's manual Car documentation!
If there is a fault in the ABS which also influences the function of the brake sys-
tem (e.g. distribution of brake pressure), the ABS warning light  comes on and at
the same time the brake system warning light starts flashing . Be aware that
not only the ABS but also another part of th brake system is defective ⇒  .
An audible signal sounds three times as an additional warning signal.
One should get used to high pedal forces, long braking distances and long free
play of the brake pedal when driving to the next specialist garage.
For further information on the brake system ⇒ page 157,

Brakes. WARNING
● Pay attention to the following instructions ⇒
 page 181, Working in the en-
gine compartment before checking the brake fluid level and opening the bon-
net.
● If the brake system warning light  does not go out a few seconds after
switching on the ignition or comes on when driving, stop immediately and
check the brake fluid in the reservoir ⇒

 page 186. If the fluid level has drop-
ped below the MIN marking, do not drive any further - risk of accident! Contact
a Škoda dealer to obtain professional assistance. 28
Instruments and warning lights

Overview of the engine compartment
The main inspection points.
Fig. 150 Petrol engine 1.8 ltr./118 kW TSI
Coolant expansion bottle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Windshield washer fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine oil filler opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Brake fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Battery (below a cover) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187Note
The location of the inspection points in the engine compartment of petrol and die-
sel engines is practically identical. 
1 2
3
4
5
6 Engine oil
Check engine oil level The dipstick indicates the level of oil in the engine.
Fig. 151 Dipstick
Checking the oil level
– Ensure that the vehicle is positioned on a level surface and the engine has
reached its operating temperature.
– Switch the engine off.
– Open the bonnet ⇒  in Working in the engine compartment on page 181.
– Wait a few minutes until the engine oil flows back into the oil sump. Take out
the dipstick.
– Wipe off the dipstick with a clean cloth and insert it again fully.
– Then withdraw the dipstick again and read off the oil level.
Oil level within range A –
You must not top up the oil.
Oil level within range B –
You may top up the oil. It is possible that the oil level may then be within
range A after doing this.
Oil level within range C –
You must top up the oil ⇒  page 183. It is sufficient, once this is done, to keep
the oil level within range B .
£182
Inspecting and Replenishing

WARNING
● Never charge a frozen or thawed battery - risk of explosion and caustic
burns. Replace a frozen battery.
● Never charge a battery which has a too low electrolyte level - risk of explo-
sion and caustic burns. CAUTION
On vehicles with the “START/STOP” system, the pole terminal of the charger must
not be connected directly to the negative terminal of the vehicle battery, but only
to the engine earth ⇒ fig. 172. 
Disconnecting and reconnecting the battery On disconnecting and reconnecting the battery the following functions are initially
deactivated or are no longer able to operate fault-free.
Operation Operating measure
Electrical power window (operational faults) ⇒ page 41
Enter the car stereo/radio navigation system
code number see operating instructions for the
car stereo/radio navigation sys-
tem
Setting the clock ⇒ page 13
Data in the multi-functional indicator are de-
leted. ⇒ page 14
We recommend having the vehicle checked by an authorised ŠKODA Service Part-
ner to ensure full functionality of all electrical systems.

Replacing the battery When replacing a battery, the new new battery must have the same capacity,
voltage (12
V), amperage and be the same size. Suitable types of vehicle battery
are available from an authorised ŠKODA Service Partner.
We recommend you have a battery change carried out by an authorised ŠKODA
Service Partner, who will properly install the new battery and dispose of the origi-
nal one. CAUTION
Vehicles with a “START-STOP” system are fitted with a special battery type which
allows the battery control unit to check the energy level for recurring engine start.
This battery must only be replaced by a battery of the same type. For the sake of the environment
Batteries contain poisonous substances such as sulphuric acid and lead. For this
reason, it must be disposed of properly. Under no circumstances must it be dis-
posed of in the communal rubbish. 
Automatic consumer shut-off Under heavy load on the vehicle battery, the vehicle electrical system manage-
ment automatically takes various measures to avoid draining the vehicle battery.
●
The idling speed is raised to allow the generator to deliver more electricity to
the electrical system.
● If necessary, some electrical consumers are limited in their performance or are
temporarily switched off completely. Note
Despite such intervention by the vehicle electric system management, the vehicle
battery may be drained. For example, when the ignition is switched on a long time
with the engine turned off or the side or parking lights are turned on during lon-
ger parking. 
Windshield washer system Fig. 156 Engine compartment: Wind-
shield washer fluid reservoir
£190
Inspecting and Replenishing

The windshield washer reservoir contains the cleaning fluid for the windscreen or
rear window and for the headlamp cleaning system. The reservoir is located at the
front right of the engine compartment ⇒
 fig. 156 .
The filling level of the container is about 3 litres and about 5.5 litres on vehicles
which have a headlight washing system.
Clear water is not sufficient to intensively clean the windscreen and headlights.
We therefore recommend using clean washing water together with the screen
cleaner from ŠKODA Original Accessories (in winter additionally with antifreeze)
which is capable of removing stubborn dirt. Follow the instructions for use on the
packaging when using screen cleaning products.
You should always add antifreeze to the cleaning water in winter even if your ve-
hicle is fitted with heated windscreen washer nozzles.
It is also possible in exceptional cases to use methylated spirits when no screen
cleaner with antifreeze is available. The concentration of methylated spirits must
not be more than 15 %. Please note, however, that the antifreeze protection at
this concentration is only adequate down to -5 °C. WARNING
Read and observe the warning notes ⇒ page 181, Working in the engine com-
partment
before working in the engine compartment. CAUTION
● On no account should you add radiator antifreeze or other additives to the
windscreen washer fluid.
● If the vehicle is fitted with a headlight cleaning system, you should only add
cleaning products which do not attack the polycarbonate coating of the head-
lights to the windscreen washer fluid. Please contact an authorised

ŠKODA Serv-
ice Partner who will help you select a suitable cleaning agent.  191
Inspecting and Replenishing Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Active driver-steering recommendation . . . . . . . . 156
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 132 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 98
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 88 Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 90
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 37
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 158
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Assigning the remote control key to the memory buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic driving lamp control . . . . . . . . . . . . . . . . . 45
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Emergency programme . . . . . . . . . . . . . . . . . . . . . . 113
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 Selector lever-emergency unlocking . . . . . . . . . . 113
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 62
Automatic vehicle wash systems . . . . . . . . . . . . . . 170
Automatic wiper/washer system . . . . . . . . . . . . . . . 53
Avoiding damage to your vehicle . . . . . . . . . . . . . . 166
B Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 187 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . . . 189
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Button for the central locking system . . . . . . . . . . . 34
Button in the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199, 203
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 32 lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 194
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 189 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 182
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . . . 148
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Classification into groups . . . . . . . . . . . . . . . . . . . . 149
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . . 93
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . 93
Climatronic (automatic air conditioning) . . . . . . . . . 91
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 239
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

The roof luggage rack system . . . . . . . . . . . . . . . . . . 73
Through-loading bag
. . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Traction control system (TCS) . . . . . . . . . . . . . . . . . 156 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 168
Transporting children safely . . . . . . . . . . . . . . . . . . 147
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . . 115
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Tyre inflation pressure Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tyre repair kit Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Tyres Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
U Underbody protection . . . . . . . . . . . . . . . . . . . . . . . . 173
unlock Central locking system . . . . . . . . . . . . . . . . . . . . . . . 33
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
V
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Ventilation Auxiliary ventilation . . . . . . . . . . . . . . . . . . . . . . . . . 94 Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
W
Warning lights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 with a high-pressure cleaner . . . . . . . . . . . . . . . . . 171
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . . . 171
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192, 201
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . . 53
Windshield washer fluid reservoir . . . . . . . . . . . . . 190 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Windshield washer system . . . . . . . . . . . . . . . . . . . 190
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . . . 56
X
XDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Xenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 243
Index Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
