SKODA OCTAVIA 2012 2.G / (1Z) Blues Car Radio Manual
Manufacturer: SKODA, Model Year: 2012, Model line: OCTAVIA, Model: SKODA OCTAVIA 2012 2.G / (1Z)Pages: 24, PDF Size: 2.13 MB

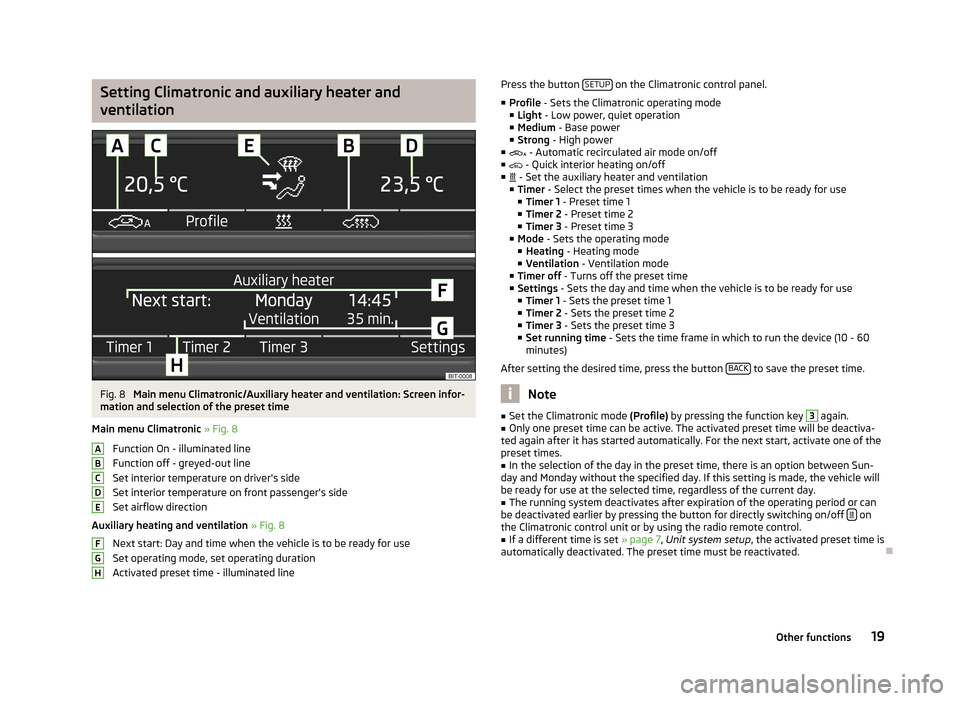

Page 21 of 24
Setting Climatronic and auxiliary heater andventilationFig. 8
Main menu Climatronic/Auxiliary heater and ventilation: Screen infor-
mation and selection of the preset time
Main menu Climatronic » Fig. 8
Function On - illuminated line
Function off - greyed-out line
Set interior temperature on driver's side
Set interior temperature on front passenger's side Set airflow direction
Auxiliary heating and ventilation » Fig. 8
Next start: Day and time when the vehicle is to be ready for use
Set operating mode, set operating duration
Activated preset time - illuminated line
ABCDEFGHPress the button SETUP on the Climatronic control panel.
■ Profile - Sets the Climatronic operating mode
■ Light - Low power, quiet operation
■ Medium - Base power
■ Strong - High power
■ - Automatic recirculated air mode on/off
■ - Quick interior heating on/off
■ - Set the auxiliary heater and ventilation
■ Timer - Select the preset times when the vehicle is to be ready for use
■ Timer 1 - Preset time 1
■ Timer 2 - Preset time 2
■ Timer 3 - Preset time 3
■ Mode - Sets the operating mode
■ Heating - Heating mode
■ Ventilation - Ventilation mode
■ Timer off - Turns off the preset time
■ Settings - Sets the day and time when the vehicle is to be ready for use
■ Timer 1 - Sets the preset time 1
■ Timer 2 - Sets the preset time 2
■ Timer 3 - Sets the preset time 3
■ Set running time - Sets the time frame in which to run the device (10 - 60
minutes)
After setting the desired time, press the button BACK
to save the preset time.
Note
■
Set the Climatronic mode (Profile) by pressing the function key 3 again.■Only one preset time can be active. The activated preset time will be deactiva-
ted again after it has started automatically. For the next start, activate one of the preset times.■
In the selection of the day in the preset time, there is an option between Sun-
day and Monday without the specified day. If this setting is made, the vehicle will
be ready for use at the selected time, regardless of the current day.
■
The running system deactivates after expiration of the operating period or can
be deactivated earlier by pressing the button for directly switching on/off on
the Climatronic control unit or by using the radio remote control.
■
If a different time is set » page 7, Unit system setup , the activated preset time is
automatically deactivated. The preset time must be reactivated.
Ð
19Other functions

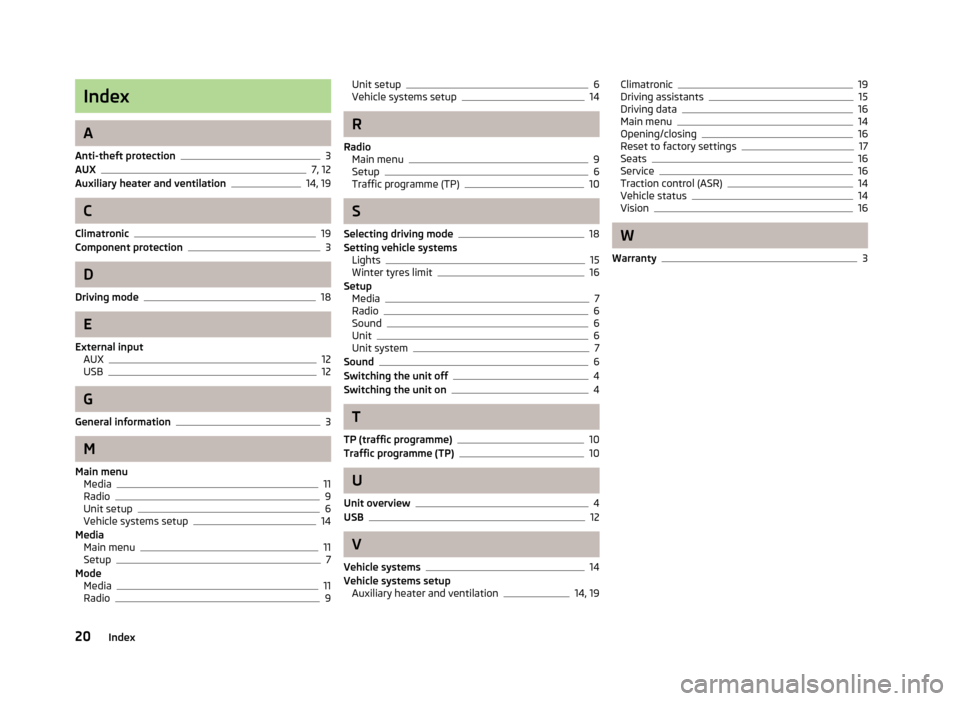

Page 22 of 24
Index
A
Anti-theft protection
3
AUX7, 12
Auxiliary heater and ventilation14, 19
C
Climatronic
19
Component protection3
D
Driving mode
18
E
External input AUX
12
USB12
G
General information
3
M
Main menu Media
11
Radio9
Unit setup6
Vehicle systems setup14
Media Main menu
11
Setup7
Mode Media
11
Radio9
Unit setup6
Vehicle systems setup14
R
Radio Main menu
9
Setup6
Traffic programme (TP)10
S
Selecting driving mode
18
Setting vehicle systems Lights
15
Winter tyres limit16
Setup Media
7
Radio6
Sound6
Unit6
Unit system7
Sound6
Switching the unit off4
Switching the unit on4
T
TP (traffic programme)
10
Traffic programme (TP)10
U
Unit overview
4
USB12
V
Vehicle systems
14
Vehicle systems setup Auxiliary heater and ventilation
14, 19
Climatronic19
Driving assistants15
Driving data16
Main menu14
Opening/closing16
Reset to factory settings17
Seats16
Service16
Traction control (ASR)14
Vehicle status14
Vision16
W
Warranty
3
20Index

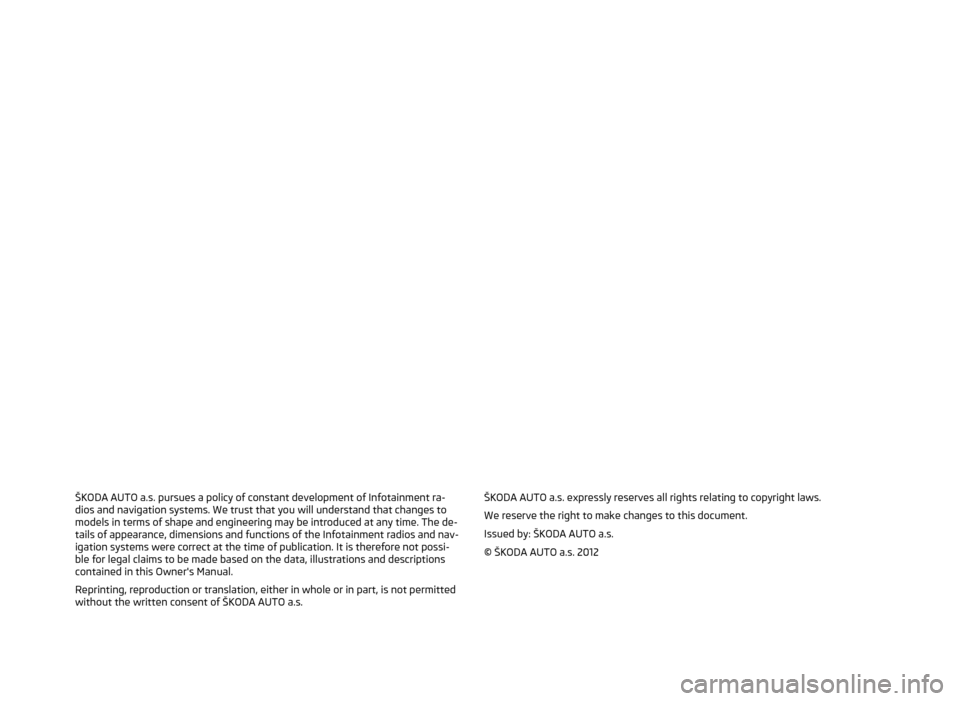

Page 23 of 24
ŠKODA AUTO a.s. pursues a policy of constant development of Infotainment ra-
dios and navigation systems. We trust that you will understand that changes to
models in terms of shape and engineering may be introduced at any time. The de-
tails of appearance, dimensions and functions of the Infotainment radios and nav- igation systems were correct at the time of publication. It is therefore not possi-
ble for legal claims to be made based on the data, illustrations and descriptions
contained in this Owner's Manual.
Reprinting, reproduction or translation, either in whole or in part, is not permitted without the written consent of ŠKODA AUTO a.s.ŠKODA AUTO a.s. expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2012

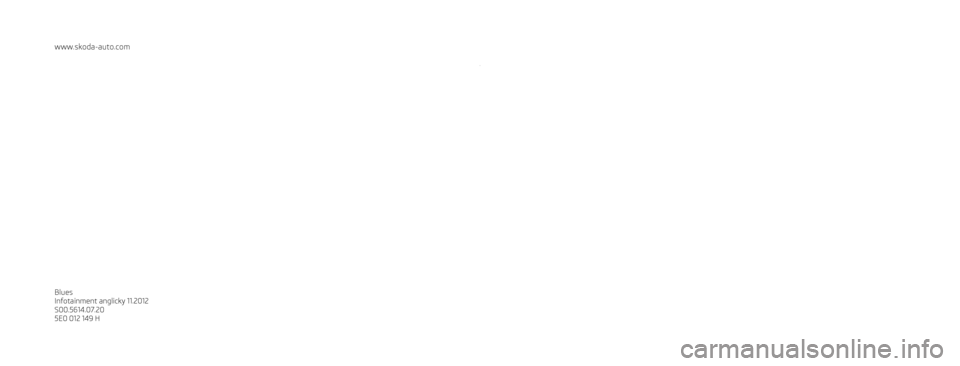

Page 24 of 24
www.skoda-auto.com
Blues
Infotainment anglicky 11.2012
S00.5614.07.20
5E0 012 149 H
SIMPLY CLEVER
Infotainment Radio Blues
Owner's Manual
