Fuses and light bulbs
Fuses
Introduction
This chapter contains information on the following subjects:
Fuses in the dash panel
200
Fuses in the engine compartment
201
Individual electrical circuits are protected by fuses.
› Switch off the ignition and the appropriate consumer before changing a fuse.
› Find out which fuse belongs to the component that is not operat-
ing » page 200 , Fuses in the dash panel or » page 201 , Fuses in the engine
compartment .
› Take the plastic clip located under the cover of the fuse box in the engine com-
partment, insert into the fuse and remove it » Fig. 173 on page 201.
› A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse
with a new one of the same amperage.
The plastic clip can be found underneath the cover of the fuse box in the engine
compartment » Fig. 173 on page 201.
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.
Colour coding of fuses
ColourMaximum amperagelight brown5dark brown7.5red10blue15yellow/blue20white25green/pink30orange/green40red50WARNINGAlways read and observe the warnings before completing any work in the en-
gine compartment » page 169.
CAUTION
■
Have the electrical system checked as quickly as possible by a ŠKODA specialist
garage if a newly inserted fuse blows again after a short time.■
The cover for the fuse box in the engine compartment must always be applied
correctly. If the cover is not replaced properly, water may get into the fuse box -
risk of vehicle damage!
■
Never repair fuses and also do not replace them with a fuse of a higher amper-
age - risk of fire! A different electrical system could be damaged.
Note
■ We recommend always carrying replacement fuses in the vehicle. A box of re-
placement fuses can be purchased from ŠKODA Original Accessories.■
Multiple fuses may exist for a single power consuming device.
■
Multiple power consuming devices can share a single fuse.
199Fuses and light bulbs
Page 202 of 222
Fuses in the dash panelFig. 171
Storage compartment in the dash panel/schematic diagram of the
fuse box
First read and observe the introductory information and safety warn-
ings
on page 199.
The fuse box can be found behind the stowage compartment in the left-hand
part of the dash panel.
Replacing fuses
›
Opening the stowage compartment » page 73.
›
Grab hold of the stowage compartment in the area of the arrows » Fig. 171.
›
Fold out the stowage compartment by pulling in the direction of arrow
1
.
›
Replace the appropriate fuse.
›
Fold back the stowage compartment by pressing into the secured position in
the dash panel in the direction of arrow
2
.
›
Close the stowage compartment.
Fuse assignment in the dash panel
No.Power consumer1Not assigned2Not assigned3Not assigned4Not assigned5Data bus control unit6Alarm sensorNo.Power consumer
7
Control unit for the air conditioning system, heating, receiver for re-
mote control for the auxiliary heating, selector lever for the automatic gearbox, relay for the rear window heater, replay for the windscreen
heater8Light switch, rain sensor, diagnostic socket9Haldex clutch10Touchscreen11Heated rear seats12Radio13Heated rear seats14Air blower for air conditioning,heating15Electric steering lock16Signal amplifier for telephone, telephone preinstallation17Instrument cluster18Not assigned19KESSY control unit20Steering wheel module21Radio accessories22Luggage compartment door opening23Light - right24Panorama roof25Control unit for central locking front door right, power windows - left26Heated front seats27Music amplifier28Towing device29Not assigned30Belt tensioner - driver's side31Headlight - left32Parking aid (Park Assist)33Airbag 200Do-it-yourself
Page 203 of 222
No.Power consumer
34
TCS button, ESC, tyre control display, pressure sensor for air-condi-tioning, reverse light switch, dimming rear view mirror, START-STOPbutton, telephone preinstallation, control for heating of rear seats,sensor for air-conditioning, 230 V power socket, sound actuator35Headlight, headlamp beam adjustment, diagnostic connector, camera,
radar36Headlight right37Headlight left38Towing device39Control unit for central locking front door - right, power windows -
front and rear right4012-Volt power socket41CNG relay42Control unit for central locking rear door - left, right, headlight clean-
ing system, windscreen wipers43Visor for gas discharge bulbs, interior lighting44Towing device45Control unit for control of seat adjustment46230-Volt power socket47Rear window wiper48Not assigned49Coil on starter relay, clutch pedal switch50Not assigned51Belt tensioner - front passenger side52Not assigned53Relay for rear window heater
Note
On right-hand drive vehicles, the fuse box is located on the front passenger's side
behind the stowage compartment in the left-hand section of the dash panel.
Fuses in the engine compartmentFig. 172
Fuse box cover in engine compartment/Schematic diagram of the
fuse box
Fig. 173
Cover for the fuse box in the en-
gine compartment: Plastic clip
for fuses
First read and observe the introductory information and safety warn-
ings on page 199.
Replacing fuses
›
Press together the interlocks of the cover simultaneously in the direction of the
arrow
1
» Fig. 172 .
›
Remove the cover in the direction of the arrow
2
.
›
Replace the appropriate fuse.
›
Place the cover on top of the fusebox.
›
Push in the interlocks on the cover and lock.
201Fuses and light bulbs
Page 204 of 222
Fuse assignment in engine compartmentNo.Power consumerF1Control unit for ESCF2Control unit for ESC, ABSF3Engine control unitF4Engine control unit, relay for electric auxiliary heatingF5Engine componentsF6Brake sensor, engine componentsF7Coolant pump, engine componentsF8Lambda probeF9Ignition, control unit for glow plug system, engine componentsF10Control unit for fuel pump, ignitionF11Electrical auxiliary heating systemF12Electrical auxiliary heating systemF13Control unit for automatic gearboxF14Windscreen heater - leftF15HornF16IgnitionF17Control unit for ABS, ESC, engine control unitF18Data bus control unitF19Windscreen wipersF20AlarmF21ABSF22Engine control unitF23StarterF24Electrical auxiliary heating systemF31Not assignedF32Not assignedF33Not assignedF34Windscreen heater - rightF35Not assignedF36Not assignedNo.Power consumerF37Control unit for auxiliary heatingF38Not assigned
Bulbs
Introduction
This chapter contains information on the following subjects:
Headlights
203
Changing the bulb for the low beam
203
Replacing the bulb for main beam and separate daytime running lights
204
Changing the bulb for daytime running lights and parking light
204
Changing light bulbs for fog lights
204
Changing the bulb for the licence plate light
205
Tail lamp assembly
205
Replacing the bulbs in the tail lamp assembly
206
Some manual skills are required to change a bulb. For this reason, if uncertain, we recommend that bulbs are replaced by a ŠKODA specialist garage or other experthelp is sought.
› Switch off the ignition and all of the lights before replacing a bulb.
› Faulty bulbs must only be replaced with the same type of bulbs. The designa-
tion is located on the light socket or the glass bulb.
› A stowage compartment for replacement bulbs is located in a plastic box in the
spare wheel or underneath the floor covering in the luggage compartment.
WARNING■ Accidents can be caused if the road in front of the vehicle is not sufficiently
illuminated and the vehicle cannot or can only be seen with difficulty by other
road users.■
Always read and observe the warnings before completing any work in the
engine compartment » page 169.
202Do-it-yourself
Page 205 of 222
WARNING (Continued)■Bulbs H7 H8 and H15 are pressurised and may burst when changing the bulb
- risk of injury! We therefore recommended wearing gloves and safety glasses
when changing a bulb.■
Gas discharge bulbs (xenon bulbs) operate with a high voltage, professional
knowledge is required - danger to life!
CAUTION
■ Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth, nap-
kin, or similar.
Note
■ This Owner's Manual only describes the replacement of bulbs where it is possi-
ble to replace the bulbs on your own without any complications arising. Other light bulbs should be changed by a ŠKODA specialist garage.■
We recommend that a box of replacement bulbs be always carried in the vehi-
cle. Replacement bulbs can be purchased from ŠKODAOriginal Accessories.
■
We recommend that the headlight settings are checked by a ŠKODA specialist
garage after replacing a bulb in the main or low beam, or the fog lights.
■
Gas discharge bulbs and LED diodes are replaced by a ŠKODA specialist garage.
Headlights
Fig. 174
Bulb arrangement: Halogen headlights/Xenon headlights
First read and observe the introductory information and safety warn- ings on page 202.
Halogen headlight
Low beam
Main beam, separate daytime running lights, and parking light
Headlights with Xenon light Xenon gas discharge bulbs
Daytime running and parking light
Changing the bulb for the low beam
Fig. 175
Halogen headlight: Changing the
bulb for the low beam
First read and observe the introductory information and safety warn- ings on page 202.
›
Remove the rubber cover
1
» Fig. 174 on page 203.
›
Turn the connector with the bulb in downwards in the direction of the arrow
A
» Fig. 175 and remove it in the direction of the arrow
B
.
›
Remove the connector.
›
Insert a new light bulb in such a way that the fixing lugs of the bulb fit in the
recesses of the reflector.
›
Fit the connector.
›
Insert the rubber cover.
1234203Fuses and light bulbs
Page 206 of 222

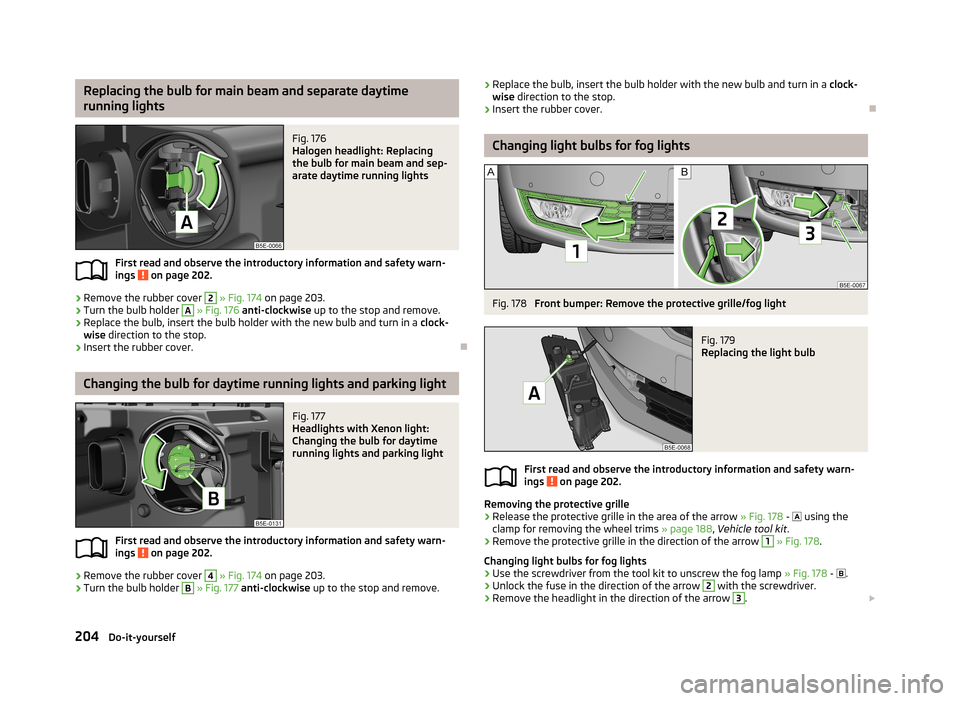

Replacing the bulb for main beam and separate daytime
running lightsFig. 176
Halogen headlight: Replacing
the bulb for main beam and sep-
arate daytime running lights
First read and observe the introductory information and safety warn-
ings on page 202.
›
Remove the rubber cover
2
» Fig. 174 on page 203.
›
Turn the bulb holder
A
» Fig. 176 anti-clockwise up to the stop and remove.
›
Replace the bulb, insert the bulb holder with the new bulb and turn in a clock-
wise direction to the stop.
›
Insert the rubber cover.
Changing the bulb for daytime running lights and parking light
Fig. 177
Headlights with Xenon light:
Changing the bulb for daytime
running lights and parking light
First read and observe the introductory information and safety warn-
ings on page 202.
›
Remove the rubber cover
4
» Fig. 174 on page 203.
›
Turn the bulb holder
B
» Fig. 177 anti-clockwise up to the stop and remove.
›Replace the bulb, insert the bulb holder with the new bulb and turn in a
clock-
wise direction to the stop.›
Insert the rubber cover.
Changing light bulbs for fog lights
Fig. 178
Front bumper: Remove the protective grille/fog light
Fig. 179
Replacing the light bulb
First read and observe the introductory information and safety warn-
ings on page 202.
Removing the protective grille
›
Release the protective grille in the area of the arrow » Fig. 178 -
using the
clamp for removing the wheel trims » page 188, Vehicle tool kit .
›
Remove the protective grille in the direction of the arrow
1
» Fig. 178 .
Changing light bulbs for fog lights
›
Use the screwdriver from the tool kit to unscrew the fog lamp » Fig. 178 -
.
›
Unlock the fuse in the direction of the arrow
2
with the screwdriver.
›
Remove the headlight in the direction of the arrow
3
.
204Do-it-yourself
Page 207 of 222

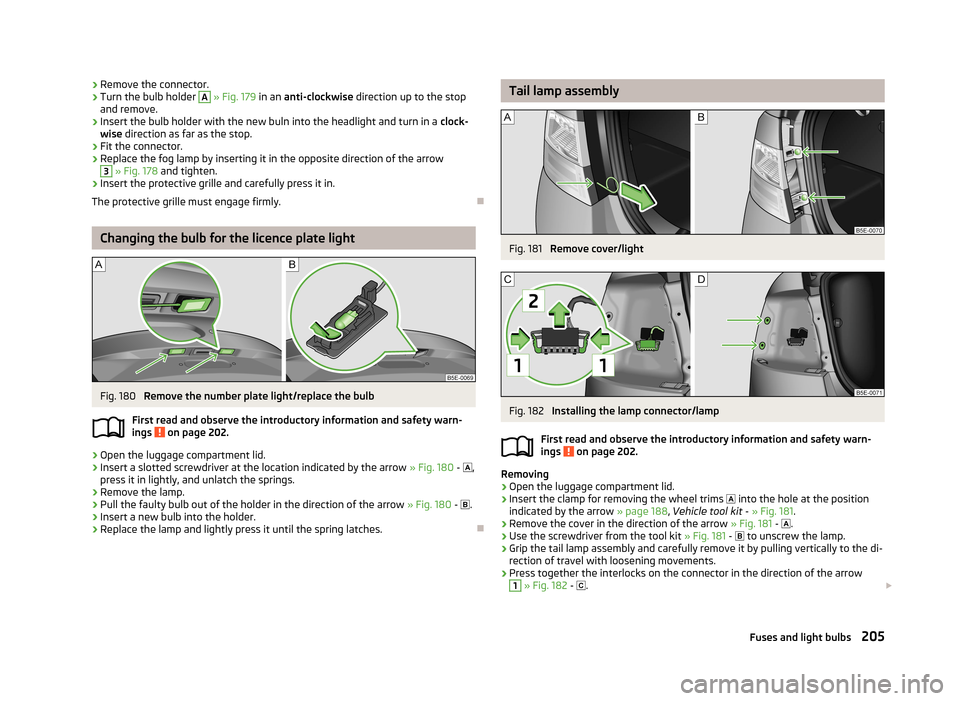

›Remove the connector.›Turn the bulb holder A
» Fig. 179 in an anti-clockwise direction up to the stop
and remove.›
Insert the bulb holder with the new buln into the headlight and turn in a clock-
wise direction as far as the stop.
›
Fit the connector.
›
Replace the fog lamp by inserting it in the opposite direction of the arrow
3
» Fig. 178 and tighten.
›
Insert the protective grille and carefully press it in.
The protective grille must engage firmly.
Changing the bulb for the licence plate light
Fig. 180
Remove the number plate light/replace the bulb
First read and observe the introductory information and safety warn- ings
on page 202.
›
Open the luggage compartment lid.
›
Insert a slotted screwdriver at the location indicated by the arrow » Fig. 180 -
,
press it in lightly, and unlatch the springs.
›
Remove the lamp.
›
Pull the faulty bulb out of the holder in the direction of the arrow » Fig. 180 -
.
›
Insert a new bulb into the holder.
›
Replace the lamp and lightly press it until the spring latches.
Tail lamp assemblyFig. 181
Remove cover/light
Fig. 182
Installing the lamp connector/lamp
First read and observe the introductory information and safety warn-
ings
on page 202.
Removing
›
Open the luggage compartment lid.
›
Insert the clamp for removing the wheel trims
into the hole at the position
indicated by the arrow » page 188, Vehicle tool kit - » Fig. 181 .
›
Remove the cover in the direction of the arrow » Fig. 181 -
.
›
Use the screwdriver from the tool kit » Fig. 181 -
to unscrew the lamp.
›
Grip the tail lamp assembly and carefully remove it by pulling vertically to the di-
rection of travel with loosening movements.
›
Press together the interlocks on the connector in the direction of the arrow
1
» Fig. 182 -
.
205Fuses and light bulbs
Page 208 of 222
›Carefully remove the connector from the tail lamp assembly in the direction of
the arrow 2.
Install›
Insert the connector into the lamp and lock it securely.
›
Insert the light vertically into the mounts on the bodywork » Fig. 182 - .
›
Carefully press the tail lamp assembly into the bodywork so that the bolts
1
» Fig. 183 on page 206 on the light latch with the mounts in the body » .
›
Be careful not to pinch the cable bundle between the bodywork and light.
›
Screw the tail lamp into place and install the cover.
Ensure that the cover engages firmly.
CAUTION
■ Ensure that the cable bundle is not pinched when re-installing it between the
bodywork and the light - risk of damage to the electric installation and water in-
gress.■
If you are not sure whether the cable bundle was not pinched, we recomment
you have the connection to the light checked by a ŠKODA partner.
Replacing the bulbs in the tail lamp assembly
Fig. 183
Outer part of the light: Basic light/light with LED diodes
Fig. 184
Inner part of the light: Basic light/light with LED diodes
First read and observe the introductory information and safety warn-
ings
on page 202.
Outer part of the light
›
Turn the bulb holder
2
» Fig. 183 anti-clockwise remove it from the lamp hous-
ing.
›
Replace the bulb, insert the holder with the bulb into the lamp housing and turn
in a clockwise direction to the stop.
Inner part of the light
›
Unscrew the lamp holder » Fig. 183 -
or
with the screwdriver from the car
tool kit, and remove the lamp holder from the tail light assembly.
›
Turn the bulb holder anti-clockwise up to the stop and remove it from the lamp
housing » Fig. 183 -
or
.
›
Replace the bulb, insert the holder with the bulb into the lamp housing and turn
in a clockwise direction to the stop.
›
Insert the bulb holder in the tail lamp assembly.
›
Screw on the lamp holder carefully.
206Do-it-yourself
Page 209 of 222
Technical data
Technical data
Introductory information
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual. It can be found in the official vehi-
cle registration documents or you can find out from a ŠKODA Partner what engine
the vehicle is fitted with.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
Vehicle identification data
Fig. 185
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 185 is located on the floor of the luggage compart-
ment and is also stated in the service schedule.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code Partial vehicle description
1234Operating weight (in kg)
Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
Type plate
The type plate » Fig. 185 is located on the lower part of the column between the
front and rear doors on the driver's side.
The type plate lists the following weights: Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the engine compartment on the right hand suspension strut dome. This number is al-
so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
The VIN number can also be diplayed in the Infotainment » Bedienungsanleitung
Infotainment, chapter Setting vehicle systems (CAR button) .
Engine number
The engine number is stamped into the engine block.
Operating weight
The specified operating weight is for orientation purposes only. This value repre- sents the minimum operating weight without additional weight-increasing equip- ment such as air conditioning system, spare wheel, or trailer hitch.
The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight »
.
The payload consists of the following components: › Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight
› Trailer drawbar load when towing a trailer (max. 75 kg).
567891011207Technical data
Page 210 of 222
Fuel consumption according to the ECE standards and EU guidelinesThe measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards standard urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and -120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.WARNINGDo not exceed the specified maximum permissible weights - risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle by contacting a
ŠKODA Partner.■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi- cated values.
Dimensions
Dimensions (mm)
Length4 659Width1 814Width including exterior mirror2 017
Height
Basic dimension.1 460Vehicles with a rough road package.1 475Vehicles with a SPORT package.1 445
Clearance
Basic dimension.139Vehicles with a rough road package.154Vehicles with a SPORT package.124Wheel baseBasic dimension.2 686Vehicles with the 1.8 l/132 kW TSI engine.2 680
Track gauge
front/rear
Vehicles with the 1.2 l/63 kW TSI and 1.6 l/77 kW TDI
engine with 15´´ wheels.1 549/1 520Vehicles with the 1.4 l/103 kW TSI and 2.0 l/110 kW TDI engine with 16´´ wheels.1 543/1 514Vehicles with the 1.8 l/132 kW TSI engine with 16"
wheels.1 543/1 512
208Technical data
