SKODA OCTAVIA TOUR 2007 1.G / (1U) Service Manual
Manufacturer: SKODA, Model Year: 2007, Model line: OCTAVIA TOUR, Model: SKODA OCTAVIA TOUR 2007 1.G / (1U)Pages: 205
Page 41 of 205

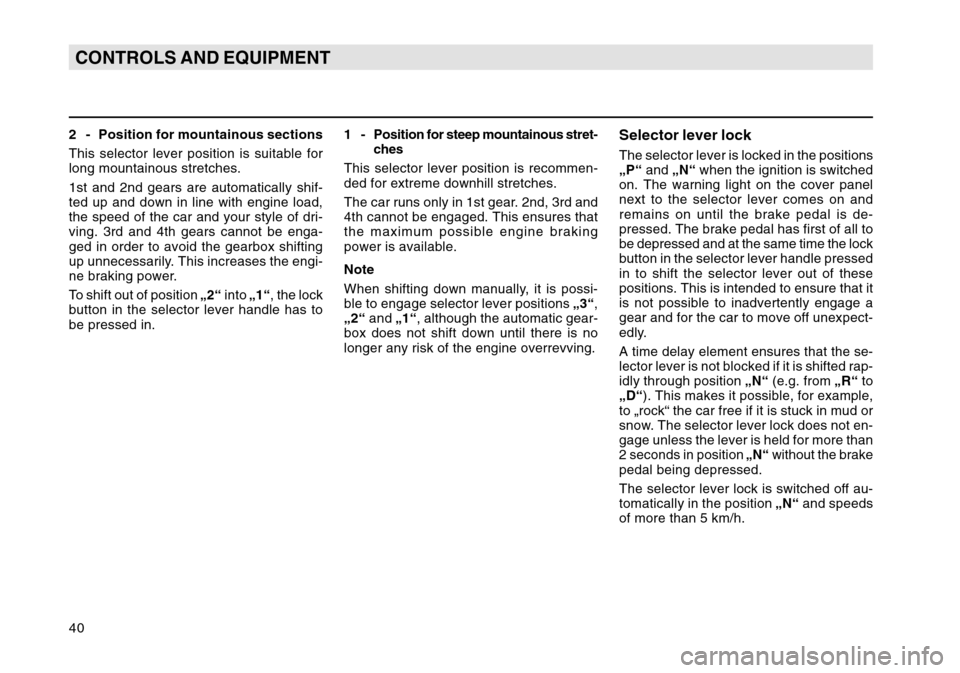

40CONTROLS AND EQUIPMENT2 - Position for mountainous sections
This selector lever position is suitable for
long mountainous stretches.
1st and 2nd gears are automatically shif-
ted up and down in line with engine load,
the speed of the car and your style of dri-
ving. 3rd and 4th gears cannot be enga-
ged in order to avoid the gearbox shifting
up unnecessarily. This increases the engi-
ne braking power.
To shift out of position „2“ into „1“, the lock
button in the selector lever handle has to
be pressed in. 1-
Position for steep mountainous stret-
ches
This selector lever position is recommen-
ded for extreme downhill stretches.
The car runs only in 1st gear. 2nd, 3rd and
4th cannot be engaged. This ensures that
the maximum possible engine braking
power is available.
Note
When shifting down manually, it is possi-
ble to engage selector lever positions
„3“,
„2“ and „1“, although the automatic gear-
box does not shift down until there is no
longer any risk of the engine overrevving.
Selector lever lockThe selector lever is locked in the positions
„P“ and „N“ when the ignition is switched
on. The warning light on the cover panel
next to the selector lever comes on and
remains on until the brake pedal is de-
pressed. The brake pedal has first of all to
be depressed and at the same time the lock
button in the selector lever handle pressed
in to shift the selector lever out of these
positions. This is intended to ensure that it
is not possible to inadvertently engage a
gear and for the car to move off unexpect-
edly.
A time delay element ensures that the se-
lector lever is not blocked if it is shifted rap-
idly through position „N“ (e.g. from „R“ to
„D“ ). This makes it possible, for example,
to „rock“ the car free if it is stuck in mud or
snow. The selector lever lock does not en-
gage unless the lever is held for more than
2 seconds in position „N“ without the brake
pedal being depressed.
The selector lever lock is switched off au-
tomatically in the position „N“ and speeds
of more than 5 km/h.
Page 42 of 205
41
CONTROLS AND EQUIPMENT

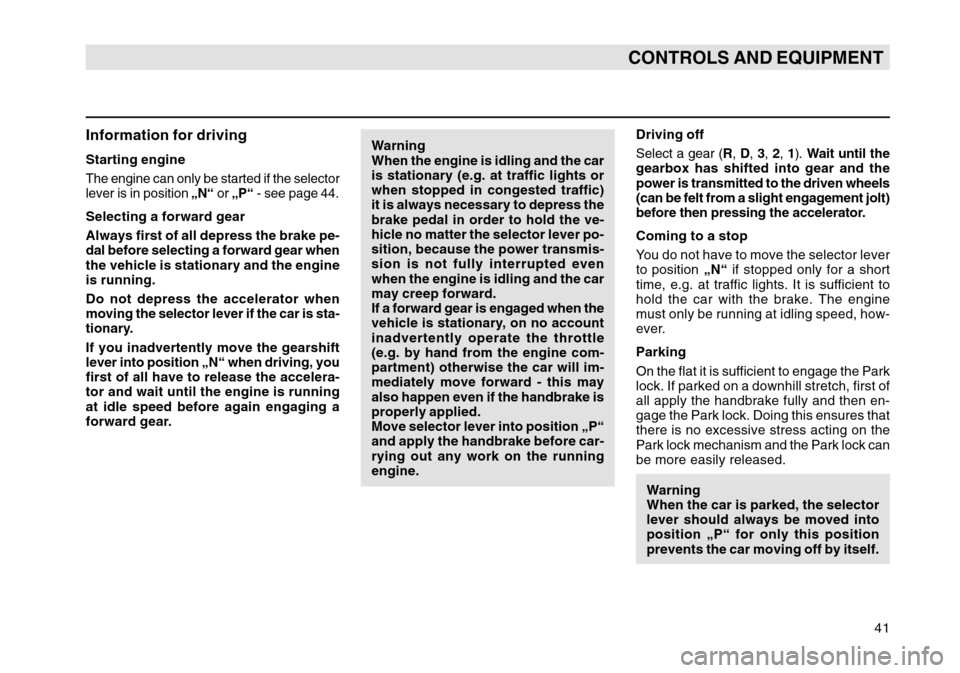

Information for drivingStarting engineThe engine can only be started if the selector
lever is in position „N“ or „P“ - see page 44.Selecting a forward gear
Always first of all depress the brake pe-
dal before selecting a forward gear when
the vehicle is stationary and the engine
is running.
Do not depress the accelerator when
moving the selector lever if the car is sta-
tionary.
If you inadvertently move the gearshift
lever into position „N“ when driving, you
first of all have to release the accelera-
tor and wait until the engine is running
at idle speed before again engaging a
forward gear. Warning
When the engine is idling and the car
is stationary (e.g. at traffic lights or
when stopped in congested traffic)
it is always necessary to depress the
brake pedal in order to hold the ve-
hicle no matter the selector lever po-
sition, because the power transmis-
sion is not fully interrupted even
when the engine is idling and the car
may creep forward.
If a forward gear is engaged when the
vehicle is stationary, on no account
inadvertently operate the throttle
(e.g. by hand from the engine com-
partment) otherwise the car will im-
mediately move forward - this may
also happen even if the handbrake is
properly applied.
Move selector lever into position „P“
and apply the handbrake before car-
rying out any work on the running
engine.
Driving off
Select a gear (
R, D , 3 , 2 , 1 ). Wait until the
gearbox has shifted into gear and the
power is transmitted to the driven wheels
(can be felt from a slight engagement jolt)
before then pressing the accelerator.
Coming to a stop
You do not have to move the selector lever
to position „N“ if stopped only for a short
time, e.g. at traffic lights. It is sufficient to
hold the car with the brake. The engine
must only be running at idling speed, how-
ever.
Parking
On the flat it is sufficient to engage the Park
lock. If parked on a downhill stretch, first of
all apply the handbrake fully and then en-
gage the Park lock. Doing this ensures that
there is no excessive stress acting on the
Park lock mechanism and the Park lock can
be more easily released.
Warning
When the car is parked, the selector
lever should always be moved into
position „P“ for only this position
prevents the car moving off by itself.
Page 43 of 205

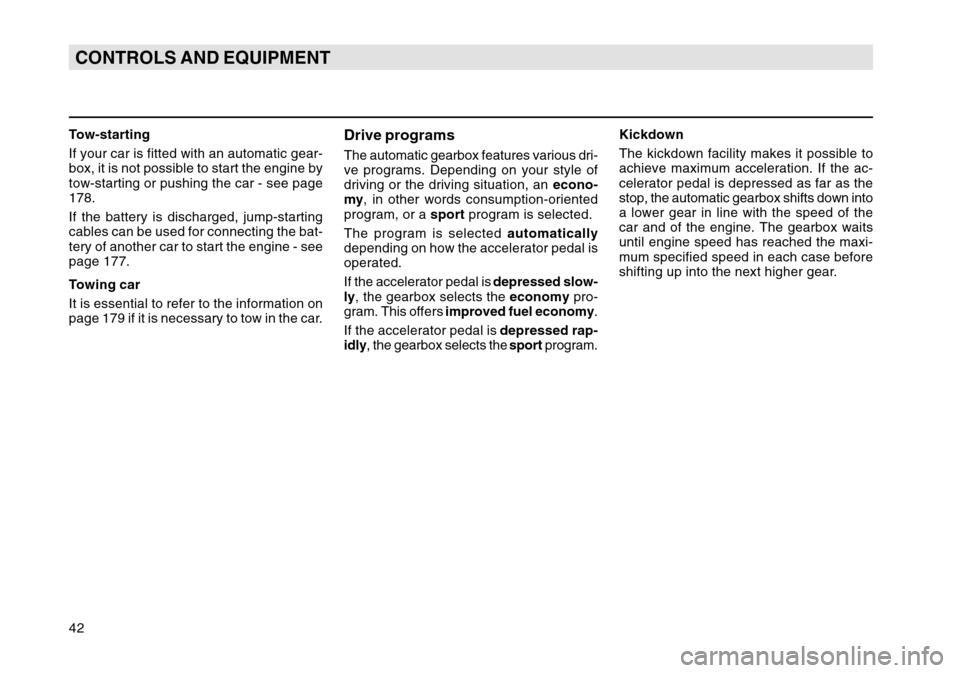

42CONTROLS AND EQUIPMENTTow-starting
If your car is fitted with an automatic gear-
box, it is not possible to start the engine by
tow-starting or pushing the car - see page
178.
If the battery is discharged, jump-starting
cables can be used for connecting the bat-
tery of another car to start the engine - see
page 177.
Towing car
It is essential to refer to the information on
page 179 if it is necessary to tow in the car.
Drive programsThe automatic gearbox features various dri-
ve programs. Depending on your style of
driving or the driving situation, an econo-
my , in other words consumption-oriented
program, or a sport program is selected.
The program is selected automatically
depending on how the accelerator pedal is
operated.
If the accelerator pedal is depressed slow-
ly , the gearbox selects the economy pro-
gram. This of fers improved fuel economy .
If the accelerator pedal is depressed rap-
idly , the gearbox selects the sport program. Kickdown
The kickdown facility makes it possible to
achieve maximum acceleration. If the ac-
celerator pedal is depressed as far as the
stop, the automatic gearbox shifts down into
a lower gear in line with the speed of the
car and of the engine. The gearbox waits
until engine speed has reached the maxi-
mum specified speed in each case before
shifting up into the next higher gear.
Page 44 of 205
43
CONTROLS AND EQUIPMENT

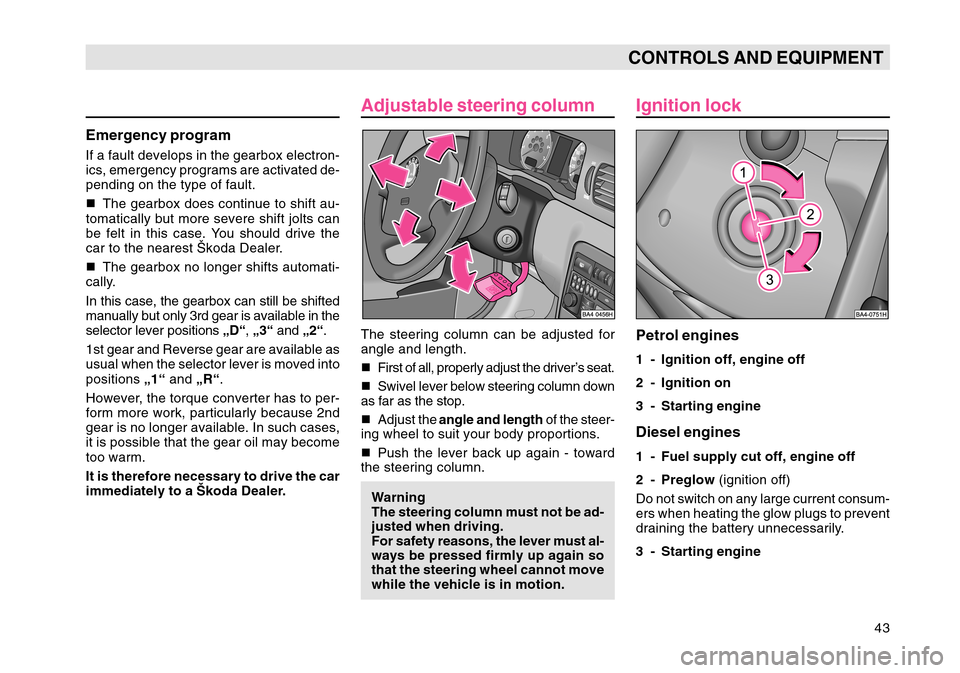

Adjustable steering columnThe steering column can be adjusted for
angle and length.
First of all, properly adjust the driver’s seat.
Swivel lever below steering column down
as far as the stop.
Adjust the angle and length of the steer-
ing wheel to suit your body proportions.
Push the lever back up again - toward
the steering column.
Warning
The steering column must not be ad-
justed when driving.
For safety reasons, the lever must al-
ways be pressed firmly up again so
that the steering wheel cannot move
while the vehicle is in motion.
Ignition lockPetrol engines1 - Ignition off, engine off
2 - Ignition on
3 - Starting engineDiesel engines1 - Fuel supply cut off, engine off
2 - Preglow (ignition off)
Do not switch on any large current consum-
ers when heating the glow plugs to prevent
draining the battery unnecessarily.
3 - Starting engine
Emergency programIf a fault develops in the gearbox electron-
ics, emergency programs are activated de-
pending on the type of fault.
The gearbox does continue to shift au-
tomatically but more severe shift jolts can
be felt in this case. You should drive the
car to the nearest Škoda Dealer.
The gearbox no longer shifts automati-
cally.
In this case, the gearbox can still be shifted
manually but only 3rd gear is available in the
selector lever positions „D“ , „3“ and „2“.
1st gear and Reverse gear are available as
usual when the selector lever is moved into
positions „1“ and „R“.
However, the torque converter has to per-
form more work, particularly because 2nd
gear is no longer available. In such cases,
it is possible that the gear oil may become
too warm.
It is therefore necessary to drive the car
immediately to a Škoda Dealer.
Page 45 of 205

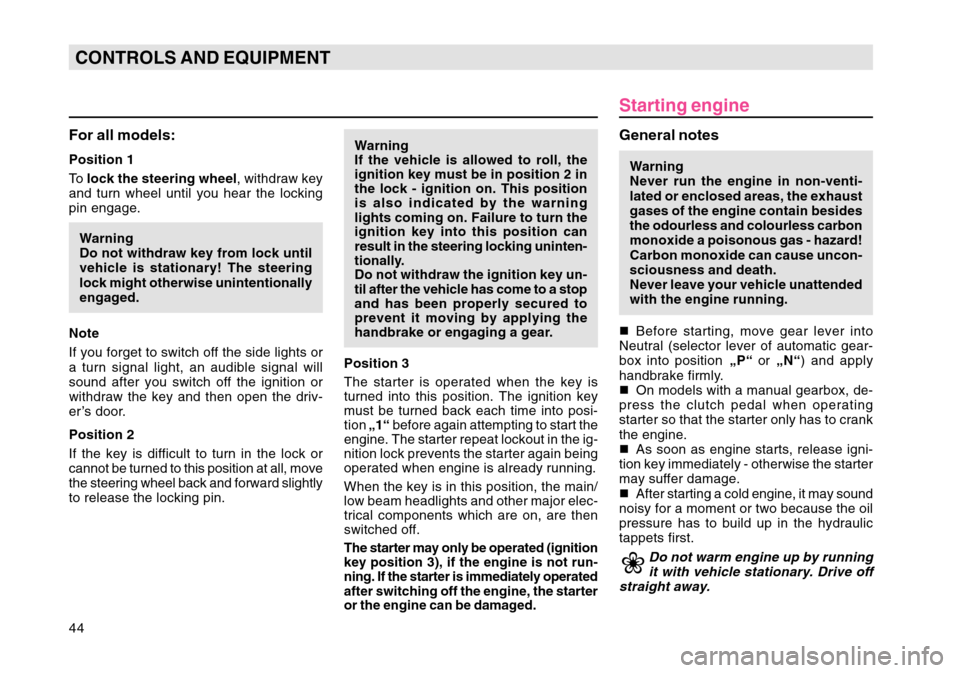

44CONTROLS AND EQUIPMENTFor all models:Position 1
To lock the steering wheel , withdraw key
and turn wheel until you hear the locking
pin engage.
Warning
Do not withdraw key from lock until
vehicle is stationary! The steering
lock might otherwise unintentionally
engaged.
Note
If you forget to switch off the side lights or
a turn signal light, an audible signal will
sound after you switch off the ignition or
withdraw the key and then open the driv-
er’s door.
Position 2
If the key is difficult to turn in the lock or
cannot be turned to this position at all, move
the steering wheel back and forward slightly
to release the locking pin. Warning
If the vehicle is allowed to roll, the
ignition key must be in position 2 in
the lock - ignition on. This position
is also indicated by the warning
lights coming on. Failure to turn the
ignition key into this position can
result in the steering locking uninten-
tionally.
Do not withdraw the ignition key un-
til after the vehicle has come to a stop
and has been properly secured to
prevent it moving by applying the
handbrake or engaging a gear.
Position 3
The starter is operated when the key is
turned into this position. The ignition key
must be turned back each time into posi-
tion „1“ before again attempting to start the
engine. The starter repeat lockout in the ig-
nition lock prevents the starter again being
operated when engine is already running.
When the key is in this position, the main/
low beam headlights and other major elec-
trical components which are on, are then
switched off.
The starter may only be operated (ignition
key position 3), if the engine is not run-
ning. If the starter is immediately operated
after switching off the engine, the starter
or the engine can be damaged.
Starting engineGeneral notesWarning
Never run the engine in non-venti-
lated or enclosed areas, the exhaust
gases of the engine contain besides
the odourless and colourless carbon
monoxide a poisonous gas - hazard!
Carbon monoxide can cause uncon-
sciousness and death.
Never leave your vehicle unattended
with the engine running.
Before starting, move gear lever into
Neutral (selector lever of automatic gear-
box into position „P“ or „N“ ) and apply
handbrake firmly.
On models with a manual gearbox, de-
press the clutch pedal when operating
starter so that the starter only has to crank
the engine.
As soon as engine starts, release igni-
tion key immediately - otherwise the starter
may suffer damage.
After starting a cold engine, it may sound
noisy for a moment or two because the oil
pressure has to build up in the hydraulic
tappets first.
Do not warm engine up by running it with vehicle stationary. Drive off
straight away.
Page 46 of 205

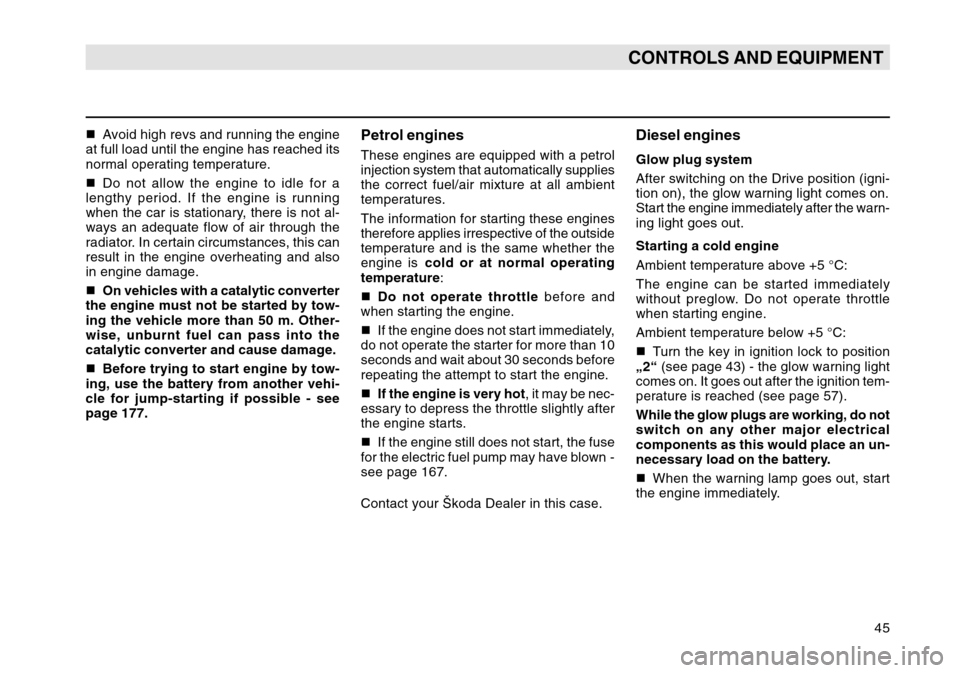

45
CONTROLS AND EQUIPMENT
Avoid high revs and running the engine
at full load until the engine has reached its
normal operating temperature.
Do not allow the engine to idle for a
lengthy period. If the engine is running
when the car is stationary, there is not al-
ways an adequate flow of air through the
radiator. In certain circumstances, this can
result in the engine overheating and also
in engine damage.
On vehicles with a catalytic converter
the engine must not be started by tow-
ing the vehicle more than 50 m. Other-
wise, unburnt fuel can pass into the
catalytic converter and cause damage.
Before trying to start engine by tow-
ing, use the battery from another vehi-
cle for jump-starting if possible - see
page 177.
Petrol enginesThese engines are equipped with a petrol
injection system that automatically supplies
the correct fuel/air mixture at all ambient
temperatures.
The information for starting these engines
therefore applies irrespective of the outside
temperature and is the same whether the
engine is cold or at normal operating
temperature :
Do not operate throttle before and
when starting the engine.
If the engine does not start immediately,
do not operate the starter for more than 10
seconds and wait about 30 seconds before
repeating the attempt to start the engine.
If the engine is very hot, it may be nec-
essary to depress the throttle slightly after
the engine starts.
If the engine still does not start, the fuse
for the electric fuel pump may have blown -
see page 167.
Contact your Škoda Dealer in this case.
Diesel enginesGlow plug system
After switching on the Drive position (igni-
tion on), the glow warning light comes on.
Start the engine immediately after the warn-
ing light goes out.
Starting a cold engine
Ambient temperature above +5 °C:
The engine can be started immediately
without preglow. Do not operate throttle
when starting engine.
Ambient temperature below +5 °C:
Turn the key in ignition lock to position
„2“ (see page 43) - the glow warning light
comes on. It goes out after the ignition tem-
perature is reached (see page 57).
While the glow plugs are working, do not
switch on any other major electrical
components as this would place an un-
necessary load on the battery.
When the warning lamp goes out, start
the engine immediately.
Page 47 of 205

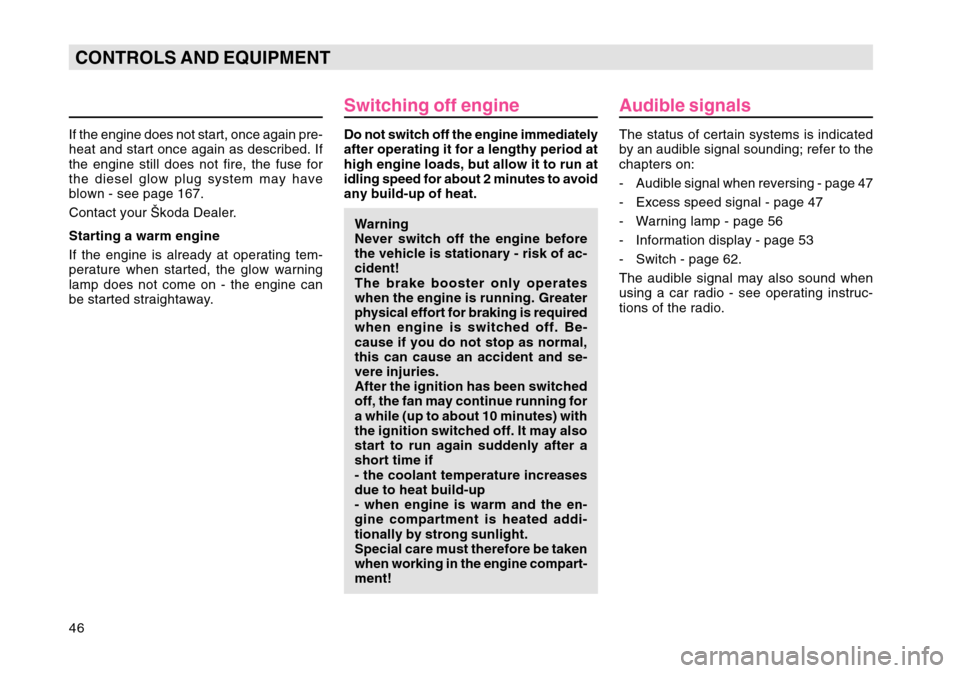

46CONTROLS AND EQUIPMENTIf the engine does not start, once again pre-
heat and start once again as described. If
the engine still does not fire, the fuse for
the diesel glow plug system may have
blown - see page 167.
Contact your Škoda Dealer.
Starting a warm engine
If the engine is already at operating tem-
perature when started, the glow warning
lamp does not come on - the engine can
be started straightaway.
Switching off engineDo not switch off the engine immediately
after operating it for a lengthy period at
high engine loads, but allow it to run at
idling speed for about 2 minutes to avoid
any build-up of heat.Warning
Never switch off the engine before
the vehicle is stationary - risk of ac-
cident!
The brake booster only operates
when the engine is running. Greater
physical effort for braking is required
when engine is switched off. Be-
cause if you do not stop as normal,
this can cause an accident and se-
vere injuries.
After the ignition has been switched
off, the fan may continue running for
a while (up to about 10 minutes) with
the ignition switched off. It may also
start to run again suddenly after a
short time if
- the coolant temperature increases
due to heat build-up
- when engine is warm and the en-
gine compartment is heated addi-
tionally by strong sunlight.
Special care must therefore be taken
when working in the engine compart-
ment!
Audible signalsThe status of certain systems is indicated
by an audible signal sounding; refer to the
chapters on:
- Audible signal when reversing - page 47
- Excess speed signal - page 47
- Warning lamp - page 56
- Information display - page 53
- Switch - page 62.
The audible signal may also sound when
using a car radio - see operating instruc-
tions of the radio.
Page 48 of 205
47
CONTROLS AND EQUIPMENT

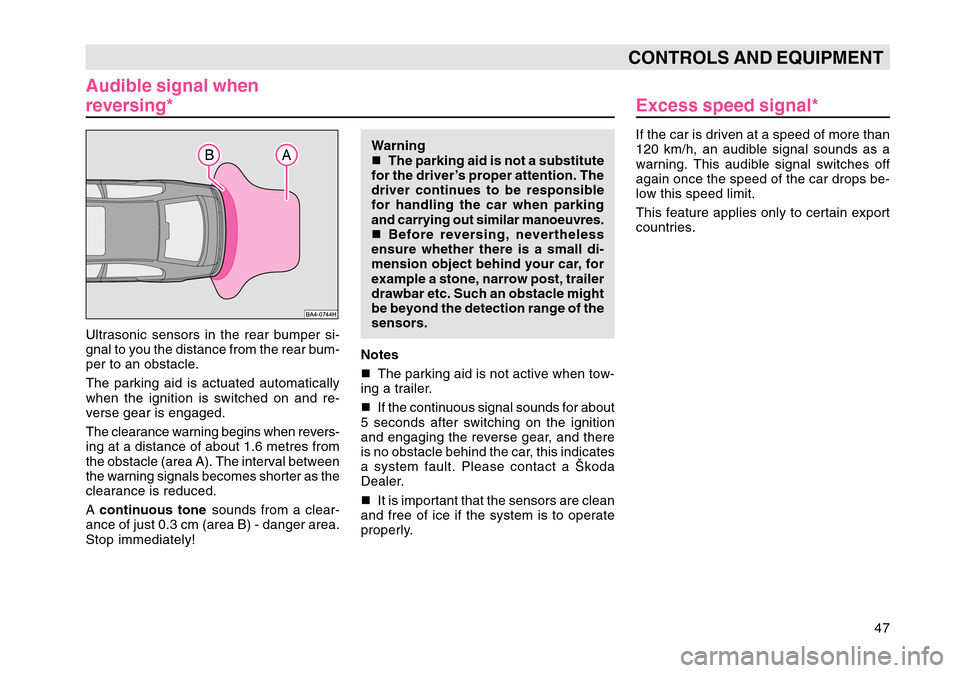

Audible signal when
reversing*Ultrasonic sensors in the rear bumper si-
gnal to you the distance from the rear bum-
per to an obstacle.
The parking aid is actuated automatically
when the ignition is switched on and re-
verse gear is engaged.
The clearance warning begins when revers-
ing at a distance of about 1.6 metres from
the obstacle (area A). The interval between
the warning signals becomes shorter as the
clearance is reduced.
A continuous tone sounds from a clear-
ance of just 0.3 cm (area B) - danger area.
Stop immediately! Warning
The parking aid is not a substitute
for the driver’s proper attention. The
driver continues to be responsible
for handling the car when parking
and carrying out similar manoeuvres.
Before reversing, nevertheless
ensure whether there is a small di-
mension object behind your car, for
example a stone, narrow post, trailer
drawbar etc. Such an obstacle might
be beyond the detection range of the
sensors.
Notes
The parking aid is not active when tow-
ing a trailer.
If the continuous signal sounds for about
5 seconds after switching on the ignition
and engaging the reverse gear, and there
is no obstacle behind the car, this indicates
a system fault. Please contact a Škoda
Dealer.
It is important that the sensors are clean
and free of ice if the system is to operate
properly.
Excess speed signal*If the car is driven at a speed of more than
120 km/h, an audible signal sounds as a
warning. This audible signal switches off
again once the speed of the car drops be-
low this speed limit.
This feature applies only to certain export
countries.
Page 49 of 205
48CONTROLS AND EQUIPMENT

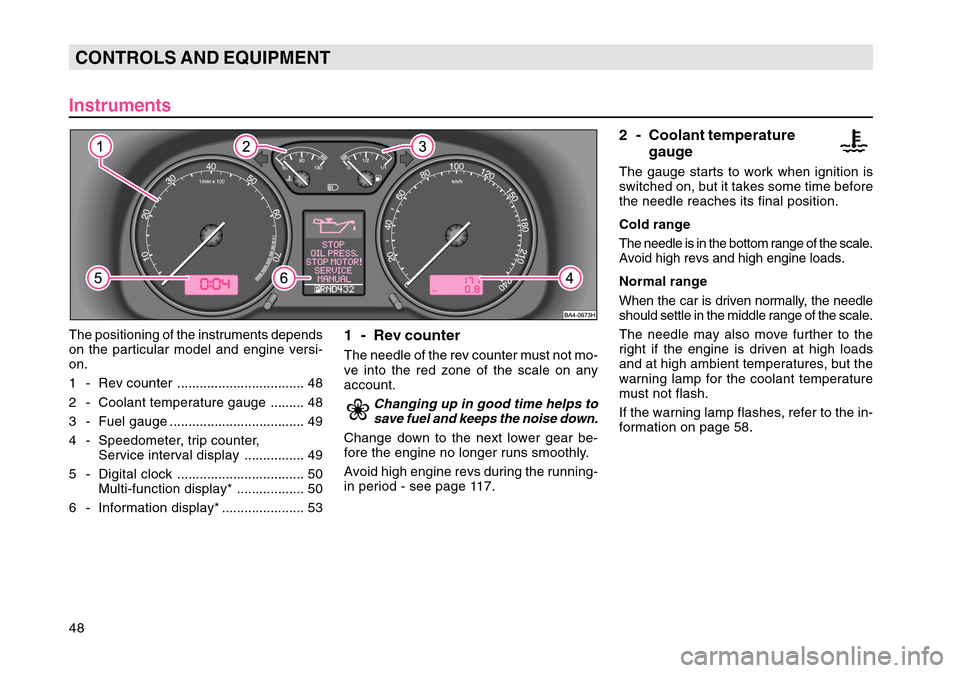

InstrumentsThe positioning of the instruments depends
on the particular model and engine versi-
on.
1 - Rev counter .................................. 48
2 - Coolant temperature gauge .. ....... 48
3 - Fuel gauge .................................... 49
4 - Speedometer, trip counter, Service interval display ................ 49
5 - Digital clock .................................. 50
Multi-function display* .................. 50
6 - Information display* ...................... 53
1 - Rev counterThe needle of the rev counter must not mo-
ve into the red zone of the scale on any
account.
Changing up in good time helps to
save fuel and keeps the noise down.
Change down to the next lower gear be-
fore the engine no longer runs smoothly.
Avoid high engine revs during the running-
in period - see page 117.
2 - Coolant temperature
gaugeThe gauge starts to work when ignition is
switched on, but it takes some time before
the needle reaches its final position.
Cold range
The needle is in the bottom range of the scale.
Avoid high revs and high engine loads.
Normal range
When the car is driven normally, the needle
should settle in the middle range of the scale.
The needle may also move further to the
right if the engine is driven at high loads
and at high ambient temperatures, but the
warning lamp for the coolant temperature
must not flash.
If the warning lamp flashes, refer to the in-
formation on page 58.
Page 50 of 205
49
CONTROLS AND EQUIPMENT

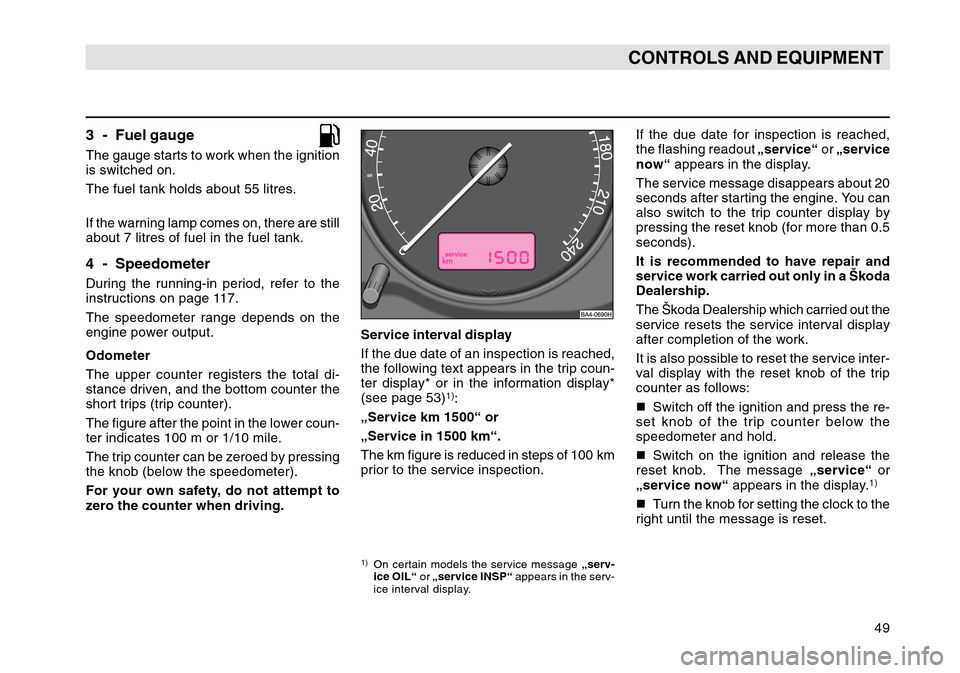

3 - Fuel gaugeThe gauge starts to work when the ignition
is switched on.
The fuel tank holds about 55 litres.
If the warning lamp comes on, there are still
about 7 litres of fuel in the fuel tank.4 - SpeedometerDuring the running-in period, refer to the
instructions on page 117.
The speedometer range depends on the
engine power output.
Odometer
The upper counter registers the total di-
stance driven, and the bottom counter the
short trips (trip counter).
The figure after the point in the lower coun-
ter indicates 100 m or 1/10 mile.
The trip counter can be zeroed by pressing
the knob (below the speedometer).
For your own safety, do not attempt to
zero the counter when driving.Service interval display
If the due date of an inspection is reached,
the following text appears in the trip coun-
ter display* or in the information display*
(see page 53)
1):
„Service km 1500“ or
„Service in 1500 km“.
The km figure is reduced in steps of 100 km
prior to the service inspection.
1)On certain models the service message „serv-
ice OIL“ or „service INSP“ appears in the serv-
ice interval display.
If the due date for inspection is reached,
the flashing readout „service“ or „service
now“ appears in the display.
The service message disappears about 20
seconds after starting the engine. You can
also switch to the trip counter display by
pressing the reset knob (for more than 0.5
seconds).
It is recommended to have repair and
service work carried out only in a Škoda
Dealership.
The Škoda Dealership which carried out the
service resets the service interval display
after completion of the work.
It is also possible to reset the service inter-
val display with the reset knob of the trip
counter as follows:
Switch off the ignition and press the re-
set knob of the trip counter below the
speedometer and hold.
Switch on the ignition and release the
reset knob. The message „service“ or
„service now“ appears in the display.
1)
Turn the knob for setting the clock to the
right until the message is reset.
