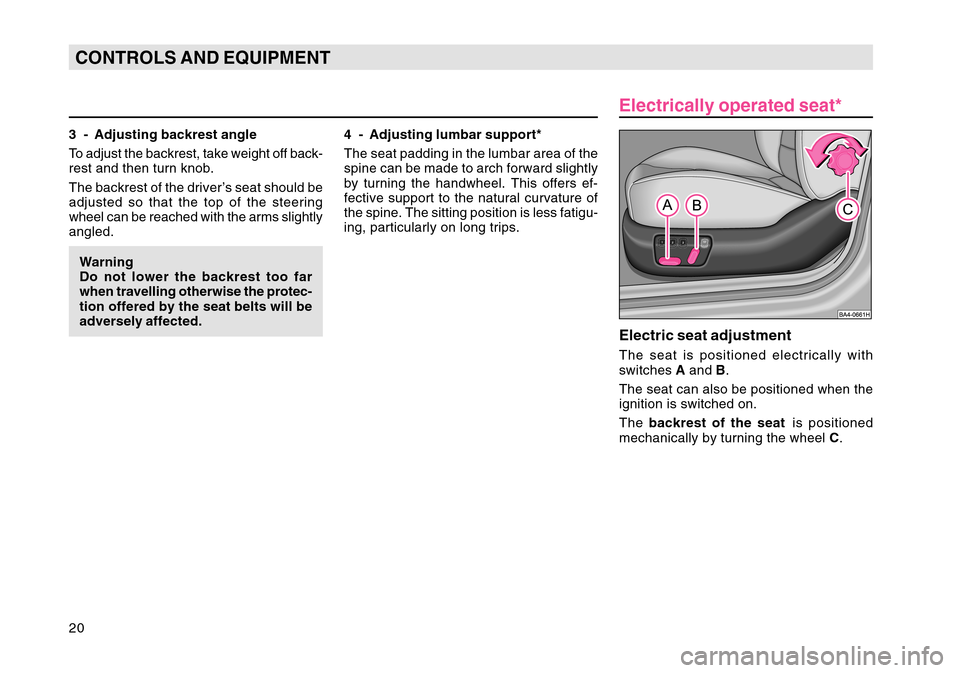

20CONTROLS AND EQUIPMENT3 - Adjusting backrest angle
To adjust the backrest, take weight off back-
rest and then turn knob.
The backrest of the driver’s seat should be
adjusted so that the top of the steering
wheel can be reached with the arms slightly
angled.Warning
Do not lower the backrest too far
when travelling otherwise the protec-
tion offered by the seat belts will be
adversely affected.
Electrically operated seat*Electric seat adjustmentThe seat is positioned electrically with
switches A and B.
The seat can also be positioned when the
ignition is switched on.
The backrest of the seat is positioned
mechanically by turning the wheel C.
4 - Adjusting lumbar support*
The seat padding in the lumbar area of the
spine can be made to arch forward slightly
by turning the handwheel. This offers ef-
fective support to the natural curvature of
the spine. The sitting position is less fatigu-
ing, particularly on long trips.
Page 22 of 205
21
CONTROLS AND EQUIPMENT

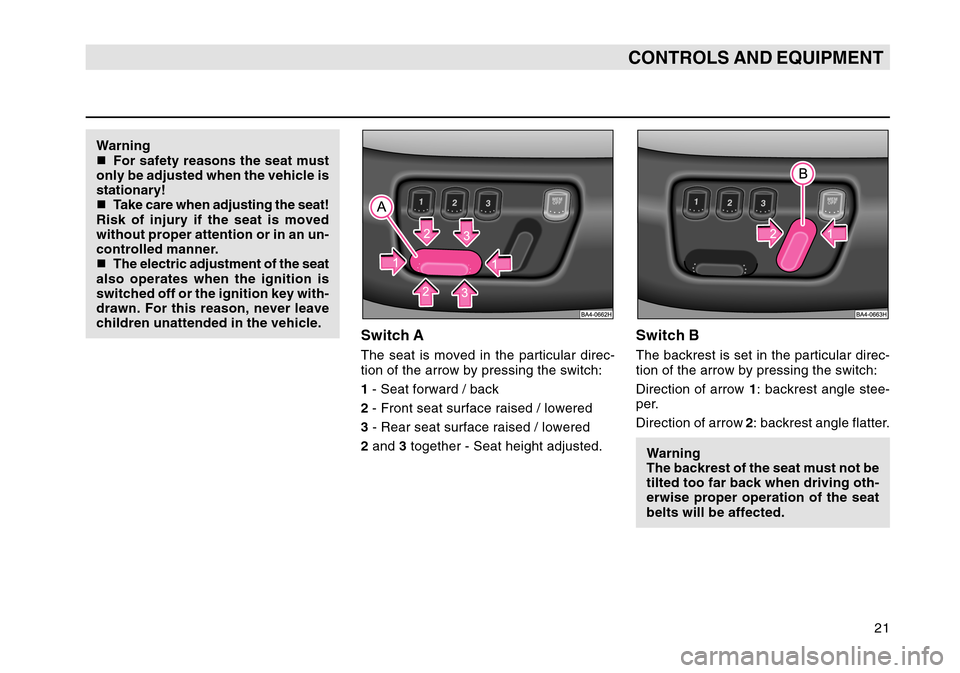

Warning
For safety reasons the seat must
only be adjusted when the vehicle is
stationary!
Take care when adjusting the seat!
Risk of injury if the seat is moved
without proper attention or in an un-
controlled manner.
The electric adjustment of the seat
also operates when the ignition is
switched off or the ignition key with-
drawn. For this reason, never leave
children unattended in the vehicle.
Switch AThe seat is moved in the particular direc-
tion of the arrow by pressing the switch:
1 - Seat forward / back
2 - Front seat surface raised / lowered
3 - Rear seat surface raised / lowered
2 and 3 together - Seat height adjusted.
Switch BThe backrest is set in the particular direc-
tion of the arrow by pressing the switch:
Direction of arrow 1: backrest angle stee-
per.
Direction of arrow 2: backrest angle flatter.
Warning
The backrest of the seat must not be
tilted too far back when driving oth-
erwise proper operation of the seat
belts will be affected.
Page 23 of 205

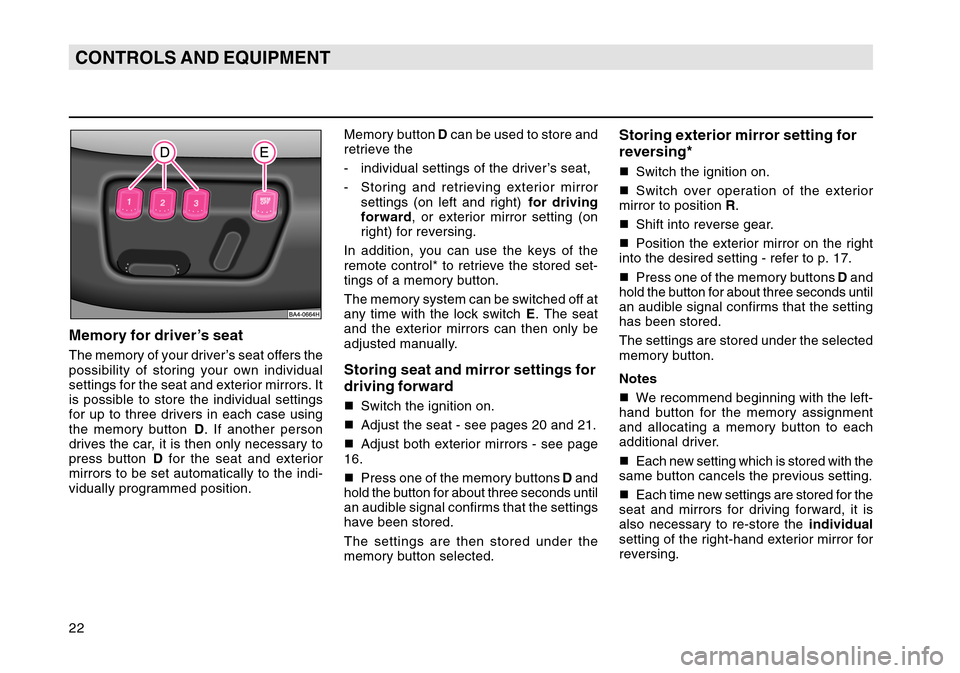

22CONTROLS AND EQUIPMENTMemory for driver’s seatThe memory of your driver’s seat offers the
possibility of storing your own individual
settings for the seat and exterior mirrors. It
is possible to store the individual settings
for up to three drivers in each case using
the memory button D. If another person
drives the car, it is then only necessary to
press button D for the seat and exterior
mirrors to be set automatically to the indi-
vidually programmed position. Memory button
D can be used to store and
retrieve the
- individual settings of the driver’s seat,
- Storing and retrieving exterior mirror settings (on left and right) for driving
forward , or exterior mirror setting (on
right) for reversing.
In addition, you can use the keys of the
remote control* to retrieve the stored set-
tings of a memory button.
The memory system can be switched off at
any time with the lock switch E. The seat
and the exterior mirrors can then only be
adjusted manually.
Storing seat and mirror settings for
driving forward Switch the ignition on.
Adjust the seat - see pages 20 and 21.
Adjust both exterior mirrors - see page
16.
Press one of the memory buttons D and
hold the button for about three seconds until
an audible signal confirms that the settings
have been stored.
The settings are then stored under the
memory button selected.
Storing exterior mirror setting for
reversing* Switch the ignition on.
Switch over operation of the exterior
mirror to position R.
Shift into reverse gear.
Position the exterior mirror on the right
into the desired setting - refer to p. 17.
Press one of the memory buttons D and
hold the button for about three seconds until
an audible signal confirms that the setting
has been stored.
The settings are stored under the selected
memory button.
Notes
We recommend beginning with the left-
hand button for the memory assignment
and allocating a memory button to each
additional driver.
Each new setting which is stored with the
same button cancels the previous setting.
Each time new settings are stored for the
seat and mirrors for driving forward, it is
also necessary to re-store the individual
setting of the right-hand exterior mirror for
reversing.
Page 24 of 205
23
CONTROLS AND EQUIPMENT

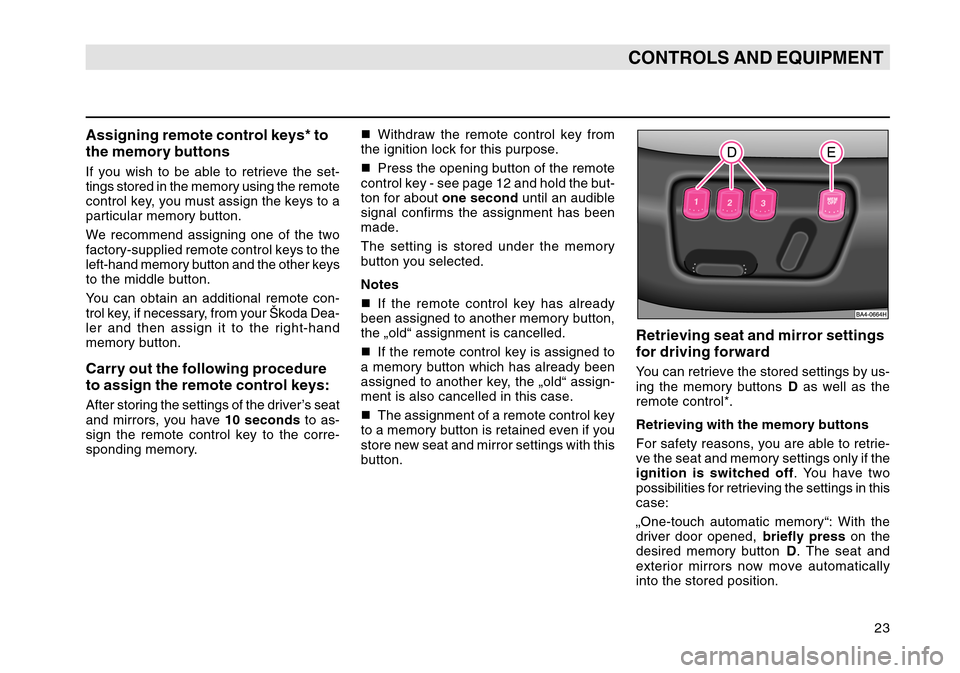

Assigning remote control keys* to
the memory buttonsIf you wish to be able to retrieve the set-
tings stored in the memory using the remote
control key, you must assign the keys to a
particular memory button.
We recommend assigning one of the two
factory-supplied remote control keys to the
left-hand memory button and the other keys
to the middle button.
You can obtain an additional remote con-
trol key, if necessary, from your Škoda Dea-
ler and then assign it to the right-hand
memory button.Carry out the following procedure
to assign the remote control keys:After storing the settings of the driver’s seat
and mirrors, you have 10 seconds to as-
sign the remote control key to the corre-
sponding memory.
Withdraw the remote control key from
the ignition lock for this purpose.
Press the opening button of the remote
control key - see page 12 and hold the but-
ton for about one second until an audible
signal confirms the assignment has been
made.
The setting is stored under the memory
button you selected.
Notes
If the remote control key has already
been assigned to another memory button,
the „old“ assignment is cancelled.
If the remote control key is assigned to
a memory button which has already been
assigned to another key, the „old“ assign-
ment is also cancelled in this case.
The assignment of a remote control key
to a memory button is retained even if you
store new seat and mirror settings with this
button.
Retrieving seat and mirror settings
for driving forwardYou can retrieve the stored settings by us-
ing the memory buttons D as well as the
remote control*.
Retrieving with the memory buttons
For safety reasons, you are able to retrie-
ve the seat and memory settings only if the
ignition is switched off . You have two
possibilities for retrieving the settings in this
case:
„One-touch automatic memory“: With the
driver door opened, briefly press on the
desired memory button D. The seat and
exterior mirrors now move automatically
into the stored position.
Page 25 of 205

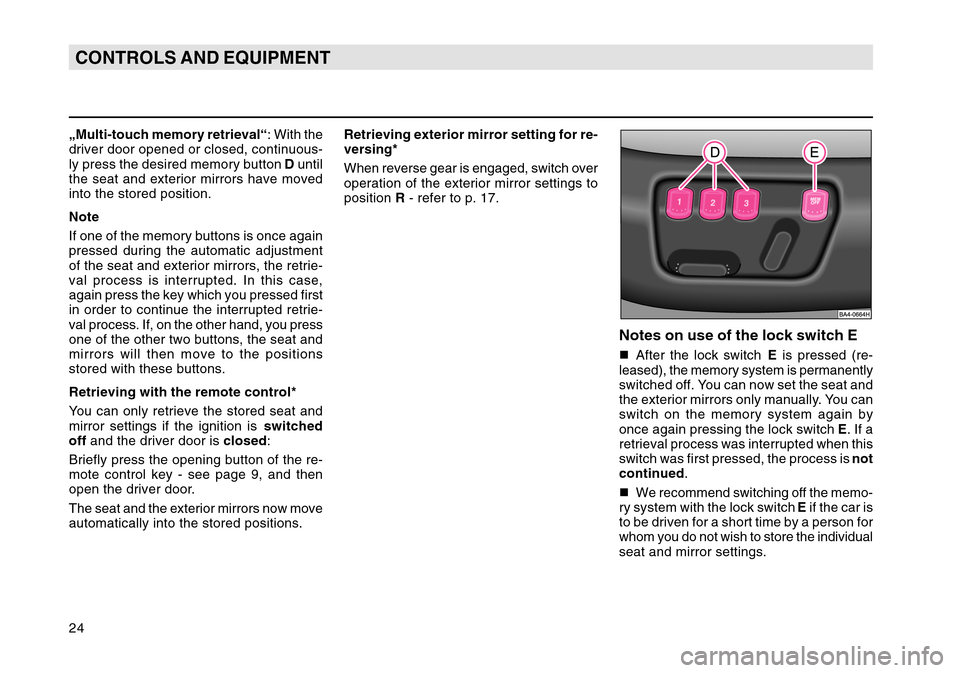

24CONTROLS AND EQUIPMENT„Multi-touch memory retrieval“: With the
driver door opened or closed, continuous-
ly press the desired memory button D until
the seat and exterior mirrors have moved
into the stored position.
Note
If one of the memory buttons is once again
pressed during the automatic adjustment
of the seat and exterior mirrors, the retrie-
val process is interrupted. In this case,
again press the key which you pressed first
in order to continue the interrupted retrie-
val process. If, on the other hand, you press
one of the other two buttons, the seat and
mirrors will then move to the positions
stored with these buttons.
Retrieving with the remote control*
You can only retrieve the stored seat and
mirror settings if the ignition is switched
off and the driver door is closed:
Briefly press the opening button of the re-
mote control key - see page 9, and then
open the driver door.
The seat and the exterior mirrors now move
automatically into the stored positions.
Notes on use of the lock switch E After the lock switch E is pressed (re-
leased), the memory system is permanently
switched off. You can now set the seat and
the exterior mirrors only manually. You can
switch on the memory system again by
once again pressing the lock switch E. If a
retrieval process was interrupted when this
switch was first pressed, the process is not
continued .
We recommend switching off the memo-
ry system with the lock switch E if the car is
to be driven for a short time by a person for
whom you do not wish to store the individual
seat and mirror settings.
Retrieving exterior mirror setting for re-
versing*
When reverse gear is engaged, switch over
operation of the exterior mirror settings to
position
R - refer to p. 17.
Page 26 of 205
25
CONTROLS AND EQUIPMENT
Emergency offIn an emergency, the memory retrieval
process can be interrupted by pressing
(releasing) the lock switch E, briefly
pressing one of the memory buttons or
pressing one of the seat setting swit-
ches.
Rear seatThe rear seat can be folded forward in or-
der to increase the available luggage spa-
ce.
Before folding the seat backrest down, it is
necessary to adjust the front seats and the
armrests so that after folding down the arm-
rests and the backrests of the front and rear
seat are not deformed or damaged.
Folding rear seat forwardPull up seat cushion with the aid of the
loop and fold forward.
Pull release knob up and fold backrest
of rear seat forward slightly.
Remove head restraints from backrest
of rear seat and fold the backrest fully for-
ward.
The head restraints can be inserted into
the openings of the backrest when it is fol-
ded forward.
Page 27 of 205

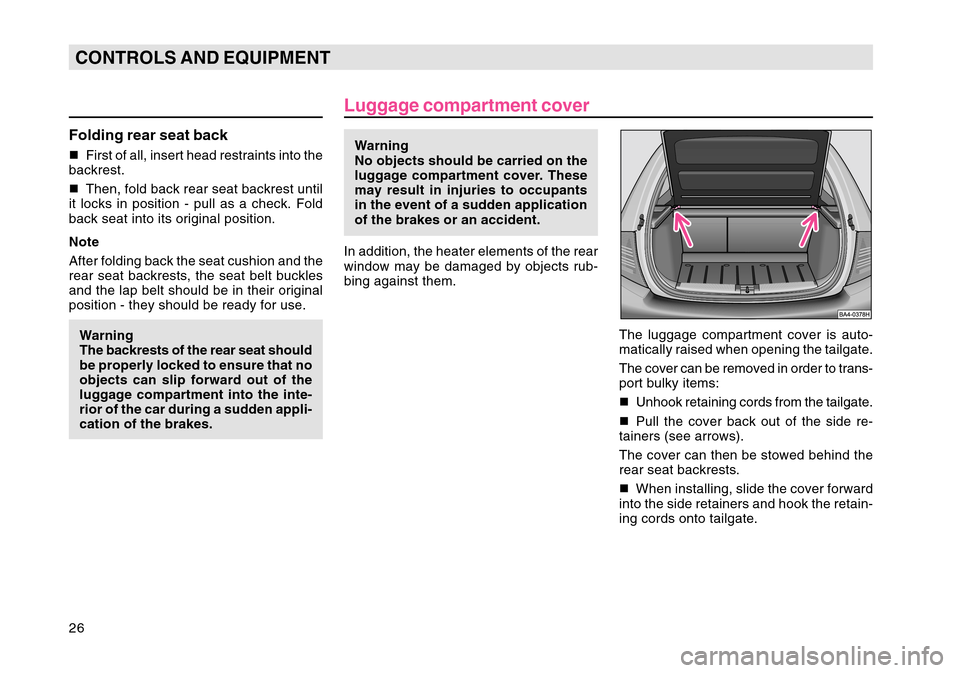

26CONTROLS AND EQUIPMENTFolding rear seat backFirst of all, insert head restraints into the
backrest.
Then, fold back rear seat backrest until
it locks in position - pull as a check. Fold
back seat into its original position.
Note
After folding back the seat cushion and the
rear seat backrests, the seat belt buckles
and the lap belt should be in their original
position - they should be ready for use.
Warning
The backrests of the rear seat should
be properly locked to ensure that no
objects can slip forward out of the
luggage compartment into the inte-
rior of the car during a sudden appli-
cation of the brakes.
Luggage compartment coverWarning
No objects should be carried on the
luggage compartment cover. These
may result in injuries to occupants
in the event of a sudden application
of the brakes or an accident.
In addition, the heater elements of the rear
window may be damaged by objects rub-
bing against them.
The luggage compartment cover is auto-
matically raised when opening the tailgate.
The cover can be removed in order to trans-
port bulky items:
Unhook retaining cords from the tailgate.
Pull the cover back out of the side re-
tainers (see arrows).
The cover can then be stowed behind the
rear seat backrests.
When installing, slide the cover forward
into the side retainers and hook the retain-
ing cords onto tailgate.
Page 28 of 205
27
CONTROLS AND EQUIPMENT
Luggage compartmentTo ensure proper handling of your car, al-
ways distribute any load which you carry
(passengers and luggage).
Heavy objects should be transported as
close as possible to the rear suspension,
or even better between the front and rear.
In addition, please ensure that the heater
elements of the rear window are not dam-
aged by objects rubbing against them.
In the event of an accident, there is such a
high kinetic energy, which is produced by
small and light objects that they can cause
severe injuries.
The magnitude of the kinetic energy de-
pends on the speed at which the vehicle is
travelling and on the weight of the object.
The speed at which the vehicle is travel-
ling is in this case the more significant fac-
tor.
Example: In the event of a frontal collision
at a speed of 50 km/h, an unsecured ob-
ject with a weight of 4.5 kg produces an
energy, which corresponds to 20 times its
own weight.
This means that it results in a weight of
approx. 90 kg.
You can imagine the injuries that can oc-
cur, if this „bullet“ is flying through the inte-
rior compartment and hits an occupant.Warning
Store the objects in the luggage
compartment and attach them to the
lashing eyes.
Loose objects in the passenger
compartment can be thrown forward
during a sudden manoeuvre or in case
of an accident and they can injure the
occupants or other oncoming traffic.
This risk is still increased, if the ob-
jects, which are flying around, are hit
by a deployed airbag.
In this case, the objects, which are
thrown back, can injure the occu-
pants - hazard!
Never drive with the tailgate ajar
or even open otherwise exhaust
gases will be drawn into the interior!
Please note that when you trans-
port heavy items, this results in a
change in the centre of gravity of the
vehicle and thus affects the handling.
You should therefore adjust your
style of driving and speed to match,
and also alter the setting of the head-
lights, if necessary.
Page 29 of 205
28CONTROLS AND EQUIPMENT

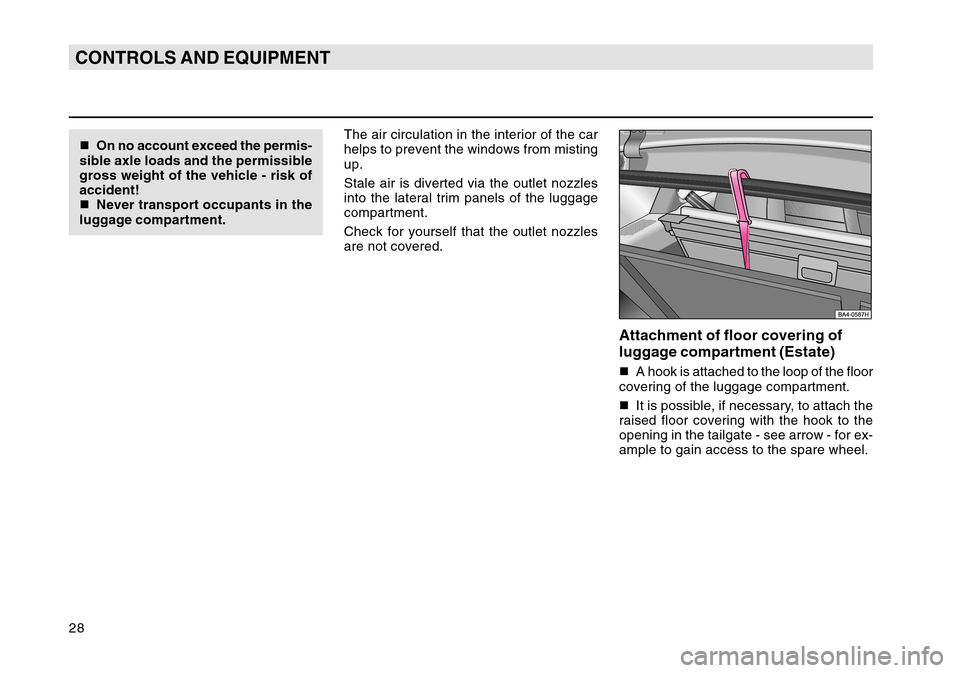

Attachment of floor covering of
luggage compartment (Estate)A hook is attached to the loop of the floor
covering of the luggage compartment.
It is possible, if necessary, to attach the
raised floor covering with the hook to the
opening in the tailgate - see arrow - for ex-
ample to gain access to the spare wheel.
On no account exceed the permis-
sible axle loads and the permissible
gross weight of the vehicle - risk of
accident!
Never transport occupants in the
luggage compartment. The air circulation in the interior of the car
helps to prevent the windows from misting
up.
Stale air is diverted via the outlet nozzles
into the lateral trim panels of the luggage
compartment.
Check for yourself that the outlet nozzles
are not covered.
Page 30 of 205
29
CONTROLS AND EQUIPMENT

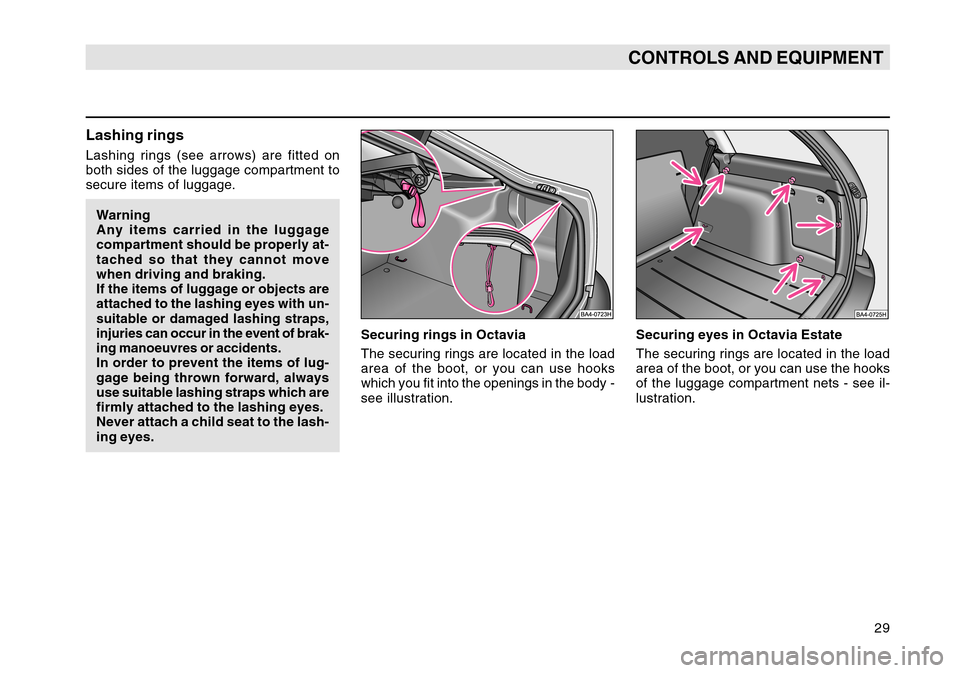

Lashing ringsLashing rings (see arrows) are fitted on
both sides of the luggage compartment to
secure items of luggage.Warning
Any items carried in the luggage
compartment should be properly at-
tached so that they cannot move
when driving and braking.If the items of luggage or objects are
attached to the lashing eyes with un-
suitable or damaged lashing straps,
injuries can occur in the event of brak-
ing manoeuvres or accidents.In order to prevent the items of lug-
gage being thrown forward, always
use suitable lashing straps which are
firmly attached to the lashing eyes.
Never attach a child seat to the lash-
ing eyes. Securing rings in Octavia
The securing rings are located in the load
area of the boot, or you can use hooks
which you fit into the openings in the body -
see illustration.
Securing eyes in Octavia Estate
The securing rings are located in the load
area of the boot, or you can use the hooks
of the luggage compartment nets - see il-
lustration.
