navigation system SKODA OCTAVIA TOUR 2007 1.G / (1U) Owner's Manual
[x] Cancel search | Manufacturer: SKODA, Model Year: 2007, Model line: OCTAVIA TOUR, Model: SKODA OCTAVIA TOUR 2007 1.G / (1U)Pages: 205
Page 55 of 205

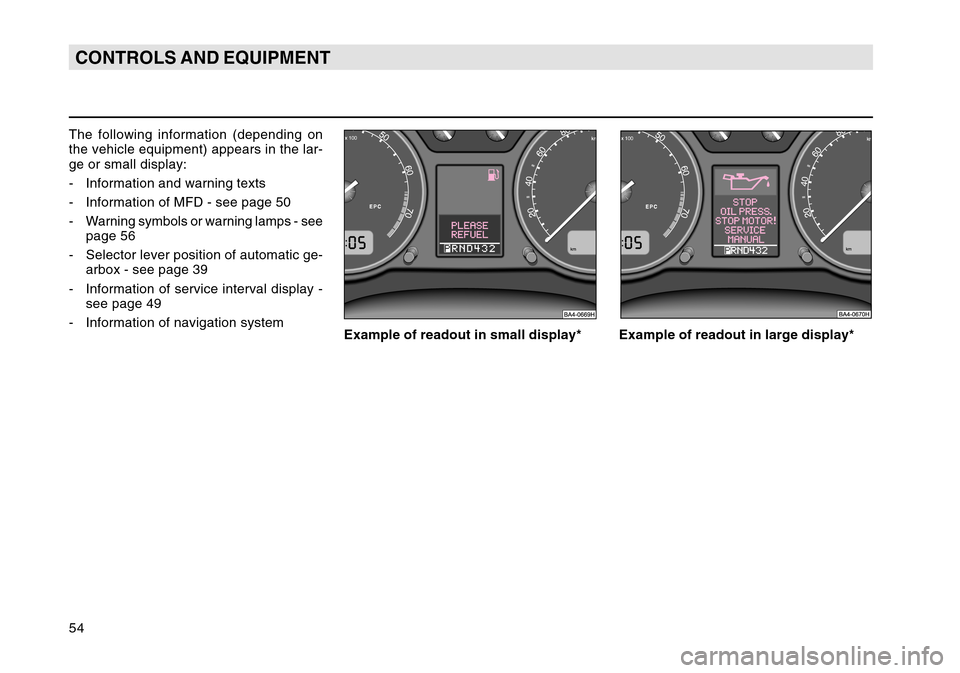

54CONTROLS AND EQUIPMENTThe following information (depending on
the vehicle equipment) appears in the lar-
ge or small display:
- Information and warning texts
- Information of MFD - see page 50
- Warning symbols or warning lamps - seepage 56
- Selector lever position of automatic ge- arbox - see page 39
- Information of service interval display - see page 49
- Information of navigation system Example of readout in small display* Example of readout in large display*
Page 56 of 205

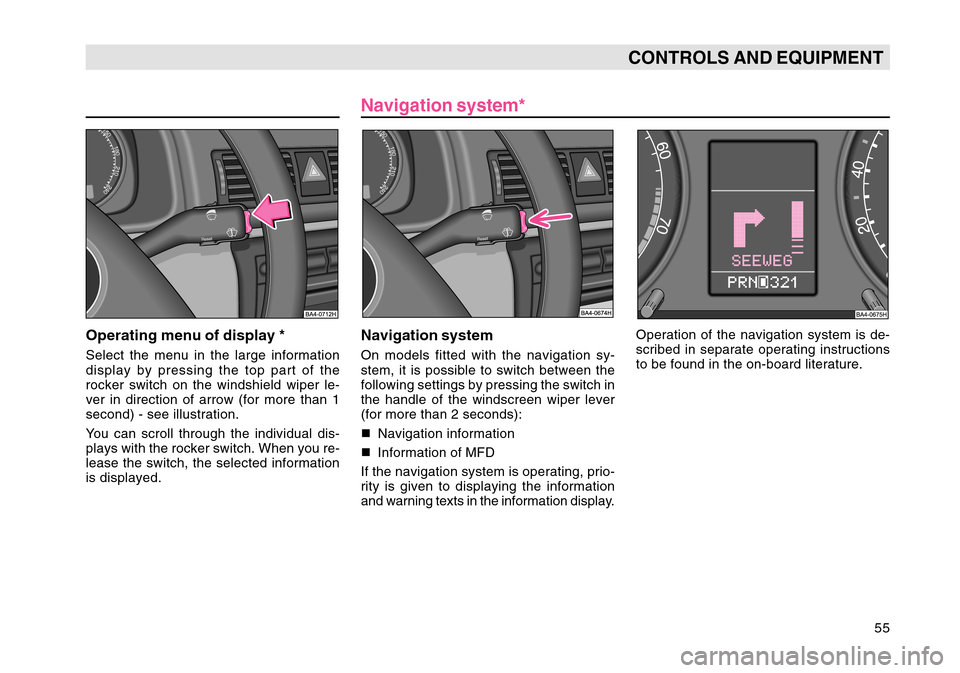

55
CONTROLS AND EQUIPMENT
Navigation system*
Navigation systemOn models fitted with the navigation sy-
stem, it is possible to switch between the
following settings by pressing the switch in
the handle of the windscreen wiper lever
(for more than 2 seconds):
Navigation information
Information of MFD
If the navigation system is operating, prio-
rity is given to displaying the information
and warning texts in the information display. Operation of the navigation system is de-
scribed in separate operating instructions
to be found in the on-board literature.
Operating menu of display *Select the menu in the large information
display by pressing the top part of the
rocker switch on the windshield wiper le-
ver in direction of arrow (for more than 1
second) - see illustration.
You can scroll through the individual dis-
plays with the rocker switch. When you re-
lease the switch, the selected information
is displayed.
Page 201 of 205
ALPHABETICAL INDEX
NNavigation system, 55
Net partition, 33
Net, 30
Noise, dust and pollen filter, 152
Note holder, 91OOil consumption, 119
On-board instruments, 48PPaint damage, 131
Parking light, 62
Parking light, 67
Parking ticket, 91
Pedals, 35
Pelvic belt, 101
Petrol engines, 45
Plastic and synthetic leather parts, 132
Polishing the car, 131
Power steering, 141
Preglow system (diesel), 43, 45, 57
Prewarming fuel, 129RReading light, 88
Rear-view mirror, 16
Recirculated air mode, 73, 76
Refuelling the car, 65, 127 Remote control, 12
- Replacing the code, 13
Replacement
- Brake fluid, 145
- Parts, 159
- Wheel, 163
- Oil, 141
- Fuses, 167
- Bulbs, 169
Rev counter, 48
Roof luggage rack system, 91
Roof luggage rack system, 91
Running in the car, 117
SSafe securing system, 9
Safety net, 30
Safety, 93
Seat belt tensioners, 102
Seat belt tensioners, 102
Seat belts, 98
Seat belts, 98
Seat heaters, 65
Seat height, 19
Seats, 19, 25, 94
Securing wheels, 166
Service Display, 49
Service interval, extended, 138
Shift pattern, 38
Shifting gears, 38 Side airbag, 109
Signals, acoustic, 46
Snow chains, 157
Socket 12 V, 89
Spare wheel, 162
Spark plugs, 150
Spectacle case, 91
Spectacles, 91
Speedometer, 49
Speedometer, 49
- Counter for distance driven, 49
Spray for tyre repair, 162
Steering wheel, 5, 43, 70
Storage compartments, 10, 87
Sun visors, 86
Support of pelvic belt, 20
Switch, 62
Switching from high beam to low beam, 67
TTaking care of your vehicle, 129
TCS, 60, 65
Technical changes, 160
Temperature display, 52
The first 1500 km, 117
Tool, 161
Top up with oil, 140
Towing a trailer, 124
Towing a vehicle, 178
Towing device, 124
