SKODA OCTAVIA TOUR 2009 1.G / (1U) User Guide

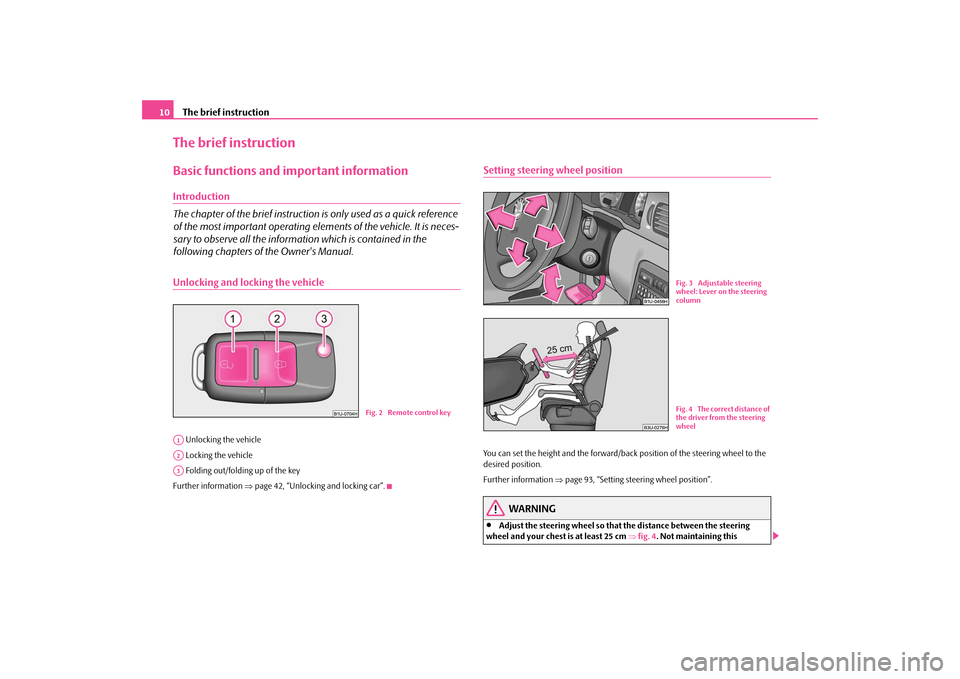

The brief instruction
10
The brief instructionBasic functions and important informationIntroduction The chapter of the brief instruction
is only used as a quick reference
of the most important operating elements of the vehicle. It is neces- sary to observe all the informat
ion which is contained in the
following chapters of the Owner's Manual.Unlocking and locking the vehicle Unlocking the vehicle Locking the vehicle Folding out/folding up of the keyFurther information
⇒page 42, “Unlocking and locking car”.
Setting steering wheel positionYou can set the height and the forward/back position of the steering wheel to the desired position. Further information
⇒page 93, “Setting steering wheel position”.
WARNING
•
Adjust the steering wheel so that
the distance between the steering
wheel and your chest is at least 25 cm
⇒fig. 4
. Not maintaining this
Fig. 2 Remote control key
A1A2A3
Fig. 3 Adjustable steering wheel: Lever on the steering columnFig. 4 The correct distance of the driver from the steering wheel
s2g8.b.book Page 10 Tuesday, April 7, 2009 8:53 AM

The brief instruction
11
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
minimum distance will mean that the airbag system will not be able to prop- erly protect you - hazard!•
You must not adjust the steering wh
eel when the vehicle is moving!
•
For safety reasons the lever must always be firmly pushed up to avoid the
steering wheel altering its position un
intentionally when driving - risk of
accident!Seat belt height adjuster– In order to adjust the height, press on the upper seat belt deflection
and push it into the desired direction up or down so that the shoulder part of the belt is positioned approximately across the middle of your shoulder.
– Then pull firmly on the belt to ensure
that the seat belt height adjuster
has correctly locked in place.
Further information
⇒page 111, “Seat belt height adjuster”.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is positioned approximately across the middle of your shoulder - on no account across your neck!Adjusting the front seats Adjusting a seat in a forward/back direction Adjusting height of seat* Adjust the angle of the seat backrest Adjusting lumbar support*Further information
⇒page 60, “Adjusting the front seats”.
WARNING
Only adjust the driver seat when the ve
hicle is stationary - risk of injury!
WARNING (continued)
Fig. 5 Front seat: Seat belt height adjuster
Fig. 6 Controls at seat
A1A2A3A4
s2g8.b.book Page 11 Tuesday, April 7, 2009 8:53 AM

The brief instruction
12
Electric exterior mirror adjustment*Further information
⇒page 58, “Exterior mirror”.
Switching lights on and offFurther information
⇒page 49, “Switching lights on and off”.

Heating of the external mirror

Adjusting left and right exterior mirrors simultaneously

Adjusting the right-hand exterior mirror

Switching off operating control
Fig. 7 Inner part of door: Rotary knob

Switching off all lights

Switching on side lights

Switching on the low beam and main beam
Fig. 8 Dash panel: Light switch
s2g8.b.book Page 12 Tuesday, April 7, 2009 8:53 AM

The brief instruction
13
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

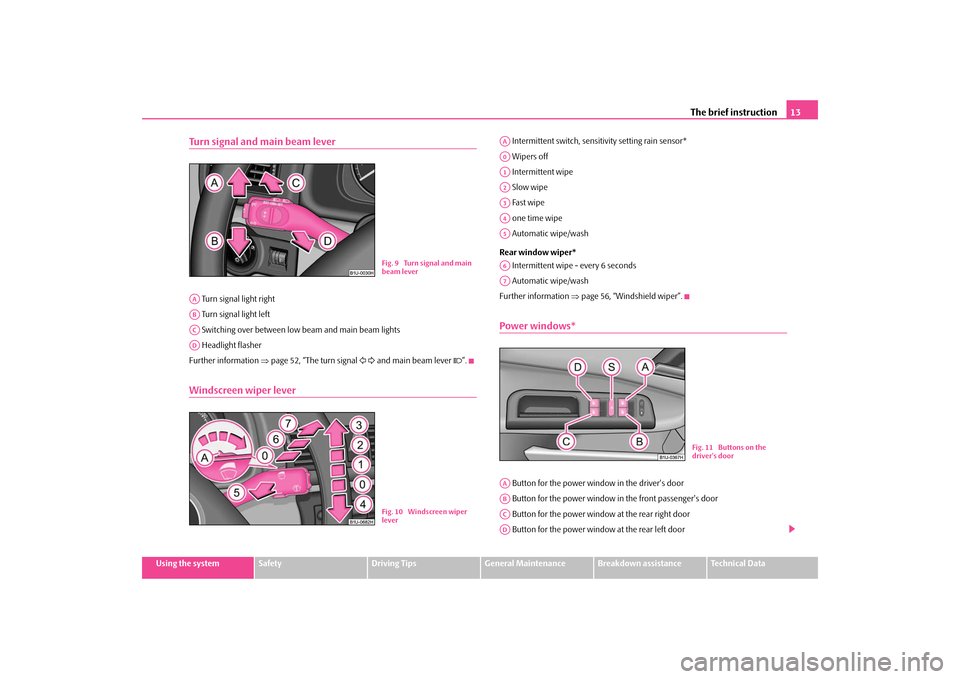

Turn signal and main beam lever Turn signal light right Turn signal light left Switching over between low beam and main beam lights Headlight flasherFurther information
⇒page 52, “The turn signal
  and main beam lever
”.
Windscreen wiper lever
Intermittent switch, sensitivity setting rain sensor* Wipers off Intermittent wipe Slow wipe Fast wipe one time wipe Automatic wipe/wash Rear window wiper* Intermittent wipe - every 6 seconds Automatic wipe/washFurther information
⇒page 56, “Windshield wiper”.
Power windows* Button for the power window in the driver's door Button for the power window in the front passenger's door Button for the power window at the rear right door Button for the power window at the rear left door
Fig. 9 Turn signal and main beam lever
AAABACAD
Fig. 10 Windscreen wiper lever
AAA0A1A2A3A4A5A6A7
Fig. 11 Buttons on the driver's door
AAABACAD
s2g8.b.book Page 13 Tuesday, April 7, 2009 8:53 AM

The brief instruction
14
Safety switch Further information
⇒page 44, “Buttons on the driver's door”.
Refuelling– Open the fuel filler flap with the hand or open it from the driver seat*
⇒
fig. 12
.
– The fuel filler cap on the fuel fille
r tube must be unlocked to the left
using the vehicle key (only valid for
vehicles which do not have auto-
matic unlocking of the fuel filler flap).
– Unscrew the fuel filler cap anti-clo
ckwise and place the fuel filler cap
from above on the fuel filler flap
⇒
fig. 13
.
Further information
⇒page 156, “Refuelling”.
Bonnet remote release– Pull the unlocking lever below the dash panel on the driver's side
⇒
fig. 14
.
Further information
⇒page 159, “Bonnet remote release”.
AS
Fig. 12 Switch for opening the fuel filler flap from the driver seatFig. 13 Fuel filler flap with cap unscrewed
Fig. 14 Bonnet release lever
s2g8.b.book Page 14 Tuesday, April 7, 2009 8:53 AM

The brief instruction
15
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

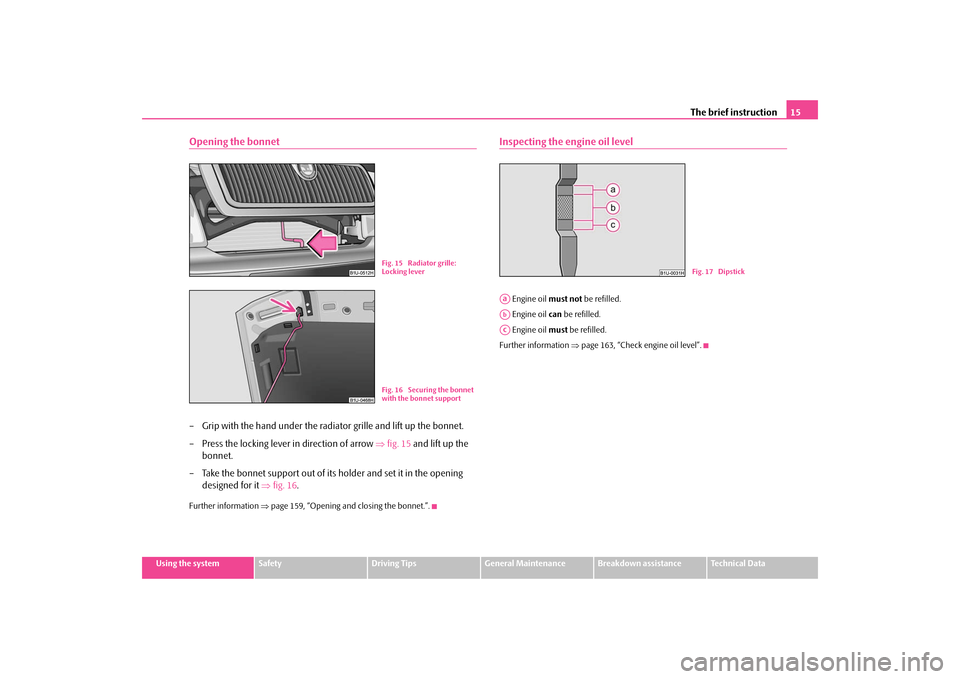

Opening the bonnet– Grip with the hand under
the radiator grille and lift up the bonnet.
– Press the locking lever in direction of arrow
⇒
fig. 15
and lift up the
bonnet.
– Take the bonnet support out of its holder and set it in the opening
designed for it
⇒
fig. 16
.
Further information
⇒page 159, “Opening and closing the bonnet.”.
Inspecting the engine oil level Engine oil
must not
be refilled.
Engine oil
can
be refilled.
Engine oil
must
be refilled.
Further information
⇒page 163, “Check engine oil level”.
Fig. 15 Radiator grille: Locking leverFig. 16 Securing the bonnet with the bonnet support
Fig. 17 Dipstick
AaAbAc
s2g8.b.book Page 15 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
16
Instruments and Indicator/Warning LightsGeneral view of the instrument cluster
Engine revolutions counter
⇒page 16
Coolant temperature gauge
⇒page 16
Fuel gauge
⇒page 17
Speedometer
⇒page 17
Digital clock, Multi-functional indicator*
⇒page 19
Information display*
⇒page 23
Clock-set button
⇒page 19
Reset button
⇒page 18
Odometer and trip counter, service interval display
⇒page 18
When the lights are switched on, the instrument cluster is illuminated.Engine revolutions counterThe start of the red zone in the revolutions counter
⇒fig. 18
indicates the
maximum permissible engine speed for all gears for an engine which has been run
in and operating at a normal temperature.
Before reaching this zone shift up into
the next higher gear. One should shift to a lower gear at the late
st when the engine is no longer running
“smoothly”. Avoid high engine speeds
when running-in the vehicle
⇒page 137.
For the sake of the environment
Shifting up early helps yo
u save fuel and reduce the operating noise of your
vehicle.Coolant temperature gaugeThe coolant temperature gauge
⇒fig. 18
operates only when the ignition is
switched on.
Fig. 18 Instrument cluster
A1A2A3A4A5A6A7A8A9
A1
A2
s2g8.b.book Page 16 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
17
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
In order to avoid any damage to the engine
, please pay attention to the following
notes regarding the temperature ranges: Cold range If the pointer is in the left-hand area of the scale it means that the engine has not yet reached its operating temperature. Avoid
running at high engine speeds, at full
throttle and at severe engine loads. The operating range The engine has reached its operating temp
erature as soon as the pointer moves
into the mid-range of the scale. The pointe
r may also move further to the right at
high engine loads and high outside temperat
ures. This is not critical provided the
warning symbol
 in the instrument cluster does not flash.
If the symbol
 in the instrument cluster flashes it means that either the coolant
temperature
is too high or the coolant
level
is too low. Observe the guidelines
⇒ page 30, “Coolant temperature/ Coolant quantity
”.
WARNING
Pay attention to the warning notes
⇒page 160, “Working in the engine
compartment” before opening the bonnet and inspecting the coolant level.
Caution
Additional headlights and other attached co
mponents in front of the fresh air inlet
impair the cooling efficiency of the coolant. There is then a risk of the engine over- heating at high outside temperatures and high engine loads!Fuel gaugeThe fuel gauge
⇒page 16, fig. 18
only operates when the ignition is switched
on. The fuel tank has a capacity of about 55 litres. The warning symbol
 in the instru-
ment cluster lights up when the pointer reaches the reserve marking. There are now
about 7 litres of fuel remaining in the tank. This symbol is a reminder for you,
that
you must refuel
.
The following will be displayed in the information display*:
PLEASE REFUEL
A peep sounds as an additional warning signal.
Caution
Never run the fuel tank completely empty! An irregular fuel supply can result in poor ignition or misfiring. Unburnt fuel may get into the exhaust system and damage the catalytic converter.SpeedometerWarning against excessive speeds* An acoustic warning signal will sound when the vehicle speed exceeds 120 kilome- tres per hour. The acoustic warning signal
will switch off again when the vehicle
speed goes below this speed limit.
Note
This function is only
valid for some countries.
A3
s2g8.b.book Page 17 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
18
Counter for distance drivenThe distance which you have driven with yo
ur vehicle is shown
in kilometres (km).
On certain model versions, the
readout is shown in “miles”.
Bottom (trip) counter for distance driven The trip counter indicates the distance which you have driven since it was last reset - in steps of 100 metres or 1/10 of a mile. The bottom counter can be reset by pressing the reset button of the trip counter
⇒fig. 19
.
Top counter for distance driven The top counter indicates the total distance driven in kilometres or miles which the vehicle has been driven. Fa ult di spl ay dEF
appears permanently in the trip counter display for distance driven if there is a
fault in the instrument cluste
r. Have the fault rectified
as soon as possible by a
specialist workshop.
WARNING
Never seek to adjust the trip counter
for distance driven while driving for
safety reasons!
Service Interval DisplayDepending on the equipment installed in the vehicle, the text can differ slightly on the display. Service Interval Display If the due date for the service is reached, it is displayed
1):
in the display of the trip counter:
Service 1 500 km
in the information display:
SERVICE in 1500 km
The kilometre readout decreases in steps of 100°km.If the due date for the service is reached,
the following text appears as a flashing
display: in the display of the trip counter:
Service
in the information display:
SERVICE NOW
Fig. 19 Instrument cluster: Counter for distance driven
1)On some vehicles, the service interval display
service OIL
or service INSP
is shown.
Fig. 20 Service Interval Display: Note
s2g8.b.book Page 18 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
19
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The display disappears within 20 seconds after switching on the ignition. The trip counter is also displayed af
ter pressing the reset button for the trip counter (for
more than 0.5 second). Resetting Service Interval Display It is only possible to reset the Service Interval Display, if a service message or at least a pre-warning is shown on the display of the instrument cluster. We recommend having this
resetting performed by a specialist garage.
The specialist garage:•
resets the memory of the display after the appropriate inspection;
•
makes an entry in the Service schedule;
•
affix the sticker with the entry of the following service interval to the side of the
dash panel on the driver's side. The service interval display can also be reset with the reset button as follows ⇒ page 16, fig. 18
:
•
Press the reset button with the ignition switched off and and hold it down.
•
Switch the ignition on, release the reset button. The text
Service
or SERVICE
NOW
appears in the display.
•
Turn the button for setting the clock to the right - as a result of this the display is
reset.
Caution
We recommend that you do not reset the
Service Interval Disp
lay yourself other-
wise this can result in the service interval display being incorrectly set, which may also result in problems with operation of your vehicle.
Note
•
Never reset the display between service intervals otherwise this may result in
incorrect readouts.•
information is retained in the Service Interval Display also after the battery of
the vehicle is disconnected.
•
it is necessary to re-code the Service Interval Display if a new instrument cluster
is installed during repair work. This work
is carried out by a specialist garage.
•
The data displayed is the same after rese
tting the display with flexible service
intervals (QG1) using the reset button as th
at for a vehicle with fixed service inter-
vals (QG2). We therefore recommend having the Service Interval Display reset only by a specialist garage which is familiar with the procedure for resetting the display with a vehicle system tester.•
Please refer to the brochure Service schedule for extensive information about
the service intervals.Digital clockA clock-set button is installed on the bottom left beside the speedom- eter for adjusting the clock
⇒
page 16, fig. 18
.
Set hours – Turn the reset button to the left. Setting minutes – Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons but only when the vehicle is stationary!Multi-functional indicator (onboard computer)*IntroductionThe multi-functional indicator appears in
the display of the revolutions counter or
in the information display depending on
the equipment fitte
d to your vehicle
⇒ page 23, fig. 23
.
A8
A7
s2g8.b.book Page 19 Tuesday, April 7, 2009 8:53 AM
