Instruments and Indicator/Warning Lights
16

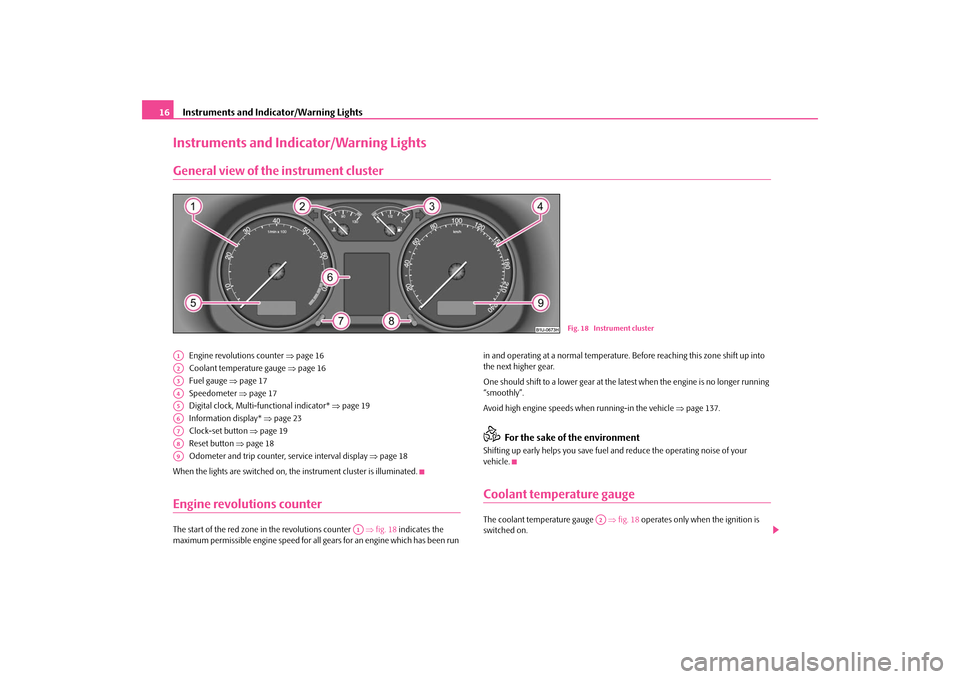

Instruments and Indicator/Warning LightsGeneral view of the instrument cluster
Engine revolutions counter
⇒page 16
Coolant temperature gauge
⇒page 16
Fuel gauge
⇒page 17
Speedometer
⇒page 17
Digital clock, Multi-functional indicator*
⇒page 19
Information display*
⇒page 23
Clock-set button
⇒page 19
Reset button
⇒page 18
Odometer and trip counter, service interval display
⇒page 18
When the lights are switched on, the instrument cluster is illuminated.Engine revolutions counterThe start of the red zone in the revolutions counter
⇒fig. 18
indicates the
maximum permissible engine speed for all gears for an engine which has been run
in and operating at a normal temperature.
Before reaching this zone shift up into
the next higher gear. One should shift to a lower gear at the late
st when the engine is no longer running
“smoothly”. Avoid high engine speeds
when running-in the vehicle
⇒page 137.
For the sake of the environment
Shifting up early helps yo
u save fuel and reduce the operating noise of your
vehicle.Coolant temperature gaugeThe coolant temperature gauge
⇒fig. 18
operates only when the ignition is
switched on.
Fig. 18 Instrument cluster
A1A2A3A4A5A6A7A8A9
A1
A2
s2g8.b.book Page 16 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
18

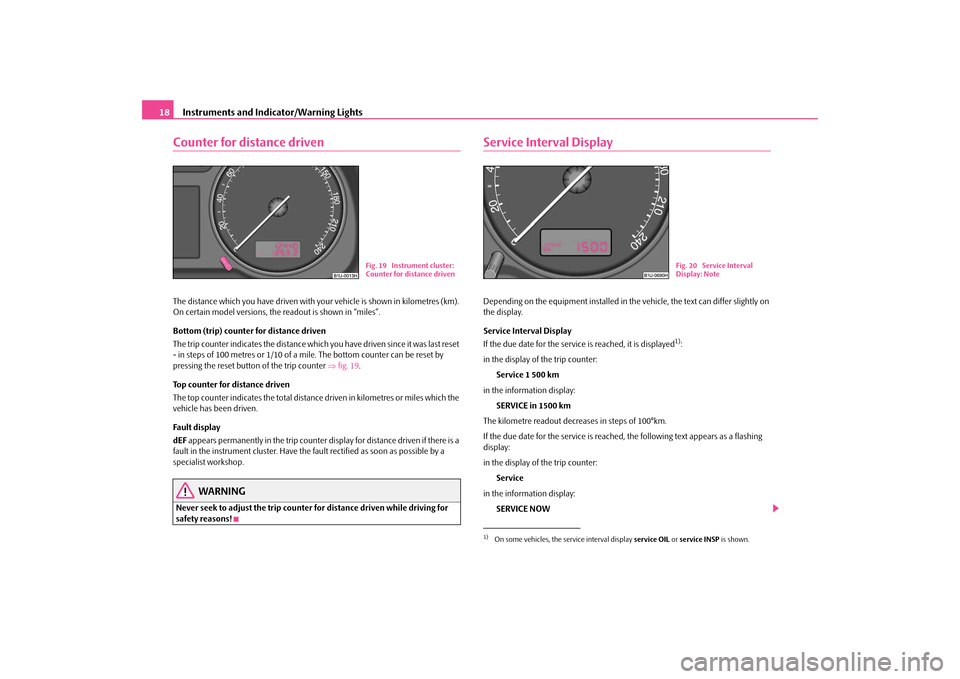

Counter for distance drivenThe distance which you have driven with yo
ur vehicle is shown
in kilometres (km).
On certain model versions, the
readout is shown in “miles”.
Bottom (trip) counter for distance driven The trip counter indicates the distance which you have driven since it was last reset - in steps of 100 metres or 1/10 of a mile. The bottom counter can be reset by pressing the reset button of the trip counter
⇒fig. 19
.
Top counter for distance driven The top counter indicates the total distance driven in kilometres or miles which the vehicle has been driven. Fa ult di spl ay dEF
appears permanently in the trip counter display for distance driven if there is a
fault in the instrument cluste
r. Have the fault rectified
as soon as possible by a
specialist workshop.
WARNING
Never seek to adjust the trip counter
for distance driven while driving for
safety reasons!
Service Interval DisplayDepending on the equipment installed in the vehicle, the text can differ slightly on the display. Service Interval Display If the due date for the service is reached, it is displayed
1):
in the display of the trip counter:
Service 1 500 km
in the information display:
SERVICE in 1500 km
The kilometre readout decreases in steps of 100°km.If the due date for the service is reached,
the following text appears as a flashing
display: in the display of the trip counter:
Service
in the information display:
SERVICE NOW
Fig. 19 Instrument cluster: Counter for distance driven
1)On some vehicles, the service interval display
service OIL
or service INSP
is shown.
Fig. 20 Service Interval Display: Note
s2g8.b.book Page 18 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
19
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

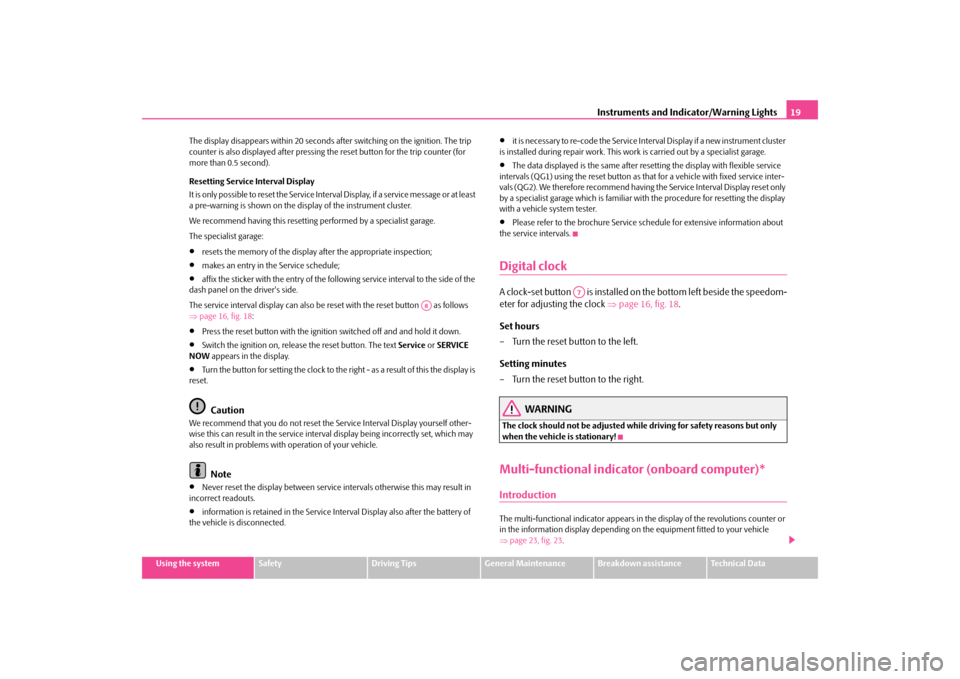

The display disappears within 20 seconds after switching on the ignition. The trip counter is also displayed af
ter pressing the reset button for the trip counter (for
more than 0.5 second). Resetting Service Interval Display It is only possible to reset the Service Interval Display, if a service message or at least a pre-warning is shown on the display of the instrument cluster. We recommend having this
resetting performed by a specialist garage.
The specialist garage:•
resets the memory of the display after the appropriate inspection;
•
makes an entry in the Service schedule;
•
affix the sticker with the entry of the following service interval to the side of the
dash panel on the driver's side. The service interval display can also be reset with the reset button as follows ⇒ page 16, fig. 18
:
•
Press the reset button with the ignition switched off and and hold it down.
•
Switch the ignition on, release the reset button. The text
Service
or SERVICE
NOW
appears in the display.
•
Turn the button for setting the clock to the right - as a result of this the display is
reset.
Caution
We recommend that you do not reset the
Service Interval Disp
lay yourself other-
wise this can result in the service interval display being incorrectly set, which may also result in problems with operation of your vehicle.
Note
•
Never reset the display between service intervals otherwise this may result in
incorrect readouts.•
information is retained in the Service Interval Display also after the battery of
the vehicle is disconnected.
•
it is necessary to re-code the Service Interval Display if a new instrument cluster
is installed during repair work. This work
is carried out by a specialist garage.
•
The data displayed is the same after rese
tting the display with flexible service
intervals (QG1) using the reset button as th
at for a vehicle with fixed service inter-
vals (QG2). We therefore recommend having the Service Interval Display reset only by a specialist garage which is familiar with the procedure for resetting the display with a vehicle system tester.•
Please refer to the brochure Service schedule for extensive information about
the service intervals.Digital clockA clock-set button is installed on the bottom left beside the speedom- eter for adjusting the clock
⇒
page 16, fig. 18
.
Set hours – Turn the reset button to the left. Setting minutes – Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons but only when the vehicle is stationary!Multi-functional indicator (onboard computer)*IntroductionThe multi-functional indicator appears in
the display of the revolutions counter or
in the information display depending on
the equipment fitte
d to your vehicle
⇒ page 23, fig. 23
.
A8
A7
s2g8.b.book Page 19 Tuesday, April 7, 2009 8:53 AM

Instruments and Indicator/Warning Lights
22
The display appears in litres/hour if the vehicle is stationary or driving at a low speed.Average fuel consumptionThe average fuel consumption since the memory was last erased is shown in the display in litres/100 km
⇒page 20. This information can help you to adapt your
style of driving to the fuel co
nsumption you wish to achieve.
If you wish to determine the average fuel
consumption over a cert
ain period of time
you must first erase the memory at the start of the new measurement using the button
⇒page 20, fig. 21
. A zero appears in the display for the first 300 m you
drive after erasing the memory. The indicated value will be updated every 5 seconds while you are driving.
Note
The amount of fuel consumed will not be indicated.RangeThe estimated range in kilometres is shown on the display. It indicates the distance you can still drive with your vehicle based on the present level of fuel in the tank for the same style of driving. The readout is shown in steps of 10 km. The fuel consumption for the last 50 km is
taken as a basis for calculating the range.
If you drive in a more economical manner from this moment on, the range will be increased accordingly. You first drive 50 km if the readout is reset (after disconnecting the battery) before a new readout for the range is displayed.Distance drivenThe distance driven since the memory was last erased appears in the display ⇒ page 20. If you wish to calculate the distance driven from a particular time of day
you must first erase the memory at this mo
ment in time by pressing the button
⇒ page 20, fig. 21
.
The maximum distance indicated in both sw
itch positions is 9 999 km. The indicator
is set back to null if th
is period is exceeded.
Average speedThe average speed since the memory was last erased is shown in the display in km/hour
⇒page 20. If you wish to determine
the average speed over a certain
period of time you must first erase the memory at the start of the new measure- ment using the button
⇒page 20, fig. 21
.
A zero appears in the display for the first 300 m you drive after erasing the memory.The indicated value will be updated every 5 seconds while you are driving.Driving timeThe driving time which has elapsed since the memory was last erased, appears in the display
⇒page 20. If you wish to calculate th
e driving time from a particular
time of day you must first erase the memory at this moment in time by pressing the button
⇒page 20, fig. 21
.
The maximum distance indi
cated in both memories is 99 hours and 59 minutes.
The indicator is set back to null
if this period is exceeded.
Warning against excessive speeds*An acoustic warning signal will sound
when the vehicle speed exceeds 120 kilome-
tres per hour. The acoustic warning signal
will switch off again when the vehicle
speed goes below this speed limit. This function is only vali
d for some export countries.
AB
AB
AB
AB
