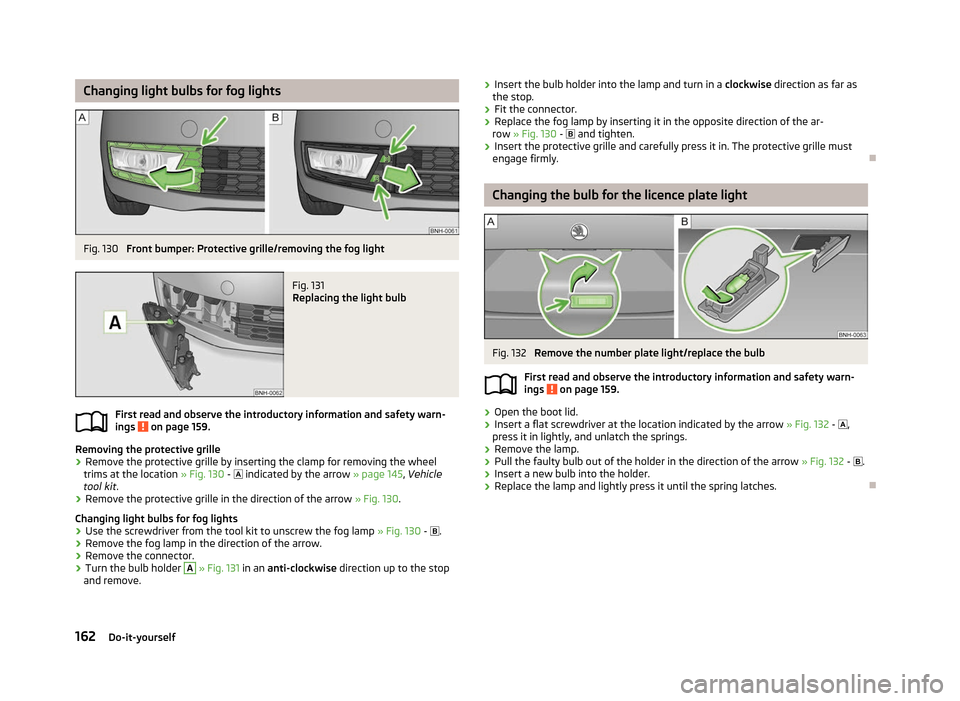

Changing light bulbs for fog lights
Fig. 130
Front bumper: Protective grille/removing the fog light Fig. 131
Replacing the light bulb
First read and observe the introductory information and safety warn-
ings on page 159.
Removing the protective grille
›
Remove the protective grille by inserting the clamp for removing the wheel
trims at the location » Fig. 130 -  indicated by the arrow » page 145, Vehicle
tool kit .
› Remove the protective grille in the direction of the arrow
» Fig. 130.
Changing light bulbs for fog lights
› Use the screwdriver from the tool kit to unscrew the fog lamp
» Fig. 130 -
.
› Remove the fog lamp in the direction of the arrow.
› Remove the connector.
› Turn the bulb holder A
» Fig. 131 in an anti-clockwise
direction up to the stop
and remove.
ä ›
Insert the bulb holder into the lamp and turn in a
clockwise direction as far as
the stop.
› Fit the connector.
› Replace the fog lamp by inserting it in the opposite direction of the ar-
row » Fig. 130 -  and tighten.
› Insert the protective grille and carefully press it in. The protective grille must
engage firmly. Ð Changing the bulb for the licence plate light
Fig. 132
Remove the number plate light/replace the bulb
First read and observe the introductory information and safety warn-
ings on page 159.
›
Open the boot lid.
› Insert a flat screwdriver at the location indicated by the arrow
» Fig. 132 - ,
press it in lightly, and unlatch the springs.
› Remove the lamp.
› Pull the faulty bulb out of the holder in the direction of the arrow
» Fig. 132 -  .
› Insert a new bulb into the holder.
› Replace the lamp and lightly press it until the spring latches. Ð
ä
162 Do-it-yourself

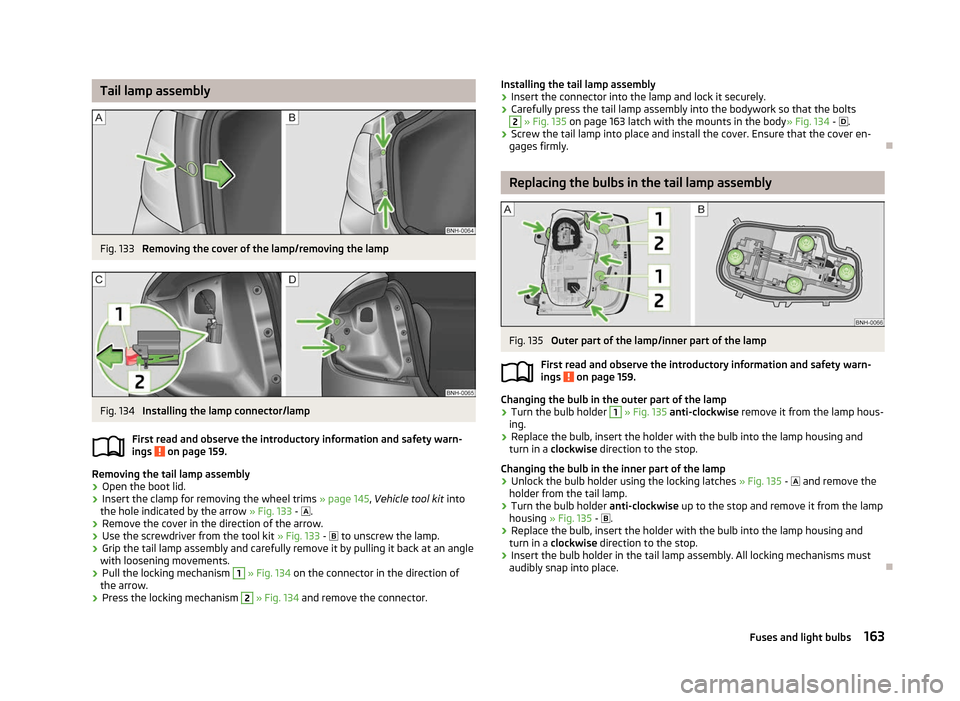

Tail lamp assembly
Fig. 133
Removing the cover of the lamp/removing the lamp Fig. 134
Installing the lamp connector/lamp
First read and observe the introductory information and safety warn-
ings on page 159.
Removing the tail lamp assembly
›
Open the boot lid.
› Insert the clamp for removing the wheel trims
» page 145, Vehicle tool kit into
the hole indicated by the arrow » Fig. 133 - .
› Remove the cover in the direction of the arrow.
› Use the screwdriver from the tool kit
» Fig. 133 -  to unscrew the lamp.
› Grip the tail lamp assembly and carefully remove it by pulling it back at an angle
with loosening movements.
› Pull the locking mechanism 1
» Fig. 134 on the connector in the direction of
the arrow.
› Press the locking mechanism 2
» Fig. 134 and remove the connector.
ä Installing the tail lamp assembly
› Insert the connector into the lamp and lock it securely.
› Carefully press the tail lamp assembly into the bodywork so that the bolts 2
» Fig. 135 on page 163 latch with the mounts in the body
» Fig. 134 - .
› Screw the tail lamp into place and install the cover. Ensure that the cover en-
gages firmly. Ð Replacing the bulbs in the tail lamp assembly
Fig. 135
Outer part of the lamp/inner part of the lamp
First read and observe the introductory information and safety warn-
ings on page 159.
Changing the bulb in the outer part of the lamp
›
Turn the bulb holder 1
» Fig. 135 anti-clockwise
remove it from the lamp hous-
ing.
› Replace the bulb, insert the holder with the bulb into the lamp housing and
turn in a clockwise direction to the stop.
Changing the bulb in the inner part of the lamp
› Unlock the bulb holder using the locking latches
» Fig. 135 -  and remove the
holder from the tail lamp.
› Turn the bulb holder
anti-clockwise up to the stop and remove it from the lamp
housing » Fig. 135 - .
› Replace the bulb, insert the holder with the bulb into the lamp housing and
turn in a clockwise direction to the stop.
› Insert the bulb holder in the tail lamp assembly. All locking mechanisms must
audibly snap into place. Ð
ä
163
Fuses and light bulbs

Technical data
Technical data
Introductory information
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a
ŠKODA Service Partner to determine which
engine your vehicle is equipped with.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand suspension strut dome. This number is al-
so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number is stamped into the engine block. ÐData on the vehicle sticker and the type plate
Fig. 136
Vehicle data sticker/type plate Vehicle data sticker
The vehicle data sticker » Fig. 136 is located on the floor of the boot and is also
stated in the service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code
Partial vehicle description
Operating weight (in

kg)
Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
Type plate
The type plate » Fig. 136 is located on the lower part of the column between the
front and rear doors on the driver's side.
The type plate lists the following weights:
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Operating weight
The specified operating weight is for orientation purposes only. This value repre-
sents the minimum operating weight without additional weight-increasing equip-
ment such as air conditioning system, spare wheel, or trailer hitch.
The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight » .
The payload consists of the following components:
› Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight
› Trailer drawbar load when towing a trailer (max. 50 kg).
£ 1
2
3
4
5
6
7
8
9
10
11
164
