headlamp SKODA RAPID 2012 1.G Owner's Manual

Using the system
Cockpit
Overview
Electrical power windows 32
Electric exterior mirror adjustment 42
Air outlet vents 60
Lever for the multifunction switch:
› Turn signal light, headlight and parking light, headlight flasher 36
› Speed regulating system 75
Steering wheel:
› With horn
› With driver’s front airbag 100
› With pushbuttons for radio, navigation system and mobile
phone 84
Instrument cluster: Instruments and warning lights 8
Lever for the multifunction switch:
› Multifunction display 11
› Windscreen wiper and wash system 40
Air outlet vents 60
Depending on equipment fitted:
› Radio
› Navigation system
Switch for hazard warning lights 37
Warning light for the deactivated front seat passenger airbag 103
Key-operated switch for the front seat passenger airbag 103
Storage compartment on the front passenger side 55
Front passenger airbag 100
Light switch and headlamp beam adjustment 34, 36
Bonnet release lever 128
Fuse box in the dashboard 157
Lever for adjusting the steering wheel 69
Ignition lock 70
Regulator for left seat heating 461
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 TCS switch 72
Central locking system 27
Depending on equipment fitted:
› Gearshift lever (manual gearbox) 74
› Selector lever (automatic gearbox) 80
Depending on equipment fitted:
› Cup holder 52
› Ashtray holder 53
Storage compartment 57
Switch for rear window heater 39
Regulator for right seat heating 46
Depending on equipment fitted:
› Operating controls for the heating 60
› Operating controls for the air conditioning system 62
› Operating controls for Climatronic 65
Note
The arrangement of the controls and switches and the location of some items on
right-hand drive models may differ from that shown in »
Fig. 1. The symbols on
the controls and switches are the same as for left-hand drive models. Ð 21
22
23
24
25
26
27
28
7
Cockpit

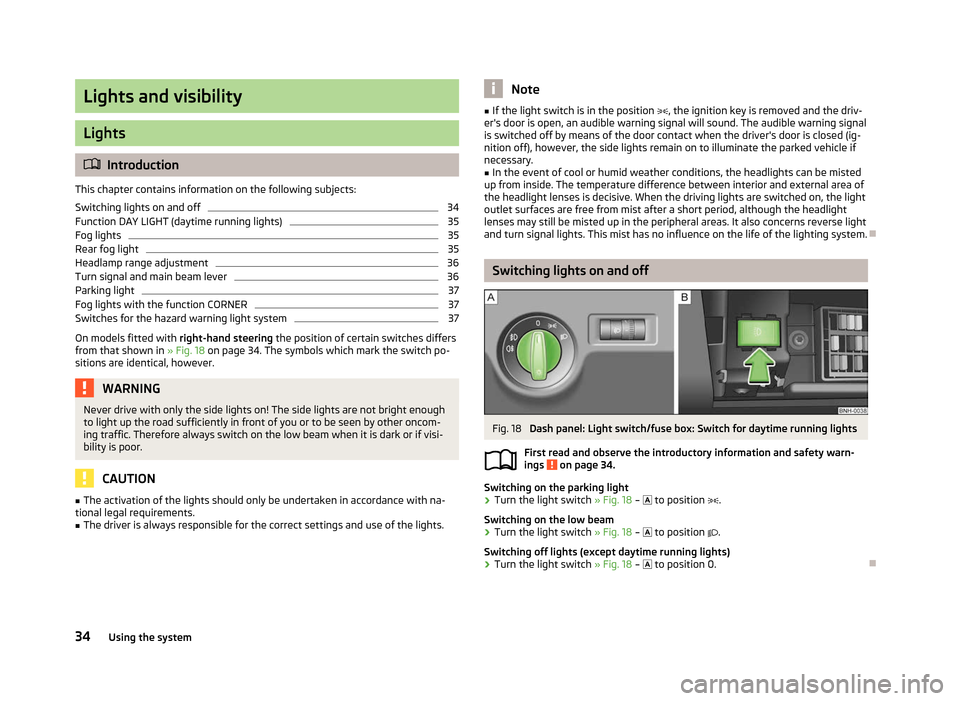

Lights and visibility
Lights
ä
Introduction
This chapter contains information on the following subjects:
Switching lights on and off 34
Function DAY LIGHT (daytime running lights) 35
Fog lights 35
Rear fog light 35
Headlamp range adjustment 36
Turn signal and main beam lever 36
Parking light 37
Fog lights with the function CORNER 37
Switches for the hazard warning light system 37
On models fitted with right-hand steering the position of certain switches differs
from that shown in » Fig. 18 on page 34. The symbols which mark the switch po-
sitions are identical, however. WARNING
Never drive with only the side lights on! The side lights are not bright enough
to light up the road sufficiently in front of you or to be seen by other oncom-
ing traffic. Therefore always switch on the low beam when it is dark or if visi-
bility is poor. CAUTION
■ The activation of the lights should only be undertaken in accordance with na-
tional legal requirements.
■ The driver is always responsible for the correct settings and use of the lights. Note
■ If the light switch is in the position , the ignition key is removed and the driv-
er's door is open, an audible warning signal will sound. The audible warning signal
is switched off by means of the door contact when the driver's door is closed (ig-
nition off), however, the side lights remain on to illuminate the parked vehicle if
necessary. ■ In the event of cool or humid weather conditions, the headlights can be misted
up from inside. The temperature difference between interior and external area of
the headlight lenses is decisive. When the driving lights are switched on, the light
outlet surfaces are free from mist after a short period, although the headlight
lenses may still be misted up in the peripheral areas. It also concerns reverse light
and turn signal lights. This mist has no influence on the life of the lighting system. Ð Switching lights on and off
Fig. 18
Dash panel: Light switch/fuse box: Switch for daytime running lights
First read and observe the introductory information and safety warn-
ings on page 34.
Switching on the parking light
›
Turn the light switch
» Fig. 18 –  to position .
Switching on the low beam
› Turn the light switch
» Fig. 18 –  to position .
Switching off lights (except daytime running lights)
› Turn the light switch
» Fig. 18 –  to position 0.Ð
ä
34 Using the system

Headlamp range adjustment
Fig. 20
Dash panel: Lights and visibility
First read and observe the introductory information and safety warn-
ings on page 34.
›
Turn the control dial
» Fig. 20 to the desired width of illumination.
Settings
The positions correspond approximately to the following car load. Front seats occupied, boot empty.
All seats occupied, boot empty.
All seats occupied, boot loaded.
Driver seat occupied, boot loaded. CAUTION
Always adjust the headlight range adjustment in such a way that:
■ it does not dazzle other road users, especially oncoming traffic;
■ and the range is sufficient for safe driving. Note
We recommend you adjust the headlight beam when the low beam is switched
on. Ð
ä -
1
2
3 Turn signal and main beam lever
Fig. 21
Turn signal and main beam lever
First read and observe the introductory information and safety warn-
ings on page 34.
The parking light and headlight flasher are also operated with the turn signal and
main beam lever.
Right  and left  turn signal light
› Push the lever
» Fig. 21 upwards A
or downwards B
.
› If you only wish to flash three times (the "convenience turn signal"), briefly
push the lever to the upper or lower pressure point and release again.
› Turn signal for changing lanes – to only flash briefly, move the lever up or down
to the pressure point and hold it in this position.
Main beam 
› Switch on the low beam » page 34
.
› Press the lever
» Fig. 21 in the direction of arrow C
.
› The main beam is switched off by pulling the lever into the initial position in the
direction of arrow D
.
Headlight flasher 
› Pull the lever
» Fig. 21 towards the steering wheel (spring-tensioned position)
in the direction of the arrow D
.
Parking light 
Description of the operation » page 37 CAUTION
Only use the main beam or the headlight flasher if other road users will not be
dazzled. £
ä
36 Using the system

Towing a trailer
Towing a trailer
Technical requirements
If your vehicle has already been factory-fitted with a towing device or is fitted
with a towing device from ŠKODA Original Accessories, then it meets all of the
technical requirements and national legal provisions for towing a trailer.
On vehicles with a towing device, the ball rod is detachable and is stowed togeth-
er with separate operating instructions in the spare wheel well or in the compart-
ment for the spare wheel within the boot » page 145, Vehicle tool kit .
Your vehicle is fitted with a 13-pin power socket for the electrical connection be-
tween the vehicle and trailer. If the trailer that is to be towed has a 7-pin connec-
tor, you can use a suitable adapter from
ŠKODA Original Accessories.
If a towing device is retrofitted, it must be completed in accordance with the
manufacturer's specifications. Note
If you have any questions, please contact a ŠKODA Service Partner. ÐLoading a trailer
Loading a trailer
The vehicle/trailer combination must be balanced, whereby the maximum permis-
sible drawbar load must be utilised. If the drawbar load is too low, it jeopardises
the performance of the vehicle/trailer combination.
Distribution of the load
Distribute the load in the trailer in such a way that heavy items are located as
close to the axle as possible. Secure the items from slipping.
The distribution of the weight is very poor if your vehicle is unladen and the trail-
er is laden. Maintain a particularly low speed if you cannot avoid driving with this
combination. Tyre pressure
Correct the tyre inflation pressure on your vehicle for a

“full load” » page 138 ,
Service life of tyres.
Trailer load
The permissible trailer load must not be exceeded under any circumstan-
ces » page 164 , Technical data .
The trailer loads specified apply only to altitudes up to 1 000 metres above mean
sea level. As the engine output drops at an increasing altitude due to the declin-
ing air pressure and therefore the climbing ability is also reduced, this means that
the maximum permissible towed weight must be reduced by 10 % for every fur-
ther increase of 1 000 m in height. The towed weight comprises the actual weight
of the (loaded) towing vehicle and the (loaded) trailer. Always drive particularly
carefully with the trailer.
The trailer and drawbar load information on the type plate of the towing device
are merely test data for the towing device The vehicle-specific values are detailed
in the vehicle documents. WARNING
■ If the maximum permissible axle and drawbar load and the maximum per-
missible total or towed weight of the vehicle and the trailer are exceeded this
can cause accidents and serious injuries.
■ Slipping loads can significantly affect the stability and safety of the vehicle/
trailer combination, causing accidents and serious injuries. Ð Towing a trailer
Exterior mirrors
You have to have additional exterior mirrors fitted if you are not able to see the
traffic behind the trailer with the standard rear-view mirrors. The national legal
requirements must be observed.
Headlights
The headlight settings must be checked before starting a journey with a coupled
trailer. If necessary, adjust the settings with the headlight beam adjust-
ment » page 36 , Headlamp range adjustment .
Driving speed
For safety reasons, do not drive faster than the maximum permissible speed indi-
cated on the trailer. £
115
Towing a trailer

No. Power consumer
29 Injection, coolant pump
30 Fuel pump, ignition system, cruise control 31 Lambda probe
32 High pressure fuel pump, pressure valve
33 Engine control unit
34 Engine control unit, vacuum pump
35 Switch illumination, number plate light, parking light, headlamp washer
system
36 Main beam 37 Rear fog light, DC-DC converter
38 Fog lights 39 Air blower for heating
40 Not assigned 41 Heated front seats
42 Rear window heater
43 Horn
44 Windscreen wipers 45 Boot lid lock, central locking system
46 Alarm 47 Cigarette lighter, power socket in the luggage compartment
48 ABS 49 Turn signal lights, brake lights50 DC-DC converter, radio 51 Electric windows (driver's window and rear left window)
52 Electric windows (front passenger's window and rear right)
53 Windscreen washer
54 START-STOP instrument cluster, steering wheel module, multi-function
steering wheel
55 Control unit for automatic gearbox
56 Headlight cleaning system 57 Low beam on the left
58 Low beam on the right Ð Fuses in the engine compartment
Fig. 123
Schematic representation of fuse box in engine compartment: Ver-
sion
1/version 2
First read and observe the introductory information and safety warn-
ings on page 156.
Fuse assignment in engine compartment
No. Power consumer
1 Generator
2 Not assigned
3 Vehicle interior (variant 1) » Fig. 123 Power supply for fuse block (variant
2) » Fig. 123
4 Electric auxiliary heater (variant 1) » Fig. 123 Vehicle interior (variant
2) » Fig. 123
5 Interior
6 Engine cooling fan, control unit for preheating unit 7 Electrohydraulic power steering
8 ABS 9 Radiator fan
10 Automatic gearbox 11 ABS
12 Central control unit
13 Electrical auxiliary heating system £ ä
158 Do-it-yourself

CAUTION
■ Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth, nap-
kin, or similar. ■ When removing and installing the tail light make sure that the paintwork of the
vehicle and the tail light are not damaged. Note
■ This Owner's Manual only describes the replacement of bulbs where it is possi-
ble to replace the bulbs on your own without any complications arising. Other
light bulbs should be changed by a
ŠKODA specialist garage.
■ We recommend that a box of replacement bulbs be always carried in the vehi-
cle. Replacement bulbs can be purchased from
ŠKODAOriginal Accessories.
■ We recommend that the headlight settings are checked by a ŠKODA specialist
garage after replacing a bulb in the main or low beam.
■ LED diodes should be changed by a specialist ŠKODA garage. ÐHeadlights
Fig. 126
Bulb arrangement: Halogen
headlight
First read and observe the introductory information and safety warn-
ings on page 159.
Bulb arrangement in the Halogen headlamp
Low beam
Main beam, separate daytime running lights, and parking light
Turn signal light (at the front) Ð
ä A
B
C Changing the bulb for the low beam
Fig. 127
Changing the bulb for the low
beam
First read and observe the introductory information and safety warn-
ings on page 159.
›
Remove the rubber cover A
» Fig. 126 on page 160

» page 160.
› Remove the connector with the bulb by pulling it back in the direction of the
arrow with loosening movements »
Fig. 127.
› Remove the connector.
› Insert a new light bulb in such a way that the fixing lugs of the bulb fit in the
recesses of the reflector.
› Fit the connector.
› Insert the rubber cover. Ð
ä
160 Do-it-yourself

Changing the bulb for main beam, separate daytime running
lights, and parking light
Fig. 128
Changing the bulb for main beam, separate daytime running lights,
and parking light
First read and observe the introductory information and safety warn-
ings on page 159.
Removing and replacing the bulb for main beam and separate daytime running
lights
›
Remove the rubber cover B
» Fig. 126 on page 160
» page 160.
› Turn the bulb holder A
» Fig. 128 anti-clockwise
up to the stop and remove.
› Replace the bulb, insert the bulb holder with the new bulb and turn in a
clock-
wise direction to the stop.
› Insert the rubber cover.
Removing and replacing the bulb for the parking light
› Remove the rubber cover B
» Fig. 126 on page 160

» page 160.
› Remove the socket C
» Fig. 128
together with the bulb with loosening move-
ments.
› Remove the faulty bulb from the bulb holder C
in the direction of the arrow.
› Insert a new bulb in the bulb holder up to the stop.
› Replace the bulb holder in the headlamp with the bulb.
› Insert the rubber cover. Ð
ä Changing the bulb for the front turn signal light
Fig. 129
Changing the bulb for the turn
signal light
First read and observe the introductory information and safety warn-
ings on page 159.
›
Turn the socket with the bulb
» Fig. 129 anti-clockwise up to the stop and re-
move.
› Replace the bulb, insert the socket with the new bulb and turn
clockwise up to
the stop. Ð
ä
161
Fuses and light bulbs

F
Fire extinguisher 145
First-aid kit 145
Floor mats 74
Front airbag 100
Front seats 44
Fuel 124
Diesel 126
Fuel gauge 9
refer to Fuel 124
Refuelling 124
Unleaded petrol 125
Fuel consumption 110
Fuses Assignment 156
Replacing 156
G
Gear Recommended gear 11
General view Cockpit 7
Glow plug system – indicator light 21
GSM 84
H
Handbrake 72
HBA 72
Head airbag 102
Headlight cleaning system Headlight cleaning system 41
Headlights Driving abroad 113
Headlight cleaning system 41
Head restraint 46Heating 60
Defrosting windows 61
Exterior mirror 42
Rear window 39
Recirculated air mode 61
Seats 46
Heating rear window 39
HHC 72
Horn 7
I
Ignition 70
Ignition lock 70
Immobiliser 69
Information display see MAXI DOT 14
Instrument cluster 8
see Instrument cluster 8
Interior monitor 29
ISOFIX 107
J
Jacking points Raise vehicle 148
Jump-starting 152
L
Lever Main beam 36
Turn signal 36
Light Cockpit 38
Fog lights 35
Fog lights with the function CORNER 37
Hazard warning light system 37
Headlight flasher 36
Main beam 36
Parking light 34Rear fog light 35
Replacing bulbs 159
Turn signal 36
Lights Daytime running lights 35
Headlamp range adjustment 36
Low beam 34
Parking light 37
Parking light on both sides 37
Switching lights on and off 34
Warning lights 16
Loads 164
Lock Central locking system 27
Locking Emergency locking 30
Remote control 28
Locking and unlocking from the inside 27
M
MAXI DOT 14
Main menu 14
Settings 15
Maximum speed 167
MDI 90
Mirror Exterior mirror 42
Make-up 39
Manual dimming interior mirror 42
Mobile phone 84
Connecting to the hands-free system 86
Multifunction display Functions 11
Memory 12
Operation 12
Multimedia 89
172 Index

O
Oil refer to Engine oil 129
Onboard computer see Multifunction display 11
Operation in winter De-icing windows 120
Diesel fuel 126
Vehicle battery 135
Outside temperature 13
Overview Engine compartment 128
Warning lights 16
P
Paint see Paint damage 119
Paint damage 119
Parking Parking aid 74
Parking ticket holder 58
Passive Safety 91
Periodic wiping 40
Petrol refer to Fuel 125
Polishing the paintwork refer to Taking care of your vehicle 119
Power steering 69
Preservation refer to Taking care of your vehicle 119
R
Radiator fan 131
Radio reception Aerial 120
Functional fault 120
Raise vehicle 148Rear mirror
Exterior mirror 42
Manual dimming interior mirror 42
Recirculated air mode Manual air conditioning system 64
Recommended gear 11
Refuelling 124
Fuel 124
Regulation Headlamp range 36
Remote control 27
Synchronisation process 28
Remote control key Replacing the battery 24
Replacement of parts 144
Replacing bulbs 159
Fuses 156
Vehicle battery 136
Wiper blades 41, 42
Replenishing Coolant 131
Engine oil 129
Windscreen washer fluid 132
Roof luggage rack Attachment points 52
Roof rack system Roof load 52
Running in Brake pads 109
Engine 109
The first 1 500 km 109
Tyres 109
S
Safe securing system 26
Safety 91
Child safety 105
Child safety seats 105
Head restraints 46ISOFIX 107
TOP TETHER 108
Save electrical energy 110
Seat Adjusting 45
Seat belt Warning light 18
Seat belt height adjuster 98
Seat belts 95
Cleaning 123
fastening and unfastening 97
Height adjustment 98
Seats folding forward 47
Head restraints 46
Heating 46
Selector lever see selector lever positions 80
Selector lever positions 80
Service display 10
Setting Manual air conditioning system 64
Manual dimming interior mirror 42
Steering wheel 69
Setting temperature Heating 60
Setting the clock Clock 11
Shifting Diving economically 110
Gearshift lever 74
Side airbag 101
Snow chains 143
Spare wheel 140
Speedometer 9
START/STOP Function 77
Starting engine 70
Jump-starting 152
173
Index
