SKODA ROOMSTER 2007 1.G Owner's Manual

Fuses and light bulbs210
Replaces fuses at the battery
– Open the positive terminal cover (+) ⇒fig. 181.
– Press onto the interlocks of the fuse covers ⇒fig. 182 and open
the covers.
– Press together the interlocks of th e fuse cover simultaneously and
push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating
⇒ page 210, “Fuse assignment at battery”.
– Defect fuses can be detected by th eir melted metal strips. Replace the
defect fuse by a new fuse of the same ampere number.
Caution
•Never attempt to “repair” fuses and also do not replace them with a fuse of a higher amperage - risk of fire! This may also cause damage at another part of the electrical system.
•Have the electrical system checked as quickly as possible by a specialist garage if a newly inserted fuse blows again after a short time.
Note
•We recommend that you have these fuse s replaced by a specialist garage.
•Some vehicles are only fitted with the cover ⇒fig. 182.
Fuse assignment at battery
Certain electrical components are only standard on certain vehicle model versions or only suppliable as optional equipment for certain models.
Fig. 181 The battery: Opening of the positive terminal cover.
Fig. 182 The battery: fuse cover
AA
AB
AB
Fig. 183 Schematic representation of fuse assignment at battery
NKO A05R 20 MR08.book Page 210 Wednesday, March 28, 2007 9:42 AM

Fuses and light bulbs211
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Bulbs
Replacing bulbs
The relevant lamp must always be switched off before a light bulb is replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest amount of dirt reduces the working life of the light bu lb). Use a clean cloth, serviette or some- thing similar.
Defect light bulbs should only be replaced with light bulbs of the same type. The designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something wh ich you can do yourself, but requires to be done by a specialist. Other parts of the vehicle must be removed in order to change the light bulbs. This applies, in particular, to bulbs which can only be reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a Škoda Service Partner or, in exceptional cases, by ca lling on other professional assistance.
Please note that the engine co mpartment is a hazardous area ⇒page 174, “Working in the engine compartment”.
We recommend that you carry the set of light bulbs with you which was delivered in your vehicle. Replacement light bulbs 8) are available at a Škoda Service Partner.
The set of light bulbs can be stowed in the locable box in the spare wheel.
Overview of bulbs
No.Power consumerAmperes
1Dynamo175
2Interior80
3Electrical auxiliary heating system60
4ABS or TCS or ESP40
5Electrohydraulic power steering50
6Glow plugs50
7ABS or TCS or ESP25
8The radiator fan30
9The air conditioning system5
10The radiator fan40
11Central control unit5
12Automatic gearbox / electrical auxiliary heating system5/30
8)Replacement light bulbs are, on the other hand, part of the basic equipping of the vehicle in some countries.
Front headlightReflectorModule
Low beam and main beamH4H7
Parking lightsW5W
Tu r n s i g n a l sPY21W
Fog lightsHB4
Fog lights with turning lightH8
Rear light unitBulb
Reversing lightP21W
Tu r n s i g n a l sPY21W
Brake lightsP21W
Fog lightsP21W
Parking lights2 x W5W
NKO A05R 20 MR08.book Page 211 Wednesday, March 28, 2007 9:42 AM

Fuses and light bulbs212
WARNING
•Bulbs H7 and H4 are pressurised and may burst when changing the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when changing a light bulb.
Note
This Owner's Manual only describes the repl acement of bulbs where it is assumed that no major complications will arise. Ot her light bulbs should be changed by your specialist garage.
Front headlight
– Open the bonnet.
– For a vehicle with petrol engine remove the activated charcoal filter
system before replacing the bulb in the right front headlight
⇒ fig. 185.
Positions of the light bulbs in the front headlight ⇒fig. 184.
- low beam and main beam
- parking lights
- Turn signal light (at the front)
OthersBulb
Side turn signal lightsWY5W
Licence plate lightC5W
3. Brake lightLED
Interior lighting front / rearC10W
Reading lightsW5W
Luggage compartment lightW5W
Storage compartment light - front passen- ger sideW5WFig. 184 Front headlight: Installing the light bulbs
Fig. 185 Removing the activated charcoal filter system
AA
AB
AC
NKO A05R 20 MR08.book Page 212 Wednesday, March 28, 2007 9:42 AM

Fuses and light bulbs213
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Switching on the low beam and main beam
– Open the bonnet.
– Remove the protective cap ⇒page 212, fig. 184.
– For headlights with module (halogen lamp H7) ⇒fig. 186 turn the
connector with the halogen lamp to the left up to the stop and
remove.
– For headlights with reflector (halogen lamp H4) pull off the connector
from the lamp, release the sprung wi re clamp and pull out the halogen
lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new
halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the reflector
(with the fixing lugs in the recesses), secure with the sprung wire
clamp, position the protective cap and mount the connector.
– We recommend that you have the headlight setting checked by a
Skoda Service Partner after replacing the light bulb.
Turn signal light (at the front)
– Open the bonnet.
– Turn the lamp holder to the left ⇒page 212, fig. 184 and remove
the lamp holder with the light bulb.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the
lamp holder by turning it to the right until it locks in place.
Parking light at the front
– Open the bonnet.
– Remove the protective cap ⇒page 212, fig. 184.
– Grasp the light bulb holder an d pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the
headlight.
Fog lights
Fig. 186 Removing the light bulb for the low beam and main beam light
AA
AC
AB
Fig. 187 Structure of the light bulb of the fog light
NKO A05R 20 MR08.book Page 213 Wednesday, March 28, 2007 9:42 AM

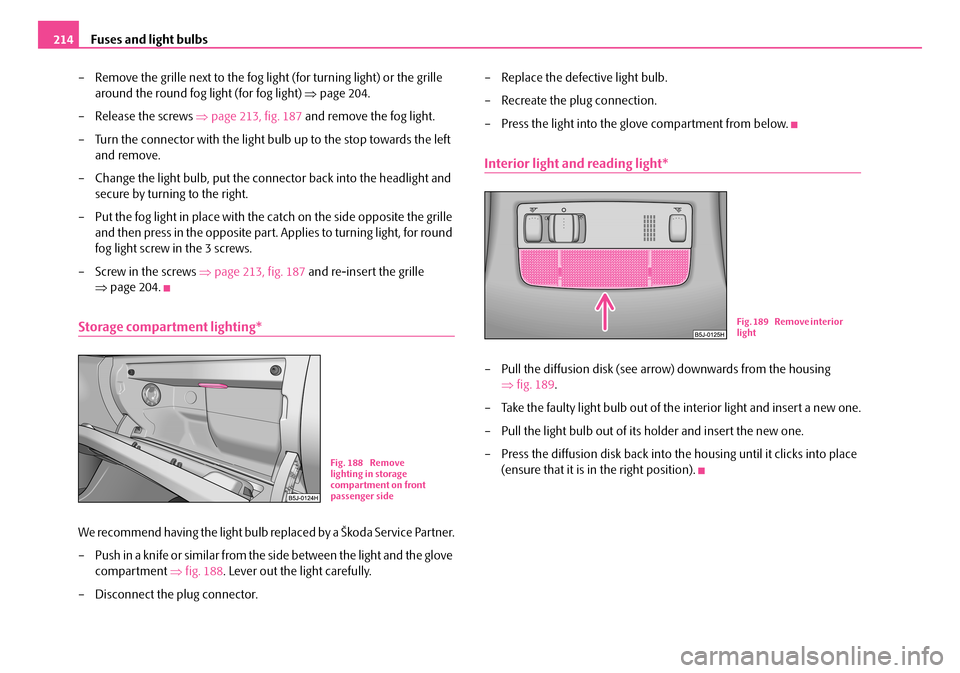

Fuses and light bulbs214
– Remove the grille next to the fog ligh t (for turning light) or the grille
around the round fog light (for fog light) ⇒page 204.
– Release the screws ⇒page 213, fig. 187 and remove the fog light.
– Turn the connector with the light bulb up to the stop towards the left
and remove.
– Change the light bulb, put the connector back into the headlight and
secure by turning to the right.
– Put the fog light in place with the ca tch on the side opposite the grille
and then press in the opposite part. Applies to turning light, for round
fog light screw in the 3 screws.
– Screw in the screws ⇒page 213, fig. 187 and re-insert the grille
⇒ page 204.
Storage compartment lighting*
We recommend having the light bulb replaced by a Škoda Service Partner.
– Push in a knife or similar from the side between the light and the glove
compartment ⇒fig. 188. Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
– Recreate the plug connection.
– Press the light into the glove compartment from below.
Interior light and reading light*
– Pull the diffusion disk (see arrow) downwards from the housing
⇒ fig. 189.
– Take the faulty light bulb out of the interior light and insert a new one.
– Pull the light bulb out of its holder and insert the new one.
– Press the diffusion disk back into the housing until it clicks into place
(ensure that it is in the right position).Fig. 188 Remove lighting in storage compartment on front passenger side
Fig. 189 Remove interior light
NKO A05R 20 MR08.book Page 214 Wednesday, March 28, 2007 9:42 AM

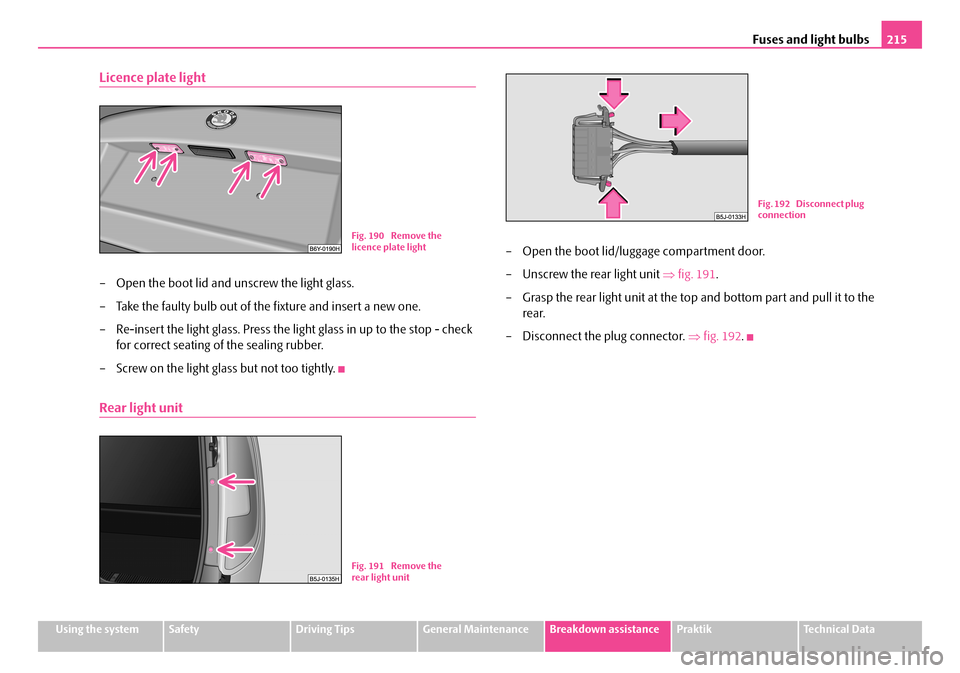

Fuses and light bulbs215
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Licence plate light
– Open the boot lid and unscrew the light glass.
– Take the faulty bulb out of the fixture and insert a new one.
– Re-insert the light glass. Press the li ght glass in up to the stop - check
for correct seating of the sealing rubber.
– Screw on the light glass but not too tightly.
Rear light unit
– Open the boot lid/luggage compartment door.
– Unscrew the rear light unit ⇒fig. 191.
– Grasp the rear light unit at the top and bottom part and pull it to the
rear.
– Disconnect the plug connector. ⇒fig. 192.
Fig. 190 Remove the licence plate light
Fig. 191 Remove the rear light unit
Fig. 192 Disconnect plug connection
NKO A05R 20 MR08.book Page 215 Wednesday, March 28, 2007 9:42 AM

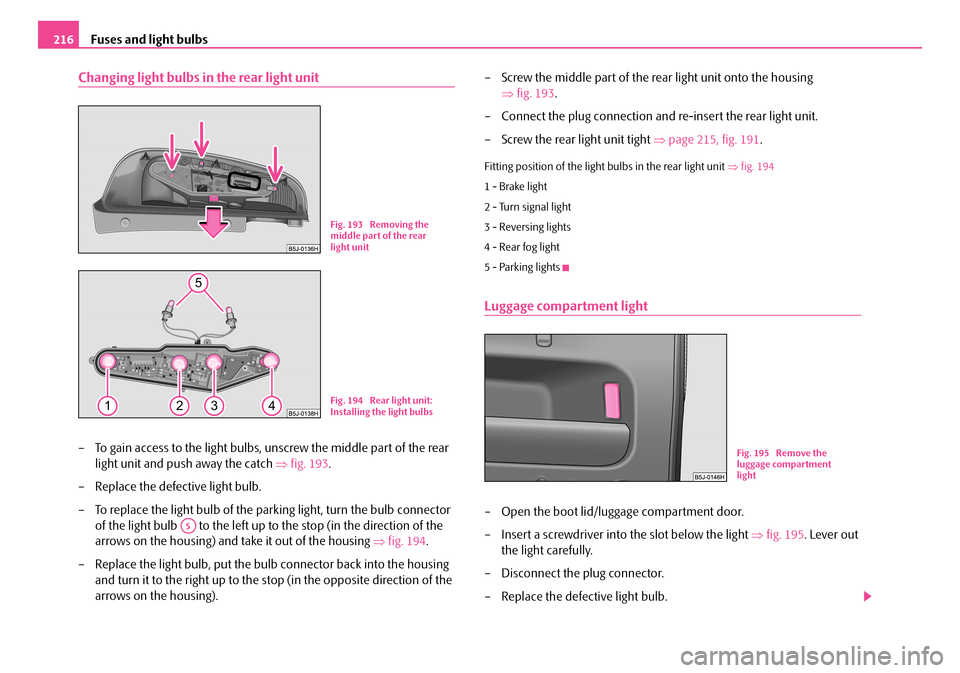

Fuses and light bulbs216
Changing light bulbs in the rear light unit
– To gain access to the light bulbs, unscrew the middle part of the rear
light unit and push away the catch ⇒fig. 193.
– Replace the defective light bulb.
– To replace the light bulb of the parking light, turn the bulb connector
of the light bulb to the left up to the stop (in the direction of the
arrows on the housing) and take it out of the housing ⇒fig. 194.
– Replace the light bulb, put the bulb connector back into the housing
and turn it to the right up to the stop (in the opposite direction of the
arrows on the housing).
– Screw the middle part of the rear light unit onto the housing
⇒ fig. 193.
– Connect the plug connection an d re-insert the rear light unit.
– Screw the rear light unit tight ⇒page 215, fig. 191.
Fitting position of the light bulbs in the rear light unit ⇒fig. 194
1 - Brake light
2 - Turn signal light
3 - Reversing lights
4 - Rear fog light
5 - Parking lights
Luggage compartment light
– Open the boot lid/luggage compartment door.
– Insert a screwdriver into the slot below the light ⇒fig. 195. Lever out
the light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
Fig. 193 Removing the middle part of the rear light unit
Fig. 194 Rear light unit: Installing the light bulbs
A5
Fig. 195 Remove the luggage compartment light
NKO A05R 20 MR08.book Page 216 Wednesday, March 28, 2007 9:42 AM

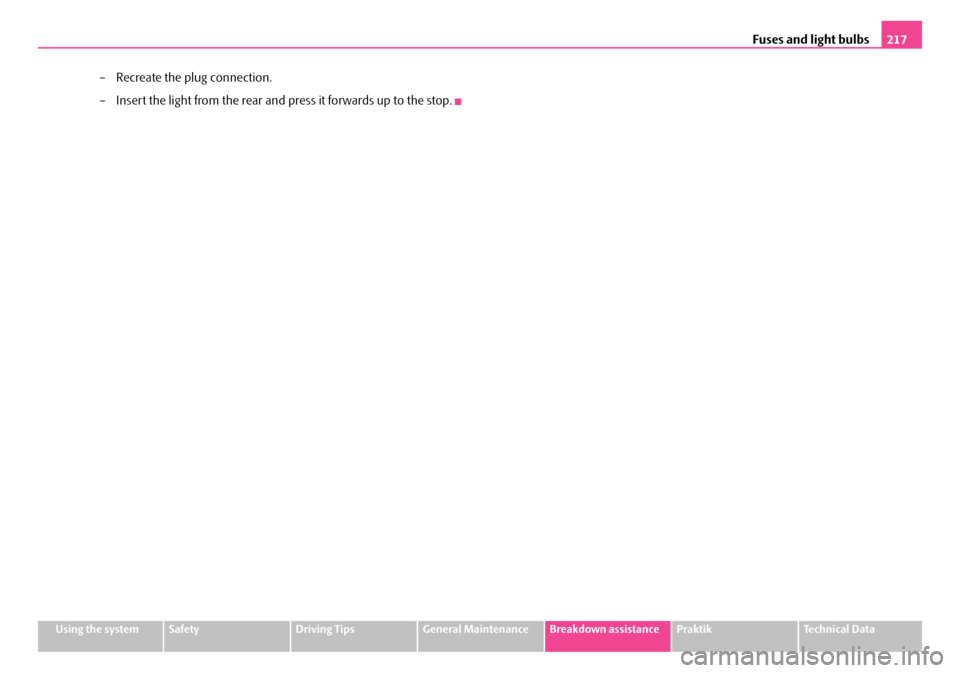

Fuses and light bulbs217
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
NKO A05R 20 MR08.book Page 217 Wednesday, March 28, 2007 9:42 AM

Fuses and light bulbs218
NKO A05R 20 MR08.book Page 218 Wednesday, March 28, 2007 9:42 AM

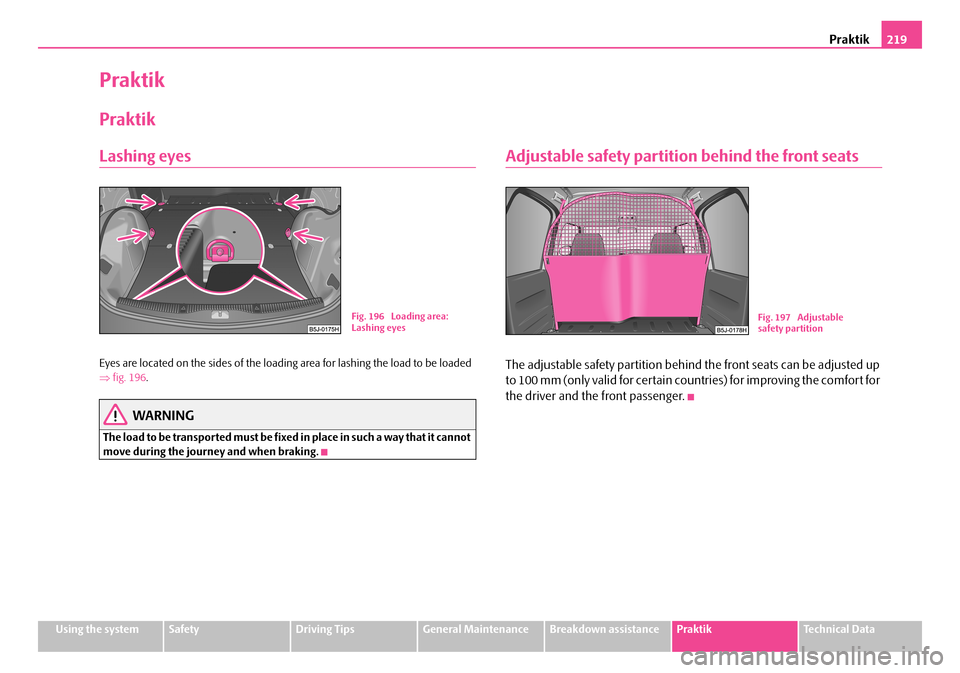

Praktik219
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Praktik
Praktik
Lashing eyes
Eyes are located on the sides of the loading area for lashing the load to be loaded ⇒ fig. 196.
WARNING
The load to be transpor ted must be fixed in place in such a way that it cannot move during the journey and when braking.
Adjustable safety partitio n behind the front seats
The adjustable safety partition behind the front seats can be adjusted up
to 100 mm (only valid for certain countries) for improving the comfort for
the driver and the front passenger.
Fig. 196 Loading area: Lashing eyesFig. 197 Adjustable safety partition
NKO A05R 20 MR08.book Page 219 Wednesday, March 28, 2007 9:42 AM
