SKODA ROOMSTER 2007 1.G Owner's Manual

Praktik220

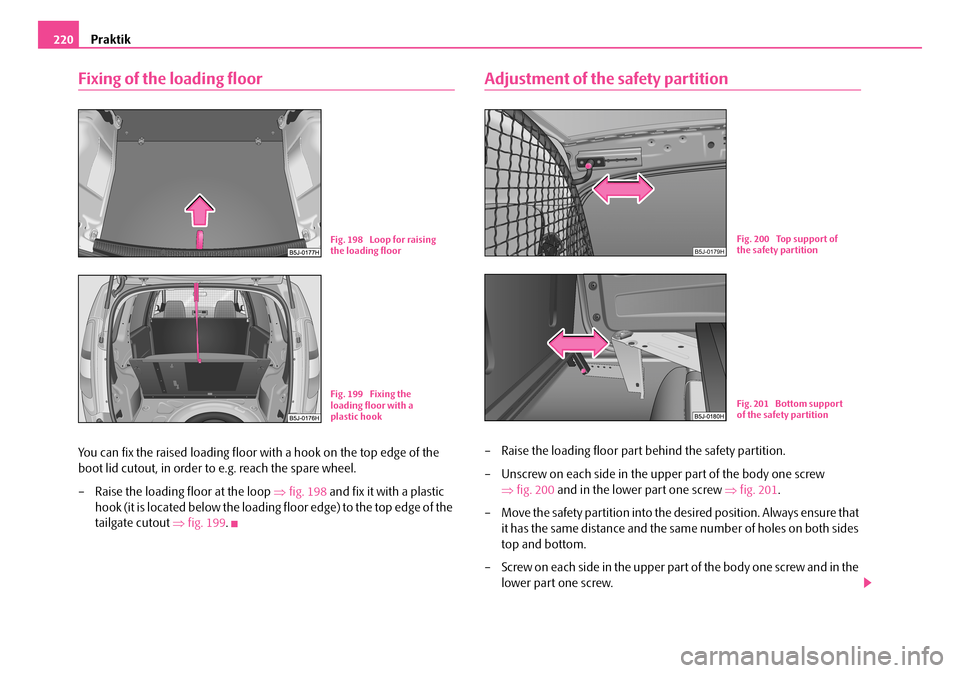

Fixing of the loading floor
You can fix the raised loading floor with a hook on the top edge of the
boot lid cutout, in order to e.g. reach the spare wheel.
– Raise the loading floor at the loop ⇒fig. 198 and fix it with a plastic
hook (it is located below the loading floor edge) to the top edge of the
tailgate cutout ⇒fig. 199.
Adjustment of the safety partition
– Raise the loading floor part behind the safety partition.
– Unscrew on each side in the upper part of the body one screw
⇒ fig. 200 and in the lower part one screw ⇒fig. 201.
– Move the safety partition into the de sired position. Always ensure that
it has the same distance and the same number of holes on both sides
top and bottom.
– Screw on each side in the upper part of the body one screw and in the
lower part one screw.
Fig. 198 Loop for raising the loading floor
Fig. 199 Fixing the loading floor with a plastic hook
Fig. 200 Top support of the safety partition
Fig. 201 Bottom support of the safety partition
NKO A05R 20 MR08.book Page 220 Wednesday, March 28, 2007 9:42 AM

Praktik221
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

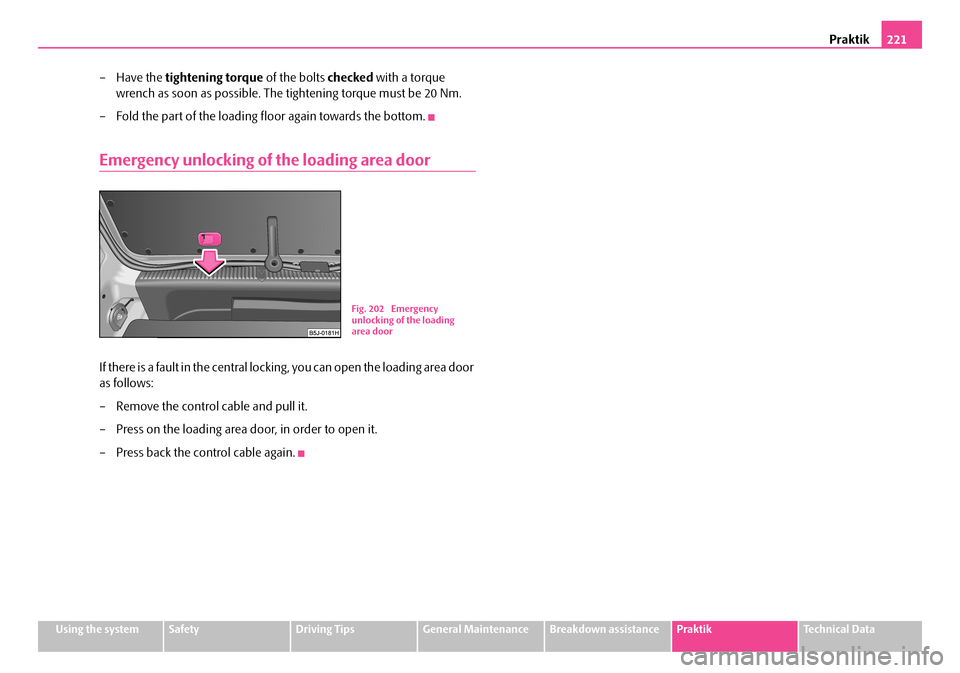

–Have the tightening torque of the bolts checked with a torque
wrench as soon as possible. The tightening torque must be 20 Nm.
– Fold the part of the loading floor again towards the bottom.
Emergency unlocking of the loading area door
If there is a fault in the central locking, you can open the loading area door
as follows:
– Remove the control cable and pull it.
– Press on the loading area door, in order to open it.
– Press back the control cable again.
Fig. 202 Emergency unlocking of the loading area door
NKO A05R 20 MR08.book Page 221 Wednesday, March 28, 2007 9:42 AM

Praktik222
NKO A05R 20 MR08.book Page 222 Wednesday, March 28, 2007 9:42 AM

Technical Data223
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

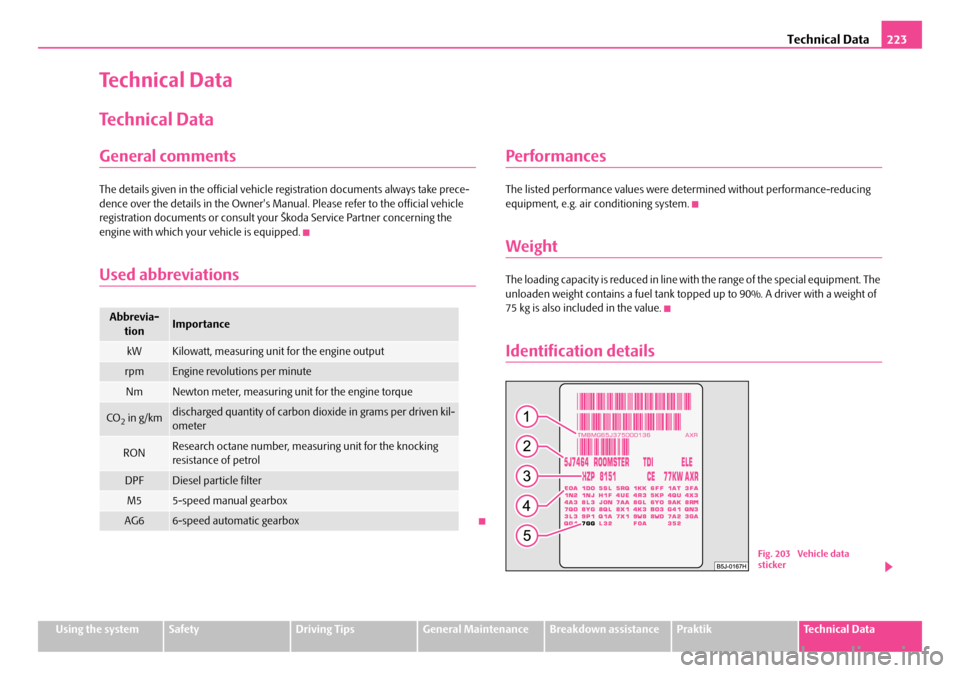

Technical Data
Technical Data
General comments
The details given in the official vehicle registration documents always take prece- dence over the details in th e Owner's Manual. Please refer to the official vehicle registration documents or consult your Škoda Service Partner concerning the engine with which your vehicle is equipped.
Used abbreviations
Performances
The listed performance values were determined without performance-reducing equipment, e.g. air conditioning system.
Weight
The loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of 75 kg is also included in the value.
Identification details
Abbrevia- tionImportance
kWKilowatt, measuring unit for the engine output
rpmEngine revolutions per minute
NmNewton meter, measuring unit for the engine torque
CO2 in g/kmdischarged quantity of carbon dioxide in grams per driven kil- ometer
RONResearch octane number, meas uring unit for the knocking resistance of petrol
DPFDiesel particle filter
M55-speed manual gearbox
AG66-speed automatic gearbox
Fig. 203 Vehicle data sticker
NKO A05R 20 MR08.book Page 223 Wednesday, March 28, 2007 9:42 AM

Technical Data224

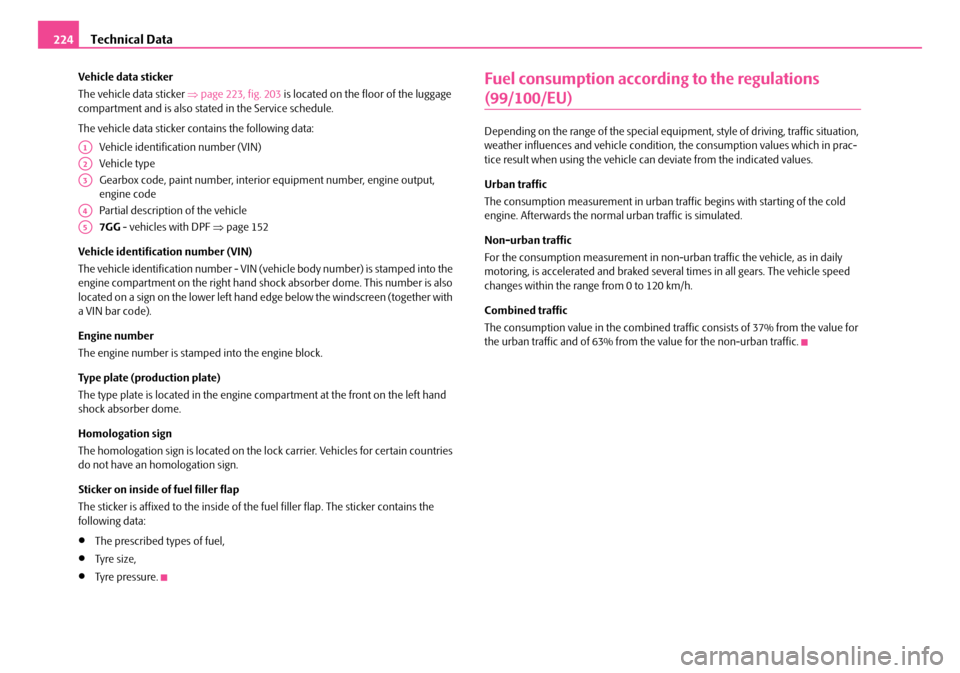

Vehicle data sticker
The vehicle data sticker ⇒page 223, fig. 203 is located on the floor of the luggage compartment and is also stated in the Service schedule.
The vehicle data sticker co ntains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output, engine code
Partial description of the vehicle
7GG - vehicles with DPF ⇒page 152
Vehicle identification number (VIN)
The vehicle identification num ber - VIN (vehicle body number) is stamped into the engine compartment on the right hand shoc k absorber dome. This number is also located on a sign on the lower left hand edge below the windscreen (together with a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Type plate (production plate)
The type plate is located in the engine co mpartment at the front on the left hand shock absorber dome.
Homologation sign
The homologation sign is located on the lo ck carrier. Vehicles for certain countries do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. The sticker contains the following data:
•The prescribed types of fuel,
•Tyre si z e,
•Tyre pressure.
Fuel consumption according to the regulations
(99/100/EU)
Depending on the range of the special equipment, style of driving, traffic situation, weather influences and vehi cle condition, the consumption values which in prac- tice result when using the vehicle ca n deviate from the indicated values.
Urban traffic
The consumption measurement in urban traf fic begins with starting of the cold engine. Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-ur ban traffic the vehicle, as in daily motoring, is accelerated and braked several times in all gears. The vehicle speed changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traf fic consists of 37% from the value for the urban traffic and of 63% from the value for the non-urban traffic.
A1
A2
A3
A4
A5
NKO A05R 20 MR08.book Page 224 Wednesday, March 28, 2007 9:42 AM

Technical Data225
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

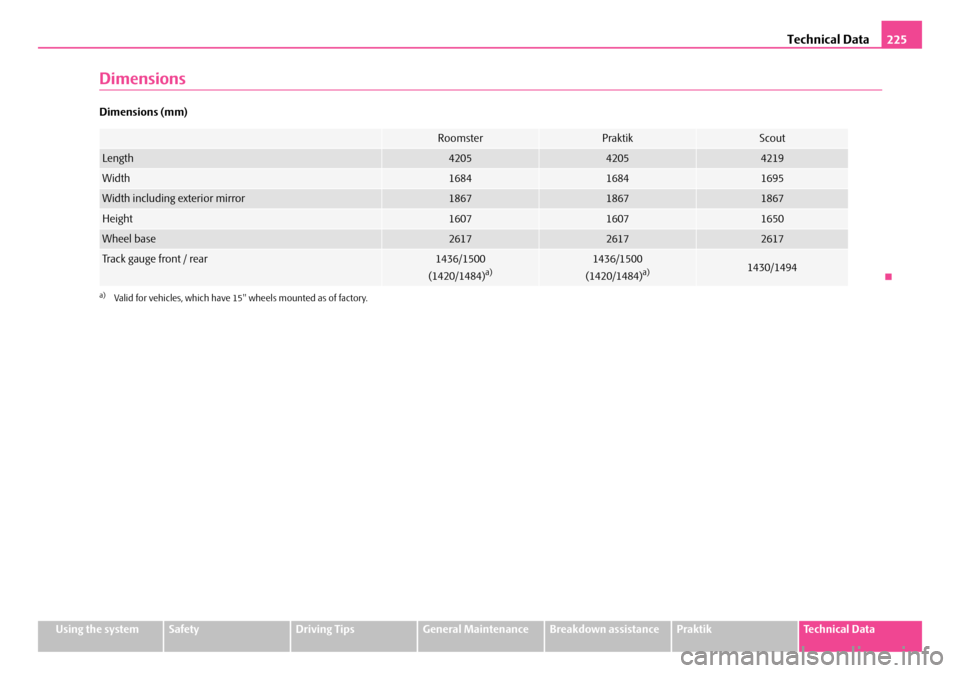

Dimensions
Dimensions (mm)
RoomsterPraktikScout
Length420542054219
Width168416841695
Width including exterior mirror186718671867
Height160716071650
Wheel base261726172617
Tr a c k g a u g e f r o n t / r e a r1436/1500
(1420/1484)a)
a)Valid for vehicles, which have 15 '' wheels mounted as of factory.
1436/1500
(1420/1484)a)1430/1494
NKO A05R 20 MR08.book Page 225 Wednesday, March 28, 2007 9:42 AM

Technical Data226

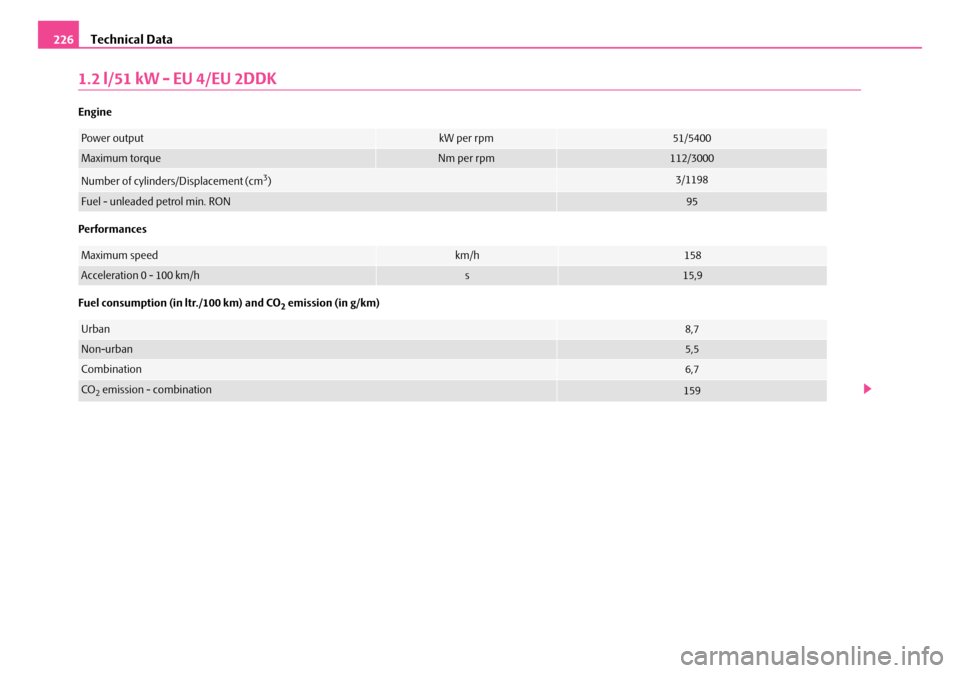

1.2 l/51 kW - EU 4/EU 2DDK
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm51/5400
Maximum torqueNm per rpm112/3000
Number of cylinders/Displacement (cm3)3/1198
Fuel - unleaded petrol min. RON95
Maximum speedkm/h158
Acceleration 0 - 100 km/hs15,9
Urban8,7
Non-urban5,5
Combination6,7
CO2 emission - combination159
NKO A05R 20 MR08.book Page 226 Wednesday, March 28, 2007 9:42 AM

Technical Data227
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

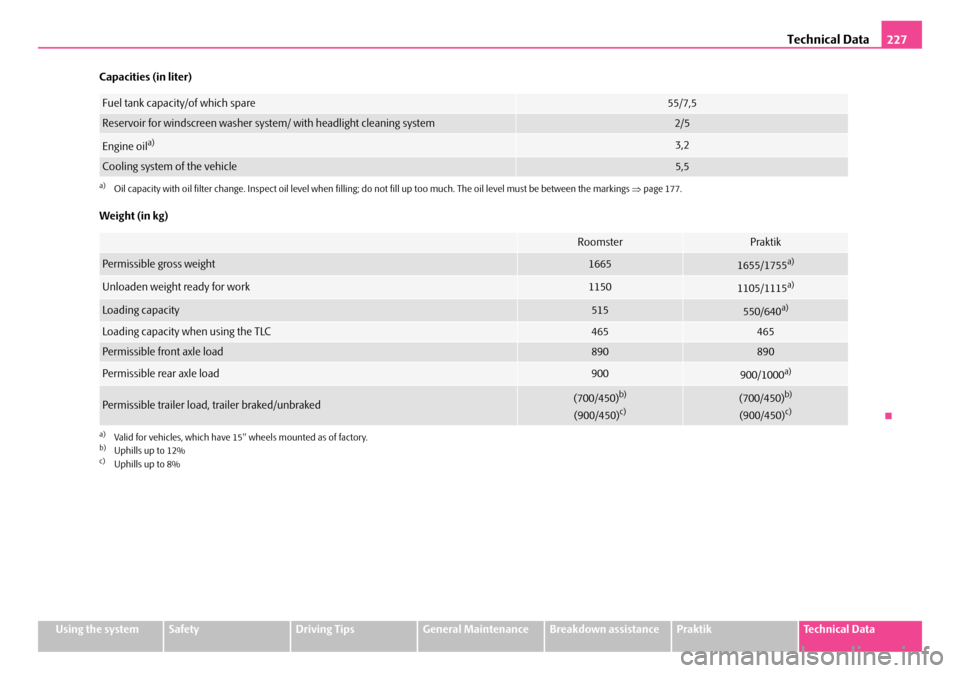

Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7,5
Reservoir for windscreen washer system/ with headlight cleaning system2/5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 177.
3,2
Cooling system of the vehicle5,5
RoomsterPraktik
Permissible gross weight16651655/1755a)
a)Valid for vehicles, which have 15'' wheels mounted as of factory.
Unloaden weight ready for work11501105/1115a)
Loading capacity515550/640a)
Loading capacity when using the TLC465465
Permissible front axle load890890
Permissible rear axle load900900/1000a)
Permissible trailer load, trailer braked/unbraked(700/450)b)
(900/450)c)
b)Uphills up to 12%c)Uphills up to 8%
(700/450)b)
(900/450)c)
NKO A05R 20 MR08.book Page 227 Wednesday, March 28, 2007 9:42 AM

Technical Data228

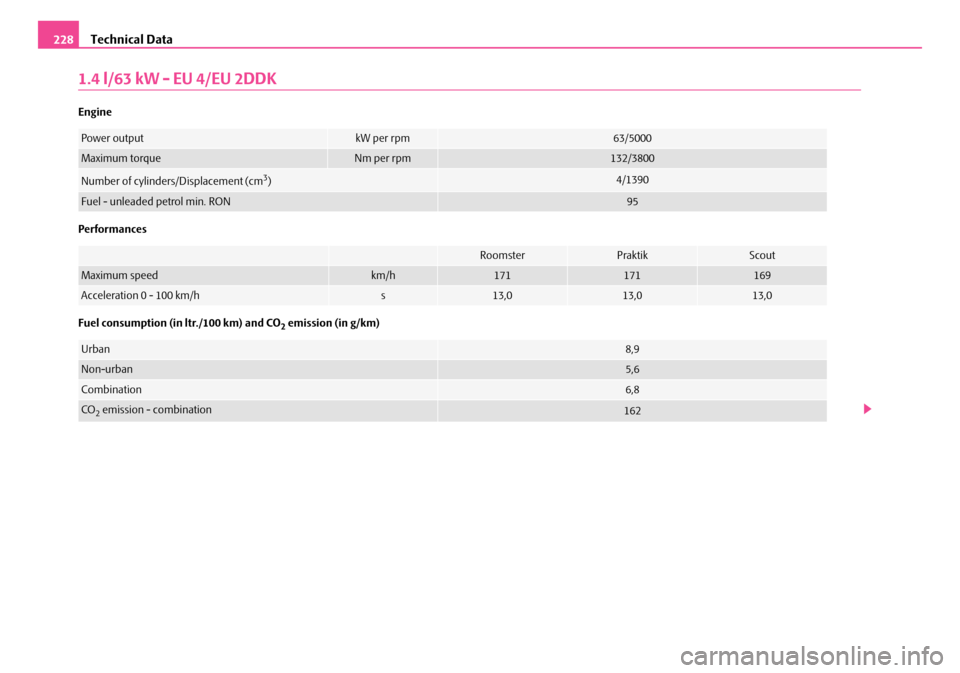

1.4 l/63 kW - EU 4/EU 2DDK
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm63/5000
Maximum torqueNm per rpm132/3800
Number of cylinders/Displacement (cm3)4/1390
Fuel - unleaded petrol min. RON95
RoomsterPraktikScout
Maximum speedkm/h171171169
Acceleration 0 - 100 km/hs13,013,013,0
Urban8,9
Non-urban5,6
Combination6,8
CO2 emission - combination162
NKO A05R 20 MR08.book Page 228 Wednesday, March 28, 2007 9:42 AM

Technical Data229
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data

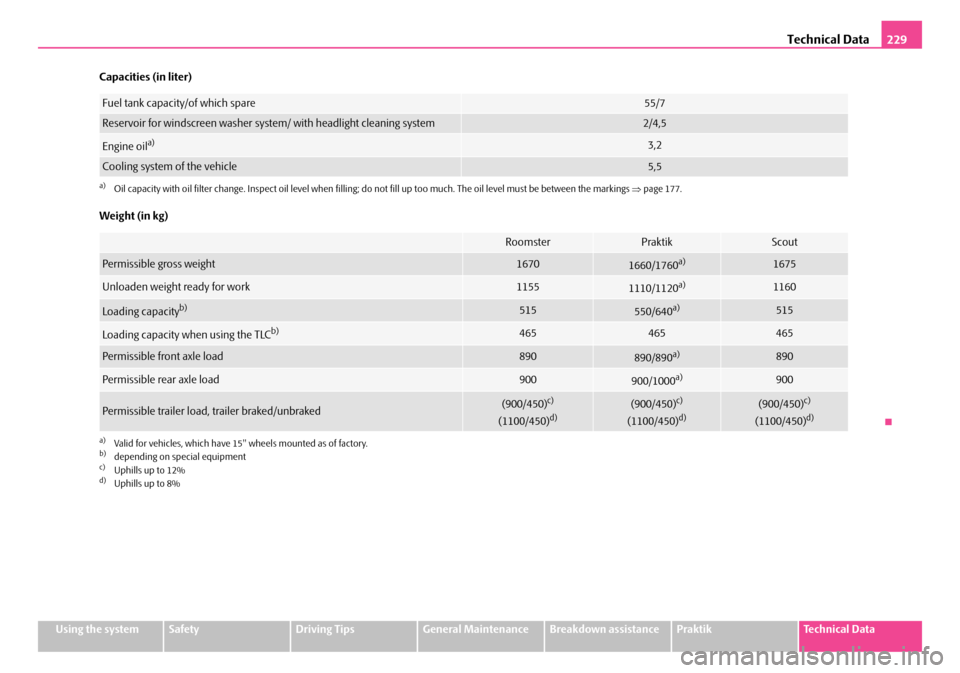

Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 177.
3,2
Cooling system of the vehicle5,5
RoomsterPraktikScout
Permissible gross weight16701660/1760a)
a)Valid for vehicles, which have 15'' wheels mounted as of factory.
1675
Unloaden weight ready for work11551110/1120a)1160
Loading capacityb)
b)depending on special equipment
515550/640a)515
Loading capacity when using the TLCb)465465465
Permissible front axle load890890/890a)890
Permissible rear axle load900900/1000a)900
Permissible trailer load, trailer braked/unbraked(900/450)c)
(1100/450)d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)c)
(1100/450)d)(900/450)c)
(1100/450)d)
