SKODA SCALA 2020 Owner´s Manual

GroupPassenger seat withactivated front air- bagPassenger seat with
deactivated front air- bagOuter rear seatsMiddle rear seat a)0
up to 10 kgXU b)UU0+
up to 13 kgXU b)UU1
9-18 kgUFUUU2
15-25 kgUFUUU3
22-36 kgUFUUUa) It is forbidden to install a child seat with a support foot in the middle rear seat.b)Adjust the height-adjustable front passenger seat as much as possible.
U The seat is suitable for the child seat category “Universal” and is permitted for use in this weight group.
UF The seat is suitable for forward-facing child seats in the “Universal” category and is permitted for use in
this weight group.
X The seat is not suitable for children in this weight group.
Overview
ISOFIX
WARNING

The holding eyelets for attaching the belt are located
on the outer rear seats, as well as on the middle rear
seat or passenger seat when necessary.
Airbags Usage
The airbag system o

Key switch for the front passenger
airbag
Usage
Deactivation of the front passenger airbag is provi-
ded for the following cases, for example.

Lighting, windscreen wipers and
washers
Exterior lighting Functionality
Unless otherwise stated, the light works when the
ignition is switched on.
Daylight running lights
The daytime running lights illuminate the area in
front of the vehicle.
For vehicles for certain markets, they also illumi-
nate the rear vehicle area.
Operating conditions
q The lights switch is in position
, or .
Switching the low beam on/off automatically
The low beam is automatically switched on or o

Fog lightPositions for pulling out
the light switch1
Fog lights - the
warning light in the
instrument cluster il-
luminates
2
Rear fog light - the
warning light in the
instrument cluster il-
luminates

Troubleshooting
Turn signal light defectiveflashes faster - turn signal light on the right de-
fective

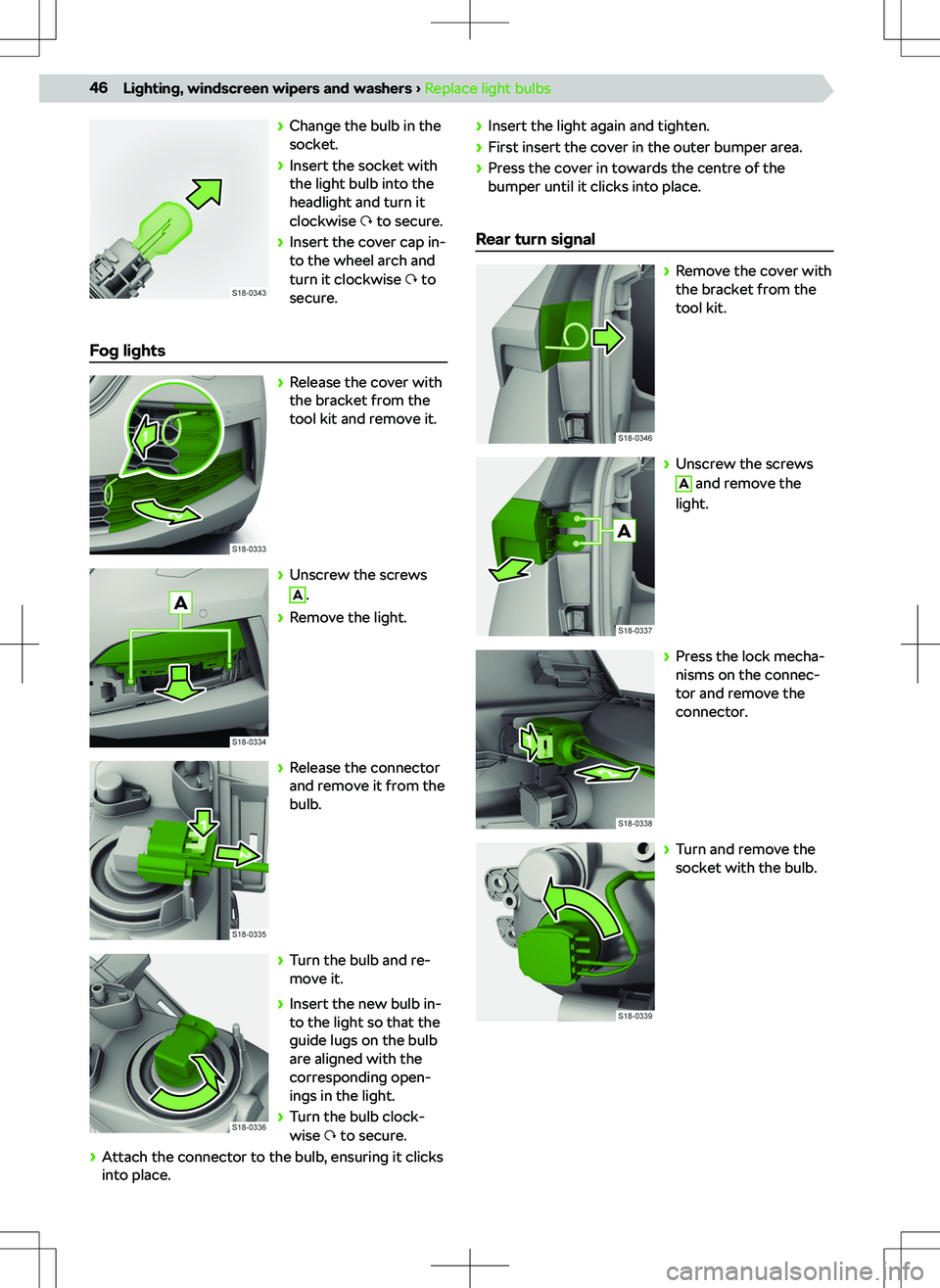

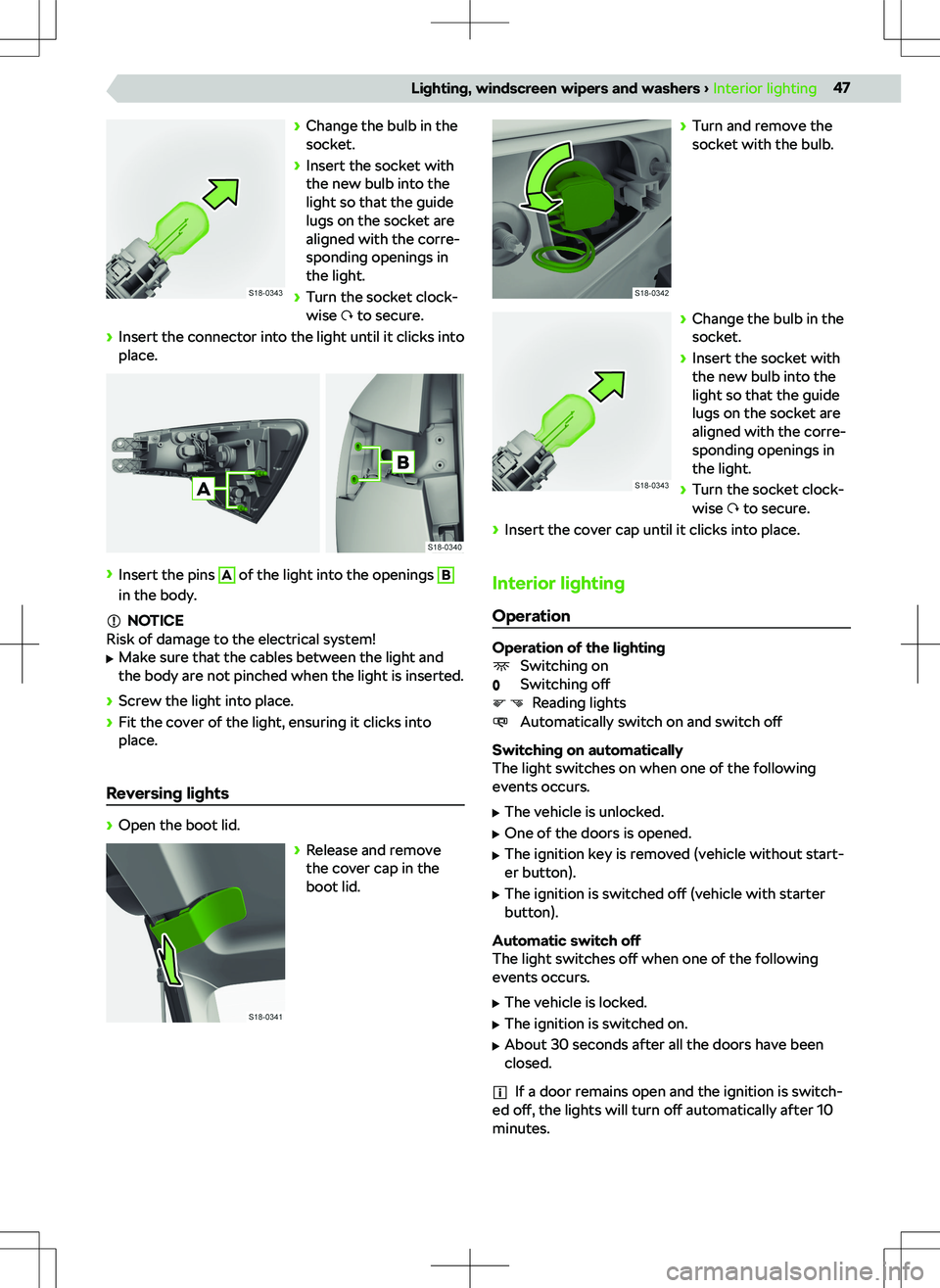

Replace light bulbs
What you should be mindful of
DIY replacement of the following bulbs is possible.
Have the remaining light sources replaced by a spe-
cialist garage.
The new bulb must conform to the specification of
the original light bulb. The name of the bulb is
marked on the bulb socket.
After changing a bulb in the high beam or in the front
fog light, have the headlights adjusted by a specialist
garage.
CAUTION
Halogen lamps are pressurised and can burst during
replacement!

Automatic switching on/off of the footwell light-
ing
The lighting only works when the dipped or parking
lights are on.
The lighting is also switched on automatically after
opening the door (e.g. when getting in or out).
Settings
The footwell lighting is set in the following menu in
the Infotainment system.

Or:

Interior ambient light
Usage
The ambient lighting ensures a comfortable atmos-
phere in the vehicle interior.
The lighting only works when the dipped or parking
lights are on.
The lighting is also switched on automatically after
opening the door.
Settings
The ambient lighting is set in the Infotainment sys-
tem, in the following menu.

Or:

Windscreen wipers and washers
Operating conditions
Operating conditions for windscreen wipers
q Engine compartment flap closed.
q Boot door closed.
q Ignition is switched on.
Operating conditions for the windscreen washer
system
q Engine compartment flap closed.
q Boot door closed.
Operation
WARNING
Risk of an accident!
At low temperatures, windscreen washer fluid can
freeze on the windscreen and restrict visibility.
