Technical Data
246

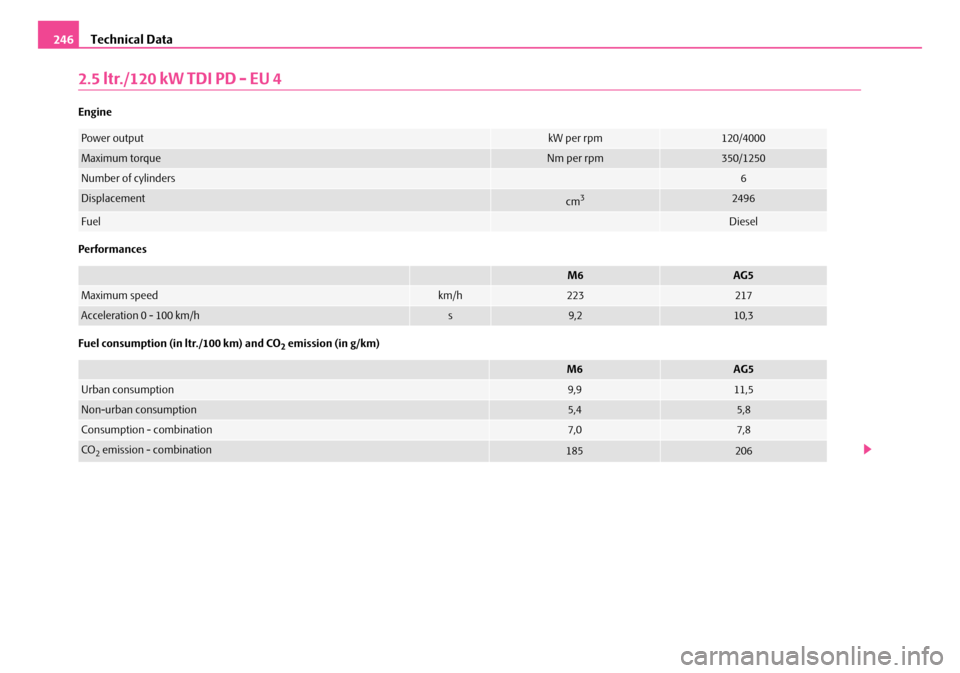

2.5 ltr./120 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm120/4000
Maximum torqueNm per rpm350/1250
Number of cylinders6
Displacementcm32496
FuelDiesel
M6AG5
Maximum speedkm/h223217
Acceleration 0 - 100 km/hs9,210,3
M6AG5
Urban consumption9,911,5
Non-urban consumption5,45,8
Consumption - combination7,07,8
CO2 emission - combination185206
NKO B5 20.book Page 246 Friday, March 2, 2007 1:46 PM
Technical Data247
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
5,4
Cooling system of the vehicle8,6
M6AG5
Permissible gross weight21552189
Unloaden weight ready for work15701604
Loading capacity585585
Loading capacity when using the TLC510510
Permissible front axle load12101210
Permissible rear axle load10601060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
1600a)/1600b)
Permissible trailer loads, trailer unbraked750750
NKO B5 20.book Page 247 Friday, March 2, 2007 1:46 PM
