technical data SKODA SUPERB 2007 1.G / (B5/3U) Owner's Manual

Technical Data
236

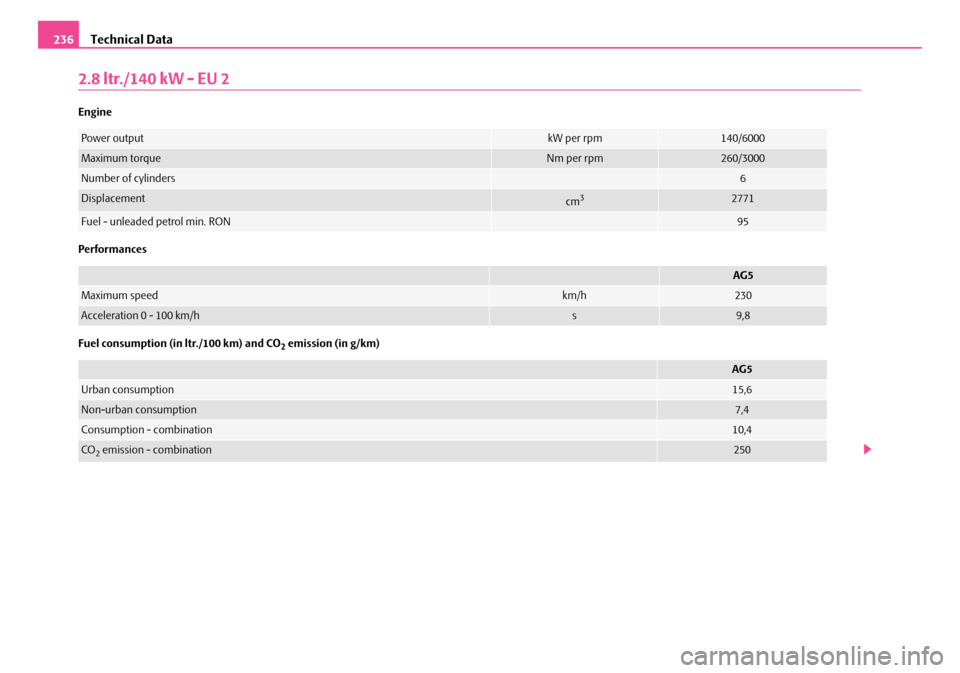

2.8 ltr./140 kW - EU 2
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm140/6000
Maximum torqueNm per rpm260/3000
Number of cylinders6
Displacementcm32771
Fuel - unleaded petrol min. RON95
AG5
Maximum speedkm/h230
Acceleration 0 - 100 km/hs9,8
AG5
Urban consumption15,6
Non-urban consumption7,4
Consumption - combination10,4
CO2 emission - combination250
NKO B5 20.book Page 236 Friday, March 2, 2007 1:46 PM

Technical Data237
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
5,7
Cooling system of the vehicle10,5
AG5
Permissible gross weight2136
Unloaden weight ready for work1551
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1160
Permissible rear axle load1060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked750
NKO B5 20.book Page 237 Friday, March 2, 2007 1:46 PM

Technical Data
238
1,9 l/77 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm77/4000
Maximum torqueNm per rpm250/1900
Number of cylinders4
Displacementcm31896
FuelDiesel
M5
Maximum speedkm/h192
Acceleration 0 - 100 km/hs12,3
M5
Urban consumption7,4
Non-urban consumption4,9
Consumption - combination5,8
CO2 emission - combination153
NKO B5 20.book Page 238 Friday, March 2, 2007 1:46 PM

Technical Data239
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle6,5
M5
Permissible gross weight2050
Unloaden weight ready for work1465
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1080
Permissible rear axle load1060
Permissible trailer loads, trailer braked1400a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked650
NKO B5 20.book Page 239 Friday, March 2, 2007 1:46 PM

Technical Data
240
1,9 l/85 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm85/4000
Maximum torqueNm per rpm250/1900
Number of cylinders4
Displacementcm31896
FuelDiesel
M5
Maximum speedkm/h198
Acceleration 0 - 100 km/hs11,7
M5
Urban consumption7,8
Non-urban consumption4,7
Consumption - combination5,8
CO2 emission - combination153
NKO B5 20.book Page 240 Friday, March 2, 2007 1:46 PM

Technical Data241
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle6,5
M5
Permissible gross weight2050
Unloaden weight ready for work1465
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1080
Permissible rear axle load1060
Permissible trailer loads, trailer braked1400a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked650
NKO B5 20.book Page 241 Friday, March 2, 2007 1:46 PM

Technical Data
242
1,9 l/96 kW TDI PD - EU 3
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm96/4000
Maximum torqueNm per rpm285/1750
Number of cylinders4
Displacementcm31896
FuelDiesel
M5AG5
Maximum speedkm/h205202
Acceleration 0 - 100 km/hs10,411,7
M5AG5
Urban consumption7,910,0
Non-urban consumption4,65,5
Consumption - combination5,87,1
CO2 emission - combination153188
NKO B5 20.book Page 242 Friday, March 2, 2007 1:46 PM

Technical Data243
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle6,5
M5AG5
Permissible gross weight20502106
Unloaden weight ready for work14651521
Loading capacity585585
Loading capacity when using the TLC510510
Permissible front axle load10801160
Permissible rear axle load10601060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
1600a)/1600b)
Permissible trailer loads, trailer unbraked650650
NKO B5 20.book Page 243 Friday, March 2, 2007 1:46 PM

Technical Data
244
2.0 ltr./103 kW TDI DPF - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm103/4000
Maximum torqueNm per rpm320/1900
Number of cylinders4
Displacementcm31968
FuelDiesel
M6
Maximum speedkm/h215
Acceleration 0 - 100 km/hs9,9
M6
Urban consumption8,4
Non-urban consumption5,2
Consumption - combination6,4
CO2 emission - combination169
NKO B5 20.book Page 244 Friday, March 2, 2007 1:46 PM

Technical Data245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare62/8
Windshield washer fluid reservoir3,4
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,5
Cooling system of the vehicle6,5
M6
Permissible gross weight2103
Unloaden weight ready for work1518
Loading capacity585
Loading capacity when using the TLC510
Permissible front axle load1160
Permissible rear axle load1060
Permissible trailer loads, trailer braked1600a)/1600b)
a)for uphills up to 12%b)only country specific up to 8% uphill
Permissible trailer loads, trailer unbraked650
NKO B5 20.book Page 245 Friday, March 2, 2007 1:46 PM
