Unlocking and locking
36
Unlocking and locking
Key
Two keys with remote control are provided with the vehicle ⇒fig. 22 .
WARNING
•Always withdraw the key whenever you leave the vehicle - even if it is
only for a short time. This is particularly important if children are left in the
vehicle. The children might otherwise st art the engine or operate electrical
equipment (e.g. power windows) - risk of injury!
•Do not withdraw the ignition key from the ignition lock until the vehicle
has come to a stop. The steering lock might otherwise engage unintention-
ally - risk of accident!
Caution
•Each key contains electronic components; therefore protect them against mois-
ture and severe shocks.
•Keep the groove of the keys absolutely cl ean as impurities (textile fibres, dust
etc.) have a negative effect on proper op eration of the keys and the ignition lock.
Note
Please approach a Škoda Service Partner if you lose a key since he can obtain a new
one for you.
Changing the battery of the radio remote control
Each radio-operated key contains a ba ttery which is housed in the cover
of the transmitter housing ⇒fig. 23 . We recommend that you have
Fig. 22 Radio-operated key
Fig. 23 Disconnect key with
radio remote control
Fig. 24 Cover of the trans-
mitter housing
AB
NKO B6 20.book Page 36 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking
38
Switching child safety lock on
– Use the vehicle key to turn the slit in the rear door to the left in the direction of the arrow ⇒page 37, fig. 25 .
Switching child safety lock off
– Use the vehicle key to turn the slit to the right against the direction of the arrow.
So long as the child safety lo ck is switched on it is not possible to open the door
from the inside with the door opening lever. In this case the door can be opened
only from the outside.
Central locking system
Description
Unlocking or locking the vehicle causes all the doors and the fuel filler flap to be
unlocked or locked at the same time by th e central locking system. The boot lid is
unlocked when opening. Afterwards you can open the boot lid by pressing the
handle on the lower edge of the boot lid ⇒page 41.
Operation of the central locking system is possible:
•by using the remote control ⇒page 44,
•using the buttons for the central locking system ⇒page 39,
•from the outside using the vehicle key ⇒page 40, “Emergency unlocking and
locking of the driver's door”.
The indicator light in the driver's door
After locking the vehicle the indicator light flashes for 2 seconds fast, then more
slowly.
If the vehicle is locked and the safe securing system ⇒page 39 is not operating, the
indicator light in the driver door flashes for about 2 seconds fast, goes out and starts
to flash slowly after about 30 seconds. If the indicator light first of all flashes fast for about 2 seconds, afterwards lights up
for about 30 seconds and then flashes slowly
, there is a fault in the system of the
central locking or the interior monitor an d in the towing protection monitoring*
⇒ page 46. Contact a specialist garage to obtain assistance.
Convenience operation of windows
One can open and close the windows when opening and closing the vehicle
⇒ page 49.
Opening a single door*
This function allows one to just unlock the driver's door. The other doors and the
fuel filler flap remain locked and are on ly unlocked after repetitive unlocking.
You can have the function opening a sin gle door activated by a Škoda Service
Partner on request or you can activate it yourself with the aid of the information
display* ⇒page 23.
Automatic locking*
All the doors and the boot lid are locked automatically once the car reaches a speed
of about 15 km/h.
If the ignition key is withdrawn, the ca r is then automatically unlocked again. In
addition, it is possible for the driver or front passenger to unlock the car by pressing
the central locking button
 ⇒ page 39 or by pulling the door opening lever.
You can have the function of the automatic locking activated by a specialist garage
on request or you can activate it yourself with the aid of the information display*
⇒ page 23.
WARNING
Locking the doors prevents involuntary opening in an exceptional situation
(an accident). Locked doors prevent unwanted entry into the vehicle from
outside, for example at road crossings. Locked doors do, however, make it
m ore difficult for rescuers to get into the vehicle in an emergency - danger to
life!
NKO B6 20.book Page 38 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking39
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked in order to enable rescuers to gain access to the vehicle.
•Only the driver's door can be unlocked using the key if the central locking
system fails ⇒ page 40, “Emergency unlocking and locking of the driver's door”.
You can lock or unlock manually the other doors and the boot lid.
−Emergency locking of the door ⇒page 41.
− Emergency unlocking of the boot lid ⇒page 43.
Safe securing
The central locking system is equipped with a safe securing system. Locking the
vehicle from the outside causes the door lock s to be automatically blocked. It is not
possible to open the doors with the door ha ndle either from the inside or from the
outside. This acts as an effective deterrent for attempts to break into your vehicle.
You can deactivate the safe securing syst em by locking two times within 2 seconds.
If the safe securing system is not operating:
•the indicator light in the driver door flashes for about 2 seconds fast, goes out
and starts to flash slowly after about 30 seconds,
•is the filler flap locked.
The safe securing system is again activate d the next time the vehicle is unlocked and
locked again.
If the vehicle is locked and the safe secu ring system is deactivated, you can open
the vehicle from the inside by pulling on the handle.
WARNING
If the vehicle is locked from the outside and the safe securing system is acti-
vated, there must not be any person and animals in the vehicle as it is then
not possible to open either a door or a window from the inside. The locked
doors make it more difficult for rescuers to get into the vehicle in an emer-
gency - hazard!
Note
The anti-theft alarm system* is also acti vated with the deactivated safe securing
system when locking the vehicle. The inte rior monitor* is however not activated.
Buttons for the central locking system
If the vehicle was not locked from outside, you can also unlock and lock
it with the rocker switch on the hand le of the driver or front passenger
door even without the ignition switched on.
Locking all doors and the boot lid
– Press on the bottom part of the button ⇒fig. 26 . The symbol
 in the
button comes on.
Unlocking all doors and the boot lid
– Press on the top part of the button ⇒fig. 26 . The symbol
 goes out
in the button.
The following applies if you have locked your vehicle using the central locking
system:
Fig. 26 Central locking
switch
NKO B6 20.book Page 39 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking
40
•It is not possible to open the doors or the boot lid from the outside (safety
feature, e.g. when stopping at traffic lights etc.).
•You can unlock the doors individually from the inside and open them by pulling
the door opening lever.
•If at least one door has been open ed, the vehicle cannot be locked.
•In the event of an accident in which the airbags are deployed, the locked doors
are automatically unlocked from the inside in order to enable rescuers to gain
access to the vehicle.
By pressing and holding down the top and bottom part of the switch in the driver's
door, you can conveniently close or open the windows.
WARNING
The central locking syst em also operates if the igniti on is switched off. All the
doors and the boot lid are locked. Children should never be left unattended
in the vehicle since it is difficult to provide assistance from the outside when
the doors are locked. Locked doors make it difficult for rescuers to get into
the vehicle in an emergency - hazard!
Note
The door opening lever and the buttons for the central locking system do not
operate if the safe securing system is activated.
Emergency unlocking and locking of the driver's door
If the key does not operate, the dr iver's door can be unlocked or
locked manually using the remote control or the central locking
system.
– Pull on the handle.
– Guide the vehicle key into the recess on the bottom side of the cover
and lift it up to the top.
– Put the vehicle key into the lockin g cylinder and unlock or lock the
vehicle.
Fig. 27 Handle on the
driver's door: covered
locking cylinder
NKO B6 20.book Page 40 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking
42
You can open the small boot lid by pressing the button on the remote control
⇒ page 44 for approx. 2 seconds.
A handle which makes the closing easier is located on the inner paneling of the
boot lid.
WARNING
•Ensure that the lock is properly engaged after closing the boot lid. Other-
wise, the boot lid might open suddenly when driving even if the boot lid lock
is closed - risk of accident!
•Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
Note
•After closing the boot lid, it is automatically locked within 2 seconds and
the anti-theft alarm system* is activated. This applies only if the vehicle was
locked before closing the boot lid.
•The function of the hand grip on the bott om edge of the boot lid is deactivated
after starting off or as of a speed of more than 5 km/hour. The function of the hand
grip is acitvated again after stopping th e vehicle and after opening the driver or
front passenger door or after pressing the button on the remote control
⇒ page 44.
Twindoor - large boot lid
After unlocking the ve hicle using the remote control or the key
⇒ page 40, “Emergency unlocking and lo cking of the driver's door” you
can open the large boot lid ⇒fig. 32 .
Open large boot lid
– Press the handle ⇒fig. 31 on the bottom edge of the boot lid.
– You must wait until the brake light in the rear window flashes twice.
– Press on the handle and at the same time raise the boot lid.
A2
A1
Fig. 31 Handle of boot lid
Fig. 32 Boot lid
A1
A2
A3
NKO B6 20.book Page 42 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking43
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Close large boot lid
– Pull the boot lid down and close it with a slight swing ⇒. The
bonnet locks automatically.
A handle which makes the clos ing easier is located on the inner paneling of the
boot lid.
WARNING
•Ensure that the lock is properly enga ged after closing the boot lid. Other-
wise, the boot lid might open suddenly wh en driving even if the boot lid lock
is closed - risk of accident!
•Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
Note
•After closing the boot lid, it is automatically locked within 2 seconds and
the anti-theft alarm system* is activated. This applies only if the vehicle was
locked before closing the boot lid.
•The function of the hand grip on the bottom edge of the boot lid is deactivated
after starting off or as of a speed of more than 5 km/hour. The function of the hand
grip is acitvated again after stopping the vehicle and after opening the driver or
front passenger door or after pressing the button on the remote control
⇒ page 44.
Emergency unlocking of the boot lid
If there is a fault in the central locking, you can open the boot lid as
follows:
– Fold the rear seats forwards ⇒page 76.
– Guide the key into the slot in the trip panel as far as the stop ⇒fig. 33 .
– You can unlock the boot lid by the movement in the direction of arrow.
– Open the boot lid/luggage compartment door from outside.
Remote control
Description
You can use the remote control:
•to unlock and lock the car,
•unlock or open the boot lid,
•opening and closing window.
A1
Fig. 33 Emergency
unlocking of the boot lid
NKO B6 20.book Page 43 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking45
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Folding up of the key
– Press button and collapse the key bit in the housing.
The turn signal lights flash twice as confirmation that the vehicle has been
unlocked. The vehicle will lock again auto matically if you unlock the vehicle using
button but do not open a door or the boot lid within the next 30 seconds. This
function is intended to prevent th e car being unlocked unintentionally.
In addition, when the car is unlocked, the power seats and exterior mirrors* move
into the position assigned to this key. The stored setting of driver seat and exterior
mirrors is retrieved.
The interior lights and the lighting of th e entry area are automatically switched on
or off (if they have been set to operat e via door contact) when unlocking and
locking the vehicle.
Display of the locking
The turn signal lights flash once to co nfirm that the vehicle has been correctly
locked.
If the doors or the boot lid remain open after the vehicle has been locked, the turn
signal lights do not flash unt il they have been closed.
WARNING
If the vehicle is locked from the outside and the safe securing system is acti-
vated, there must not be any person in the vehicle as it is then not possible
to open either a door or a window from the inside. The locked doors make it
more difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
•Operate the radio remote control only when the doors and boot lid are closed
and you have visual contact with the vehicle.
•Once in the car, you must not press the lock button  of the radio remote
control before inserting the key into the igni tion lock in order to avoid the car being
inadvertently locked and, in addition, the anti-theft alarm system* being switched
on. Should this happen, press the unlock button
 of the radio remote control.
Synchonisation of the remote control
If the vehicle cannot be unlock ed by actuating the remote control system then it is
possible that the code in the key and the control unit in the vehicle are no longer
synchronised. This can occur when the butt ons on the radio-operated key are actu-
ated a number of times outside of the operative range of the equipment or the
battery on the remote control was replaced.
This means it is necessary to synchronise the code as follows:
•Press any button on the remote control.
•after pressing the button, the door must be unlocked using the key within 1
minute ⇒ page 40, “Emergency unlocking and locking of the driver's door”.
Anti-theft alarm system*
Description
The anti-theft alarm system increases the level of protection against people seeking
to break into the vehicle. The system triggers audible and visual warning signals if
an attempt is made to break into the vehicle.
How is the alarm system activated?
The anti-theft alarm system is activated automatically when the vehicle is locked
with the key in the driver's door or by using the radio remote control ⇒page 40,
“Emergency unlocking and locking of the driver's door”. The door contact moni-
toring is activated approx. 15 seconds after the locking. The interior and the towing
protection monitoring are activated approx. 30 seconds after the locking. If a door
is opened during activation, the monito ring is only activated 5 seconds after
closing.
How is the alarm system deactivated?
The anti-theft alarm system is deactivate d by pressing the unlock button on the
remote control. The vehicle is automati cally locked again if the vehicle is not
opened within 30 seconds after reactivating the anti-theft alarm system.
A4
A1
NKO B6 20.book Page 45 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking47
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•The opened storage compartment for spectacles reduces the effectiveness of
the interior monitor. In order to ensure th e function to be fully operational, close
the storage compartment for specta cles before locking the vehicle.
Power windows
Buttons on the driver's door
The power windows operate only when ignition is switched on.
Opening a window
– A window is opened by pres sing lightly on the respective butto n in the
door. The process stops when one releases the button.
– Additionally you can open the window automatically (fully opened) by pressing the button up to the stop. Renewed pressing of the button
causes the window to stop immediately.
Closing a window
– A window is closed through pulling lightly on the respective button in
the door. The closing process stop s when one releases the button. – Additionally you can close the window automatically (fully closed) by
pulling the button up to the stop. Renewed pulling of the button
causes the window to stop immediately.
The switches for the individual windows are located in the armrest of the driver's
door ⇒fig. 36 , front passenger door and in the rear doors ⇒page 48, fig. 37
Buttons for the power window in the armrest of the driver's door Button for the power window in the driver's door
Button for the power window in the front passenger's door
Button for the power window at the rear right door
Button for the power window at the rear left door
Safety switch
Safety pushbutton
You can deactivate the switches for power windows at rear doors by pressing the
safety pushbutton ⇒fig. 36 . The buttons for power windows at rear doors are
activated again by pressing th e safety pushbutton again.
If the buttons for the rear doors are deactivated, the indicator light
 in the safety
switch lights up.
WARNING
•If you lock the vehicle from the outside, do not leave any person in the
vehicle since it is no longer possible to open the windows from the inside in
an emergency.
•The system is fitted with a force limiter ⇒page 48. The closing process
will be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may other-
wis e suf fe r se v e re inj uri es a s a re s ult of g e tt ing a n ar m , for e xa m ple , ja m m e d
in the window!
•It is recommended to deactivate the electrically operated power
windows in the rear doors (safety pushbutton) ⇒fig. 36 when children
are being transported on the rear seats.
Fig. 36 Buttons on the
driver's door
AA
AB
AC
AD
AS
ASAS
AS
AS

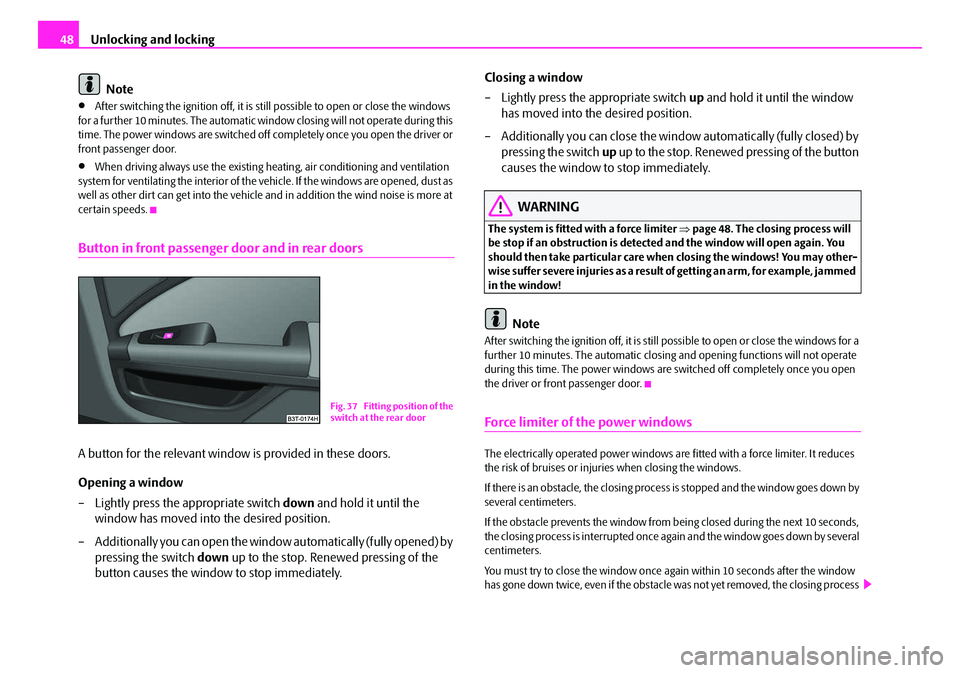

NKO B6 20.book Page 47 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking
48
Note
•After switching the ignition off, it is st ill possible to open or close the windows
for a further 10 minutes. The automatic wind ow closing will not operate during this
time. The power windows are switched off co mpletely once you open the driver or
front passenger door.
•When driving always use the existing he ating, air conditioning and ventilation
system for ventilating the interior of the ve hicle. If the windows are opened, dust as
well as other dirt can get into the vehicle and in addition the wind noise is more at
certain speeds.
Button in front passenger door and in rear doors
A button for the relevant window is provided in these doors.
Opening a window
– Lightly press the appropriate switch down and hold it until the
window has moved into the desired position.
– Additionally you can open the window automatically (fully opened) by pressing the switch down up to the stop. Renewed pressing of the
button causes the window to stop immediately. Closing a window
– Lightly press the appropriate switch
up and hold it until the window
has moved into the desired position.
– Additionally you can close the window automatically (fully closed) by pressing the switch up up to the stop. Renewed pressing of the button
causes the window to stop immediately.
WARNING
The system is fitted with a force limiter ⇒page 48. The closin g process will
be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may other-
wise suffer severe injuries as a result of getting an arm, for example, jammed
in the window!
Note
After switching the ignition off, it is still possible to open or close the windows for a
further 10 minutes. The automatic closing and opening functions will not operate
during this time. The power windows are switched off completely once you open
the driver or front passenger door.
Force limiter of the power windows
The electrically operated power windows are fitted with a force limiter. It reduces
the risk of bruises or injuri es when closing the windows.
If there is an obstacle, the closing process is stopped and the window goes down by
several centimeters.
If the obstacle prevents the window from being closed during the next 10 seconds,
the closing process is interrupted once again and the window goes down by several
centimeters.
You must try to close the window once ag ain within 10 seconds after the window
has gone down twice, even if the obstacle was not yet removed, the closing process
Fig. 37 Fitting position of the
switch at the rear door
NKO B6 20.book Page 48 Wednesday, March 26, 2008 3:15 PM

Unlocking and locking49
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
is stopped. During this time it is not possible to automatically close the window. The
force limiter is still switched on.
The force limiter is only switched off, if you attempt to close the window within the
next 10 seconds -
the window closes now with full strength!
If you wait longer than 10 seconds, the force limiter is switched on again.
WARNING
You should take particular care when closing the windows! You may other-
wi se s uffe r s e ve re i njur ie s a s a re sul t of getting an arm, for example, jammed
in the window!
Window convenience operation
You can open and close the electrically powered windows as follows when
unlocking and locking the vehicle (j ust closing of the sliding roof).
Opening a window
•by holding the pressed unlock button on the remote control,
•by holding the pressed top part of the button for the central locking system in
the driver door,
•by holding the key in the driver's lock in the unlock position ⇒page 40, “Emer-
gency unlocking and lockin g of the driver's door”.
Closing a window
•by holding the pressed lock button on the remote control,
•by holding the pressed bottom part of th e button for the central locking system
in the driver door,
•by holding the key in the driver's lock in the lock position ⇒page 40.
You can interrupt the opening or closing operation of the windows immediately by
releasing the key or the closing button.
WARNING
The system is fitted with a force limiter ⇒page 48. The closing process will
be stop if an obstruction is detected and the window will open again. You
should then take particular care when closing the windows! You may other-
wis e suf fe r se v e re inj uri es a s a re s ult of g e tt ing a n ar m , for e xa m ple , ja m m e d
in the window!
Note
•The convenience opening of the windows with the aid of the key in the driver's
lock is only possible 45 seconds after deactivating or activating the alarm system.
Operational faults
Electrically operated power windows do not operate
If the battery has been disconnected and then reconnected while the window was
opened, the electrically operated power windows do not operate. The system must
be activated. Proceed as follows in order to re-establish the function:
•you can close the window by pull ing the switch on the top edge.
•release the switch
•you must pull the switch again for approx. 3 seconds
Operation in winter
Ice accumulating on the surface of the wi ndows during the winter may result in a
greater resistance when closing the windows and the window may stop and move
back several centimetres
Proceed as follows to close the window fully:
•Turn the key in the lock of the driver d oor into the closing position and hold it
there until all of the windows are closed.
•If the window closing is interrupted, it is necessary to put the force limiter out of
operation ⇒page 48.
NKO B6 20.book Page 49 Wednesday, March 26, 2008 3:15 PM
