heater SKODA SUPERB 2008 2.G / (B6/3T) Owner's Manual

Lights and Visibility63
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The warning light is located in the door trim panel below
⇒page 62, fig. 53 .
The warning light goes on every time the door is opened. The light goes out about
10 minutes after opening the door in order to avoid discharging the battery of the
vehicle.
Luggage compartment light
The lighting comes on automatically when the boot lid is opened. The luggage
compartment lighting will switch off agai n automatically if the boot lid remains
open for more than about 30 minutes.
Entry lighting*
The lighting is positioned on the bottom edge of the exterior mirror.
The light beam is directed towards the entry area of the front door.
The light comes on after the doors have been locked or on opening the boot lid. The
light goes out after switching on the ignition or up to 30 seconds after closing all the
doors, the bonnet and the boot lid.
If a door, the bonnet or the boot lid re mains open, the light goes out within 2
minutes if the ignition is switched off.
WARNING
If the entry light comes on, do not touch its cover - risk of burns!
Visibility
Rear window heater
– You can switch the rear window heater on or off by pressing the switch
 ⇒ fig. 54 - the indicator light in the switch comes on or goes out.
The rear window heater only oper ates when the engine is running.
The rear window heater switches off automatically after 10 minutes.
For the sake of the environment
You should switch off the rear window heater as soon as the rear window is clear.
The reduced current consumption will have a favourable effect on fuel economy
⇒ page 191, “Saving electricity”.
Note
•The position and the shape of the switch can differ depending on equipment
installed in the vehicle.
•If the on-board voltage drops, the rear window heater is switched off automat-
ically, in order to provide sufficient electrical energy for the engine control.
Fig. 54 Switch for rear
window heater
NKO B6 20.book Page 63 Wednesday, March 26, 2008 3:15 PM

Lights and Visibility69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Exterior mirror
You can adjust the exterior mirrors electrically*.
The exterior mirror heater only oper ates when the engine is running and
up to an outside temperature of +20 °C.
Heating of the external mirror
– Turn the rotary knob to position
 ⇒ fig. 61 .
Adjusting left and right exterior mirrors simultaneously
– Turn the rotary knob to position
. The movement of the mirror surface
is identical to the movement of the rotary knob.
Adjusting the right-hand exterior mirror
– Turn the rotary knob to position
. The movement of the mirror
surface is identical to the movement of the rotary knob.
Switching off operating control
– Turn the rotary knob to position
.
Folding in both exterior mirrors*
– Turn the rotary knob to position
. Lowerable exterior mirror* with the aid of the key for remote control
– If all the windows are closed, press the unlock button on the
remote control ⇒page 44, fig. 34 for approx. 2 seconds.
Tilting surface of front pa ssenger exterior mirror*
When the rotary knob is in position
 ⇒ fig. 61 and the reverse gear is engaged, the
s ur fa ce o f t h e m i rro r t i l ts d o w n s l i g h t l y. T h i s p ro v i d e s a n a i d i n s e e i n g th e ke r b o f t h e
pavement when parking the car.
The mirror returns back into its initial po sition, after the rotary knob is moved out
of the position
 and put into another position or if the speed is more than 15 km/h.
Memory for exterior mirrors*
On vehicles fitted with a memory for the driver seat, the relevant setting of the exte-
rior mirror is also stored automatica lly when the seat position is stored.
WARNING
•Convex (curved outward) or a spherical exterior mirrors increase the
vision field. They do, however, make objects appear smaller in the mirror.
These mirrors are only of limited use, therefore, for estimating distances to
the following vehicles.
•Use whenever possible the interior rear mirror, for estimating the
distances to the following vehicles.
Note
•Do not touch the surfaces of the exterior mirrors if the exterior mirror heater is
switched on.
•You can set the exterior mirrors by hand, if the power setting function fails at any
time, by pressing on the ed ge of the mirror surface.
•Contact your specialist garage if a fault exists with the power setting of the exte-
rior mirrors.
Fig. 61 Inner part of door:
Rotary knob
A3
NKO B6 20.book Page 69 Wednesday, March 26, 2008 3:15 PM

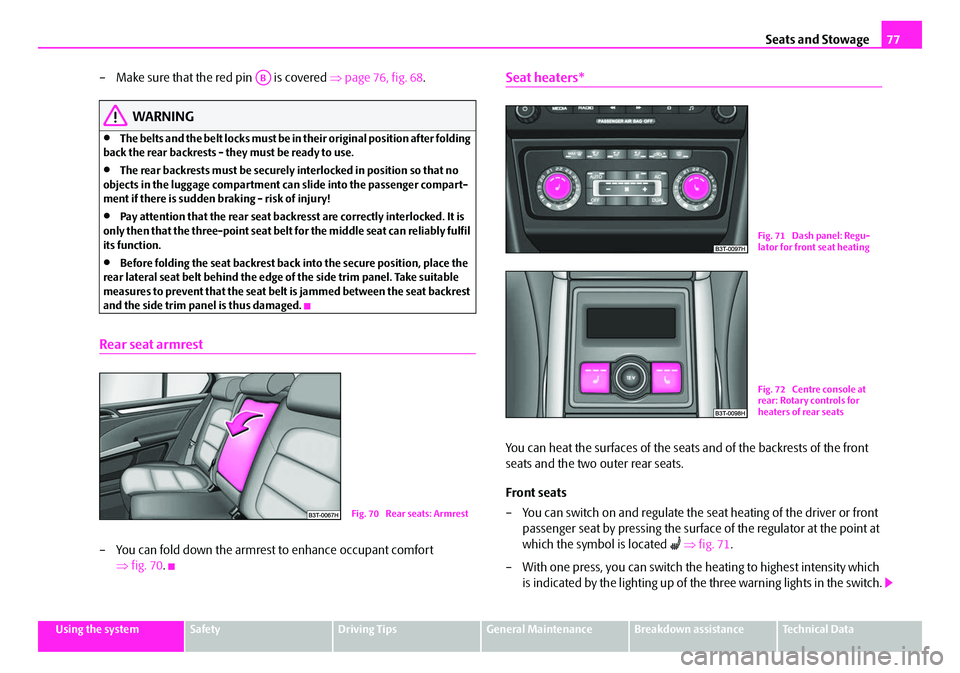

Seats and Stowage77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Make sure that the red pin is covered ⇒page 76, fig. 68 .
WARNING
•The belts and the belt locks must be in their original position after folding
back the rear backrests - they must be ready to use.
•The rear backrests must be securely interlocked in position so that no
objects in the luggage compartment ca n slide into the passenger compart-
ment if there is sudden braking - risk of injury!
•Pay attention that the rear seat backresst are correctly interlocked. It is
only then that the three-point seat belt for the middle seat can reliably fulfil
its function.
•Before folding the seat backrest back into the secure position, place the
rear lateral seat belt behind the edge of the side trim panel. Take suitable
measures to prevent that the seat belt is jammed between the seat backrest
and the side trim panel is thus damaged.
Rear seat armrest
– You can fold down the armrest to enhance occupant comfort ⇒fig. 70 .
Seat heaters*
You can heat the surfaces of the seat s and of the backrests of the front
seats and the two outer rear seats.
Front seats
– You can switch on and regulate the seat heating of the driver or front
passenger seat by pressing the surfac e of the regulator at the point at
which the symbol is located
 ⇒ fig. 71 .
– With one press, you can switch the heating to highest intensity which
is indicated by the lighting up of the three warning lights in the switch.
AB
Fig. 70 Rear seats: Armrest
Fig. 71 Dash panel: Regu-
lator for front seat heating
Fig. 72 Centre console at
rear: Rotary controls for
heaters of rear seats
NKO B6 20.book Page 77 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage
78
– With repeated pressing of the switch, the intensity of the heating is down-regulated up to the switch-off. The intensity of the heating is
indicated by the number of illuminated warning lights in the switch.
Rear seats
– You can switch on and adjust the he ating of the left and right seats by
pressing the switch
 ⇒ page 77, fig. 72.
– With one press, you can switch the heating to highest intensity which is indicated by the lighting up of th e three warning lights in the switch.
– With repeated pressing of the switch, the intensity of the heating is down-regulated up to the switch-off. The intensity of the heating is
indicated by the number of illuminated warning lights in the switch.
WARNING
If you have a subdued pain and/or temperature sensitivity, e.g. through
medication, paralysis or because of chronic illness (e.g. diabetes), we
recommend not to use the seat heating. This can lead to burns on the back,
the posterior and the legs which are diff icult to heal. If the seat heating is
used, we recommend to make regular br eaks in your journey when driving
long distances, so that in specific cases as mentioned above the body can
recuperate from the stress of the journey. Please consult your doctor, who
can evaluate your specific condition.
Caution
•You should not kneel on the seats or otherwise apply pressure at specific points
in order to avoid damaging the heating elements of the seat heaters.
•If items are fitted or are stored on the se ats e.g. a child seat or a pouch etc, do
not use the seat heating. A fault in the heat er elements of the seat heating can occur.
•Do not clean the seats moist ⇒page 202.
Note
•The seat heating should only be switched on when the engine is running. This
has a significant effect of sa ving on the battery capacity.
•If the on-board voltage drops, the seat heating is switched off automatically, in
order to provide sufficient electrical energy for the engine control.
Pedals
Concerning a secure depressi ng of the pedal, you should use only footmats from
the Škoda genuine accessories.
Operation of the pedals must not be hindered!
WARNING
•Greater pedal distances may be needed when there is a fault in the brake
system.
•Do not place any footmats or other additional floor coverings in the area
of the pedals in order to ensure that all the pedals can be fully depressed and
are able to return unobstructed to thei r initial position - risk of accident!
•There must be no objects on the floor which could roll under the pedals.
You would then no longer be able to apply the brakes, operate the clutch or
accelerator - risk of accident!
luggage compartment
Loading the luggage compartment
Please observe the following in the inte rest of having good handling char-
acteristics of your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible.
NKO B6 20.book Page 78 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage79
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Attach the items of luggage to the lashing eyes or the safety net*
⇒page 79.
In the event of an accident, there is such a high kinetic energy which is produced by
small and light objects that they can caus e severe injuries. The magnitude of the
kinetic energy depends on the speed at wh ich the vehicle is travelling and on the
weight of the object. The speed at which the vehicle is travelling is in this case the
more significant factor.
Example: In the event of a frontal collis ion at a speed of 50 km/h, an unsecured
object with a weight of 4.5 kg produces an energy, which corresponds to 20 times
its own weight. This means that it results in a weight of approx. 90 kg. You can
imagine the injuries that can occur, if this “bullet” is flying through the interior
compartment and hits an occupant.
WARNING
•Store the objects in the luggage comp artment and attach them to the
lashing eyes.
•Loose objects in the passenger compartment can be thrown forward
during a sudden manoeuvre or in case of an accident and can injure the
occupants or other oncoming traffic. This risk is still increased, if the objects
which are flying around are hit by a depl oyed airbag. In this case, the objects
which are thrown back can injure the occupants - hazard.
•Please note that the handling properti es of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the
centre of gravity. The speed and style of driving must be adjusted accord-
ingly.
•The items carried in the luggage compar tment should be stored in such
a way that no objects are able to slip forward if there are any sudden driving
or braking manoeuvres undertaken - risk of injury!
•Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
•On no account exceed the permissi ble axle loads and the permissible
gross weight of the vehi cle - risk of accident!
•Never transport occupants in the luggage compartment!
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load ⇒page 222, fig. 195 .
Lashing eyes
Eyes are located on the sides of the loading area for lashing the goods to be loaded.
You can also attach a floor fixing net* to these eyes for lashing small objects.
WARNING
•The load to be transported must be fixed in place in such a way that it
cannot move during the journey and when braking.
•If the items of luggage or objects ar e attached to the lashing eyes with
unsuitable or damaged lashing straps, injuries can occur in the event of
braking manoeuvres or accidents. In order to prevent the items of luggage
being thrown forward, always use suit able lashing straps which are firmly
attached to the lashing eyes.
Fig. 73 Luggage compart-
ment: Lashing eyes
NKO B6 20.book Page 79 Wednesday, March 26, 2008 3:15 PM

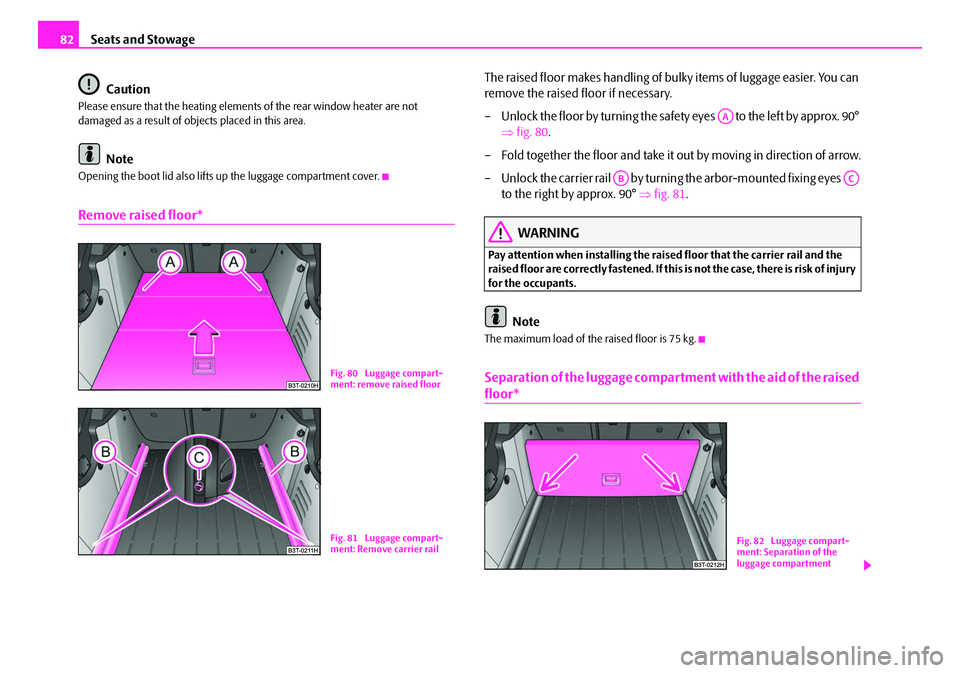

Seats and Stowage
82
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects placed in this area.
Note
Opening the boot lid also lifts up the luggage compartment cover.
Remove raised floor*
The raised floor makes handling of bu lky items of luggage easier. You can
remove the raised floor if necessary.
– Unlock the floor by turning the safety eyes to the left by approx. 90° ⇒fig. 80 .
– Fold together the floor and take it out by moving in direction of arrow.
– Unlock the carrier rail by turning the arbor-mounted fixing eyes to the right by approx. 90° ⇒fig. 81 .
WARNING
Pay attention when installing the raised floor that the carrier rail and the
raised floor are correctly fast ened. If this is not the case, there is risk of injury
for the occupants.
Note
The maximum load of the raised floor is 75 kg.
Separation of the luggage compartment with the aid of the raised
floor*
Fig. 80 Luggage compart-
ment: remove raised floor
Fig. 81 Luggage compart-
ment: Remove carrier rail
AA
ABAC
Fig. 82 Luggage compart-
ment: Separation of the
luggage compartment
NKO B6 20.book Page 82 Wednesday, March 26, 2008 3:15 PM

The air conditioning system97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Using the system
Fig. 110 Climatic: Control elements
Setting temperature
– Turn the control dial ⇒fig. 110 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera- ture.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off.
– Pressing button - causes the recirculating air system ⇒page 99 to be switched on. Control for air distribution
– You can adjust the direction of the air flow
⇒page 99 using air distri-
bution regulator .
Switching cooling on and off
– Press the button ⇒ fig. 110. The warning light lights up in the
button.
– When you again press the switch , the cooling system is switched off. The warning light in the button goes out.
Rear window heater
– Press button . Further information ⇒ page 63.
Auxiliary heating
– Press the button in order to directly switch on/off the auxiliary heating (auxiliary heating and ventilation. Further information
⇒page 106.
The set temperature will be automatically maintained other than when the
control dial is on the extreme right or extreme left position:
•Extreme right position - full heating;
•Extreme left position - full cooling;
•The blower should aways be on to prevent the windows from misting up.
Note
•The whole heat output will be needed to unfrost the windscreen and side
windows. No warm air will be fed to the footwell. This can lead to restriction of the
heating comfort.
•The used air streams out through the air removal openings in the luggage
compartment.
•If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of deposits. Switch the cooling system on
AA
AA
AB
AB
A4
AC
ACA1
AC
A2
A3
NKO B6 20.book Page 97 Wednesday, March 26, 2008 3:15 PM

The air conditioning system
102
Overview of the control elements
The controls enable a separate setti ng of the temperature for the left
and right side.
Fig. 113 Climatronic: Control elements
The buttons
Defrost windscreen intensively

Air flow to the windows 
Air flow to head 
Air flow in the footwell 
Recirculated air mode  with air quality sensor*
Rear window heater

Buttons / control dial
Setting of the temperature for the left side.
Automatic mode
Switching off Climatronic
Setting the blower speed

Button for direct switching on/off of auxiliary heating (auxiliary heating)* 
⇒ page 106 Switching on/off of the temperature setting in dual mode
Switching cooling on and off
Setting of the temperature for the right side.
Note
Below the top row of buttons is located the interior temperature sensor. Do not
glue or cover over the sensor, otherwise it
could have an unfavourable effect on the
Climatronic.
Automatic mode
The automatic mode is used in order to maintain a constant temper-
ature and to demist the windows in the interior of the car.
Switching automatic mode on
– Set a temperature between +18 °C and +26 °C.
– Move the air outlet vents 1 and 2 ⇒ page 105, fig. 114 so that the air
flow is directed slightly upwards.
– Press the button . In the right or left top corner a warning light lights up, depending on which unit was last selected.
If the warning light in the top right corner of the button lights up, the
Climatronic operates in “HIGH” mode. The “HIGH” mode is the standard setting of
the Climatronic.
When pressing again the button , th e Climatronic changes into the “LOW”
mode and the warning light in the top left corner lights up. The Climatronic uses
only in this mode the lower blower speed. However taking into account the noise
level, this is more comfortable, yet be aware that the effectiveness of the air condi-
tioning system is reduced particularly if the vehicle is fully occupied.
By pressing again the button , yo u change into the “HIGH” mode.
The automatic mode is switched off by pres sing the button for the air distribution
or increasing or decreasing the blower speed. The temperature is nevertheless
regulated.
A1
A2
A3
A4
A5
A6
A7
A8AUTO
A9OFF
A10
A11
A12DUAL
A13AC
A14
AUTO
AUTO
AUTO
AUTO
NKO B6 20.book Page 102 Wednesday, March 26, 2008 3:15 PM

Taking care of your vehicle and cleaning the vehicle
200
Plastic parts
External plastic parts are cleaned by normal washing. Plastic parts and synthetic
leather can also be treated with special solvent-free plastic cleaning agents if a
damp cloth is not sufficient. Paint care pr oducts are not suitable for plastic parts.
Caution
Solvent-free cleaners attack the material and can damage it.
Windows
Only use a plastic ice scraper for removing snow and ice from the windows and
mirrors. You should not move the ice scraper forward and backward but in one
direction on the window which you are clea ning in order to avoid any damage to
the surface of the glass.
You can best remove residues of rubber, oil, grease, wax or silicone by using a
special window cleaner or a special silicone remover.
You should also clean the windows regularly from the inside.
Do not use window leathers which you have used to polish the vehicle body to dry
off the windows. Residues of preservati ves in the window leather can dirty the
window and reduce visibility.
Do not affix any stickers over the inside of the rear window to avoid damage to the
heating elements of the rear window heater .
We recommend using a preservative from Škoda genuine accessories offered by
your Škoda dealer.
Caution
Never remove snow or ice from the glass parts with warm or hot water - risk of
formation of cracks in the glass!
The headlight lenses
Please do not use any aggres sive cleaning or chemical solvent pr oducts - risk of
damage to the plastic lenses Please use soap and clean warm water.
Caution
Never wipe the headlights dry and do not use any sharp objects for cleaning the
plastic lenses, this may result in damage to the protective paintwork and conse-
quently in formation of cracks on the head light lenses, e.g through effect of chem-
ical products.
Door and window seals
The rubber seals on the doors, boot lid, bonnet and windows remain supple and
last longer if you treat them from time to time with a rubber care product (e.g. with
a spray with silicone-free oil). You also avoid premature wear of the seals and
prevent leakages in this way. It is also easier to open the doors. Rubber seals which
are well cared for also do not stick together in cold winter weather.
Locks
We recommend that you use the spray from Škoda original accessories with
regreasing and anticorrosive effect for de-icing locks.
Note
When washing your vehicle, ensure that as little water as possible gets into the
locks.
NKO B6 20.book Page 200 Wednesday, March 26, 2008 3:15 PM

Fuses and light bulbs245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Fuse assignment in the dash panel
Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
No.Power consumerAmperes
1Diagnostic socket, engine cont rol unit, relay EKP, control
unit for EKP7,5
2Control unit for ABS, ESP, swit ch for tyre inflation pres-
sure-control system, brake sensor5
3Switch and control unit for airbag5
4WIV, parking light, dimming rear mirror, pressure sensor,
telephone preinstallation5
5Control unit for headlamp beam adjustment and head-
light swivel, control unit for parking aid5
6Instrument cluster, control unit for electromechanical
power steering, Haldex5
7Valve heating, air mass meter10
Fig. 216 Schematic repre-
sentation of the fuse carrier
in the dash panel
8Control unit for trailer detection5
9Relay for auxiliary heating5
10Adaptive left main headlight10
11Adaptive right main headlight10
12Central locking system of the front doors10
13Diagnostic socket, light switch, rain sensor, clock7,5
14Central locking system and bonnet lid15
15Central control unit - interior lights7,5
16The air conditioning system7,5
17Central locking system of the rear doors10
18Not assigned
19Not assigned
20ABS, ESP, Uphill-Start off-Assist5
21Not assigned
22Air blower for Climatronic40
23Front power window30
24Selector lever lock5
25Rear window heater
relay for auxiliary heating and ventilation25
30
26Power socket in the luggage compartment25
27Fuel pump relay,
Fuel pump relay, control unit for fuel pump, injection
valves15
20
28Not assigned
29Not assigned
30Not assigned
No.Power consumerAmperes
NKO B6 20.book Page 245 Wednesday, March 26, 2008 3:15 PM
