Page 122 of 294
Starting-off and Driving
121
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Shift into reverse only when the car is stationary. Depress the clutch pedal and hold it fully depressed. Wait a moment before
engaging reverse gear in order to avoid
any shift noises. The reversing lights will come on once reve
rse gear is engaged, provided the igni-
tion is on. Superb GreenLine - Shift recommendation for changing gears On the model Superb GreenLine, the currently engaged gear
⇒fig. 136
is
shown in the display of the instrument cluster. In order to minimise the fuel consumptio
n, a recommendation for shifting into
another gear is indicated in the display. An arrow points up or down depending on whether it is recommended to shift to
a higher gear or to a lower gear. At the
same time, the recommended gear is indicated instead of the currently engaged gear .
WARNING
Never engage the reverse gear when driving - risk of accident!
Note
•
One should not lay the hand on the shift lever while driving the vehicle. The
pressure of the hand will be transferred to the gearshift forks in the gearbox. This can, over a period of time, lead to early wear of the gearshift forks.
•
Depress the clutch pedal fully when changing gears, in order to avoid unneces-
sary wear and damage to the clutch and gearbox parts.HandbrakeApplying the handbrake – Pull the handbrake lever up fully. Releasing the handbrake – Pull the handbrake lever up slightly
and
at the same time
press in the
locking button
⇒
fig. 137
.
– Hold the button pressed and push the handbrake lever down fully
⇒
.
The handbrake warning light
lights up when the handbr
ake is applied, provided
the ignition is on. A warning signal sounds and the following text appears in the display* if you have inadvertently driven off with the handbrake applied:
Release parking brake!
The handbrake warning is activated if you dr
ive at a speed of more than 6 km/h for
more than 3 seconds.
Fig. 136 Shift recommenda- tion for changing gears
AA
AB
AA
Fig. 137 Centre console: Handbrake
s2dk.1.book Page 121 Wednesday, April 8, 2009 12:23 PM
Page 123 of 294
Starting-off and Driving
122
WARNING
•
Please note that the handbrake mu
st be fully released. A handbrake
which is only partially released can re
sult in the rear brakes overheating
which will have a negative effect on th
e operation of the brake system - risk
of accident! In addition this can result in premature wear of the rear brake pads.•
Never leave children unattended in th
e vehicle. The children might, for
example, release the handbrake or take
the vehicle out of gear. The vehicle
might then move off - risk of accident!
Caution
After the car has come to a stop, always firs
t of all apply the handbrake firmly before
then additionally engaging a gear (manual gearbox) or moving the selector lever into position
P (automatic gearbox).
Rear parking aid*The parking aid provides a warning of obstacles behind the vehicle.The audible parking aid determines the distance between the rear bumper and an obstacle located behind the
vehicle with the aid of ultr
asound sensors. The tones
of the parking aid can be adapted in the menu of the information display* ⇒ page 30. The sensors are integrated in the rear bumper. Range of sensors The clearance warning begins at a distance of about 160 cm from the obstacle (area ⇒fig. 138
). The interval between the warning signals becomes shorter as the
clearance is reduced. A continuous tone sounds from a distance
of approx. 30 cm (area ) - danger area.
You should not reverse any further after this signal sounds!
If the vehicle is
equipped with a factory-fitted towing device*, the border of the danger area starts - continuous tone - 5 cm further behind
the vehicle. The vehi
cle can be extended
through an installed deta
chable towing device.
On vehicles equipped with a factory-fitted radio* or navigation*, the distance to the obstruction is shown graphically on the di
splay. On vehicles with a factory-fitted
towing device, the sensors are deactivated wh
en towing a trailer. The driver is also
informed of the radio* or the navigation
* by a graphic display (vehicle towing a
trailer) on the display. The radio* or navi
gation*, which is factory-fitted, can be set
so that the play function volume decreases when activating the parking aid, see Owner's Manual radio* or navigation*. This
improves the audibili
ty of the parking
aid. Activating The parking aid is activated automatically when
reverse gear
is engaged and the
ignition is turned on. This is confir
med by a brief acknowledgement signal.
Deactivating The parking aid is deactivated
by removing the reverse gear.
WARNING
•
The parking aid is not a substitute fo
r the driver paying proper attention
and it is always the driver's responsibility to take care when parking the vehicle or carrying out similar manoeuvres.•
You should therefore satisfy yourself, before reversing, that there is no
small obstacle, such as a rock, thin po
st, trailer drawbar etc., behind your
Fig. 138 Parking aid: Detec- tion range of rear sensors
AA
AB
s2dk.1.book Page 122 Wednesday, April 8, 2009 12:23 PM
Page 124 of 294
Starting-off and Driving
123
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
vehicle. Such an obstacle might not be within the range detected by the sensors.•
Under certain circumstances, surfaces
of certain objects and types of
clothing cannot reflect the signal of the parking aid. Thus, these objects or people who wear such clothing are not recognised by the sensors of the parking aid.
Note
•
The parking aid does not operate if you are towing a trailer (applies to models
which feature a factory-fitted towing device*).•
If a warning signal sounds for about 3 se
conds after switching the ignition on
and engaging reverse gear, and there is no obstacle close to your car, this indicates a system fault. Have the fault rectified by a specialist workshop.•
The sensors must be kept clean and free of ice to enable the parking aid to
operate properly.Front and rear parking aid*The parking aid provides a warning
of obstacles in front and behind
the vehicle.
The audible parking aid determines the dist
ance between the front or rear bumper
and an obstacle with the aid of ultrasound sensors. The sensors are integrated in the front and rear bumper. The signal tones for the front parking aid sound higher as standard than for the rear parking aid. Th
e tones of the parking aid can be adapted
in the menu of the information display*
⇒page 30.
Range of sensors The distance warning begins at a distance
of about 120 cm from the obstacle in
front of the vehicle (area
⇒fig. 140
) and about 160 cm from the obstacle
behind the vehicle (area
⇒page 122, fig. 138
). The interval between the
warning signals becomes shorter as the clearance is reduced. A continuous tone sounds from a distance
of approx. 30 cm (area ) - danger area.
From this moment on do not continue driving!
If the vehicle is equipped with a
factory-fitted towing device*, the border
of the danger area
starts - continuous
tone - 5 cm further behind the vehicle.
The vehicle can be extended through an
installed detachable towing device. On vehicles equipped wi
th a factory-fitted radio* or na
vigation*, the distance to the
obstruction is shown graphically on the disp
lay. On vehicles with a factory-fitted
towing device, the rear sensors are deactivated when towing a trailer. The driver is also informed of the radio* or the navigation* by a graphic display (vehicle towing a trailer) on the display. The radio* or navi
gation*, which is factory-fitted, can be set
so that the play function volume decrea
ses when activating the parking aid, see
Owner's Manual radio* or navigation*. This
improves the audibility of the parking
aid.
WARNING (continued)
Fig. 139 Activating the parking aid
Fig. 140 Parking aid: Detec-tion range of the front sensors
AAAA
AB
s2dk.1.book Page 123 Wednesday, April 8, 2009 12:23 PM
Page 125 of 294
Starting-off and Driving
124
Activating The parking aid is activated when the
reverse gear
is engaged and the ignition is
turned on or by pressing the button
⇒page 123, fig. 139
- the symbol
lights up
in the button. The activation is confir
med by a brief acknowledgement signal.
Deactivating The parking aid is deactivated after pressing the button°
⇒page 123, fig. 139
or
at a speed of more than 10 km/h - the symbol
in the button is no longer illumi-
nated.
WARNING
•
The parking aid is not a substitute fo
r the driver paying proper attention
and it is always the driver's responsibility to take care when reversing the vehicle or carrying ou
t similar manoeuvres.
•
You should therefore satisfy yourself, before reversing, that there is no
small obstacle, such as a rock, thin post, trailer drawbar etc., in front or behind your vehicle. Such an obstacle might not be within the range detected by the sensors.•
Under certain circumstances, surfaces
of certain objects and types of
clothing cannot reflect the signal of the parking aid. Thus, these objects or people who wear such clothing are not recognised by the sensors of the parking aid.
Note
•
Only the front parking aid operates if yo
u are towing a trailer (applies only to
models which feature a factor
y-fitted towing device*).
•
If a warning signal sounds for about 3 seconds after activating the system and
there is no obstacle close to your car, th
is indicates a system fault. The fault is
confirmed additionally when the symbol
flashes in the button
⇒page 123,
fig. 139
. Have the fault rectified by a specialist workshop.
•
The sensors must be kept clean and free
of ice to enable the parking aid to
operate properly.
•
If the parking aid is activated and the se
lector lever of the automatic gearbox is
in the position , warning signal indicates interruption (vehicle can no longer move).Park Assist*Description and important informationThe park assist assists you when parkin
g in a suitable parallel parking place
between two vehicles or behind a vehicle. The park assist automatically searches fo
r suitable parking spaces after switching
on the ignition and when driving up to 30 km/h. During the parking procedure the park as
sist only takes over the steering move-
ments, the pedals continue to
be operated by the driver.
Function of the system is based on:•
Length and depth measurement of
the parking spaces when driving
•
Evaluation of the size
of the parking space
•
Definition of the correct position of the vehicle for parking
•
Calculating the line on which the vehi
cle drives backwards into the parking
place•
Actuation of the steering force assistan
ce, automatic spinning of the wheels of
the front axle when parking.
WARNING
The park assist does not take away the responsability from the driver when parking.•
Pay particular attention to small chil
dren and animals as they would not
be recognised by the se
nsors of the parking aid.
•
Under certain circumstances, surfaces of certain objects and types of
clothing cannot reflect the signal of th
e park assist or th
e parking aid. Thus,
AP
s2dk.1.book Page 124 Wednesday, April 8, 2009 12:23 PM
Page 126 of 294
Starting-off and Driving
125
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
these objects or people who wear such clothing are not recognised by the sensors of the parking aid.•
The external sound source of the park assist and the parking aid can be
disruptively influenced and under unfavourable conditions, objects or people cannot be recognised by the sensors of the parking aid.
Caution
•
If other vehicles are parked
behind or on the kurb, the park assist guides your
vehicle beyond the kurb or onto it. Make sure that the wheels or the wheel rims of your vehicle are not damaged and
if necessary intervene in time.
•
You should satisfy yourself before parkin
g that there is no small obstacle, such
as a rock, thin post, trailer drawbar etc., in
front or behind your vehicle. Such an
obstacle might not be within the range detected by the sensors.•
Under certain circumstances, surfaces or structures of certain objects such as
wire mesh fences, powder snow etc...,
cannot be recognised by the system.
•
The evaluation of the parking place and the parking procedure depends on the
circumference of the wheels. The system does
not function correctly if your vehicle
is mounted with wheels of non-permissible size, snow chains or a temporary spare wheel (in order to reach the nearest workshop). If the tyres other than those excepted by the manufacturer are mounted,
the resulting position of the vehicle in
the parking place can differ slightly. This
can be avoided throug
h new calibration of
the system in a specialist garage.•
The accuracy of the evaluation for the
parking place can be influenced by the
incorrectly determined outside temperature if
the later is influenced by the thermal
radiation of the engine i.e for stop and go in a traffic jam.•
In order to avoid damaging the sensor
s while cleaning with high-pressure
cleaners or steam jets, the sensors must on
ly be directly sprayed for short periods
while a minimum distance of 10 cm must be observed.
Note
•
A component of the park assist is
the front and rear parking aid*.
•
The electronic stability programme (ESP)
must always be switched on for the
parking procedure.•
Only the front parking aid operates if you are towing a trailer (applies only to
models which feature a factory-fitted towing device*). This is why it is not possible to park backwards with the help of th
e park assist when
towing a trailer.
•
The sensors must be kept clean and free of ice to enable the parking aid to
operate properly.Switch on display of the park assist in the information display*
WARNING (continued)
Fig. 141 Switch on display of the park assist in the infor-mation displayFig. 142 Information display: Finding a suitable parking place
s2dk.1.book Page 125 Wednesday, April 8, 2009 12:23 PM
Page 127 of 294
Starting-off and Driving
126
Switch on display of the park assist in the information display* – Press the button
⇒
fig. 141
.
– Drive past the parking row up to maximum 30 km/h and with a
distance of 0.5 m to 1.5 m
⇒
page 125, fig. 142
.
Operate the turn signal for the driver's side
if you wish to park on this side of the
road. In the information display* the search area for the parking place is indicated on the driver's side. If the button is pressed above a speed of 30 km/h, the display appears in the display of the instrument cluster as soon as you drive slower than 30 km/h.
Note
•
If the park assist is switched on, a yello
w warning light lights up in the button.
•
The search for suitable parking places is automatic after switching on the igni-
tion at speeds of more than 30 km/h. Searching for a parking place is performed at the same time on the driver and front passenger side.•
If the sensors find a suitable parking place, they store its parameters until
another suitable parking place has been found or until a distance of 10 m had been driven after finding the parking place. This is
why it is possible to switch on the park
assist after driving past the parking space,
on the information display* appears the
information if this parking space is suitable for parking.
Parking with the help of the pa
rk assist and concluding the
parking procedureThe time limit for the parking procedure with the help of the park assist lasts 180 seconds. – If the park assist has recognized a suitable parking place, the parking
place is shown in the information display*
⇒
fig. 143
.
– Drive on further until the display
⇒
fig. 144
appears.
– Bring the vehicle to a stop for at least 1 second. – Engage the reverse gear or set the selector lever* in the position
R.
Fig. 143 Information display: Parking place recog-nized with the information to drive onFig. 144 Information display: Parking place recog-nized with the information to engage the reverse gear
s2dk.1.book Page 126 Wednesday, April 8, 2009 12:23 PM
Page 128 of 294
Starting-off and Driving
127
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– As soon as the following message is indicated in the information
display*:
Steering intervention! M
onitor area around veh.!
let go
of the steering wheel, the steering will be taken over by the system.
– Observe the surroundings and drive backwards with a speed of
maximum 7 km/h, at the same time operate the pedal.
– End the parking procedure from a distance on the basis of the infor-
mation of the system.
As soon as the parking procedure is completed, an audible signal sounds and in the information display* the following message appears:
Steering intervention
finished! Please take over steering!
.
If your vehicle is not proper
ly parked, the position of th
e wheels is corrected by the
system after disengaging the reverse gear when your vehicle is stationary, so that you can align the vehicle yourself during
a forward movement after taking over the
steering. Switch off park assist The park assist switches off during
one of the following occurences:
•
A speed of 30 km/h exceeded
•
A speed of 7 km/h exceeded during the parking procedure
•
A time limit of 180 seconds exceeded
for engaging the reverse gear after
switching on the park assist.•
A time limit of 180 seconds exceeded for the parking procedure
•
The button pressed
for the park assist
•
Parking aid activated
•
Switch off ESP
•
Intervention of the driver in the automatic steering procedure (stop the steering
wheel)•
Disengage reverse gear or take out selector lever* out of the position
R during
the parking procedure. Further warning and information texts of the park assist in the information display*:
Park Assist cancelled! The parking procedure has ended or after sw
itching on the ignition, the vehicle has
not been driven above 10 km/h. Park Assist: Speed too high! Reduce the speed below 30 km/h. Driver steering intervention!
Please take over steering!
The parking procedure is ended through driver intervention. Park Assist cancelled! ESP switched off! The parking procedure cannot be carried ou
t because the ESP system is switched
off. ESP switched off! Please take over steering! The parking procedure was ended because th
e ESP system was switched off during
the parking procedure. Park Assist cancelled! Trailer The parking procedure is not possible becaus
e the trailer is hitched and a plug is
inserted in the socket of the towing device. Park Assist cancelled! Time limit exceeded! The parking procedure was not started because a time limit of 180 seconds for engaging the reverse gear was exceeded. Time limit exceeded! Please take over steering! The parking procedure was ended because a
time limit of 180 seconds for parking
was exceeded. Park Assist cancelled! System error The parking procedure is not possible because a fault exists on the vehicle. Have the fault rectified by a specialist workshop. Park Assist defective! Service now! The parking procedure is not possible because
a fault exists on the park assist. Have
the fault rectified by a specialist workshop.
s2dk.1.book Page 127 Wednesday, April 8, 2009 12:23 PM
Page 129 of 294
Starting-off and Driving
128
Steering intervention! Moni
tor area around veh.!
The park assist is active and takes over the steering movements. Observe the surroundings and carefully drive backward
s, at the same time operate the pedal.
Please take over steering! Finish parking manually Take over the steering. End the parking procedure without using the park assist. Speed too high! Please take over steering! The parking procedure was ended while the speed was exceeded. Park Assist: ESP Intervention! Intervention of the ESP system while searching for a suitable parking place. ESP intervention! Please take over steering! Parking procedure is ended through the intervention of the ESP system.Cruise control system (CCS)*IntroductionThe cruise control system (CCS) maintains a constant speed, more than 30 km/h (20 mph), once it has been set, without you
having to depress th
e accelerator pedal.
This is only possible within the range which is permitted by the power output and braking power of the engine. The cruise control system makes it possible - particu- larly on long journeys - for you to rest your “accelerator foot”.
WARNING
•
The cruise control system must not, for safety reasons, be used in dense
traffic or on unfavourable road surfaces
(such as icy roads, slippery roads or
loose chippings) - risk of accident!•
In order to prevent unintentional use
of the cruise control system, always
switch off the system after use.
Note
•
Models fitted with a manual gearbox: Al
ways depress the clutch pedal if you
switch on the cruise control system when
the gearbox is in Neutral. Otherwise the
engine can rev up unintentionally.•
The cruise control system is not able to maintain a constant speed when driving
on steep downhill sections. The weight of the vehicle increases the speed at which it travels. One should shift down in good
time to a lower gear or slow the vehicle
down by applying the foot brake.•
It is not possible on vehicl
es fitted with an automati
c gearbox to switch on the
cruise control system if the selector lever is in the position
P, N or R.
Storing a speedThe cruise control system is operated by means of the switch and rocker button in the left lever of the multi-functional switch. – Press the switch
⇒
fig. 145
into the position
ON
.
– After the desired speed has been reached, press the rocker button
into the
SET
position.
Fig. 145 Operating lever: Rocker button and switch of cruise control system
AA
AB
AA
AB
s2dk.1.book Page 128 Wednesday, April 8, 2009 12:23 PM
Page 130 of 294

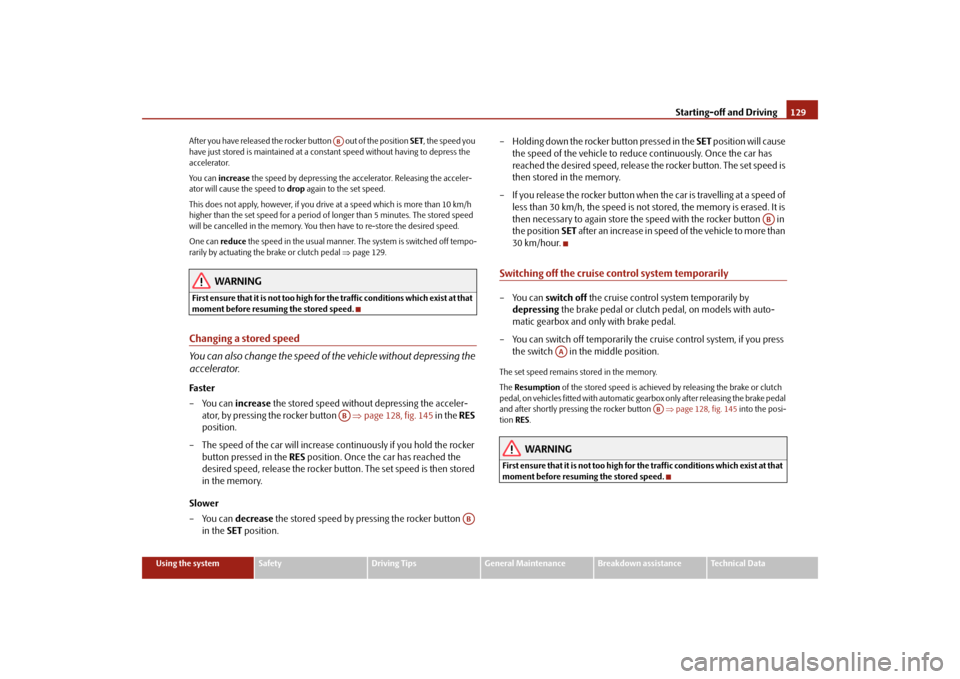

Starting-off and Driving
129
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
After you have released the rocker button out of the position
SET
, the speed you
have just stored is maintained at a cons
tant speed without having to depress the
accelerator. Yo u c a n
increase
the speed by depressi
ng the accelerator. Releasing the acceler-
ator will cause the speed to
drop
again to the set speed.
This does not apply, however, if you drive at a speed which is more than 10 km/h higher than the set speed for a period of longer than 5 minutes. The stored speed will be cancelled in the memory. You th
en have to re-store the desired speed.
One can
reduce
the speed in the usual manner. The system is switched off tempo-
rarily by actuating the brake or clutch pedal
⇒page 129.
WARNING
First ensure that it is not too high for the traffic conditions which exist at that moment before resuming the stored speed.Changing a stored speed You can also change the speed of
the vehicle without depressing the
accelerator.Fa s t e r –You can
increase
the stored speed without depressing the acceler-
ator, by pressing the rocker button
⇒
page 128, fig. 145
in the
RES
position.
– The speed of the car will increase
continuously if you hold the rocker
button pressed in the
RES
position. Once the car has reached the
desired speed, release the rocker button. The set speed is then stored in the memory.
Slower – You can
decrease
the stored speed by pressing the rocker button
in the
SET
position.
– Holding down the rocker button pressed in the
SET
position will cause
the speed of the vehicle to reduce continuously. Once the car has reached the desired speed, release the rocker button. The set speed is then stored in the memory.
– If you release the rocker button when
the car is travelling at a speed of
less than 30 km/h, the speed is not stored, the memory is erased. It is then necessary to again store the sp
eed with the rocker button in
the position
SET
after an increase in speed of the vehicle to more than
30 km/hour.
Switching off the cruise control system temporarily–You can
switch off
the cruise control system temporarily by
depressing
the brake pedal or clutch pedal, on models with auto-
matic gearbox and only with brake pedal.
– You can switch off temporarily the cruise control system, if you press
the switch in the middle position.
The set speed remains stored in the memory. The
Resumption
of the stored speed is achieved by releasing the brake or clutch
pedal, on vehicles fitted with automatic gearbox only after releasing the brake pedal and after shortly pressing the rocker button
⇒page 128, fig. 145
into the posi-
tion
RES
.WARNING
First ensure that it is not too high for the traffic conditions which exist at that moment before resuming the stored speed.
ABAB
AB
AB
AA
AB
s2dk.1.book Page 129 Wednesday, April 8, 2009 12:23 PM
Page 132 of 294
Automatic gearbox DSG*
131
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Automatic gearbox DSG*Automatic gearbox DSG*IntroductionYour car is equipped with an automatic
gearbox DSG. The abbr
eviation DSG means
Direct shift gearbox (Direct shift gearbox). Two independent clutches are needed for the power transmission between the engine and the gearbox. These replace the torque converter of the conventional automatic gearbox. Their shifting is matched in such a way that there are no jerks when shifting the gear and the power transmission of the engine to the front wheels is not interrupted.Information for driving with the automatic gearbox DSG Shifting up and down through the gears is performed automatically.You can also, however, switch
the gearbox over into the
Tiptronic mode
.
This mode makes it possible for
you to also shift gears manually
⇒
page 134.
Starting-off and Driving – Depress the brake pedal and hold it depressed. – Press the Shiftlock button (button
in handle of the selector lever),
move the selector lever into the desired position, e.g.
D ⇒
page 132,
and then release the Shiftlock button.
– Release the brake pedal and depress the accelerator
⇒
.
Stopping for a short time – The selector lever position
N does not have to be selected when stop-
ping just for a short time, such as at a
cross roads. It is sufficient to hold
the vehicle stationary using the foot
brake. The engine can, however,
be allowed just to idle.
Parking – Depress the brake pedal and hold it depressed. – Apply the handbrake firmly. – Press and Shiftlock button in the
selector lever, move the selector
lever to
P and then release the Shiftlock button.
The engine can only be
started
when the selector lever is in position
P or N
⇒ page 119. At temperatures below -10 °C the engine can only be started in the selector lever position
P.
It is sufficient to engage
selector lever position
P when parking on a flat surface.
When parking on a slope you should first apply the handbrake firmly and then move the selector le
ver into position
P. This is to ensure that there is no excessive
pressure acting on the lock mechanism and
that it is easier to subsequently move
the selector lever out of position
P.
If the selector lever position
N is selected by accident while driving it is first neces-
sary to release pressure on the accelerato
r pedal and wait for idling speed of the
engine to be reached before engaging a drive position in the selector lever.
WARNING
•
Do not depress the accelerator when changing the position of the
selector lever if the car is stationary an
d the engine is running - risk of acci-
dent!•
Never move the selector lever into position R or P when driving - risk of
an accident!
s2dk.1.book Page 131 Wednesday, April 8, 2009 12:23 PM
