SKODA SUPERB 2009 2.G / (B6/3T) Swing Car Radio Manual

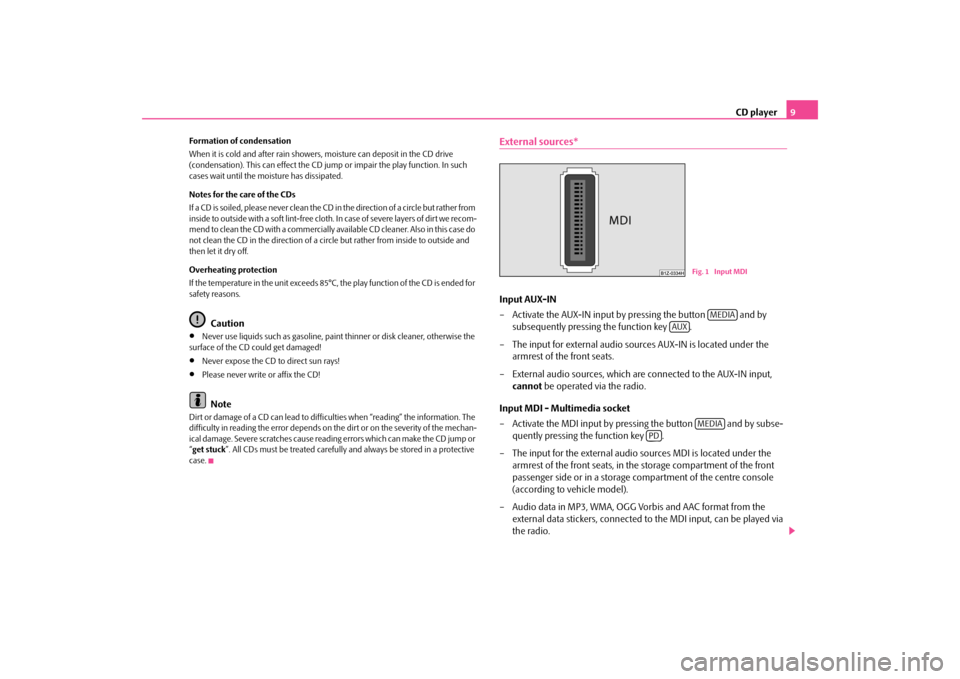

CD player
9
Formation of condensation When it is cold and after rain showers, moisture can deposit in the CD drive (condensation). This can effect the CD ju
mp or impair the play function. In such
cases wait until the moisture has dissipated. Notes for the care of the CDs If a CD is soiled, please never clean the CD
in the direction of a circle but rather from
inside to outside with a soft lint-free cloth. In case of severe layers of dir t we recom- mend to clean the CD with a commercially available CD cleaner. Also in this case do not clean the CD in the direction of a circ
le but rather from inside to outside and
then let it dry off. Overheating protection If the temperature in the unit exceeds 85°C, the play function of the CD is ended for safety reasons.
Caution
•
Never use liquids such as gasoline, paint thinner or disk cleaner, otherwise the
surface of the CD could get damaged!•
Never expose the CD to direct sun rays!
•
Please never write or affix the CD!Note
Dirt or damage of a CD can lead to diffic
ulties when “reading” the information. The
difficulty in reading the error depends on th
e dirt or on the severity of the mechan-
ical damage. Severe scratches cause reading errors which can make the CD jump or “ get stuck
”. All CDs must be treated carefully an
d always be stored in a protective
case.
External sources*Input AUX-IN – Activate the AUX-IN input by pressing the button and by
subsequently pressing the function key .
– The input for external audio sources AUX-IN is located under the
armrest of the front seats.
– External audio sources, which are connected to the AUX-IN input,
cannot
be operated via the radio.
Input MDI - Multimedia socket – Activate the MDI input by pressing the button and by subse-
quently pressing the function key .
– The input for the external audio sources MDI is located under the
armrest of the front seats, in th
e storage compartm
ent of the front
passenger side or in a storage compartment of the centre console (according to vehicle model).
– Audio data in MP3, WMA, OGG Vorbis and AAC format from the
external data stickers, connected to the MDI input, can be played via the radio.
Fig. 1 Input MDI
MEDIA
AUX
MEDIA
PD
sag.9.book Page 9 Wednesday, March 11, 2009 3:20 PM

CD player
10
– External audio sources, which ar
e connected to the MDI input,
can
be
operated via the radio
⇒
page 7.
It is possible to play back external audi
o sources via the loudspeakers of the radio
in the vehicle. You can select another audio source on the ra
dio at any time. As long as the external
audio source is not switched off, it re
mains always active in the background.
Please refer to the Owner's manual of th
e respective manufacturer for the opera-
tion of the external audio source. Adjust the play function volume of the external audio source The play function volume of the extern
al audio source can be changed via the
volume control on the radio. Depending on the connected audio source, the output volume on the external audio source can be changed. You can also change the input sensitivity of the external audio source
⇒page 4, in
order for the play function volume of the
external audio source to adapt to other
audio sources or to avoid distortions of the play function volume. Adapter A 3.5 mm jack plug is required to connect external audio sources via the AUX-IN input. If the external audio source does
not have this jack plug, you must use an
adapter. A special adapter is required to connect audio sources via the input MDI.We recommend that you purchase an adapter for connecting the USB devices, the devices with Mini USB output or an iPod, at an authorised Škoda Service Partner. Conditions for proper connection•
Only USB devices with the specification 2.0 can be connected.
•
The version of the file allocation tabl
e FAT (File Allocation Table) of the
connected device must be FAT16 (< 2 GB) or FAT32 (> 2 GB).•
In order to replay from a unit with a hard
disk (HDD) which includes a large data
volume, it can lead to a time delay when reading in the overview of the music data.
•
In order to replay from a unit, which incl
udes a complicated folder structure, it
can lead to a time delay when readin
g in the overview of the music data.
•
The folder structure in the connected unit must not exceed a depth of 8 levels.
One folder must not contain more than 1000°data.•
A USB extension cable or USB distributo
r (HUB) must not be used to connect
the unit.
WARNING
•
On no account place an external au
dio source on the dash panel. You
could make sudden manoeuvres in th
e passenger compartment and injure
the occupants.•
On no account place an external audio source close to the airbags. You
could be thrown back in the passen
ger compartment by the airbags being
deployed and injure the occupants.•
You must not hold the external audio source in the hand or on the knees
while driving. You could make su
dden manoeuvres in the passenger
compartment and injure the occupants.•
Always guide the connection cable of
the external audio source in such a
way that is does not restrict you when driving.
Caution
The AUX-IN input must only be used for audio sources!
Note
•
The external audio source, which is conne
cted via AUX-IN, can only be used if
no unit is connected via MDI at the same time.•
If an external audio source is connecte
d via AUX-IN, which is equipped with an
adapter for external power supply, it can o
ccur that the audio signal is interrupted.
This depends on the quality of the adapter which is used.•
The loudspeakers in the vehicle are matc
hed to a power output of the radio of
4x20 W.
sag.9.book Page 10 Wednesd
ay, March 11, 2009 3:20 PM

CD player
11
•
For the equipment sound system*, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.
