Twindoor - small boot lidFig. 30 Handle of boot lid / opened small boot lidAfter unlocking the vehicle with the remote control key or the key page 43 you can
open the small boot lid fig. 30 .Open small boot lid– Press on the handle at the bottom side of the boot lid fig. 30 - left, the boot lid
lifts up automatically fig. 30 .Close small boot lid– Pull the boot lid down and close it with a slight swing  . The bonnet locks auto-
matically.
You can also open the small boot lid by pressing the button on the remote control
key page 49 for approx. 1 second.
A handle which makes the closing easier is located on the inner paneling of the boot
lid.
WARNING

Ensure that the lock is properly enga ged after closing the boot lid. Other-
wise, the boot lid might open suddenly when driving even if the boot lid lock is
closed - risk of accident!

Never drive with the boot lid fully open ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!
Note

After closing the boot lid, it is automatically locked within 2 seconds and the
anti-theft alarm system* is activated. This applies only if the vehicle was locked
before closing the boot lid.

The function of the hand grip on the bottom edge of the boot lid is deactivated
when starting off or as of a speed of more than 5 km/hour. The function of the hand
grip is activated again after stopping the ve hicle and after opening the driver or front
passenger door or after pressing the button on the remote control key page 49.

Repeated opening and closing of the boot li d can lead to a temporary failure of the
function due to the overheating protection of the motors of the Twindoor system.
Twindoor - large boot lidFig. 31 Handle of boot lid / opened large boot lidAfter unlocking the vehicle with th e remote control key or the key page 43, “Emer-
gency unlocking and locking of the driver's door” you can open the large boot lid
 fig. 31 .Open large boot lid– Press the handle fig. 31 on the bottom edge of the boot lid.
– You must wait until the brake light in the rear window flashes twice.
– Press on the handle and at the same time raise the boot lid.
A2
A1
A1
A2
A3
s3fg.2.book Page 44 Friday, April 30, 2010 12:17 PM

Unlocking and locking45
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Close large boot lid– Pull the boot lid down and close it with a slight swing . The bonnet locks auto-
matically.
A handle which makes the closing easier is located on the inner paneling of the boot
lid.
WARNING

Ensure that the lock is properly engaged after closing the boot lid. Other-
wise, the boot lid might open suddenly when driving even if the boot lid lock is
closed - risk of accident!

Never drive with the boot lid fully open ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!Note

After closing the large boot lid, it is possib le to open the small boot lid after approx.
2 seconds.

After closing the boot lid, it is automatically locked within 2 seconds and the
anti-theft alarm sy stem* is activated. This applies only if the vehicle was locked
before closing the boot lid.

The function of the hand grip on the bott om edge of the boot lid is deactivated
when starting off or as of a speed of more than 5 km/hour. The function of the hand
grip is activated again after stopping the vehicle and after opening the driver or front
passenger door or after pressing the button on the remote control key  page 49.

Repeated opening and closing of the boot lid can lead to a temporary failure of the
function due to the overheating protection of the motors of the Twindoor system.
Electric boot lid* (Combi) - DescriptionFig. 32 Operation of the lidThere are several possibities for operating the electric boot lid:
By pressing the boot lid remote release button on the remote control key for
approx. 1 second,

using the handle fig. 32 above the licence plate,

using the button on the bottom edge of the boot lid (only accessible when the
lid is opened),

using the button on the centre console fig. 33 .
WARNING
Always stand clear of the closing range of the lid when closing the lid - risk of
accident!
A1
Fig. 33 Operation of the lid - button on
the centre console
AAAB
s3fg.2.book Page 45 Friday, April 30, 2010 12:17 PM

Unlocking and locking
46Caution

In a critical situation, the movement of the lid can be stopped by applying an
abrupt and quick force against the lid.

Before opening or closing the lid, check if there are any objects in the opening or
closing range which could obstruct the movement (e.g. a load on the roof luggage rack
or on the trailer etc.). - Risk of damaging the lid!

Make sure that there is at least 10 cm of clearance above the opened boot lid (e.g.
distance from the garage ceiling). Otherwis e, it may happen that the clearance above
the opened lid is no longer sufficient after relieving the vehicle of a load (e.g. after
unloading) - risk of damaging the lid.

Do not try to manually close the lid during the electric closing process. Damage can
occur to the system of the electric boot lid.

If you manually close the lid, make sure that you press the lock located at the centre
edge of the lid while pressing down the lid above the Škoda logo.Note

If the electrical opening of the lid was triggered using the button on the remote
control key or the button on the centre cons ole, an intermittent audible signal sounds
while the lid is moving.

The electric boot lid is fitted with a force limiter. If the lid hits an obstacle when
closing, it stops and an audible signal sounds . If you rapidly enter the vehicle during the
opening or closing process of the boot lid, the whole vehicle may jerk and as a result
the movement of the lid can be interrupted - the force limiter is activated.

Manually opening and closing the boot lid is only possible in exceptional cases, in
a slow manner and without sudden movements - if possible close to the centre of the
lid - ; by manipulating the lid on the sides, damage to the electric lid may occur.

In certain circumstances, if the lid is load ed (e.g by a thick layer of snow), the
opening process of the lid can be interrupted. In order to ensure the electrical function
of the lid, relieve the lid.
Description of the operationWhen operating the lid, the system distinguishes 3 areas fig. 34 where the function
of the individual operating elements changes. The end positions of the lid - fully closed
in the secured lock and fully opened - differ as well.
Explanation of the symbol
Operation of the boot lid using the remote control key and the button on the
centre console
Feasible action

Non-feasible action

Movement in the opposite dire ction to the previous movement
Action
Closed lid
Area
Opened lid
Opening





Stop





Closing





Fig. 34 Designation of the areas
A1
A2
A3
s3fg.2.book Page 46 Friday, April 30, 2010 12:17 PM

Unlocking and locking47
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
When the ignition is switched on, the operation of the boot lid does not function using
the remote control key.
If the vehicle was locked from the outside, the operation of the boot lid does not func-
tion using the button on
the centre console page 45, fig. 33 .
If a trailer is coupled to th e vehicle, the operation of the boot lid does not function
using the remote control key or the button on the centre console.
Operation of the boot lid using the handle
The operation of the boot lid, using the handle is only possible when the vehicle is
unlocked page 45, fig. 32 .
Operation of the boot lid using the inner button
Operating the boot lid with the inner button is only possible when the boot lid is
opened page 45, fig. 32 . Audible signals
Audible signals are active during the electrical operation of the lid. They serve as a
safety function and provide information
about the success of a performed action.
Note
The expansion of the area page 46, fig. 34 changes proportionally, depending on
the setting of the top position of the lid page 47. When setting the top position of
the lid in the area , the area is not active, the expansion of the area changes
proportionally to the set top position of the lid.Setting the top position of the lidIf the space for opening the lid is restricted (e.g. height of garage) or for more conven-
ient operation (e.g. according to a person's height), it is possible to set the boot lid in
the top position.Setting the top position of the lid– Stop the lid in the desired posi tion (electrically or manually).
– Press the inner button page 45, fig. 32 and hold it pressed for approx. 3
seconds. Storing the position in the memo ry of the control unit is confirmed with
an audible signal.Deleting the set position of the lid– Carefully lift up the lid manually to the maximum opening position.
Action
Closed lid
Area
Opened lid
Opening





Stop





Closing





Action
Closed lid
Area
Opened lid
Opening





Stop





Closing





AA
A1
A2
A3
AA
AB
A1
A2
A3
AB
Signals
Status
Interrupted tone
Open (using the button on the remote
control key or the button on the centre
console  page 45, fig. 33)
1 continuous tone
Force limiter
3 rising tones
Confirmation of the storage of the lid
position
3 identical tones
fault
A3
A2
A3
A2
AB
s3fg.2.book Page 47 Friday, April 30, 2010 12:17 PM

Unlocking and locking
48
– Hold the inner button pressed for appr ox. 3 seconds. An audible signal sounds
and the height which was originally set is deleted from the memory of the control
unit, while the basic position of the top lid position is again set.
Note

The lid always opens at the height which was last stored in the memory of the
control unit.

The top position which is reached when the lid opens automatically, is always
lower than the maximum top position which can be reached when the lid is opened
manually.
Operational malfunctionsIf the battery is disconnected and reconnected while the boot lid is open, it is neces-
sary to activate the system of the electric b oot lid. Activating means the initialisation of
the control unit by manually closing the lid. Thus, the end position of the lid is stored
under fully closed in secured lock.
Possible malfunctions of the electric boot lid:
Examples of operational malfunctions
Note
Contact your specialist garage if there is a malfunction of the electric boot lid.

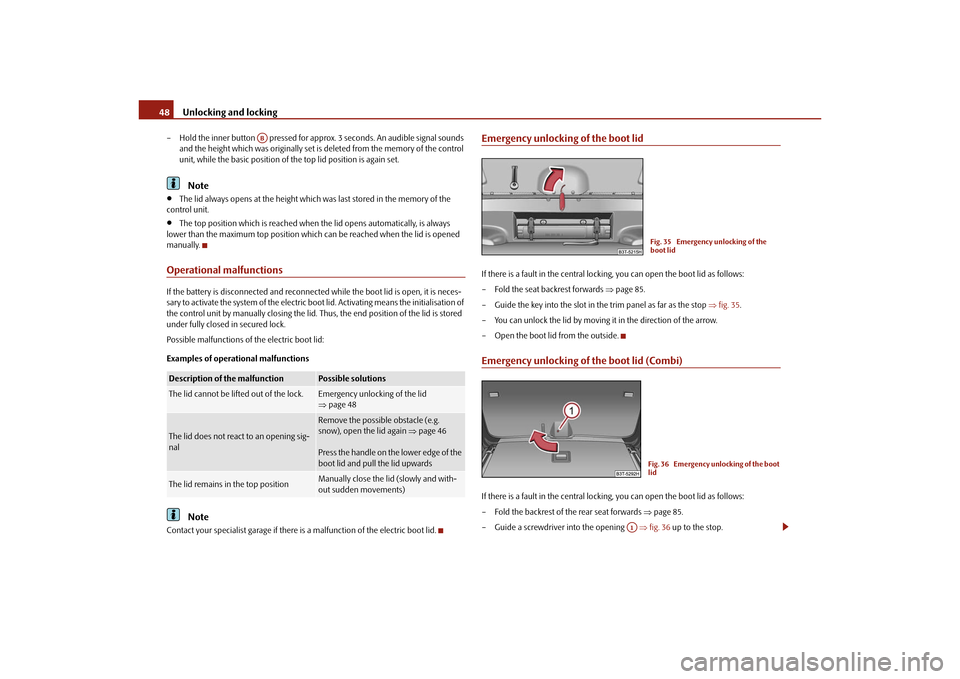

Emergency unlocking of the boot lidIf there is a fault in the central locking, you can open the boot lid as follows:
– Fold the seat backrest forwards page 85.
– Guide the key into the slot in th e trim panel as far as the stop fig. 35 .
– You can unlock the lid by moving it in the direction of the arrow.
– Open the boot lid from the outside.Emergency unlocking of the boot lid (Combi)If there is a fault in the central locking, you can open the boot lid as follows:
– Fold the backrest of the rear seat forwards page 85.
– Guide a screwdriver into the opening fig. 36 up to the stop.
Description of the malfunction
Possible solutions
The lid cannot be lifted out of the lock.
Emergency unlocking of the lid
page 48
The lid does not react to an opening sig-
nal
Remove the possible obstacle (e.g.
snow), open the lid again page 46
Press the handle on the lower edge of the
boot lid and pull the lid upwards
The lid remains in the top position
Manually close the lid (slowly and with-
out sudden movements)
AB
Fig. 35 Emergency unlocking of the
boot lidFig. 36 Emergency unlocking of the boot
lid
A1
s3fg.2.book Page 48 Friday, April 30, 2010 12:17 PM

Unlocking and locking49
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– You can unlock the lid by moving it in the direction of the arrow.
– Open the boot lid from the outside.
Caution
In an emergency, you can unlock the boot li
d with the vehicle key, however only in a
critical situation - risk of damaging the key.Remote controlDescriptionYou can use the remote control key:
to unlock and lock the car,

unlock or open the boot lid,

Opening and closing window.
The transmitter with the battery is housed in the handle of the remote control key. The
receiver is located in the interior of the car. The operating range of the remote control
key is approx. 30 m. But this range of the remote control can be reduced if the batteries
are weak.
The key has a fold-open key bit which can be used for unlocking and locking the car
manually and also for starting the engine.
If a lost key is replaced or if the receiver unit has been repaired or a new unit installed,
it is then necessary for an authorised Škoda Service Partner to initialise the system.
Only after this is it possible to again use the remote control key.Note

The remote control is automatically deactivated when the ignition is switched on.

The operation of the remote control may temporarily be affected by interference
from transmitters close to th e car and which operate in the same frequency range (e.g.
mobile phone, TV transmitter).

The battery must be replaced, ideally by an authorised Škoda Service Partner, if the
central locking or anti-theft alarm system does react to the remote control at less than
3 metres away.

If the driver door is opened, the vehi cle cannot be locked using the remote
control.
Unlocking and locking carUnlocking the vehicle

– Press button for about 1 second.Locking the vehicle

– Press button for about 1 second.Deactivating safe securing system– Press button twice in 2 seconds. Further information page 42.Small boot lid release

– Press the button fig. 37 for about 0.5 seconds. Further information
 page 44.Automatic raising of the small boot lid

– Press the button fig. 37 for about 1 seconds. Further information page 44.
Fig. 37 Remote control key
A1A3A3A2A2
s3fg.2.book Page 49 Friday, April 30, 2010 12:17 PM

Unlocking and locking
50
Automatic opening of the boot lid (Combi)
– Press the button page 49, fig. 37 for about 1 seconds. Further information
 page 46.Folding out of the key– Press button .Folding up of the key– Press button and collapse the key bit in the housing.
The turn signal lights flash twice as confir mation that the vehicle has been unlocked.
The vehicle will lock again automatically if you unlock the vehicle using button but
do not open a door or the boot lid within th e next 30 seconds. This function is intended
to prevent the car being unlocked unintentionally.
In addition, when the car is unlocked, the electrically adjustable seats and exterior
mirrors* move into the position assigned to this key. The stored setting of driver seat
and exterior mirrors is retrieved.
When the vehicle is unlocked or locked, the interior lights and the lights of the entry
area are automatically switched on or off via the door contact.
Display of the locking
The turn signal lights flash once to confir m that the vehicle has been correctly locked.
If the doors or the boot lid remain open after the vehicle has been locked, the turn
signal lights do not flash unt il they have been closed.
WARNING
If the vehicle is locked from the outside and the safe securing system is acti-
vated, there must not be any person in the vehicle as it is then not possible to
open either a door or a window from the inside. The locked doors make it more
difficult for rescuers to get into th e vehicle in an emergency - hazard!
Note

Operate the radio remote control only when the doors and boot lid are closed and
you have visual cont act with the vehicle.

Once in the car, you must not press the lock button
 of the radio remote control
before inserting the key into the ignition lock in order to avoid the car being inadvert-
ently locked and the alarm system* being sw itched on. Should this happen, press the
unlock button
 of the radio remote control.

The automatic raising of the small boot li d can be impaired at temperatures below
+4°C.
Synchronisation of the remote controlIf the vehicle cannot be unlocked by actuatin g the remote control system then it is
possible that the code in the key and the control unit in the vehicle are no longer
synchronised. This can occur when the button s on the radio-operated key are actuated
a number of times outside of the operative range of the equipment or the battery on
the remote control was replaced.
This means it is necessary to synchronise the code as follows:
Press any button on the remote control.

Pressing of the button means that the door will unlock with the key within 1 minute
 page 43, “Emergency unlocking and locking of the driver's door”.
Anti-theft alarm system*DescriptionThe anti-theft alarm system increases the level of protection against people seeking to
break into the vehicle. The system triggers audible and visual warning signals if an
attempt is made to break into the vehicle.
How is the alarm system activated?
The anti-theft alarm system is activated when the vehicle is locked with the key in the
driver's door or by using the radio remote control page 43, “Emergency unlocking
A2
A4A4
A1
s3fg.2.book Page 50 Friday, April 30, 2010 12:17 PM

Unlocking and locking51
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
and locking of the driver's d
oor”. The door contact monitoring is activated approx. 15
seconds after the locking. The interior and the towing protection monitoring are acti-
vated approx. 30 seconds after the locking. If a door is opened during activation, the
monitoring is only activated 5 seconds after closing.
How is the alarm system deactivated?
The alarm system is deactivated by pressi ng the unlock button on the radio remote
control. The anti-theft alarm system is reactivated if the vehicle is not opened within 30
seconds after transmitting the radio signal.
The alarm system is also deactivated if you unlock the vehicle door using the key within
45 seconds after locking the vehicle.
Once you unlock the vehicle by inserting th e key into the driver door within 45
seconds, you then have to insert the key into the ignition lock and switch the ignition
on within 15 seconds after unlocking the door in order to deactivate the alarm system.
The alarm will be triggered if you do not switch on the ignition within 15 seconds.
When is the alarm triggered?
The following security areas of the locked vehicle are monitored:

Bonnet,

Boot lid,

Doors,

Ignition lock,

Socket of the factory-fitted towing device,

Angle of the vehicle* page 51,

Vehicle interior* page 51,

A drop in voltage of the on-board power supply,

Socket of the factory-fitted towing device*.
An alarm is immediately triggered if either of the two battery terminals is disconnected
while the anti-theft alarm system is activated.
How is the alarm switched off?
You switch the alarm off if you unlock the vehi cle with the radio remote control or if you
switch the ignition on.
Note

The working life of the alarm siren is 6 years. More detailed information is available
by a specialist garage.

Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm
system is fully operational.

Coding of the radio remote control and the receiver unit precludes the use of the
radio remote control from other vehicles.
Interior monitor and towing protection monitoring*

The interior monitor detects movements inside the car and then trig-
gers the alarm.Switch off the interior monitor and towing protection monitoring– Switch off the ignition.
– Open the driver door.
–Press the button

at the centre column on the driver side fig. 38 , the symbol

which lights up in the button changes from red to orange.
– Lock the vehicle within 30 seconds.
The interior monitor and the towing protec tion monitoring are switched on again
automatically the next ti me the car is locked.
Fig. 38 Button for interior monitor and
towing protection monitoring
s3fg.2.book Page 51 Friday, April 30, 2010 12:17 PM

Lights and Visibility
62
Rain lights
If you move the windshield wiper lever in the position slow wipe for more than 5
seconds, the side lights and low beam are automatically switched on. The light is
switched off when the windshield wiper lever is no longer than 4 minutes in the posi-
tion for slow or intermittent wipe.
If you switch on the windscreen wipe in th e operation rain sensor* for longer than 10
seconds or in the operation permanent wipe (position 2 or 3) page 73 switching on
for longer than 15 seconds, the side lights and low beam are switched on automati-
cally. The light switches off if the windscreen wipe is in operation rain sensor* for more
than 4 minutes or is not switched on in the operation permanent wipe.
WARNING
The automatic light control only operat es as a support. The driver is not
released from his responsibility to inspect the light and if necessary to switch on
the light depending on the light conditions. The light sensor cannot detect for
example rain or snow. For these conditions we recommend to switch on the low
beam
!
Note

Do not affix any stickers in front of the light sensor, so that you do not impair its
function or put it out of operation.

The same principles as for using the automa tic light control also apply to the light
which is switched on manually page 60.
Coming Home FunctionThe function makes it possible to switch on the lights in the darkness for a short time
after leaving the vehicle.Switching on Coming Home Function– The light switch is in the position automatic driving lamp control

and the low
beam illuminates.
– Switch off the ignition.
– After opening the driver's door, the function Coming Home is switched on. – Close all the doors and the boot lid and lo
ck the vehicle. After a short time, switch
all lights off.
Depending on equipment fitted the function Coming Home switches on the following
lights:

Parking lights,

Low beam,

Entry lighting in the exterior mirrors,

Licence plate light.
Coming Home Function
The lights go out 10 seconds after cl osing all the doors and the boot lid.
If a door or the boot lid re mains open, the lights go out 60 seconds after switching off
the ignition.
On vehicles fitted with automatic driving la mp control you can also switch the light
switch in the position

. The function Coming Home is controlled with the light
sensor in the mount of the interior rear mirror. If the light intensity is higher than the
set value of the light sensor, the Coming Home Function is not switched on after
switching off the ignition.
Note

If the Coming Home Function is switched on constantly, the battery will be heavily
discharged particularly in short-haul traffic.

The switching on of the described lights should only be undertaken in accordance
with the legal requirements.

You can change the illumination period for the Coming Home Function by means
of the information display*.
Leaving Home FunctionThis function makes it possible to switch on the lights when approaching the vehicle.
s3fg.2.book Page 62 Friday, April 30, 2010 12:17 PM

Lights and Visibility69
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Reading lights– You switch on or off the reading light on the right or left by pressing the switch

 page 68, fig. 55 .
Rear reading lights* (Combi)
Valid for vehicles which are fitte d with a panoramic sliding roof.Switching the interior light on– Press the cover glass in the area of the symbol
  fig. 56 .
Switching the interior light off– Press the cover glass in the area of the symbol O.Door contact setting– Position the cover glass into middle position
.
Front door warning light*The warning light* is located in the door trim panel below fig. 57 .
The warning light goes on every time the door is opened.
There is a reflector installed on some vehicles instead of the warning light.Entry lighting*The lighting is positioned on the bottom edge of the exterior mirror.
The light beam is directed towards the entry area of the front door.
The light comes on after the doors have been locked or on opening the boot lid. The
light goes out after switching on the ignition or up to 30 seconds after closing all the
doors or the boot lid.
If a door or the boot lid remains open, the light goes out within 2 minutes if the ignition
is switched off.
WARNING
If the entry light comes on, do not touch its cover - risk of burns!Luggage compartment lightThe lighting comes on automatically when th e boot lid is opened. If the lid remains
open for more than about 10 minutes, the luggage compartment lighting switches off
automatically.
Fig. 56 Detail of the headliner: Rear
reading lights
Fig. 57 Front door: Warning light
s3fg.2.book Page 69 Friday, April 30, 2010 12:17 PM
