warning SKODA SUPERB 2010 2.G / (B6/3T) Manual PDF

Seats and Stowage97
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Push the net partition housing in the oppo
site direction of arrow as far as the
stop.
– Fold the rear seats back into their original position.
WARNING
Pay attention that the rear seat backrest is correctly interlocked. It is only then
that the three-point seat belt for the middle seat can reliably fulfil its function.The roof rack*DescriptionPay attention to the following points if you wish to transport luggage or other items on
the roof of your vehicle:
A special roof luggage rack system was de veloped for the vehicle, that is why you
should only use a roof luggage rack which has been released for use by Škoda Auto.

The base carrier is the basis for a complete roof luggage rack system. Separate
additional holders are required for safety reasons for transporting luggage, bikes, surf-
boards, skis and boats.

The basic version of the roof luggage rack system and further components are
obtainable as accessories from the authorised Škoda Service Partners.Caution

If you use other roof rack systems or if the roof bars are not properly fitted, then any
damage which may result to your car is not covered by the warranty agreements. It is
therefore essential to pay attention to the fitting instructions supplied with the roof
luggage rack system.

On models fitted with a power sliding/ti lting roof or a panoramic sliding roof,
ensure that the opened sliding/tilting roof or the panoramic sliding roof does not strike
any items of luggage transported on the roof.

Ensure that the opened boot lid does not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption. One should
therefore take off the roof bar system after use.Attachment pointsPerform the assembly and the disassembly according to the attached instructions.
Note

If you have any questions, please contact a specialist garage.

The illustration does not apply to vehicles which are factory-fitted with a roof rail.
Roof loadDistribute weight evenly over the roof luggage rack system. The maximum permissible
roof load (including roof rack system) of 100 kg and the maximum permissible total
weight of the vehicle should not be exceeded.
You cannot make full use of th e permissible roof load if you use a roof luggage rack
system with a lower load carr ying capacity. The load transported on the roof luggage
rack system must not exceed the weight limit which is stated in the fitting instructions.
WARNING

The items which you transport on the roof bar system must be reliably
attached - risk of accident!
A1
Fig. 96 Attachment points for base roof
carrier
s3fg.2.book Page 97 Friday, April 30, 2010 12:17 PM

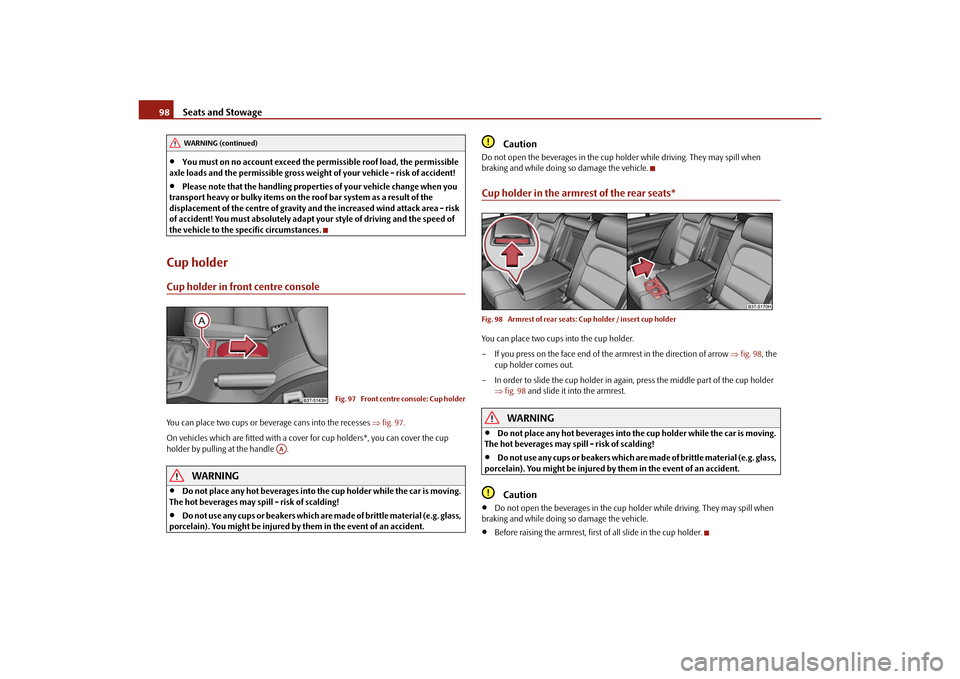

Seats and Stowage
98

You must on no account exceed the pe rmissible roof load, the permissible
axle loads and the permissible gross weight of your vehicle - risk of accident!

Please note that the handling properties of your vehicle change when you
transport heavy or bulky items on the roof bar system as a result of the
displacement of the centre of gravity an d the increased wind attack area - risk
of accident! You must absolutely adapt your style of driving and the speed of
the vehicle to the sp ecific circumstances.
Cup holderCup holder in front centre consoleYou can place two cups or beverage cans into the recesses fig. 97 .
On vehicles which are fitted with a cove r for cup holders*, you can cover the cup
holder by pulling at the handle .
WARNING

Do not place any hot beverages into th e cup holder while the car is moving.
The hot beverages may spill - risk of scalding!

Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. They may spill when
braking and while doing so damage the vehicle.Cup holder in the armrest of the rear seats*Fig. 98 Armrest of rear seats: Cup holder / insert cup holderYou can place two cups into the cup holder.
– If you press on the face end of the armrest in the direction of arrow fig. 98 , the
cup holder comes out.
– In order to slide the cup holder in again, press the middle part of the cup holder fig. 98 and slide it into the armrest.
WARNING

Do not place any hot beverages into the cup holder while the car is moving.
The hot beverages may spill - risk of scalding!

Do not use any cups or beak ers which are made of brittle material (e.g. glass,
porcelain). You might be injured by them in the event of an accident.Caution

Do not open the beverages in the cup holder while driving. They may spill when
braking and while doing so damage the vehicle.

Before raising the armrest, first of all slide in the cup holder.
WARNING (continued)
Fig. 97 Front centre console: Cup holder
AA
s3fg.2.book Page 98 Friday, April 30, 2010 12:17 PM

Seats and Stowage99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note holderThe note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict
the driver's vision.AshtrayFront ashtray*Removing ashtray insert– Open the ashtray page 102, fig. 106 .
– Grasp the ashtray insert at the point fig. 100 and take it out in direction of
arrow.
Insert ashtray insert– Insert the ashtray vertically downwards.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!Rear ashtray*Removing ashtray insert– Open the ashtray page 105, fig. 113 .
– Grasp the insert at the points marked with the arrows fig. 101 and take it out.Insert ashtray insert– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 99 Windscreen: Note holderFig. 100 Centre console: Front ashtray
AA
Fig. 101 Centre console: Rear ashtray
s3fg.2.book Page 99 Friday, April 30, 2010 12:17 PM

Seats and Stowage
100
Cigarette lighter*, power socketsCigarette lighter
You can also use the socket on the ci garette lighter for other electrical
appliances.Using the cigarette lighter– Press the button of the lighter fig. 101 or page 99, fig. 100.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.Using the socket– Remove the cigarette lighter or the cover of the power socket.
– Connect the plug of the electrical appliance to the socket.
The 12 volt power socket can also be used to supply power to additional electrical
accessories with a power uptake up to 120 watts.
WARNING

Take care when using the cigarette ligh ter! Not paying proper attention or
incorrect use the cigarette lighter in an uncontrolled manner may result in
burns.

The cigarette lighter and the power socket also operates when the ignition is
switched off or the ignition key withdrawn. You should therefore never leave
children unattended in the vehicle.Caution
Always use matching plugs to avoid damagi ng the power socket.
Note

Connecting electrical components when the engine is not running will drain
the battery of the vehicle - risk of battery draining!

Further information page 234.
Power socket in the luggage compartmentFig. 102 Luggage compartment: Power socket / luggage compartment: Power socket (Combi)– Open the cover of the power socket fig. 102 .
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the co nnection of approved electrical accesso-
ries with a power uptake up to 120 watts. The vehicle battery will be discharged in the
process if the engine is stationary.
The same remarks apply here as for page 100.
Further information page 234.Storage compartmentsOverviewYou will find the following storag e facilities in your vehicle:
AA
AB
s3fg.2.book Page 100 Friday, April 30, 2010 12:17 PM

Seats and Stowage101
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING

Please do not place anything on top of the dash panel. Such objects might
slide or fall down when driving (when accelerating or cornering) and may
distract you from concentrating on the traffic situation - risk of accident!

Ensure that when driving no objects from the centre console of from other
storage possibilities may get into the footwell of the driver. You would then no
longer be able to apply the brakes, operate the clutch or accelerator - risk of
accident!
Storage compartment on the front passenger sideOpening and closing the storage compartment on the front passenger
side– Press the button fig. 103 - the lid folds down.
– Raise the lid and press it until the catch is heard to engage.
In the storage compartment are pin holders.
WARNING
The storage compartment must always be closed when driving for safety
reasons.
Storage compartment on the front passenger side
 page 101
Storage compartment on the driver's side
page 102
Storage compartment in front centre console
page 102
Storage net on the front centre console
page 103
Storage compartment for spectacles*
page 103
Storage compartment in the front doors
page 103
Storage compartment below front passenger seat*
page 104
Front seat armrest with storage compartment
page 104
Rear armrest with storage compartment*
page 104
Storage compartment in rear centre console*
page 105
Storage compartment for an umbrella*
page 105
Seat backrest with opening for skis
page 105
Removeable through-loading bag*
page 106
Clothes hooks*
page 106
Side compartments in the luggage compartment*
page 107
Lockable side compartment* (Combi)
page 107
Non-lockable side compartment (Combi)
page 107
Fig. 103 Dash panel: Storage compart-
ment on the front passenger side
s3fg.2.book Page 101 Friday, April 30, 2010 12:17 PM

Seats and Stowage
102
Cooling of storage compartment on front passenger side
The compartment is fitted with an isolatable entry for air.– Open the air supply by pulling on the lever in direction of arrow fig. 104 .
– The air supply closes by pressing the lever.
Opening the air supply when the air conditioni ng system is switched on allows cooled
air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or interior air
to flow into the storage compartment.
We recommend that you close the air supply if it is operating in the heating mode or if
you are not using the cooling system for the storage compartment.Storage compartment on the driver's side
– The storage compartment is opened by li fting the handle and folding open in the
direction of arrow page 102, fig. 105 .
WARNING
The storage compartment must always be closed when driving for safety
reasons.Storage compartment in front centre console– Press on the lid at the point fig. 106 in direction of arrow, the lid slides in.
WARNING
The storage compartment is not a substitute for the ashtray and must also not
be used for such purposes - risk of fire!
Fig. 104 Storage compartment: Using
cooling systemFig. 105 Dash panel: Storage compart-
ment on the driver's side
Fig. 106 Front centre console: Storage
compartment
AA
s3fg.2.book Page 102 Friday, April 30, 2010 12:17 PM

Seats and Stowage103
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Storage net on the front centre console*The storage net in the front center console fig. 107 is designed for the transport of
smaller objects.
WARNING

In the storage net you must only stow objects (up to a total weight of 0,5 kg).
Heavy objects are not secured sufficiently - risk of injury!

No objects with sharp edges should be stowed in the luggage net, because
they can damage the luggage net.
Storage compartment for spectacles*– Press the button fig. 108 , the storage compartment folds down.
WARNING
The compartment must only be opened when removing or inserting objects
and otherwise must be kept closed.
Caution
On vehicles which are fitted with an anti-theft alarm system*, the opened storage
compartment reduces the effectiveness of the sensors for the interior monitor*.Storage compartment in the front doors
WARNING
Use the storage compartmen ts in the door panels fig. 109 only for small
items which do not project out of the compartment in order to avoid any inter-
ference with the proper operation of the side airbags.
Fig. 107 Front centre console: Storage
netFig. 108 Detail of the headliner: Storage
compartment for spectacles
AA
Fig. 109 Storage compartment in the
front doors
s3fg.2.book Page 103 Friday, April 30, 2010 12:17 PM

Seats and Stowage105
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Storage compartment in rear centre consoleThe storage compartment is equipped with a removeable insert.
– Open the storage compartment by pulling at the handle fig. 113 in direction
of arrow.
WARNING
The storage compartment is not a substitu te for the ashtray and must also not
be used for such purposes - risk of fire!Storage compartment for umbrella*The storage compartment for an umbrella is located in the rear left door. You can
purchase an umbrella from the rang e of the Škoda original accessories.
Seat backrest with opening for skisFig. 114 Rear seats: Handle of lid / luggage compartment: Unlock buttonAfter folding open the armrest and the lid, an opening in the seat backrest becomes
visible through which you can push the remo veable through-loading bag with skis. You
can fold open the armrest and the lid from the passenger or luggage compartment.Opening from passenger compartment– Fold the rear armrest downwards page 86, fig. 75.
– Pull the handle up to the stop in upward direction and fold open the lid downwards
 fig. 114 - left.Opening from luggage compartment– Push the unlock button fig. 114 downwards and fold the lid (with armrest) to
the front.Closing– Fold the lid and the armrest up to the stop in upward direction - the lid must click into place audibly.
Ensure that the armrest is always locked into place after closing. You can recognize this
on the fact that the red field above the unlocking button of the luggage compart-
ment is not visible.
Fig. 113 Centre console at rear: Storage
compartment
AA
AA
AA
s3fg.2.book Page 105 Friday, April 30, 2010 12:17 PM

Seats and Stowage
106WARNING
The opening for the skis is solely used for transporting skis which are placed in
a properly secured removeable through-loading bag page 106.Through-loading bag*
The removeable through-loading bag is solely used for transporting
skis.Loading– Open the boot lid.
– Fold the rear armrest and the cover in the seat backrest downwards page 105.
– Place the empty through-loading bag in such a way that the end of the bag with the
zip lies in the boot.
– Push the skis into the through-loading bag from the luggage compartment .Securing–Tighten the strap fig. 115 on the free end around the skis in front of the bind-
ings.
– Fold the seat backrest a little forward.
– Guide the securing strap through the op ening in the seat backrest around the
upper part of the seat backrest. – Then push the seat backrest back into th
e upright position until the locking button
clicks into place - check by pulling on the seat backrest.
– Insert the securing strap into the lock until it is heard to lock in place.
On vehicles fitted with a net partition, gu ide the securing strap around the net parti-
tion housing when the net partition is rolled up. After fixing the net partition in place,
it is not longer possible to unroll the net partition.
WARNING

After placing skis into the through-loading bag, you must secure the bag
with the securing strap .

The strap must hold the skis tight.

Make sure that the strap holds the sk is in front of the binding (see also
imprint on the removeable through-loading bag).Note

The through-loading bag is foreseen for four pairs of skis. The total weight of the
skis which are transported must not exceed 17 kg.

You must put the skis and the sticks in the removeable through-loading bag with
the tips facing the rear.

If there are several pairs of skis in the removeable through-loading bag, ensure that
the bindings are positioned at the same height.

The removeable through-loading bag must never be folded together or stowed
when moist.
Clothes hooksThe clothes hooks are located on the middle pi llar and on the handle of the headliner
above each of the rear doors.
WARNING

Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.
Fig. 115 Securing the through-loading
bag
AA
AB
AB
AC
AB
AB
AA
AA
s3fg.2.book Page 106 Friday, April 30, 2010 12:17 PM

Seats and Stowage107
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

Use the hooks for hanging only light item s of clothing and ensure that there
are no heavy or sharp-edge d objects in the pockets.

The maximum permissable load of the hooks is 2 kg.

Do not use clothes hangers for hanging up items of clothing otherwise this
will interfere with the protection offered by the head airbag*.
Side compartments*Fig. 116 Luggage compartment: Side compartment - left / right.– You can open the compartment by turning the locks in the direction of arrow
fig. 116 .
On some vehicles the battery is located in the left compartment page 222. This
compartment is marked by the symbol
 and can be opened by turning the locks e.g
with a coin or using a flat screwdriver.
In the right compartment fig. 116 is located the CD changer*, the TV tuner* and the
first-aid box.
Lockable side compartment* (Combi)Fig. 117 Luggage compartment: Lockable side compartment– Open the compartment by pulling at the handle in direction of arrow fig. 117 .
The CD changer*, the TV Tuner* are housed in this compartment.
You can also house the first-aid box * and the warning triangle* in this compartment.Non-lockable side compartment (Combi)The cover of the side compartment can be removed and thus the luggage compart-
ment can be enlarged.
– Grasp the cover on the top part and carefully remove it in direction of arrow fig. 118 .
WARNING (continued)
Fig. 118 Non-lockable side compart-
ment
s3fg.2.book Page 107 Friday, April 30, 2010 12:17 PM
