wheel bolts SKODA SUPERB 2010 2.G / (B6/3T) Owner's Manual

Wheels and Tyres231
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The date of manufacture
is also stated on the tyre wall (possibly only on the inside of
wheel).
DOT ... 20 09...
means, for example, that the tyre was ma nufactured in the 20th week of the year 2009.
Any spare wheel which differs from the tyres fitted to the vehicle (e.g. winter tyres or
low-profile tyres) should only be used for a short time in the event of a puncture and
when adopting an appropriately cautious styl e of driving. It should be replaced as
quickly as possible by a normal wheel.
WARNING

Only use those tyres or wheel rims which have been approved for your
model of Škoda Auto vehicle. Failure to observe this instruction will adversely
affect the road safety of your vehicle - risk of accident! Approval and licencing
of your vehicle on public roads may also become void as a result.

You must on no account drive at a high er speed than is permissible for your
tyres - risk of an accident resulting from tyre damage and loss of control over
your vehicle.

Tyres which are 6 years old or more should only be fitted in exceptional
cases and when adopting an approp riately cautious style of driving.

Never fit tyres which have already been used without having adequate
knowledge of their previous history. Tyre s age even if they have not been used
at all or only very little. A spare tyre must only be used in exceptional cases and
only then when adopting an appropriately cautious style of driving.

Do not, where possible, replace individu al tyres but at least replace them on
both wheels of a given axle at the same time. Always fit the tyres with the
deeper tread depth to the front wheels.For the sake of the environment
Old tyres must be disposed of in conf ormity with the appropriate regulations.
Note
It is not normally possible to fit wheels from other models of cars for technical reasons.
This may also apply in certain circumstances to the wheels of the same type of
vehicle.Wheel boltsWheels and wheel bolts are matched to each other in terms of design. Each time you
fit other wheels - e.g. light alloy wheels or wheels with winter tyres - you must therefore
also use the matching wheel bolts of the corr ect length and shape of spherical cap. This
is essential to ensure that the wheels are tightly fitted and that the brake system oper-
ates properly.
If you retrofit wheel trims (or have this done), please also ensure that an adequate
flow of air remains assured for cooling the brake system.
The authorised Škoda Service Partners are instructed in the technical possibilities
which exist regarding converting or retrofitting tyres, wheels and wheel trims.
WARNING

In case of incorrect treatment of the wheel bolts, the wheel can loosen when
the car is moving - risk of accident!

The wheel bolts must be clean and must turn easily. However, they must
never be treated with grease or oil.

If the wheel bolts are tightened to a too low tightening torque, the rim can
lossen when the car is moving - risk of accident! A tightening torque which is
too high can damage the bolts and threads and this can result in permanent
deformation of the contac t surfaces on the rims.Caution
The prescribed tightening torque of the wh eel bolts for steel and light alloy wheels is
120 Nm.
s3fg.2.book Page 231 Friday, April 30, 2010 12:17 PM

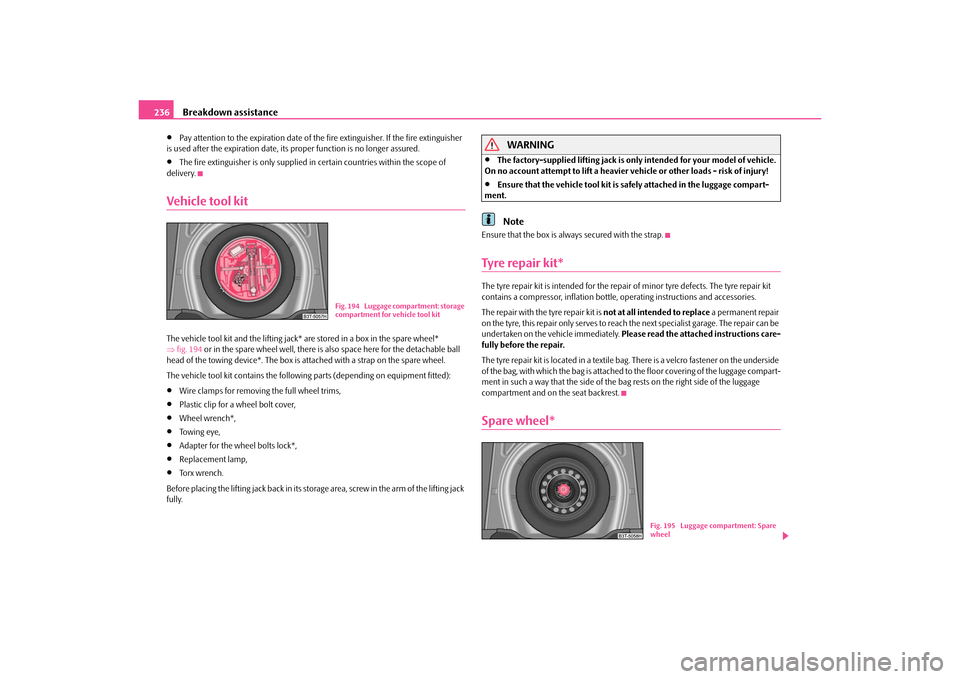

Breakdown assistance
236

Pay attention to the expiration date of the fire extinguisher. If the fire extinguisher
is used after the expiration date, its proper function is no longer assured.

The fire extinguisher is only supplied in certain countries within the scope of
delivery.
Vehicle tool kitThe vehicle tool kit and the lifting jack* are stored in a box in the spare wheel*
 fig. 194 or in the spare wheel well, there is also space here for the detachable ball
head of the towing device*. The box is attached with a strap on the spare wheel.
The vehicle tool kit contains the following parts (depending on equipment fitted):
Wire clamps for removing the full wheel trims,

Plastic clip for a wheel bolt cover,

Wheel wrench*,

To w i n g e y e ,

Adapter for the wheel bolts lock*,

Replacement lamp,

Torx wrench.
Before placing the lifting jack back in its storage area, screw in the arm of the lifting jack
fully.
WARNING

The factory-supplied lifting jack is only intended for your model of vehicle.
On no account attempt to lift a heavier vehicle or other loads - risk of injury!

Ensure that the vehicle tool kit is sa fely attached in the luggage compart-
ment.Note
Ensure that the box is always secured with the strap.Tyre repair kit*The tyre repair kit is intended for the repair of minor tyre defects. The tyre repair kit
contains a compressor, inflation bottle, operating instructions and accessories.
The repair with the tyre repair kit is not at all intended to replace a permanent repair
on the tyre, this repair only serves to reach the next specialist garage. The repair can be
undertaken on the vehicle immediately. Please read the attached instructions care-
fully before the repair.
The tyre repair kit is located in a textile bag. There is a velcro fastener on the underside
of the bag, with which the bag is attached to the floor covering of the luggage compart-
ment in such a way that the side of the bag rests on the right side of the luggage
compartment and on the seat backrest.Spare wheel*
Fig. 194 Luggage compartment: storage
compartment for vehicle tool kit
Fig. 195 Luggage compartment: Spare
wheel
s3fg.2.book Page 236 Friday, April 30, 2010 12:17 PM

Breakdown assistance237
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The spare wheel lies in a well under the floor covering of the luggage compartment and
is fixed in place using special screws
page 236, fig. 195 .
Before removing the spare wheel, you must take out the box with the vehicle tool kit
box page 236, fig. 194.
One should check the inflation pressure in the spare wheel (at best when generally
checking the tyre air pressures - see sign on the fuel filler flap page 228) to ensure
that the spare wheel is always ready to use.
Temporary spare wheel
A warning label displayed on the rim of the temporary spare wheel indicates that your
vehicle is equippe d with a temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:

The warning label must not be covered after installing the wheel.

Do not drive faster than 80 km/h with this spare wheel and pay particular attention
while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.

The inflation pressure for this spare wheel is identical to the inflation pressure of
the standard tyres. The temporary spare wheel R 18 must have an inflation pressure of
420 kPa (4.2 bar)!

Use this spare wheel only to reach the nearest specialist garage as it is not intended
for continuous use.

No other summer or winter tyres must be mounted on the rim of the spare wheel
R 18.
Changing a wheelPreliminary workThe following steps should be carried ou t before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible from
the traffic flow. The place you choose should be level.
–Have all the occupants get out. While changing a wheel, the occupants of the
vehicle should not stand on the road (e.g. behind a crash barrier).
– Apply the handbrake firmly. –Engage
1st gear or if your vehicle is fitted with an automatic gearbox, position the
selector lever into position P .
– If a trailer is coupled, uncouple it.
–Take the vehicle tool kit  page 236 and the spare wheel*  page 236 out of the
luggage compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescribed
distance from your vehicle while observin g all national legal provisions. In this
way you are protecting not only yourself but also other road users.

Never start the engine with the vehicle si tting on the raised jack - danger of
suffering injury.Caution
If you have to change a wheel on a slope fi rst block the opposite wheel with a stone or
similar object in order to secure the vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.Changing a wheelAlways change a wheel on a level surface as far as possible.
– Take off the full wheel trim* page 238 or the wheel trim cap page 239 or the
caps page 239.
– In the case of light alloy wheels remove the wheel trim cap page 239.
– First of all slacken the safety wheel bolt * and afterwards the other wheel bolts page 239.
– Jack up the vehicle until the wheel to be changed is clear of the ground
 page 240.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
s3fg.2.book Page 237 Friday, April 30, 2010 12:17 PM

Breakdown assistance
238
– Take off the wheel.
– Fit on the spare wheel and ti ghten the wheel bolts slightly.
–Lower the car.
– Tighten the wheel bolts firmly, alternately and diagonally using the wheel wrench (crosswise) and last the safety wheel bolt* page 239.
– Mount the full wheel trim/wheel trim cap or the caps.
Note

All bolts must be clean and must turn easily.

You must never grease or oil the wheel bolts!

When fitting on unidirectional tyres, ensu re that the tyres rotate in the correct
direction page 228.
Subsequent stepsAfter changing the wheel, you must perform the following steps.
– Stow and attach the replaced wheel in the spare wheel well using a special screw
page 236, fig. 195 .
– Stow the vehicle tool kit in the space provided.
– Check the tyre pressure on the spare wheel just mounted as soon as possible.
– Have the tightening torque of the wheel bolts checked with a torque wrench as
soon as possible. Steel and light alloy wh eels must be tightened to a tightening
torque of 120 Nm .
– Change the damaged wheel or consult a specialist garage about possibilities for getting repairs done.
WARNING
It is necessary to observe the guidelines given on page 230 if the vehicle is
subsequently fitted with tyres which are different to those it was fitted with at
the works.
Note

If you find, when changing the wheel, that the wheel bolts are corroded and diffi-
cult to turn, the bolts must be replaced before checking the tightening torque.

Drive cautiously and only at a moderate speed to a workshop where the tightening
torque can be checked.
Full wheel trim*Pulling off– Hook the clamp found in the vehicle tool ki t into the reinforced edge of the full
wheel trim.
– Push the wheel key through the clamp, support the wheel key at the tyre and pull off the wheel trim.Installing– First press the full wheel trim onto the wheel at the valve opening provided. Then
press the full wheel trim into the wheel in such a way that its entire circumference
locks correctly in place.
Caution

Use the pressure of your hand, do not knock on the full wheel trim! Heavy knocks
mainly on the points where the full wheel trim has not been inserted into the wheel,
can result in damage to the guide and centering elements of the full wheel trim.

Check for yourself that the safety wheel bolt is located in the hole in the area of the
valve before fitting the full wheel trim onto a steel wheel which is attached with a safety
wheel bolt  page 240, “Securing wheels against being stolen*”.
s3fg.2.book Page 238 Friday, April 30, 2010 12:17 PM

Breakdown assistance239
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Wheel bolts with caps*Pulling off– Push the plastic clip sufficiently far onto the cap until the inner catches of the clip
are positioned at the collar of the cap and detach the cap fig. 196 .Installing– Push the caps fully onto the wheel bolts.
The caps are located in the well of the luggage compartment.Wheel trim caps*Pulling off– Carefully remove the wheel tr im cap using the wire clamp fig. 197 .
Slackening and tightening wheel bolts
Slacken the wheel bolts before jacking up the vehicle.Slackening wheel bolts– Push the wheel wrench* fully onto the wheel bolt
16).
– Grasp the end of the wrench* and turn the bolt about one turn to the left
 fig. 198 .
Tightening wheel bolts– Push the wheel wrench* fully onto the wheel bolt
16).
– Grasp the end of the wrench* and turn the bolt to the right until it is tight.
WARNING
Slacken the wheel bolts only a little (about one turn) as long as the vehicle has
not yet been jacked up - risk of an accident!.
Note
Apply pressure carefully with your foot to the end of the wrench* if it proves difficult
to slacken the bolts. Hold tight on the vehicl e when doing this and ensure that you have
a steady position.
Fig. 196 Removing the cap.Fig. 197 Pulling off wheel trim cap on
light alloy wheels
16)Use the appropriate adapter for slackening and tightening the safety wheel bolts page 240.
Fig. 198 Changing a wheel: Slackening
wheel bolts
s3fg.2.book Page 239 Friday, April 30, 2010 12:17 PM

Breakdown assistance
240
Raise vehicle
You have to raise the vehicle with the lifting jack* in order to be able to
take off the wheel.Position the lifting jack* by selecting the ja cking point which is closest to the wheel to
be removed fig. 199 . The jacking point is located directly below the engraving in the
lower sill.
– Position the lifting jack* below the jacking point and move it up until its claw is positioned directly below the vertical web of the lower sill.
– Align the lifting jack* so that its claw grasps the web of the lower sill and the
base plate is resting flat on the floor.
– Turn the lifting jack* up further until the wheel is just clear of the ground.
Ground below the lifting jack which is soft and slippery can cause the vehicle to slip
off the jack. It is therefore always necessary to place the lifting jack* on a solid surface
or use a wide and stable base. Use a non-sl ip base (e.g. a rubber foot mat) if the
surface is smooth , such as cobbled stones, a tiled floor, etc.
WARNING

Always raise the vehicle with the doors closed - risk of injury!

Take suitable measures to prevent the base of the lifting jack from slipping
off - risk of injury!

Not positioning the lifting jack at the specified points can result in damage
to the vehicle. The jack can al so slip off if it does not have sufficient grip - risk of
injury!

It is important to support the vehicle with suitable supporting blocks if you
wish to work under the lifted vehicle - risk of injury!
Securing wheels against being stolen*
You need a special adapter for sl ackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the safety wheel
bolt.
– Insert the adapter fig. 200 with its toothed side full y into the inner toothing
of the safety wheel bolt in such a way that only the outer hexagon is jutting out
 fig. 200 .
– Insert the wheel wrench fully onto the adapter .
– Slacken the wheel bolt, or tighten it firmly page 239.
– Reinstall the full wheel trim/wheel cap after removing the adapter or place the cap onto the safety wheel bolt.
– Have the tightening torque checked with a torque wrench as soon as possible.
Steel and light alloy wheels must be tightened to a tightening torque of 120 Nm.
Fig. 199 Changing a wheel: Jacking
points for positioning lifting jack
AA
AB
WARNING (continued)
Fig. 200 Safety wheel bolt with adapter
AB
AA
AB
s3fg.2.book Page 240 Friday, April 30, 2010 12:17 PM

Breakdown assistance241
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The safety wheel bolts on vehicles fitted wi
th them (one safety wheel bolt per wheel)
can only be loosened or tighten up by using the adapter provided.
It is meaningful to note the code number hammered into the rear side of the adapter
or the rear side of the safety wheel bolts. You can obtain a replacement adapter from
an authorised Škoda Service Partner, if necessary, by quoting this number.
We recommend that you always carry the adapter for the wheel bolts with you in the
vehicle. It should be stow ed in the vehicle tool kit.
Caution
Damage can occur to the adapter and safety wh eel bolt if the safety wheel bolt is tight-
ened up too much.
Note
The set of safety wheel bolts can be obtained from an authorised Škoda Service
Par tner.Jump-startingInitial stepsYou can use the battery of another vehicle for jump-starting yours if the engine does
not start because the battery on your vehicle is flat. You will require jump-start cables
for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity (Ah) of the battery
supplying the power must not be significantly less than the capacity of the discharged
battery in your vehicle.
Jump-start cables
Only use jump-start cables which have an adequately large cross-section and insu-
lated terminal clamps. Plea se pay attention to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red.
Negative cable - colour coding in the majority of cases black.
WARNING

A discharged battery may already freeze at temperatures just below 0°C. In
case of frozen battery carry out no jump-starting - risk of explosion!

Please pay attention to the warning instructions relating to working in the
engine compartment page 216, “Working in the engine compartment”.Note

There must not be any contact between the two vehicles otherwise current may
flow as soon as the negati ve terminals are connected.

The discharged battery must be properly connected to the system of the vehicle.

Switch off any mobile phone, pay attention to the instructions for use of the mobile
phone in such a situation.

We recommend that you purchase the jump -starting cable in the specialist shops
of the battery manufacturers.
Start engineIt is important to connect the jump-start cables in the correct order.Connecting positive terminals–Attach one end fig. 201 to the positive terminal of the discharged battery
 fig. 201 .
Fig. 201 Jump-starting using the
battery from another vehicle: A - flat
vehicle battery, B - battery providing
current
A1
AA
s3fg.2.book Page 241 Friday, April 30, 2010 12:17 PM

Index281
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Parking aid
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
parking aid Front and rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 123
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Power socket in the luggage compartment . . . . . 100
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Button in the driver's door . . . . . . . . . . . . . . . . . 52
Button in the front passenger door and in the rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 54
with central locking system . . . . . . . . . . . . . . . . . 54
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86, 104
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear light unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Rear light unit (Combi) . . . . . . . . . . . . . . . . . . . . . . . 255 Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Rear window
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Recommendation for changing gears . . . . . . . . . . . 19
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Synchronisation process . . . . . . . . . . . . . . . . . . . 50
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Replacing the wiper blade fo r rear window (Combi) 76
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 76
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Safety information Engine compartment . . . . . . . . . . . . . . . . . . . . . 216
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . . 196
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 167
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 167
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165, 168 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 167 Safety information . . . . . . . . . . . . . . . . . . . . . . . 166
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever lock Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 137
Selector lever-emergency unl ocking (DSG) . . . . 140
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting the top position of the lid . . . . . . . . . . . . . . . 45
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . 122 after fuel tank has run empty . . . . . . . . . . . . . 123
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Steering active driver-steering recommendation . . . 189
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 192
Storage compartment Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Umbrella . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Storage compartments . . . . . . . . . . . . . . . . . . . . . . 100
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
s3fg.2.book Page 281 Friday, April 30, 2010 12:17 PM

Index
282
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Switching lights on and off . . . . . . . . . . . . . . . . . . . . . 60
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 123TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 205
Taking out the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
TCS
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145, 152
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 195
The roof luggage rack system . . . . . . . . . . . . . . . . . . . 97
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Through-loading bag . . . . . . . . . . . . . . . . . . . . . . . . 106
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tiptronic automatic gearbox DSG . . . . . . . . . . . . . . . . . . 139
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Towing protection monitoring . . . . . . . . . . . . . . . . . . 51
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Tow-starting and towing vehicle Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system . . . . . . . . . . . . . . . . . . . . . . 188 Traction control system (TCS)
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 General Maintenance . . . . . . . . . . . . . . . . . . . . 202
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . 180
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Twindoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . 145
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Tyre inflation pressure Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tyre repair kit Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Tyres Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . 209
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192VVanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Ventilation Auxiliary ventilation . . . . . . . . . . . . . . . . . . . . . . 117
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
WWarning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 with a high-pressure cleaner . . . . . . . . . . . . . . 206
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 205
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . . 206
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228, 238
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Windscreen Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . . 73
Windshield washer fluid reservoir . . . . . . . . . . . . . 226 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Windshield washer system . . . . . . . . . . . . . . . . . . . 226
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . . 76XXenon headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
s3fg.2.book Page 282 Friday, April 30, 2010 12:17 PM
