On vehicles that are fitted with a cover for cup holders, you can cover the cup
holder by pulling on the handle
A
.
ÐCup holder in the rear armrest
Fig. 83
Rear armrest: Cup holder/insert cup holder
First read and observe the introductory information and safety warn-
ings on page 82.
Two beverage containers can be placed into the cup holder.
›
Press on the front end of the armrest in the direction of the arrow
» Fig. 83 - ,
the cup holder comes out.
› To slide the cup holder in again, press the middle part of the cup hold-
er » Fig. 83 -  and slide it into the armrest. Ð
ä Ashtray
Fig. 84
Centre console: Ashtray at the front/rear
Removing the front ashtray insert › Open the ashtray
» Fig. 90 on page 86.
› Grasp the ashtray insert in the area A
» Fig. 84
and remove it in the direction
of the arrow.
Inserting the front ashtray insert
› Insert the ashtray vertically downwards.
Removing the rear ashtray insert
› Open the ashtray
»
Fig. 98 on page 89.
› Grasp the ashtray insert B
» Fig. 84
in the area marked with the arrows and
remove it.
Inserting the rear ashtray insert
› Place the ashtray insert in the mount and press it in. WARNING
Never place flammable objects in the ashtray - risk of fire! Ð
83
Seats and Stowage

Cigarette lighter, 12-volt power socket
Cigarette lighter
Fig. 85
Centre console: Cigarette lighter, front/rear
Usage › Press the button of the cigarette lighter A
or B
» Fig. 85.
› Wait until the button pops forward.
› Remove the cigarette lighter immediately and use.
› Place the cigarette lighter back into the socket. WARNING
■ Take care when using the cigarette lighter! Improper use of the cigarette
lighter can cause burns. ■ The cigarette lighter also operates when the ignition is switched off or the
ignition key withdrawn. Therefore never leave children unattended in the ve-
hicle. Note
■ The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 84, 12-volt power socket.
■ Further information » page 194, Accessories, changes and replacement of
parts. Ð 12-volt power socket
Fig. 86
Boot: Power socket/boot: Power socket (Combi)
Overview of the 12-volt power socket
In the front centre console A
» Fig. 85
on page 84.
In the rear centre console B
» Fig. 85
on page 84.
In the boot » Fig. 86.
Using the power socket
› Remove the cover from power socket or cigarette lighter, or open the cover for
the power socket.
› Connect the plug for the electrical appliance to the socket.
Further information » page 194, Accessories, changes and replacement of parts . WARNING
■ Improper use of the 12-volt power socket and the electrical accessories can
cause fires, burns and other serious injuries.
■ Never leave children unattended in the vehicle. The 12-volt power socket
and any connected appliances can also be operated when the ignition is
switched off or the ignition key is withdrawn.
■ If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately. £
84 Using the system

CAUTION
■ Never exceed the maximum power consumption, otherwise the vehicle's elec-
trical system can be damaged.
■ Connecting electrical components when the engine is not running will drain the
battery of the vehicle - risk of battery draining!
■ Only use matching plugs to avoid damaging the 12-volt power socket.
■ Only use accessories that have been tested for electromagnetic compatibility in
accordance with the applicable directives.
■ Before turning the ignition on or off, and before starting the car, switch off the
device connected to the 12-volt power socket to prevent any damage caused by
voltage fluctuations.
■ Observe the operating instructions for the connected devices! Note
The 12-volt power socket can only be used for connecting approved electrical ac-
cessories with a power uptake of up to 120 watt.ÐStorage compartments
Overview
The vehicle has the following storage compartments: Storage compartment on the front passenger side » page 85
Storage compartment on the driver's side » page 86
Stowage compartment in front centre console » page 86
Storage net in the front centre console » page 86
Map pockets in the front seats » page 87
Glasses storage box » page 87
Storage compartments in the doors » page 87
Stowage compartment below front passenger seat » page 88
Front armrest with storage compartment » page 88
Rear armrest with storage compartment » page 88
Stowage compartment in rear centre console » page 89
Stowage compartment for an umbrella » page 89
Seat backrest with through-loading channel » page 89 Removable through-loading bag
» page 90
Side compartments in the boot » page 90
Lockable side compartment (Combi) » page 91
Non-lockable side compartment (Combi) » page 91 WARNING
■ Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating or cornering) and may distract you
from concentrating on the traffic - risk of accident!
■ When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes, operate the clutch or accelerator - risk of
accident!
■ The storage compartments must always be closed when driving for safety
reasons. Ð Storage compartment on the front passenger side
Fig. 87
Dash panel: Storage compart-
ment on the front passenger
side
Open/close
› Press the button
» Fig. 87 and the lid folds down.
› Lift the lid upwards until it clicks into place.
A pen holder is provided in the stowage compartment. Ð
85
Seats and Stowage

Cooling the storage compartment on the front passenger side
Fig. 88
Storage compartment: Using
cooling system
› Open the air supply by pulling the lever in the direction of the arrow
» Fig. 88.
› The air supply is closed by pressing the lever.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or inte-
rior air to flow into the storage compartment.
We recommend closing the air supply if it is operated in heating mode or the cool-
ing system for the storage compartment is not being used. ÐStorage compartment on the driver's side
Fig. 89
Dash panel: Storage compart-
ment on the driver's side
› The storage compartment is opened by lifting the handle and folding open in
the direction of arrow » Fig. 89. Ð Stowage compartment in front centre console
Fig. 90
Front centre console: Stowage
compartment
› Press on the bottom part of the storage compartment in the area A
» Fig. 90
in the direction of the arrow, and the lid folds in. WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! Ð Storage net in the front centre console
Fig. 91
Front centre console: Storage
net WARNING
Only store soft objects with a total weight of 0.5 kg in the storage net. Heavy
objects are not secured sufficiently - risk of injury! £
86 Using the system

CAUTION
No objects with sharp edges should be stored in the storage net, as they can
damage the storage net. ÐMap pockets in the front seats
Fig. 92
Front seat rests: Map pockets
Map pockets are located on the rear of the seat backrests » Fig. 92.
The map pockets are intended for storage of maps, magazines, etc. WARNING
Never put heavy items in the map pockets - risk of injury! CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings. Ð Glasses storage box
Fig. 93
Detail of the headliner: Glasses
storage box
› Press the button A
» Fig. 93 and the compartment folds down.
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box - they may be
damaged.
■ The compartment must only be opened when removing or inserting the specta-
cles and otherwise must be kept closed.
■ On vehicles that are fitted with an anti-theft alarm system, the opened glasses
storage box reduces the effectiveness of the sensors for the interior monitor. Ð Storage compartments in the doors
Fig. 94
Storage compartment: in the front door/in the rear door £
87
Seats and Stowage

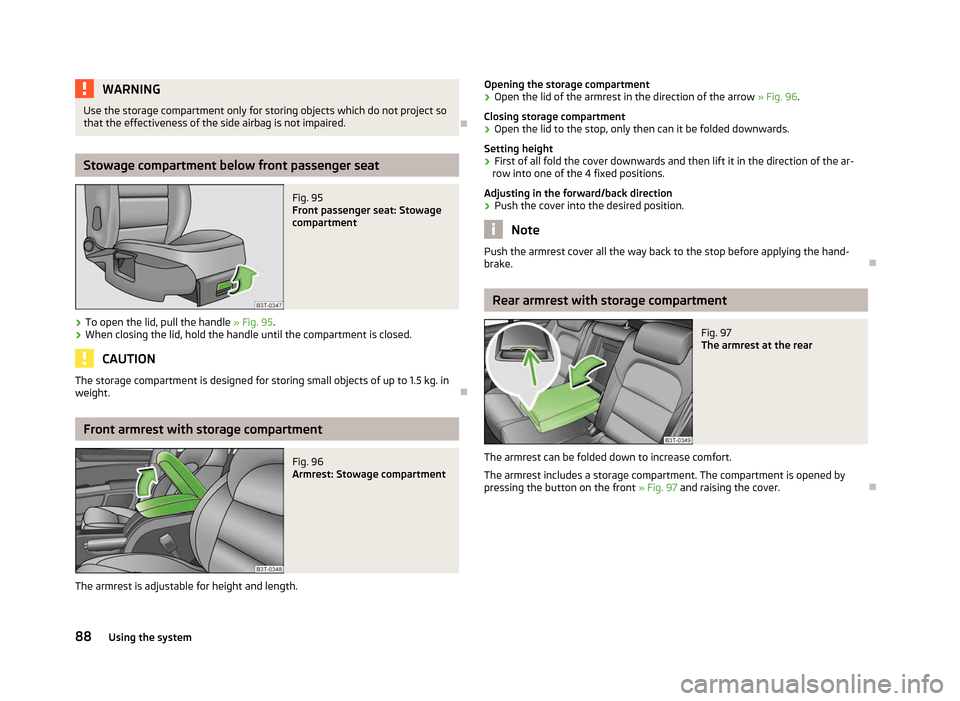

WARNING
Use the storage compartment only for storing objects which do not project so
that the effectiveness of the side airbag is not impaired. ÐStowage compartment below front passenger seat
Fig. 95
Front passenger seat: Stowage
compartment
› To open the lid, pull the handle
» Fig. 95.
› When closing the lid, hold the handle until the compartment is closed. CAUTION
The storage compartment is designed for storing small objects of up to 1.5 kg. in
weight. ÐFront armrest with storage compartment
Fig. 96
Armrest: Stowage compartment
The armrest is adjustable for height and length. Opening the storage compartment
› Open the lid of the armrest in the direction of the arrow
» Fig. 96.
Closing storage compartment
› Open the lid to the stop, only then can it be folded downwards.
Setting height
› First of all fold the cover downwards and then lift it in the direction of the ar-
row into one of the 4 fixed positions.
Adjusting in the forward/back direction
› Push the cover into the desired position. Note
Push the armrest cover all the way back to the stop before applying the hand-
brake. Ð Rear armrest with storage compartment
Fig. 97
The armrest at the rear
The armrest can be folded down to increase comfort.
The armrest includes a storage compartment. The compartment is opened by
pressing the button on the front » Fig. 97 and raising the cover. Ð
88 Using the system

Stowage compartment in rear centre console
Fig. 98
Centre console at rear: Stowage
compartment
The storage compartment is equipped with a removable insert. › Open the storage compartment by pulling the handle A
» Fig. 98
in the direc-
tion of the arrow. WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! ÐStowage compartment for an umbrella
Fig. 99
Left rear door: Stowage com-
partment for an umbrella
The storage compartment for an umbrella is located in the rear left door » Fig. 99. Note
An umbrella can be purchased from ŠKODA Original Accessories. Ð Seat backrest with through-loading channel
Fig. 100
Rear seats: Cover handle/boot: Unlock button
After folding the rear armrest and cover up, an opening in the seat backrest be-
comes visible through which the removable through-loading bag with skis can be
pushed. The armrest and cover can be folded forward from the passenger com-
partment or the boot.
Opening from the passenger compartment
› Fold down the rear armrest
» Fig. 62 on page 72.
› Pull the handle upwards to the stop and fold the cover down
» Fig. 100 -  .
Opening from the boot
› Push the unlock button 1
» Fig. 100
-  down and fold the cover (including the
armrest) forwards.
Closing
› Fold the cover and armrest upwards to the stop - the lid must click into place.
Ensure that the armrest is always locked into place after closing. This is apparent
as the red field above the unlocking button 1
is not visible from the boot.
WARNING
The through-loading channel is only intended for transporting skis that are
placed in a properly secured, removable through-loading bag » page 90.Ð
89
Seats and Stowage

Through-loading bag
Fig. 101
Securing the through-loading
bag
The removable through-loading bag is solely used for transporting skis.
Loading
› Open the boot lid.
› Fold the rear armrest and the cover in the seat backrest downwards
» page 89,
Seat backrest with through-loading channel .
› Place the empty, removable through-loading bag in such a way that the end of
the bag with the zip is in the boot.
› Push the skis into the removable through-loading bag from the boot
» .
› Close the through-loading bag.
Securing
› Tighten the strap A
on the free end around the skis in front of the bind-
ings » Fig. 101 .
› Fold the seat backrest a little forward.
› Guide the securing strap B
through the opening in the seat backrest around
the upper part of the seat backrest.
› Then push the seat backrest back into the upright position until the unlocking
button clicks into place - check by pulling on the seat backrest.
› Insert the securing strap B
into the lock C
until it clicks into place.
On vehicles fitted with a luggage net partition, guide the securing strap B
around the housing when the net partition is rolled up. After fixing the net parti-
tion in place, it is not longer possible to unroll the net partition. WARNING
■ After placing skis into the through-loading bag, you must secure the bag
with the securing strap B
» Fig. 101.
■ The strap A
must hold the skis tight.
■ Make sure that the strap A
holds the skis in front of the binding (also refer
to imprint on the removable through-loading bag).
■ The total weight of the skis which are transported must not exceed 17 kg. Note
■ The through-loading bag is foreseen for four pairs of skis.
■ Place the skis and sticks in the removable through-loading bag with the tips
facing to the rear.
■ If there are several pairs of skis in the removable through-loading bag, ensure
that the bindings are positioned at the same height.
■ The removable through-loading bag must never be folded together or stowed
when moist. Ð Side compartments in the boot
Fig. 102
Boot: Side compartment - left/right.
› The compartment is opened by turning the locks in the direction of the ar-
row » Fig. 102.
On some vehicles the battery is located in the left compartment » page 182. This
compartment is marked by the symbol  and can be opened by turning the locks
e.g with a coin or using a flat screwdriver.
The CD changer and TV tuner are located in the right compartment » Fig. 102.£
90 Using the system

The first-aid box can also be stored in this compartment.
ÐLockable side compartment (Combi)
Fig. 103
Boot: Lockable side compart-
ment
› The compartment is opened by pulling the handle in the direction of the ar-
row » Fig. 103.
The CD changer and TV Tuner are housed in this compartment.
The first-aid box and warning triangle can also be stored in this compartment. ÐNon-lockable side compartment (Combi)
Fig. 104
Non-lockable side compartment
The cover for the side compartment can be removed, thus enlarging the boot.
› Grasp the top part of the cover and carefully remove it in the direction of the
arrow » Fig. 104. CAUTION
Ensure that the side compartment cover and the mount for the cover are not
damaged during installation or removal. Ð Clothes hooks
The clothes hooks are located on the middle pillar and on the handle of the head-
liner above each of the rear doors. WARNING
■ Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.
■ Only use the hooks for hanging light items of clothing and ensure that there
are no heavy or sharp-edged objects in the pockets.
■ Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of head airbags. CAUTION
The maximum permissible load of the hooks is 2 kg. Ð Parking ticket holder
Fig. 105
Windscreen: Parking ticket hold-
er
The note holder is designed e.g. for attaching car park tickets. £
91
Seats and Stowage

WARNING
The attached note has to always be removed before starting off in order not
to restrict the driver's vision. Ð92
Using the system
