Replacing bulb for main beam249Replacing the bulb for the fog light250
Replacing the bulb for the licence plate light
250
Rear light (Superb Combi)
251
Replacing bulbs in rear light (Superb Combi)
251
Some manual skills are required to change a bulb. For this reason, we recommend
having bulbs replaced by a specialist garage or seeking other expert help in the
event of any uncertainties.
› Switch off the ignition and all of the lights before replacing a bulb.
› Faulty bulbs must only be replaced with the same type of bulbs. The designa-
tion is located on the light socket or the glass bulb.
› A stowage compartment for replacement bulbs is located in a plastic box in the
spare wheel or underneath the floor covering in the boot.
WARNING■ Always read and observe the warnings before completing any work in the
engine compartment » page 206.■
Accidents can be caused if the road in front of the vehicle is not sufficiently
illuminated and the vehicle cannot or can only be seen with difficulty by other
road users.
■
Bulbs H7 H8 and H15 are pressurised and may burst when changing the bulb
- risk of injury! We therefore recommended wearing gloves and safety glasses when changing a bulb.
■
Gas discharge bulbs (xenon bulbs) operate with a high voltage, professional
knowledge is required – risk of death!
■
The relevant lamp must always be switched off before a light bulb is re-
placed.
CAUTION
Do not take hold of the glass bulb with naked fingers (even the smallest amount of dirt reduces the working life of the light bulb). Use a clean cloth, napkin, or sim-
ilar.Note■ This Owner's Manual only describes the replacement of bulbs where it is possi-
ble to replace the bulbs on your own without any complications arising. Other bulbs must be replaced by a specialist garage.■
We recommend that a box of replacement bulbs always be carried in the vehi-
cle. Replacement bulbs can be purchased from ŠKODAOriginal Accessories.
■
We recommend having the headlight settings checked by a specialist garage af-
ter replacing a bulb in the main, low or fog beam.
■
In case of failure of a xenon gas discharge lamp or an LED diode, visit a special-
ist garage.

Headlights
Fig. 201
Bulb arrangement: Headlight with halogen bulb/with Xenon bulb
First read and observe the introductory information and safety warn- ings
on page 247.
Headlight with halogen bulb
Low beam
Main beam, separate daytime running lights, and parking light
Headlights with Xenon light Xenon gas discharge bulbs
Main beam

1234248Do-it-yourself

Replacing the low beam bulbFig. 202
Halogen headlight: Changing the
bulb for the low beam
First read and observe the introductory information and safety warn-
ings on page 247.
›
Remove the rubber cover
1
» Fig. 201 on page 248.
›
Turn the plug with the bulb
A
» Fig. 202 as far as the stop in the direction of
the arrow.
›
Change the bulb.
›
Insert the bulb holder with the new bulb and turn in an anti-clockwise direction
as far as the stop.
›
Insert the rubber cover
1
.

Replacing bulb for main beam and daytime running lights
Fig. 203
Halogen headlight: Replacing
the bulb for main beam and sep-
arate daytime running lights
First read and observe the introductory information and safety warn- ings on page 247.
›
Remove the rubber cover
2
» Fig. 201 on page 248.
›Turn the bulb holder A
» Fig. 203 in the direction of the arrow as far as the
stop.›
Replace the bulb, insert the bulb holder with the new bulb and turn in the oppo-
site direction to that of the arrow as far as it goes.
›
Insert the rubber cover
2
.

Replacing bulb for main beam
Fig. 204
Headlights with Xenon light: Changing the bulb for the main beam
First read and observe the introductory information and safety warn-
ings
on page 247.
›
Unlock the protective cap in the direction of arrow
1
» Fig. 204 and remove.
›
Turn the plug with bulb
C
anti-clockwise to the stop and remove it.
›
Change the bulb.
›
Insert the bulb holder with the new bulb and turn in an anti-clockwise direction
as far as the stop.
›
Insert the protective cap in holder
2
and carefully push in.
The protective cover must engage firmly.

249Fuses and light bulbs

Replacing the bulb for the fog lightFig. 205
Front bumper: Remove the protective grille/fog light
Fig. 206
Replacing the light bulb
First read and observe the introductory information and safety warn-
ings on page 247.
Removing the protective grille
›
Release the protective grille in the area of the arrow » Fig. 205 - 
using the
clamp for removing the wheel trims » page 228, Vehicle tool kit .
›
Remove the protective grille in the direction of the arrow
1
.
Changing light bulbs for fog lights
›
Use the screwdriver from the tool kit to unscrew the fog lamp » Fig. 205 -
 .
›
Remove the headlight in the direction of arrow
2
.
›
Remove the connector.
›
Turn bulb holder
A

» Fig. 206 in an anti-clockwise direction up to the stop and
remove.
›
Insert the bulb holder with the new bulb into the headlight and turn in a clock-
wise direction as far as the stop.
› Fit the connector.›Replace the fog lamp by inserting it in the opposite direction of the arrow2

» Fig. 205 -  and screw tight.
›
Insert the protective grille and carefully press it in.
The protective grille must engage firmly.

Replacing the bulb for the licence plate light
Fig. 207
Remove the number plate light/replace the bulb
First read and observe the introductory information and safety warn- ings
on page 247.
›
Open the boot lid.
›
Insert a slotted screwdriver at the location indicated by the arrow » Fig. 207 - 
,
press it in lightly, and unlatch the springs.
›
Remove the lamp.
›
Pull the faulty bulb out of the holder in the direction of the arrow » Fig. 207 - 
.
›
Insert a new bulb into the holder.
›
Replace the lamp and lightly press it until the spring latches.
CAUTION
When removing and installing the number plate light and tail light make sure that
the paintwork of the vehicle and the tail light are not damaged.
250Do-it-yourself

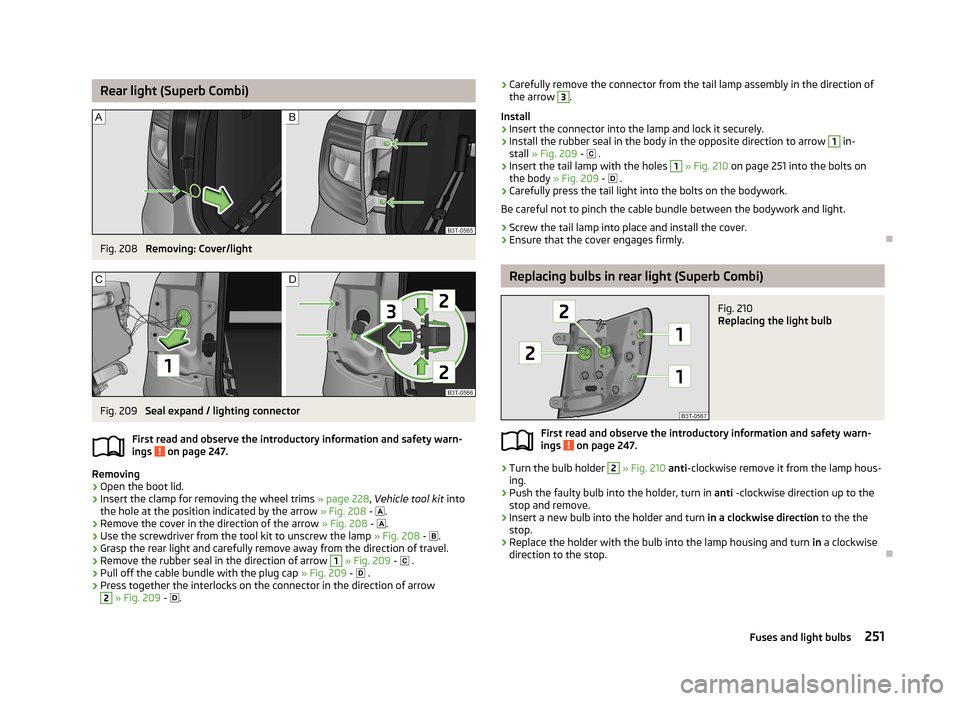

Rear light (Superb Combi)Fig. 208
Removing: Cover/light
Fig. 209
Seal expand / lighting connector
First read and observe the introductory information and safety warn-
ings
on page 247.
Removing
›
Open the boot lid.
›
Insert the clamp for removing the wheel trims » page 228, Vehicle tool kit into
the hole at the position indicated by the arrow » Fig. 208 - 
.
›
Remove the cover in the direction of the arrow » Fig. 208 - 
.
›
Use the screwdriver from the tool kit to unscrew the lamp » Fig. 208 - 
.
›
Grasp the rear light and carefully remove away from the direction of travel.
›
Remove the rubber seal in the direction of arrow
1
» Fig. 209 -
 .
›
Pull off the cable bundle with the plug cap
» Fig. 209 -
 .
›
Press together the interlocks on the connector in the direction of arrow
2

» Fig. 209 -
 .
›Carefully remove the connector from the tail lamp assembly in the direction of
the arrow 3.
Install›
Insert the connector into the lamp and lock it securely.
›
Install the rubber seal in the body in the opposite direction to arrow
1
in-
stall » Fig. 209 -  .
›
Insert the tail lamp with the holes
1
» Fig. 210 on page 251 into the bolts on
the body » Fig. 209 -  .
›
Carefully press the tail light into the bolts on the bodywork.
Be careful not to pinch the cable bundle between the bodywork and light.
›
Screw the tail lamp into place and install the cover.
›
Ensure that the cover engages firmly.

Replacing bulbs in rear light (Superb Combi)
Fig. 210
Replacing the light bulb
First read and observe the introductory information and safety warn- ings on page 247.
›
Turn the bulb holder
2
» Fig. 210 anti -clockwise remove it from the lamp hous-
ing.
›
Push the faulty bulb into the holder, turn in anti -clockwise direction up to the
stop and remove.
›
Insert a new bulb into the holder and turn in a clockwise direction to the the
stop.
›
Replace the holder with the bulb into the lamp housing and turn in a clockwise
direction to the stop.

251Fuses and light bulbs

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle identification data
252
Dimensions
254
Vehicle-specific information depending on engine type
255
Multi-purpose vehicles (AF)
259
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.

Vehicle identification data
Fig. 211
Vehicle data sticker/type plate
First read and observe the introductory information given on page 252.
Vehicle data sticker
The vehicle data sticker » Fig. 211 -  is located under the floor covering in the lug-
gage compartment.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code Partial vehicle description
Operating weight (in kg)
Fuel consumption (in ltr./100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
The indicated positions
5,

6
and
7
on the vehicle data sticker are only valid for
some countries.
Type plate
The nameplate » Fig. 211 - 
is located at the bottom of the B-pillar on the driver's
side.
The type plate lists the following weights: Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand suspension strut dome. This number is al- so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number (three-digit code letter and serial number) is stamped onto
the engine block.
Operating weight
The specified operating weight is for orientation purposes only. This value repre- sents the minimum operating weight without additional weight-increasing equip-
ment such as air conditioning system, spare wheel, or trailer hitch. 

1234567891011252Technical data

The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight »
.
The payload consists of the following components: › Passengers
› All items of luggage and other loads
› Roof load including roof rack system
› Equipment not included in the operating weight
› Trailer drawbar load when towing a trailer (max. 80 kg).
Fuel consumption and CO 2 emissions according to ECE standards and EU
directives
The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards standard urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
WARNINGDo not exceed the specified maximum permissible weights – risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle at a specialist ga-
rage.■
The fuel consumption and emission values have been determined in accordance
with rules and under conditions set out by legal or technical requirements for de-
termining operational and technical data for motor vehicles.
■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values.

253Technical data

DimensionsFirst read and observe the introductory information given on page 252.
Vehicle dimensions (mm)
SuperbSuperb GreenLineSuperb CombiSuperb Combi GreenLineLength4833483348334833Width1817181718171817Width including exterior mirror2009200920092009Height1462/1482 a)
/1447 b)1464/1449 b)1511/1529 a)
/1497 b)1511/1496 b)Clearance139/159a)
/124 b)
/141 c)140/125 b)141/159a)
/127 b)
/140 c)141/126 b)Wheel base2761276127612761Track gauge front/rear1545/1518
(1537/1510) c)1545/15181545/1517
(1537/1510) c)1545/1517a)
Applies to vehicles with a rough road package.
b)
Applies to vehicles with a sport chassis.
c)
Applies to vehicles with a 3.6 l/191 kW FSI engine.

254Technical data

Vehicle-specific information depending on engine typeFirst read and observe the introductory information given on page 252.The specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational and
technical data for motor vehicles.
1.4 ltr./92 kW TSI engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)92/5000200/1500-40004/1390 PerformancesSuperb MG6Superb Combi MG6Top speed (km/h)204203Acceleration 0-100 km/h (s)10.510.6Permissible trailer load, braked (kg)1400 a)
/1500 b)Permissible trailer load, unbraked (kg)730740a)
Uphills up to 12 %
b)
Uphills up to 8 %
1.8 l/112 kW TSI engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)112/4300-6200250/1500-42004/1798 PerformancesSuperb MG6Superb DSG7Superb MG6 4x4Superb Combi
MG6Superb CombiDSG7Superb CombiMG6 4x4Top speed (km/h)219218215217216213Acceleration 0-100 km/h (s)8.88.78.88.98.88.9Permissible trailer load, braked (kg)1500 a)
/1700 b)1600a)
/1800 b)1500a)
/1700 b)1600a)
/1800 b)Permissible trailer load, unbraked (kg)750a)
Uphills up to 12 %
b)
Uphills up to 8 %

255Technical data

1.8 ltr./118 kW TSI engineOutput (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)118/4500-6200250/1500-45004/1798 PerformancesSuperb MG6Superb DSG7Superb MG6 4x4Superb Combi
MG6Superb CombiDSG7Superb CombiMG6 4x4Top speed (km/h)222222219221221218Acceleration 0-100 km/h (s)8.28.48.48.38.58.5Permissible trailer load, braked (kg)1500 a)
/1700 b)1600a)
/1800 b)1500a)
/1700 b)1600a)
/1800 b)Permissible trailer load, unbraked (kg)750a)
Uphills up to 12 %
b)
Uphills up to 8 %
2.0 ltr./147 kW TSI engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)147/5100-6000280/1700-50004/1984 PerformancesSuperb DSG6Superb Combi DSG6Top speed (km/h)240238Acceleration 0-100 km/h (s)7.77.8Permissible trailer load, braked (kg)1600 a)
/1800 b)Permissible trailer load, unbraked (kg)750a)
Uphills up to 12 %
b)
Uphills up to 8 %

256Technical data

3.6 ltr/191 kW FSI engineOutput (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm3
)191/6000350/2500-50006/3597 PerformancesSuperb DSG6 4x4Superb DSG6 4x4Top speed (km/h)250250Acceleration 0-100 km/h (s)6.46.5Permissible trailer load, braked (kg)2000Permissible trailer load, unbraked (kg)750
1.6 ltr./77 kW TDI CR engine
Output (kW per rpm)Max. torque (Nm at rpm)Number of cylinders/Displacement (cm 3
)77/4400250/1500-25004/1598 PerformancesSuperb MG6Superb DSG7Superb Combi MG6Superb Combi DSG7Top speed (km/h)194/197 a)193192/195a)192Acceleration 0-100 km/h (s)12.1/12.2 a)12.212.2/12.3 a)12.3Permissible trailer load, braked (kg)1500b)
/1700 c)1200b)
/1400 c)1500b)
/1700 c)1200b)
/1400 c)Permissible trailer load, unbraked (kg)750a)
GreenLine
b)
Uphills up to 12 %
c)
Uphills up to 8 %

257Technical data
