SIMPLY CLEVER
ŠKODA Superb
Owner's Manual
Page 2 of 274
Layout of this Owner's Manual
(explanations)
This Owner's Manual has been systematically designed to make it easy for you to
search for and obtain the information you require.
Chapters, table of contents and subject index
The text of the Owner's manual is divided into relatively short sections which are
combined into easy-to-read chapters. The chapter you are reading at any particular
moment is always specified on the bottom right of the page.
The Table of contents is arranged according to the chapters and the detailed Sub-
ject index at the end of the Owner's Manual helps you to rapidly find the informa-
tion you are looking for.
Direction indications
All direction indications such as “left”, “right”, “front”, “rear” relate to the direction of
travel of the vehicle.
Units of measurement
All values are expressed in metric units.
Explanation of symbolsDenotes a reference to a section with important information and safety
advice in a chapter.Denotes the end of a section.Denotes the continuation of a section on the next page.Indicates situations where the vehicle must be stopped as soon as possi-
ble.®Denotes a registered trademark.Indicates the texts displayed in the MAXI DOT screen.Indicates the texts shown in the segment display.
Display
In this owner's manual, the screen on the MAXI DOT display is used as the display
illustration, provided it is not otherwise stated.
Notes
WARNINGThe most important notes are marked with the heading WARNING. These
WARNING notes draw your attention to a serious risk of accident or injury .CAUTIONA Caution note draws your attention to the possibility of damage to your vehicle
(e.g. damage to gearbox), or points out general risks of an accident.
For the sake of the environment
An Environmental note draws your attention to environmental protection aspects.
This is where you will, for example, find tips aimed at reducing your fuel consump-
tion.
Note
A normal Note draws your attention to important information about the operation
of your vehicle.
Page 3 of 274

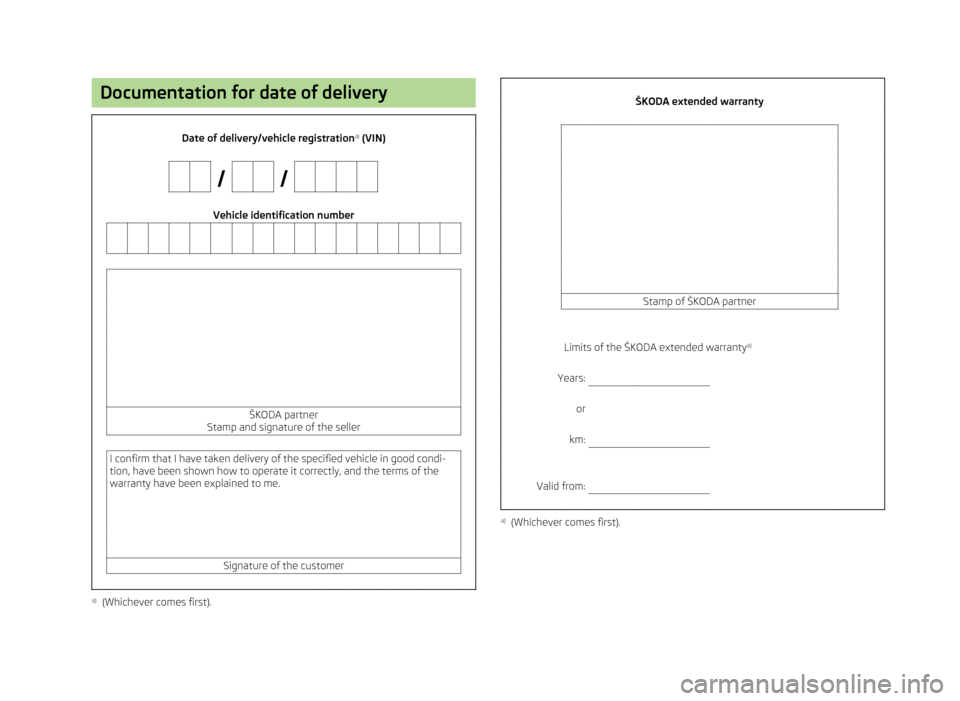

Documentation for date of delivery Date of delivery/vehicle registrationa)
(VIN) Vehicle identification number
ŠKODA partner
Stamp and signature of the seller I confirm that I have taken delivery of the specified vehicle in good condi-
tion, have been shown how to operate it correctly, and the terms of the
warranty have been explained to me. Signature of the customer a)
(Whichever comes first).
ŠKODA extended warranty Stamp of ŠKODA partner Limits of the ŠKODA extended warranty a) Years: or km: Valid from: a)
(Whichever comes first).
Page 4 of 274

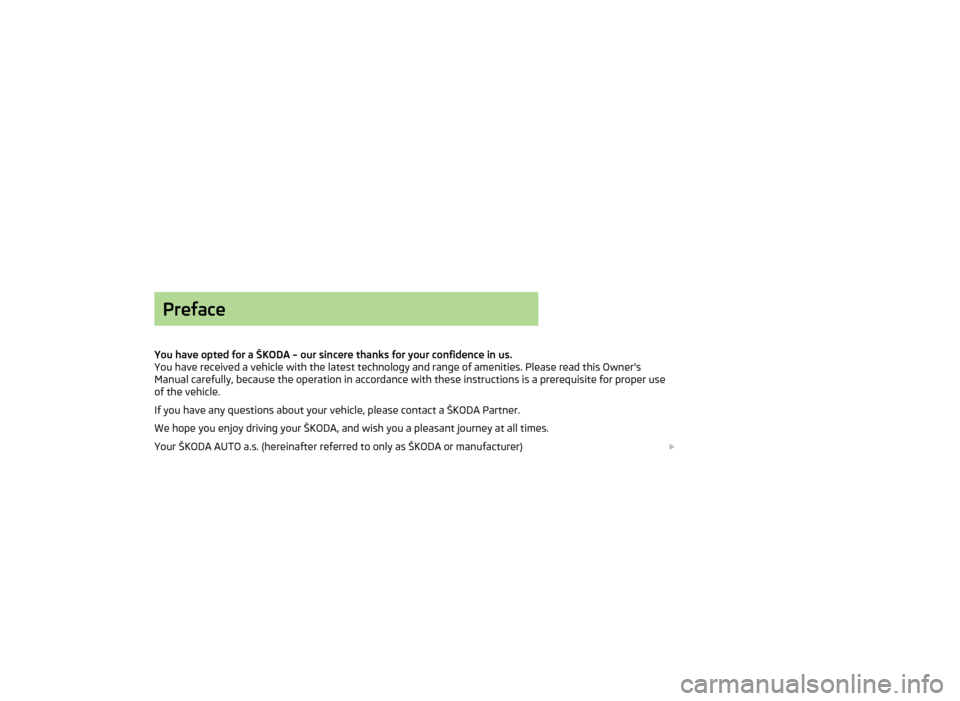

Preface
You have opted for a ŠKODA – our sincere thanks for your confidence in us.
You have received a vehicle with the latest technology and range of amenities. Please read this Owner's Manual carefully, because the operation in accordance with these instructions is a prerequisite for proper use
of the vehicle.
If you have any questions about your vehicle, please contact a ŠKODA Partner.
We hope you enjoy driving your ŠKODA, and wish you a pleasant journey at all times.
Your ŠKODA AUTO a.s. (hereinafter referred to only as ŠKODA or manufacturer)
Page 5 of 274

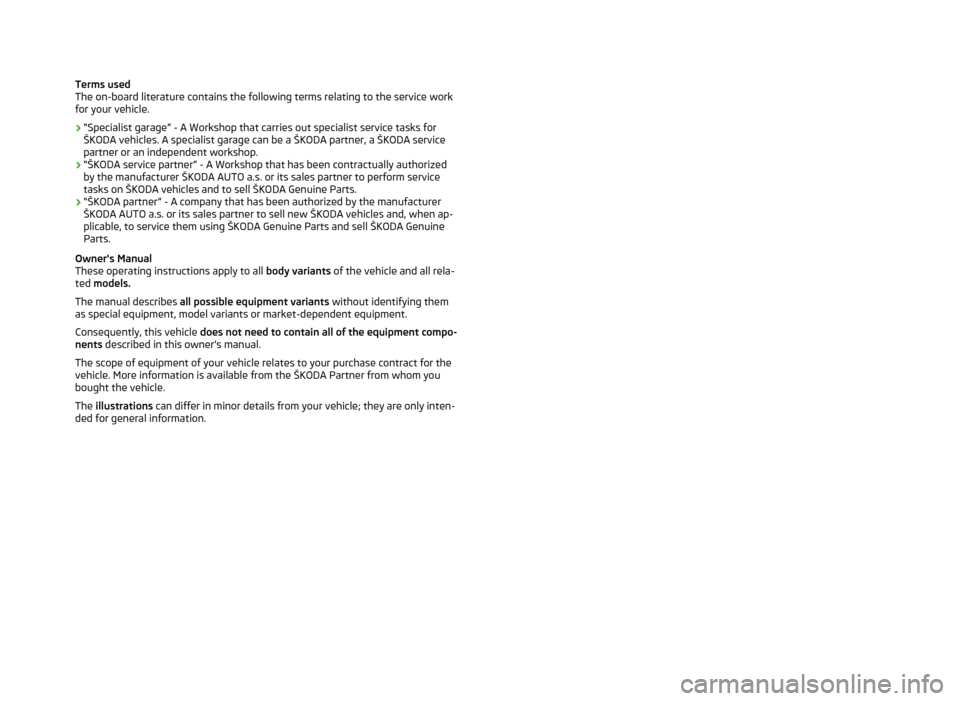

Terms used
The on-board literature contains the following terms relating to the service work for your vehicle.
› “Specialist garage” - A Workshop that carries out specialist service tasks for
ŠKODA vehicles. A specialist garage can be a ŠKODA partner, a ŠKODA service
partner or an independent workshop.
› “ŠKODA service partner” - A Workshop that has been contractually authorized
by the manufacturer ŠKODA AUTO a.s. or its sales partner to perform service tasks on ŠKODA vehicles and to sell ŠKODA Genuine Parts.
› “ŠKODA partner” - A company that has been authorized by the manufacturer
ŠKODA AUTO a.s. or its sales partner to sell new ŠKODA vehicles and, when ap-
plicable, to service them using ŠKODA Genuine Parts and sell ŠKODA Genuine
Parts.
Owner's Manual
These operating instructions apply to all body variants of the vehicle and all rela-
ted models.
The manual describes all possible equipment variants without identifying them
as special equipment, model variants or market-dependent equipment.
Consequently, this vehicle does not need to contain all of the equipment compo-
nents described in this owner's manual.
The scope of equipment of your vehicle relates to your purchase contract for the
vehicle. More information is available from the ŠKODA Partner from whom you
bought the vehicle.
The illustrations can differ in minor details from your vehicle; they are only inten-
ded for general information.
Page 6 of 274
Table of Contents
Materials defect liability and ŠKODA warranty for
new cars5
Mobility warranty and ŠKODA extended
warranty
6
Abbreviations
Using the system
Cockpit
9
Overview
8
Instruments and Indicator Lights
10
Instrument cluster
10
Warning Lights
14
Information system
23
Driver information system
23
Multifunction display (MFA)
25
MAXI DOT display
28
Service Interval Display
30
Unlocking and opening
32
Unlocking and locking
32
KESSY
37
Anti-theft alarm system
38
Luggage compartment lid
39
Electric boot lid (Superb Combi)
41
Electric power windows
44
Electric sliding/tilting roof
47
Panoramic sliding roof (Superb Combi)
48
Lights and visibility
51
Lights
51
Interior lights
57
Visibility
59Windscreen wipers and washers61Rear mirror63
Seats and useful equipment
66
Adjusting the seats
66
Seat features
70
Practical equipment
74
Luggage compartment
84
Removable light (Superb Combi)
90
Variable loading floor in the luggage
compartment (Estate)
92
Extending variable loading floor with integrated
aluminium rails and faseting elements (Superb Combi)
92
Net partition (Superb Combi)
95
Roof rack system
96
Air conditioning system
98
Heating, ventilation and cooling
98
Air conditioning system (manual air conditioningsystem)
100
Climatronic (automatic air conditioningsystem)
103
Auxiliary heating (auxiliary heating andventilation)
107
Communication and multimedia
110
General information
110
Universal telephone preinstallation GSM II
113
Universal telephone preinstallation GSM IIl
115
WLAN
119
Voice control
122
Multimedia
126
Driving
Starting-off and Driving
130
Steering
130
Starting and stopping the engine using the key
131
Starting and stopping the engine - KESSY
133Brakes137Manual gear changing and pedals138
Automatic transmission
139
Running in
142
Economical driving and environmental
sustainability
143
Avoiding damage to your vehicle
147
Driving abroad
148
Assist systems
150
Brake assist systems
150
Parking aid
152
Park assist
153
Cruise Control System
157
START-STOP
159
Fatigue detection (break recommendation)
161
Towing a trailer
162
Towing device
162
Trailer
165
Safety
Passive Safety
169
General information
169
Correct seated position
170
Seat belts
173
Using seat belts
173
Inertia reels and belt tensioners
176
Airbag system
178
Description of the airbag system
178
Airbag overview
179
Deactivating airbags
183
Transporting children safely
186
Child seat
186
Fastening systems
1883Table of Contents
Page 7 of 274
General Maintenance
Car care191
Service intervals
191
Services, modifications, and technical
alterations
193
Washing your car
196
Taking care of your vehicle exterior
198
Taking care of the interior
201
Inspecting and replenishing
204
Fuel
204
Engine compartment
206
Engine oil
210
Coolant
212
Brake fluid
214
Vehicle battery
215
Wheels
220
Tyres and wheel rims
220
Winter operation
226
Do-it-yourself
Emergency equipment and self-help
227
Emergency equipment
227
Changing a wheel
229
Tyre repair
232
Jump-starting
234
Towing the vehicle
236
Radio remote control
238
Emergency unlocking/locking
240
Emergency operation of the sliding/tilting roof
241
Replacing windscreen wiper blades
242
Fuses and light bulbs
244
Fuses
244
Bulbs
247Technical data
Technical data252
Vehicle data
252
Index
4Table of Contents
Page 8 of 274

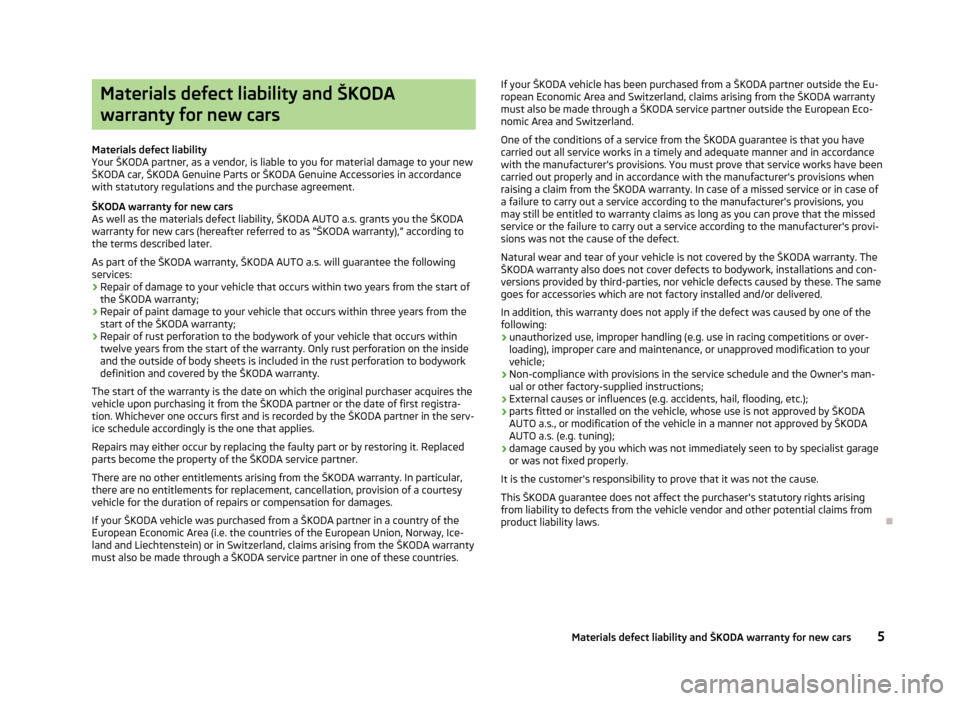

Materials defect liability and ŠKODAwarranty for new cars
Materials defect liability
Your ŠKODA partner, as a vendor, is liable to you for material damage to your new
ŠKODA car, ŠKODA Genuine Parts or ŠKODA Genuine Accessories in accordance
with statutory regulations and the purchase agreement.
ŠKODA warranty for new cars
As well as the materials defect liability, ŠKODA AUTO a.s. grants you the ŠKODA warranty for new cars (hereafter referred to as “ŠKODA warranty),” according to
the terms described later.
As part of the ŠKODA warranty, ŠKODA AUTO a.s. will guarantee the following
services:
› Repair of damage to your vehicle that occurs within two years from the start of
the ŠKODA warranty;
› Repair of paint damage to your vehicle that occurs within three years from the
start of the ŠKODA warranty;
› Repair of rust perforation to the bodywork of your vehicle that occurs within
twelve years from the start of the warranty. Only rust perforation on the inside
and the outside of body sheets is included in the rust perforation to bodywork
definition and covered by the ŠKODA warranty.
The start of the warranty is the date on which the original purchaser acquires the vehicle upon purchasing it from the ŠKODA partner or the date of first registra-
tion. Whichever one occurs first and is recorded by the ŠKODA partner in the serv-
ice schedule accordingly is the one that applies.
Repairs may either occur by replacing the faulty part or by restoring it. Replacedparts become the property of the ŠKODA service partner.
There are no other entitlements arising from the ŠKODA warranty. In particular,
there are no entitlements for replacement, cancellation, provision of a courtesy
vehicle for the duration of repairs or compensation for damages.
If your ŠKODA vehicle was purchased from a ŠKODA partner in a country of theEuropean Economic Area (i.e. the countries of the European Union, Norway, Ice-
land and Liechtenstein) or in Switzerland, claims arising from the ŠKODA warranty
must also be made through a ŠKODA service partner in one of these countries.If your ŠKODA vehicle has been purchased from a ŠKODA partner outside the Eu-
ropean Economic Area and Switzerland, claims arising from the ŠKODA warranty
must also be made through a ŠKODA service partner outside the European Eco-
nomic Area and Switzerland.
One of the conditions of a service from the ŠKODA guarantee is that you have carried out all service works in a timely and adequate manner and in accordance
with the manufacturer's provisions. You must prove that service works have been
carried out properly and in accordance with the manufacturer's provisions when
raising a claim from the ŠKODA warranty. In case of a missed service or in case of
a failure to carry out a service according to the manufacturer's provisions, you
may still be entitled to warranty claims as long as you can prove that the missed
service or the failure to carry out a service according to the manufacturer's provi-
sions was not the cause of the defect.
Natural wear and tear of your vehicle is not covered by the ŠKODA warranty. The
ŠKODA warranty also does not cover defects to bodywork, installations and con-
versions provided by third-parties, nor vehicle defects caused by these. The same
goes for accessories which are not factory installed and/or delivered.
In addition, this warranty does not apply if the defect was caused by one of the
following:
› unauthorized use, improper handling (e.g. use in racing competitions or over-
loading), improper care and maintenance, or unapproved modification to your
vehicle;
› Non-compliance with provisions in the service schedule and the Owner's man-
ual or other factory-supplied instructions;
› External causes or influences (e.g. accidents, hail, flooding, etc.);
› parts fitted or installed on the vehicle, whose use is not approved by ŠKODA
AUTO a.s., or modification of the vehicle in a manner not approved by ŠKODA
AUTO a.s. (e.g. tuning);
› damage caused by you which was not immediately seen to by specialist garage
or was not fixed properly.
It is the customer's responsibility to prove that it was not the cause.
This ŠKODA guarantee does not affect the purchaser's statutory rights arising
from liability to defects from the vehicle vendor and other potential claims from
product liability laws.
5Materials defect liability and ŠKODA warranty for new cars
Page 9 of 274
Mobility warranty and ŠKODA extendedwarranty
Mobility warranty
Mobility warranty provides a sense of security when travelling in your vehicle.
Should your car break down when you're on the move one day as a result of an
unexpected fault, you will be eligible for services to ensure your continued mobili-
ty as part of the mobility warranty, which includes the following: Breakdown serv-ice at the breakdown location and towing off to the ŠKODA service partner, tech-
nical assistance by phone or on-site operation.
If your vehicle is not repaired on the same day, the ŠKODA service partner may
provide further services as required, such as replacement transportation (bus,
train, etc.), a courtesy vehicle, etc.
You can obtain more information regarding terms and conditions for the provision of mobility warranty for your vehicle from your ŠKODA partner. Here you will also
be given detailed terms and conditions for the mobility warranty with respect to
your vehicle. In the event that there is no mobility warranty coverage available for
your vehicle, you should check with any ŠKODA service partner about the possibil-
ity of a subsequent agreement.
Note
The mobility warranty is only available for some countries.
Optional ŠKODA extended warranty
If you received an extended ŠKODA warranty when purchasing your new car, the
two-year ŠKODA warranty for damages to your ŠKODA vehicle will be extended
by the time you chose or until the chosen mileage limit has been reached.
The previously mentioned paint warranty and the warranty against rust perfora-
tion stay unaffected by the extended warranty.
Detailed conditions for the extended warranty are included in the extended war- ranty terms and conditions, which your ŠKODA partner will have given to you
upon purchasing your new vehicle.
Note
The mobility guarantee and optional extended warranty ŠKODA are only available
for some countries.
6Mobility warranty and ŠKODA extended warranty
Page 10 of 274
AbbreviationsAbbreviationDefinitionrpmEngine revolutions per minuteABSAnti-lock brake systemAFMulti-purpose vehiclesAHLAdaptive headlightsAGAutomatic gearboxAPNAccess Point Name - the name of an access point for the WiFi
networkTCSTraction controlCO 2 in g/kmdischarged quantity of carbon dioxide in grams per driven kilo-
meterDPFDiesel particle filterDSGAutomatic double clutch gearboxDSRActive driver-steering recommendationEDLElectronic differential lockECEEconomic Commission for EuropeEPCEPC fault lightESCElectronic Stability ControlEUEuropean UnionFSIStratified petrol direct injectionGSMGroupe Spécial Mobile - a digital network of mobile devices for the transmission of voice and dataHFPHands-free profile - connection of a mobile device by means of
its Bluetooth ®
profilekWKilowatt, measuring unit for the engine outputMGManual gearboxMFDMultifunction displayN1Panel van intended exclusively or mainly for the transporta-
tion of goodsNmNewton meter, measuring unit for the engine torqueAbbreviationDefinitionPINPersonal Identification Number - personal identification num-
ber for the connection of electronic devices using Bluetooth ®
or WiFirSAPRemote SIM Access Profile - remote transmission of SIM dataSSPsimple security pairing - connection of two devices using Blue-
tooth ®
profileTDI CRDiesel engine with turbocharging and common rail injection
systemTDI PDDiesel engine with injection system and unit injector injection systemTSIPetrol engine with turbocharging and direct injectionUMTSUniversal Mobile Telecommunication System - the next evolu-
tion of the GSM network (3G)WLANWireless Local Area Network - wireless connection of elec- tronic devices for data transfer (WiFi)
7Abbreviations
