SKODA SUPERB 2021 Owner´s Manual

made for vehicles with driving mode selec-tion

Setting in Infotainment
In the menu:
Troubleshooting
Message regarding system unavailability

Lane change assist system Side AssistUsage
The system uses optical signals in the exterior mirror
to alert the driver to vehicles that could be danger-
ous when changing lanes.
Functionality
The system monitors the area next to and behind the
vehicle.
The system warns of an approaching vehicle through
the warning light
in the exterior mirror cover on
the side of the vehicle where the vehicle is recog-
nized.
Driving situations in which a system warning is
given
Your vehicle will be overtaken by vehicle
A.
The fast-
er the vehicle
A
approaches, the earlier the warning
light comes on.
Vehicle
B
is overtaken by your vehicle at a speed
that is faster by max. 10 km/h. If the speed is higher
during the overtaking process, no warning will be
provided by the indicator light.
Indicator light
illuminates - there is another vehicle behind your
vehicle
flashes - there is another vehicle behind your ve-
hicle, and the turn signal on the same side is switch-
ed on
For vehicles with Lane Assist The indicator light
flashes even if your vehicle crosses the boundary line
in the direction of the approaching vehicle. The sys-
tem will trigger a steering wheel vibration in this
case.
For this, Lane Assist must be activated and the boun-
dary line between the vehicles recognized.
Operating conditions
q The driving speed is higher than 15 km/h.
q
No accessories are connected to the trailer sock-
et.
Function restriction
The system cannot detect lane width. For this rea-
son, it may, for example, draw attention to a vehicle
in a distant lane in the following cases.

Settings
Automatic activation
The system is automatically activated when the igni-
tion is switched on.
Troubleshooting
Crew Protect Assist faulty illuminates together with
Message concerning unavailability or function-
al restriction

qO

Switch the view on/o

Area View environment overview
Usage
The area view assists the driver in parking and ma-
noeuvring by displaying the vehicle area.
Overview
General overview
A3D views:
Top view
View obliquely from above
View from the side
General overview
By moving your finger across the screen, you can
change the viewing angle.
Camera rear view
AMode for transverse parkingBMode for parallel parkingCMode for driving up to a trailer/distance moni-
toringDMode for monitoring the area behind the vehicle
(wide view)Front camera viewAMode for transverse parking
The orientation lines are used for estimating dis-
tance as well as for displaying the route, which is
controlled at the current steering angle.BMode for monitoring the area in front of the ve-
hicle (wide view)
The area right in front of the vehicle is marked
by the blue lines.CDistance monitoring mode
Side camera view
ALeft sideBRight sideCLeft and right side
The yellow line is shown at a distance of about
40 cm from the vehicle.
Operating conditions
q The ignition is switched on.
q The driving speed is lower than 15 km/h.
Operation
Switching on

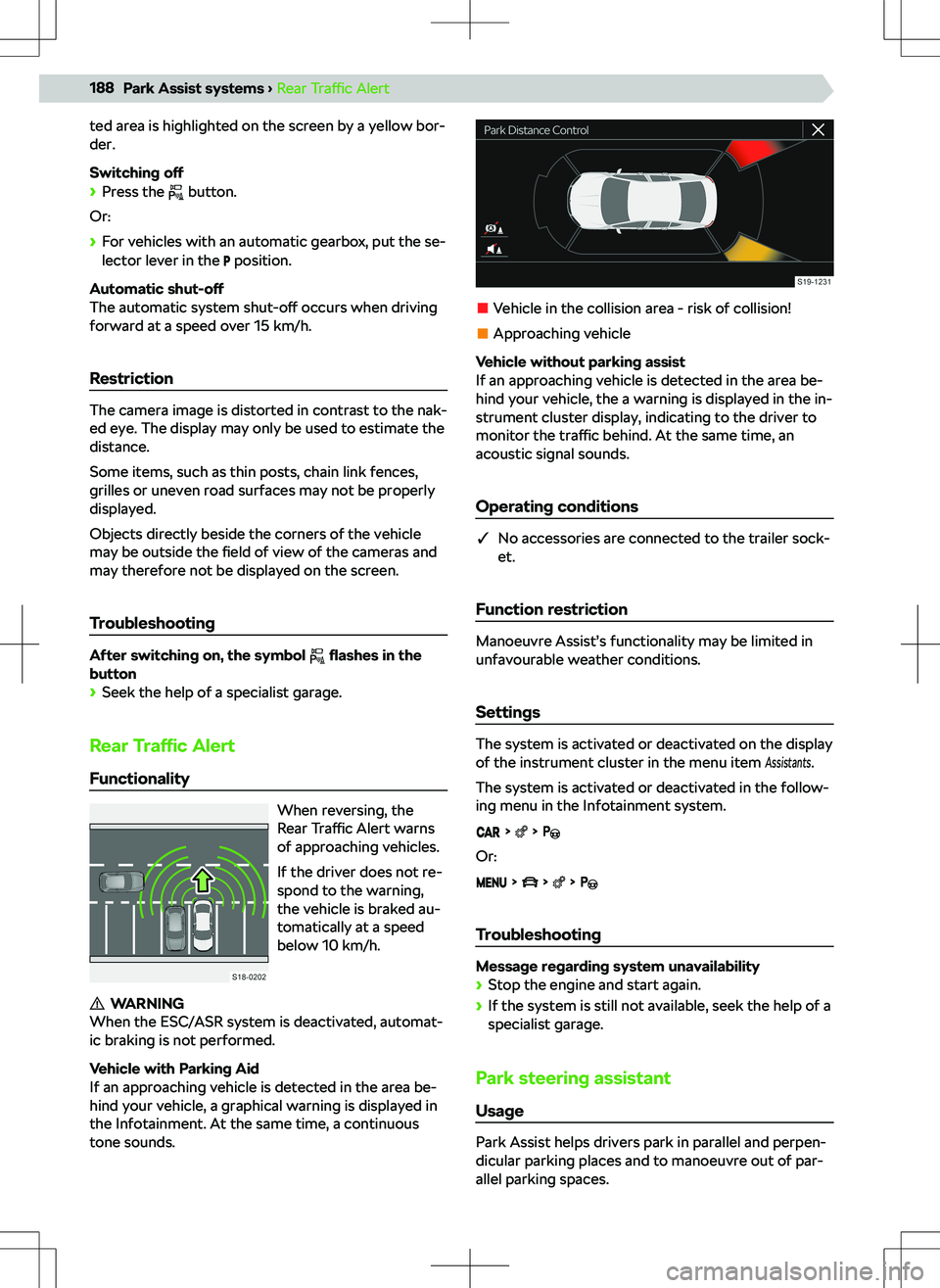

ted area is highlighted on the screen by a yellow bor-
der.
Switching off
