Radio
Using the system
Change frequency range
Your device is capable of receiving a radio reception in the FM and AM analogue frequency range.
To change the frequency range, press and hold the A/F
rocker switch.
There are two storage groups available for each of these frequency ranges, FM1/
FM2 and AM1/AM2. There are 6 memory slots available for each of these groups.
›
To change the storage group, briefly press the A/F rocker switch.
Searching for and storing radio stations
Manual search
›
Set the frequency of the desired radio station by pressing the rocker switch or
.
Automatic station search
›
The radio searches for the next radio station in the selected waveband by pressing the or rocker switch.
Function SCAN
›
The radio station of the current waveband is briefly played (10 seconds) by pressing the rocker switch SCAN.
›
This function is ended by pressing the rocker switch SCAN once again and the
current station is replayed.
Store station
›
By pressing and holding function button
13
, the currently selected station is
stored under the number of the key pressed. Hold the button down until the station briefly switches off and a short signal sounds.
Automatic station finding with storing the radio stations
›
Press the AS rocker switch. Automatic station finding is started during which
the 6 stations with the strongest signal in the memory level FM2 and/or AM2 are stored. STORE will be shown in the display. This applies only to the wave-
bands FM2 and AM2.
When the process of storing the radio stations on the selection buttons 13 is
complete, you can press any selection button 13 to call up the desired radio sta-
tion.
Note
The stored radio stations of the current waveband are updated and stored once
again by repetitively pressing the rocker switch AS.
RDS Function
Certain radio stations transmit additional text information - designated as radio
text.
Note
■ The text information must not be available to all radio stations.■Depending on the quality of the signal, the device may need some time in order
to load all the displayed characters.
Traffic news function
Switching on/off
›
Press the TP switch.
The traffic service is deactivated by pressing the TP
switch again. The displayed
icon goes out.
Activating/deactivating traffic reports Functional readiness of the traffic news service is indicated via the
icon.
During playback in Media mode, the last selected radio station that supports traf-
fic news will continue to be received in the background. If a traffic news station
has not been set recently, the most appropriate traffic news station is set auto-
matically in the background. While searching for an appropriate station, TP SEEK
is displayed on the screen.
If the set radio station does not broadcast traffic news,
is displayed on the
screen.
An incoming traffic report automatically interrupts playback or listening to a radio station that is not currently transmitting traffic news. INFO and station name is
displayed on the screen. Once the traffic news have ended, the device automati-
cally returns to the original playback mode.
6Radio
Page 11 of 15
■If a CD is dirty, never clean it in a circular motion, but instead work from the in-
side out. Use a soft, lint-free cloth. For heavy stains, we recommend that you
clean the CD with a commercially available CD cleaner and allow it to dry.■
It is possible that CDs protected by copyright or home-made CD-R/CD-RW will
not be played back at all or only in certain circumstances.
■
Please also note the additional information for MP3 mode.
■
The national copyright laws that apply in your country must be observed.
■
The CD-player does not contain parts that need to be serviced or repaired. In
the case of a defective CD player, please visit a specialist garage.
■
If the ejected CD is not taken out, it will be retracted again for safety reasons.
■
If a TP station was set before changing to CD mode, CD playback will be inter-
rupted during the traffic news and the device switches to radio mode. Once the
traffic news have ended, CD playback will resume.
Function SCAN
The function allows you to play the first 10 seconds of every track in turn.
›
Press the SCAN switch and select one of the following options:
›
CD
- Browsing of the CD's contents begins;
›
FOLDER - browsing of the current folder begins.
›
To return to normal operation, press the rocker switch SCAN again.
›
To select the previous or next track, press the rocker switch or .
MIX function
›
Press the
MENU rocker switch to select the Setup menu.
›
Use the function keys to select the
MIX menu function.
›
Use the adjustment knob
1
to select the desired setting.
MIX
Play function of titles in random order.
› MIX OFF
- the menu function is inactive;
› MIX CD
- random playback of tracks on a CD;
› MIX FLD
- random playback of tracks in a specific folder;
› MIX PLS
- Playback of the playlist (folder of selected tracks from individual fold-
ers, which is stored on the CD). Is only displayed when a play-list is created for
the replayed CD.
General information for MP3 operation
Requirements for the MP3 data and data carrier
› CD-ROM, CD-R, CD-RW with a capacity of 650 MB and 700 MB.
› The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
› Data names must be no longer than 64 characters.
› The list structure is restricted to a depth of 8 list levels.
› The name of the artist, the album and the title of the played MP3 file can be dis-
played if such information is available in the form of so called ID3 tags. If there
is no ID3 tag only the directory or data name will be displayed.
Bit rate (data flow per time unit)
› The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3
data with variable bit rates.
› The indicated playing time data with variable bit rates is not reliable.
Display of additional information (MP3 data)
The selection buttons 1
- 6 can be used to display the additional information
about MP3 files on the screen:
› 1
- Number of the folder and number of the track;
› 2 - Name of the track;
› 3 - Name of the performer;
› 4 - Name of the album;
› 5 - Name of the file;
› 6 - Name of the folder.
Buttons on the unit for controlling the current audio source
If there is a folder structure with files inside on the CD (MP3), navigation within
this structure takes place as follows:
›
- pressing briefly takes you back to the previous file in the selected folder.
›
- pressing briefly takes you to the next file in the selected folder.
›
- pressing briefly takes you to the previous track/playlist.
›
- pressing briefly takes you to the next track/playlist.
›
For fast forwarding or rewinding the track press and hold the or rocker
switch. Playback will continue upon releasing the rocker switch.
9CD player
Page 12 of 15

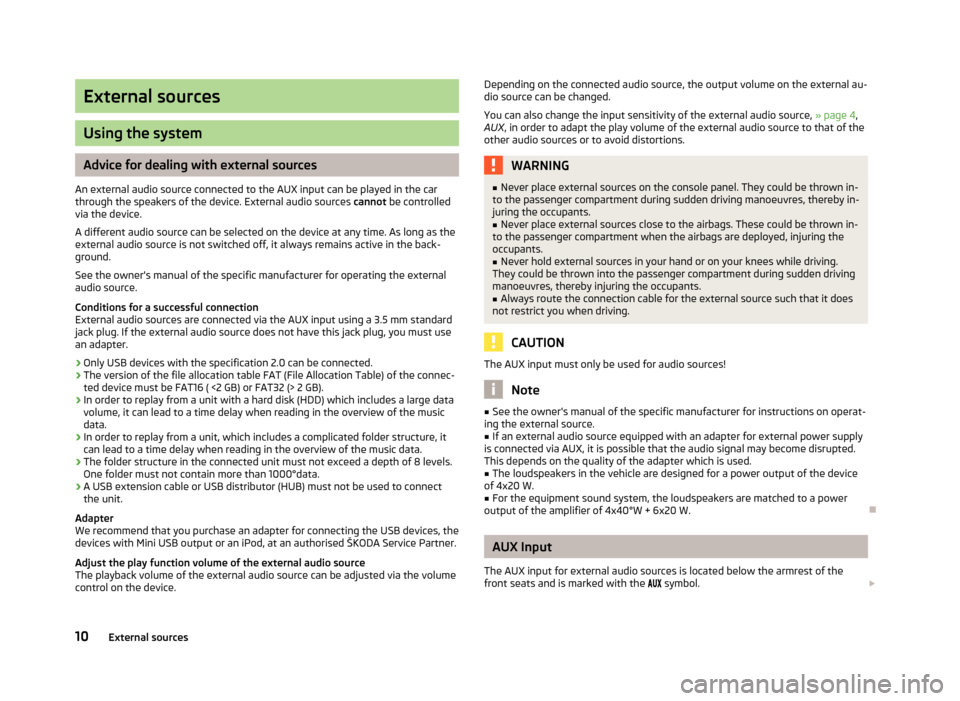

External sources
Using the system
Advice for dealing with external sources
An external audio source connected to the AUX input can be played in the car through the speakers of the device. External audio sources cannot be controlled
via the device.
A different audio source can be selected on the device at any time. As long as the
external audio source is not switched off, it always remains active in the back-
ground.
See the owner's manual of the specific manufacturer for operating the external
audio source.
Conditions for a successful connection
External audio sources are connected via the AUX input using a 3.5 mm standard
jack plug. If the external audio source does not have this jack plug, you must use
an adapter.
› Only USB devices with the specification 2.0 can be connected.
› The version of the file allocation table FAT (File Allocation Table) of the connec-
ted device must be FAT16 ( <2 GB) or FAT32 (> 2 GB).
› In order to replay from a unit with a hard disk (HDD) which includes a large data
volume, it can lead to a time delay when reading in the overview of the music
data.
› In order to replay from a unit, which includes a complicated folder structure, it
can lead to a time delay when reading in the overview of the music data.
› The folder structure in the connected unit must not exceed a depth of 8 levels.
One folder must not contain more than 1000°data.
› A USB extension cable or USB distributor (HUB) must not be used to connect
the unit.
Adapter
We recommend that you purchase an adapter for connecting the USB devices, the
devices with Mini USB output or an iPod, at an authorised ŠKODA Service Partner.
Adjust the play function volume of the external audio source
The playback volume of the external audio source can be adjusted via the volume
control on the device.
Depending on the connected audio source, the output volume on the external au-
dio source can be changed.
You can also change the input sensitivity of the external audio source, » page 4,
AUX , in order to adapt the play volume of the external audio source to that of the
other audio sources or to avoid distortions.WARNING■ Never place external sources on the console panel. They could be thrown in-
to the passenger compartment during sudden driving manoeuvres, thereby in-
juring the occupants.■
Never place external sources close to the airbags. These could be thrown in-
to the passenger compartment when the airbags are deployed, injuring the
occupants.
■
Never hold external sources in your hand or on your knees while driving.
They could be thrown into the passenger compartment during sudden driving
manoeuvres, thereby injuring the occupants.
■
Always route the connection cable for the external source such that it does
not restrict you when driving.
CAUTION
The AUX input must only be used for audio sources!
Note
■ See the owner's manual of the specific manufacturer for instructions on operat-
ing the external source.■
If an external audio source equipped with an adapter for external power supply
is connected via AUX, it is possible that the audio signal may become disrupted. This depends on the quality of the adapter which is used.
■
The loudspeakers in the vehicle are designed for a power output of the device
of 4x20 W.
■
For the equipment sound system, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.
AUX Input
The AUX input for external audio sources is located below the armrest of the front seats and is marked with the symbol.
10External sources
