SKODA YETI 2014 1.G / 5L Blues Car Radio Manual

www.skoda-auto.com
Blues: Yeti
Rádio anglicky 11.2013
S00.5615.02.20
5L0 012 720 CD
SIMPLY CLEVER
Radio Blues
Owner's Manual

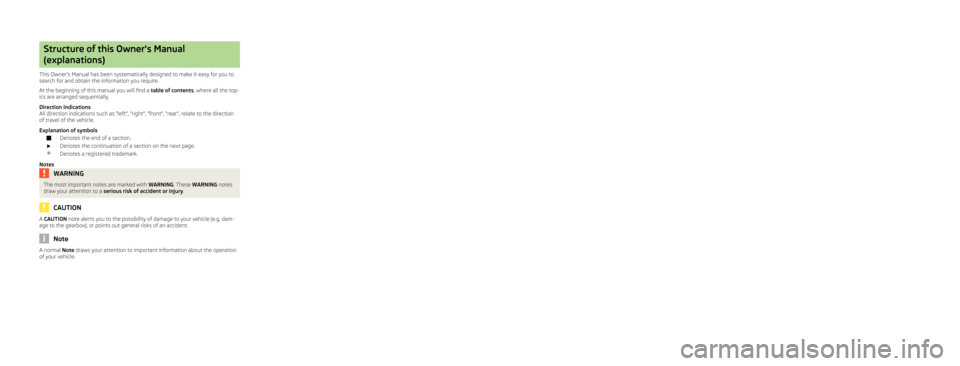

Structure of this Owner's Manual
(explanations)
This Owner's Manual has been systematically designed to make it easy for you to
search for and obtain the information you require.
At the beginning of this manual you will find a table of contents, where all the top-
ics are arranged sequentially.
Direction indications
All direction indications such as “left”, “right”, “front”, “rear”, relate to the direction
of travel of the vehicle.
Explanation of symbolsDenotes the end of a section.Denotes the continuation of a section on the next page.®Denotes a registered trademark.
Notes
WARNINGThe most important notes are marked with WARNING. These WARNING notes
draw your attention to a serious risk of accident or injury .
CAUTION
A CAUTION note alerts you to the possibility of damage to your vehicle (e.g. dam-
age to the gearbox), or points out general risks of an accident.
Note
A normal Note draws your attention to important information about the operation
of your vehicle.

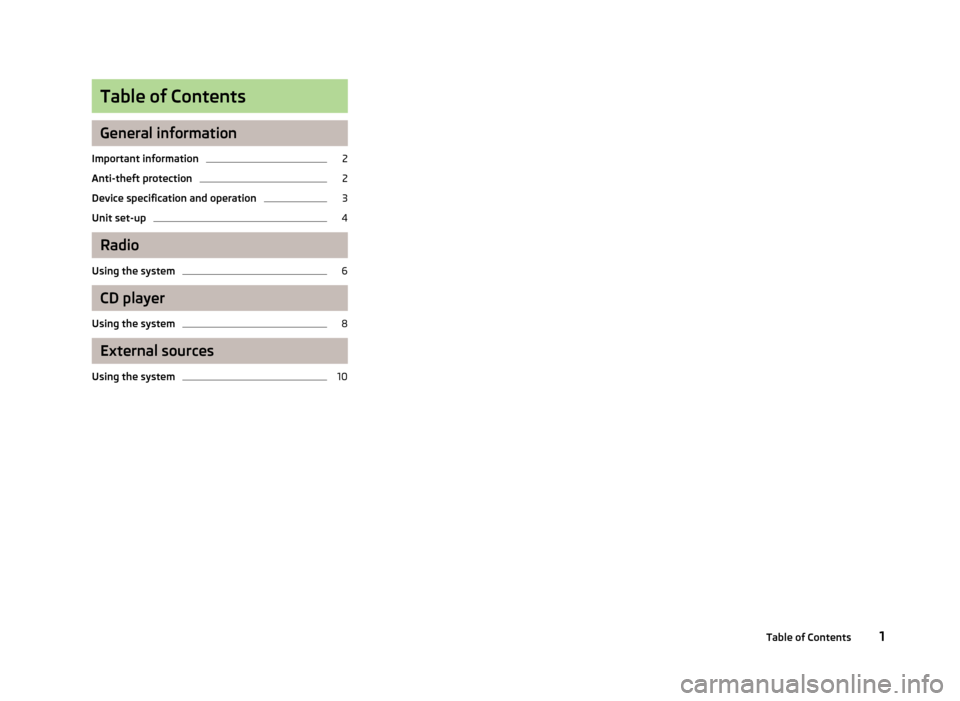

Table of Contents
General information
Important information
2
Anti-theft protection
2
Device specification and operation
3
Unit set-up
4
Radio
Using the system
6
CD player
Using the system
8
External sources
Using the system
101Table of Contents

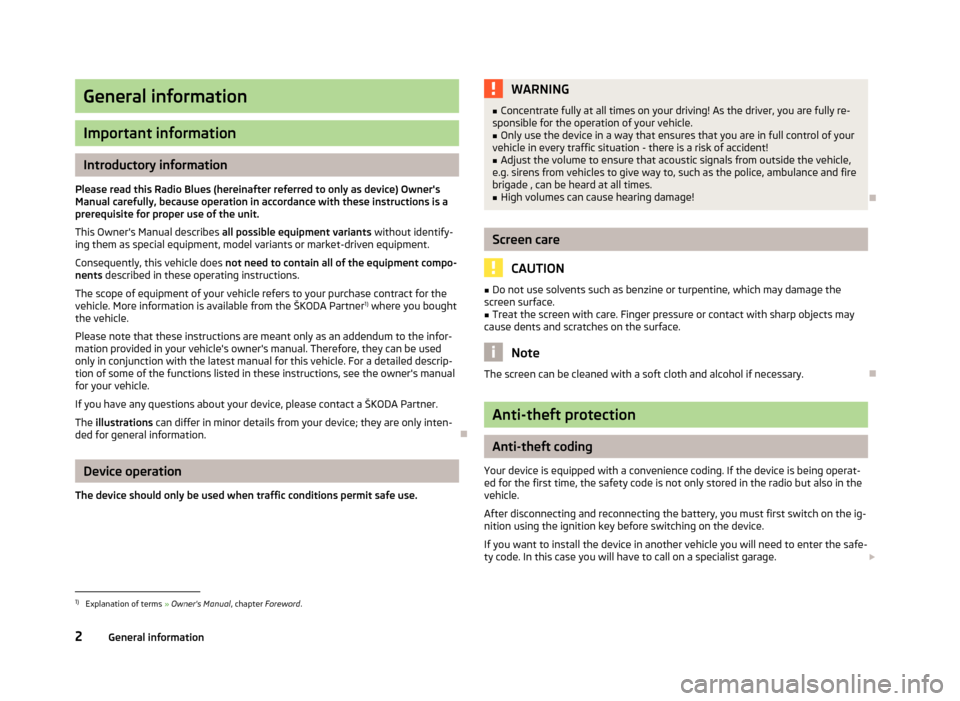

General information
Important information
Introductory information
Please read this Radio Blues (hereinafter referred to only as device) Owner's Manual carefully, because operation in accordance with these instructions is a
prerequisite for proper use of the unit.
This Owner's Manual describes all possible equipment variants without identify-
ing them as special equipment, model variants or market-driven equipment.
Consequently, this vehicle does not need to contain all of the equipment compo-
nents described in these operating instructions.
The scope of equipment of your vehicle refers to your purchase contract for the
vehicle. More information is available from the ŠKODA Partner 1)
where you bought
the vehicle.
Please note that these instructions are meant only as an addendum to the infor-
mation provided in your vehicle's owner's manual. Therefore, they can be used
only in conjunction with the latest manual for this vehicle. For a detailed descrip-
tion of some of the functions listed in these instructions, see the owner's manual
for your vehicle.
If you have any questions about your device, please contact a ŠKODA Partner. The illustrations can differ in minor details from your device; they are only inten-
ded for general information.

Device operation
The device should only be used when traffic conditions permit safe use.
WARNING■ Concentrate fully at all times on your driving! As the driver, you are fully re-
sponsible for the operation of your vehicle.■
Only use the device in a way that ensures that you are in full control of your
vehicle in every traffic situation - there is a risk of accident!
■
Adjust the volume to ensure that acoustic signals from outside the vehicle,
e.g. sirens from vehicles to give way to, such as the police, ambulance and fire
brigade , can be heard at all times.
■
High volumes can cause hearing damage!

Screen care
CAUTION
■ Do not use solvents such as benzine or turpentine, which may damage the
screen surface.■
Treat the screen with care. Finger pressure or contact with sharp objects may
cause dents and scratches on the surface.
Note
The screen can be cleaned with a soft cloth and alcohol if necessary.
Anti-theft protection
Anti-theft coding
Your device is equipped with a convenience coding. If the device is being operat-
ed for the first time, the safety code is not only stored in the radio but also in the
vehicle.
After disconnecting and reconnecting the battery, you must first switch on the ig-
nition using the ignition key before switching on the device.
If you want to install the device in another vehicle you will need to enter the safe-ty code. In this case you will have to call on a specialist garage. 
1)
Explanation of terms
» Owner's Manual , chapter Foreword .
2General information

As the unit only functions after entering the safety code, this practically excludes
its use after a theft - a contribution to increased anti-theft safety.
Note
The code is stored in the instrument cluster. This ensures that it is automatically
decoded (convenience coding). Manual input of the code is normally not necessa- ry.
Enter code
›
Switch on the radio with the ignition turned on. SAFE is displayed and then
1000 .
›
Use the selection buttons 1 - 4 to enter the safety code.
›
Confirm the safety code by pressing the 6 function button.
If an incorrectly entered code is confirmed, the procedure can be repeated once again.
If the code number is entered incorrectly for the second time, the unit will be
blocked for approx. one hour. It is possible to enter the safety code again after
one hour has expired if both the device and the ignition have stayed turned on
during that time.
The cycle - two attempts, blocked for an hour - will continue to apply.


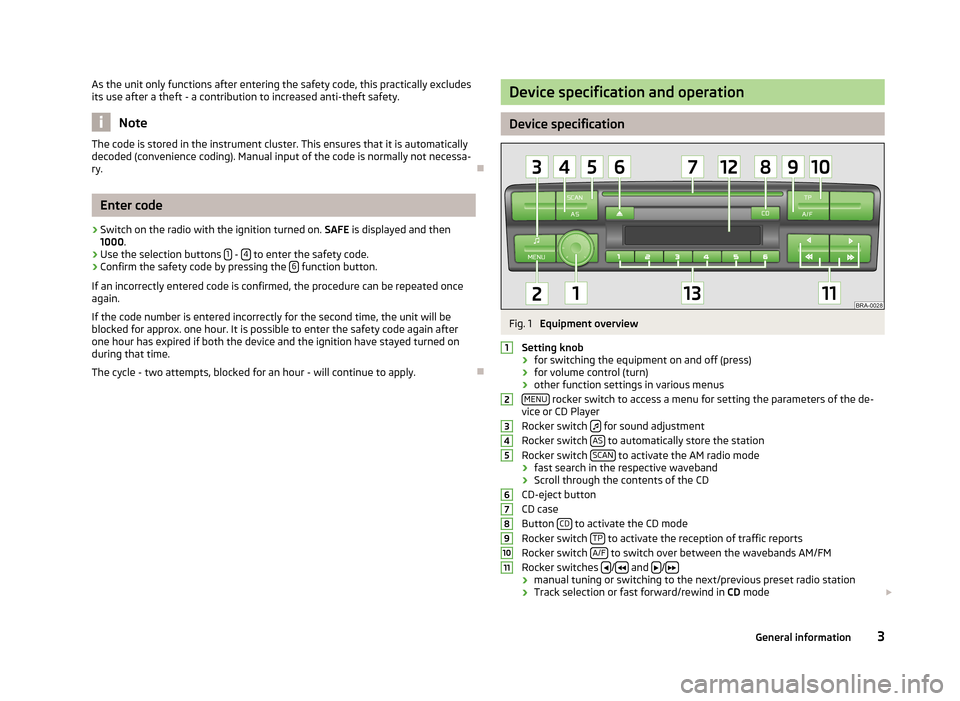

Device specification and operation
Device specification
Fig. 1
Equipment overview
Setting knob
› for switching the equipment on and off (press)
› for volume control (turn)
› other function settings in various menus
MENU
rocker switch to access a menu for setting the parameters of the de-
vice or CD Player
Rocker switch 
for sound adjustment
Rocker switch AS to automatically store the station
Rocker switch SCAN to activate the AM radio mode
› fast search in the respective waveband
› Scroll through the contents of the CD
CD-eject button
CD case
Button CD
to activate the CD mode
Rocker switch TP to activate the reception of traffic reports
Rocker switch A/F to switch over between the wavebands AM/FM
Rocker switches / and /› manual tuning or switching to the next/previous preset radio station
› Track selection or fast forward/rewind in
CD mode 
12345678910113General information

›Track selection in folder or folder selection if a file/folder structure is
present in the connected source
› Function selection in
Menu mode
Screen
Function buttons 1
- 6› Select and store radio stations
› view additional information (MP3 files)
› Enter code


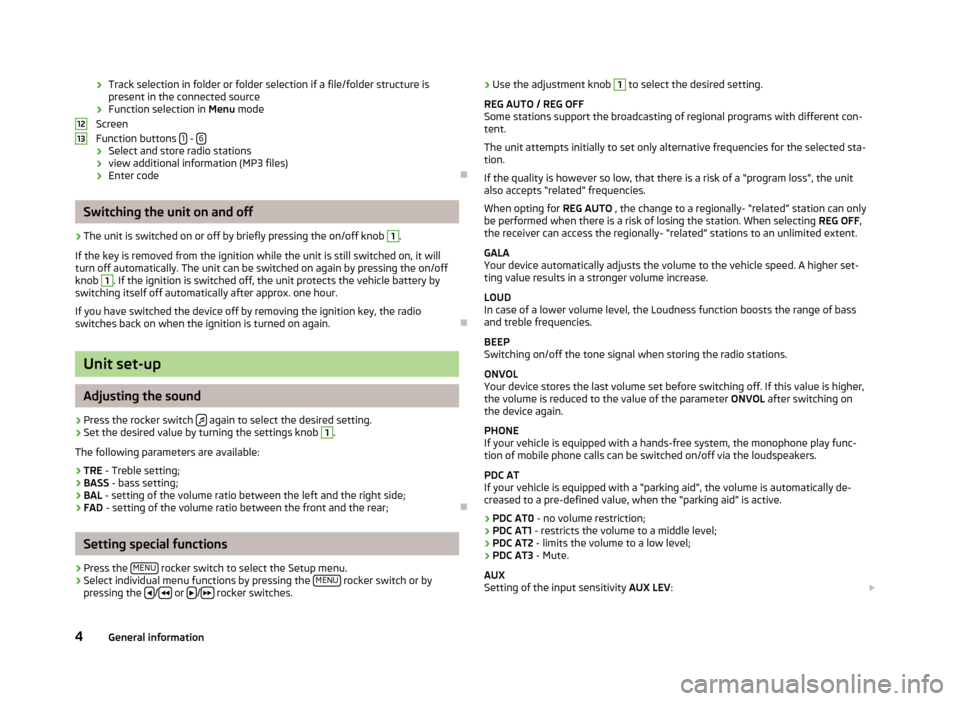

Switching the unit on and off
›
The unit is switched on or off by briefly pressing the on/off knob
1
.
If the key is removed from the ignition while the unit is still switched on, it will
turn off automatically. The unit can be switched on again by pressing the on/off
knob
1
. If the ignition is switched off, the unit protects the vehicle battery by
switching itself off automatically after approx. one hour.
If you have switched the device off by removing the ignition key, the radio
switches back on when the ignition is turned on again.

Unit set-up
Adjusting the sound
›
Press the rocker switch  again to select the desired setting.
›
Set the desired value by turning the settings knob
1
.
The following parameters are available:
› TRE
- Treble setting;
› BASS
- bass setting;
› BAL
- setting of the volume ratio between the left and the right side;
› FAD
- setting of the volume ratio between the front and the rear;

Setting special functions
›
Press the MENU rocker switch to select the Setup menu.
›
Select individual menu functions by pressing the MENU rocker switch or by
pressing the / or / rocker switches.
1213› Use the adjustment knob 1 to select the desired setting.
REG AUTO / REG OFF
Some stations support the broadcasting of regional programs with different con-
tent.
The unit attempts initially to set only alternative frequencies for the selected sta-
tion.
If the quality is however so low, that there is a risk of a “program loss”, the unit also accepts “related” frequencies.
When opting for REG AUTO , the change to a regionally- “related” station can only
be performed when there is a risk of losing the station. When selecting REG OFF,
the receiver can access the regionally- “related” stations to an unlimited extent.
GALA
Your device automatically adjusts the volume to the vehicle speed. A higher set-
ting value results in a stronger volume increase.
LOUD
In case of a lower volume level, the Loudness function boosts the range of bass
and treble frequencies.
BEEP
Switching on/off the tone signal when storing the radio stations.
ONVOL
Your device stores the last volume set before switching off. If this value is higher,
the volume is reduced to the value of the parameter ONVOL after switching on
the device again.
PHONE
If your vehicle is equipped with a hands-free system, the monophone play func-
tion of mobile phone calls can be switched on/off via the loudspeakers.
PDC AT
If your vehicle is equipped with a “parking aid”, the volume is automatically de- creased to a pre-defined value, when the “parking aid” is active.
› PDC AT0
- no volume restriction;
› PDC AT1
- restricts the volume to a middle level;
› PDC AT2
- limits the volume to a low level;
› PDC AT3
- Mute.
AUX
Setting of the input sensitivity AUX LEV: 4General information

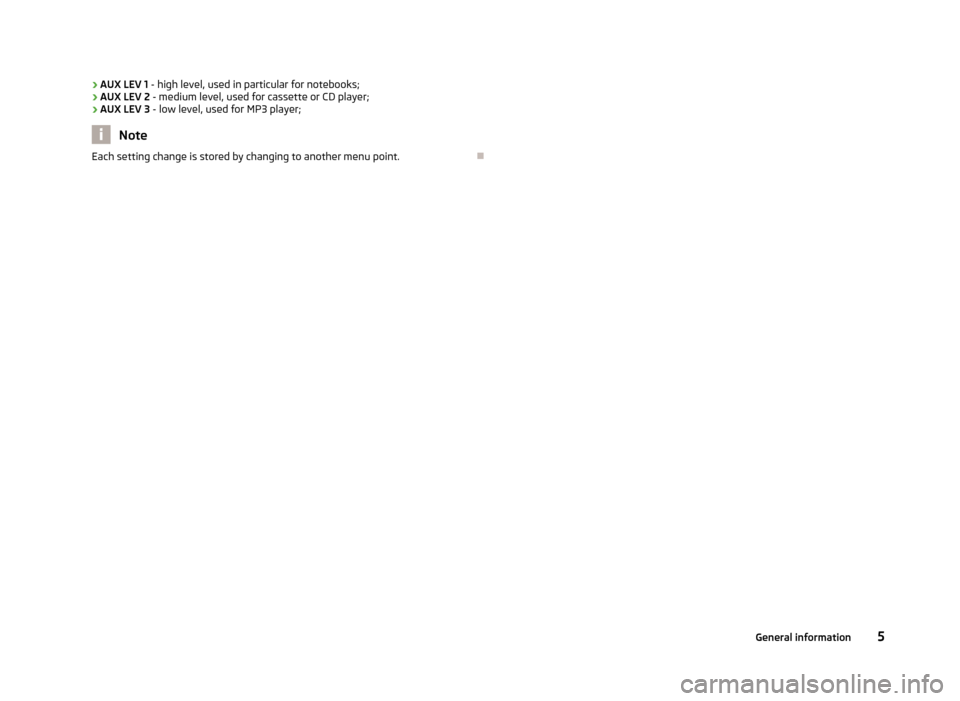

›AUX LEV 1
- high level, used in particular for notebooks;
› AUX LEV 2
- medium level, used for cassette or CD player;
› AUX LEV 3
- low level, used for MP3 player;
Note
Each setting change is stored by changing to another menu point.
5General information

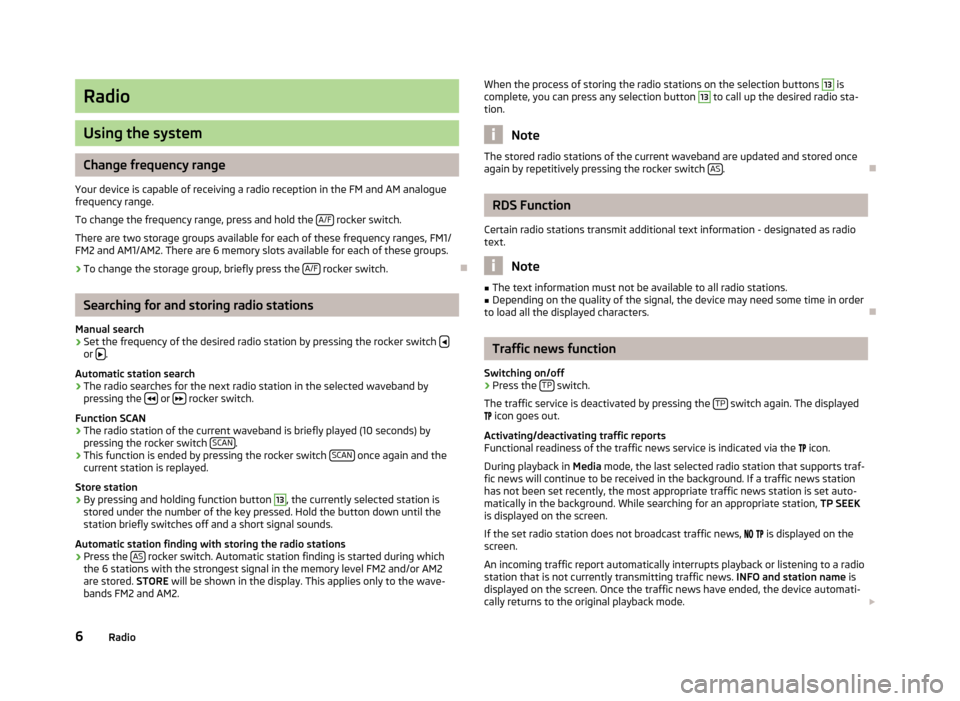

Radio
Using the system
Change frequency range
Your device is capable of receiving a radio reception in the FM and AM analogue frequency range.
To change the frequency range, press and hold the A/F
rocker switch.
There are two storage groups available for each of these frequency ranges, FM1/
FM2 and AM1/AM2. There are 6 memory slots available for each of these groups.
›
To change the storage group, briefly press the A/F rocker switch.

Searching for and storing radio stations
Manual search
›
Set the frequency of the desired radio station by pressing the rocker switch or
.
Automatic station search
›
The radio searches for the next radio station in the selected waveband by pressing the  or  rocker switch.
Function SCAN
›
The radio station of the current waveband is briefly played (10 seconds) by pressing the rocker switch SCAN.
›
This function is ended by pressing the rocker switch SCAN once again and the
current station is replayed.
Store station
›
By pressing and holding function button
13
, the currently selected station is
stored under the number of the key pressed. Hold the button down until the station briefly switches off and a short signal sounds.
Automatic station finding with storing the radio stations
›
Press the AS rocker switch. Automatic station finding is started during which
the 6 stations with the strongest signal in the memory level FM2 and/or AM2 are stored. STORE will be shown in the display. This applies only to the wave-
bands FM2 and AM2.
When the process of storing the radio stations on the selection buttons 13 is
complete, you can press any selection button 13 to call up the desired radio sta-
tion.
Note
The stored radio stations of the current waveband are updated and stored once
again by repetitively pressing the rocker switch AS.

RDS Function
Certain radio stations transmit additional text information - designated as radio
text.
Note
■ The text information must not be available to all radio stations.■Depending on the quality of the signal, the device may need some time in order
to load all the displayed characters.

Traffic news function
Switching on/off
›
Press the TP switch.
The traffic service is deactivated by pressing the TP
switch again. The displayed
 icon goes out.
Activating/deactivating traffic reports Functional readiness of the traffic news service is indicated via the 
icon.
During playback in Media mode, the last selected radio station that supports traf-
fic news will continue to be received in the background. If a traffic news station
has not been set recently, the most appropriate traffic news station is set auto-
matically in the background. While searching for an appropriate station, TP SEEK
is displayed on the screen.
If the set radio station does not broadcast traffic news, 

is displayed on the
screen.
An incoming traffic report automatically interrupts playback or listening to a radio station that is not currently transmitting traffic news. INFO and station name is
displayed on the screen. Once the traffic news have ended, the device automati-
cally returns to the original playback mode. 
6Radio

NoteSome radio stations misleadingly identify themselves as traffic programs. It is
therefore not an error with the unit that there are no traffic news on these sta-
tions.
7Radio

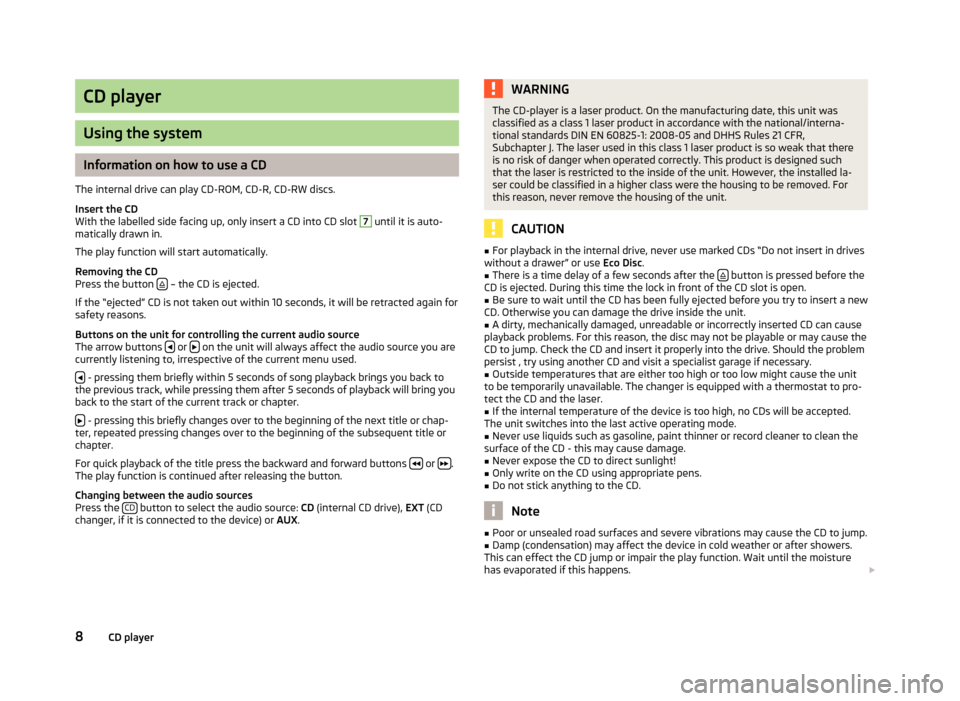

CD player
Using the system
Information on how to use a CD
The internal drive can play CD-ROM, CD-R, CD-RW discs.
Insert the CD
With the labelled side facing up, only insert a CD into CD slot
7
until it is auto-
matically drawn in.
The play function will start automatically.
Removing the CD
Press the button 
– the CD is ejected.
If the “ejected” CD is not taken out within 10 seconds, it will be retracted again for safety reasons.
Buttons on the unit for controlling the current audio source
The arrow buttons 
or  on the unit will always affect the audio source you are
currently listening to, irrespective of the current menu used.

- pressing them briefly within 5 seconds of song playback brings you back to
the previous track, while pressing them after 5 seconds of playback will bring you
back to the start of the current track or chapter.

- pressing this briefly changes over to the beginning of the next title or chap-
ter, repeated pressing changes over to the beginning of the subsequent title or
chapter.
For quick playback of the title press the backward and forward buttons 
or .
The play function is continued after releasing the button.
Changing between the audio sources
Press the CD
button to select the audio source:
CD (internal CD drive), EXT (CD
changer, if it is connected to the device) or AUX.
WARNINGThe CD-player is a laser product. On the manufacturing date, this unit was
classified as a class 1 laser product in accordance with the national/interna-
tional standards DIN EN 60825-1: 2008-05 and DHHS Rules 21 CFR,
Subchapter J. The laser used in this class 1 laser product is so weak that there is no risk of danger when operated correctly. This product is designed such
that the laser is restricted to the inside of the unit. However, the installed la- ser could be classified in a higher class were the housing to be removed. Forthis reason, never remove the housing of the unit.
CAUTION
■ For playback in the internal drive, never use marked CDs “Do not insert in drives
without a drawer” or use Eco Disc.■
There is a time delay of a few seconds after the  button is pressed before the
CD is ejected. During this time the lock in front of the CD slot is open.
■
Be sure to wait until the CD has been fully ejected before you try to insert a new
CD. Otherwise you can damage the drive inside the unit.
■
A dirty, mechanically damaged, unreadable or incorrectly inserted CD can cause
playback problems. For this reason, the disc may not be playable or may cause the
CD to jump. Check the CD and insert it properly into the drive. Should the problem
persist , try using another CD and visit a specialist garage if necessary.
■
Outside temperatures that are either too high or too low might cause the unit
to be temporarily unavailable. The changer is equipped with a thermostat to pro-
tect the CD and the laser.
■
If the internal temperature of the device is too high, no CDs will be accepted.
The unit switches into the last active operating mode.
■
Never use liquids such as gasoline, paint thinner or record cleaner to clean the
surface of the CD - this may cause damage.
■
Never expose the CD to direct sunlight!
■
Only write on the CD using appropriate pens.
■
Do not stick anything to the CD.
Note
■ Poor or unsealed road surfaces and severe vibrations may cause the CD to jump.■Damp (condensation) may affect the device in cold weather or after showers.
This can effect the CD jump or impair the play function. Wait until the moisture
has evaporated if this happens. 8CD player
