SKODA YETI 2017 Owner´s Manual

Rear ashtray - low centre console›To open , grasp the lid on the edgeC and fold in the direction of arrow 1
until the stop » Fig. 79.
›
To remove , grasp the ashtray at the handle
D
and remove in direction of ar-
row
2
.
›
To use Insert the ashtray in the console away from arrow
2
and push in.
Rear ashtray - high centre console
›
To open , press on the lid of the glasses compartment in area
E
. The ashtray
opens out in the direction of the arrow
1
» Fig. 80 .
›
To remove the ashtray insert press the lid gently
1
up to the stop.
›
Grasp the ashtray insert in the area of arrow and remove it in the direction of
arrow
2
.
›
To the insert the ashtray insert push in the insert away from the arrow
2
and push in.
WARNINGNever place hot or flammable objects in the ashtray – risk of fire!
CAUTION
The ashtray in the higher central console must be closed before folding for-
ward the rear middle seat - Otherwise there is a risk of damage.
12-volt socket
Fig. 81
Cover the 12-volt socket: in the front centre console / in the lug-
gage compartment
Read and observe
and on page 75 first.
›
To use , remove the cover of the socket » Fig. 81 - 
or open the cover of the
socket » Fig. 81 - 
.
›Connect the plug for the electrical appliance to the socket.WARNING■
Do not place anything on the dashboard. These objects might slide or fall
down when driving and may distract you from concentrating on the traffic –
There is a risk of accident!■
Make sure that while driving no objects can enter the driver's footwell -
There is a risk of an accident!
■
Stow all devices safely during the journey to prevent them from being
thrown around the interior in the event of a sudden braking manoeuvre or
an accident – There is a risk of death!
■
The devices may warm up during operation – There is a risk of injury or
fire!
■
Improper use of the power sockets and the electrical accessories can
cause fires, burns and other serious injuries.
■
The socket also works if the ignition is switched off. When leaving the ve-
hicle, never leave persons who are not completely independent, such as
children, unattended in the vehicle.
CAUTION
■ The sockets can only be used for the connection of approved electrical ac-
cessories with a total power consumption of up to 120 watts - otherwise the
electrical system of the vehicle may be damaged.■
Connecting appliances when the engine is not running will drain the battery
of the vehicle!
■
Before switching the ignition on / off or before starting the engine, switch
off the devices which are connected to the sockets - there is a risk of damage
to the equipment due to voltage fluctuations.
79Useful features

Waste containerFig. 82
Waste container: Inserting and moving/opening
Fig. 83
Replacing bags
Read and observe
and on page 75 first.
The waste container can be inserted into the slot in the door.
Insert waste container
›
Position the waste container at the front edge of the slot.
›
Push the waste container to the back in the direction of the arrow
A
» Fig. 82 .
›
Push the waste container as required in the direction of arrow
B
.
Remove the waste container
›
Remove the waste container in the opposite direction to the arrow
A
» Fig. 82 .
Open/close waste container
›
Lift the lid in the direction of arrow
C
» Fig. 82 .
Closing takes place in reverse order.
Replace bags›
Remove the waste container from the slot.
›
Press the two locking lugs on the frame in the direction of arrow
1
» Fig. 83 .
›
Pull the bag together with the frame down in the direction of arrow
2
.
›
Remove the bag from the frame.
›
Pull the new bag through the frame and pull it over the frame in the direction
of arrow
3
.
›
Place the bag with the frame in the direction of arrow
4
into the container
body, so that the two lugs engage audibly on the frame.
Note
We recommend that you use 20x30 cm bags.
Multimedia holder
Fig. 84
Multimedia holder
Read and observe and on page 75 first.
Multimedia holder » Fig. 84
Storage compartment for storing two coins
Storage compartment for storing the vehicle key
Storage compartment for storing a mobile phone
ABC80Using the system

Storage compartment under the front arm restFig. 85
Open storage compartment / open air supply
Read and observe
and on page 75 first.
Storage compartment
›
To open , lift the armrest in the direction of arrow
A
» Fig. 85 .
›
To close , lift the armrest in the direction of arrow
A
until the stop and then
fold down against the direction of the arrow
A
.
Air supply
›
To open , pull the handle in the direction of arrow
B
» Fig. 85 .
›
To close , turn the dial away from arrow
B
until the stop.
When the air inlet is opened, the air flows into the storage compartment with
a temperature corresponding to the control dial settings on the A/C unit, de-
pending on the outer climate conditions.
The air inlet in the storage compartment is connected to position  through
adjustment of the control dial for air distribution. This setting causes the maxi-
mum amount of air to flow into the storage compartment (depending on the
rotary regulator position for the fan).
storage net in the front centre consoleFig. 86
Storage net
Read and observe and on page 75 first.
The storage nets » Fig. 86 are intended for the storage of e.g. maps, maga-
zines, etc.
The maximum permissible load of the net is 0.5 kg.
Glasses compartment
Fig. 87
Opening the glasses storage box
Read and observe and on page 75 first.
›
To open , press the
--
button. The compartment folds in the direction of the
arrow » Fig. 87 .
›
To close , swivel the compartment against the direction of the arrow until it
audibly clicks into place.
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box – there is
risk of damage at high temperatures.■
The compartment must be closed before leaving and locking the vehicle –
There is a risk of impairment to the functions of the anti-theft alarm system.
81Useful features

Storage compartment on the front passenger sideFig. 88
Open storage compartment / open air supply
Read and observe
and on page 75 first.
Storage compartment
›
To open , press the
--
button. The cover folds in the arrow direction » Fig. 88.
›
To close , swing the lid against the direction of the arrow until it audibly clicks
into place.
Air supply
›
To Open pull the lever
B
in the direction of the arrow to the stop » Fig. 88.
›
To close , turn the lever against the direction of the arrow until it stops.
The temperature of the storage compartment supplied with air is dependent
on the setting in the air conditioning.
Note
A pen holder is provided in the stowage compartment.
Storage compartment for umbrella
Fig. 89
Opening the storage compart-
ment
Read and observe and on page 75 first.
The storage compartment under the passenger seat is used for storing an um-
brella.
›
To open , pull the handle in direction of arrow
1
pull and open the compart-
ment in the direction of arrow
2
» Fig. 89 .
›
To close , screw in the lid in the opposite direction of arrow
2
until it audibly
clicks into place.
CAUTION
Never store a wet umbrella in the storage compartment - there is a risk of
damage to the umbrella.
Note
We recommend that you use the umbrella from the ŠKODA Original Accesso-
ries.
Clothes hook
Fig. 90
Clothes hooks
Read and observe and on page 75 first.
The clothes hooks are located on the middle door pillars of the vehicle and on the handle of the headliner above each of the rear doors » Fig. 90.
The maximum permissible load of each of the hooks is 2 kg. 

82Using the system

WARNING■Never leave any heavy or sharp-edged objects in the pockets of the items
of clothing hung up - There is a risk of injury.■
Do not use hangers to hang up the clothes - there is a risk of restricting
the effectiveness of head airbags and a danger of injury from the hanger.
■
Make sure that any clothes hanging from the hooks do not impede your
vision.

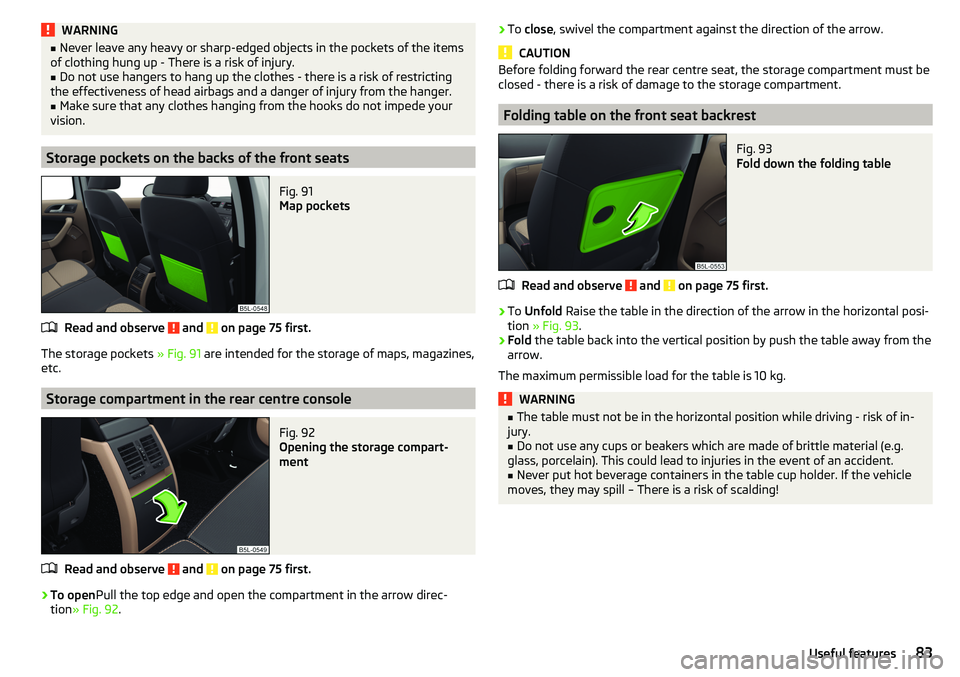

Storage pockets on the backs of the front seats
Fig. 91
Map pockets
Read and observe and on page 75 first.
The storage pockets » Fig. 91 are intended for the storage of maps, magazines,
etc.
Storage compartment in the rear centre console
Fig. 92
Opening the storage compart-
ment
Read and observe and on page 75 first.
›
To open Pull the top edge and open the compartment in the arrow direc-
tion » Fig. 92 .
›To
close , swivel the compartment against the direction of the arrow.
CAUTION
Before folding forward the rear centre seat, the storage compartment must be
closed - there is a risk of damage to the storage compartment.
Folding table on the front seat backrest
Fig. 93
Fold down the folding table
Read and observe and on page 75 first.
›
To Unfold Raise the table in the direction of the arrow in the horizontal posi-
tion » Fig. 93 .
›
Fold the table back into the vertical position by push the table away from the
arrow.
The maximum permissible load for the table is 10 kg.
WARNING■ The table must not be in the horizontal position while driving - risk of in-
jury.■
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). This could lead to injuries in the event of an accident.
■
Never put hot beverage containers in the table cup holder. If the vehicle
moves, they may spill – There is a risk of scalding!
83Useful features

Folding table on the middle seat backrestFig. 94
Middle seat backrest already fol-
ded forward
Read and observe and on page 75 first.
After folding forwards,the centre seat backrest can be used as an armrest or table with cup holders » Fig. 94.
CAUTION
If the middle rear seat backrest should be folded forward for lengthy periods,
then make sure that the belt locks are not located below it - this can warp the
upholstery or fabric.
Removable through-loading bag
Fig. 95
Securing the removable through-
loading bag
Read and observe and on page 75 first.
The removable through-loading bag (hereinafter referred to as through-load- ing bag) is used exclusively for transporting skis (max. 2 pairs).
Loading through-loading bag and skis
›
Fold the middle rear seat backrest forwards until it rests on the seat
» page 71 .
›Place the empty through-loading bag in such a way that the end of the bag
with the zip is in the boot.›
Push the skis and poles with the tips backwards into the through-loading
bag and secure the bag.
Securing through-loading bag and skis
›
Pull the securing belt with both lock tongues out of the pocket of the
through-loading bag.
›
Insert the lock tongues
A
» Fig. 95 in the belt locks of the rear middle seat
belt
C
, first on the one side and then on the other side.
›
Place the securing belt in the middle of the skis between the heel and the tip
of the bindings and pull the securing belt tight at the free end of the belt
B
.
WARNING■ The total weight of the skis which are transported must not exceed 10 kg.■Always stow and secure the skis and the bag securely - otherwise there is
a risk of injury or accident!
CAUTION
Never fold and stow the through-loading bag when it is wet -There is a risk of
damaging the through-loading bag.
Tablet holder
 Introduction
This chapter contains information on the following subjects:
Attaching the rear headrests
85
Handle holder
85
External devices (e.g. tablet, smartphone, etc.) measuring min. 122 mm and
max. 195 mm can be secured in the support.
The maximum permissible load of the compartment is 750 g.
CAUTION
Never exceed the maximum permissible load of the holder - there is a risk of
damage or functional impairment.84Using the system

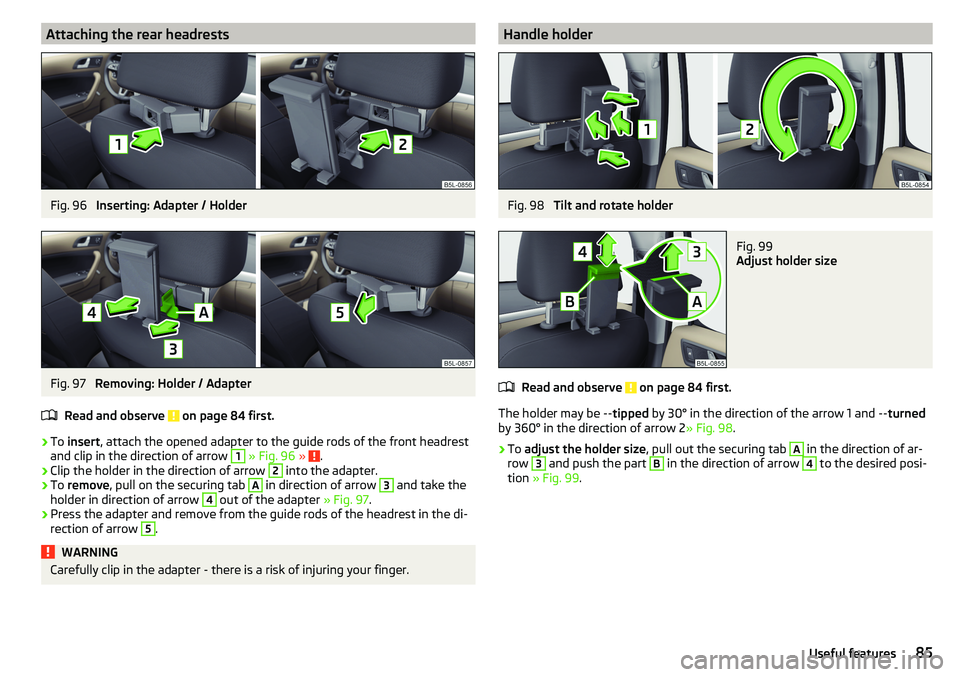

Attaching the rear headrestsFig. 96
Inserting: Adapter / Holder
Fig. 97
Removing: Holder / Adapter
Read and observe
on page 84 first.
›
To insert , attach the opened adapter to the guide rods of the front headrest
and clip in the direction of arrow
1
» Fig. 96 » .
›
Clip the holder in the direction of arrow
2
into the adapter.
›
To remove , pull on the securing tab
A
in direction of arrow
3
and take the
holder in direction of arrow
4
out of the adapter » Fig. 97.
›
Press the adapter and remove from the guide rods of the headrest in the di-
rection of arrow
5
.
WARNINGCarefully clip in the adapter - there is a risk of injuring your finger.Handle holderFig. 98
Tilt and rotate holder
Fig. 99
Adjust holder size
Read and observe on page 84 first.
The holder may be
--
tipped by 30° in the direction of the arrow 1 and
--
turned
by 360° in the direction of arrow 2 » Fig. 98.
›
To adjust the holder size , pull out the securing tab
A
in the direction of ar-
row
3
and push the part
B
in the direction of arrow
4
to the desired posi-
tion » Fig. 99 .
85Useful features

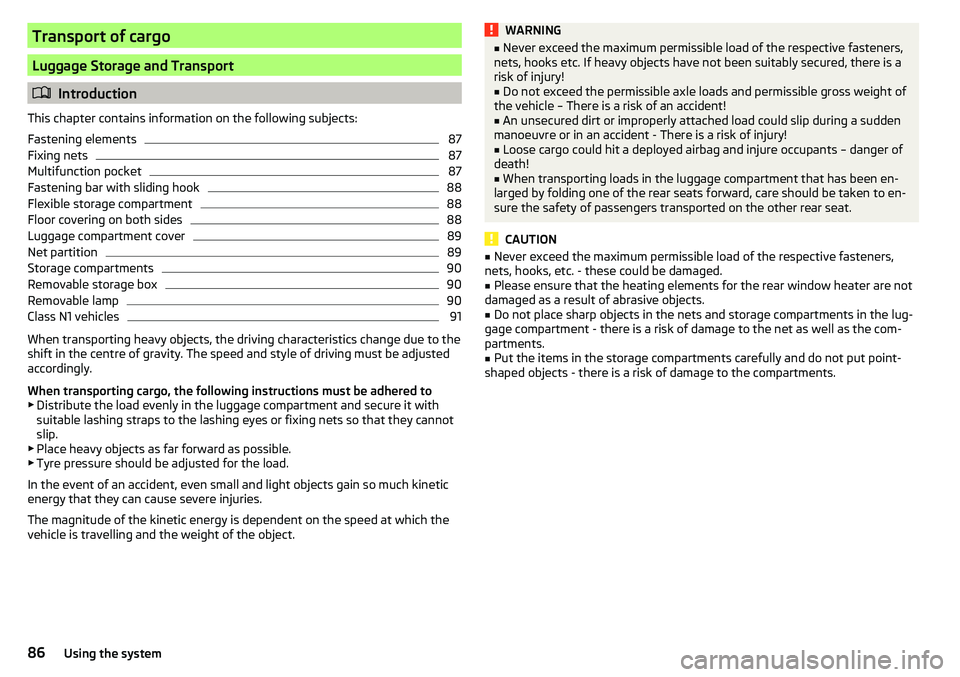

Transport of cargo
Luggage Storage and Transport
Introduction
This chapter contains information on the following subjects:
Fastening elements
87
Fixing nets
87
Multifunction pocket
87
Fastening bar with sliding hook
88
Flexible storage compartment
88
Floor covering on both sides
88
Luggage compartment cover
89
Net partition
89
Storage compartments
90
Removable storage box
90
Removable lamp
90
Class N1 vehicles
91
When transporting heavy objects, the driving characteristics change due to the
shift in the centre of gravity. The speed and style of driving must be adjusted
accordingly.
When transporting cargo, the following instructions must be adhered to ▶ Distribute the load evenly in the luggage compartment and secure it with
suitable lashing straps to the lashing eyes or fixing nets so that they cannot
slip.
▶ Place heavy objects as far forward as possible.
▶ Tyre pressure should be adjusted for the load.
In the event of an accident, even small and light objects gain so much kinetic
energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
WARNING■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. If heavy objects have not been suitably secured, there is a
risk of injury!■
Do not exceed the permissible axle loads and permissible gross weight of
the vehicle – There is a risk of an accident!
■
An unsecured dirt or improperly attached load could slip during a sudden
manoeuvre or in an accident - There is a risk of injury!
■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
■
When transporting loads in the luggage compartment that has been en-
larged by folding one of the rear seats forward, care should be taken to en-
sure the safety of passengers transported on the other rear seat.
CAUTION
■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks, etc. - these could be damaged.■
Please ensure that the heating elements for the rear window heater are not
damaged as a result of abrasive objects.
■
Do not place sharp objects in the nets and storage compartments in the lug-
gage compartment - there is a risk of damage to the net as well as the com-
partments.
■
Put the items in the storage compartments carefully and do not put point-
shaped objects - there is a risk of damage to the compartments.
86Using the system

Fastening elementsFig. 100
Fasteners: Version 1/version 2
Read and observe
and on page 86 first.
The fasteners are located on both sides of the luggage compartment.
Overview of the fastening elements » Fig. 100
Lashing eyes for securing items of luggage, fastening nets and multifunc-
tion pocket
Fastening strip with integrated hook for attaching fastening nets and mul-
tifunction pocket
Lashing eyes only for fastening fixing nets
The maximum static load of the individual lashing eyes
A
is 350 kg
C
is 150
kg.
Fixing nets
Fig. 101
Fastening examples for nets
ABCRead and observe and on page 86 first.
Fastening examples for nets » Fig. 101
Horizontal pocket
Floor net
Vertical pocket
The maximum permissible load of each of the nets is 1.5 kg.
Multifunction pocket
Fig. 102
Securing the multifunction pock-
et
Read and observe and on page 86 first.
The pocket » Fig. 102 can be secured to the fastening elements
A
and
B
» Fig. 100 on page 87 .
The maximum permissible load for the bag attached to the fastening element
is 3 kg.
CAUTION
In vehicles with a variable loading floor, it is not possible to attach the bag to
the fastening elements.ABC87Transport of cargo

Fastening bar with sliding hookFig. 103
Sliding hook onto the mounting bar / removing hook
Read and observe
and on page 86 first.
A fastening bar is located on both sides of the luggage compartment with two
moveable hooks each, in order to attach small items of luggage, such as bags,
etc.
The maximum permissible load of each of the hooks is 7.5 kg.
Moving the hook
›
Fold up the hook in direction of arrow
1
» Fig. 103 until an angle of approx.
45° is reached.
›
Move the hook in the direction of the arrow
2
into the desired position and
fold down the hook as far as the stop in direction of arrow
3
.
Removing hooks
The hook can be removed only in the rear region of the attachment bar.
›
Fold the hook upwards in direction of arrow
4
» Fig. 103 until it disengages,
and remove in the direction of arrow
5
.
Inserting hook
›
Position the hook on the fastening strip in a vertical position in direction of
arrow
5
» Fig. 103 and lightly press it on.
›
Fold the hook up to the stop away from arrow
4
until it locks.
Flexible storage compartmentFig. 104
Flexible storage compartment
Read and observe and on page 86 first.
The flexible storage compartment can be installed on the right-hand side of
the boot » Fig. 104 .
The storage compartment is designed for storing small objects with a maxi-
mum total weight of 8 kg.
›
To use ,insert the two ends of the storage compartment into the openings in
the side trim of the luggage compartment and push the shelf down to lock.
›
To remove grasp the storage compartment on both top edges, press the up-
per corners inwards and release the storage compartment by pulling up-
wards.
›
Remove the storage compartment by pulling towards you.
CAUTION
The flexible storage compartment cannot be installed on vehicles with the var-
iable loading floor.
Floor covering on both sides
Read and observe
and on page 86 first.
You can fit a double-sided floor covering in the luggage compartment. One
side is made of fabric, the other side is washable (suitable for transporting wet
or dirty items).
88Using the system
