SKODA YETI 2017 Owner´s Manual

Adjusting the tilt of the backrest (do not lean on the backrest when ad-
justing)
Setting the extent of the curvature of the lumbar support
Note
After a certain time, play can develop within the adjustment mechanism of the
backrest angle.
Electrical adjustment
Fig. 56
Control elements on the seat
Read and observe
on page 68 first.
The seats can be adjusted by the respective operating element being pressed in the direction of area of the arrow » Fig. 56.
seat adjustment
▶ 1 - Move in the longitudinal direction
▶ 2 - Change in inclination
▶ 3 - Change in height
Adjusting the seat backrest
▶ 4 - Change in inclination
Adjusting lumbar support
▶ 5 - Change curvature
▶ 6 - The degree of curvature change
WARNINGThe electric front seat adjustment is functional even with the ignition off.
Therefore, when leaving the vehicle, never leave people who are not com-
pletely independent, such as children, unattended in the vehicle - there is a
risk of injury!CDABCNoteIf the inclination angle of the seat backrest relative to the seat surface is
greater than 102 °, then it is not possible for safety reasons to save this setting
in the memory of the electrically adjustable seats or the remote control key.
Memory Function of the electrically adjustable seat
Fig. 57
SET button and memory buttons
Read and observe on page 68 first.
Among the memory buttons
B
on the driver's seat, a setting for the driver´s
seat and exterior mirror position can be saved » Fig. 57.
Storing driver's seat and exterior mirror settings for the forwards drive
›
Switch on the ignition, adjust the seat and the exterior mirrors.
›
Hold down the 

A
» Fig. 57 button and within 10 seconds press the de-
sired memory button
B
at the same time. Storing is confirmed by an acous-
tic signal.
Storing front passenger´s exterior mirror settings for reversing
Above the MAXI DOT display in the
Mirror down
menu item, the lowering func-
tion for the mirror on the passenger side must be enabled for reversing
» page 43 , Menu item
Settings
.
›
Turn on the ignition and press the desired memory button
B
» Fig. 57 .
›
Turn the rotary knob for the exterior mirror control to the position for the
front passenger mirror area » page 67.
›
Engage reverse gear.
›
Adjust the front passenger's mirror to the desired position.
›
Disengage reverse gear. The set position of the exterior mirror is stored. 
69Seats and head restraints

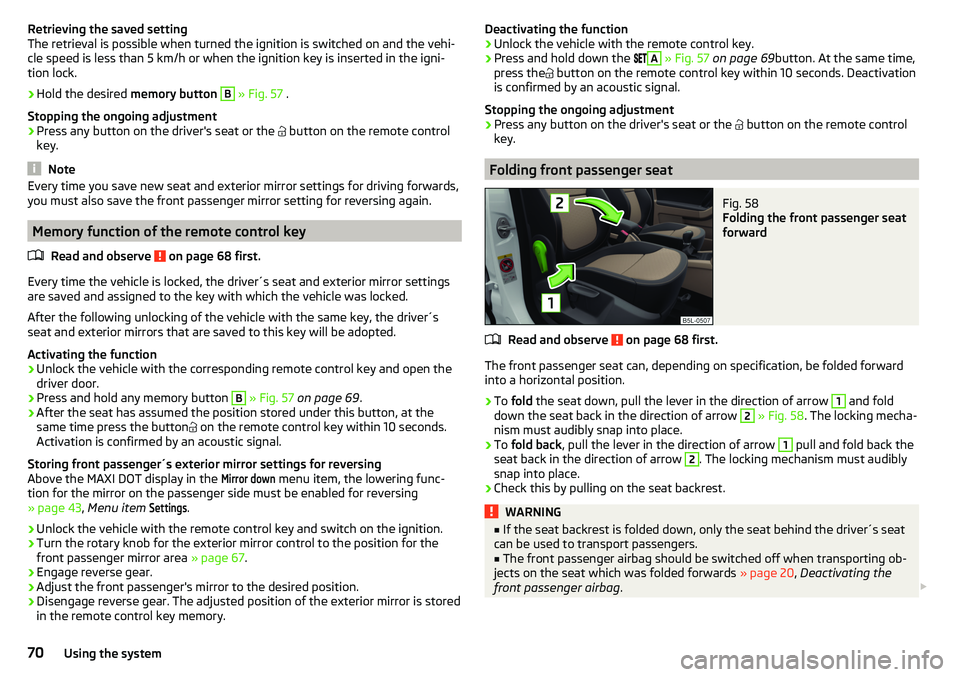

Retrieving the saved setting
The retrieval is possible when turned the ignition is switched on and the vehi-
cle speed is less than 5 km/h or when the ignition key is inserted in the igni-
tion lock.›
Hold the desired memory button
B
» Fig. 57 .
Stopping the ongoing adjustment
›
Press any button on the driver's seat or the 
button on the remote control
key.
Note
Every time you save new seat and exterior mirror settings for driving forwards,
you must also save the front passenger mirror setting for reversing again.
Memory function of the remote control key
Read and observe
on page 68 first.
Every time the vehicle is locked, the driver´s seat and exterior mirror settingsare saved and assigned to the key with which the vehicle was locked.
After the following unlocking of the vehicle with the same key, the driver´s
seat and exterior mirrors that are saved to this key will be adopted.
Activating the function
›
Unlock the vehicle with the corresponding remote control key and open the
driver door.
›
Press and hold any memory button
B
» Fig. 57 on page 69 .
›
After the seat has assumed the position stored under this button, at the
same time press the button  on the remote control key within 10 seconds.
Activation is confirmed by an acoustic signal.
Storing front passenger´s exterior mirror settings for reversing
Above the MAXI DOT display in the
Mirror down
menu item, the lowering func-
tion for the mirror on the passenger side must be enabled for reversing
» page 43 , Menu item
Settings
.
›
Unlock the vehicle with the remote control key and switch on the ignition.
›
Turn the rotary knob for the exterior mirror control to the position for the
front passenger mirror area » page 67.
›
Engage reverse gear.
›
Adjust the front passenger's mirror to the desired position.
›
Disengage reverse gear. The adjusted position of the exterior mirror is stored
in the remote control key memory.
Deactivating the function›Unlock the vehicle with the remote control key.›
Press and hold down the 
A

» Fig. 57 on page 69 button. At the same time,
press the 
button on the remote control key within 10 seconds. Deactivation
is confirmed by an acoustic signal.
Stopping the ongoing adjustment
›
Press any button on the driver's seat or the 
button on the remote control
key.
Folding front passenger seat
Fig. 58
Folding the front passenger seat
forward
Read and observe on page 68 first.
The front passenger seat can, depending on specification, be folded forward into a horizontal position.
›
To fold the seat down, pull the lever in the direction of arrow
1
and fold
down the seat back in the direction of arrow
2
» Fig. 58 . The locking mecha-
nism must audibly snap into place.
›
To fold back , pull the lever in the direction of arrow
1
pull and fold back the
seat back in the direction of arrow
2
. The locking mechanism must audibly
snap into place.
›
Check this by pulling on the seat backrest.
WARNING■ If the seat backrest is folded down, only the seat behind the driver´s seat
can be used to transport passengers.■
The front passenger airbag should be switched off when transporting ob-
jects on the seat which was folded forwards » page 20, Deactivating the
front passenger airbag . 
70Using the system

WARNING (Continued)■Do not adjust the seat back while driving - There is a risk of injury and ac-
cidents!■
When moving the seat backrest, keep limbs out of the area between the
seat and seat backrest – risk of injury!
■
Never transport the following items on the seat backrest when folded
forwards. ■ Objects that could restrict the driver's view.
■ Objects which make it impossible for the driver to control the vehicle
(e.g. if they roll under the pedals, or protrude into the driver's zone).
■ Objects which could lead to injury to passengers (e.g. if accelerating
sharply, braking or changing direction).

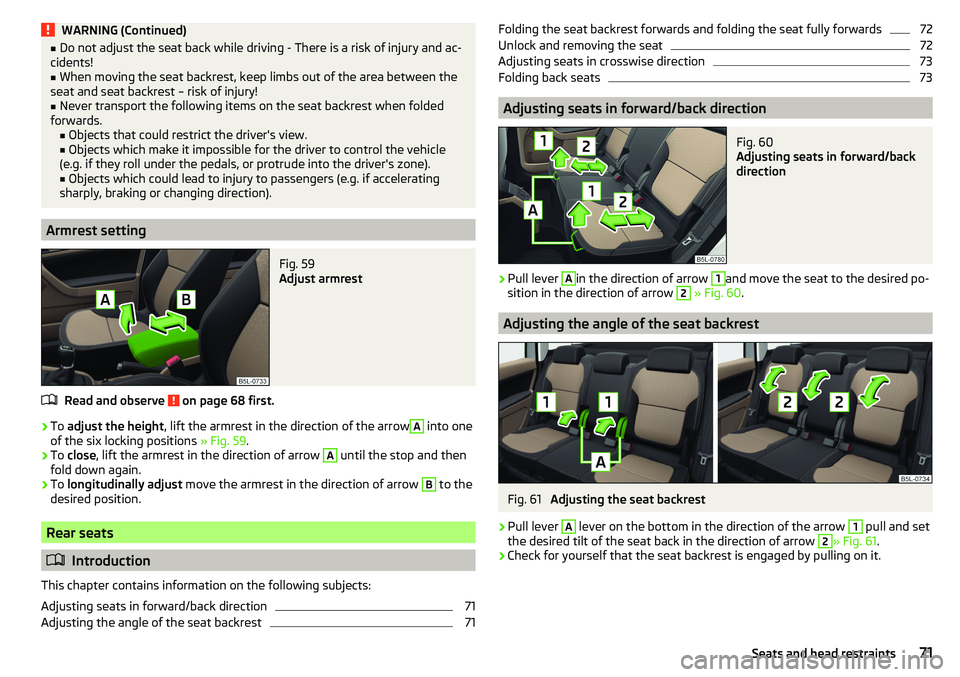

Armrest setting
Fig. 59
Adjust armrest
Read and observe on page 68 first.
›
To adjust the height , lift the armrest in the direction of the arrow
A
into one
of the six locking positions » Fig. 59.
›
To close , lift the armrest in the direction of arrow
A
until the stop and then
fold down again.
›
To longitudinally adjust move the armrest in the direction of arrow
B
to the
desired position.
Rear seats
 Introduction
This chapter contains information on the following subjects:
Adjusting seats in forward/back direction
71
Adjusting the angle of the seat backrest
71Folding the seat backrest forwards and folding the seat fully forwards72Unlock and removing the seat72
Adjusting seats in crosswise direction
73
Folding back seats
73
Adjusting seats in forward/back direction
Fig. 60
Adjusting seats in forward/back
direction
›
Pull lever
A
in the direction of arrow
1
and move the seat to the desired po-
sition in the direction of arrow
2
» Fig. 60 .
Adjusting the angle of the seat backrest
Fig. 61
Adjusting the seat backrest
›
Pull lever
A
lever on the bottom in the direction of the arrow
1
pull and set
the desired tilt of the seat back in the direction of arrow
2
» Fig. 61 .
›
Check for yourself that the seat backrest is engaged by pulling on it.
71Seats and head restraints

Folding the seat backrest forwards and folding the seat fullyforwardsFig. 62
Safety position of seat belt / folding the seat completely forward
Fig. 63
Lock forward folded seats
Folding the seat backrest forwards
›
Insert the belt buckle
A
of the seat belt into the opening in the side pan-
el » Fig. 62 .
›
Remove the head restraint from the rear middle seat.
›
Push the outer rear seats towards the rear as far as they will go » Fig. 60 on
page 71 .
›
Fold the outer rear seat backrests and the center seat to the stop on the
seat surface » Fig. 61 on page 71 .
›
Then pull the lever
A
» Fig. 61 on page 71 again and push the seat back
down until it clicks into place in a lower position.
Folding seats fully forwards and locking them
›
If the outer rear seat is fully folded forward, push it towards the rear as far as
it can go.
›
Pull the lever
B
» Fig. 62 in the direction of the arrow
1
and push the seat
completely forward in the direction of arrow
2
.
› Secure the folded forward seat with the aid of the fixing belt B to a guide rod
of the head restraint in the front seat » Fig. 63.WARNING■
The seat backs in occupied rear seats must be properly engaged.■When transporting objects in the luggage compartment that has been en-
larged by folding the backrest forward, ensure the safety of the passengers
transported on the other rear seats.■
The seat backrests must be securely locked in position so that no objects
in the luggage compartment can slide into the passenger compartment on
sudden braking – There is a risk of injury.
CAUTION
When moving the seat backrest, the seat belts should not be trapped - there is
a risk of damage to the seat belts.
CAUTION
■ Before folding the rear middle seat forward, make sure that the storage com-
partment, the ashtray and the cup holder in the rear part of the centre console
are closed - risk of damage.■
Only keep the seats in the folded forward position for as long as necessary to
transport cargo - there is a risk of damaging the front seat backrests. The
seats must be folded back once the cargo has been transported.
■
If the outer seat is not in the rear end position when folding forward, damage
can occur to the locking bolts when unlocking the seat.
Unlock and removing the seat
Fig. 64
Unlocking the folded forward
seat and carrying handles on the
seat surface
›
Unlock the folded seat by pressing seat locks » Fig. 62 on page 72
A
in the
direction of arrow » Fig. 64.
›
Remove the seat on the carrying handle
B
or
C
. 
72Using the system

NoteThe outer seats are not mutually interchangeable. In the rear area the left seat
is marked with the letter L and the right seat with the letter R.
Adjusting seats in crosswise direction
Fig. 65
Locking seats
›
Remove the middle seat » Fig. 64 on page 72 .
›
Fold the outer seat forwards and unlock » Fig. 64 on page 72 .
›
Move outer seat on the guide towards the middle of the vehicle up to the
stop.
›
Lock the folded forward seat by pressing the seat locks
A
in the direction of
arrow » Fig. 65 .
Folding back into the starting position is accomplished in the reverse order.
Folding back seats
Fig. 66
Folding the seat backrest back
into position
›
If the seat has been removed, first position it on the guide and lock it in place
using seat locking
A
» Fig. 65 on page 73 . Pull the seat upwards to ensure
that the seat is locked correctly.
›
Fold the seat in the horizontal position until it audibly click in place. Check
that the seat can no longer be lifted by pulling it up.
› Press the lever in direction of arrow 1
» Fig. 66 and fold back the seat back-
rest in the direction of arrow 2. Check this by pulling on the seat backrest.
Headrests
 Introduction
This chapter contains information on the following subjects:
Setting the height
73
Removing/installing
74
Note
The middle rear head restraint is only adjustable in two positions.
Setting the height
Fig. 67
Setting the height of the headrest
›
Grasp the restraint and move upwards in the direction of
1
» Fig. 67 .
›
To move the headrest down, press the securing button
A
in the direction of
arrow
2
and hold it down while pressing the headrest in the direction of ar-
row
3
.
73Seats and head restraints

Removing/installingFig. 68
Removing/installing the headrest
›
To remove the headrest, pull it out of the seat backrest up to the latch.
›
Press locking button
A
in the direction of arrow
1,
and pull out the head re-
straint in the direction of arrow
2
» Fig. 68 .
›
To insert the headrest, push the headrest into the seat backrest in the direc-
tion of arrow
3
until the locking button clicks into place.
Front seat heating
Fig. 69
Buttons for heating the front
seats
The seat backrests and seats can be heated electrically.
Seat heating buttons » Fig. 69
Left seat heating
Right seat heating
›
To turn on the heating with maximum heat , press the key
 or
 button.
By repeatedly pressing the button, the heat is turned down until it is com-
pletely switched off . The level of the seat heating is indicated by the number
of illuminated warning lights in the switch.
The seat heating only operates when the engine is running.WARNINGIf you are sensitive to pain and/or temperature, e.g. through medication,
paralysis or because of chronic illness (e.g. diabetes), we recommend not to
use the seat heating. If the seat heating is used, we recommend to make
regular breaks in your journey when driving long distances, so that the
body can recuperate from the stress of the journey. Please consult your
doctor, who can evaluate your specific condition.
CAUTION
The following instructions should be observed to avoid damage to the seats.■Do not kneel on the seats or otherwise apply concentrated pressure to them.■
Do not switch on the heating for unoccupied seats.
■
Do not switch on the heating for seats which have objects on them (e.g. a
child seat, bag or similar).
■
Do not switch on the heating for seats which have seat covers or protective
covers on them.
Note
If the on-board voltage decreases, the seat heating switches off automatically
» page 147 , Automatic shutdown of consumers - vehicle battery discharge
protection .74Using the system

Useful features
Interior fittings
Introduction
This chapter contains information on the following subjects:
Ticket holder
75
Storage compartment on the dash panel
76
stowage compartments in the doors
76
Storage compartment in the front centre console
76
USB and AUX input
77
Cup holders
77
Cigarette lighter
78
Ashtray
78
12-volt socket
79
Waste container
80
Multimedia holder
80
Storage compartment under the front arm rest
81
storage net in the front centre console
81
Glasses compartment
81
Storage compartment on the front passenger side
82
Storage compartment for umbrella
82
Clothes hook
82
Storage pockets on the backs of the front seats
83
Storage compartment in the rear centre console
83
Folding table on the front seat backrest
83
Folding table on the middle seat backrest
84
Removable through-loading bag
84WARNING■ Do not place anything on the dashboard. These objects might slide or fall
down when driving and may distract you from concentrating on the traffic –
risk of accident!■
Make sure that while driving no objects can enter the driver's footwell -
There is a risk of an accident!
WARNING (Continued)■ Do not carry any objects on the front passenger seat except objects de-
signed for this purpose (e.g. child seats) – risk of accident!■
No objects should be placed in the storage compartments nor in the
drinks holders; the vehicle occupants could be endangered if there is sud-
den braking or the vehicle collides with something.
■
For safety reasons, lockable storage compartments should be closed
while driving - there is a risk of injury from the opened lid or through the
loose objects in the compartment.
■
Make sure no objects protrude from the storage compartments - There is
a risk of injury!
■
Do not exceed the permissible loads for the storage compartments, pock-
ets and nets - There is a risk of injury and a risk of damage to the compart-
ments, pockets and nets!
■
Ash, cigarettes, cigars and the like should only be stored in the ashtray -
There is a risk of fire/burns!
■
The storage compartments, multimedia holder and waste container are
not a substitute for the ashtray and must not be used for such purposes –
There is a risk of fire!
CAUTION
Do not place any large or sharp objects in the storage compartments, pockets
and nets -There is a risk of damage to the compartments, pockets and nets.
Ticket holder
Fig. 70
Ticket holder
Read and observe and on page 75 first.
The ticket holder » Fig. 70 is provided for the holding and displaying e.g. car
park tickets.
75Useful features

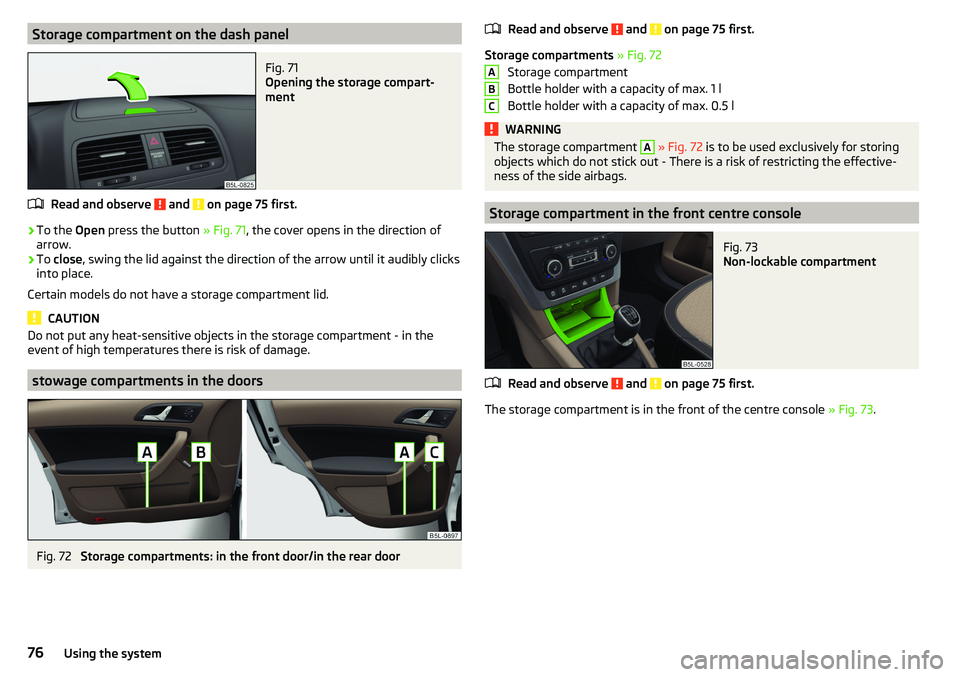

Storage compartment on the dash panelFig. 71
Opening the storage compart-
ment
Read and observe and on page 75 first.
›
To the Open press the button » Fig. 71, the cover opens in the direction of
arrow.
›
To close , swing the lid against the direction of the arrow until it audibly clicks
into place.
Certain models do not have a storage compartment lid.
CAUTION
Do not put any heat-sensitive objects in the storage compartment - in the
event of high temperatures there is risk of damage.
stowage compartments in the doors
Fig. 72
Storage compartments: in the front door/in the rear door
Read and observe and on page 75 first.
Storage compartments » Fig. 72
Storage compartment
Bottle holder with a capacity of max. 1 l
Bottle holder with a capacity of max. 0.5 l
WARNINGThe storage compartment A » Fig. 72 is to be used exclusively for storing
objects which do not stick out - There is a risk of restricting the effective-
ness of the side airbags.
Storage compartment in the front centre console
Fig. 73
Non-lockable compartment
Read and observe and on page 75 first.
The storage compartment is in the front of the centre console » Fig. 73.
ABC76Using the system

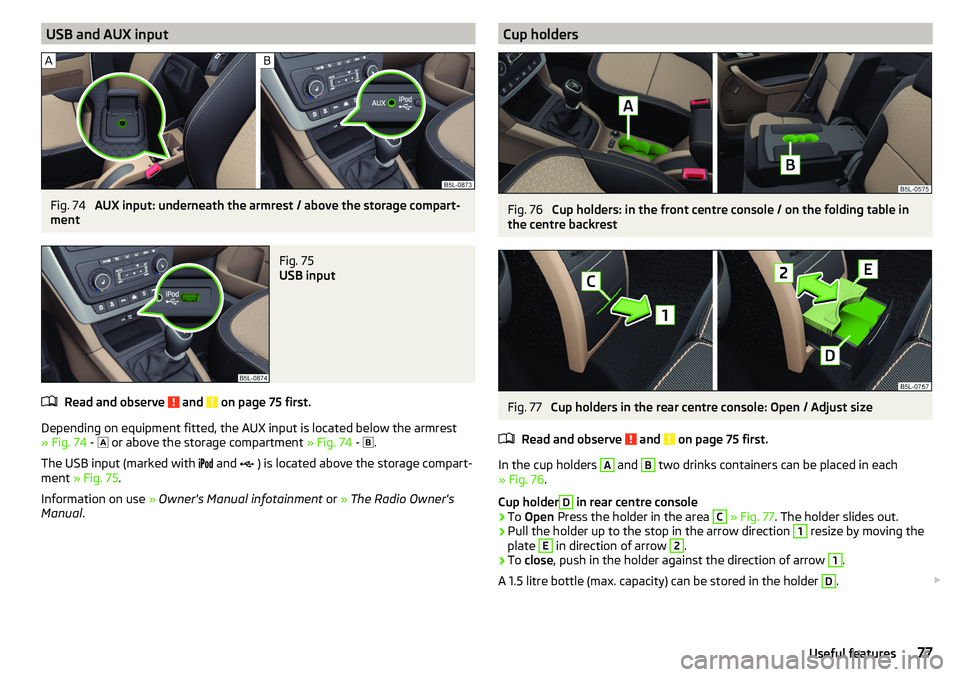

USB and AUX inputFig. 74
AUX input: underneath the armrest / above the storage compart-
ment
Fig. 75
USB input
Read and observe and on page 75 first.
Depending on equipment fitted, the AUX input is located below the armrest » Fig. 74 -
 or above the storage compartment
» Fig. 74 -
 .
The USB input (marked with 
 
and
 ) is located above the storage compart-
ment » Fig. 75 .
Information on use » Owner's Manual infotainment or » The Radio Owner's
Manual .
Cup holdersFig. 76
Cup holders: in the front centre console / on the folding table in
the centre backrest
Fig. 77
Cup holders in the rear centre console: Open / Adjust size
Read and observe
and on page 75 first.
In the cup holders
A
and
B
two drinks containers can be placed in each
» Fig. 76 .
Cup holder
D
in rear centre console
›
To Open Press the holder in the area
C
» Fig. 77 . The holder slides out.
›
Pull the holder up to the stop in the arrow direction
1
resize by moving the
plate
E
in direction of arrow
2
.
›
To close , push in the holder against the direction of arrow
1
.
A 1.5 litre bottle (max. capacity) can be stored in the holder
D
. 
77Useful features

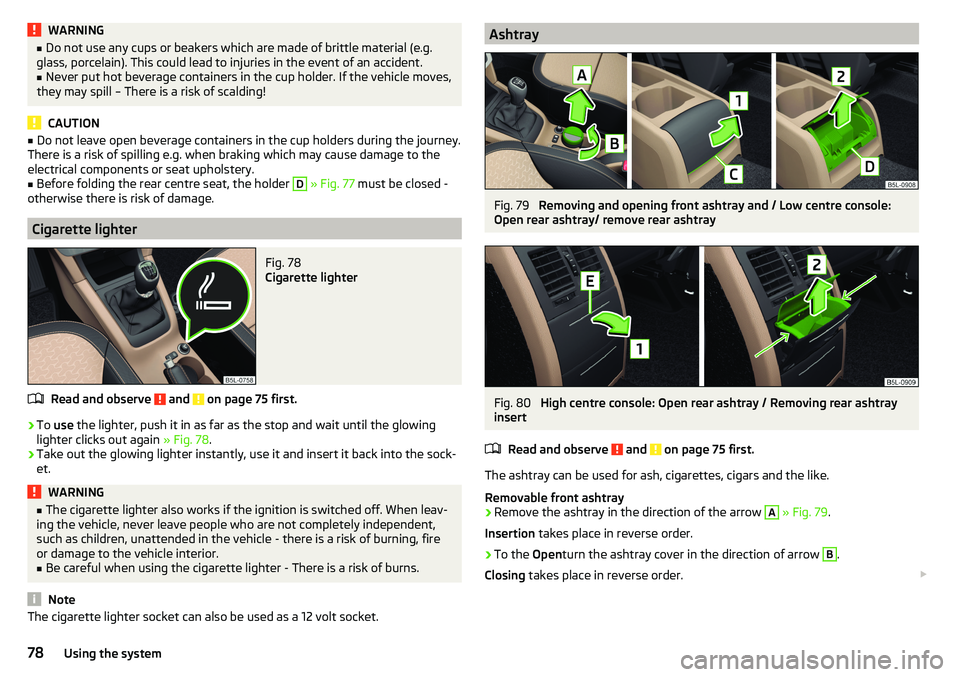

WARNING■Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). This could lead to injuries in the event of an accident.■
Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill – There is a risk of scalding!
CAUTION
■ Do not leave open beverage containers in the cup holders during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the
electrical components or seat upholstery.■
Before folding the rear centre seat, the holder
D
» Fig. 77 must be closed -
otherwise there is risk of damage.
Cigarette lighter
Fig. 78
Cigarette lighter
Read and observe and on page 75 first.
›
To use the lighter, push it in as far as the stop and wait until the glowing
lighter clicks out again » Fig. 78.
›
Take out the glowing lighter instantly, use it and insert it back into the sock-
et.
WARNING■ The cigarette lighter also works if the ignition is switched off. When leav-
ing the vehicle, never leave people who are not completely independent,
such as children, unattended in the vehicle - there is a risk of burning, fire
or damage to the vehicle interior.■
Be careful when using the cigarette lighter - There is a risk of burns.
Note
The cigarette lighter socket can also be used as a 12 volt socket.AshtrayFig. 79
Removing and opening front ashtray and / Low centre console:
Open rear ashtray/ remove rear ashtray
Fig. 80
High centre console: Open rear ashtray / Removing rear ashtray
insert
Read and observe
and on page 75 first.
The ashtray can be used for ash, cigarettes, cigars and the like.
Removable front ashtray
›
Remove the ashtray in the direction of the arrow
A
» Fig. 79 .
Insertion takes place in reverse order.
›
To the Openturn the ashtray cover in the direction of arrow
B
.
Closing takes place in reverse order. 
78Using the system
