ECO mode SMART FORTWO 2016 Owners Manual

High-beam headlamps ................. 69
Light switch ............................. 67
Low-beam headlamps .................. 68
Parking lamps ........................... 68
Rear fog lamp ........................... 68
Setting the brightness of the
ambient lighting (on-board
computer) ............................... 116
Turn signals ............................. 68
see Interior lighting
see Replacing bulbs
Loading guidelines ....................... 142
Locking
see Central locking
Locking (doors)
Automatic ................................ 55
Emergency locking ..................... 55
From inside (central locking
button) .................................... 54
Locking centrally
see Central locking
Loudspeaker
see Subwoofer
Low-beam headlamps
Changing bulbs ......................... 72
Switching on/off ....................... 68
Lubricant additives
see Additives (engine oil)
M
M+S tires (winter tires) ................. 179
Malfunction message
see Display messages
Manual transmission
Engaging reverse gear ................ 91
Gear lever ................................ 91
Malfunction (on-board computer
with a color display) ................. 130
Pulling away ............................. 88
Shift recommendation ................. 91
Shifting to neutral .................... 91
Starting the engine ................... 88
Manually releasing the selector
lever lock (automatic transmis-
sion) ........................................... 97
Matte finish (cleaning instruc-
tions) ......................................... 156 Message memory (color display)
....... 113
Message memory (on-board com-
puter) ......................................... 113
Messages
see Display messages
Mirrors
see Exterior mirrors
see Rear-view mirror
Mobile phone
Frequencies ............................ 204
Installation ............................ 204
Transmission output (maximum) .. 204
Model series
see Vehicle identification plate
Mounting wheels
Lowering the vehicle ................ 200
Mounting a new wheel ................ 199
Preparing the vehicle ............... 197
Raising the vehicle .................. 197
Removing a wheel ..................... 199
Securing the vehicle against
rolling away ............................ 197
Multi-functional seat
see Seats
Multifunction steering wheel
Overview ................................. 25
N
Notes on breaking-in a new vehicle ... 86
O
Occupant Classification System
(OCS)
Conditions ............................... 36
Faults ..................................... 40
Operation ................................ 37
System self-test ........................ 39
Occupant safety
Children in the vehicle .............. 42
Important safety notes ................ 29
Introduction to the restraint
system ..................................... 29
Occupant Classification System
(OCS) ...................................... 36
PASSENGER AIR BAG indicator
lamps ...................................... 30
Pets in the vehicle .................... 46
Index9

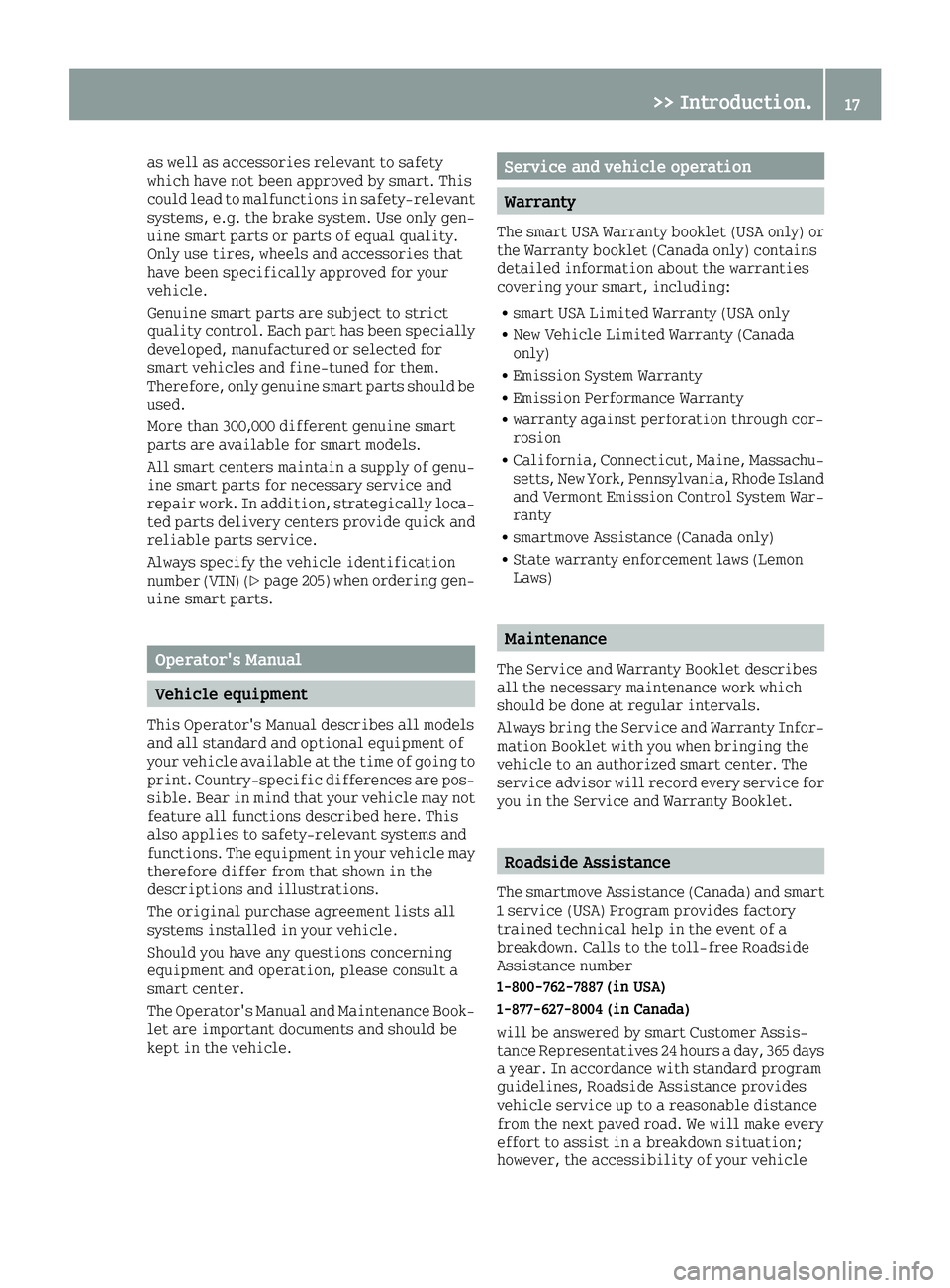

as well as accessories relevant to safety
which have not been approved by smart. This
could lead to malfunctions in safety-relevant
systems, e.g. the brake system. Use only gen-
uine smart parts or parts of equal quality.
Only use tires, wheels and accessories that
have been specifically approved for your
vehicle.
Genuine smart parts are subject to strict
quality control. Each part has been specially
developed, manufactured or selected for
smart vehicles and fine-tuned for them.
Therefore, only genuine smart parts should be
used.
More than 300,000 different genuine smart
parts are available for smart models.
All smart centers maintain a supply of genu-
ine smart parts for necessary service and
repair work. In addition, strategically loca-
ted parts delivery centers provide quick and
reliable parts service.
Always specify the vehicle identification
number (VIN) (
Ypage 205) when ordering gen-
uine smart parts.
Operator's Manual
Vehicle equipment
This Operator's Manual describes all models
and all standard and optional equipment of
your vehicle available at the time of going to
print. Country-specific differences are pos-
sible. Bear in mind that your vehicle may not
feature all functions described here. This
also applies to safety-relevant systems and
functions. The equipment in your vehicle may
therefore differ from that shown in the
descriptions and illustrations.
The original purchase agreement lists all
systems installed in your vehicle.
Should you have any questions concerning
equipment and operation, please consult a
smart center.
The Operator's Manual and Maintenance Book- let are important documents and should be
kept in the vehicle.
Service and vehicle operation
Warranty
The smart USA Warranty booklet (USA only) or
the Warranty booklet (Canada only) contains
detailed information about the warranties
covering your smart, including:
Rsmart USA Limited Warranty (USA only
RNew Vehicle Limited Warranty (Canada
only)
REmission System Warranty
REmission Performance Warranty
Rwarranty against perforation through cor-
rosion
RCalifornia, Connecticut, Maine, Massachu-
setts, New York, Pennsylvania, Rhode Island
and Vermont Emission Control System War-
ranty
Rsmartmove Assistance (Canada only)
RState warranty enforcement laws (Lemon
Laws)
Maintenance
The Service and Warranty Booklet describes
all the necessary maintenance work which
should be done at regular intervals.
Always bring the Service and Warranty Infor-
mation Booklet with you when bringing the
vehicle to an authorized smart center. The
service advisor will record every service for
you in the Service and Warranty Booklet.
Roadside Assistance
The smartmove Assistance (Canada) and smart
1 service (USA) Program provides factory
trained technical help in the event of a
breakdown. Calls to the toll-free Roadside
Assistance number
1-800-762-7887 (in USA)
1-877-627-8004 (in Canada)
will be answered by smart Customer Assis-
tance Representatives 24 hours a day, 365 days
a year. In accordance with standard program
guidelines, Roadside Assistance provides
vehicle service up to a reasonable distance
from the next paved road. We will make every
effort to assist in a breakdown situation;
however, the accessibility of your vehicle
>> Introduction.17
Z

Useful information
i
This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's Man- ual. Country-specific differences are pos-
sible. Bear in mind that your vehicle may
not feature all functions described here.
This also applies to safety-relevant sys-
tems and functions.
iRead the information on qualified spe-
cialist workshops: (Ypage 20).
Panic alarm
XTo activate: press0033button 0043for about
two seconds.
An alarm sounds and the exterior lighting
flashes.
XTo deactivate: press0033button 0043again.
Occupant safety
Introduction to the restraint system
The restraint system can reduce the risk of
vehicle occupants coming into contact with
parts of the vehicle's interior in the event of
an accident. Furthermore, the restraint sys-
tem may also reduce the forces exerted on the
vehicle occupants when an accident occurs.
The restraint system includes:
RSeat belt system
RAir bags The components of the restraint system work
in conjunction with each other. They can only
offer the intended level of protection if all
vehicle occupants:
Rare correctly wearing their seat belts.
(Ypage 32)
Radjust their seat properly (Ypage 61).
The driver is also responsible for ensuring
that the steering wheel has been correctly
positioned. Observe the information relat-
ing to the correct driver's seat position
(
Ypage 61).
Always ensure the air bag can inflate prop-
erly if deployed (
Ypage 34).
An air bag supplements a correctly fastened
seat belt. As an additional safety device, the
air bag increases the level of protection for
vehicle occupants in the event of an accident.
For example, if the protection already pro-
vided by a correctly fastened seat belt will
suffice, the air bags are not deployed. Fur-
thermore, only the air bags that would
increase the degree of protection afforded to
the vehicle occupants in the event of an acci-
dent are deployed. Seat belts and air bags
generally do not protect against objects pen-
etrating the vehicle from the outside.
Information on restraint system operation
can be found under "Triggering of Emergency
Tensioning Devices and air bags"
(
Ypage 40).
See “Children in the vehicle” for information on children traveling with you as well as
vehicle restraint systems (
Ypage 42).
Important safety notes
GWARNING
Modifications to the restraint system may
cause it to no longer work as intended. The
restraint system may then not perform its
intended protective function and may fail
in an accident or trigger unexpectedly, for
example. This poses an increased risk of
injury or even fatal injury.
Never modify parts of the restraint system. Never tamper with the wiring, the elec-
tronic components or their software.
If it is necessary to modify an air bag sys-
tem to accommodate a person with disabil-
Occupant safety29
>> Safety.
Z

Useful information
i
This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's Man- ual. Country-specific differences are pos-
sible. Bear in mind that your vehicle may
not feature all functions described here.
This also applies to safety-relevant sys-
tems and functions.
iRead the information on qualified spe-
cialist workshops: (Ypage 20).
SmartKey
Important safety notes
GWARNING
If children are left unsupervised in the
vehicle, they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehi-
cle in motion if, for example, they:
Rrelease the parking brake.
Rshift the automatic transmission out of
park position P or shift manual trans-
mission into neutral.
Rstart the engine.
There is a risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle.
Never leave children or animals unattended
in the vehicle. Always keep the SmartKey
out of reach of children.
GWARNING
If you attach heavy or large objects to the
SmartKey, the SmartKey could be uninten-
tionally turned in the ignition lock. This
could cause the engine to be switched off.
There is a risk of an accident.
Do not attach any heavy or large objects to
the SmartKey. Remove any bulky key rings
before inserting the SmartKey into the
ignition lock.
!Keep the SmartKey away from strong mag-
netic fields. Otherwise, the remote control
function could be affected.
Strong magnetic fields can occur in the
vicinity of powerful electrical installa-
tions.
Do not keep the SmartKey:
Rwith electronic devices, e.g. a mobile
phone or another SmartKey
Rwith metallic objects, e.g. coins or metal
foil
Rinside metallic objects, e.g. a metal case
SmartKey functions
00430036 Unlocks the driver's door/vehicle
00440037Locks the vehicle
0087Opens the tailgate
XTo unlock the driver's door: press the0036
button.
The 0036 button must be pressed a second
time within 20 seconds to unlock the front-
passenger's door. This function can be acti-
vated or deactivated in the smart Media-Sys-
tem (see the separate operating instruc-
tions).
If you do not open the vehicle within approx-
imately 2 minutes of unlocking:
Rthe vehicle is locked again.
Rprotection against theft is reactivated
SmartKey51
>> Opening and closing.
Z

Useful information
i
This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's Man- ual. Country-specific differences are pos-
sible. Bear in mind that your vehicle may
not feature all functions described here.
This also applies to safety-relevant sys-
tems and functions.
iRead the information on qualified spe-
cialist workshops: (Ypage 20).
Correcting the driver's seat position
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, steering wheel
or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, steering wheel or
mirrors and fasten your seat belt before
starting the engine.
Example
Observe the safety guidelines on seat adjust-
ment (Ypage 61).
XMake sure that seat 0087is adjusted prop-
erly.
Adjusting the seats (
Ypage 62)
When adjusting the seat, make sure that:
Ryou are as far away from the driver's air
bag as possible.
Ryou are sitting in a normal upright posi-
tion.
Ryou can fasten the seat belt properly.
Ryou have moved the backrest to an almost
vertical position.
Ryou can depress the pedals properly.
Observe the safety guidelines on steering
wheel adjustment (
Ypage 65).
XMake sure that steering wheel 0043is adjus-
ted properly.
Adjusting the steering wheel (
Ypage 65)
When adjusting the steering wheel, make
sure that:
Ryou can hold the steering wheel with your
arms slightly bent.
Ryou can move your legs freely.
Ryou can see all the displays in the
instrument cluster clearly.
Observe the safety guidelines for seat belts
(
Ypage 31).
XCheck whether you have fastened seat
belt 0044properly (Ypage 33).
The seat belt should:
Rfit snugly across your body
Rbe routed across the middle of your
shoulder
Rbe routed in your pelvic area across the
hip joints
XBefore starting off, adjust the rear-view
mirror and the exterior mirrors
(
Ypage 66) in such a way that you have a
good view of road and traffic conditions.
Seats
Important safety notes
GWARNING
Children could become trapped if they
adjust the seats, particularly when unat-
tended. There is a risk of injury.
Seats61
>> Seats, steering wheel and mirrors.
Z

Useful information
i
This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's Man- ual. Country-specific differences are pos-
sible. Bear in mind that your vehicle may
not feature all functions described here.
This also applies to safety-relevant sys-
tems and functions.
iRead the information on qualified spe-
cialist workshops: (Ypage 20).
Exterior lighting
General notes
For reasons of safety, smart recommends that
you drive with the lights switched on even
during the daytime. In some countries, oper-
ation of the headlamps varies due to legal
requirements and self-imposed obligations.
Exterior lighting settings
Operation
0043Combination switch control
0044Marking
0049003FLights off
004A 0060standing lamp, parking lamp,
license plate lighting
004B0057High-beam headlamps
004C0058Automatic headlamp mode, control-
led by the light sensor
004D0058Low-beam headlamps
006CMarking
006DCombination switch middle ring
00BE005AFront fog lamps
00BF005ERear fog lamp
If you hear a warning tone when you leave the
vehicle, the lights may still be switched on.
XTurn combination switch control 0043until
0058 or003F is at marking 0044.
When in the 0058position the exterior light-
ing switches off automatically if you:
Rswitch off the engine
Ropen the driver's door
Rlock the vehicle
Rdo not switch on the high-beam headlamps
Automatic headlamp mode
0058 is the favored light switch setting. The
light setting is automatically selected
according to the brightness of the ambient
light (exception: poor visibility due to
weather conditions such as fog, snow or
spray):
RWith the engine running: depending on the ambient light conditions, the daytime
driving lights or the parking and low-beam
headlamps are switched on or off automat-
ically
XTo switch on automatic headlamp mode: turn
combination switch control 0043until 0058
is at marking 0044.
GWARNING
When the light switch is set to 0058, the
low-beam headlamps may not be switched on
automatically if there is fog, snow or other causes of poor visibility due to the weather
Exterior lighting67
>> Lights and windshield wipers.
Z

Useful information
i
This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's Man- ual. Country-specific differences are pos-
sible. Bear in mind that your vehicle may
not feature all functions described here.
This also applies to safety-relevant sys-
tems and functions.
iRead the information on qualified spe-
cialist workshops: (Ypage 20).
Overview of climate control systems
General notes
Observe the settings recommended on the fol- lowing pages. The windows could otherwise
fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air dehumidi-
fication function
Rswitch on the defrost windshield function
briefly, if required
Automatic climate control regulates the tem-
perature and the humidity of the vehicle
interior. It also filters undesirable substan-
ces out of the air.
Automatic climate control is only available
when the engine is running. Optimum opera-
tion is only achieved with the side windows
closed.
iWhen the weather is warm, ventilate the
vehicle for a brief period. This will speed up the cooling process, and the desired
vehicle interior temperature will be
reached more quickly.
iThe integrated filter filters out most
particles of dust and pollen. It also
reduces odors. A clogged filter reduces the
amount of air supplied to the vehicle inte-
rior. For this reason, you should always
observe the interval for replacing the fil- ter, which is specified in the Maintenance
Booklet. As it depends on environmental conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
Overview of climate control systems79
>> Climate control.

Recommendation for air distribution in
winter:set toÁand009B.
Recommendation for air distribution in
summer: set to009C.
Setting the air distribution
XStart the engine (Ypage 87).
XPress one or more of the Á,009Cand
009B buttons.
The indicator lamp next to the selected
button lights up.
Setting the airflow
XStart the engine (Ypage 87).
XTo increase: press the00F2button.
Each time the 00F2button is pressed, one of
the indicator lamps next to the airflow but-
tons lights up.
XTo reduce: press the00F3button.
Each time the 00F3button is pressed, one of
the indicator lamps next to the airflow but-
tons goes out.
Defrosting the windshield
General notes
You can use this function to defrost the wind-
shield or to clear a fogged up windshield or
front side windows on the inside.
iYou should only select the "Windshield
defrosting" function until the windshield
is clear again.
Switching on/off
XTurn the ignition key to position 1or 2or
start the engine (Ypage 87).
XTo activate: press the0064button.
The indicator lamp above the 0064button
lights up. The 0058automatic mode is
deactivated.
The 0064 "Defrosting the windshield"
function switches automatic climate con-
trol to the following functions:
Rcooling with air dehumidification on
Rhigh airflow
Rair distribution to the windshield and
front side windows
Rair-recirculation mode off
XTo deactivate: press the0064button.
or
XPress the 0058button.
or
XPress the Àbutton.
or
XPress the Á,009Cor009B button.
The indicator lamp above the 0064button
goes out.
Demisting the windows
Windows fogged up on the inside
XActivate the 005A"Cooling with air dehu-
midification" function.
XActivate automatic mode 0058.
XIf the windows continue to fog up, activate
the "Windshield defrosting" func-
tion 0064.
iYou should only select this setting until
the windshield is clear again.
Windows fogged up on the outside
XActivate the windshield wipers.
XSet the air distribution to 0064.
iYou should only select this setting until
the windshield is clear again.
Rear window defroster
General notes
The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the rear window is clear.
The rear window defroster can only be
switched on or off while the engine is run-
ning.
The rear window defroster switches off auto-
matically after approximately 10 minutes.
Vehicles with heated exterior mirrors: the
exterior mirrors will also be heated when you
switch on the rear window defroster. The mir-
82Operating the climate control systems
>> Climate control.

Problems with the transmission
ProblemPossible causes/consequences and0050Solutions
The transmission has
problems shifting
gear.The transmission is losing oil.
XHave the transmission checked at a qualified specialist work-
shop immediately.
The acceleration abil-
ity is deteriorating.
The transmission no
longer shifts into all of
the gears.
Reverse gear can no
longer be engaged.The transmission is in emergency mode.
XStop the vehicle.
XShift the transmission to position P.
XSwitch off the engine.
XWait at least ten seconds before restarting the engine.
XShift the transmission to positionD.
XHave the transmission checked at a qualified specialist work-
shop immediately.
Manually releasing the selector lever
lock
You can manually release the selector level
lock in the event of an electrical malfunc-
tion. This is the case, for example, when you
want to release the parking brake while tow-
ing away the vehicle and then apply it again.
!Do not use any sharp-edged objects to
prise out the cover from the center console.
Otherwise, the cover or the center console
could be damaged.
XApply the parking brake.
XPrise out cover 0043at lower edge 0044with a
flat, blunt object (e.g. a screwdriver wrap-
ped in cloth).
XPull cover 0043in the direction of the arrow.
XPull yellow release 0087behind the trim up
and simultaneously press release button 0085
on the selector lever.
XShift the selector lever to Nor P.
Refueling
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating
before refueling.
Refueling97
>> Driving and parking.
Z

XTo apply:firmly pull parking brake 0044
upwards.
When the engine is running, the 0027(USA
only) or 004D(Canada only) indicator lamp
lights up in the instrument cluster.
XTo release: depress the brake pedal and
keep it depressed.
XPress release button 0043on parking
brake 0044and guide the parking brake down
to the stop.
The 0027 (USA only) or 004D(Canada only)
indicator lamp in the instrument cluster
goes out.
The parking brake is not yet engaged if:
Ra warning tone sounds
RThe Release Parking Brakemessage
appears in the multifunction display and
Rthe 004D indicator lamp in the instrument
cluster lights up
Parking the vehicle for a long period
If you leave the vehicle parked for longer than
four weeks, the battery may be damaged by
exhaustive discharging.
If you leave the vehicle parked for longer than
six weeks, the vehicle may suffer damage as a
result of lack of use.
XVisit a qualified specialist workshop and
seek advice.
iYou can obtain information about trickle
chargers from a qualified specialist work-
shop.
Driving tips
General notes
Important safety notes
GWARNING
If you switch off the ignition while driv-
ing, safety-relevant functions are only
available with limitations, or not at all.
This could affect, for example, the power
steering and the brake boosting effect. You will require considerably more effort to
steer and brake. There is a risk of an acci-dent.
Do not switch off the ignition while driv-
ing.
GWARNING
If you operate mobile communication
equipment while driving, you will be dis-
tracted from traffic conditions. You could
also lose control of the vehicle. There is a
risk of an accident.
Only operate this equipment when the vehi- cle is stationary.
Observe the legal requirements for the coun-
try in which you are driving. Some jurisdic-
tions prohibit the driver from using a mobile
phone while driving a vehicle.
If you make a call while driving, always use
hands-free mode. Only use the telephone when
the traffic situation permits. If you are
unsure, pull over to a safe location and stop
before using the telephone.
Bear in mind that at a speed of only 30 mph
(approximately 50 km/h), the vehicle covers a
distance of 44 ft (approximately 14 m) per
second.
Drive sensibly – save fuel
Observe the following tips to save fuel:
RThe tires should always be inflated to the
recommended tire pressure.
RRemove unnecessary loads.
RWarm up the engine at low engine speeds.
RAvoid frequent acceleration or braking.
RHave all maintenance work carried out as
indicated by the service intervals in the
Maintenance Booklet or by the service
interval display.
Fuel consumption also increases when driv-
ing in cold weather, in stop-start traffic and
in hilly terrain.
Drinking and driving
GWARNING
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
102Driving tips
>> Driving and parking.
