Replacing bulbs
260
>> Practical hints. High mounted brake lamp
1
Retaining screws
2
High mounted brake lamp
3
Bulb socket
>Removing: Unscrew retaining screws
1.
>Remove high mounted brake lamp
2.
>Detach the electrical connector from bulb
socket
3.
>Turn the bulb counterclockwise and pull it
out of its socket.
>Installing: Install in the reverse order.License plate lamps
1
License plate lamp unit jacking point>Use a suitable tool to loosen the corre

sponding license plate lamp unit at jacking
point
1.
>Carefully unclip the license plate lamp unit.
2
Electrical connectors
3
Bulb
>Detach electrical connectors
2.
>Remove bulb
3.
>Insert the new bulb.
>Attach electrical connectors
2.
>Fit the license plate lamp unit on the right
and press gently on the left.
The license plate lamp unit must audibly
engage. P82.10
4838
31
G
Warning!
High outside temperature, stop
and
go
traffic, driving on long uphill grades, or
driving at high engine speed may increa

se the temperature in the engine com

partment. Therefore the area around the
air slots in the rear apron may be hot. Let
the engine cool off before touching this
area to prevent burns.
P82.10
4999
31

Replacing bulbs
>> Practical hints.
261 Replacing the interior lighting
You need a 12 V 10 W bulb.1
Electrical connector
2
Bulb
3
Mount>Removing: Use a flat object to pry the lamp
lens off from the passenger side.
>Detach electrical connector
1 from the
interior lamp.
>Remove bulb
2 from its mount
3.
>Installing: Insert the new bulb.
>Attach connector
1 to the interior lamp.
>Fit the lamp lens on the left in the opening
and press gently on the right.
The lamp lens must audibly engage. P82.20
2955
31

Replacing wiper blades
262
>> Practical hints.
About replacing wiper blades
!
Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the windshield wiper tensioning spring
could crack the windshield.
Do not allow the wiper arms to contact the
windshield glass without a wiper blade
inserted.
We recommend that you have this work carried
out at an authorized smart center.
To ensure proper visibility,
• it is vital that you have wiper blades that
are in perfect shape.
• clean the wiper blades regularly with a
cleaning agent.
• remove any tough dirt stains with a sponge
or brush.
Windshield wiper blades!
Do not pull on the wiper blade inserts.
They could tear.
>Remove the key from the starter switch.
>Fold the wiper arm away from the windshield
until it snaps into place.
1
Retaining springs
2
Detaching wiper blade
G
Warning!
For safety reasons, switch off the wipers
and remove the key from the starter
switch before replacing a wiper blade.
The windshield wipers could otherwise be
set in motion and cause injury.G
Warning!
Wiper blades are components that are
subject to wear and tear. Replace the
wiper blades at least twice a year, pref

erably in the spring and fall. Otherwise
the windows will not be properly wiped. As
a result, you may not be able to observe
surrounding traffic conditions and could
cause an accident.

Replacing wiper blades
>> Practical hints.
263
>Removing: Press on retaining springs
1 on
both sides of the wiper blade.
>Fold the wiper blade away from the wiper
arm in the direction of arrow
2 and detach
it.
>Installing: Attach the new wiper blade and
fold it into a position parallel to the wiper
arm.
Retaining springs
1 must audibly engage
in the wiper arm.
>Fold the wiper arm backward to rest on the
windshield.
Make sure to hold on to the wiper when
folding the wiper arm back.
!
Make sure the wiper blades are properly
installed. Improperly installed wiper blades
may cause windshield damage.
Rear window wiper blade1
Wiper blade
2
Detaching wiper blade
>Removing: Fold the wiper arm away from the
rear window until you feel it engage.
>Fold wiper blade
1 away from the wiper
arm in the direction of arrow
2 until it
disengages from its mounting.
>Detach wiper blade
1.>Installing: Push the new wiper blade onto
the wiper arm until you feel it engage.
>Fold the wiper blade into a position parallel
to the wiper arm.
>Fold the wiper arm backward to rest on the
rear window.
Make sure to hold on to the wiper when
folding the wiper arm back.
!
Make sure the wiper blade is properly
installed. An improperly installed wiper blade
may cause rear window damage. P82.30
2607
31

Replacing wiper blades
264
>> Practical hints.

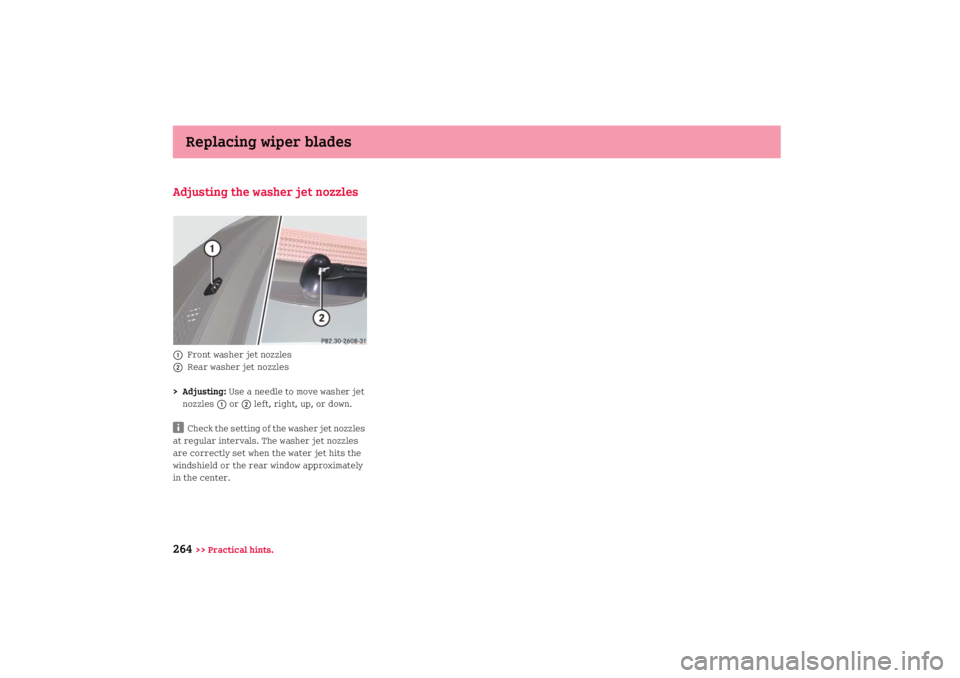

Adjusting the washer jet nozzles1
Front washer jet nozzles
2
Rear washer jet nozzles
> Adjusting: Use a needle to move washer jet
nozzles
1 or
2 left, right, up, or down.
i
Check the setting of the washer jet nozzles
at regular intervals. The washer jet nozzles
are correctly set when the water jet hits the
windshield or the rear window approximately
in the center.P82.30
2608
31

Flat tire
>> Practical hints.
265 Preparing the vehicle
Upon experiencing any type of problem with
the vehicle's tires, switch on the hazard warn

ing flasher, carefully slow down and exit the
roadway in a cautious manner.
>Park the vehicle at a safe distance from
moving traffic on a hard, flat surface when
possible
.
>Set the parking brake.
>Turn the steering wheel so that the front
wheels are in a straight ahead position.
>Move the gear selector lever to park
positionP.
>Turn off the engine.
>Remove the key from the starter switch and
take the key with you.i
Open door only when conditions are safe to
do so.
>Have any passenger exit the vehicle at a
safe distance from the roadway.
Using the tire repair kitThe tire repair kit can be used to seal punc

tures of up to approximately 0.16 in (4 mm) on
the tire tread.
The tire repair kit enables you to drive on the
sealed tire to the nearest authorized smart
center.
>You should have the sealed tire replaced at
an authorized smart center.
G
Warning!
Take care not to allow the contents of the
tire sealant to come in contact with hair,
eyes or clothing. The tire sealant is
harmful if inhaled, swallowed or absorbed
through the skin it may causes skin, eye
and respiratory irritation. Wear gloves
while using this product if they are avail

able.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with the tire
sealant, change clothing as soon as pos

sible.
In case of allergic reaction or rash,
consult a physician immediately.

Flat tire
266
>> Practical hints.
Notes• Small tire punctures, particularly those in
the tread, can be sealed with the tire seal

ant.
• The tire sealant can be used in ambient
temperatures from
4°F (
20°C) to +104°F
(+40°C).
• Do not remove any foreign objects such as
nails or screws that have penetrated the
tire.
• Do not use the tire sealant if the tire has
been damaged by being driven when insuf

ficiently inflated (e.g. bumps, cuts, cracks
etc. on the tire).
• Allow escaped tire sealant to dry, then peel
it off.• Immediately wash all painted surfaces that
came into contact with the tire sealant using
a damp cloth.
• Avoid skin and eye contact with the tire
sealant.
• Do not swallow the tire sealant.
• Allow the tire sealant that is inside the
damaged tire to dry and dispose of together
with the tire.
• Do not use the tire sealant after the expira

tion date has elapsed (see top of container).
Instead, have it replaced at an authorized
smart center.
G
Warning!
The tire sealant is a limited repair
device. The tire sealant cannot be used
for cuts or punctures larger than
approximately 0.16 in (4 mm) and tire
damage caused by driving with extremely
low tire inflation pressure, or on a flat
tire, or a damaged wheel.
Do not drive the vehicle under such
circumstances.
If you are unsure of the condition of the
tire or have any question whatsover
about its suitability for driving contact
the nearest smart center for assistance
or call Roadside Assistance.

Flat tire
>> Practical hints.
267
>Take the tire repair kit from the passen

ger’s footwell (

page 234).
>Open the tire repair kit lid.
1
Flange
2
Pressure gauge
3
Deflate button
4
Filler hose with stopper
5
Operating instructions label
6
Electrical plug
7
Electric air pump switch
8
Sticker
9
Tire sealant container>Attach sticker
8 where it will be easily
seen by the driver on the instrument
cluster.
>Pull electrical plug6
and filler hose
4
out
of the housing.
>Unscrew the lid of flange
1.
>Unscrew the lid of tire sealant container
9.
Make sure that you do not damage the
aluminum seal.
>Screw tire sealant container
9 onto
flange
1.
Make sure that the container is threaded
correctly onto the flange. This punctures
the aluminum seal of the tire sealant con

tainer.
G
Warning!
Please review the instructions below for
using the tire repair kit. If you are not
confident that you can competently follow
the instructions for using this kit, do not
use the kit, but instead call for Roadside
Assistance.G
Warning!
Keep the tire sealant out of reach of
children. If swallowed, rinse mouth imme

diately with plenty of water and drink
plenty of water.
Do not induce vomiting!
Consult a physician immediately.
Keep away from open flame, heat source
or sparks. Do not smoke.
G
Warning!
Follow safety instructions on the electric
air pump label.

Flat tire
268
>> Practical hints. >Unscrew the valve cap from the tire valve of
the damaged tire.
>Pull off the stopper of filler hose
4.
>Screw the end of filler hose
4
onto the tire
valve.
>Insert electrical plug
6
into the auxiliary
power outlet (

page 164).
>Insert the key in the starter switch and turn
it to position1.
i
The vehicle's battery is drained by use of
the electric air pump. You should therefore
keep the engine running
in the open air

while inflating the tire.
>PressI on electric air pump switch
7.
The electric air pump is switched on and
inflates the tire.
i
First, the sealant is pumped into the tire.
The pressure may briefly increase to a high
value. This is normal and not an indication of a
malfunction. Do not switch off the electric air
pump.>Let the electric air pump inflate the tire for
a maximum of ten minutes.
Pressure gauge
2 must display at least
26 psi (1.8 bar) is reached. The filler hose
can become hot during inflation.
Please exercise appropriate caution.
!
Do not operate the electric air pump
longer than ten minutes without interruption.
Otherwise it may overheat.
You may operate the electrical air pump again
after it has cooled off.
>If the tire inflation pressure of at least
26 psi (1.8 bar) is not attained, turn off the
electric air pump by pressing0 on electric
air pump switch
7.
>Unscrew the end of filler hose
4
from the
tire valve.
>After clearing the area around the vehicle
of people and obstacles, drive vehicle back
or forth very slowly approximately 30 ft
(10 m).
This serves to better distribute the tire
sealant material inside the tire.>Screw the end of filler hose
4 onto the tire
valve.
>Inflate the tire again.
>After attaining a tire inflation pressure of
26 psi (1.8 bar), press0 on electric air
pump switch
7.
The electric air pump is switched off.
>Turn the key in the starter switch to
position0.
G
Warning!
If a tire inflation pressure of 26 psi
(1.8 bar) is not attained, the tire is too
severely damaged for the tire sealant to
provide a reliable tire repair.
In this case, the tire sealant cannot
properly seal the tire.
Do not drive the vehicle.
Contact the nearest smart center for as

sistance or call Roadside Assistance.

Flat tire
>> Practical hints.
269
>Unscrew the end of filler hose
4 from the
tire valve.
>Plug filler hose
4 with the stopper.
>Tire sealant container
9 remains screwed
onto flange
1. The filler hose may still be
hot. Please exercise appropriate caution.
>Place the tire repair kit securely in the
vehicle.
>Drive off immediately.
The tire sealant will distribute itself evenly
inside the tire.>After driving for about 1.8 miles (3 km) or
ten minutes, take all of the appropriate
safety precautions and then take the tire
repair kit from the vehicle.
>Screw the end of filler hose
4
on to the tire
valve.
>Check the tire inflation pressure using
pressure gauge
2.>If the tire inflation pressure is at least
20 psi (1.3 bar), inflate or deflate the tire
to correct tire inflation pressure (see Tire
and Loading Information placard located on
the driver’s door B
pillar.
>To increase the tire inflation pressure:
Switch on the electric air pump.
>To decrease the tire inflation pressure:
Press on deflate button
3. Recheck the
tire inflation pressure with the electric
air pump's pressure gauge.
>After checking the tire inflation pressure,
unscrew the end of filler hose4
from the
tire valve.
>Plug filler hose
4 with the stopper.
>Place the tire repair kit securely in the
vehicle.
>Screw the valve cap onto the tire valve.
G
Warning!
Do not exceed vehicle speed of
50 mph (80 km/h). A tire sealant repair is
not designed to operate at higher
speeds.
The sticker must be attached on the
instrument cluster where it will be easily
seen by the driver.
Vehicle handling characteristics of a tire
sealant repaired tire may change. Adapt
your driving accordingly.
G
Warning!
If tire inflation pressure has fallen below
20 psi (1.3 bar) do not continue to drive
the vehicle.
Park your vehicle safely away from the
roadway and contact the nearest smart
center or call Roadside Assistance.
Have the damaged tire replaced.
